CM-1392M
Video and L/R to HDMI
Scaler Box
Operation Manual
CM-1392M

Disclaimers
The information in this manual has been carefully checked and
is believed to be accurate. Cypress Technology assumes no
responsibility for any infringements of patents or other rights of third
parties which may result from its use.
Cypress Technology assumes no responsibility for any inaccuracies
that may be contained in this document. Cypress also makes
no commitment to update or to keep current the information
contained in this document.
Cypress Technology reserves the right to make improvements to this
document and/or product at any time and without notice.
Copyright Notice
No part of this document may be reproduced, transmitted,
transcribed, stored in a retrieval system, or any of its part translated
into any language or computer file, in any form or by any means
- electronic, mechanical, magnetic, optical, chemical, manual,
or otherwise - without express written permission and consent from
Cypress Technology.
© Copyright 2011 by Cypress Technology.
All Rights Reserved.
Version 1.0 March 2011
Trademark Acknowledgments
All products or service names mentioned in this document may be
trademarks of the companies with which they are associated.

Safety Precautions
Please read all instructions before attempting to unpack or install or
operate this equipment, and before connecting the power supply.
Please keep the following in mind as you unpack and install this
equipment:
 Always follow basic safety precautions to reduce the risk of
fire, electrical shock and injury to persons.
 To prevent fire or shock hazard, do not expose the unit to rain,
moisture or install this product near water.
 Never spill liquid of any kind on or into this product.
 Never push an object of any kind into this product through
module openings or empty slots, as you may damage parts.
 Do not attach the power supply cabling to building surfaces.
 Do not allow anything to rest on the power cabling or allow it to
be abused by persons walking on it.
 To protect the equipment from overheating, do not block the
slots and openings in the module housing that provide
ventilation.
Revision History
Version No Date Summary of Change
VR0 20110413 Preliminary Release

Table of Contents
1. Introduction...................................................................................1
2. Applications..................................................................................1
3. Package Contents .......................................................................1
4. System Requirements...................................................................1
5. Features.........................................................................................1
6. Specications ................................................................................ 2
6.1 Supporting Input & Output Timing .................................... 2
7. Operation Controls and Functions .............................................. 3
7.1 Front Panel ........................................................................... 3
7.2 Rear Panel............................................................................ 4
8. Output Format.................................................................................5
9. OSD Operation................................................................................5
9.1 Picture Adjust....................................................................... 5
9.2 Output Setup ....................................................................... 6
10. Remote Control.............................................................................7
11. Connection and Installation........................................................8
12. Acronyms ......................................................................................9

1. Introduction
The CM-1392M Video to HDMI Scaler Box is designed to scale CVBS and
S-Video with R/L audio into HDMI. Supporting PC timings up to WUXGA 1920
x 1200 at 60Hz and HD timings up to 1080p at 60Hz. Supporting the NTSC and
PAL TV standards and allowing you to select the specific video timing through
the OSD, this device has many features that enhance the quality of your
videos.
2. Applications
 Showroom environment
 Education demo
 Installation usage
3. Package Contents
 Video and L/R to HDMI Scaler Box
 5V DC power supply adaptor
 Operation Manual
 Remote Control
4. System Requirements
 Input source equipments such as video player or DVD player with
Composite or S-Video and L/R output and connection cables.
 Output displays with HDMI input and connection cable.
5. Features
 Motion adaptive 3-D de-interlacing and 3D Y/C separation with CVBS
input
 Automatic 2: 2, 3 : 2 film mode detection & correction
 Automatic NTSC/PAL video format detection and frame rate conversion
(from 50Hz to 60Hz)
 Automatic 3D noise reduction
 Supports one dimensional CTI (Chroma Transient Improvement) and LTI
(Luminance Transient Improvement) for edge improvement
 OSD menu for picture quality adjustment
 Supports HD timings from 480p@60 Hz to 1080i/p@60 Hz and PC timings
from VGA@640x480 to WUXGA@1920x1200
 Two ways to control the CM-1392M, either using an IR remote control or
the control panel on the device
1

6. Specications
TMDS Clock Frequency 225Mhz
Color depth 8bits
Color space YUV (HD), RGB (PC)
Input Signal Levels Video@1Vp-p, 75Ω, Y@1Vp-p, 75Ω, [email protected] Vp-p,
75Ω
Input Ports 1 x Composite, 1 x S-Video, 1 x R/L
Output Port 1x HDMI
Audio Input Level 2Vrms (Full Scale)
Output Resolution HD: 480p@60Hz, 576p@50 Hz, 720p@50/60 Hz,
1080i@50 /60 Hz, 1080p@50/60 Hz
PC: VGA@640x480,
SVGA@800x600, XGA@1024x768,
WXGA@1360x768, WSXGA@1440x900,
SXGA1280x1024, SXGA+@1400x1050,
UXGA@1600x1200, WUXGA@1920x1200
Power Supply 5V/1A Linear power adaptor (US/EU standards,
CE/FCC/UL certified) or 5V/1.2A Switching
power adaptor (with universal plug CE/FCC/UL
certified)
Weight (g) 400
Dimensions (mm) 125 (W) x 123 (D) x 30 (H)
Silkscreen Color Process Blue
Operating Temperature 0˚C ~ 40˚C / 32˚F ~ 104˚F
Storage Temperature -20˚C ~ 60˚C / -4˚F ~ 140˚F
Relative Humidity 20 ~ 90% RH (non-condensing)
Power Consumption (W) 4.1
6.1 Supporting Input & Output Timing
Input Video System
Output Timing
PC HDMI support’s
Frame Rate conversion
NTSC(60Hz) VGA/SVGA/XGA/1280x800/WXGA/
WSXGA/SXGA/1400x1050/1680x1050/
UXGA/WUXGA/1920x1080
480p,576p,720p50/60,1080i50/60,
1080p50/60
PAL(50Hz)
* WSXGA=1440x900@60, WXGA=1360x768@60, SXGA=1280x1024@60,
UXGA=1600x1200@60, WUXGA=1920x1200@60RB
2

7. Operation Controls and Functions
The following sections describe the hardware components of the unit.

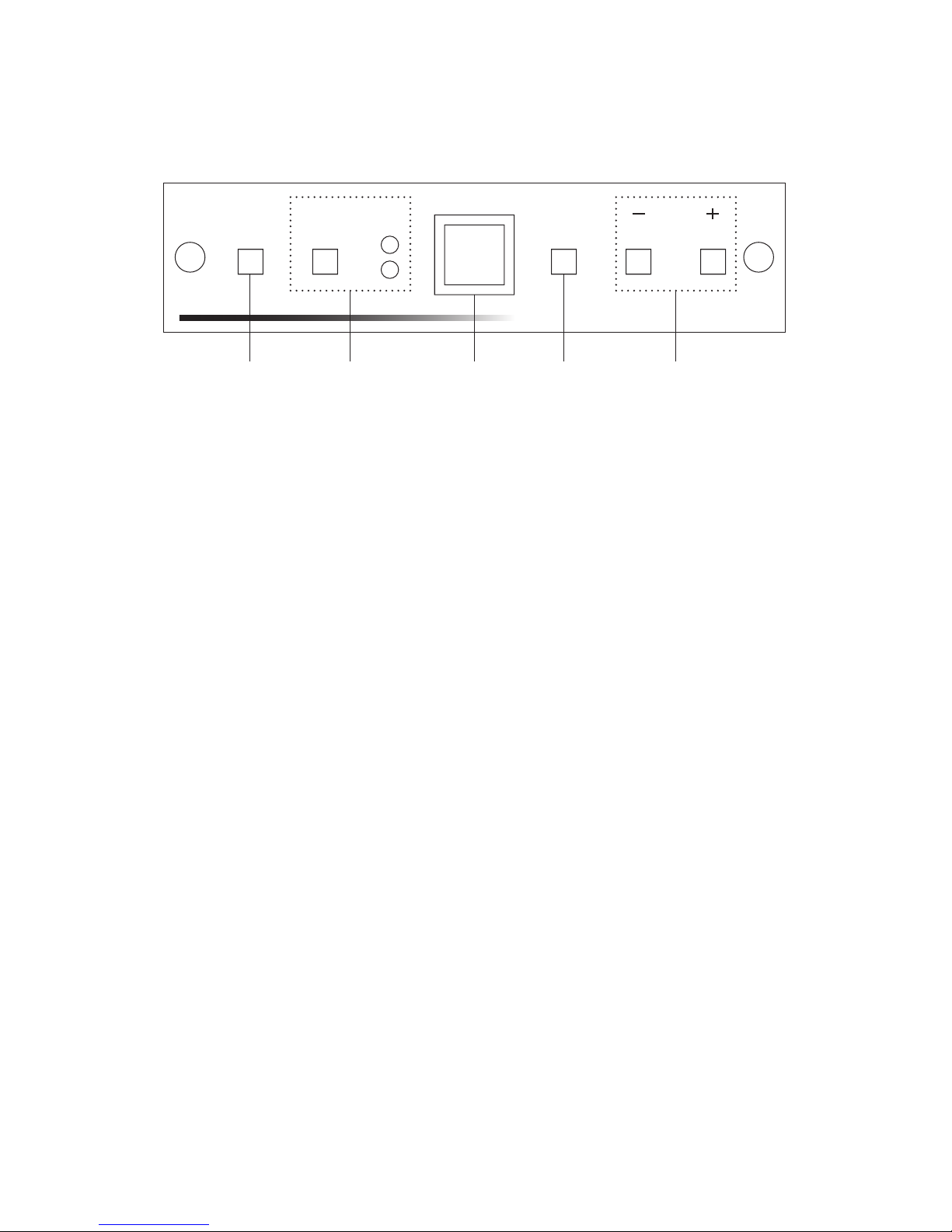

7.1 Front Panel
POWERINPUT
CM-1392M Video to HDMI Scaler Box
CV
SV
MENU
① ③ ④② ⑤
①󳌤 Power button and LED indicator:
Press the button once to power on the unit, press again to power off.
When the unit is powered on, one of the input LED will illuminate
depending on your last selection of input source before power off.
The factory default setting for the input is CV (Composite Video).
The green LED illuminates when composite video is selected.
The Yellow LED illuminates when S-Video is selected.
②󳌤󳌤Input select button:
Press the button to select your desired input source between Composite
Video and S-Video.
③󳌤󳌤IR Sensor: Infrared ray remote control sensor.
④󳌤󳌤Menu/Enter: This button serves two purposes.
a. Press the button to select your desired input source between
Composite Video and S-Video.
b. To act as a “Enter”key to enter sub menu of your selection item or to
adjust value of the selected item.
⑤󳌤󳌤+/- button:
Press the button to move up or down the tick “V”to your desired
parameter. Or after a parameter is elected by pressing MENU/ENTER
button, press the button to alter the value of your selected parameter.
3

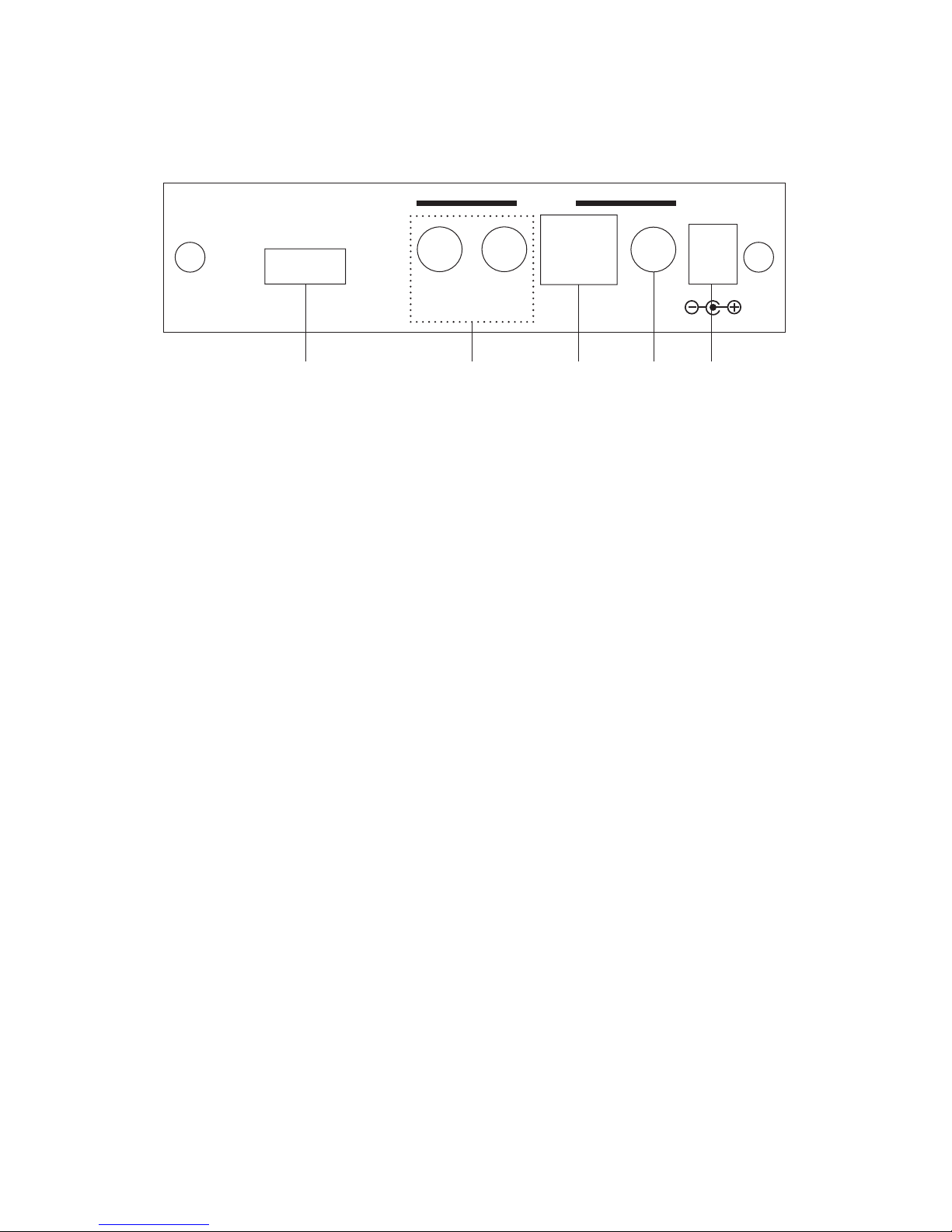

7.2 Rear Panel
DC 5V
SV CV
OUTPUT INPUT
AUDIO
RL
HDMI
②① ③ ④ ⑤
①󳌤 HDMI output: Connect the HDMI output port to the HDMI input of the LCD
or HDTV.
②󳌤 R/L audio input: Connect R/L stereo audio format to the audio source,
when selected Composite Video or S-Video the HDMI output will include
the stereo audio with the video at the same time.
③󳌤 S-Video Input: Use a S-Video cable to connect the S-Video output of
the source video equipment to this S-Video input on the back of the video
scaler. S-Video provides improved performance over Composite Video
and is recommended over Composite.
④󳌤 CV (Composite Video) Input : Use a Composite Video cable to connect
the Composite Video output of the source equipment to this Composite
Video (CV) input of the scaler.
⑤󳌤 DC power jack: Plug the DC 5V power supply into the splitter and connect
the adaptor to AC wall outlet.
4

8. Output Format
The format for analog PC output is RGB and for analog HD output is YPbPr.
PC (RGBHV) HDTV (YPbPr)
VGA
SVGA
XGA
WXGA
WSXGA
SXGA
UXGA
WUXGA
640 x 480
800 x 600
1024 x 768
1280 x 800
1360 x 768
1680 x 1050
1280 x 1024
1400 x 1050
1680 x 1050@60RB
1600 x 1200
1920 x 1200
1920 x 1080@60RB
60Hz
60Hz
60Hz
60Hz
60Hz
60Hz
60Hz
60Hz
60Hz
60Hz
60Hz
60Hz
1080p
1080i
720p
576p
480p
1920 x 1080p
1920 x 1080i
1280 x 720
720 x 576
720 x 480
Follow input source and can
convert 50Hz to 60Hz
Follow input source and can
convert 50Hz to 60Hz
Follow input source and can
convert 50Hz to 60Hz
50Hz
60Hz
9. OSD Operation
After power on the unit, press the menu button to bring up the main menu
page as below:
Main Menu
Picture Adj
Output Setup
Exit
Use +/- button to move “”to your desired parameter, the press MENU/ENTER
to enter into sub-menu of your selected parameter.
9.1 Picture Adjust
When Picture Adjust is selected a sub menu as below comes up.
Default Range
Bright 16 1-31
Contrast 16 1-31
Color 16 1-31
Tint 16 1-31
Sharp 50 1-19
Default OK
Exit
Use +/- to move the tick “”to your desired adjust item, press the Menu/Enter
to confirm your selection.
5

+/- to increase or decrease the value of the parameter.
When adjustment is complete, press “MENU”to leave the parameter. Move
the tick “”to cancel the selection, press MENU/ENTER to Exit.
9.2 Output Setup
When output Set up is selected a submenu as below appears:
Output Setup
Timing XGA
Exit
Press the “MENU/ENTER”button to enter into output timing select mode. Press
+/- to toggle through a variety of output resolutions as below. Once your
desired resolution is selected, press the MENU/ENTER to enter the resolution.
VGA 640 x 480 60 Hz
SVGA 800 x 600 60 Hz
XGA 1024 x 768 60 Hz
1280 x 800 60 Hz
WXGA 1360 x 768 60 Hz
WSXGA 1440 x 900 60 Hz
SXGA 1280 x 1024 60 Hz
1400 x 1050 60 Hz
1680 x 1050 60 HzRB
UXGA 1600 x 1200 60 Hz
1920 x 1080 60 HzRB
WUXGA 1920 x 1200 60 HzRB
480p 720 x 480 60 Hz
576p 720 x 576 50 Hz
720p 1280 x 720 60 Hz
1080i 1920 x 1080i follow input source and can convert 50Hz to 60Hz
1080p 1920 x 1080p follow input source and can convert 50Hz to 60Hz
Native follow input source and can convert 50Hz to 60Hz
Note:1. All output resolutions except 576p have 60Hz vertical rate, the 576p
resolution has 50Hz vertical rate.
6

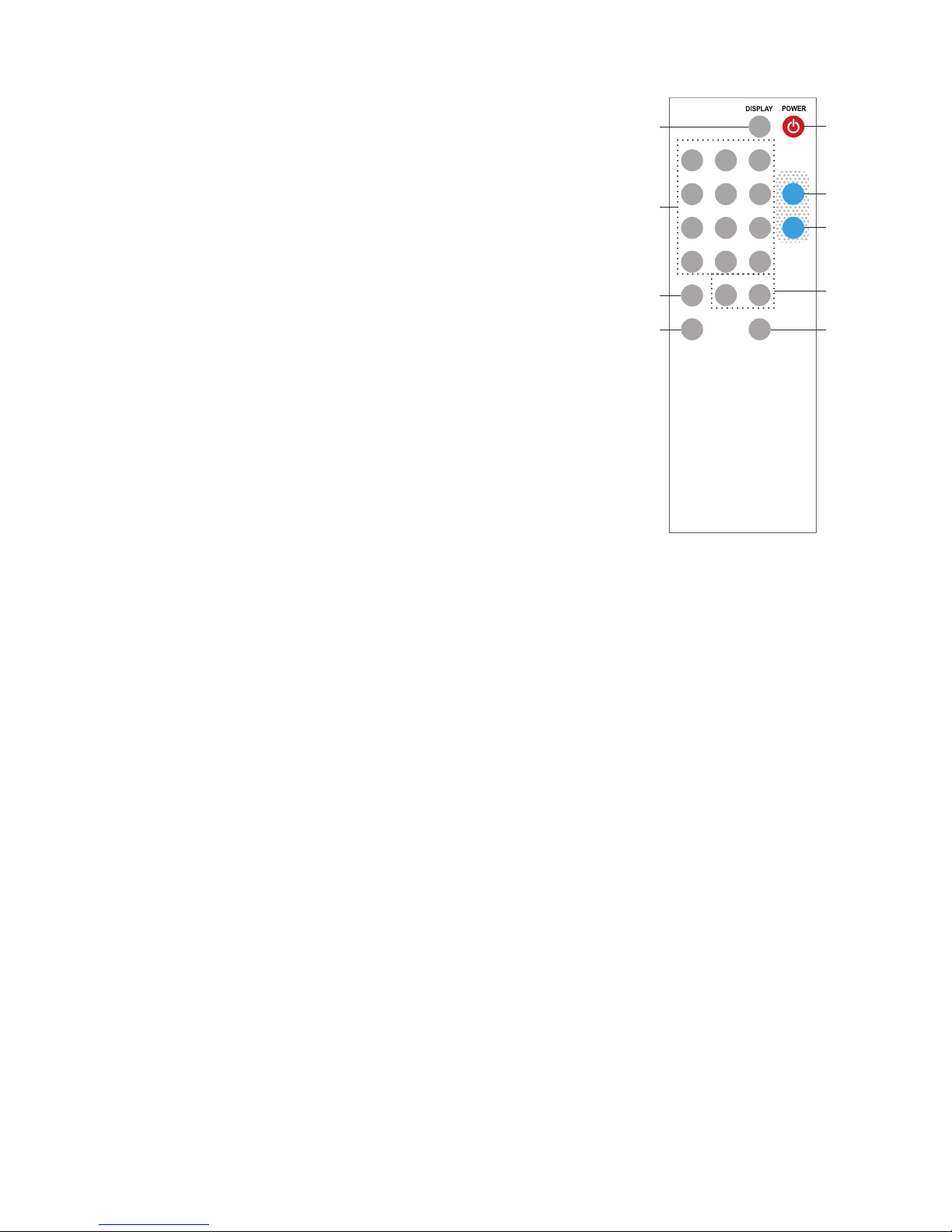

10. Remote Control
①󳌤Display: Press the button to display input source
and output resolution on the screen.
②󳌤Power: Power ON/OFF button.
③󳌤VGA ~1080p: Press to select your desired output
resolution.
④󳌤Picture: Press the button to enter picture adjust
submenu. Use +/- button to move cursor up/
down to select your desired parameter, press
“Picture”again to confirm the selection.
⑤󳌤+/-: Press to move up/down the cursor to select
your desired parameter, or press to increase/
decrease the setting values.
⑥󳌤Reset: Press to reset all the setting back to factory
default value.
⑦󳌤Exit: To exit OSD.
⑧󳌤Video: Press the button to select Composite Video
input.
⑨󳌤S-Video: Press the button to select S-Video input.
VIDEO
VGA SVGA XGA
WXGA SXGA
480p
720p 1080i
RESET EXIT
-
+
576p
UXGA
1080p
WUXGA
SVIDEO
CR-58
⑨
⑤
⑧
②
①
③
④
⑥ ⑦
7

11. Connection and Installation
VCR, DVD, STB, DVHS
Video,
SVideo HDMI Cable
HDMI
output
HDMI
Input
HD display Monitor,
Projectors
8

Acronyms A
Acronym Complete Term
CV Composite Video
NTSC National Television System committee
OSD On-Screen-Display
PAL Phase Alternating Line
RGB Red Green Blue
SV S-Video
9

20110317 MPM-CM1392M
Home page: http://www.cypress.com.tw
CYPRESS TECHNOLOGY CO., LTD.
