1. Introduction
The Ethernet and USB to HDMI Converter allows you to use a TV as your
laptop/desktops primary display. Simply connect the TV to the device and
then plug the device into the Ethernet network and your TV will instantly
become the PC’s principal display. This Converter also has two USB ports, for
a mouse and keyboard, allowing you to control any networked computer .
Aside from enabling a TV to be your primary PC display this device also
removes the problem of running expensive audio and video cabling over
long distances, all that is needed is an Ethernet network.
Because everyone can access a TV, they gain the ability to use a computer
without being physically connected to it, so they can perform PC tasks like
browsing the internet, use Microsoft Office and access any music or movies
you may have on iTunes, a truly easy and cost effective solution for sharing
AV among computers.
2. Applications
 Ethernet to HDMI Displays
 USB to HDMI Display
 Long distance PC display and control
 PC application sharing
 Docking stations
 Projectors display
3. Package Contents
 Ethernet to HDMI device x 1
 Operational Manual x 1
 Driver CD x 1
 Power adaptor x 1
1

4. System Requirements
 System Hardware Requirements: 2.4 GHz single core CPU with at least
1GB RAM for optimal performance
 Operating Systems:
Windows 2K SP4
Windows XP Home or Professional 32 bits SP2
Windows Vista 32 bits
 USB Port Extension:
An available USB 2.0 port with USB to mini USB cable
 Network Extension:
An available Ethernet port at home or a commercial network with RJ-
45 cable
 Keyboard and Mouse for using PC applications
Note:
•The converter supports an Ethernet transfer bandwidth of
60 Mbits/s
•480p/576p resolutions work best for an Ethernet connection, with a
maximum operating distance of 100m.
•720p resolution works best with an USB connection up to 2M long
•The Ethernet interface does not support Mac OS whereas the USB
can support Mac OS X v10.4.11 and v10.5.6
 Upgrade the graphics drivers, Display Link software and the mother
board's chip set driver to their latest versions.
5. Features
 Experience the complete PC environment on a TV from 100 meters
away. Content on the original PC monitor can be different from the TV
content.
 Allows a TV to act as the primary PC display, and when using a keyboard
and mouse this allows you to browse the internet, use Microsoft Office
and watch and listen to music/movies, from any networked computer.
 Extend or mirror video through network or USB cable to HDMI display,
including both video and audio output signals.
 Share HDMI displays with multiple users through your existing office or
home IP network.
 Add an HDMI display to your computer through a USB 2.0 port.
 Supports mirror and extended video modes.
 A friendly interface for easy installation and use.
2

6. Specications
Input port 1 x Mini USB; 1 x Ethernet
Output ports 1 x HDMI
Extender Ports 2 x USB
Power Supply 5VDC/2.6A (US/EU standards, CE/FCC/UL certified)
ESD Protection Human body model: ±10kV (air-gap discharge)
±6kV (contact discharge)
Core chipset: ±2kV
Dimensions (mm) 90(W) x 120(D) x 30(H)
Weight(g) 220
Chassis Material Aluminum
Silkscreen Color Metal Black
Power Consumption 8W
Operating Temperature 0˚C~40˚C / 32˚F~104˚F
Storage temperature -20˚C~60˚C/ -4˚F ~ 140˚F
Relative Humidity 20~60% RH (non condensing)
3

7. Hardware Description
The following sections describe the hardware components of the unit.
Note: Install the device driver of your Ethernet/USB to HDMI converter before
operating the device.
7.1 Product overview
Ethernet or
mini USB HDMI
Monitor
PC/NB Ethernet to
HDMI device
7.2 Front Panel
Ethernet IN
INPUT
MINI USB
IN
Reset IP
Ethernet
MINI USB
USB Port
① ② ③ ④ ⑤
① USB Port: These ports are the converter's USB Hub that allows you
to connect a USB Hard Drive, USB web camera, Keyboard or Mouse.
Note:
•These two USB ports cannot be connected to a USB Hub.
Doing so will trigger the system to detect the external USB Hub and
thereby cause a system failure.
•Before removing a USB device, you must follow the USB device's
hardware removal procedure when removing the device. Failure to
do so will cause the system to crash.
② Mini USB IN: This port supports extension or mirror of video (via USB cable)
to your HDMI display, including both video and audio output signals.
③ Ethernet IN: This slot lets you connect a RJ-45 CAT5 cable to home IP
router or PC Ethernet port.
•When connected to a PC Ethernet port, the user needs to
manually set the Internet Protocol (TCP/IP) to “169.254.10.1”.
•If connected to an IP router, the system will automatically be
connected without the user setting up its Internet Protocol.
④ Input connection switch: This switch allows you to select the PC source
either via Mini USB port or through Ethernet port.
⑤ Reset IP: This button is only pressed to reset the Ethernet IP address when
the system's IP address is incorrect.
4

7.3 Rear Panel
DC 5V HDMI OUT
EDID
OFF ON
POWER
LINK
① ② ③ ④ ⑤
① Power: This slot is where you plug in the 5V DC power supply of the unit
before connecting the adaptor to an AC outlet.
② HDMI OUT: The display output port of the converter that is only compatible
with an HDMI display.
③ EDID control switch: The default setting of this switch is on.
Leave as is if the display is working properly. If the display has a built-in
EDID, the screen will show the display’s resolution, and users can choose
the desired screen resolution(available in extended mode). When
switched off, the screen will show internal EDID, and users can select the
screen resolution from the provided resolutions.
NOTE:
When switching from on to off, users need to go to “Launch USB Server
”to disconnect DisplayLink USB to HDMI and reconnect it again. If not,
the system will remain on. However, from off to on, the user does not
need to reconnect the DisplayLink USB to HDMI device,
the system will automatically switch to on mode.(See section 9 for details)
④ LINK LED Indicator: When input switches to MINI USB mode the blue LED
will turn on when the source is connected. When input is switched to
Ethernet a blinking blue LED means its trying to connect.
⑤ Power LED Indicator: Red LED will switch on when the power is connected
to the converter.
5

8. Software Installation
The following sections list the procedures to follow when installing the USB to
HDMI and USB device drivers.
8.1 USB to HDMI Software
Insert the provided driver CD into your CD-ROM drive. Using the Program
Manager, select and double-click on the “USB to HDMI Software”folder.
Locate and then execute the “Setup.exe”file to start installation. Once
prompted with the display message below, choose your preferred
language and click the "Automatically check for updates" item before you
click on the "I Accept" button. The program will install automatically and
complete in seconds, without prompting you to do any further actions.
8.2 USB device driver
From the root directory of your driver CD, double-click on "XP_VS_Setup.
ext" to install the USB device driver. After installation is complete, select
"Yes" from the display message below to restart the computer.
6

9. Launch USB Server
Press the “Launch USB Server ”icon from your desktop to connect the
DisplayLink USB to HDMI device and C-Media USB Sound Device. Once the
connection completes, the status icons beside each driver will change from
green to orange as illustrated below.
Note: Doube clicking on the device driver toggles the status mode between
enable and disable.
When connecting devices with the USB port, "Launch USB Server" will detect it
and show a green sign. Double clicking the green sign will connect the new
device, after a successful connection it will turn orange, after turning orange
you are free to use the device.
Note: This USB Server screen will appear only when input from Ethernet. When
users wish to switch input from Ethernet to USB the Launch USB Server
must be disconnected before switching. Skipping the disconnection
step may result in Launch USB Server's failure.
7

10. Using the DisplayLink Manager
10.1 Using DisplayLink Manager
After the driver is completely installed, (the DisplayLink Manager-utility) will
automatically appear on the system tray. The utility allows you to quickly
change the settings and resolution for DisplayLink Manager. Right-clicking
the icon will launch its context menu.
 Screen Resolution: This item allows you to select the screen resolution
(available only in extended mode).
Note: When the display has a built-in native EDID the screen will show the
display’s resolution, Without a built-in EDID, the screen will only have
the following resolutions on the screenshot bellow.
8

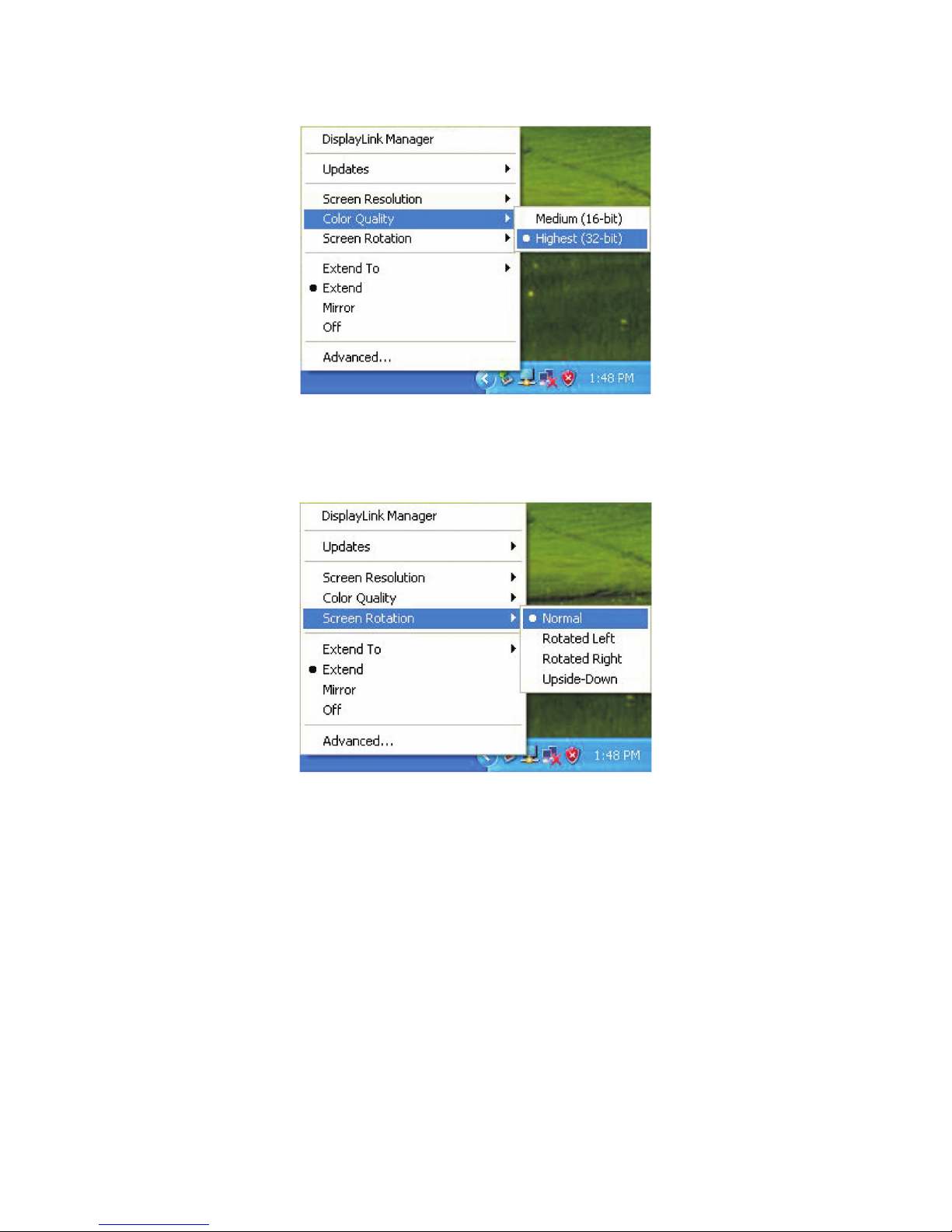

 Color Quality: This option allows you to select the screen color quality
(available only in extended mode).
 Screen Rotation: This item allows you to rotate the screen by 90, 180
or 270 degrees, on the additional monitor.
9

 Extend to: This option lets you reposition the extended screen to the top,
bottom, left or right of the primary display.

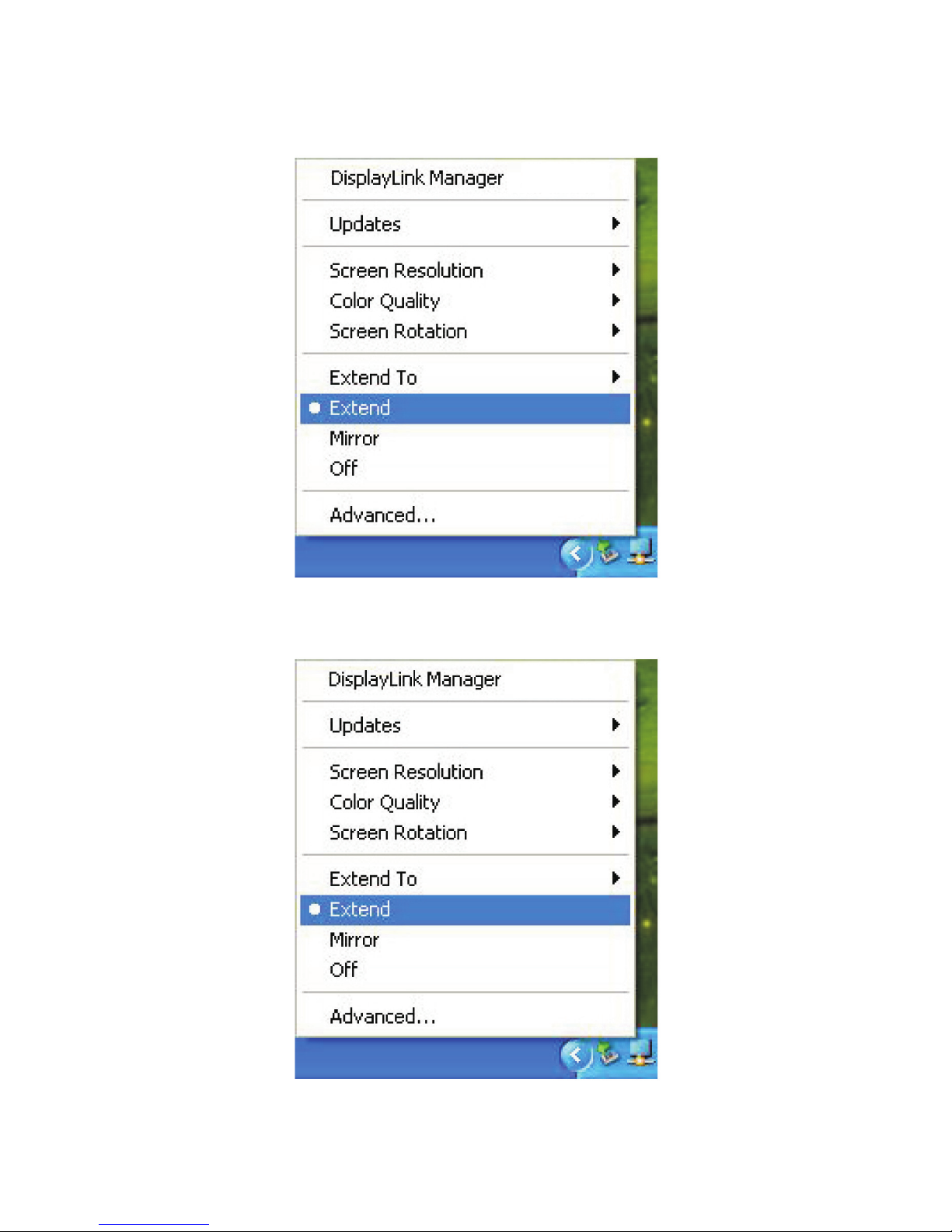

 Extend: This item lets you set the DisplayLink Manager to Extended mode.
10

 Mirror: This option allows you to set the DisplayLink Manager to Mirror
mode. Enabling this will let you see an identical desktop image
on the additional monitor.
 Off: This item disables DisplayLink Manager.
11

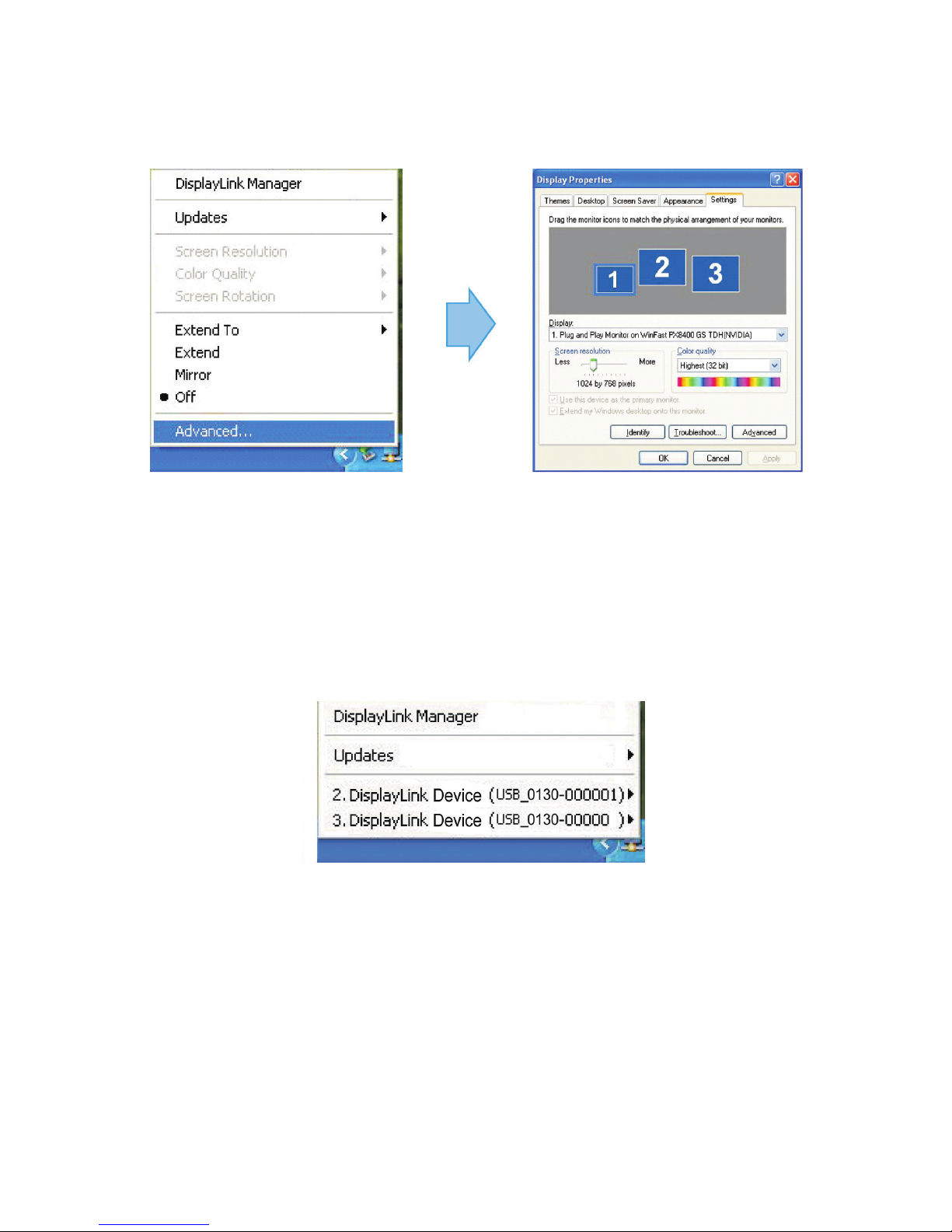

 Advanced: This item accesses your system's Display Properties.
From this menu, you will be able to adjust the resolution, color
quality, position and refresh rate via the Display Properties.
10.2 Using More DisplayLink Manager
It is not necessary to install driver again if you have completed the driver
installation in advance. The driver automatically defines the ID of newly
added DisplayLink Managers. All the installed DisplayLink Managers will be
listed in the Display Properties on the display manager menu.
Note: When connecting additional DisplayLink Managers to a computer, it is
recommended to have a system with a higher performing CPU.
12
2

10.3 Firmware Update
Updates on your firmware version may be done manually or automatically.
Pease refer to the following procedures when performing either type of
update.
 Manually Update: Manually updating your firmware is possible by
clicking Updates →Check Now…, it will then check
and download the latest firmware.
Note: Before performing updates, please make sure that your computer is
connected to a network.
 Automatic Update: utomatically updating your firmware is also possible
by clicking Updates →Configure…Once the
Updates Options window appears, as seen below,
you can configure the parameters such as the update
method and frequency. Click the OK button to save
your settings.
13

11. Uninstall the Device Driver
Follow the steps below to uninstall the USB to HDMI drivers installed in your
system.
Step 1: Open the Control Panel: Start →Control Panel
→Add or Remove Programs.
Step 2: Select USB to HDMI Converter and click Remove.
Step 3: Click Yes to confirm the removal.
14

Step 4: Select DisplayLink Graphics and click Remove. Click Yes to confirm
the removal.
Step 5: Click Yes to restart your computer.
15

12. Connection and Installation
PC NB IP Router
▼RJ-45 Cable
Keybord Mouse HDD Flash
TV/Display
USB Cable
▲
HDMI
HDMI Cable
▲
RJ-45 Cable
▲
16
