Cypress CA-COMPAT User manual

PC/HD Audio over
CAT5 Receiver at
100 Meters
Operation Manual
CA-COMP100R

TABLE OF CONTENTS
1. Introduction ........................................................................................ 3
2. Features.............................................................................................. 3
3. Package Contents ............................................................................ 3
4. Operation Controls and Functions................................................... 4
4.1 Front Panel.................................................................................... 4
4.2 Rear Panel .................................................................................... 5
5. Specications .................................................................................... 6
5.1 Audio Performance..................................................................... 6

1
1. Introduction
This is the receiver (Rx) unit of PC/HD audio over CAT5 solution, works with the
transmitter that can extend PC/HD with Audio signal through CAT-5 cables
for a distance up to 100 meters. The installation of PC/HD audio over CAT5
is easy and quick, simply place receiver next to your display, and get all
necessary cables connected to complete and enjoy.
2. Features
 Supports PC/RGB and HD/YCbCr/YPbPr format output.
 Supports CAT-5 cable.
 Supports high definition (HD) output source up to 1080P.
 Supports PC output source up to UXGA.
 Supports Dolby AC3/PCM 2Ch Toslink output audio
 The output signal will depend on the input source.
 Easy to install and simple to operate.
3. Package Contents
 PC/HD audio over CAT5 receiver box.
 5V/1A DC power supply adaptor.
 Operation Manual.

2
321 4
EQUALIZER GAIN CAT5-INDC 5V
ADJUST
MINMAX
4. Operation Controls and Functions
4.1 Front Panel
1. EQUALIZER: Use this switcher to adjust signal enhancement over long
distance.
2. GAIN: Use this switcher to adjust brightness.
3. CAT5-IN: Connected the video output to the video input of the CAT5
receiver unit using CAT-5 cable.
4. DC 5V/1A: Power input.

3
TOSLINK
OUT
AUDIO
OUT
PC/HD
OUT
1 2 3

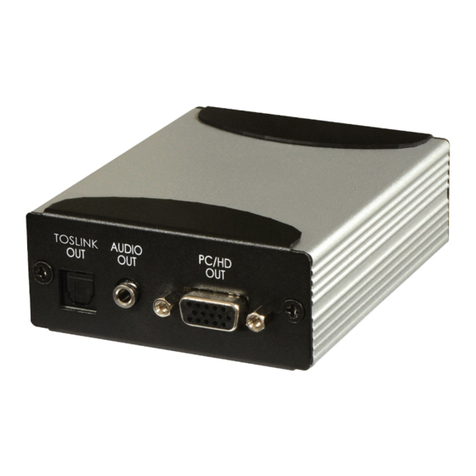

4.2 Rear Panel
1. Toslink output: Connected SPDIF output to the display audio input.
2. Audio output: Connected audio R/L output to the display audio input.
3. PC/HD output: Connect the PC/HDMI output port to the PC/HDMI input
display with D-Sub 15pin cable.

4
5. Specications
Supported Resolutions HD: up to 1080p; PC: up to UXGA
Output Ports VGA, Audio L/R or Toslink/SPDIF
Input Port CAT-5
Audio Input Toslink: Dolby AC3 / PCM 2CH
L/R: PCM 2CH
Power Supply 5V/1A DC (US/EU standards, CE/FCC/UL certified)
Dimensions (mm) 99.5(W) x 77(D) x 32.5(H)
Weight(g) 200
Chassis Material Metal
Silkscreen Color Black/Silver
Operating Temperature 0°C ~ 40°C
5.1 Audio Performance
Input
Level/Freq.
Output
Terminal Channel Output Sample Rate
Reference
Level Vrms/dB
THD+N
<0.01%
SNR
>80dB
Crosstalk
<-60dB NOTE
Analog L/R
1Vrms/1KHz
Analog LN/A 2.047 <0.01% >80dB <-60dB
Frequency:1KHz;
Sample Rate:48KHz
R 2.015 <0.01% >80dB <-60dB
Toslink L44.1KHz -2.37 <0.01% >80dB <-60dB
R -2.5 <0.01% >80dB <-60dB
Input
Level/Freq.
Output
Terminal
Output
Sample Rate
Reference
Level
THD+N
<0.01%
SNR
>80dB
Crosstalk
<-80dB NOTE
Toslink
-6dB/1KHz
(32~192KHz)
Analog LN/A 1.35 <0.01% >80dB <-60dB
Frequency:1KHz;
Sample Rate:48KHz
R 1.35 <0.01% >80dB <-60dB
Toslink L32~192KHz -6 <0.01% >80dB <-60dB
R -6 <0.01% >80dB <-60dB

Supported Resolutions HD: up to 1080p; PC: up to UXGA
Output Ports VGA, Audio L/R or Toslink/SPDIF
Input Port CAT-5
Audio Input Toslink: Dolby AC3 / PCM 2CH
L/R: PCM 2CH
Power Supply 5V/1A DC (US/EU standards, CE/FCC/UL certified)
Dimensions (mm) 99.5(W) x 77(D) x 32.5(H)
Weight(g) 200
Chassis Material Metal
Silkscreen Color Black/Silver
Operating Temperature 0°C ~ 40°C
5.1 Audio Performance
Input
Level/Freq.
Output
Terminal Channel Output Sample Rate
Reference
Level Vrms/dB
THD+N
<0.01%
SNR
>80dB
Crosstalk
<-60dB NOTE
Analog L/R
1Vrms/1KHz
Analog LN/A 2.047 <0.01% >80dB <-60dB
Frequency:1KHz;
Sample Rate:48KHz
R 2.015 <0.01% >80dB <-60dB
Toslink L44.1KHz -2.37 <0.01% >80dB <-60dB
R -2.5 <0.01% >80dB <-60dB
Input
Level/Freq.
Output
Terminal
Output
Sample Rate
Reference
Level
THD+N
<0.01%
SNR
>80dB
Crosstalk
<-80dB NOTE
Toslink
-6dB/1KHz
(32~192KHz)
Analog LN/A 1.35 <0.01% >80dB <-60dB
Frequency:1KHz;
Sample Rate:48KHz
R 1.35 <0.01% >80dB <-60dB
Toslink L32~192KHz -6 <0.01% >80dB <-60dB
R -6 <0.01% >80dB <-60dB

Home page: http://www.cypress.com.tw
CYPRESS TECHNOLOGY CO., LTD.
Cypress Component over CAT5 series:
Product Description
CA-COMPAT Component over CAT5 Transmitter
CA-COMP 50R Component over CAT5 Receiver at 50 meters
CA-COMP 100R Component over CAT5 Receiver at 100 meters
20071128 MPM-COMP100R
