Cypress CDL-165PRO User manual

CDL-165PRO
USB Wireless Transmitter
and Receiver
to HDMI Display
Operation Manual
CDL-165PRO

Disclaimers
The information in this manual has been carefully checked and
is believed to be accurate. Cypress Technology assumes no
responsibility for any infringements of patents or other rights of third
parties which may result from its use.
Cypress Technology assumes no responsibility for any inaccuracies
that may be contained in this document. Cypress also makes
no commitment to update or to keep current the information
contained in this document.
Cypress Technology reserves the right to make improvements to this
document and/or product at any time and without notice.
Copyright Notice
No part of this document may be reproduced, transmitted,
transcribed, stored in a retrieval system, or any of its part translated
into any language or computer file, in any form or by any means
- electronic, mechanical, magnetic, optical, chemical, manual,
or otherwise - without express written permission and consent from
Cypress Technology.
© Copyright 2009 by Cypress Technology.
All Rights Reserved.
Version 1.0 October 2009
Trademark Acknowledgments
All products or service names mentioned in this document may be
trademarks of the companies with which they are associated.

Safety Precautions
Please read all instructions before attempting to unpack or install or
operate this equipment, and before connecting the power supply.
Please keep the following in mind as you unpack and install this
equipment:
 Always follow basic safety precautions to reduce the risk of
fire, electrical shock and injury to persons.
 To prevent fire or shock hazard, do not expose the unit to rain,
moisture or install this product near water.
 Never spill liquid of any kind on or into this product.
 Never push an object of any kind into this product through
module openings or empty slots, as you may damage parts.
 Do not attach the power supply cabling to building surfaces.
 Do not allow anything to rest on the power cabling or allow it to
be abused by persons walking on it.
 To protect the equipment from overheating, do not block the
slots and openings in the module housing that provide
ventilation.
Revision History
Version No Date Summary of Change
V1 20091119 Preliminary Release
V2 20101022 Software Installation
RDV1 20101126 Cancel Firmware Update
VR0 20110526 Add 9.1
VR1 20110708 Delete 10.2

Table of Contents
1
1
1
1
2
2
3
3
3
3
4
5
8
8
9
9
10
11
11
15
16
17
18
1. Introduction
2. Applications
3. Package Contents
4. System Requirements
5. Features
6. Specications
7. Operation Controls and Functions
7.1 Transmitter
7.2 Receiver
7.2.1 Front Panel
7.2.2 Back Panel
8. Software Installation
9. Using Wireless USB Manager
9.1 Connecting Wireless USB Manager
9.2 Select Connection Rules item
9.3 System Association
9.4 Device Connection
10. Using DisplayLink Manager
10.1 Using DisplayLink Manager
11. Uninstall the Device Driver
12. Connection and Installation
13. Troubleshooting
14. Acronyms

1. Introduction
Today people are spending more of their time around technology, especially
for entertainment purposes, and often encounter problems. People spend a
lot of their watching Internet TV (HULU for instance is a popular source for
internet TV and movies However when the Internet TV viewer requires a larger
viewing screen for a more immersive experience they then have to go
through the hassle of connecting multiple cables, or working with wireless
devices that fail to impress us on their quality. Well our “USB wireless
transmitter and receiver to HDMI display”can allow you to view any PC
information on a compatible TV with a wired like experience. An additional
feature of this product is that it includes extra USB ports allowing it to perform
KVM operations next to the TV, which is an added bonus for those of us who
are multi-taskers.
2. Applications

Wirelessly send Audio and Video from your PC to an HDTV

Watch Internet TV on big screen, wirelessly
3. Package Contents

USB Wireless Transmitter

USB Wireless Receiver

5V DC power adaptor

User Manual

Driver CD
4. System Requirements

System Hardware Requirements: 2.4 GHz single core CPU with at least
1GB RAM for optimal performance

Operating Systems:
Windows XP Home or Professional 32 bits SP2
Windows Vista 32 bits
Windows 7

USB Port Extension:
An available USB 2.0 port with USB to mini USB cable

It is suggested to upgrade your systems graphics drivers, Display Link
software and the mother boards chip set driver to their latest version
1

5. Features

Worldwide Band Groups 1,3,4 and 6

Supports HDMI & VGA outputs

16/32-bit Color for high-quality images

HD resolution up to 1920 x 1080

Has a broadcast range of 10 meters

Speed up to 150Mb/s

HDMI and RGB display connectivity

EDID selection with switch for VGA or HDMI output

Secure and easy to use
6. Specications
Input Port 1 x Mini USB
Output Ports 1 x HDMI, 1 x D-Sub 15pin, 3.5Φ phone jack
Extender Ports 2 x USB Hubs (A type)
Power Supply 5V DC/2.6A (US/EU standards, CE/FCC/UL certified)
ESD Protection Human body model: ±8kV (air-gap discharge)
±4kV (contact discharge)
Dimensions (mm) Transmitter: 81(W) x 25(D) x 11(H)
Receiver: 90(W) x 120(D) x 25(H)
Weight(g) Transmitter: 22
Receiver: 120
Chassis Material Transmitter: Plastic
Receiver: Plastic
Silkscreen Color Transmitter: Black
Receiver: Metal Black
Power Consumption Receiver: 8W
Operating Temperature 0˚C ~ 40˚C / 32˚F ~ 104˚F
Storage Temperature -20˚C ~ 60˚C / -4˚F ~ 140˚F
Relative Humidity 20~90% RH (non-condensing)
2

7. Operation Controls and Functions
The following sections describe the hardware components of the unit and
include a step by step installation guide and other suggested settings.
7.1 Transmitter
Connect the wireless USB dongle to a PC or Laptop to deliver fast and
reliable media through the use of Ultra Wide Band (UWB) technology.
The LED will illuminate when PC or Laptop has successully detect the
device and when the LED is blinking it means data is been transmit to
receiver.
7.2 Receiver
7.2.1 Front Panel
1 2 3
①HDMI OUT: Connect the HDMI output to the HDMI display.
②AUDIO OUT: Connect the audio output to the speaker or AVR.
③VGA OUT: Connect the VGA output to the VGA monitor.
Note: HDMI and VGA can output at the same time.
3

7.2.2 Back Panel
1 3 54 6
2
①Power: This slot is where the user plugs in the 5V DC power supply of this
unit before connecting the adaptor to an AC wall outlet.
②Link LED: When the LED illuminate it shows that the device has successfully
detected the transmitter and when it blink it means the device is
receiving transmitter's signals.
③CABLE ASSOC.: This slot is where the user connects a USB cable to the PC
or Laptop USB port for ID association when first using the system and later
on when establishing a connection with the Transmitter.
④EDID control switch: The default setting for this switch is HDMI, leave the
switch here as long as the connected display is compatible. When
the EDID control is switched from HDMI to VGA the unit will detect the
sources EDID and record it. Turn off in order to use the built in EDID.
⑤USB Port: These ports allow the receiver to act like a USB hub, allowing you
to connect an External Hard Drive, Keyboard or Mouse.
Note:
 Before removing the USB device, the user must follow the USB devices
hardware removal procedure. Failure to do so will cause the system
to crash.
⑥Mini USB IN: This port, when connecting to USB port of your PC via USB
cable, supports mirror or video extension of your PC content on your
HDMI display. When connected it will override and replace the wireless
USB connection between TX and RX and the unit then works as a wired
USB to HDMI Converter.
4

8. Software Installation
The following sections list the procedures to follow when installing the USB to
HDMI and USB device drivers. Insert the provided CD into your CD-ROM drive,
then begin the Wireless USB Install Disc and follow the below steps to install the
driver.
Step 1: Click Install drivers and application.
Step 2: Click “Continue”to start the setup.
Step 3: Click "Next" to continue the set up.
5

Step 4: Click “I accept the terms of the License Agreement”and go to the
Next page.
Step 5: Click “Finish”to complete the installation.

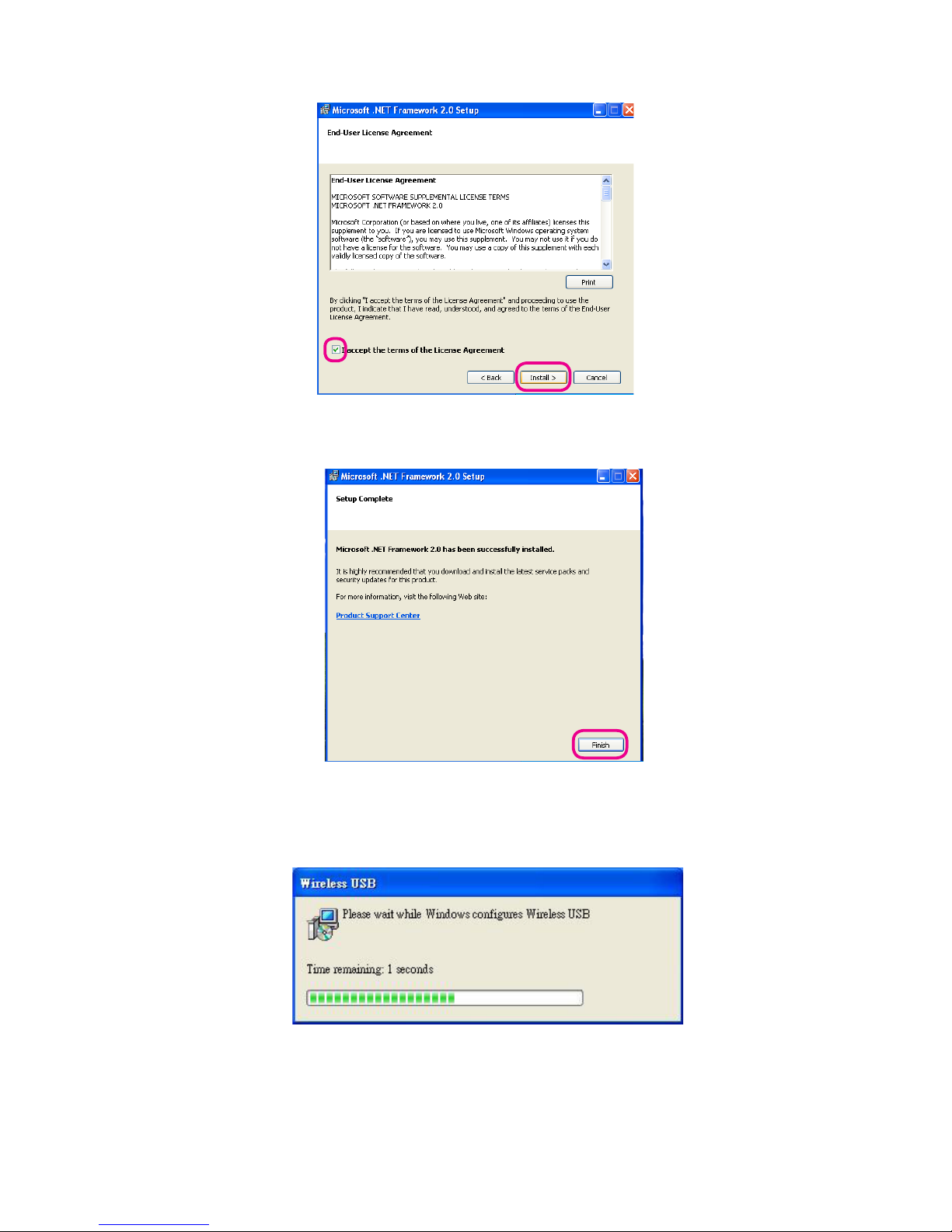

The installation process may take a little time, please be patient while the
system is running.
6

Step 6: Click “I accept the terms of the License Agreement”and go to the
Next page.
The installation process may take a little time, please be patient while the
system is running.
Step 7: When all three software are being instally successfully with three
tick show on the window, Click “Close” to finish installing.
7

Step 8: Click "exit" to exit the installer dialogue and restart the computer.
Notes: At this point, users should power-on and connect the receiver to the
display.
9. Using Wireless USB Manager
9.1 Connecting Wireless USB Manager
Connect the transmitter on to the source device (PC/NB) and click on
the "Start" from the Desktop.

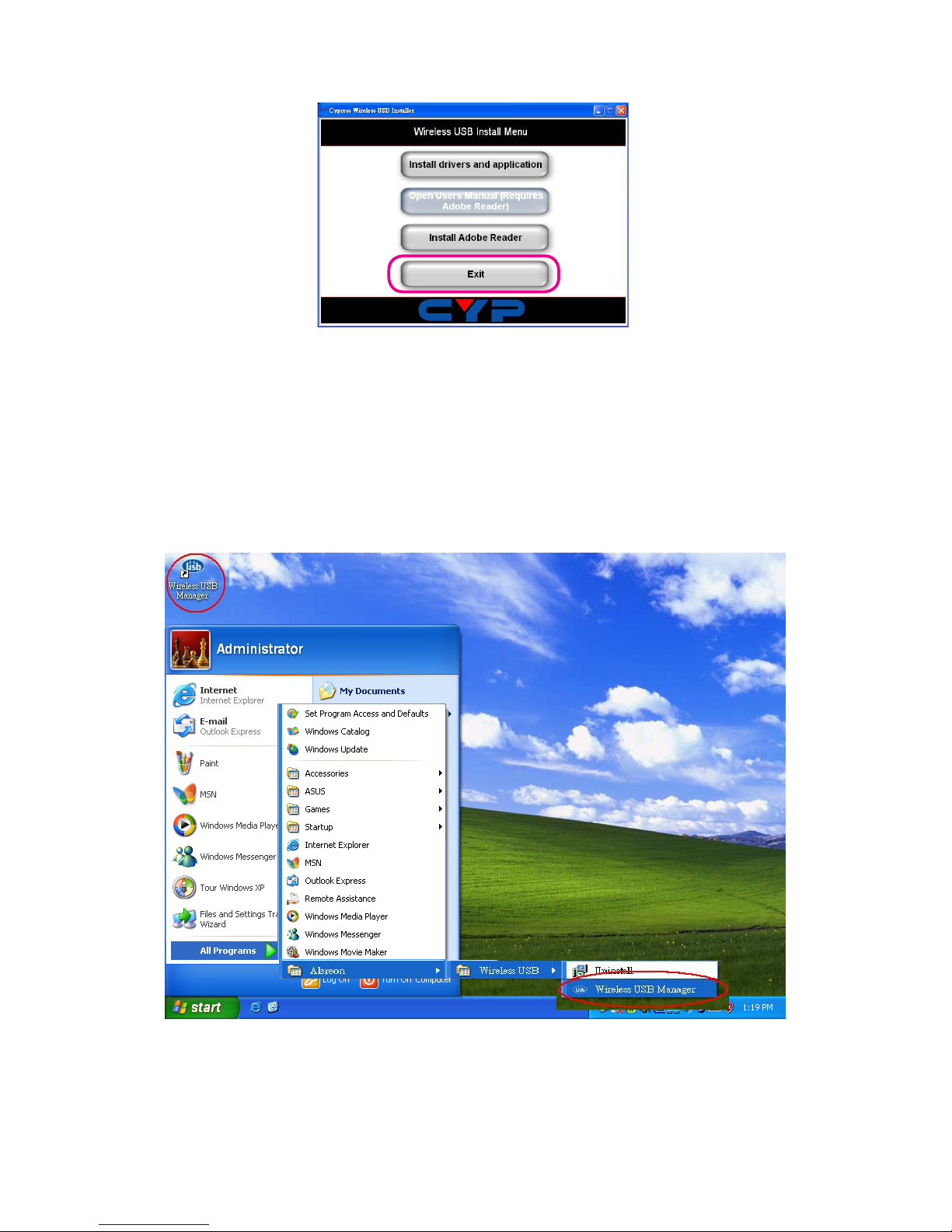

Select Alereon from All Program and double click on "Wireless USB
Manager".
8

9.2 Select Connection Rules item
To connect a device for the first time the user must form an
association
ensuring secure communications.
9.3 System Association
Enter pin code to associate with your computer.
Pin Code is located on FCC/CE sticker, placed on both the device's
bottom and outside package.
9

Association is successful
9.4 Device Connection
10

11
10. Using DisplayLink Manager
10.1 Using DisplayLink Manager
After the driver is installed, a utility (DisplayLink Manager) will
automatically appear in the system tray. The utility allows you to quickly
change the settings and resolution for DisplayLink Manager. Right click
on the icon will bring out the context menu.
 Screen Resolution: Select the screen resolution (available only in
extended mode).
Note: When the display has a built in EDID the screen will show the
displays resolution, if no EDID is present the screen has the following
resolution (see below image)
 Color Quality: Select the screen color quality (available only in

12
extended mode).
 Screen Rotation: Rotate the screen on the additional monitor by 90, 180
or 270 degrees.
 Extend to: Reposition the extended screen to the top, bottom, left or
right of the primary display.
 Extend: Set the DisplayLink Manager to Extended mode.

13
 Set as Main Monitor: Set the monitor to be the main monitor.
 Notebook Monitor off: Set the PC/notebook's monitor off.
 Mirror: Set the DisplayLink Manager to Mirror mode. You can see the

14
same desktop image on the additional monitor.
 Off: Disable the DisplayLink Manager on the system.
 Advanced: Opening the Display Properties will allow you to adjust the
resolution, color quality, position and refresh rate.

15
11. Uninstall the Device Driver
Follow the steps below to uninstall the Multi View driver.
Step 1: Open the Control Panel: Start → Control Panel → Add or Remove
Programs.
Step 2: Select USB-VGA-HDMI DisplayLink Adapter and click Remove.
Step 3: Click Yes to confirm the removal.
Step 4: Click Yes to restart your computer.

16
12. Connection and Installation
Transmitter CDL-165PRO
TV/Monitor
or
Amplifier Speaker
or or
or or
Monitor
PC NB
HDMI
Keybord Mouse HDD Flash
