CYSUM CM-900 User manual
2/ 26

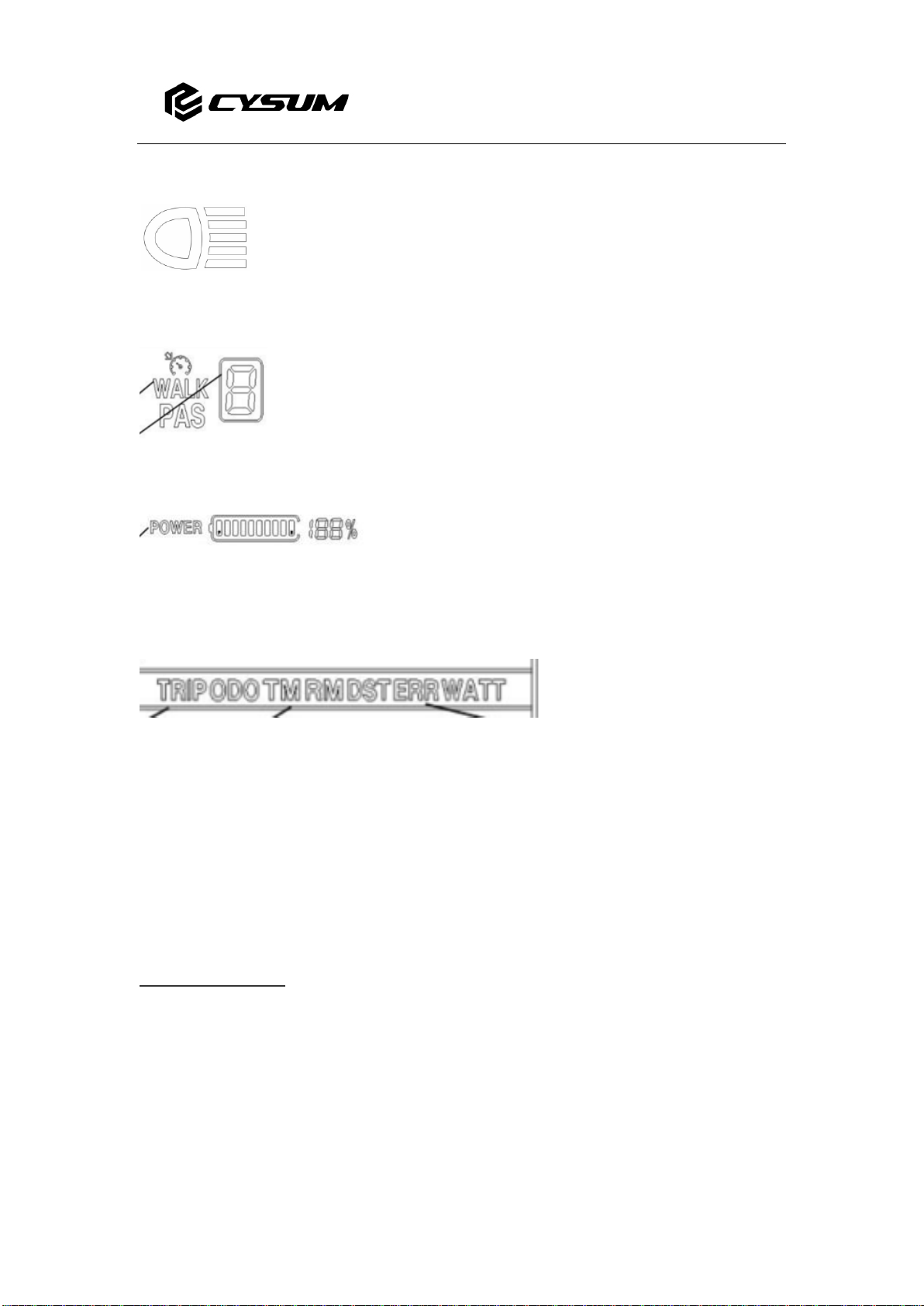

DST: Driving Mileage (Estimated how far you drive based on the current battery capacity)
Front Light
Walk Mode/ Cruise Control/ Pedal Assistant Power Level and Number
Battery Remains
TRIP: Single Odometer
ODO: Total Odometer
TM: Bike Computer Working /Cycling Time ( it tells many hours the bike computer has started
for working)
ERR: Error Code
Operation Setting：
In default setting of bike computer:
⚫Please note that PAS 0 means only throttle works;
⚫PAS 1-5 means only Pedal assistant works but throttle does not work.
3/ 26
1. Turn on/ Turn off bike computer: Press for seconds to turn or turn off the
bike computer;
2. Turn on/ Turn off bike front light: After turning on the bike computer and press
for 3 seconds to turn on or turn off front light.
3. Active walk mode(Optional) : After turning on the bike computer and press
for 3 seconds to active the walk mode
4. Increase/ Decrease PAS Level: After turning on the bike computer and press
to increase the PAS Level and Press to decrease PAS level.

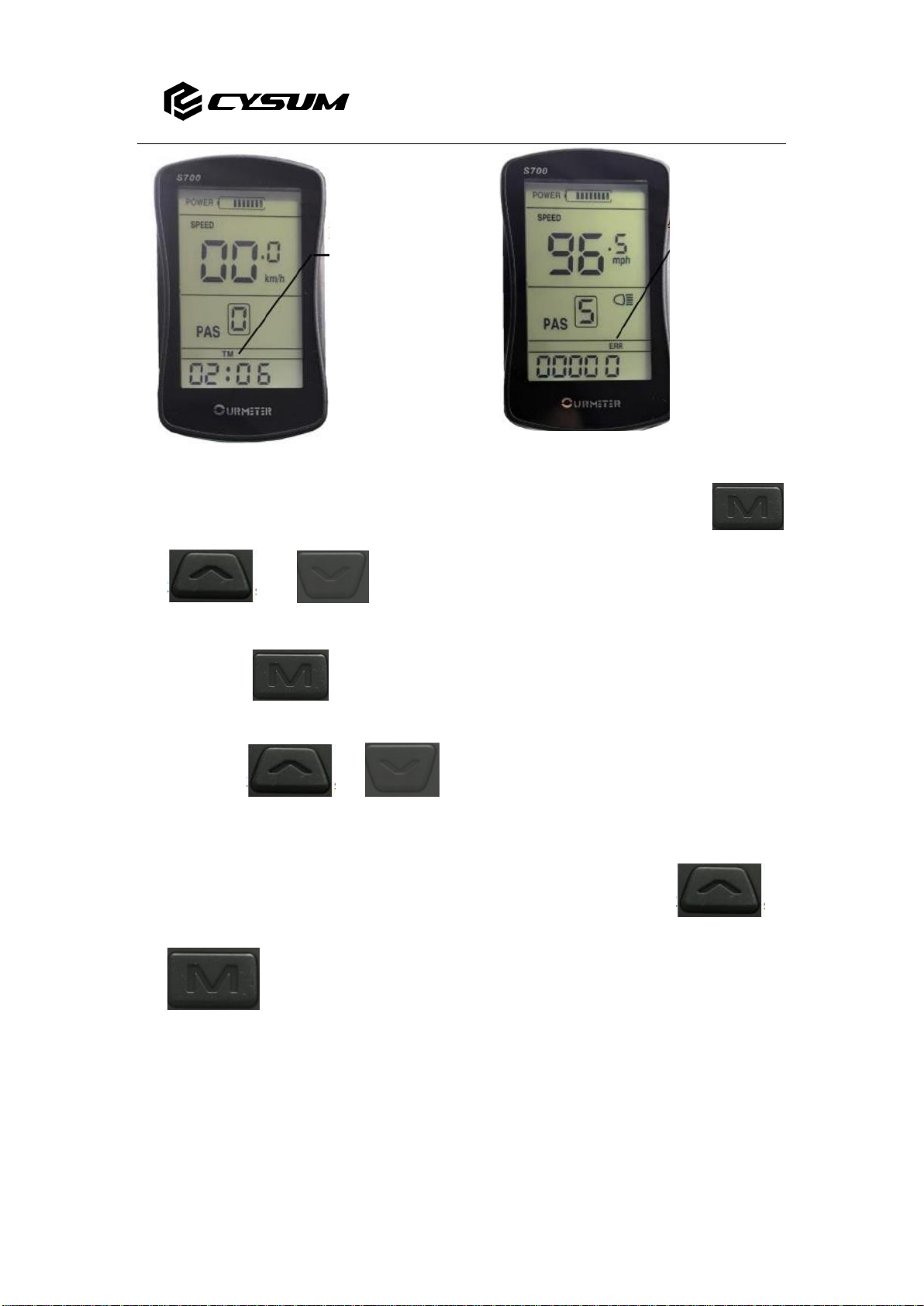

5. ODO/TRIP/ERR/TIME Checking: After turning on the bike computer and press
one time to switch and check data of ODO/TRIP/ERR/TIME. (Images Below)
4/ 26
6. Enter Setting Mode: After turning on the bike computer and press
and together for 3 seconds to enter setting mode,
Then press to switch P level setting from P01 to P18
and press or to choose the right data code for each P level
setting.
7. Speed/AVG/Max Checking: After turning the bike computer, press +
for 3 seconds to switch and check data of Speed/AVG/Max.( Images Below)
6/ 26
P03: Working Voltage Setting,
Range: 24V,36V, 48V;
P04: Bike Auto Shutting-down Time Setting
Range：1-60
It means if you do not operate the bike computer or use the e-bike within the minutes range
from 1 to 60 minutes, the bike computer will shut down automatically;
P05: PAS Preference Setting
Range:
0 ---only shows 1-3 levels;
1 ----shows 1-5 levels;
2----shows 1-9 levels;
Just PAS level number are different, but top and lowest level power is the same, such as 3=
5=9 in different working modes;
P06: Wheel/rim diameter Setting (Inch)
Range: 20/22/26/28 (Normally, if 20 inch rim, setting number will be 22inch)
P07: Speed Monitor Setting,
Range: 1-100;
This technical setting is only for engineer setting, do not modify or change the setting.
P08: Speed Limit Setting.
Range: 1-100KM;
If 100KM, means there is no limited for speed setting, however, the speed limited setting is
controlled by motor and controller. You can only set the bike computer speed limit with the
range of limit motor and controller. For example, if the motor and controller speed limit is at
40KM/H, you can only set up lower top limit such as 35KM/H, If you set 50KM/H, the real top
limit is also only 40KM/H;
P09: Zero boost or Non-Zero Boost Setting.
Range: 0 means zero boost; 1 means non zero boost.
In the zero boost also called hart boost which means, once you use the throttle or pedal
assistant, you get will push from the motor immediately; In non-zero boost, you have to use
pedal first to move the e-bike to some certain speed and the throttle or PAS will be active.
7/ 26
P10: Driving Modes Setting;
Range:
0 –PAS only, the throttle is not working;
1—throttle only, PAS is not working；
2—both throttle and PAS are working;
P11: PAS Sensitivity Setting
Range: 1-24,
This technical setting is only for engineer setting, do not modify or change the setting.
P12: PAS Strength Setting
Range: 1-5,
This technical setting is only for engineer setting, do not modify or change the setting.
P13: PAS Magnetic Sensor Setting
Range: 5/ 8/12
This technical setting is only for engineer setting, do not modify or change the setting.
P14: Controller Max Current Limit Setting
Range: 1-20A;
P15: Controller Low voltage Setting.
Range: N/A,
Need to check with controller technical data sheet for reference;
P16: ODO, Total Odometer Clearance Setting
In setting mode, press for 5 seconds in setting mode, you can change and clear
the current total odometer to Zero.
P17: N/V
Range: 100（default）
8/ 26
P18: Bike Computer Reset Setting:
In setting mode, press for 5 seconds in setting mode, reset the bike computer in
the bike computer default setting ONLY(not the e-bike) once SSSS shows on LCD.
.
Please note that the default setting is not same default setting for each mode of electric bike.
For example, if XF500 and XF770 are use the same bike computer, however, their default
setting number maybe different for P Levels setting.
Error Codes：
Range/Problem/Solution：
00000--- Normal
00006---Low Battery Voltage---Need charge battery;
00007---Motor Failure---Check motor cable connection whether loose or damage;
00008---Throttle Failure—Check throttle cable connection whether loose or damage;
00009---Controller Failure—Check controller cable connection whether loose or damage or
incorrect connection;
00010---Data Receiving Failure—Check bike computer connection whether loose or damage
00011---Data Sending Failure—Check bike computer connection whether loose or damage;
