D-Link AirPlus G DWL-G650X User manual

Manual
802.11g (2.4GHz)
DWL-G650X
D-Link AirPlusTM G
Wireless Cardbus Adapter
Building Networks for People

2
Contents
PackageContents ................................................................................3
Introduction............................................................................................4
Wireless Basics....................................................................................5
InstallationConsiderations ....................................................................7
GettingStarted......................................................................................8
ConfiguringtheDWL-G650X ..............................................................11
Troubleshooting...................................................................................17
TechnicalSpecifications ......................................................................19
ContactingTechnicalSupport ..............................................................21
Warranty.......................... ...................................................................22

3

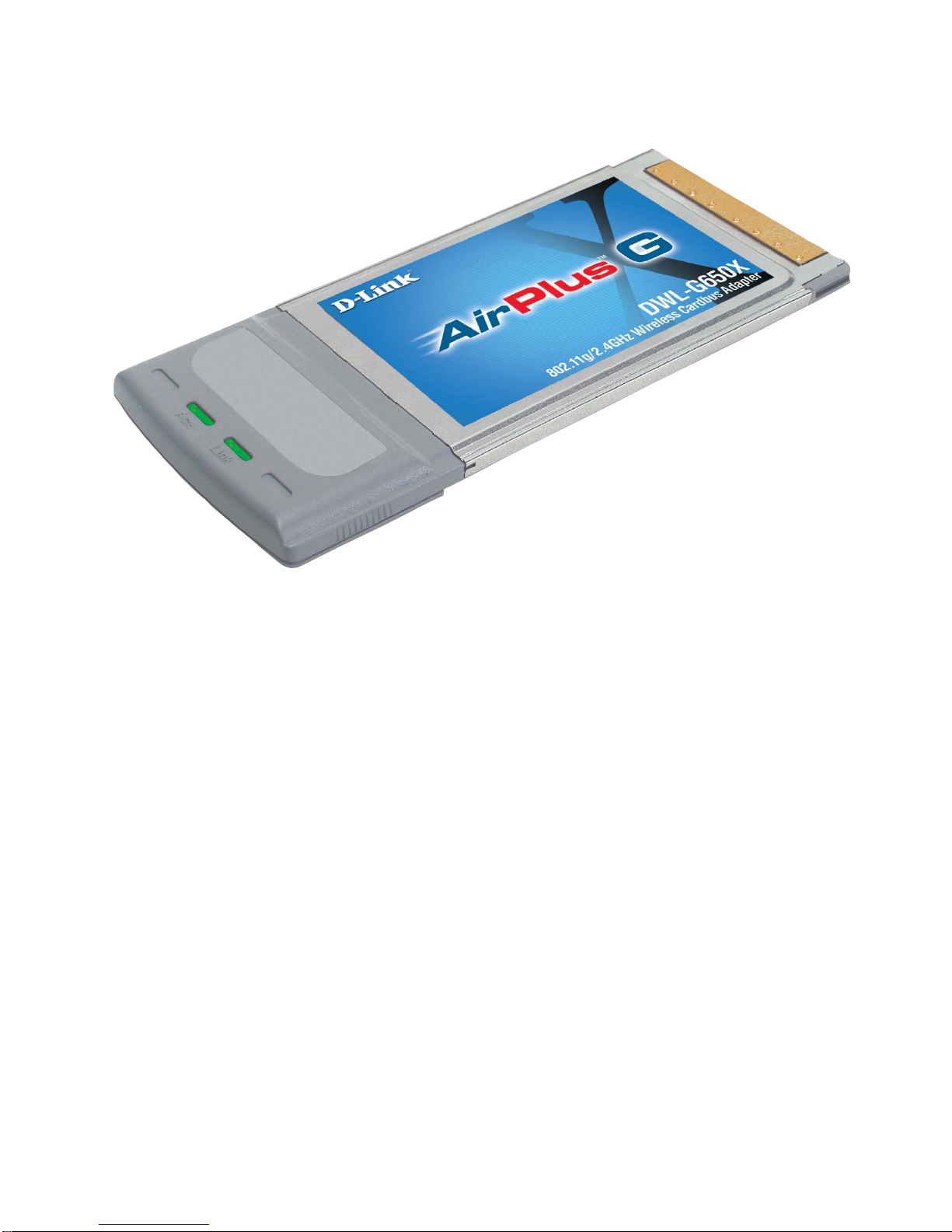

Contents of Package:
D-Link AirPlusTM G DWL-G650X
802.11g (2.4GHz) Wireless CardbusAdapter
CD-ROM with Manual
PrintedQuickInstallationGuide
Package Contents
If any of the above items are missing, please contact your reseller.
System Requirements for Configuration:



An 802.11g or 802.11b access point (for Infrastructure mode),
or another 802.11g or 802.11b wireless adapter (for Ad-Hoc,
Peer-to-Peer networking mode.)

AMacintosh Powerbook (OS X 10.3.x* or later) with
an available 32-bit cardbus slot

*Please go to http://support.dlink.com for a list of compatible OS versions.

4

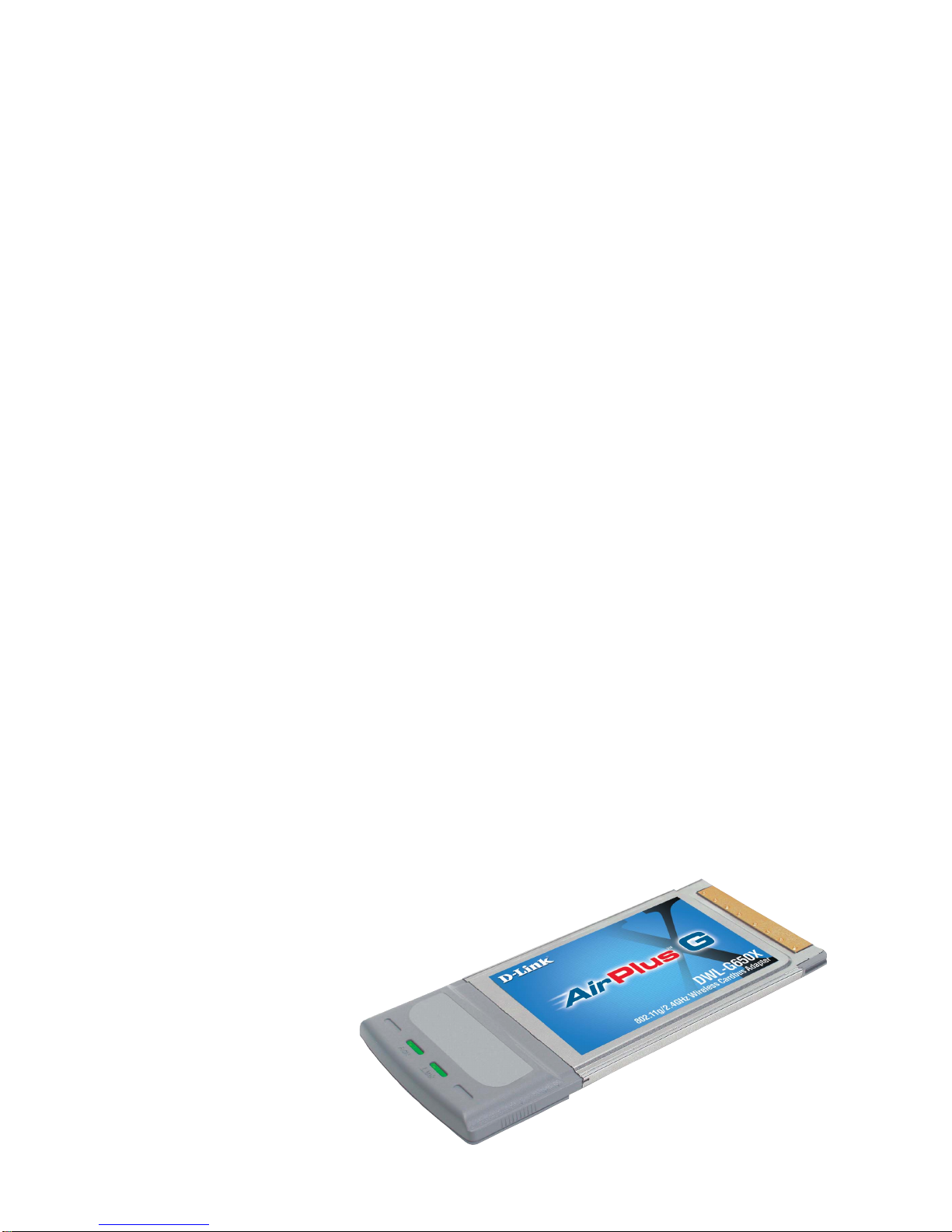

Features
LEDs
LEDstands for Light-EmittingDiode. The DWL-G650X hasthe following LEDs:
A blinking light indicates
data is being transmitted.
Activity
A steady light indicates a
connection to an access
point.
Link
Compatiblewith802.11band802.11gDevices-CompatiblewiththeIEEE802.11b
and 802.11g standards, the DWL-G650X can connect with existing 802.11b- or
802.11g- compliant routers,access points and cards. That means you can still
communicate with colleagues and friends while you have the ability to link to even
morewireless networks.

Faster Wireless Networking - Faster data transfers mean increased productivity.
WiththeDWL-G650X inyourlaptop computer,you willhavetheflexibilityofwireless
networkingspeeds that saveyou timeand money.


User-friendly configuration and diagnostic utilities.
Introduction
The D-Link AirPlus G DWL-G650X Wireless CardbusAdapter is an 802.11b/802.11g
(2.4GHz) wireless adapter that supports high-speed wireless networking at home, at
work or in public places.
Unlikemost networkcards,the DWL-G650Xprovidesa maximumwirelesssignal rateof
up to 54Mbps* (compared to the standard 11Mbps) when used with other
D-LinkAirPlus Gproducts.The802.11gstandardisbackwardscompatible with802.11b
products.
32-bit Cardbus Performance/Plug & Play Connectivity - The DWL-G650X is a
powerful32-bitcardbusadapterthat installsquicklyand easilyintolaptopcomputers,
and when used with other D-Link AirPlus G products will automatically connect to
the network out of the box.
TM
TM
TM
*MaximumwirelesssignalratederivedfromIEEEStandard 802.11b/g specifications.Actual data throughput
will vary. Network conditions and environmental factors lower actual data throughput rate.

5
Wireless Basics
Wireless users can use the same applications they use on a wired network. Wireless
adapter cards used on laptop and desktop systems support the same protocols as
Ethernetadapter cards.
D-Link wireless products are based on industry standards to provide easy-to-use and
compatiblehigh-speedwirelessconnectivitywithin yourhome,businessor publicaccess
wirelessnetworks.D-Link wirelessproducts will allowyou accessto the datayou want,
whenandwhereyouwantit.Youwillbeabletoenjoythefreedomthatwirelessnetworking
brings.
Awireless localareanetwork (WLAN)isa computernetworkthattransmitsand receives
datawith radiosignals insteadof wires.WLANs areused increasinglyin bothhome and
office environments, and public areas such as airports, coffee shops and universities.
InnovativewaystoutilizeWLANtechnologyarehelpingpeopleto workand communicate
more efficiently. Increased mobility and the absence of cabling and other fixed
infrastructurehave proven tobe beneficialto manyusers.
People use WLAN technology for many different purposes:
Mobility - Productivity increases when people have access to data in any location
within the operating range of the WLAN. Management decisions based on real-time
informationcan significantlyimprove workerefficiency.
Low Implementation Costs - WLANs are easy to set up, manage, change and
relocate. Networks that frequently change can benefit from WLANs ease of
implementation. WLANs can operate in locations where installation of wiring may be
impractical.
Installation and Network Expansion - Installinga WLAN systemcanbe fast and
easy and can eliminate the need to pull cable through walls and ceilings. Wireless
technologyallows the networkto gowherewires cannotgo - evenoutside thehome or
office.
Inexpensive Solution - Wireless network devices are as competitively priced as
conventionalEthernet networkdevices.
Scalability - WLANs can be configured in a variety of ways to meet the needs of
specific applications and installations. Configurations are easily changed and range
fromPeer-to-Peer networkssuitable forasmallnumberof usersto largerInfrastructure
networkstoaccommodate hundredsor thousands ofusers, dependingonthe number
ofwireless devicesdeployed.

6
D-Link AirPlus Xtreme G DI-624
108Mbps*Wireless Router
Wireless Basics (continued)
Standards-Based Technology
The DWL-G650X Wireless Cardbus Adapter utilizes the 802.11b and the 802.11g
standards.
The IEEE 802.11g standard is an extension of the 802.11b standard. It increases the
data rate up to 54 Mbps* within the 2.4GHz band, utilizing OFDM technology.
Thismeans thatinmost environments,within thespecified rangeof thisdevice, youwill
be able to transfer large files quickly or even watch a movie in MPEG format over your
network without noticeable delays. This technology works by transmitting high-speed
digitaldataoveraradiowaveutilizingOFDM(OrthogonalFrequencyDivisionMultiplexing)
technology. OFDM works by splitting the radio signal into multiple smaller sub-signals
thatarethen transmittedsimultaneously atdifferentfrequencies to thereceiver.OFDM
reduces the amount of crosstalk (interference) in signal transmissions. The D-Link
DWL-G650X will automatically sense the best possible connection speed to ensure
the greatest speed and rangepossible.
TheDWL-G650X isbackwards compatiblewith802.11b devices.This meansthat ifyou
have an existing 802.11b network, the devices in that network will be compatible with
802.11g devices at speeds up to 11Mbps in the 2.4GHz range.
D-Link AirPlus G DWL-G510
Wireless PCI card used with desktop computers
D-Link AirPlus Xtreme G DWL-2000AP
Enhanced 2.4GHz WirelessAccess Point



TM

TM
TM
TheDWL-G650X isalso interoperablewith other802.11g and802.11b standards-
compliantdevices.
TheDWL-G650Xis compatiblewith the followingwireless products:
D-Link AirPlus G DI-524
54Mbps*11b/gWireless4-PortRouter
TM
*MaximumwirelesssignalratederivedfromIEEEStandard 802.11b/g specifications.Actual data throughput
will vary. Network conditions and environmental factors lower actual data throughput rate.

7
Wireless Basics (continued)
Installation Considerations
The D-Link AirPlus G DWL-G650X lets you access your network, using a wireless
connection, from virtually anywhere within its operating range. Keep in mind, however,
that the number, thickness and location of walls, ceilings, or other objects that the
wirelesssignals mustpass through,may limitthe range.Typical rangesvarydepending
on the types of materials and background RF (radio frequency) noise in your home or
business. The key to maximizing wireless range is to follow these basic guidelines:
TM
Keepyour product away(at least3-6 feet or1-2 meters)from electrical devices
orappliancesthat generateRFnoise.
4
KeepthenumberofwallsandceilingsbetweentheDWL-G650Xandothernetwork
devices to a minimum - each wall or ceiling can reduce your DWL-G650X’s
rangefrom 3-90 feet(1-30 meters.)Positionyour devicesso that thenumber of
walls or ceilings is minimized.
1
Beaware of thedirect linebetween networkdevices.Awallthat is 1.5feet thick
(.5meters), ata45-degree angleappears tobe almost3 feet(1meter) thick.At
a2-degree angleit looksover 42feet(14meters)thick! Positiondevices sothat
thesignalwill travelstraight through awall orceiling (instead ofat an angle)for
betterreception.
2
Buildingmaterialscanimpedethewirelesssignal-asolidmetaldoororaluminum
studsmay havea negativeeffect onrange. Tryto positionwireless devicesand
computers with wireless adapters so that the signal passes through drywall or
opendoorways and notother materials.
3

8
Getting Started
Onthe followingpages wewill showyouanexampleof anInfrastructure Network and
anAd-Hoc Network.
An Infrastructure network contains an access point or a wireless router. The
Infrastructure Network example shown on the following page contains the following
D-Linknetworkdevices (yourexisting network maybe comprised ofother devices):
A wireless router - D-Link AirPlus Xtreme G DI-624
AnApple® PowerBook with a wireless adapter -
D-Link AirPlus G DWL-G650X
Acable modem -D-Link DCM-201
Therearebasically twomodes of networking:





Ad-Hoc – directly connecting to another computer, for Peer-to-Peer
communication, using wireless network adapters on each computer,
suchastwo ormoreDWL-G650X WirelessCardbusAdapters.
Infrastructure – connecting to an access point, or wireless router,
such as the DI-624.
TM
TM

9
Getting Started (continued)

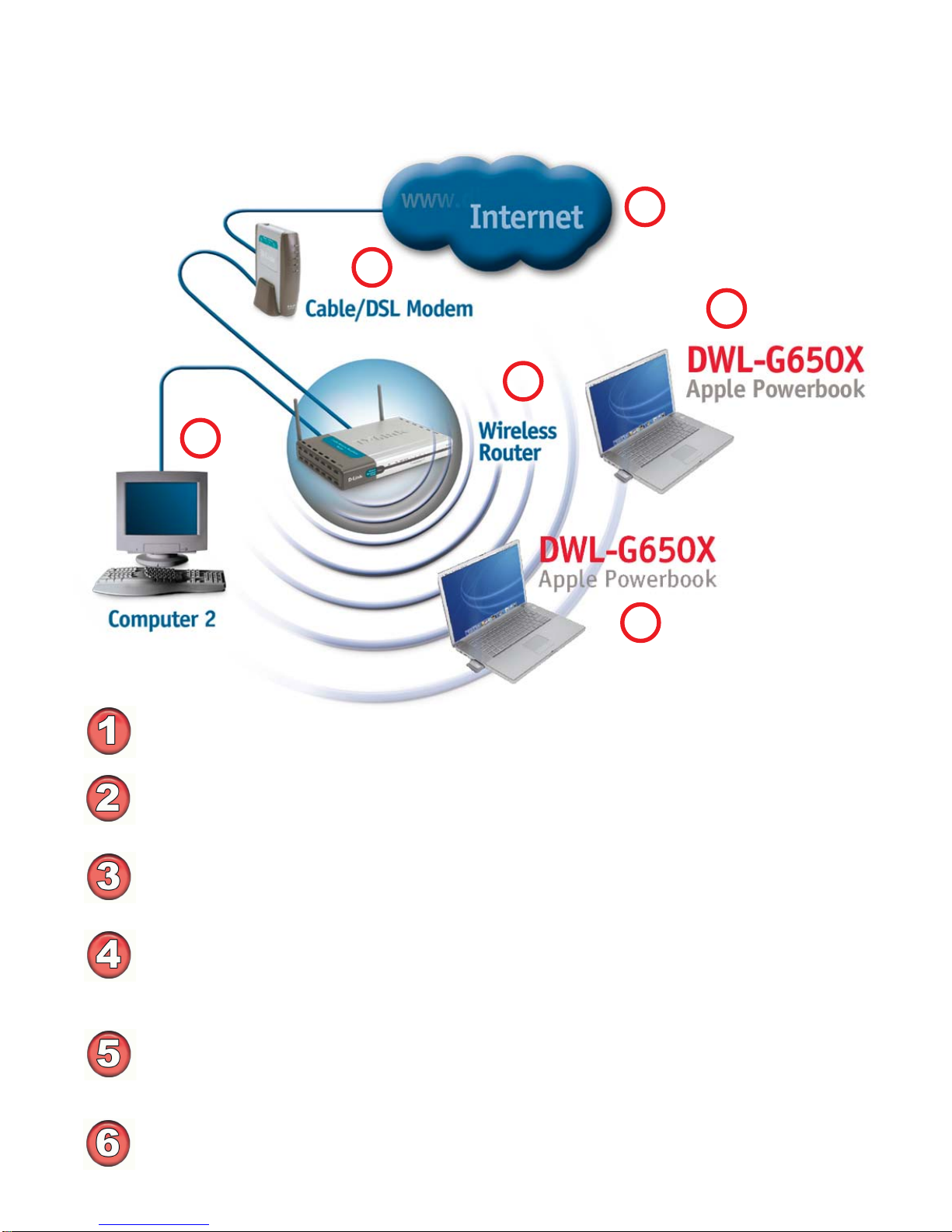

Setting up a Wireless Infrastructure Network (Example)
For a typical wireless
setup at home, you might
do the following:
Youwillneed broadbandInternet access(a Cableor DSL-subscriberline into
yourhome oroffice).
ConsultwithyourCableorDSLproviderforproperinstallationofthemodem.
Connectthe Cableor DSLmodemto yourbroadband router.
(See the Quick Installation Guide included with your router).
Installanother D-LinkDWL-G650XWirelessCardbusAdapter intoa laptop
computer.
(Seethe QuickInstallationGuide includedwith theDWL-G650X).
If you wish, you may connect a computer that is equipped with an Ethernet
networkadapter (suchas aDFE-530TX+) tothe routeralso.
11
11
1
22
22
2
33
33
3
44
44
4
55
55
5
66
66
6
Installthe D-LinkDWL-G650X WirelessCardbusAdapter intoanApple
Powerbook.
(Seethe Quick InstallationGuide included withthe DWL-G650X).

10
Getting Started (continued)

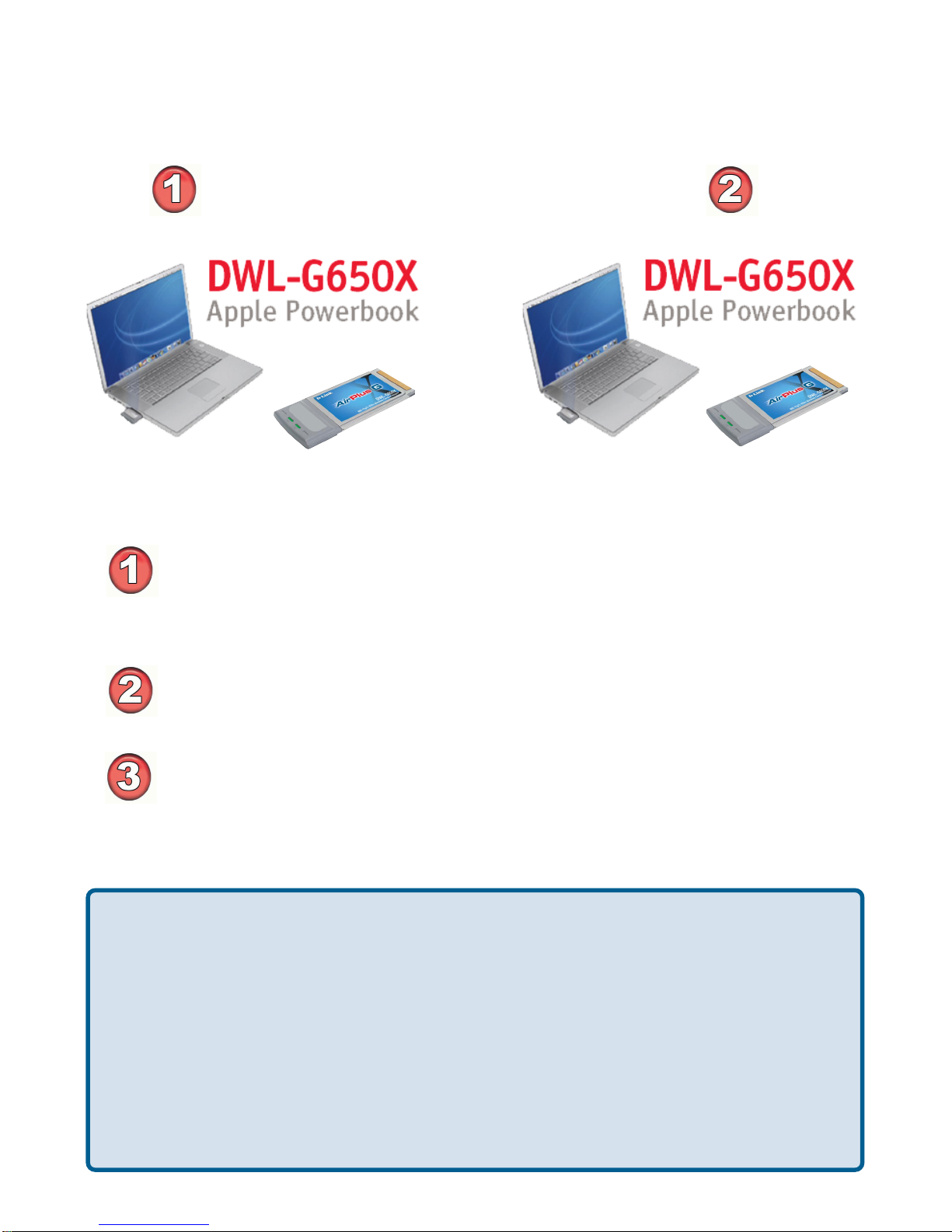

Setting up a Wireless Ad-Hoc Network
InstalltheD-Link DWL-G650X Wireless CardbusAdapterinto oneApple
Powerbook. (See the Quick Installation Guide included with the product for
installation instructions.)
Installanother DWL-G650X into anApple Powerbook.
(See the Quick Installation Guide included with the product.)
Set the wireless configuration for the adapters toAd-Hoc mode, set the
adapters to the same channel, and assign an IP address to each computer
on theAd-Hoc network. (See thebox below).
When assigning IP addresses to the computers on the network, please remember
that the IP address for each computer must be in the same IP address range
as all the computers in the network, and the subnet mask must be exactly the
same for all the computers in the network.
For example: If the first computer is assigned an IP address of 192.168.0.2 with a
subnet mask of 255.255.255.0, then the second computer can be assigned an IP
address of 192.168.0.3 with a subnet mask of 255.255.255.0, etc.
IMPORTANT: If computers or other devices are assigned the same IP address,
one or more of the devices may not be visible on the network.
IPAddress

11

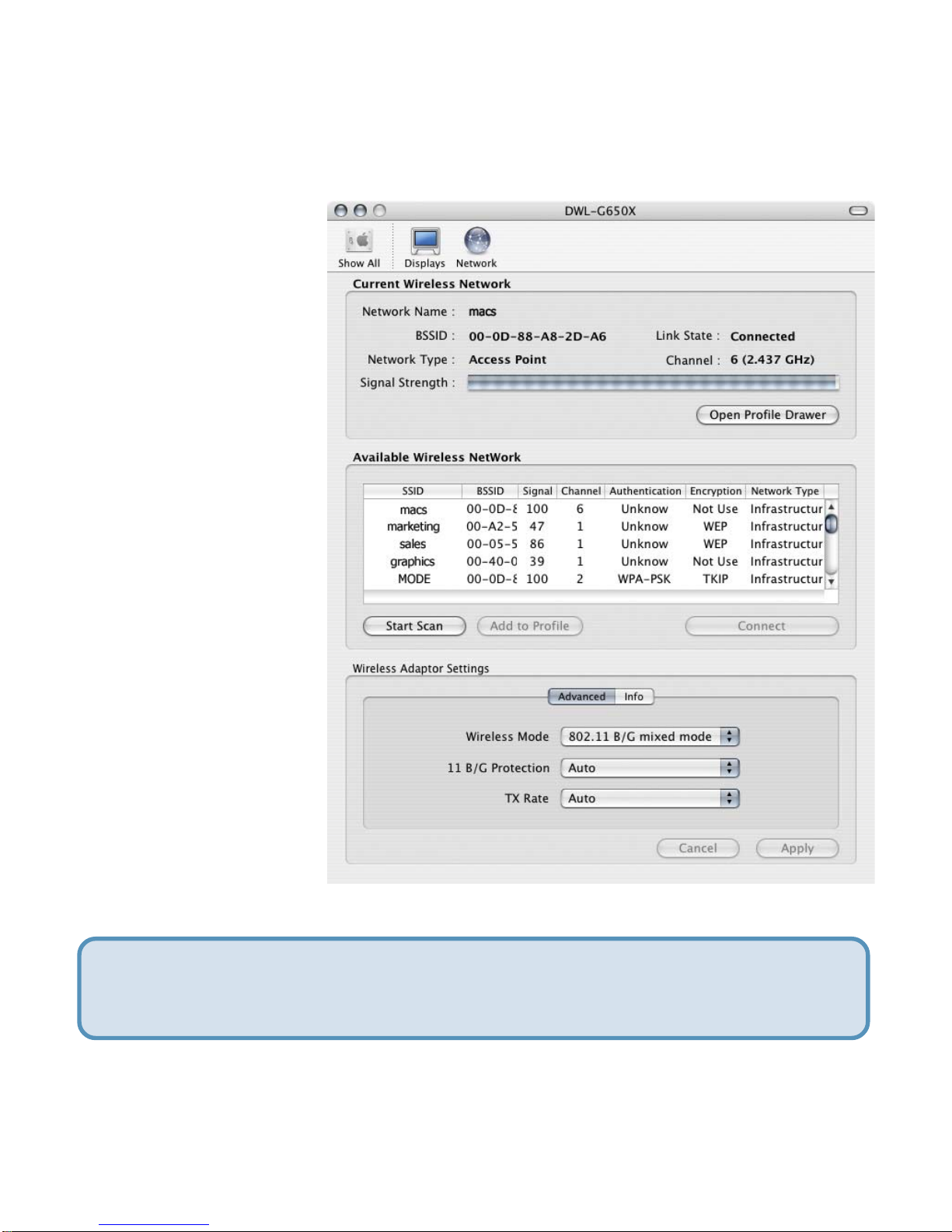

Afteryou haveinstalled theDWL-G650X(please referto theQuick Installation Guide
included with the product), follow the steps below to access the configuration settings.
ConfiguringtheDWL-G650X
Double-click on the DWL-G650X icon.

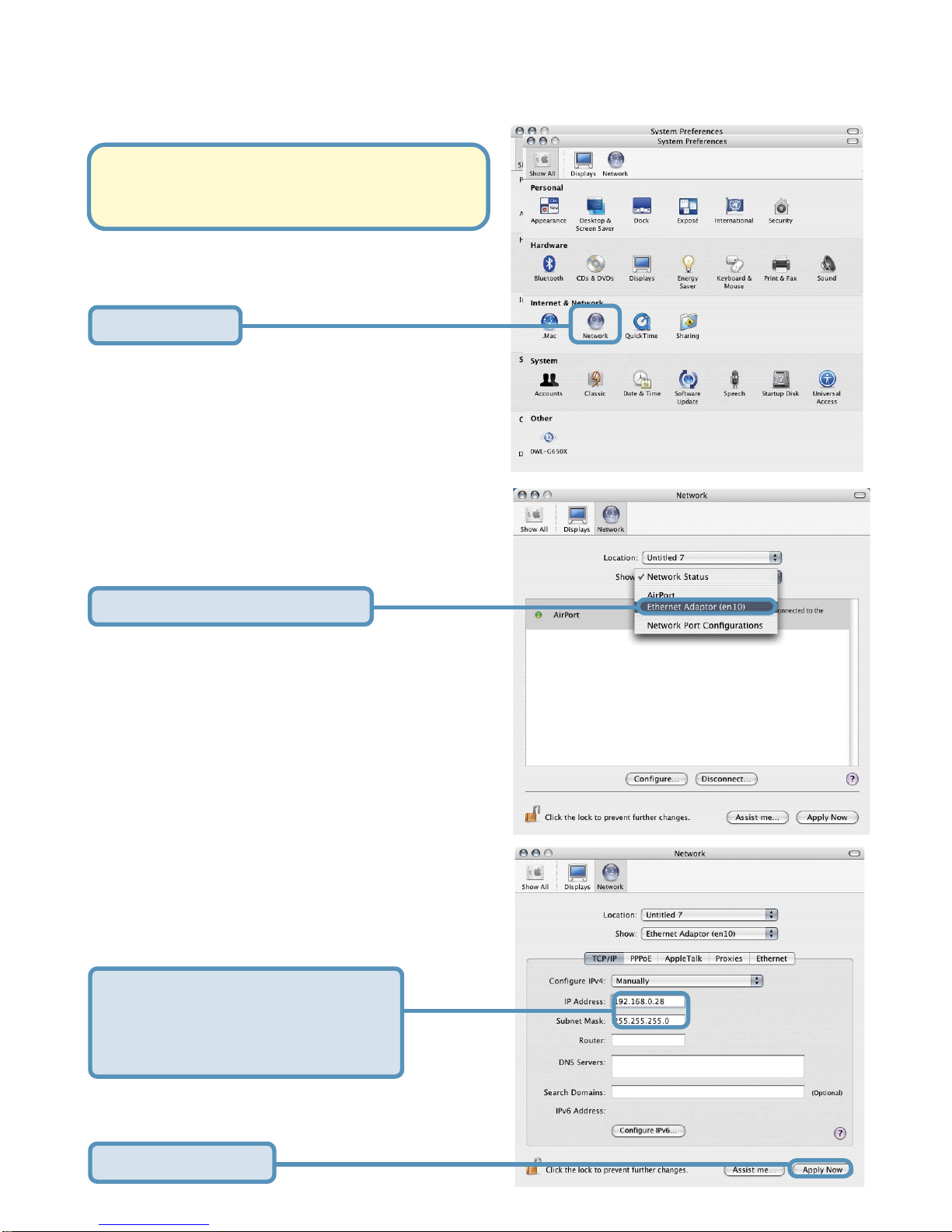

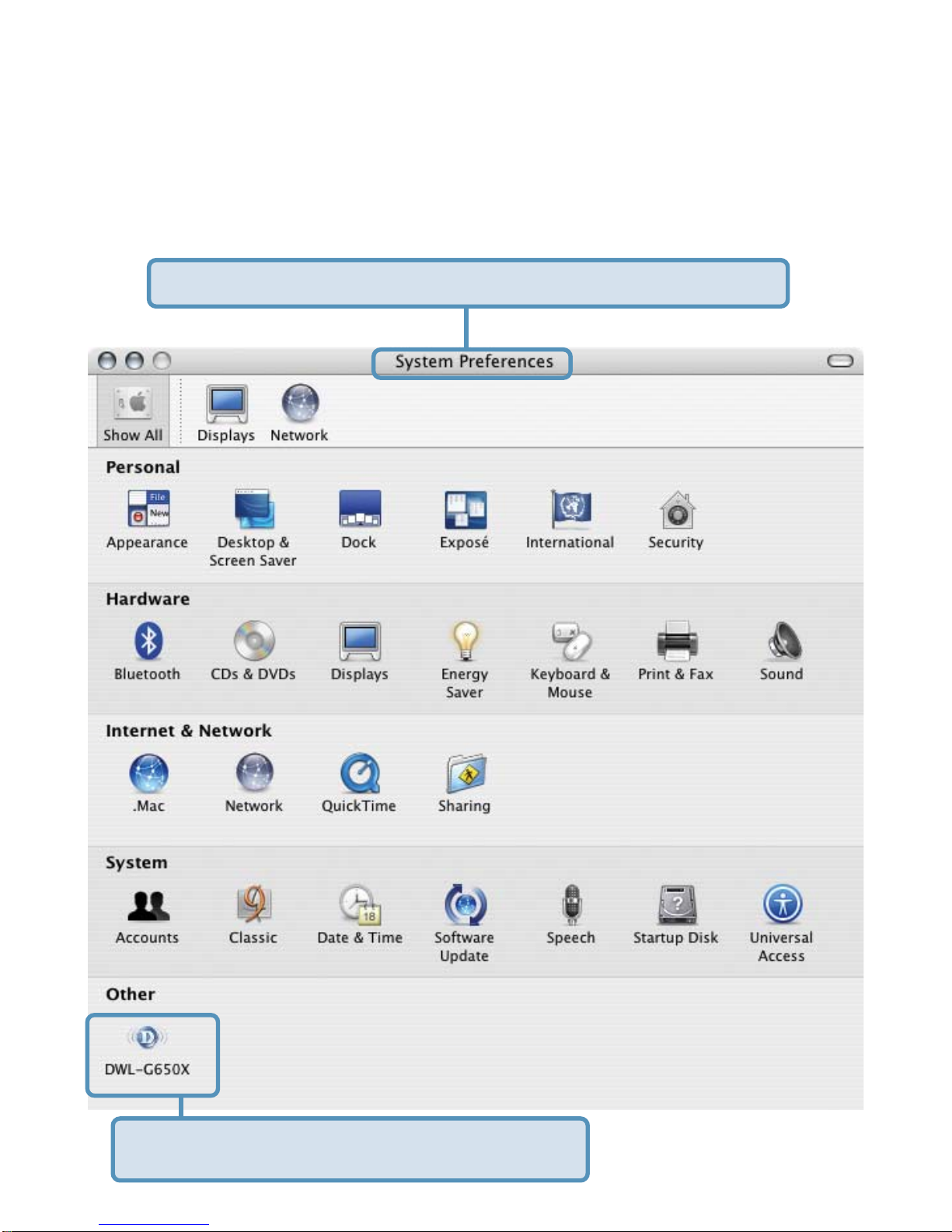

From the Apple pull-down menu select System Preferences.

12
Configuring the DWL-G650X (continued)
Scroll through the list of
availablewireless
networks.If thenetwork
is not listed, click the
Start Scan button.
To connectto awireless
network, locate the
network in the list of
available networks and
double-click on it.
Ifconnectingtoa network with a DHCP server then your configuration is complete!
If you need to assign a static IP address to your DWL-G650X, then please follow the
stepson thefollowing page.
Assigning a dynamic IP address,
when a DHCP server is in the network

13
Configuring the DWL-G650X (continued)
Assigning a static IP address
Note: Only perform the following steps if
you must assign a static IP address to
yourDWL-G650X.
Select the Ethernet Adapter
Click Network
Go to the Apple Menu and
select System Preferences.
Enteraunique IPaddress within
thesame rangeas yournetwork.
Enter the Subnet Mask of your
network.
Click Apply Now

14
Configuring the DWL-G650X (continued)

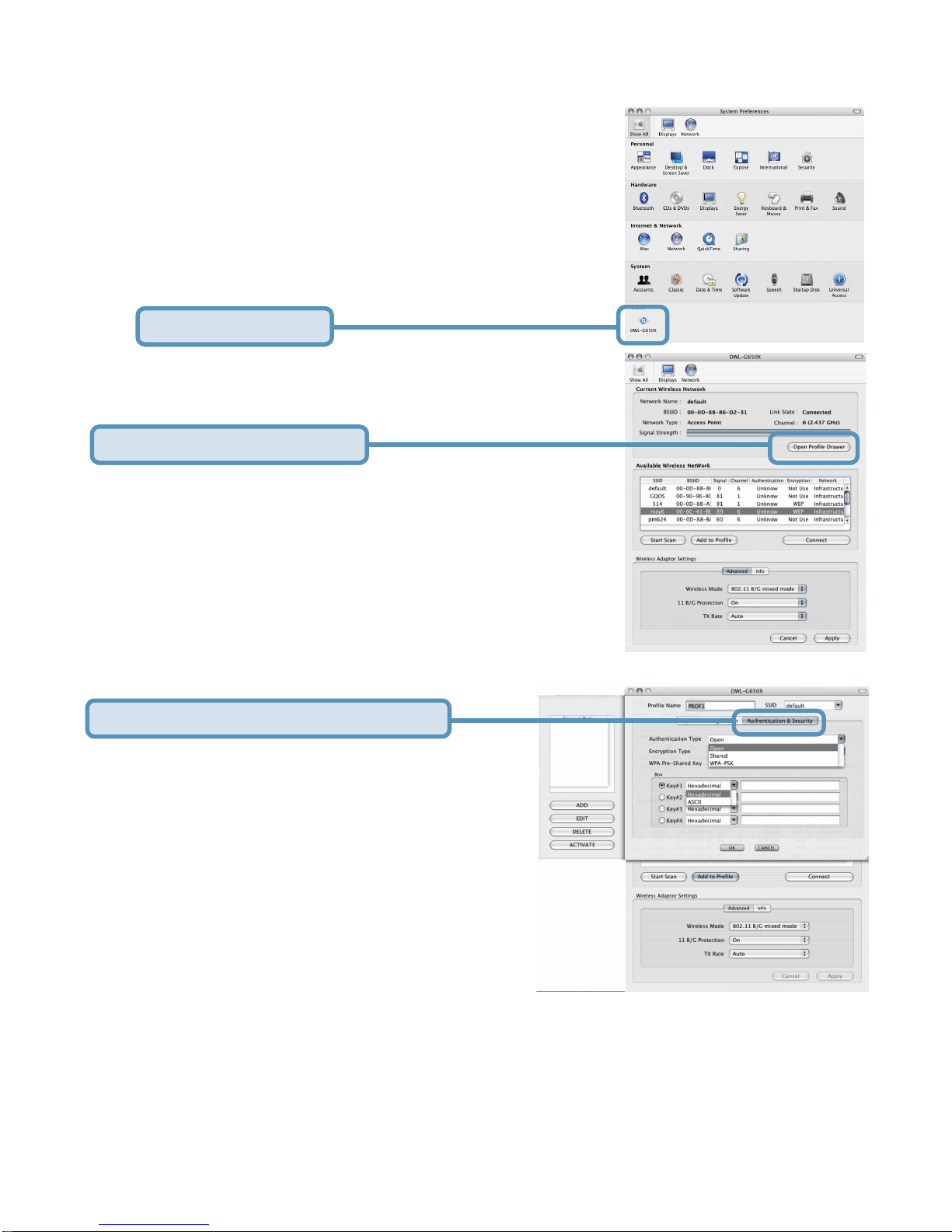

Authentication and Security
Authentication Type:
ClickDWL-G650X
Click Open Profile Drawer
Open: TheDWL-G650X isvisible onthe
network
Shared:Allows communication only with
devices with identical WEP settings
WPA-PSK: When you make this
selection, please enter the shared key in
the field below - WPA Pre-Shared Key
Encryption Type:
Select WEP or None.
ClickOK when you havecompleted theconfiguration.
When WEP is selected, please select Hexadecimal orASCII from the pulldown
menu for each key.
Keys1-4:
Select Authentication and Security

15
Configuring the DWL-G650X (continued)

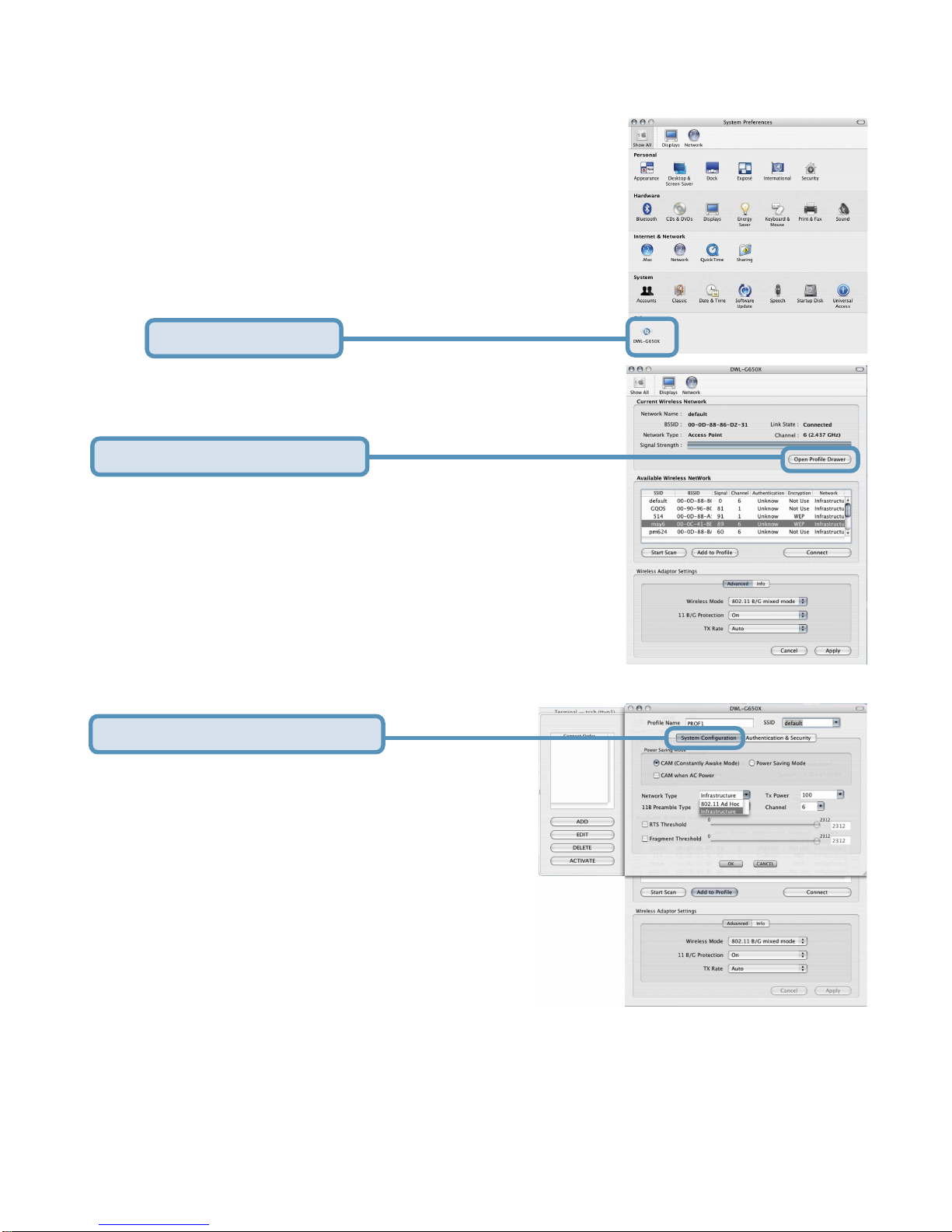

System Configuration
ClickDWL-G650X
Power Saving Mode:
Makeyourselection fromthe following:
CAM (Constantly Awake Mode)
CAM when AC Power
Power Saving Mode
Network Type:
SelectInfrastructure or 802.11Ad Hoc.
Tx Power:
SelectSystem Configuration
Select thetransmission speed.
11B Preamble Type:
Select the preamble type.
Channel:
Select the channel.
RTS Threshold:
Select the RTS Threshold.
Fragment Threshold:
Select the Fragment Threshold.
Click Open Profile Drawer

16
Configuring the DWL-G650X (continued)

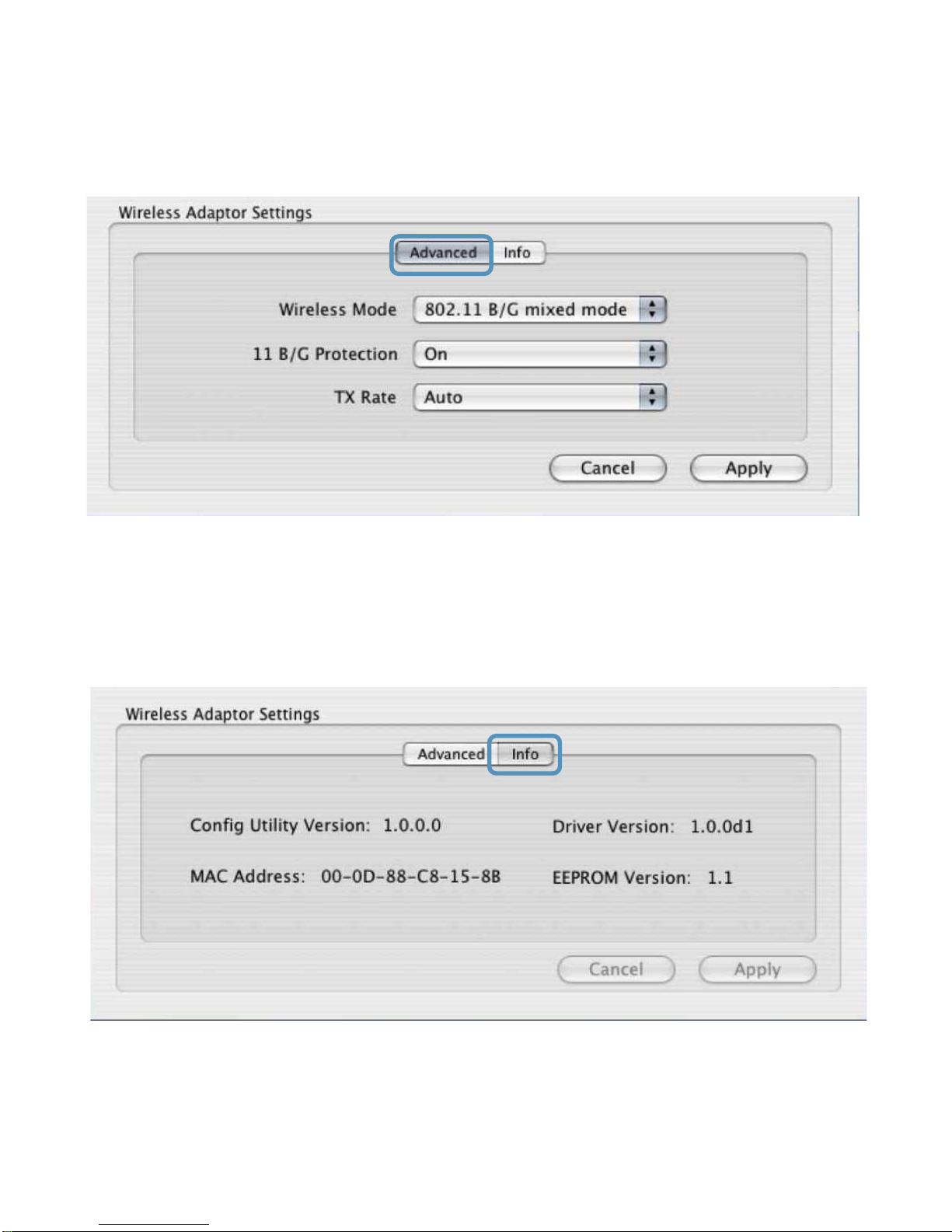

Wireless Adapter Settings
Advanced
Info
Wireless Mode: Select the Wireless Mode.
11 B/G Protection: Make your selection from the pulldown menu.
Wireless Mode: Select the TX Rate.
Config Utility Version
Thefollowinginformation isdisplayedin thisscreen.
MACAddress
Driver Version
EEPROMVersion

17
Troubleshooting
MakesurethattheDWL-G650XWirelessCardbusAdapterisproperlyseated
in the computer’s cardbus slot.
If the laptop does not detect the hardware upon insertion of the adapter,
makesure tocompletelyremove driversthat werepreviously loaded.


2. Why aren’t the Power and Link lights on?
Check to see if the DWL-G650X Wireless CardbusAdapter is firmly
inserted into the Cardbus slot of your laptop computer.
1. Why can’t I connect to the access point or the
wireless router?
Make sure that the SSID on the DWL-G650X Wireless CardbusAdapter is
exactly the same as the SSID on the access point or wireless router.
MovetheDWL-G650X andtheaccess pointorwireless routerintothe
same room and then test the wireless connection.
Disable all security settings on both devices. (WEP, MAC address
control,AES).
Make sure that the access point/router is not set to a different frequency.
Turnoff your accesspoint andthe computer withthe DWL-G650X.Turn
on the access point, and then turn on the computer with the DWL-G650X.






3. I forgot my Encryption key. What should I do?
Reset the access point to its factory default settings and restore the
DWL-G650XWirelessCardbusAdapter to thefactory defaultsettings.
4. What should I do when the computer does not
recognize the DWL-G650X Wireless Cardbus Adapter?

18
Troubleshooting (continued)
Checkthatthe LEDindicatorsfor the broadbandmodem are indicating
normal activity. If not, there may be a problem with the broadband
connection.
CheckthattheLEDindicatorsonthewirelessrouterarefunctioningproperly.
If not, check that theAC power and Ethernet cables are firmly connected.
Check that the IP address, subnet mask, gateway, and DNS settings are
correctlyenteredfor thenetwork.
InInfrastructure mode, makesurethesameService Set Identifier (SSID)
is specified on the settings for the wireless clients and access points. The
SSID factory default setting for most D-Link products is default. (
In Ad-Hoc mode, both wireless clients will need to have the same SSID.
Please note that it might be necessary to set up one client to establish a
BSS (Basic Service Set) and wait briefly before setting up other clients.
This prevents several clients from trying to establish a BSS at the same
time, which can result in multiple singular BSSs being established, rather
than a single BSS with multiple clients associated to it.





5. What should I do when the computer with the
DWL- G650X installed is unable to connect to the
wireless network and/or the Internet?
Check that the Network Connection for the wireless client is configured
properly. Select Infrastructure when connecting to an access point and
select Ad-Hoc mode when connecting without an access point.
If Security is enabled, make sure that the correct encryption keys are
enteredonboth theDWL-G650Xand theaccesspoint.


6. How can I troubleshoot distance issues using the
DWL-G650X?
MovetheDWL-G650X andaccesspoint orwirelessrouter intothesame
room and then test the wireless connection.
Change the channel of the access point.
Movedeviceswithin theline of sight.




19
IEEE802.11b
IEEE802.11g

Standards

Technical Specifications
Power
Network
Diagnostic LED


Temperature
Operating: 0ºC to 55ºC (32ºF to 131ºF)

95% maximum, non-condensing
Humidity:

Warranty:
3 years

0.12 lb. (55 grams)

Weight:
Internal Antenna Type:
Diversity

32-bit Cardbus
Bus Type:

Security:
Physical Dimensions:
L = 4.64 inches (114.3mm)
W = 2.13 inches (54mm)
H = 0.34 inches (8.7mm)



64-,128-bit WEP Encryption
WPA-PSK

20
Technical Specifications (continued)
Data Rates:1
With Automatic Fallback
54Mbps;48Mbps;36Mbps;24Mbps;18Mbps;12Mbps;11Mbps;
9Mbps;6Mbps; 5.5Mbps; 2Mbps; 1Mbps

Range:2
Indoors: Up to 328 feet (100 meters)

Media Access Control:
CSMA/CAwithACK

Frequency Range:
2.4GHzto 2.462GHz

Modulation Technology:
OrthogonalFrequency DivisionMultiplexing (OFDM)

1Maximum wireless signal rate derived from IEEE Standard 802.11b/g specifications.Actual data throughput
will vary. Network conditions and environmental factors lower actual data throughput rate.
15dBm ± 2dB
11Mbps CCK, 8% PER, -82dBm
48Mbps OFDM, 10% PER,-68dBm
54Mbps OFDM, 10% PER,-68dBm
Transmitter Output Power:

Receiver Sensitivity:


36Mbps OFDM, 10% PER,-75dBm
24Mbps OFDM, 10% PER,-79dBm


18Mbps OFDM, 10% PER,-82dBm
12Mbps OFDM, 10% PER,-84dBm



6Mbps OFDM, 10% PER,-88dBm
5.5Mbps CCK, 8% PER,-85dBm

9Mbps OFDM, 10% PER,-87dBm

2Mbps QPSK, 8% PER,-86dBm
1Mbps BPSK, 8% PER,-89dBm


PowerSave mode = 28mA
Transmit mode = 248mA
Power Consumption:

Standby mode = 4.66mA


2Environmental factors may adversely affect range.
