DFL-1600 Quick Installation Guide

1.1 Check Your Package Contents
Your NetDefend Network Security Firewall package should
contain all the items listed below. If any of these items is found
damaged or missing in your package, report it to your reseller
immediately for replacement.

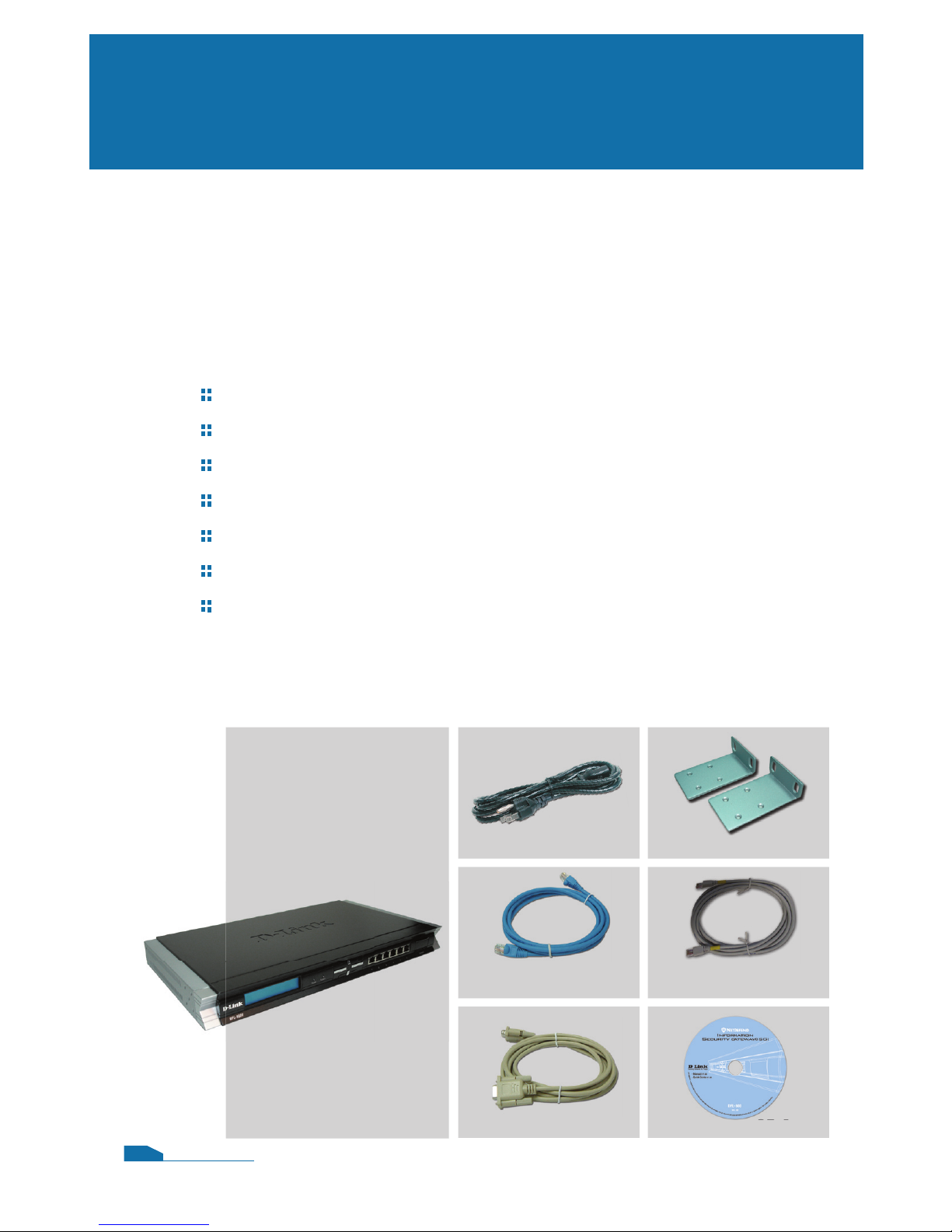

One (1) DFL-1600 NetDefend™ Network Security Firewall
One (1) Power Cord
One (1) Console Cable (RS-232 cable)
One (1) Ethernet (CAT5 UTP/Straight Through) Cable
One (1) Ethernet (CAT5 UTP/Cross-over) Cable
One (1) CD-ROM (containing QIG/Manual )
Two (2) Rack Mount Brackets
DFL-1600
Before You Begin 1
01
DFL-1600
Power Cord
Ethernet Cable
(Straight-Through)
Console Cable CD-ROM
Ethernet Cable
(Cross-over)
CD-ROM
Rack Mount Brackets

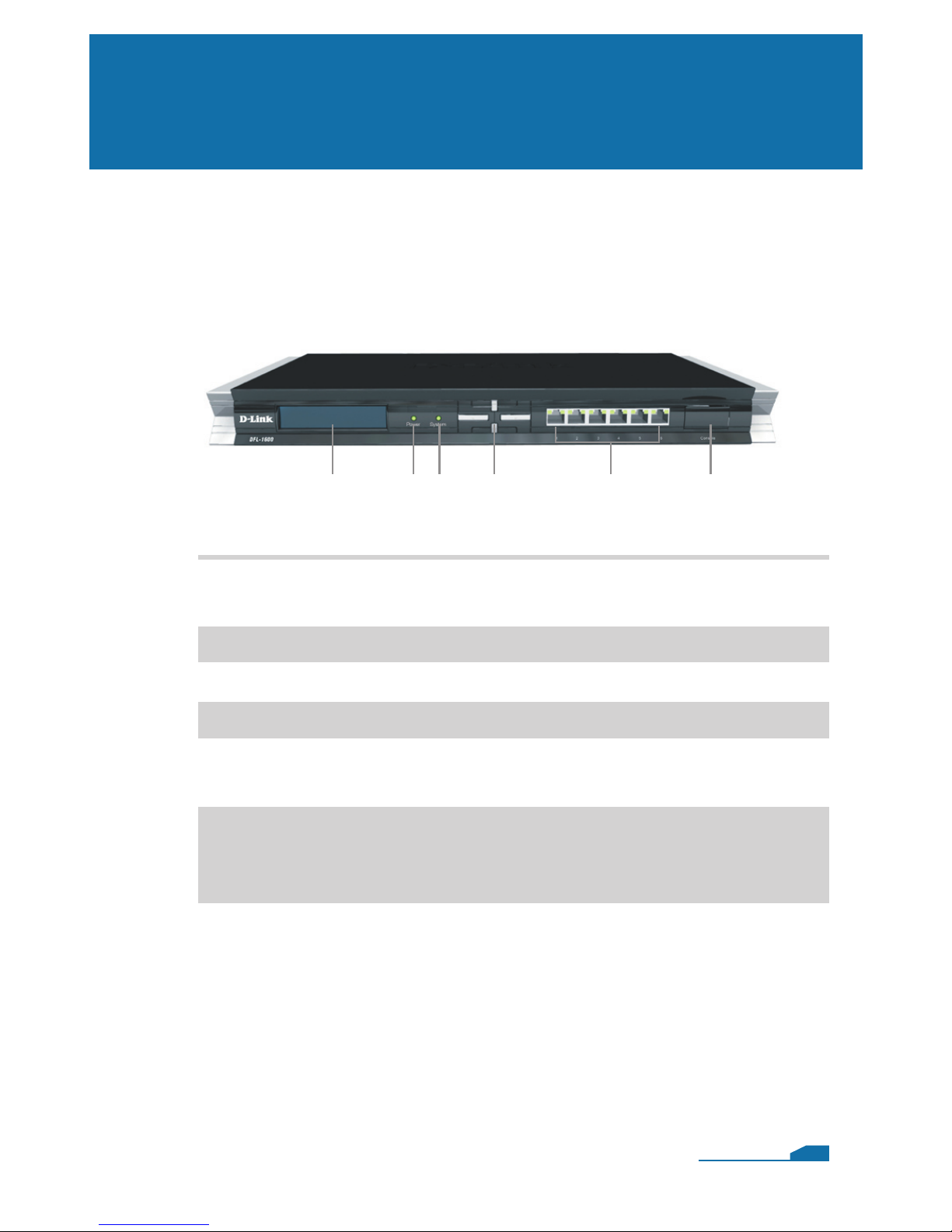

The following illustrates the front panel of the DFL-1600 and
explains the front panel’s key components:
2.1 Front View
1 2 4 5 6
Identifying Components 2
1. LCD Panel
2. Power LED
3. System LED
4. Keypad
5. Ethernet ports
6. Console Port
02
3
Used to display operation messages and various status of
the DFL-1600. See the following section for details.
Power indication of the DFL-1600.
System status indication of the DFL-1600.
Operation keys used in conjunction with the LCD panel.
Connect to Ethernet cables that connect to broadband
modems and network switches.
Connects to RS-232 console cable that connects to PC.
The console port is hidden behind a protection coverlid that
can be opened by pulling down the lid.

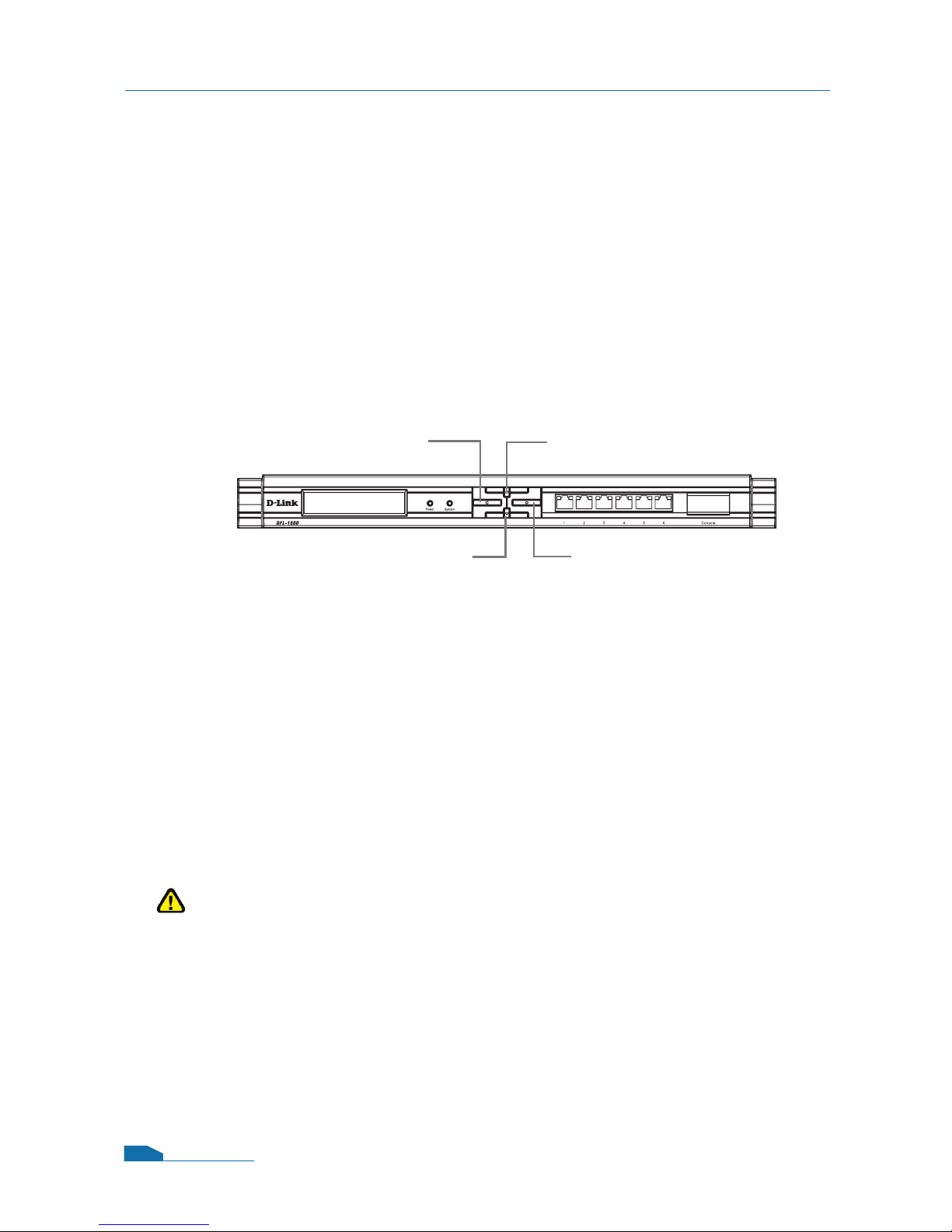

2.2 LCD Panel and Keypad
When you turn on the power of the DFL-1600, the LCD panel
will display the following message: “Press Keypad to enter
setup” and press any key on the keypad to enter the startup
menu. If after five seconds, you do not press any key on the
keypad, the DFL-1600 will automatically start the system.
2.2.1 Startup Menu
If you press any key within five seconds after power-on, the
LCD will display two options:
1. Start Firewall: If you select this option, the system will start,
using the configuration saved inside the device.
2. Reset Firewall: If you select this option, the system will start,
using the factory default configuration.
Note:
If you select “Reset Firewall” and confirm this option, all previous
configurations that you saved in this device will be lost forever.
Keypad buttons definition in Startup Menu
Not Used
Next Button
Back Button
Confirm Button
DFL-1600 Quick Installation Guide
03

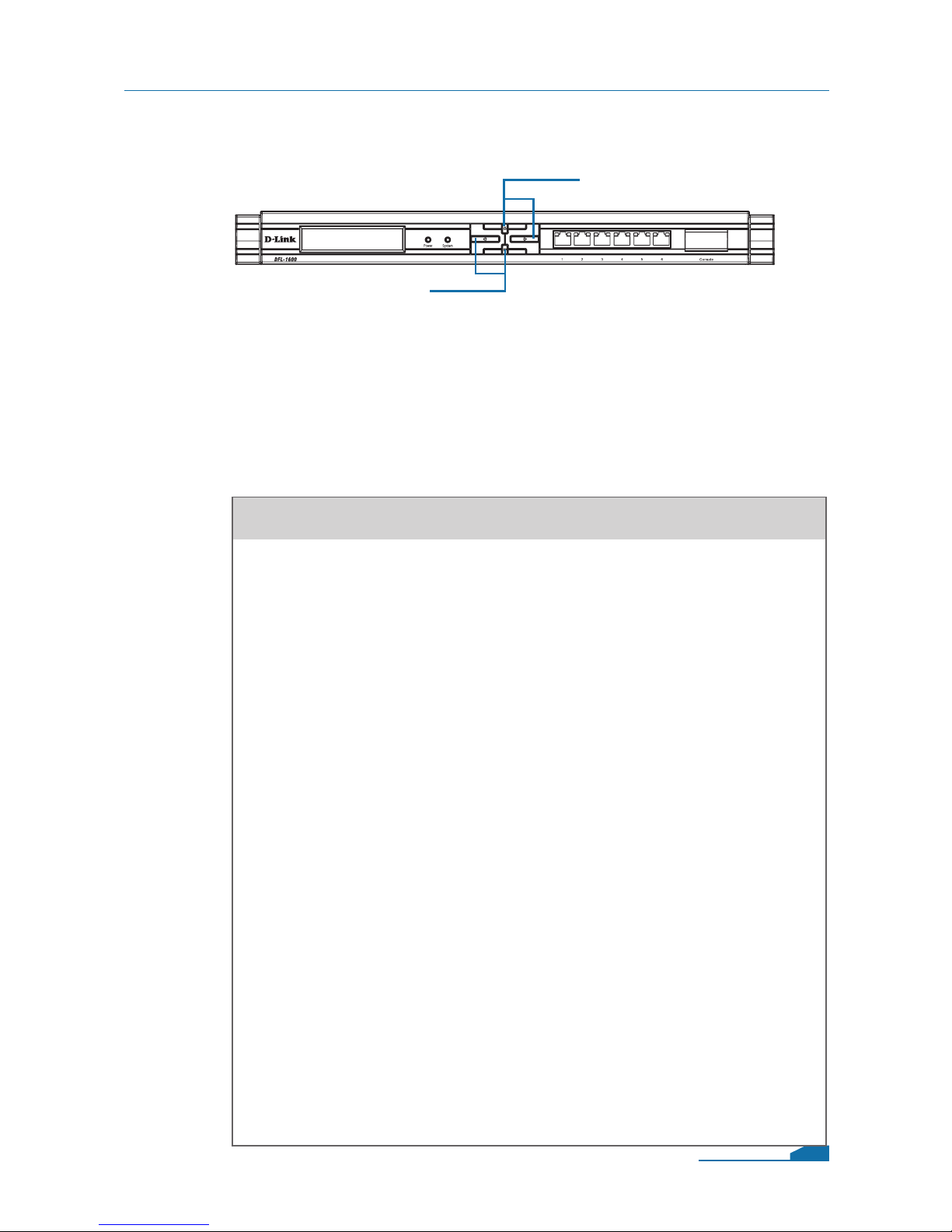

2.2.2 Device Status and Information
After the DFL-1600 has completed its system startup, the LCD
panel is ready to display the status and information of this
device. You can use the keypad to select a desired display
option. The following shows status and information that can be
displayed on the LCD panel.
DFL-1600 Quick Installation Guide
Next Button
Keypad buttons definition in Status Information
Item
Model name:
System Status:
CPU Load:
Connections:
Total BPS:
Total PPS:
Date:
Time:
Uptime:
Mem:
IDS Sigs:
WAN1:
WAN2:
DMZ:
LAN1:
LAN2:
LAN3:
Core Version:
Description
Display the device model name.
Display system working status.
It will show the CPU utilization and
concurrent session
Concurrent traffic statistics per second.
Concurrent packets statistics per second.
Device current date.
Device current time.
Device boot up time.
System memory utilization.
It will display IDS signature information.
Display each interface IP address
Display firewall firmware version.
04
Back Button

2.4 Default Interface Attribute Definition
Note:
For security reason, default only allow LAN1 interface (192.168.1.1)
that can login into firewall GUI from Web browser. You also can
modify this configuration after login into firewall GUI. About the
detail set up procedure, please refer to the user’s manual.
DFL-1600 Quick Installation Guide
05
Wording on
Front plate
Default name
in firewall
Default interface
type definition
Default interface
IP Address
Default
DHCP Status
1 WAN1 Static IP 192.168.110.254/24 Disable
2 WAN2 Static IP 192.168.120.254/24 Disable
3 DMZ Static IP 172.17.100.254/24 Disable
4 LAN1 Static IP 192.168.1.1/24 Disable
5 LAN2 Static IP 192.168.2.1/24 Disable
6 LAN3 Static IP 192.168.3.1/24 Disable
2.3 LED Indicators
Status
Solid green
Light off
Solid green
Light off
Blinking green
Light off
Solid Green
Blinking Green
Light off
Solid green
Solid orange
Description
The device is powered on.
The device is powered off.
System is operating properly.
The device is not working.
System is defective, such firmware
upgrade fail.
No link
Link present
Port is sending or receiving data.
Port is operating at 10Mbps.
Port is operating at 100Mbps.
Port is operating at 1000Mbps.
Color
Green
Green
Green
Green/
Orange
LED
Power
System
Phone Jack LED
light (right)
Phone Jack LED
light (left)

3.1 Connecting Firewall to Your Network
A. First, connect the power cord to the receptor at the back panel of
the DFL-1600 and then plug the other end of the power cord to a
wall outlet or power strip. Then powered on the DFL-1600 using
the on/off switch. Now the Power LED will turn ON to indicate
proper operation.
B. 1. Powered off your Cable or DSL modem; some devices may
not have a on/off switch and will require you to unplug the power
adapter. Now, the DFL-1600 should be powered on and the
Cable / DSL modem should be turned off.
2. Cable / DSL modem (Powered Off) - DFL-1600 (Powered On)
Connect an Ethernet cable to the Ethernet jack located on
the Cable / DSL modem. After the Ethernet cable is securely
connected, powered on the Cable / DSL modem by turning on
the unit or plugging in the power adapter.
3. Cable / DSL modem (Powered On) - DFL-1600 (Powered On)
Insert the other end of the Ethernet cable to one of the Ethernet
ports on the front panel of the DFL-1600. The LED light above
the Enternet port will illuminate to indicate proper connection.
If the LED light is not illuminated, please go back to step B and
repeat its instructions.
C. Insert an Ethernet cable to the LAN1 port on the front panel of
the DFL-1600 and connect it to a port on your network hub or
switch. The LED light above the Ethernet port on the DFL-1600
will illuminate to indicate proper connection
D. Connecting the computer that you will use to configure the
DFL-1600 to the network hub or switch.
Connecting the DFL-1600 3
06

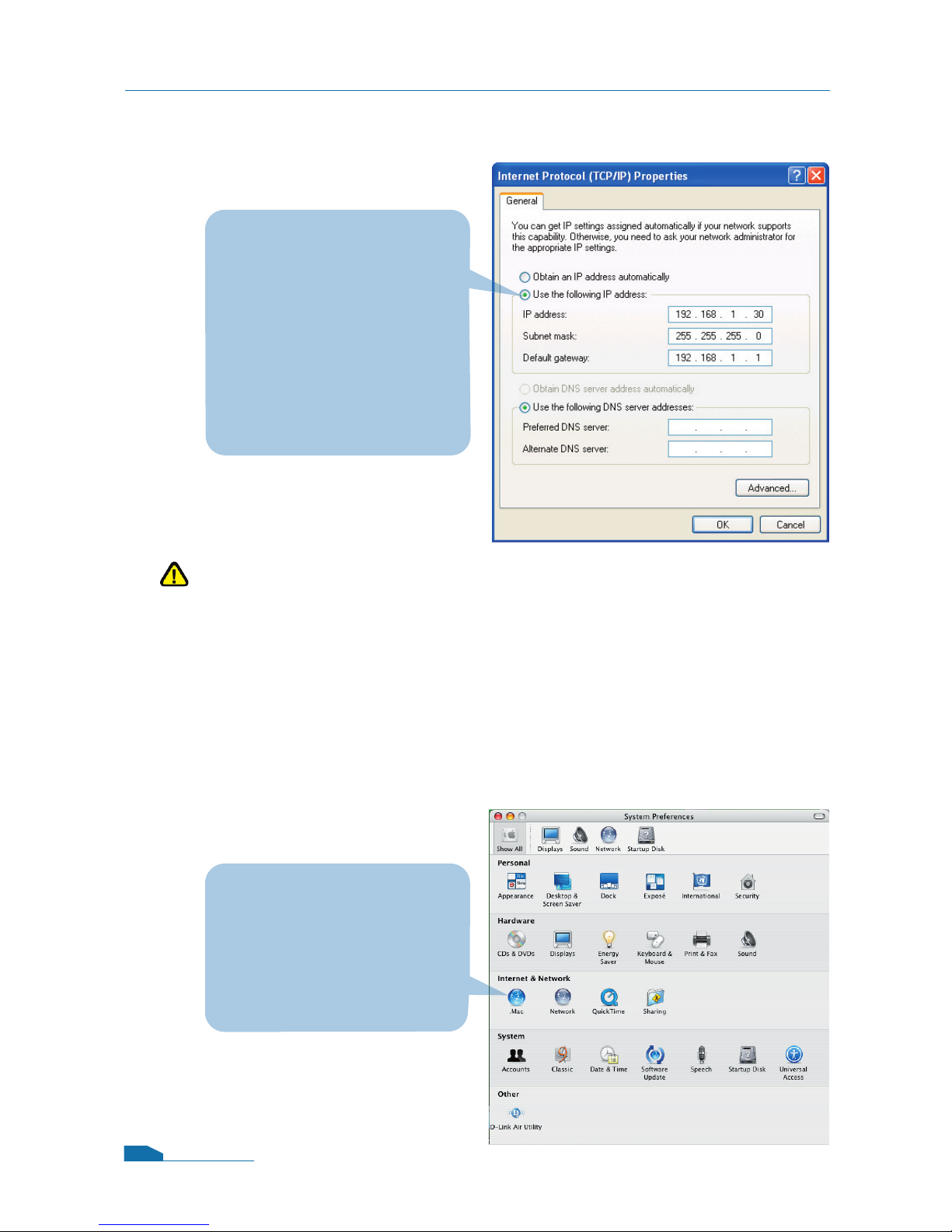

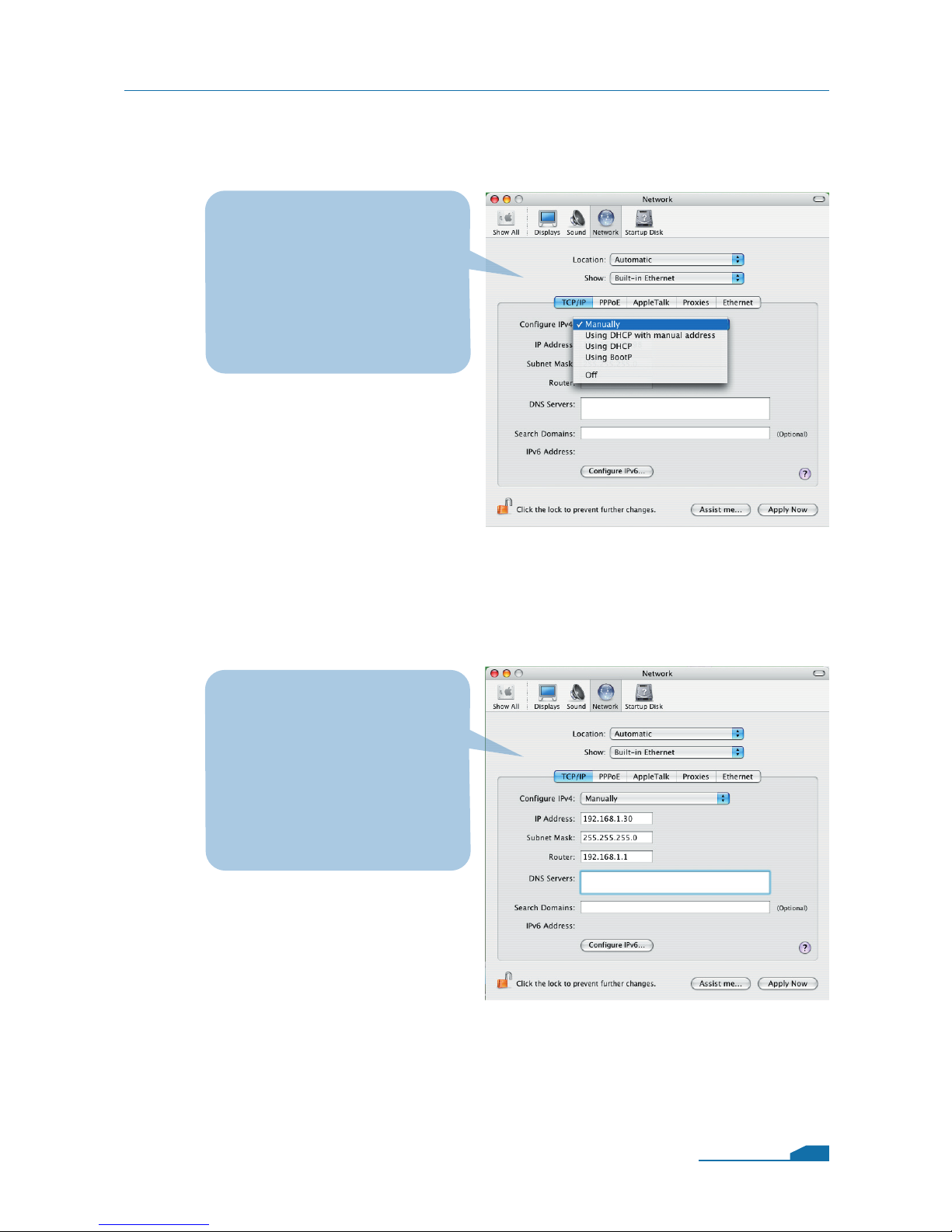

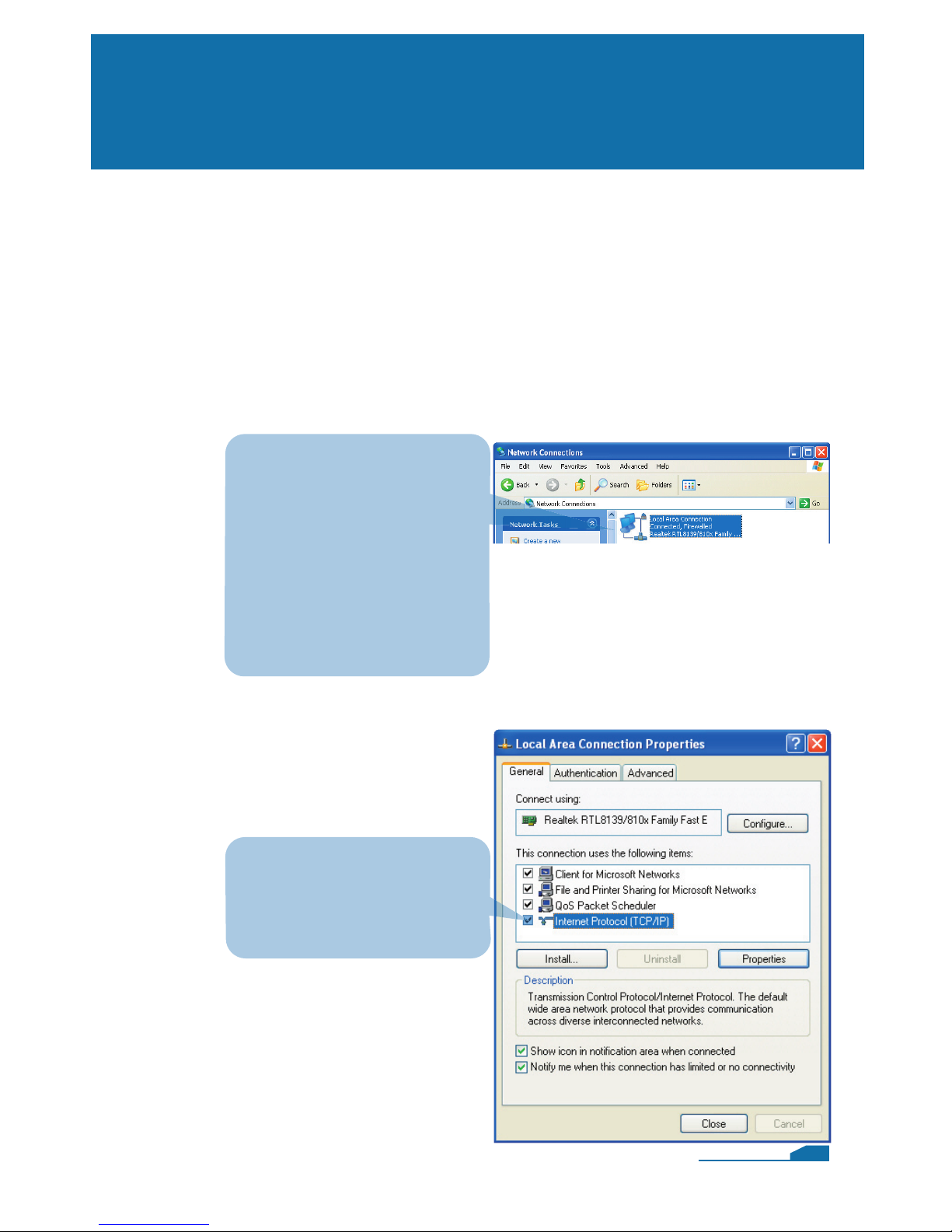

4.1 Configure Your Computer’s IP Address
Make sure that the network adapter in your computer is
configured to use a static IP address with 192.168.1.1
as default gateway and 255.255.255.0 as netmask.
Instructions on how to configure the network adapter can
be found in the appendix.

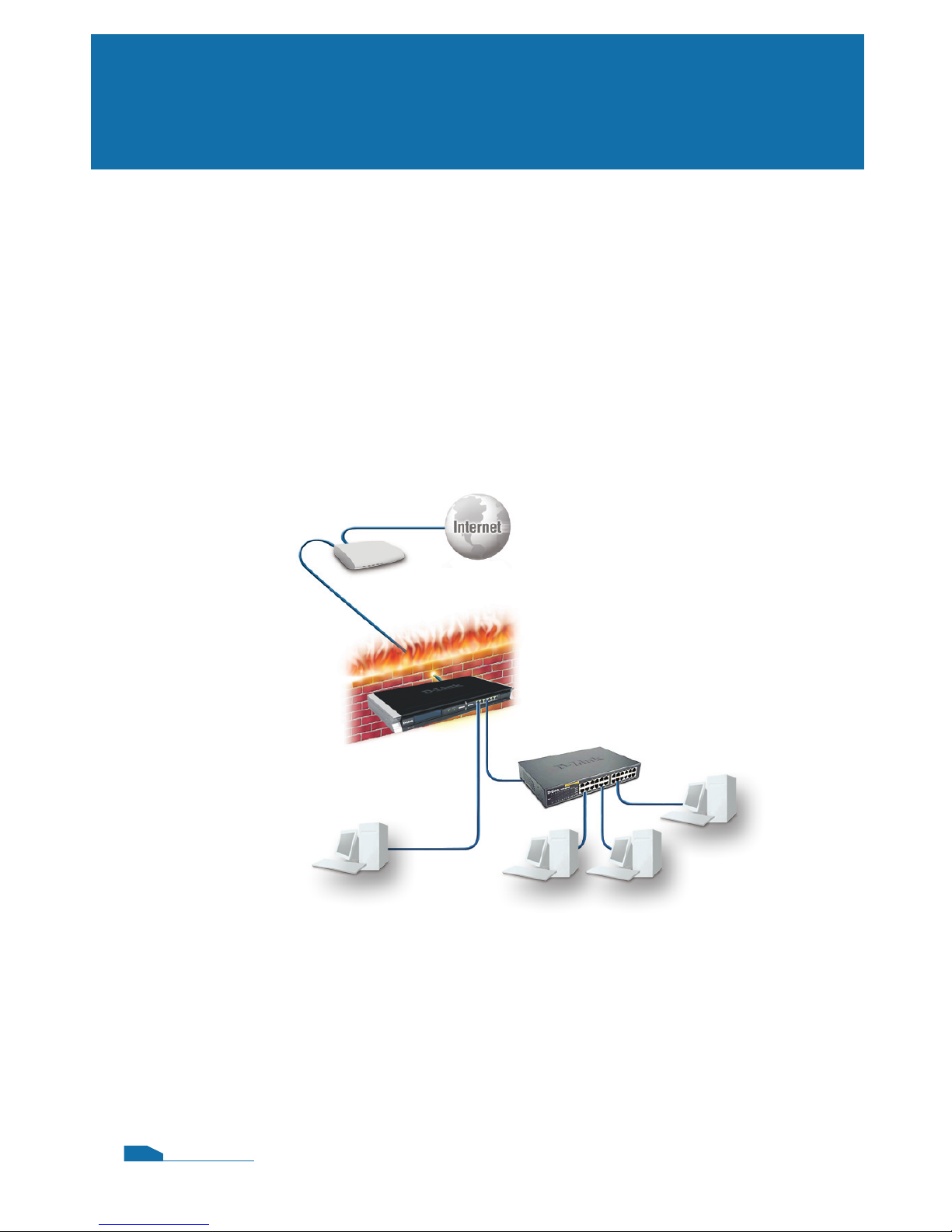

When you have completed the steps in this Quick Installation
Guide, your connected network should look similar to this:
Configure DFL-1600 4
07
Cable/DSL Modem
DFL-1600
Switch
Internal
Network
DMZ
Network
(optional)
Computer1 Computer2

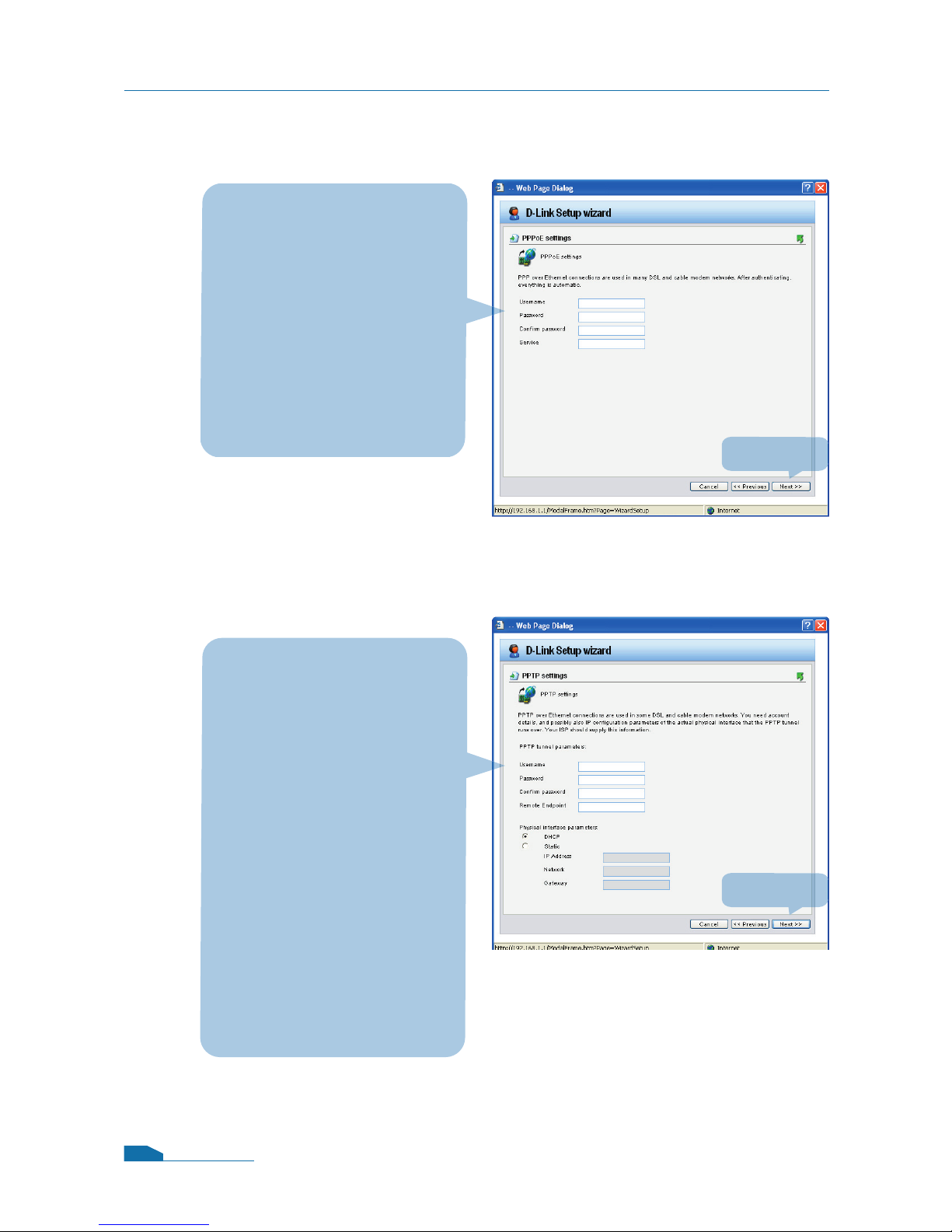

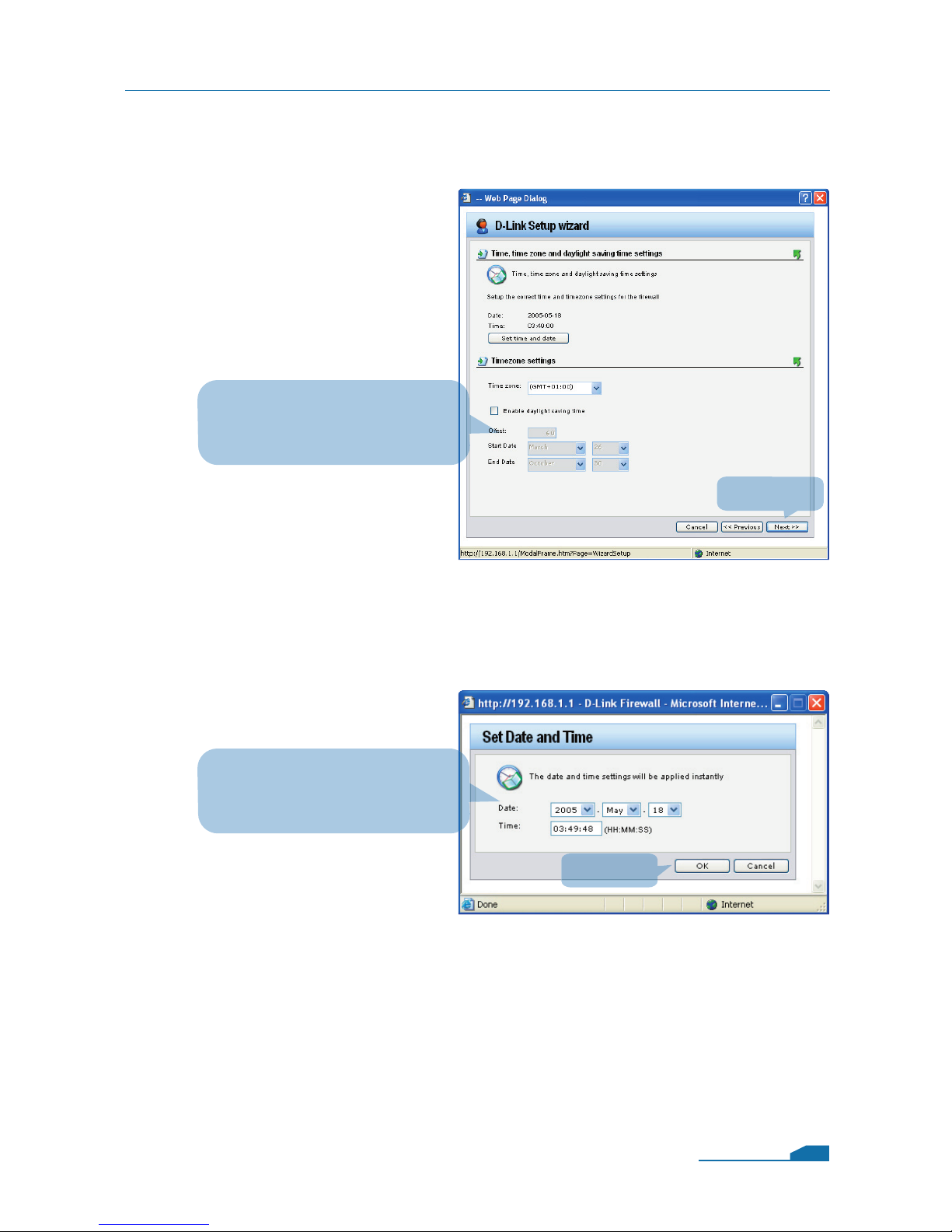

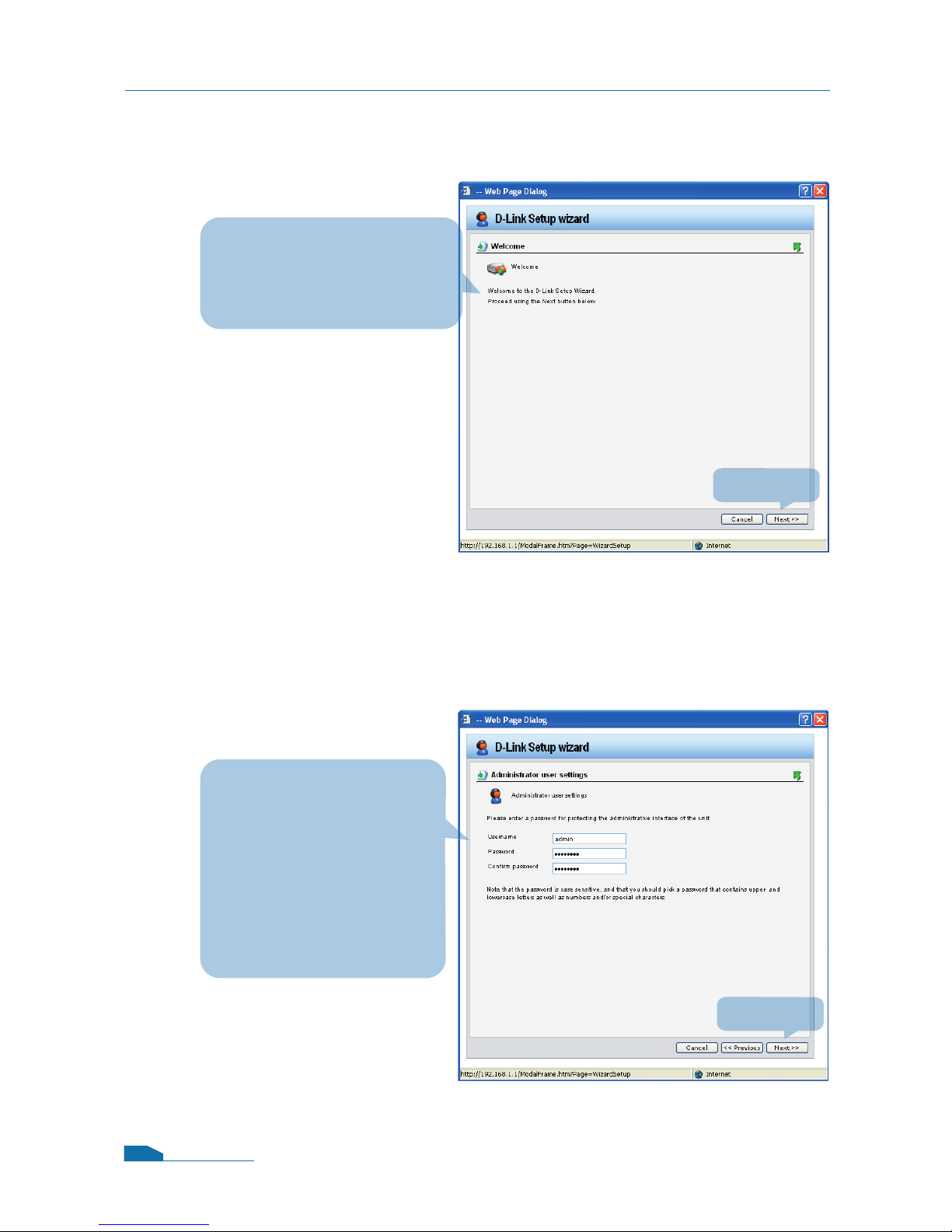

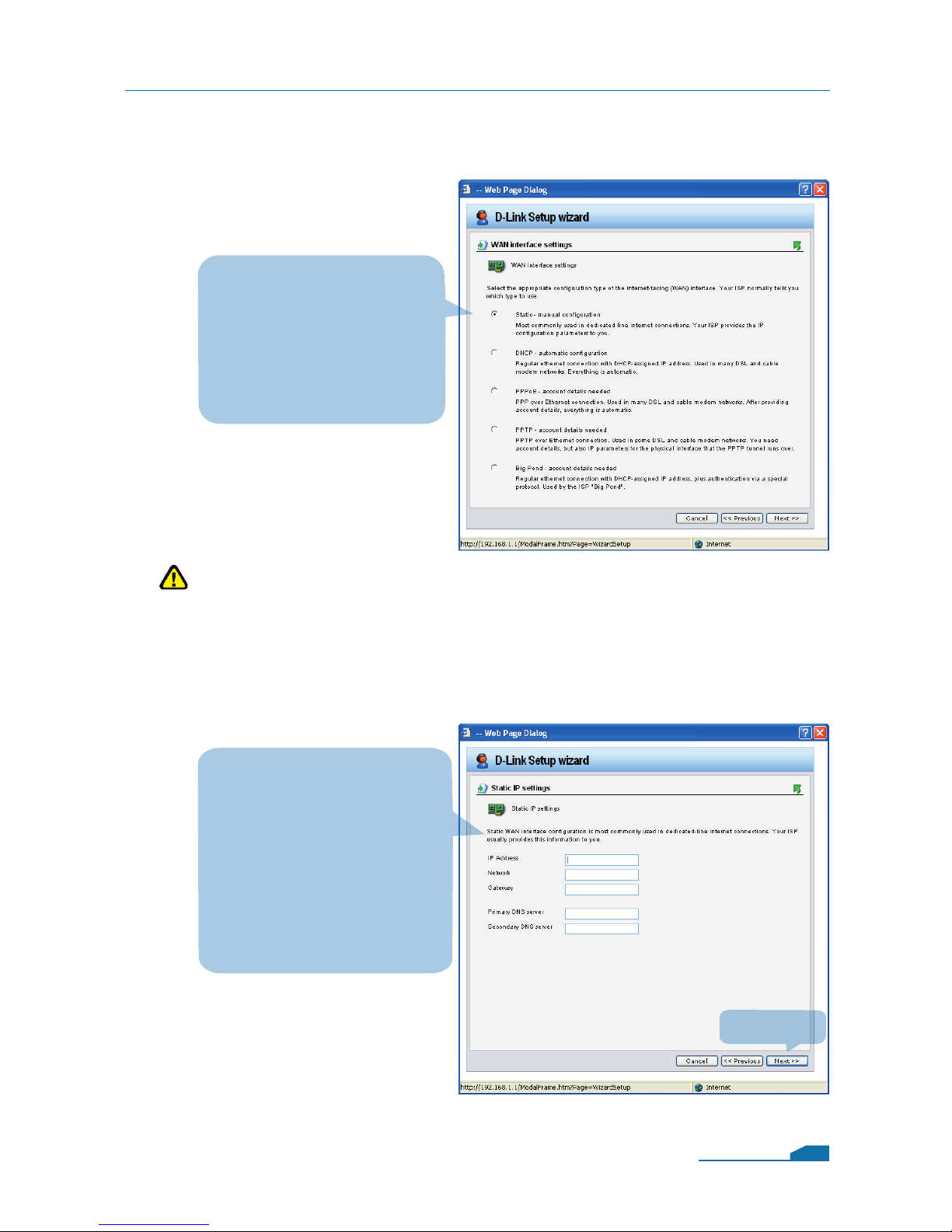

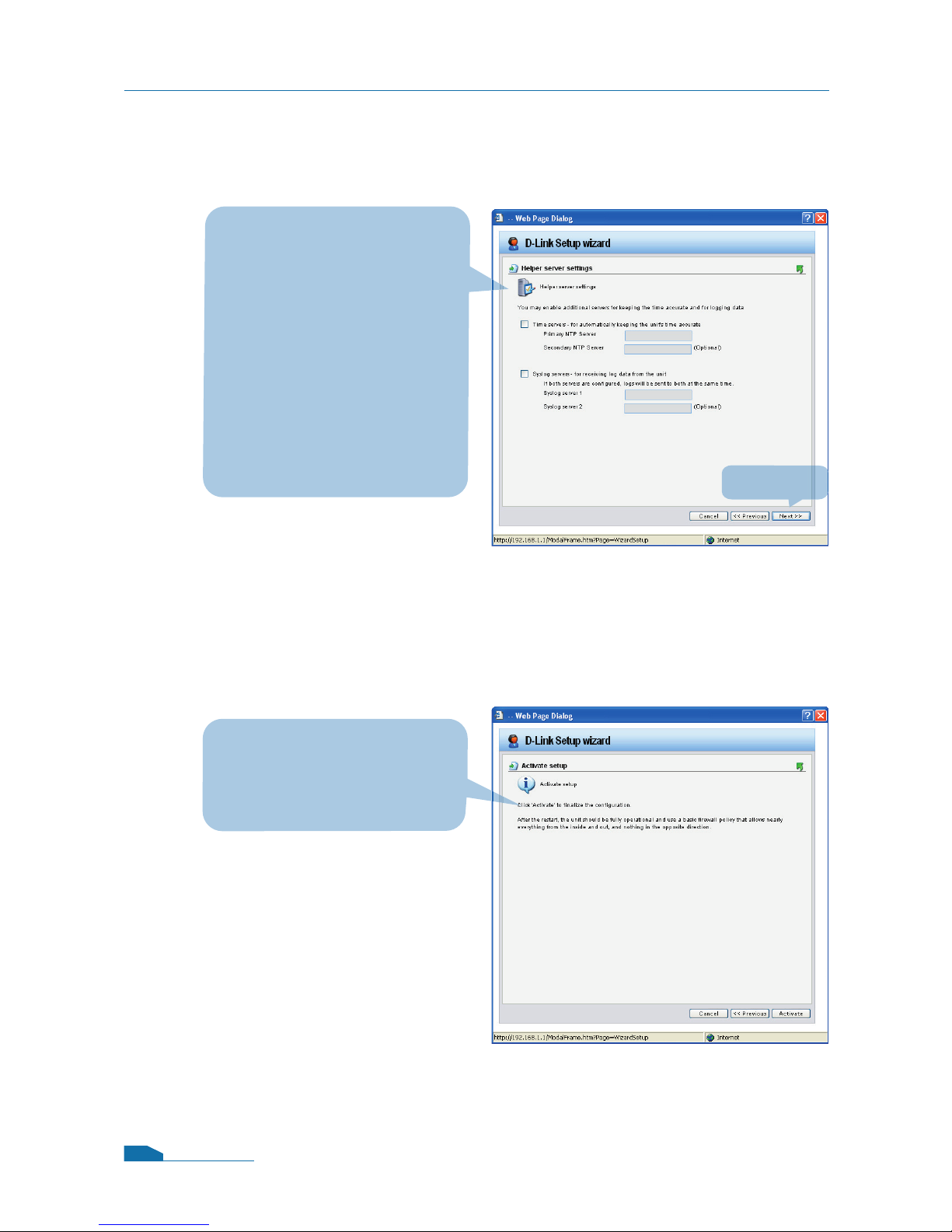

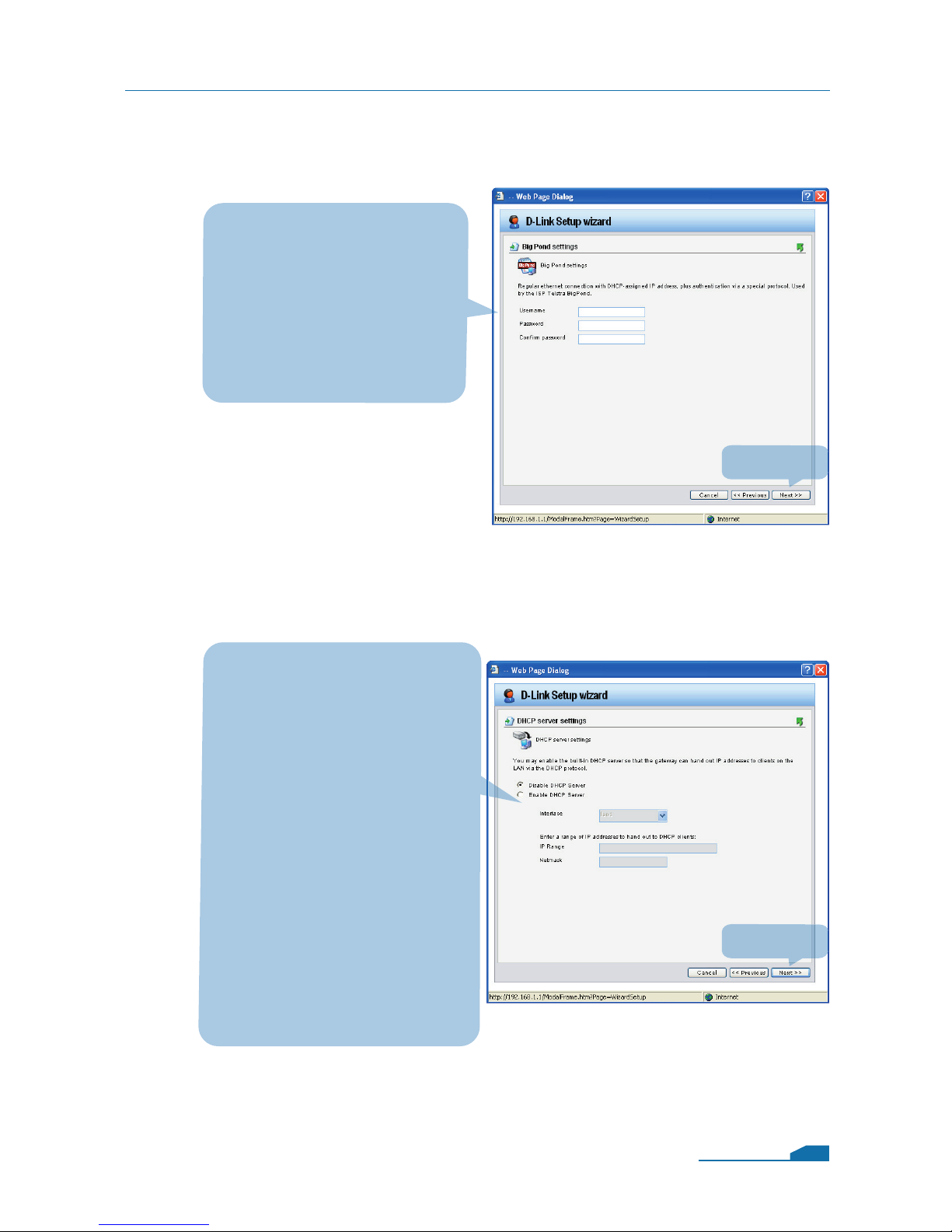

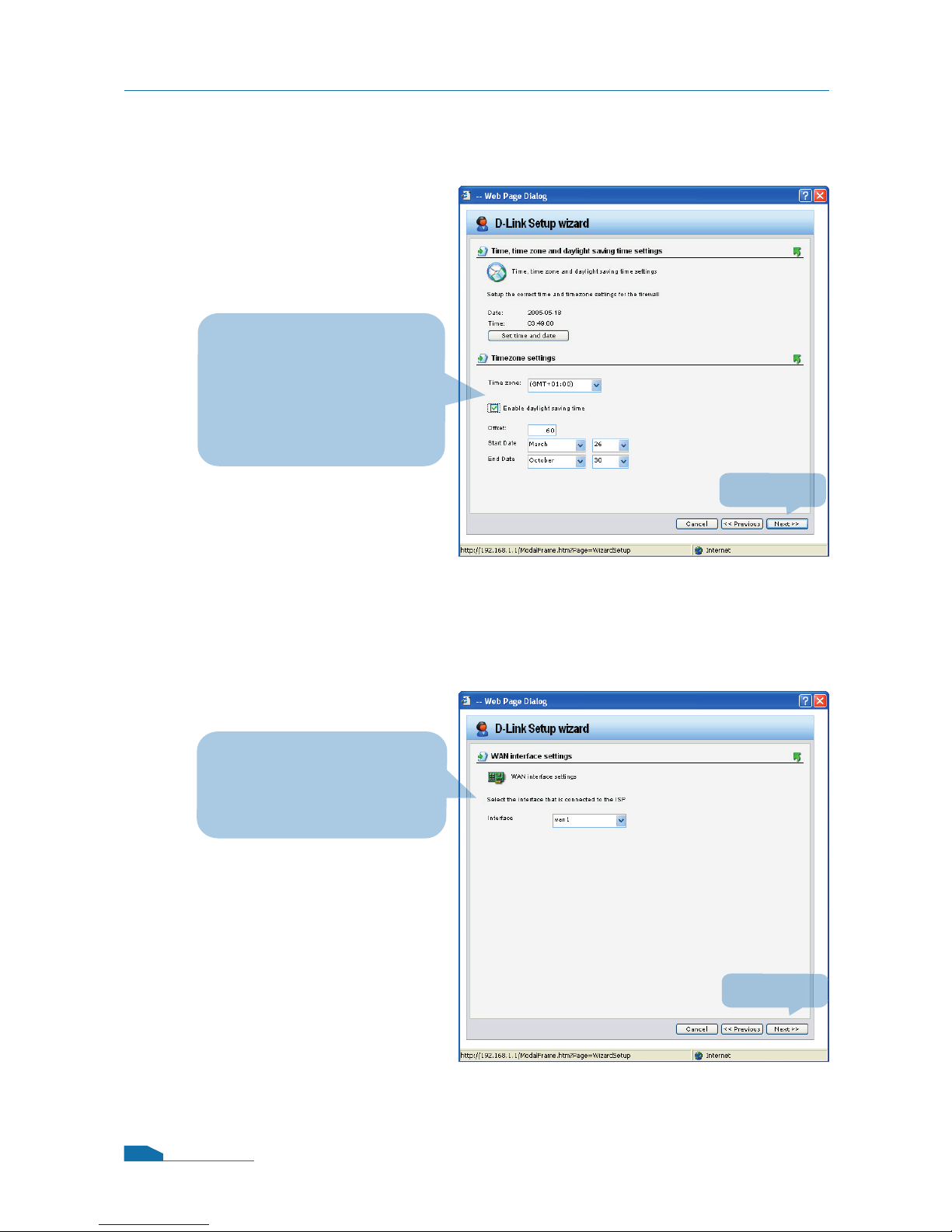

4.2 Using the Setup Wizard
The DFL-1600 provides Web based confi guration. You can
confi gure your DFL-1600 through Internet Explorer 6 or
Firefox 1.0 browser in MS Windows, Macintosh or UNIX based
platforms.

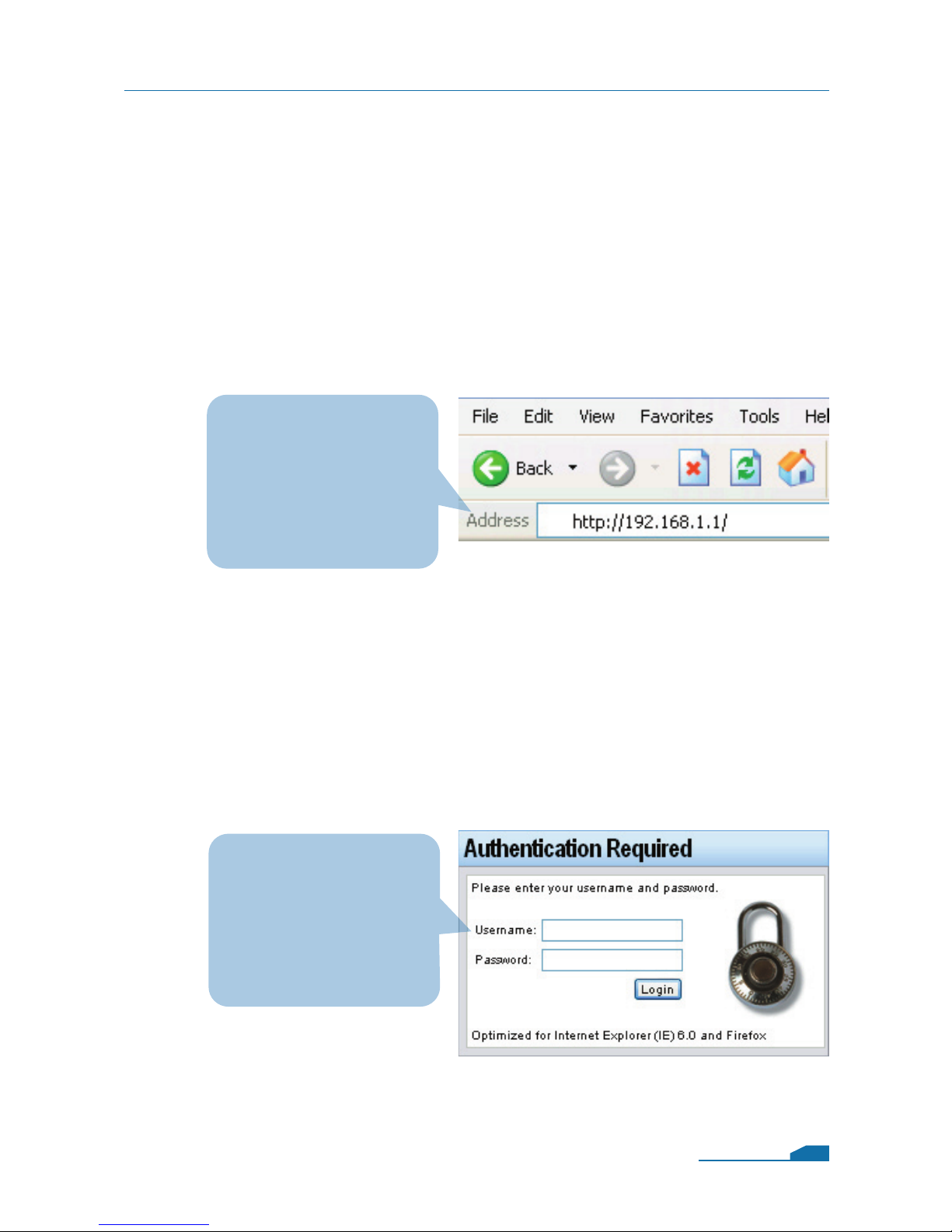

Activate your browser. Then type the IP address of the
DFL-1600 into the Location (for Netscape) or Address (for IE)
fi eld and press “Enter.” For example: http://192.168.1.1.
(The IP Address shown in the example above is the default
setting. If you have changed the IP Address of the DFL-1600
to conform to a network, then input that IP Address in the web
browser, instead of the default IP Address shown.)
Log on to the DFL-1600 web interface.
To start using the DFL-1600 web interface you need to log on
using the default username and password.
DFL-1600 Quick Installation Guide
Open your Web
browser and type
http://192.168.1.1 /
into the URL address
box. Then press the
Enter or Return key.
Type the default
Username/Password
Username: admin
Pasword: admin
and click Login
