D-Link DCS-2330L User manual

HD WIRELESS N OUTDOOR CLOUD CAMERA
DCS-2330L
QUICK
INSTALLATION
GUIDE

DCS-2330L 3
ENGLISH

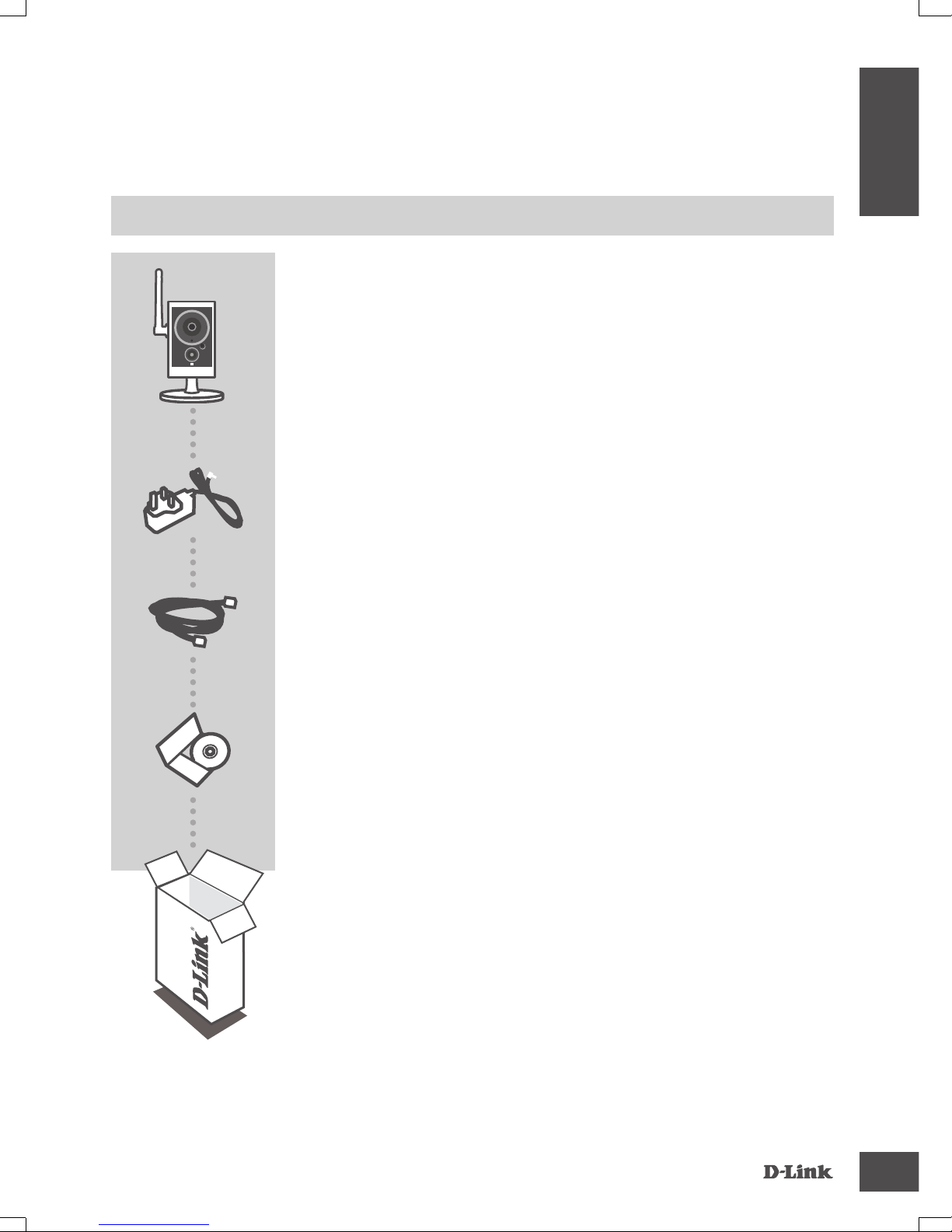

CONTENTS OF
PACKAGING
HD WIRELESS N OUTDOOR CLOUD CAMERA
DCS-2330L
POWER ADAPTER
ADAPTER
If any of these items are missing from your packaging, contact your
reseller.
INSTALLATION CD
INCLUDES SETUP WIZARD & TECHNICAL MANUALS
CAT5 ETHERNET CABLE
CONNECT THE CAMERA TO YOUR ROUTER DURING SETUP

DCS-2330L
4
ENGLISH
• Computer with Microsoft Windows®8/7/Vista/XP, or Mac with OS X 10.6 or higher
• PC with 1.3GHz or above and at least 128MB RAM
• Internet Explorer 7, Firefox 12, Safari 4, or Chrome 20 or higher version with Java installed and
enabled
• Existing 10/100 Ethernet-based network or 802.11g/n wireless network
SYSTEM REQUIREMENTS
PRODUCT SETUP
WINDOWS USER
Step 1:
Carefully remove the rubber seal on the back of the DCS-2330L, and use the included Ethernet
cable to connect the DCS-2330L to your network.
Step 2:
Connect the external power supply to a power outlet. Wait until the power LED turns green.
Step 3:
Insert the Installation CD into your CD-ROM drive. If the Setup Wizard does not automatically run, go
to Start > Run, and type in D:\autorun.exe (where D: represents the letter of your CD-ROM drive)

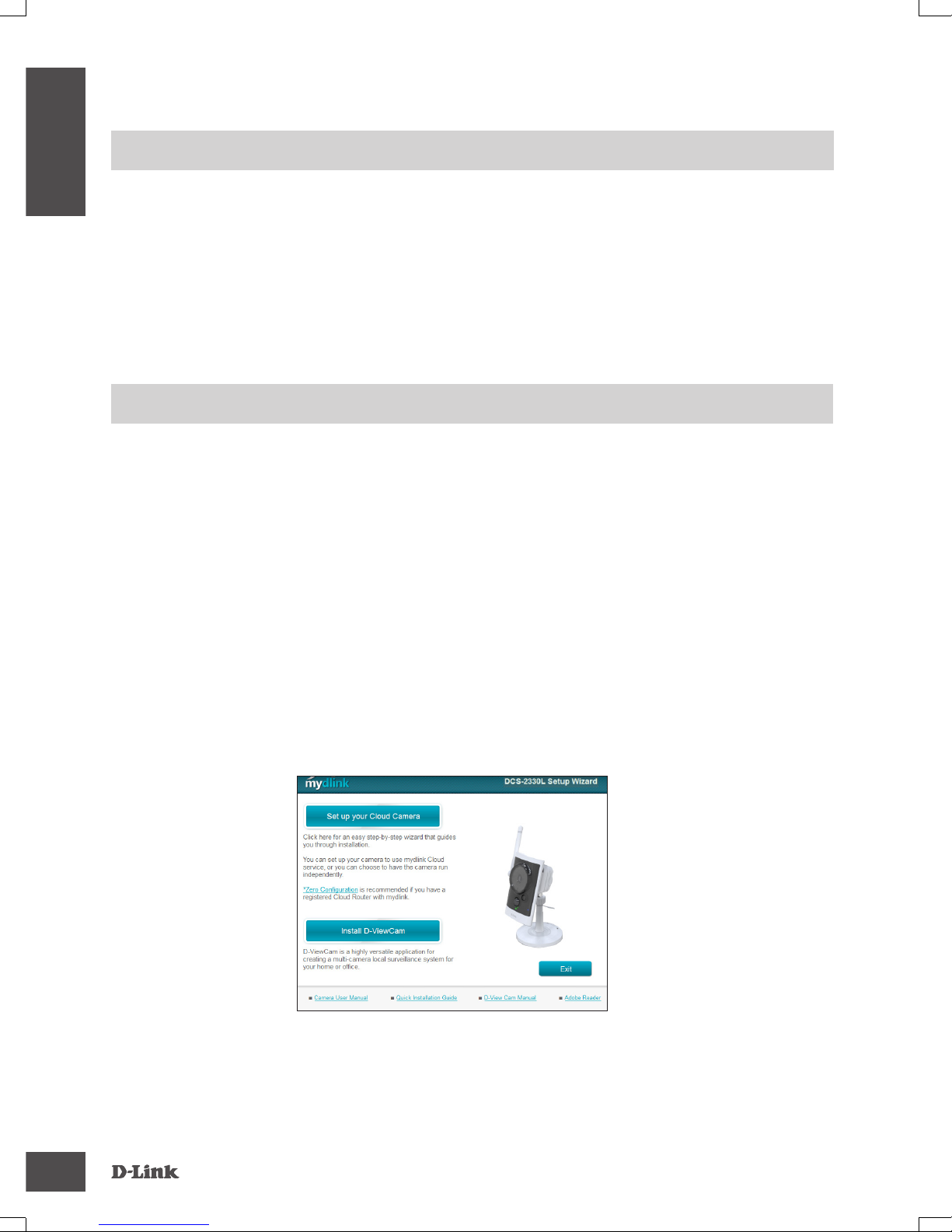

and click OK. When the Setup Wizard appears, click Set up your Cloud Camera and follow the on-
screen instructions.
Step 4:
After conguring your DCS-2330L, you can remove the Ethernet cable and carefully reinsert the
rubber seal.

DCS-2330L 5
ENGLISH
PRODUCT SETUP
MAC USER

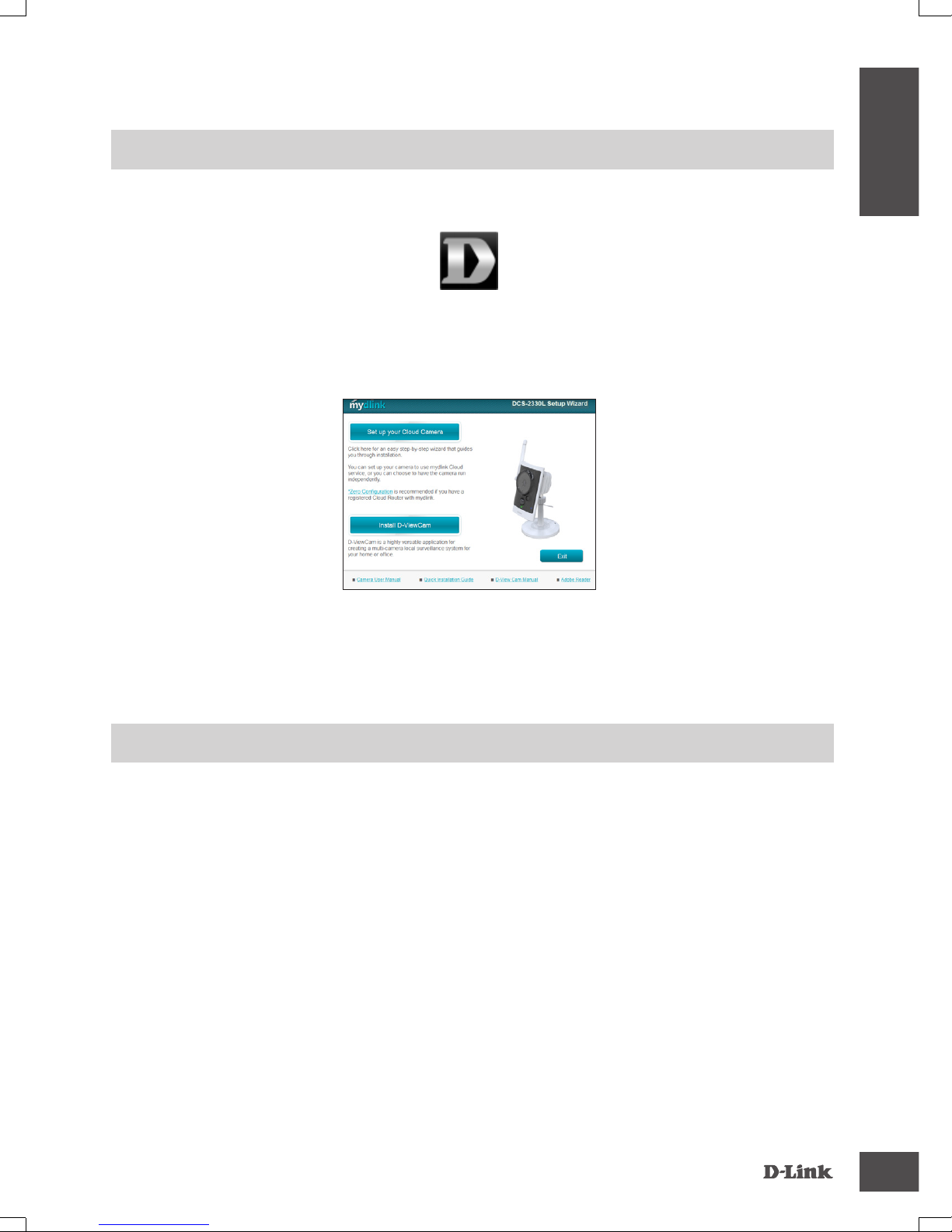

Insert the Installation CD-ROM into your computer’s CD drive. On the desktop, open your CD drive
and double-click on the SetupWizard le.
SetupWizard
Within 20-30 seconds, the Setup Wizard will open, which will guide you step-by-step through the
installation process from connecting your hardware to conguring your camera and registering it with
your mydlink account.
Note: mydlink portal requires Java™ to function correctly.
For more guidelines, please refer to mydlink FAQ pages at https://eu.mydlink.com/faq/mydlink
WPS SETUP
Alternatively, you may create a WPS connection if your router or access point supports WPS. To
create a WPS connection:
Step 1:
Press and hold the WPS button on the side of the camera for three seconds. The blue WPS status
LED above the button will blink.
Step 2:
Press the WPS button on your wireless router or access point within 60 seconds. On some routers,
you may need to log into the web interface and then click an onscreen button to activate the WPS
feature. If you are not sure where the WPS button is on your router or access point, please refer to
your router’s user manual.
The DCS-2330L will automatically create a wireless connection to your router. While connecting, the
green LED will ash and your camera will reboot.

DCS-2330L
6
ENGLISH
mydlink PORTAL
After registering your DCS-2330L camera with a mydlink account in the Camera Installation Wizard,
you will be able to remotely access your camera from the www.mydlink.com website. After signing in

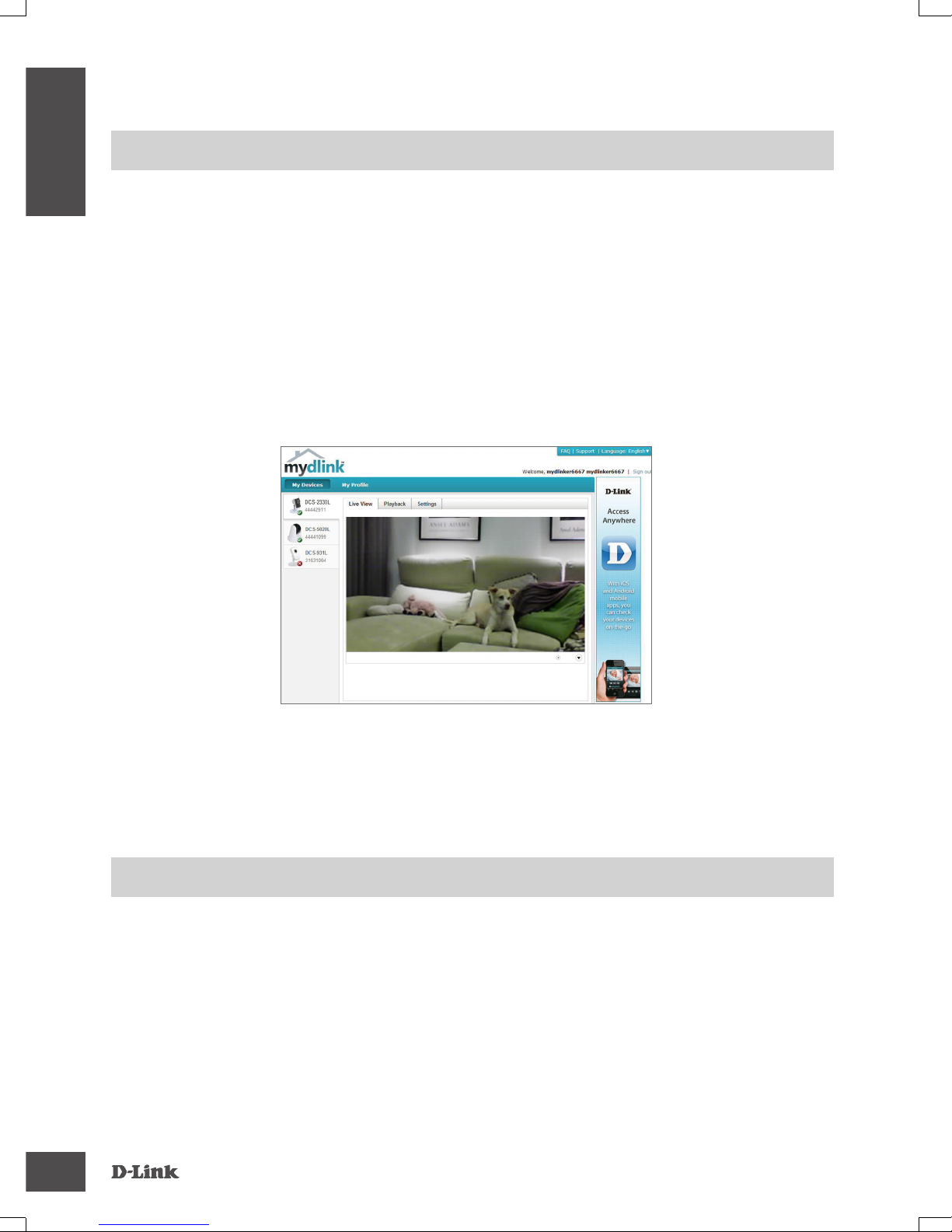

to your mydlink account, you will see a screen similar to the following:
Step 1:
Open Internet Explorer and go to http://www.mydlink.com, then sign into mydlink.
Step 2:
Select your camera from the device list, and your camera’s Live View will appear.
TECHNICAL SUPPORT
United Kingdom (Mon-Fri) , Website: http://www.dlink.com
Home Wireless/Broadband 0871 873 3000 (9.00am–06.00pm, Sat 10.00am-02.00pm)
Managed, Smart, & Wireless Switches, or Firewalls 0871 873 0909 (09.00am- 05.30pm)
(BT 10ppm, other carriers may vary.)
Ireland (Mon-Fri), Website: http://www.dlink.com
All Products 1890 886 899 (09.00am-06.00pm, Sat 10.00am-02.00pm)
Phone rates: €0.05ppm peak, €0.045ppm off peak times
