D-Link DCS-6620G - Network Camera User manual

2 D-Link Systems, Inc.
DCS-6620G Install GuideSystem Requirements
System Requirements
Minimum System Requirements:
 Internet Explorer Version 6.0 or above
 CPU Pentium 4, 2.0GHz plus processor

Memory Size: 128MB or above

32MB AGP Video Card

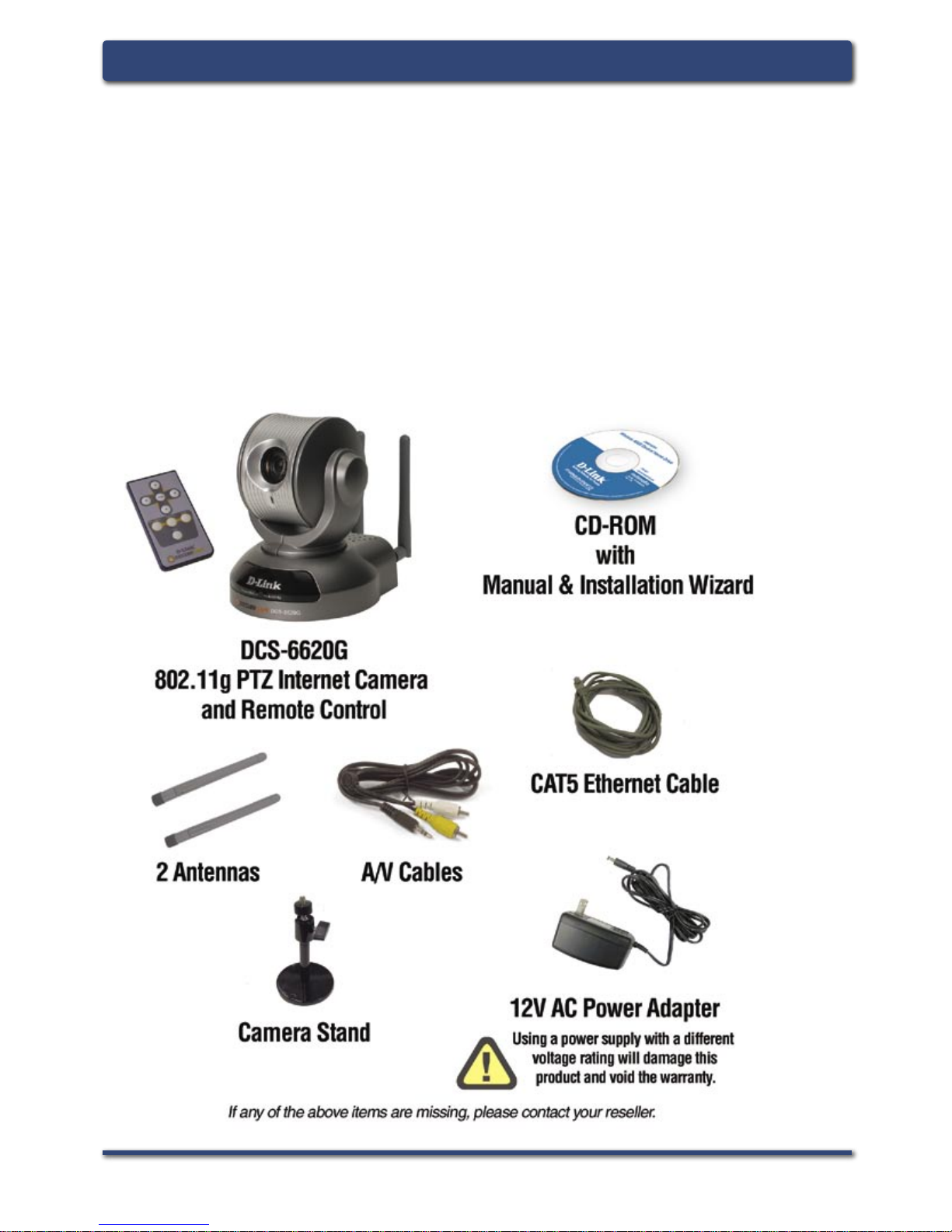

Package Contents

D-Link Systems, Inc. 3
DCS-6620G Install Guide Hardware Overview
Hardware Overview

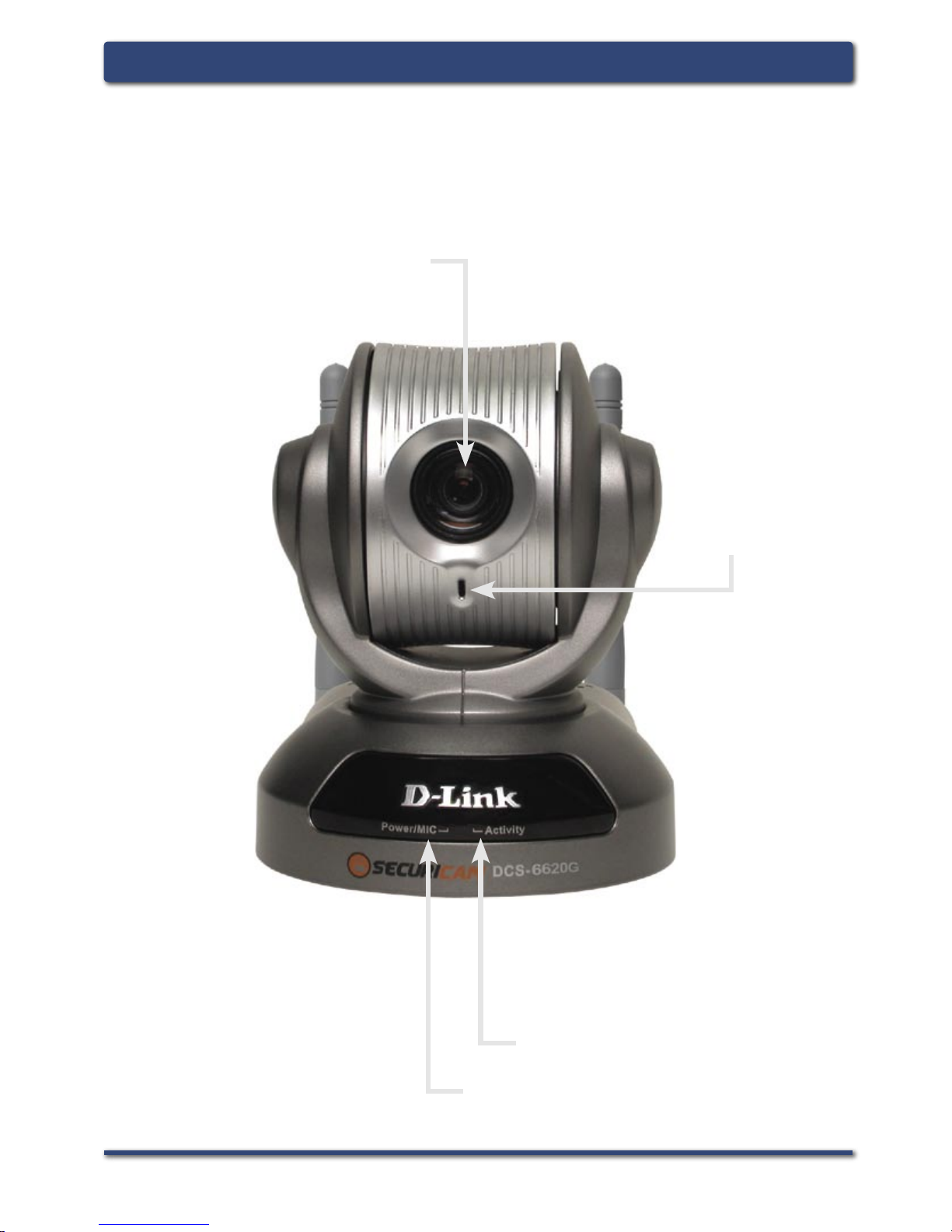

Front
Power LED
Link LED
Built-In
Microphone
Motorized Zoom Lens

4 D-Link Systems, Inc.
DCS-6620G Install GuideHardware Overview

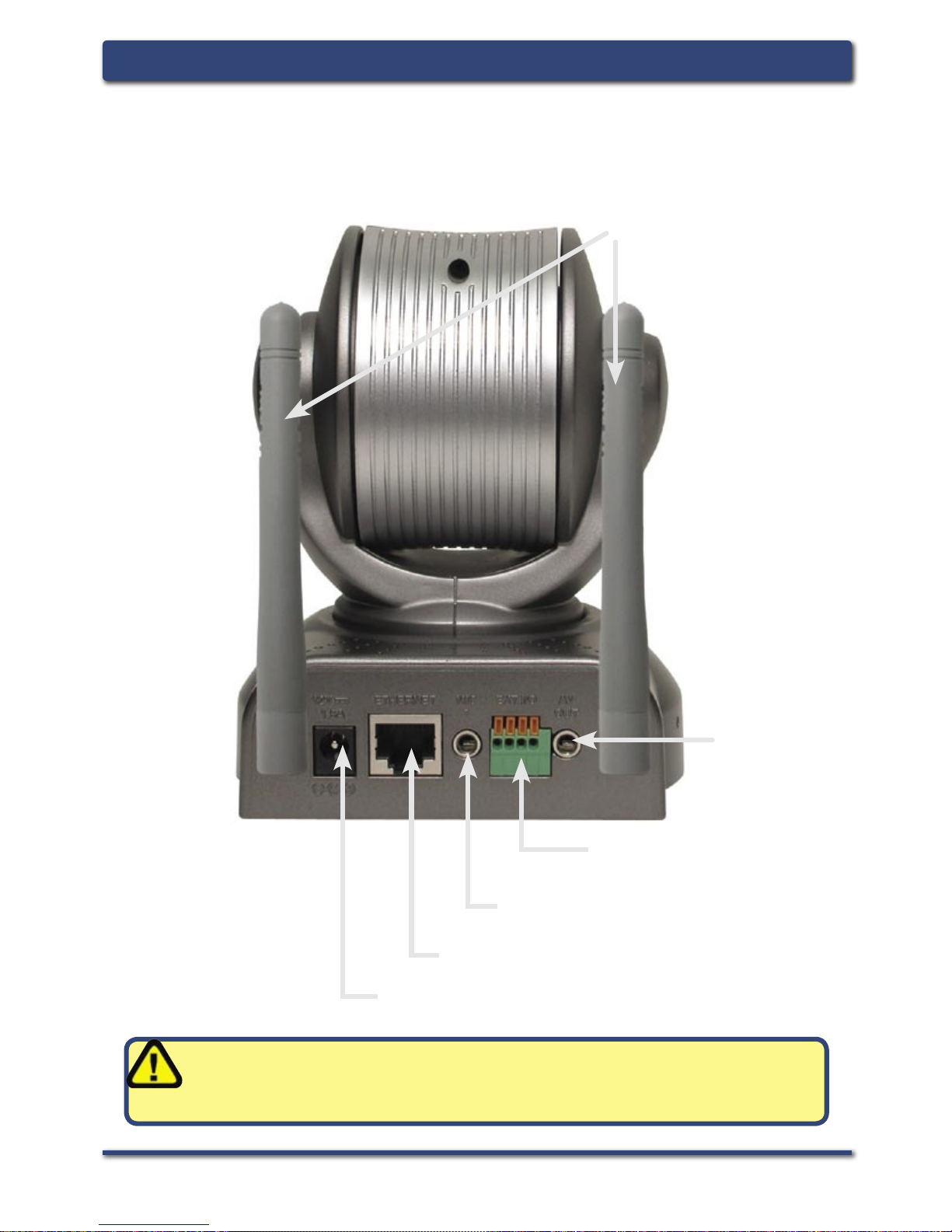

Rear
Connect the power adapter jack to the 802.11g PTZ Internet Camera
before plugging in to the power socket. This will reduce the risk of accidental
electric shock.
A/V out
External I/O Port
External Mic.
Ethernet 10/100 RJ45 socket
Power Cord socket
Antennas

D-Link Systems, Inc. 5
DCS-6620G Install Guide Hardware Installation
Hardware Installation

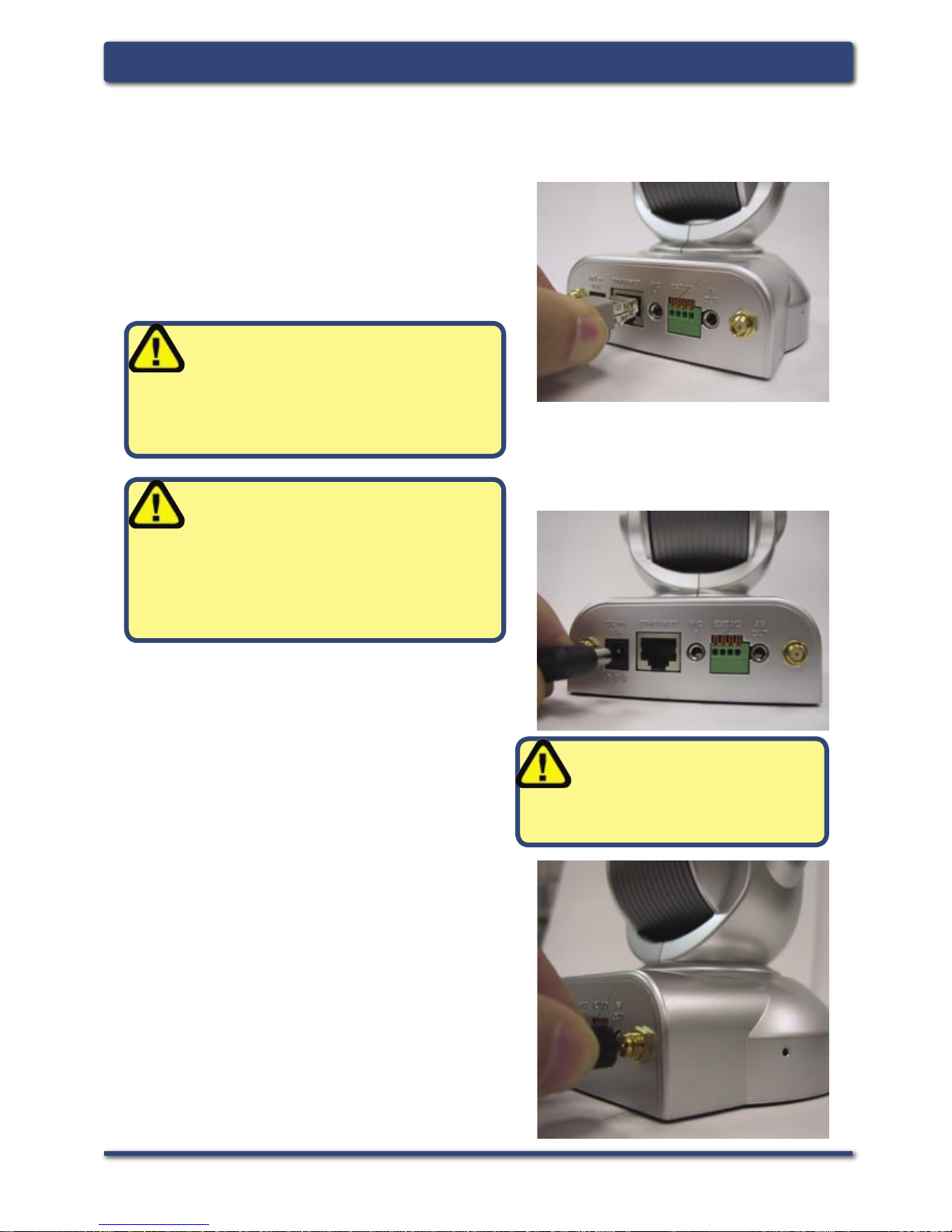

Connect the Ethernet Cable
Connect one end of the Ethernet cable to the
network cable connector located on the back
panel of the DCS-6620G, and attach the other
end to a router, switch, or gateway on the
network.
If you connect this camera directly
to a PC, you will need a cross-over
Ethernet cable. If you plug the camera into
a hub or router, you will be able to use the
cable included with your camera.
Attach the External Power Supply
Attach the external power supply to the DC power
input connector located on the backpanel of the
DCS-6620G (labeled 12V), and connect it to
an AC power outlet.
Power source is confirmed
when the LED Power Indicator
on the 802.11g PTZ Internet Camera
is illuminated.
Both the red and green LEDs will flash alternately
and only the red LED will remain lit. The green
LED will not come on until you have configured your
camera.
Attach the Antennas
Attach the two antennas to the connectors
located on the back panel of the DCS-6620G .
It is required that an Ethernet cable
is used during initial setup . Once
your wireless configuration is set, you may
disconnect the Ethernet cable and reboot
your camera to connect to your wireless
network.

6 D-Link Systems, Inc.
DCS-6620G Install GuideHardware Installation (continued)

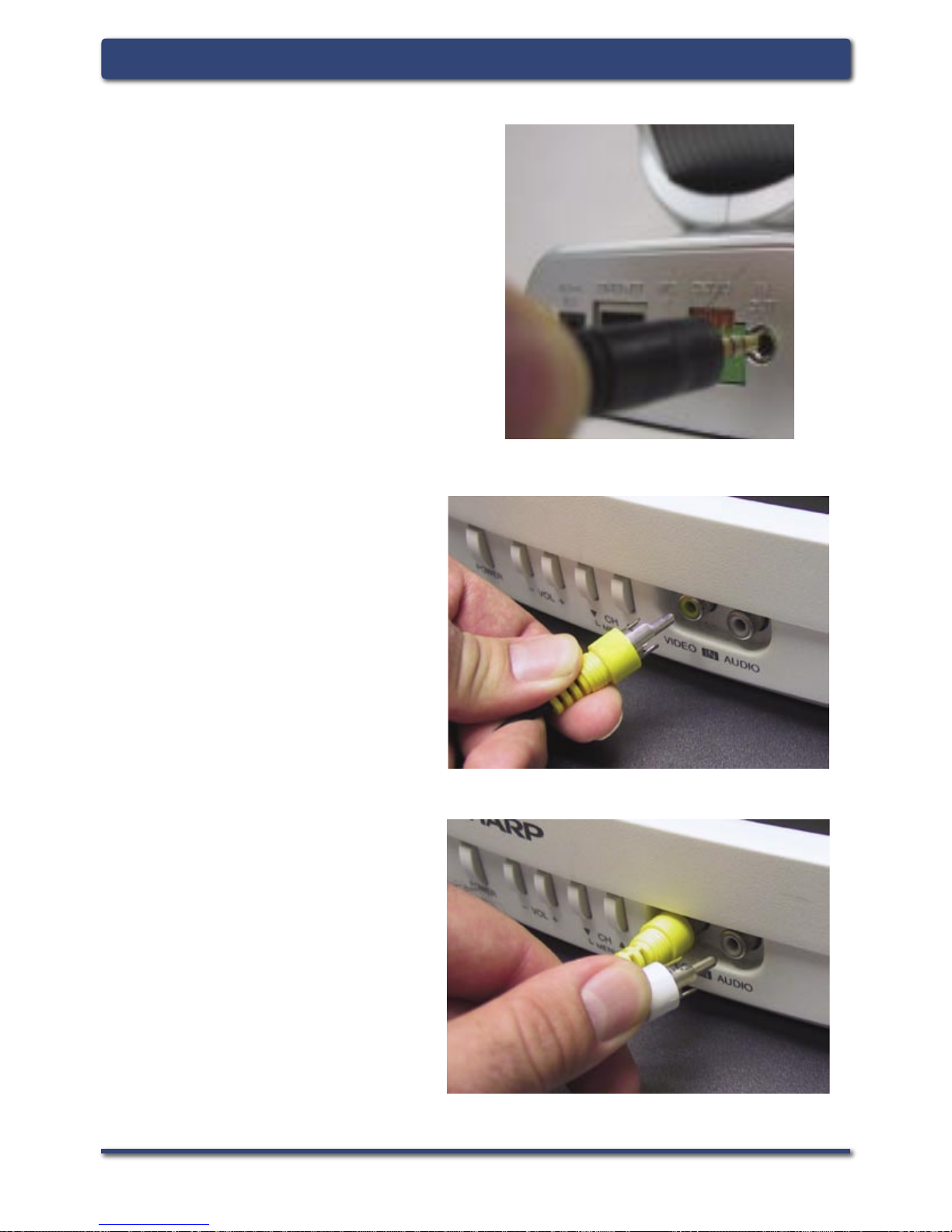

Attach the A/V cable to the A/V out
connector if you wish to connect the
DCS-6620G to your TV set.
Attach the yellow RCA connector to
the “video” connector on your TV.
Attach the white RCA cable to the
“audio” connector on your TV set.

D-Link Systems, Inc. 7
DCS-6620G Install Guide Installation Wizard
Installation Wizard

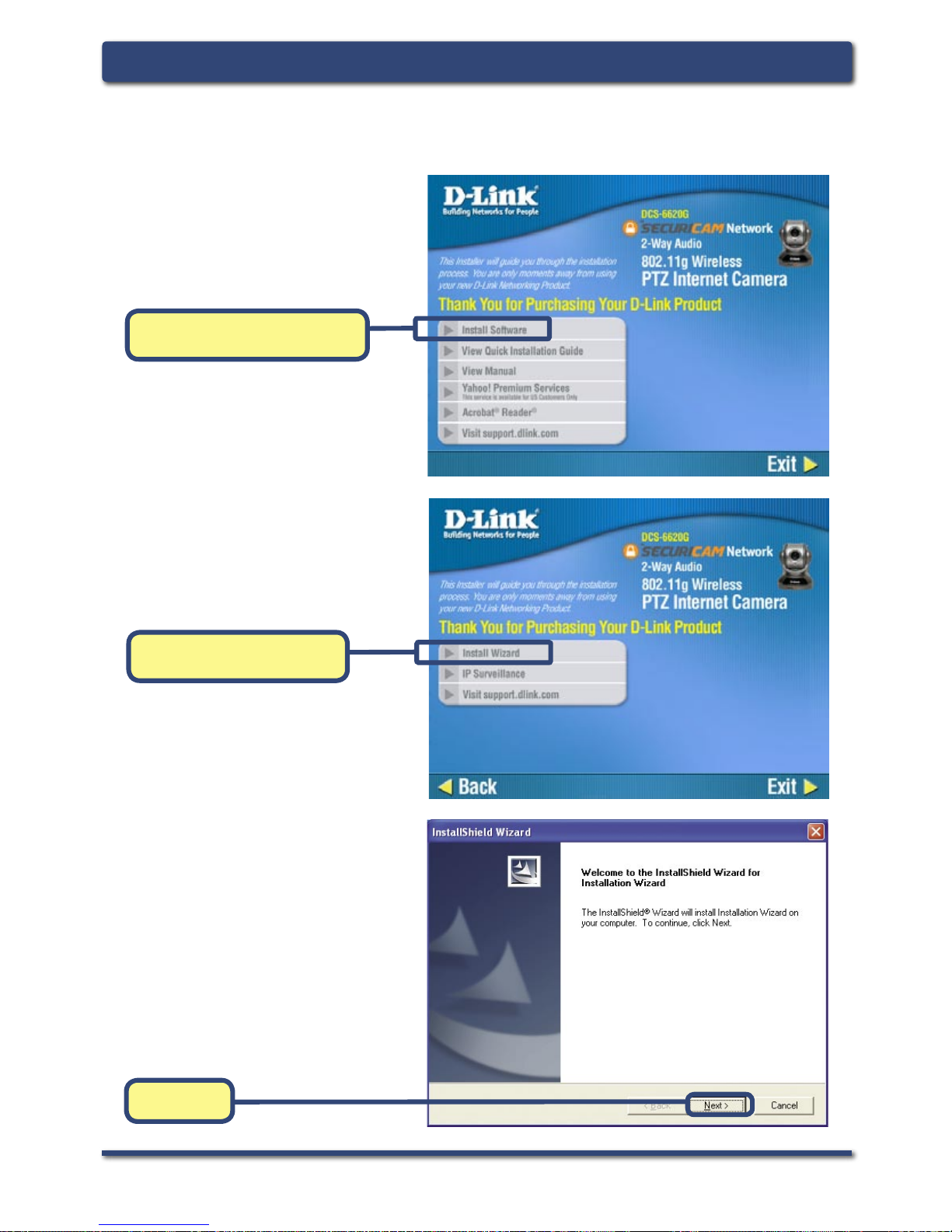

Insert the DCS-6620G CD into
the CD-ROM drive of your PC.
Click on Install Software
Click on Install Wizard
Click Next

8 D-Link Systems, Inc.

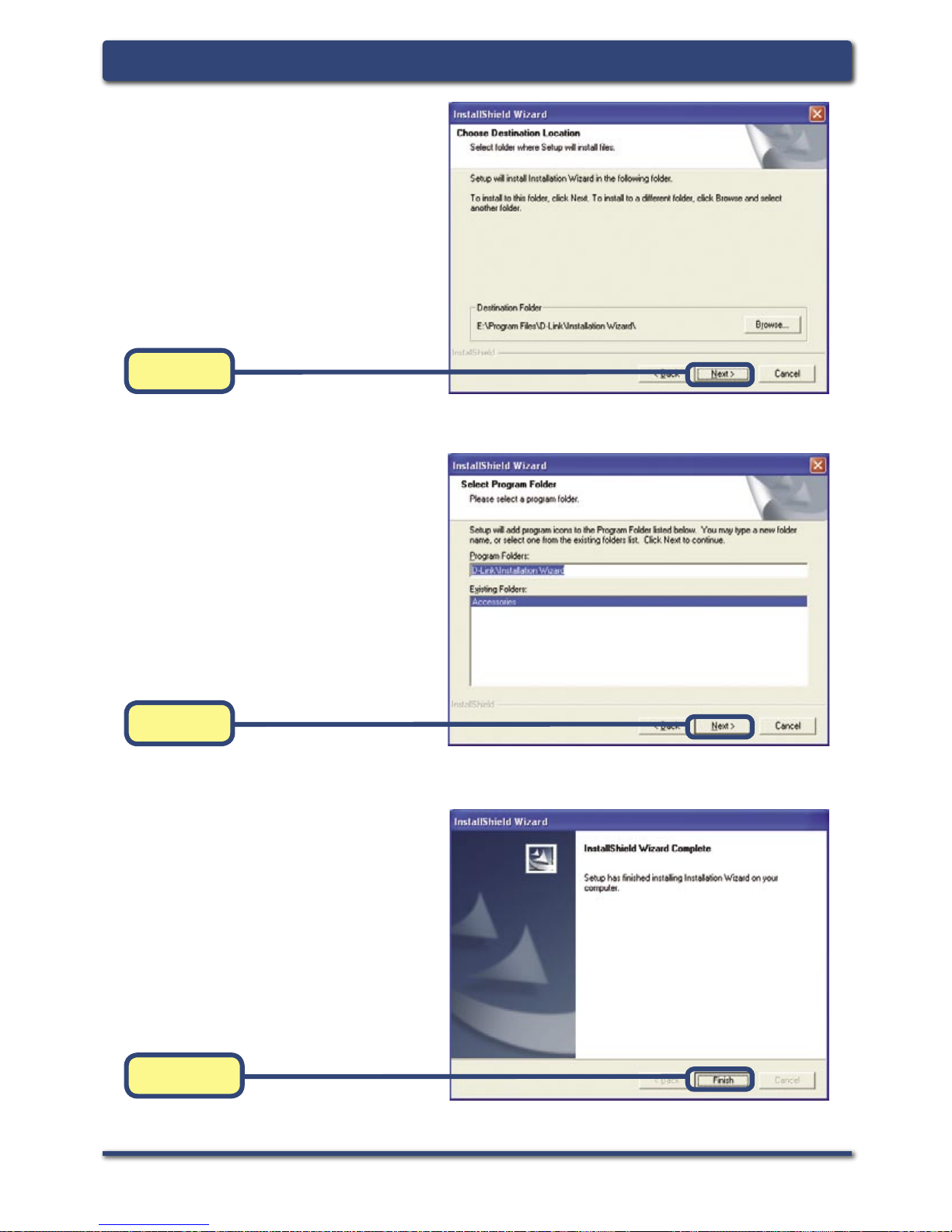

DCS-6620G Install GuideInstallation Wizard (continued)
Click Next
Click Next
Click Finish

D-Link Systems, Inc. 9
DCS-6620G Install Guide Camera Configuration
Camera Configuration

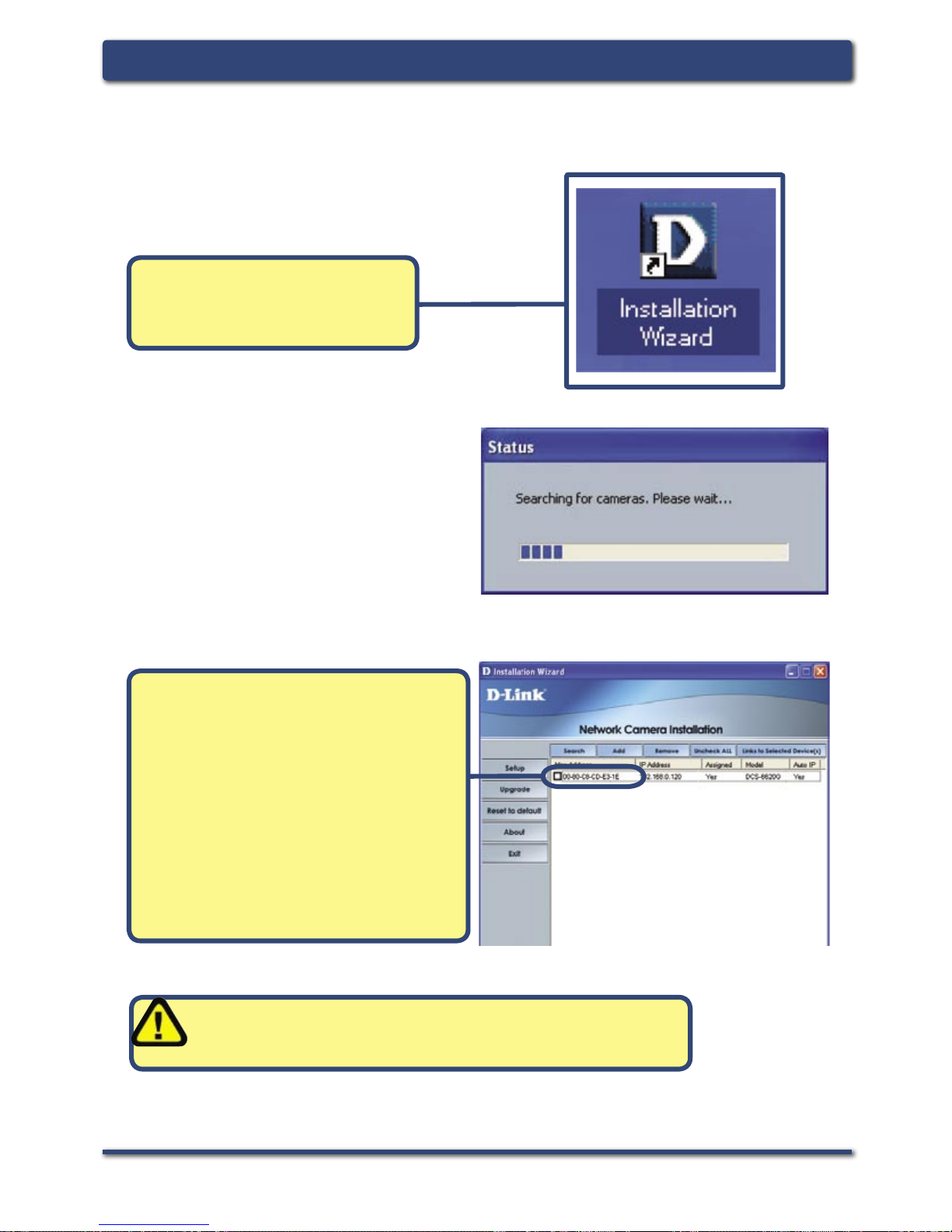

The software will search for cameras.
Double-click on the Installation
Wizard icon, which should have
been created on your desktop.
The Installation Wizard will now show
a MAC address of the DCS-6620G
and an IP Address (which may or may
not be correct depending on what you
have your DCS-6620G connected to).
If you have a DHCP* server on your
network , there will be a valid IP Address
displayed here. After a few seconds, the
“assigned” column will display yes ,
indicating that the displayed IP Address
is now assigned to the camera.
*A DHCP server is a device that supplies IP Addresses to
its clients that are on the same network.

10 D-Link Systems, Inc.
DCS-6620G Install GuideCamera Configuration (continued)
If the Installation Wizard does not display
any devices, you will need to find a
tool small enough to fit into the reset
hole and softly press down a switch for
2 cycles (about 5-7 seconds). The red
and green LEDs will blink continuously
and stop twice. Let go when the red
LED starts to flash the second time.
Once the camera appears,
select the camera by placing
a Checkmark in the box.
Click Search to refresh the
list of cameras if needed.

D-Link Systems, Inc. 11
DCS-6620G Install Guide Camera Configuration (continued)

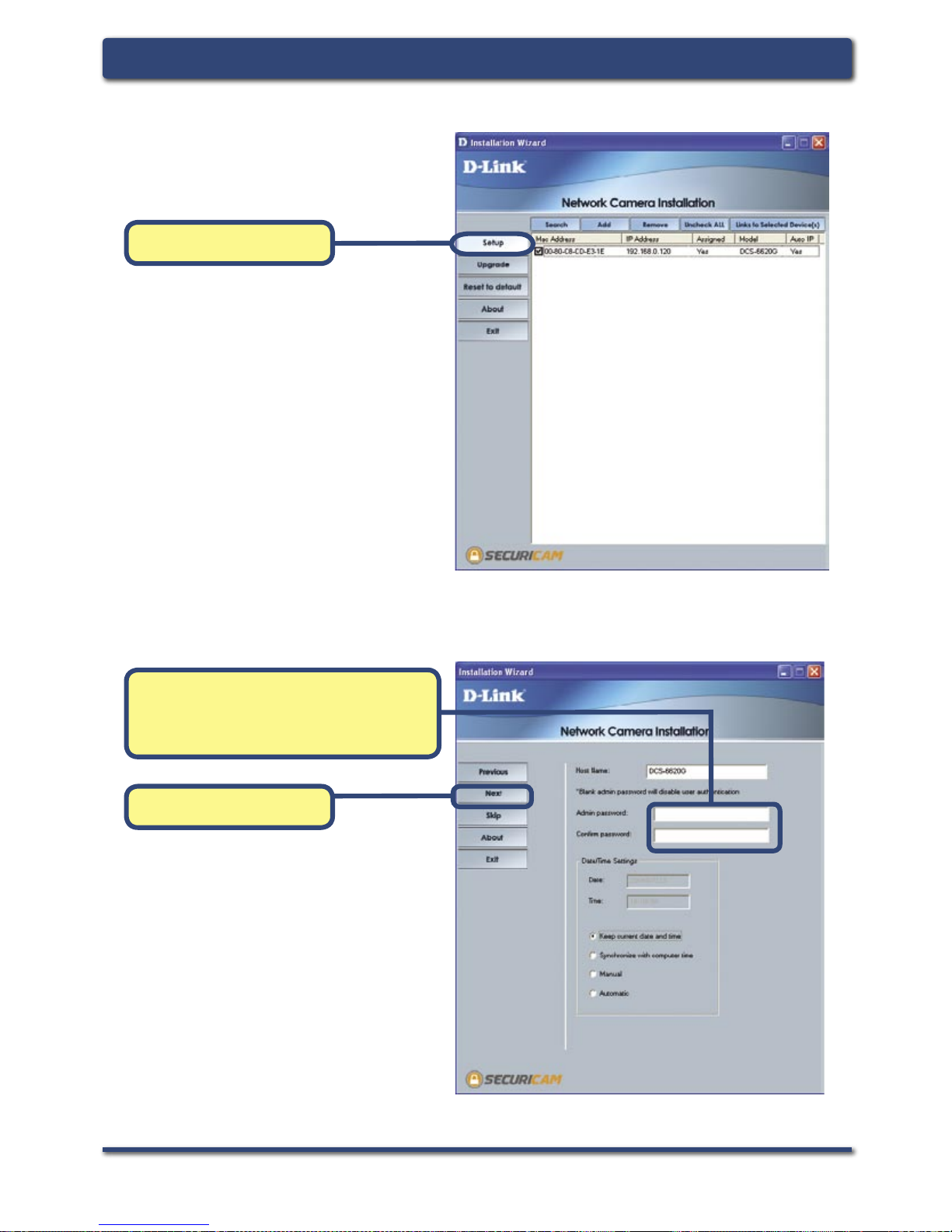

Click the Setup button.
Enter an administrative password in
the Admin password and Confirm
password fields.
Click the Next button.
For details on the Date/Time Settings,
please refer to the User Manual on the
CD-ROM.

12 D-Link Systems, Inc.
DCS-6620G Install GuideCamera Configuration (continued)

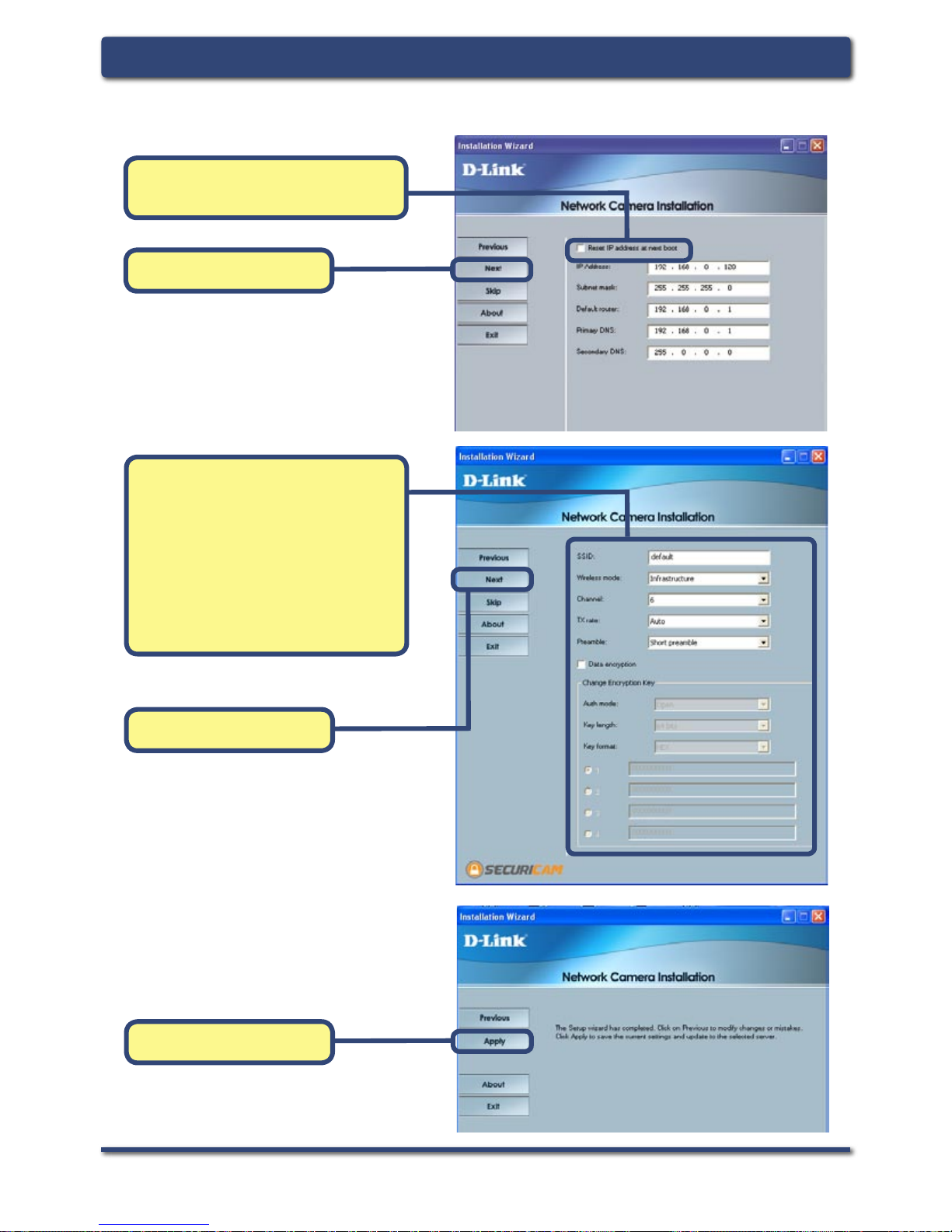

Click the Next button.
Uncheck the box labeled Reset
IP address at the next boot.
Click the Apply button.
If you need to modify the IP
settings, please refer to the
user manual on the CD-ROM.
Here users can configure the
Wireless Network Settings
for the camera. Enter the SSID
and select the Wireless mode,
Channel, Tx Rate, and Preamble.
Check the Data Encryption box
to enable data encryption and
configure the settings.
Click the Next button.

D-Link Systems, Inc. 13
DCS-6620G Install Guide Camera Configuration (continued)

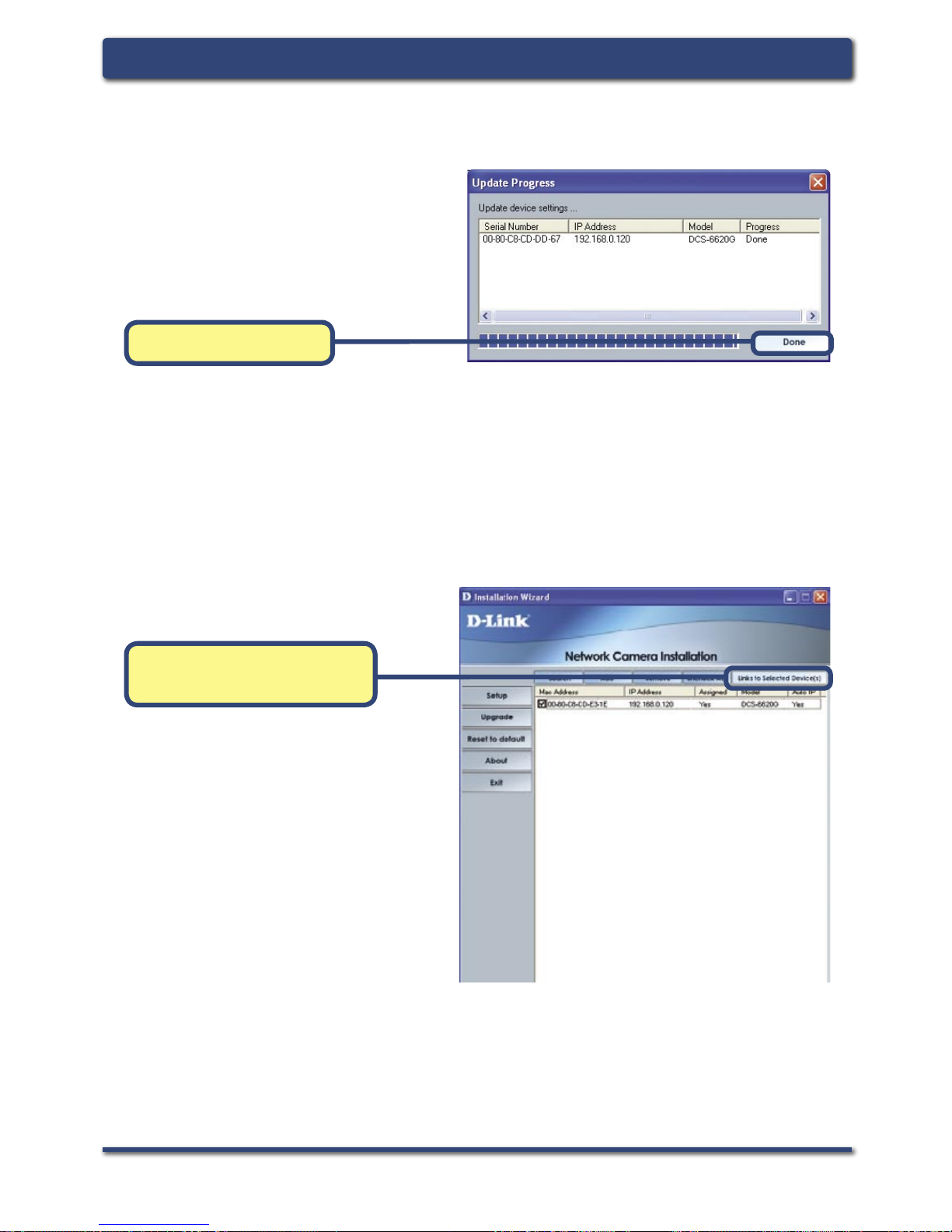

Click the Done button.
Click the button labeled Link
to Selected Device(s).
After the settings have been saved,
the Done button will appear.

14 D-Link Systems, Inc.
DCS-6620G Install GuideCamera Configuration (continued)

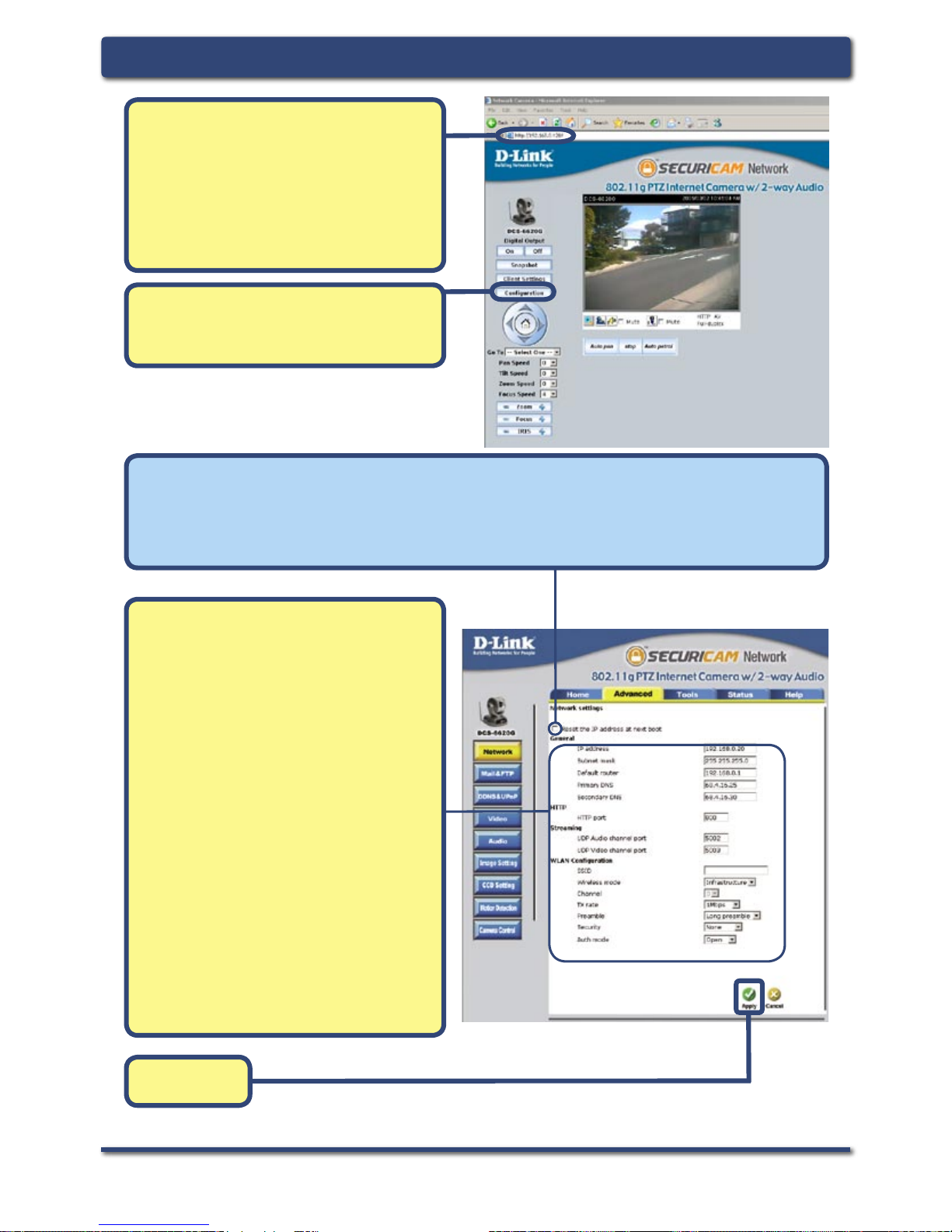

After you click the button labeled
Link to Devices(s) , the Installation
Wizard will automatically open your
Internet browser to the IP Address of
the DCS-6620G, in this example it is:
http://192.168.0.120. Your DSC-6620G
may have a different IP Address.
Click on Configuration to set up your
wireless settings for the DCS-6620G
to be consistent with your network.
Leave the box titled This camera can be found by installer whenever it starts
up, unchecked to avoid running this install application each time you boot up the
DCS-6620G. Check this box if you need to change the IP Address next time the
DCS-6620G boots up.
If you have a DHCP server on your
network, you will already have a
valid IP Address in these fields.
If you will be using the DCS-6620G
in a wireless network, the following
page explains the importance of
each field and what is required for
you to be able to connect to your
wireless network.
If you do not have a DHCP server
on your network, fill out your IP
Address , Subnet mask, Gateway
and at least one DNS IP Address
respectively on this page. If you
do not know what to put in these
fields, please contact your System
Administrator or your Internet Service
Provider.
Click Apply

D-Link Systems, Inc. 15
DCS-6620G Install Guide Camera Configuration (continued)

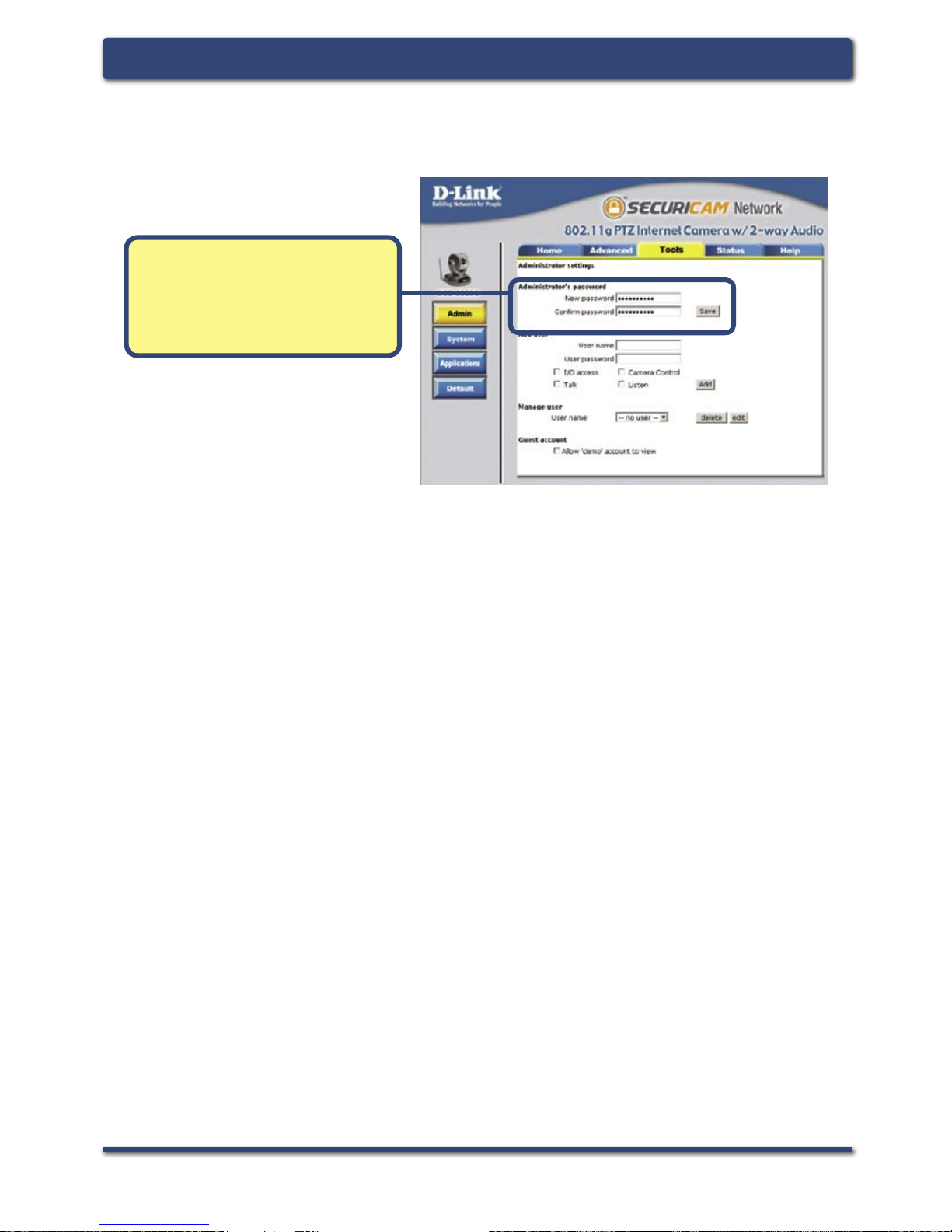

At this point, we highly recommend that you click on Configuration --> Tools -->
Admin, from the Home page to set up a password for security purposes.
Enter the administrative password .
Click Save then “X” at the top
right-hand corner of your browser
to close the page.
The installation and configuration of the DCS-6620G
802.11g PTZ Internet Camera is now complete.
