D-Link DCS?6010L User manual

QUICK
INSTALLATION
GUIDE
WIRELESS N 360° HOME NETWORK CAMERA
DCS-6010L
КРАТКОЕ РУКОВОДСТВО ПО УСТАНОВКЕ
GUÍA DE INSTALACIÓN RÁPIDA
GUIA DE INSTALAÇÃO RÁPIDA
快速安裝指南
PETUNJUK PEMASANGAN CEPAT
快速安裝指南
クイックインストールガイド

DCS-6010L
2
ENGLISH

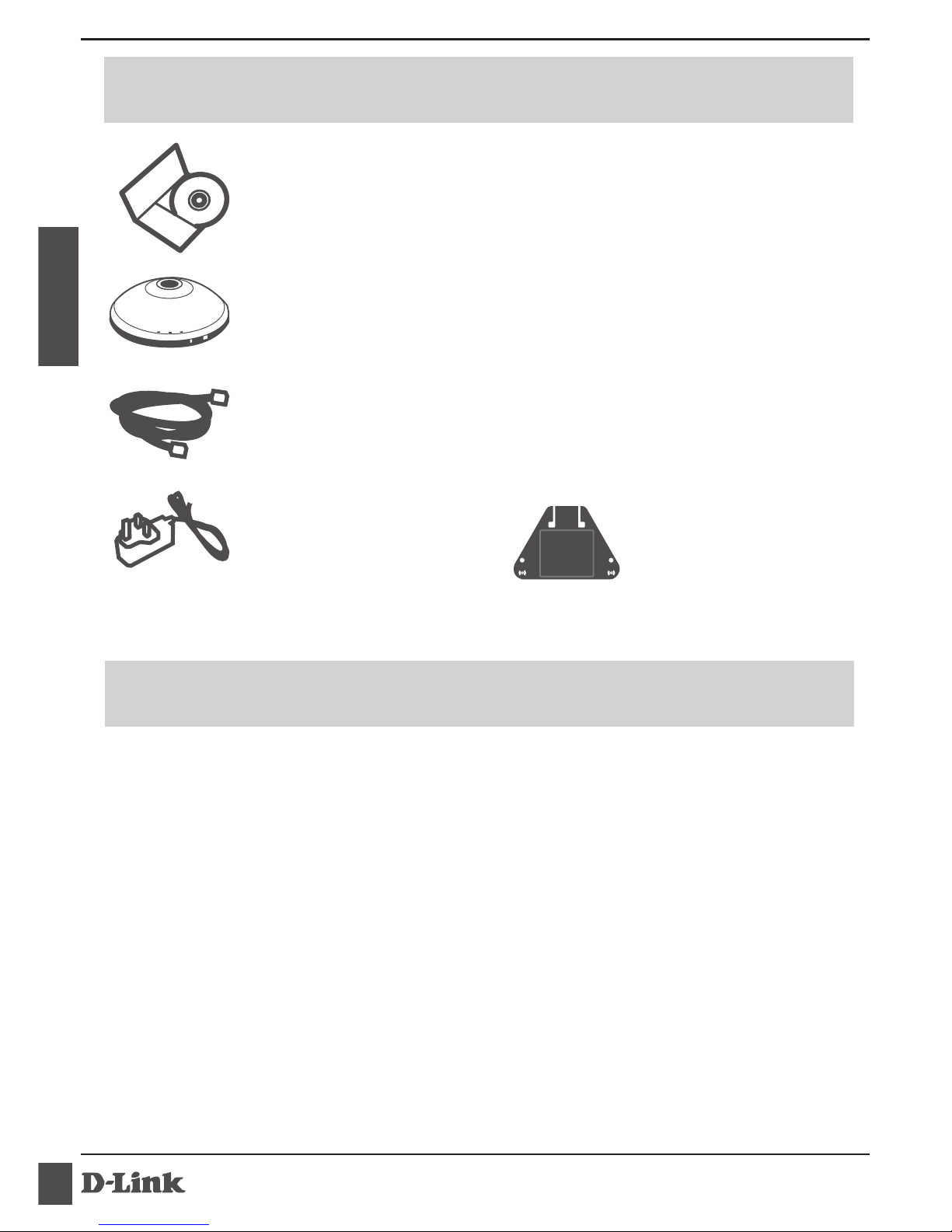

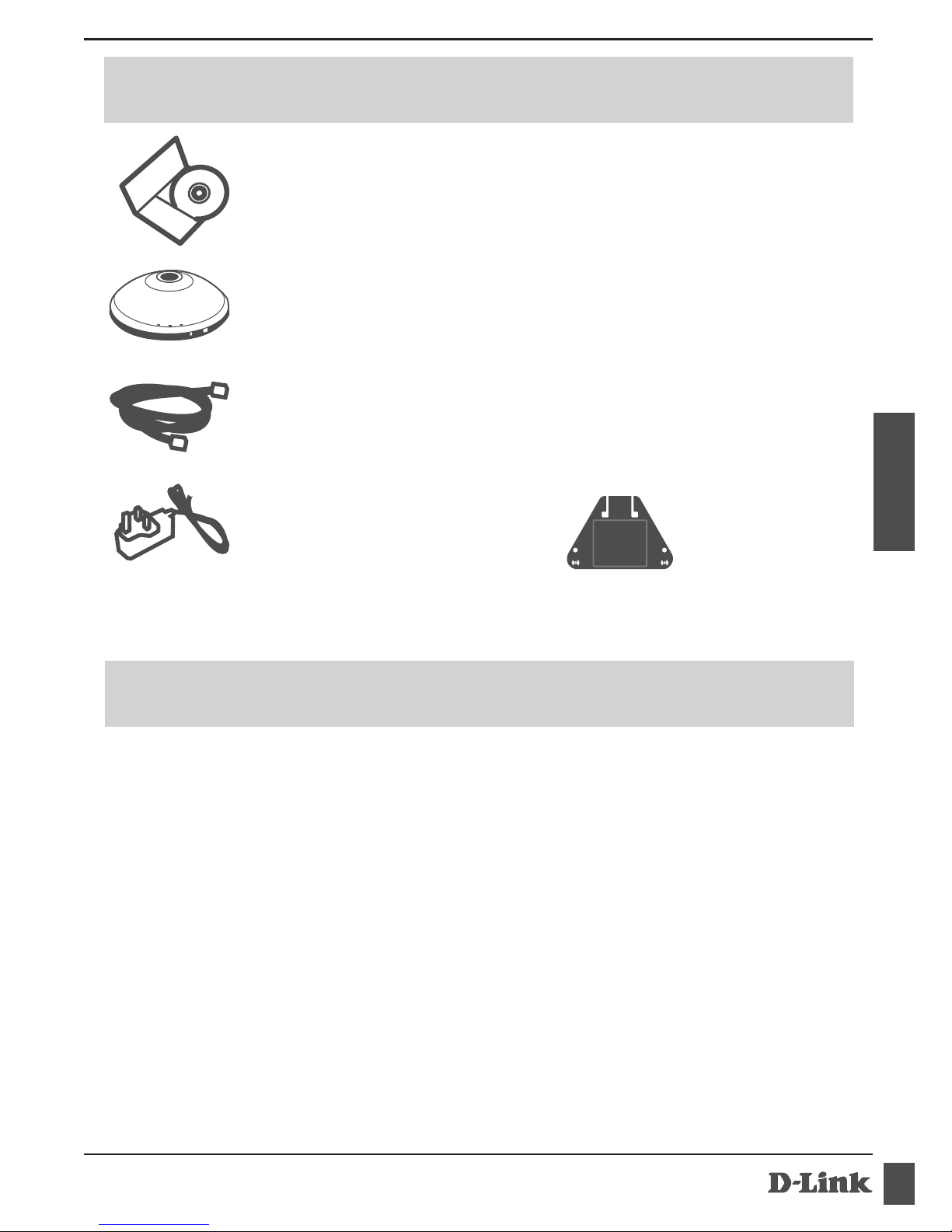

Package Contents
If any of the above items are missing, please contact your reseller.
Minimum Requirements
Computer with:
• PC with 1.3GHz or above and at least 128MB RAM
• Windows® 8, Windows® 7, Vista® or XP (32-bit or 64-bit)
• Mac OS® X 10.6 or higher
Web Browser
• Internet Explorer® 7, Firefox 12, Safari 4, or Chrome 20 and above
• Installed and enabled Java and ActiveX® controls
Network Device and Service
• A router (D-Link Cloud Router is recommended)
• An Internet connection
• An e-mail account (Required to register mydlink service)
WIRELESS N 360° HOME NETWORK CAMERA
DCS-6010L
BRACKET
ETHERNET CABLE (CAT5 UTP)
CONNECT THE CAMERA TO YOUR ROUTER DURING SETUP
INSTALLATION CD
INCLUDES SETUP WIZARD & TECHNICAL MANUALS
POWER ADAPTER

3
DCS-6010L
ENGLISH

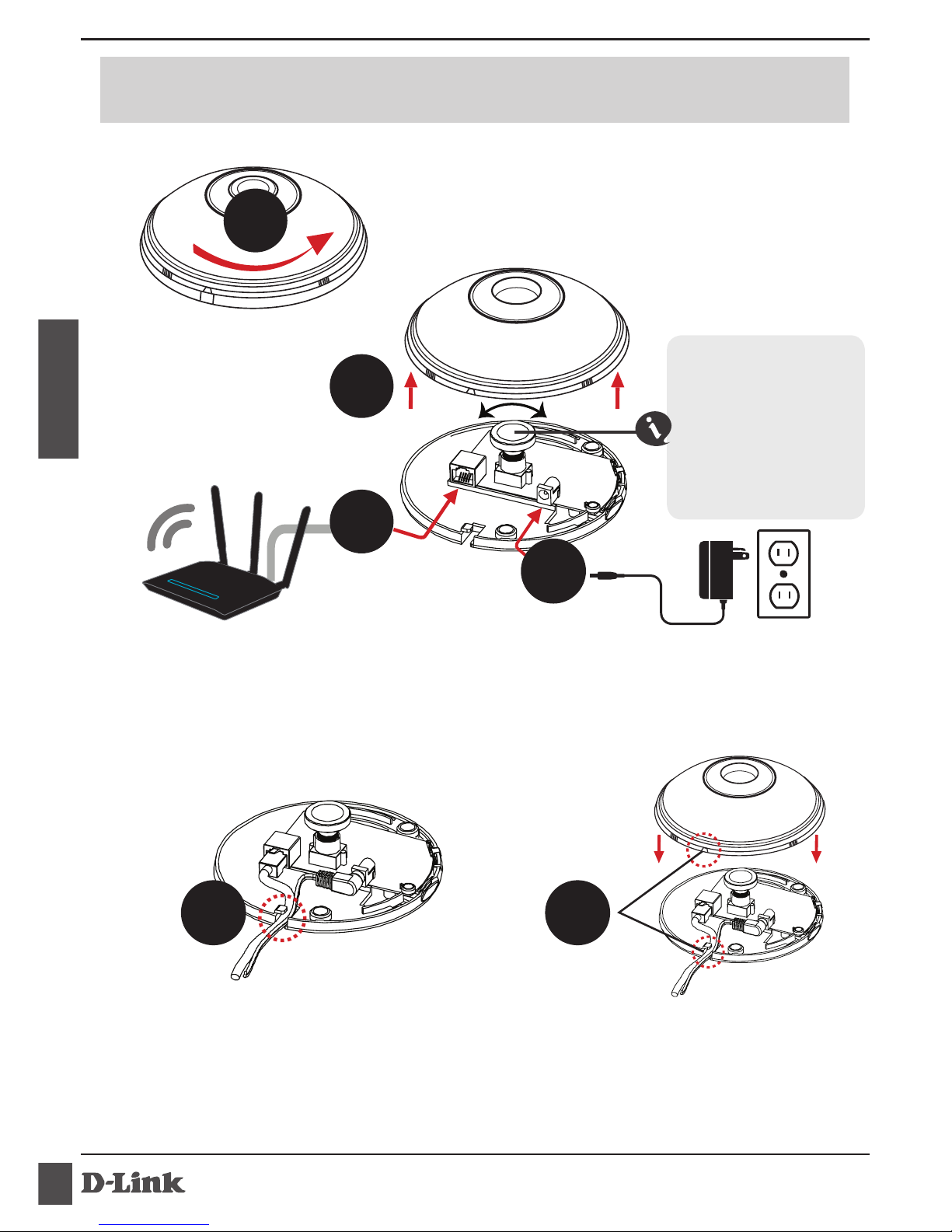

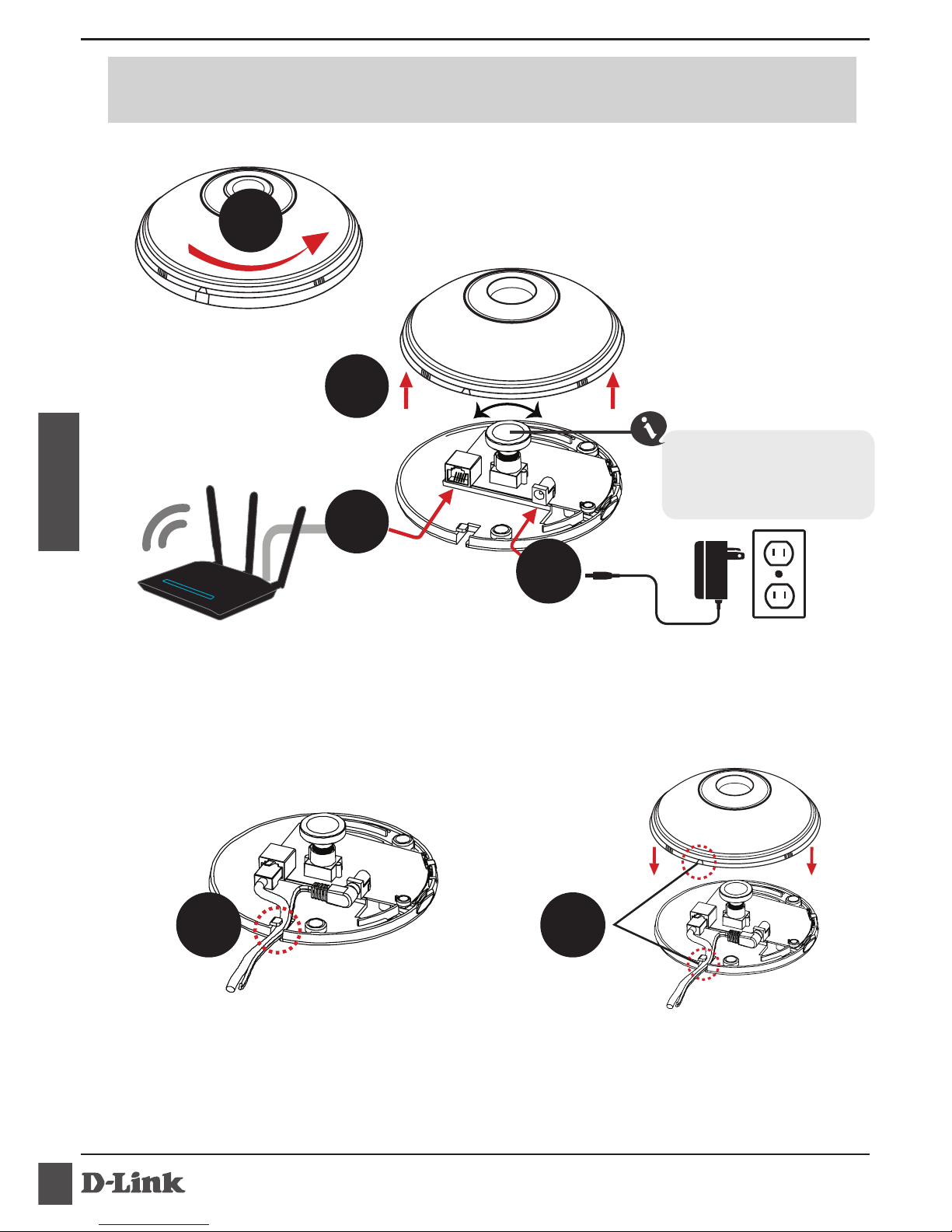

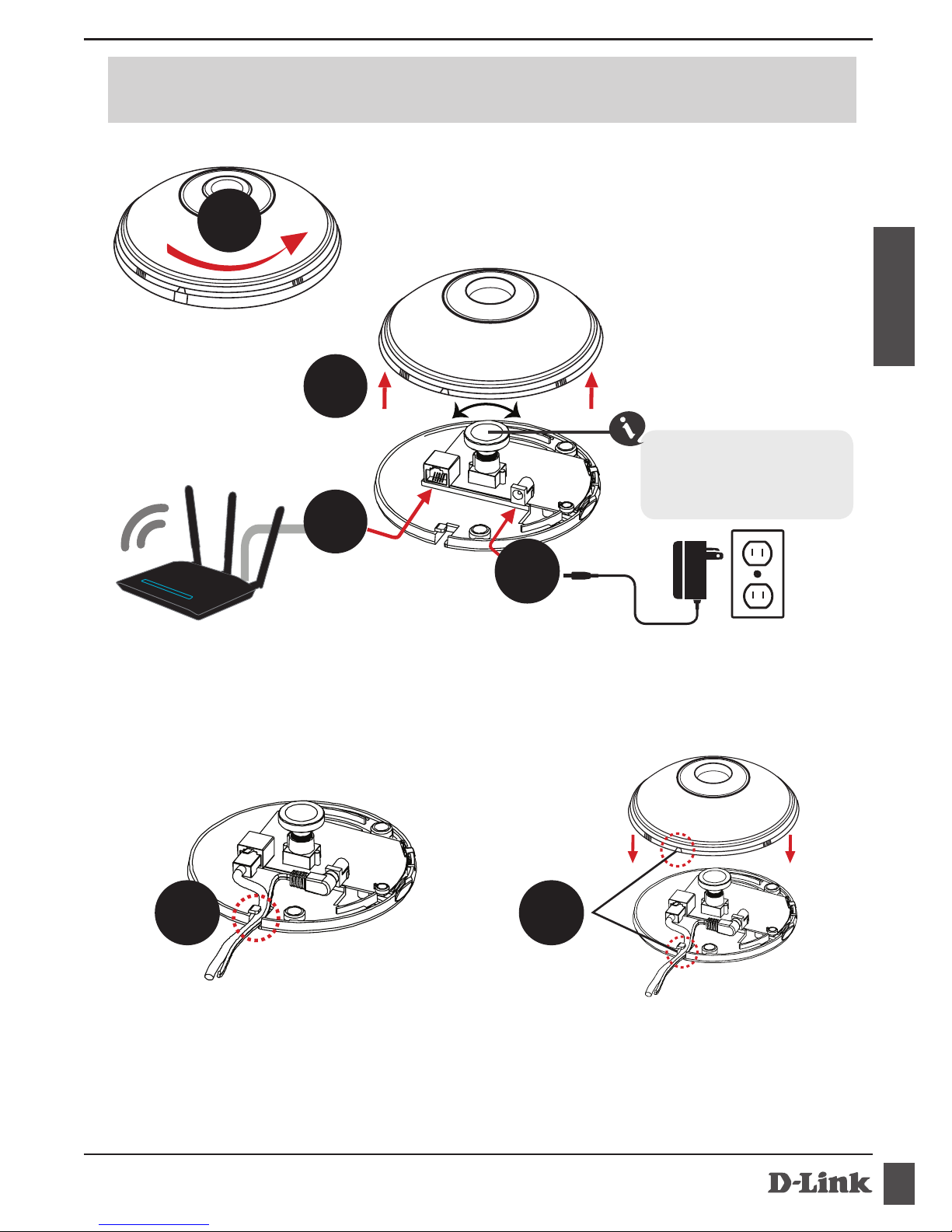

Hardware Installation
1. Rotate top cover counter-clockwise.
2. Lift cover.
1
2
3
4
5 6
3. Using the provided Ethernet cable
connect one end to your camera and
the other-end to your network.
4. Attach the external power
supply to connect it to your
wall outlet or power strip.
5. Ensure the cables are seated
in the cable channel.
6. Seat the cover and rotate to
align the cable channel guide
over the cable channel.
You can adjust the focus
by rotating the lens in
a clockwise or counter
clockwise direction.

DCS-6010L
4
ENGLISH
You can use any computer to go through the
Setup Wizard from the CD, it will guide you
through the installation and mydlink registration
process. You can also download it from http://
www.mydlink.com/support.

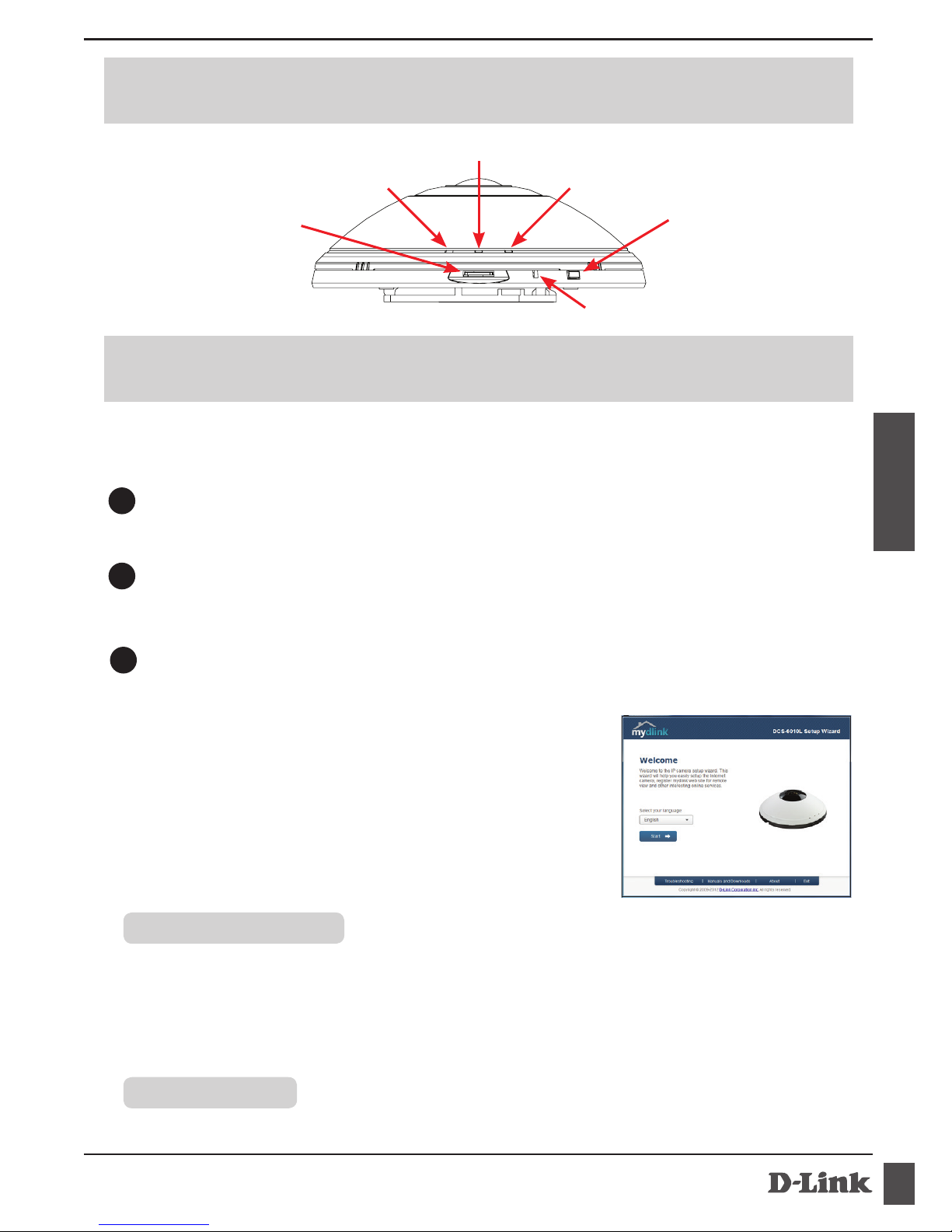

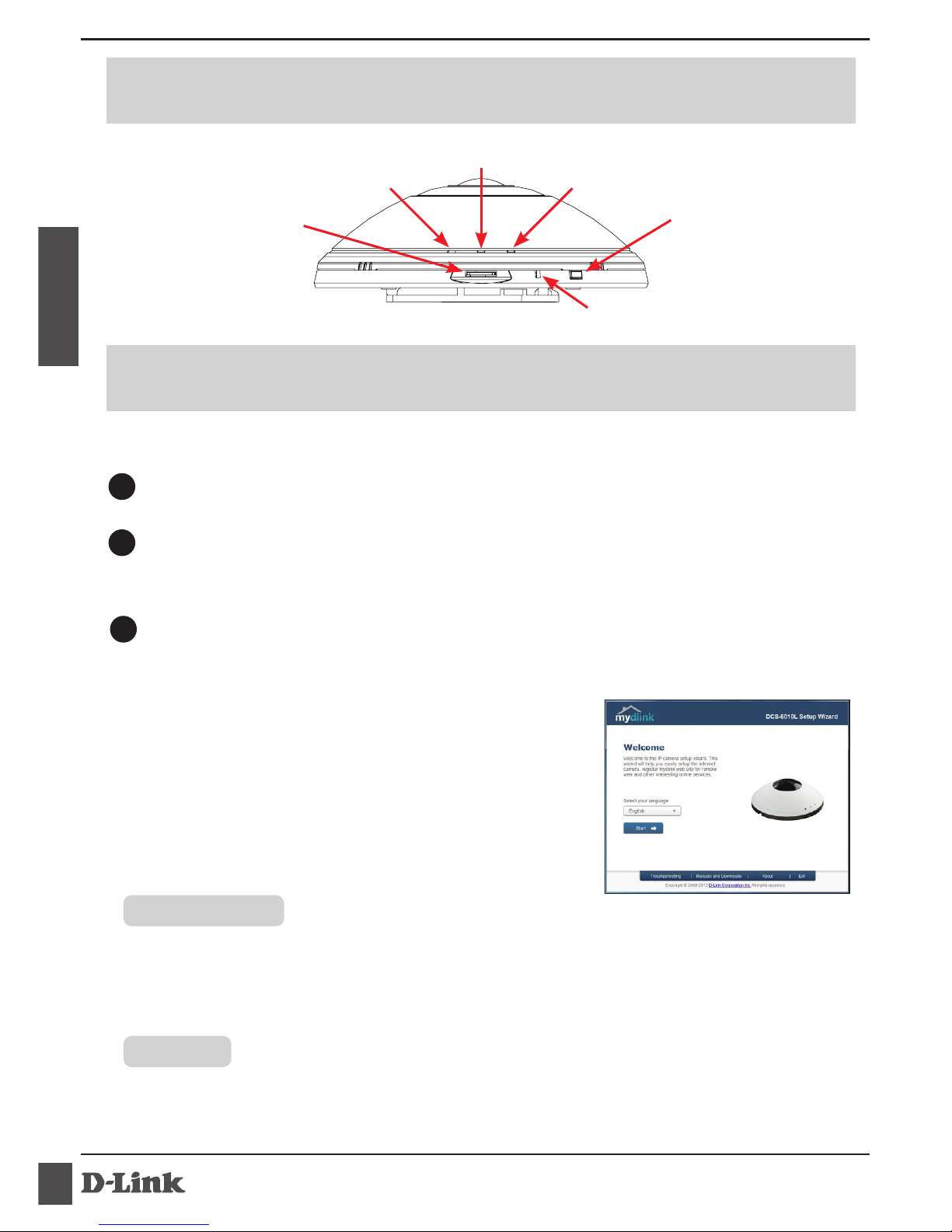

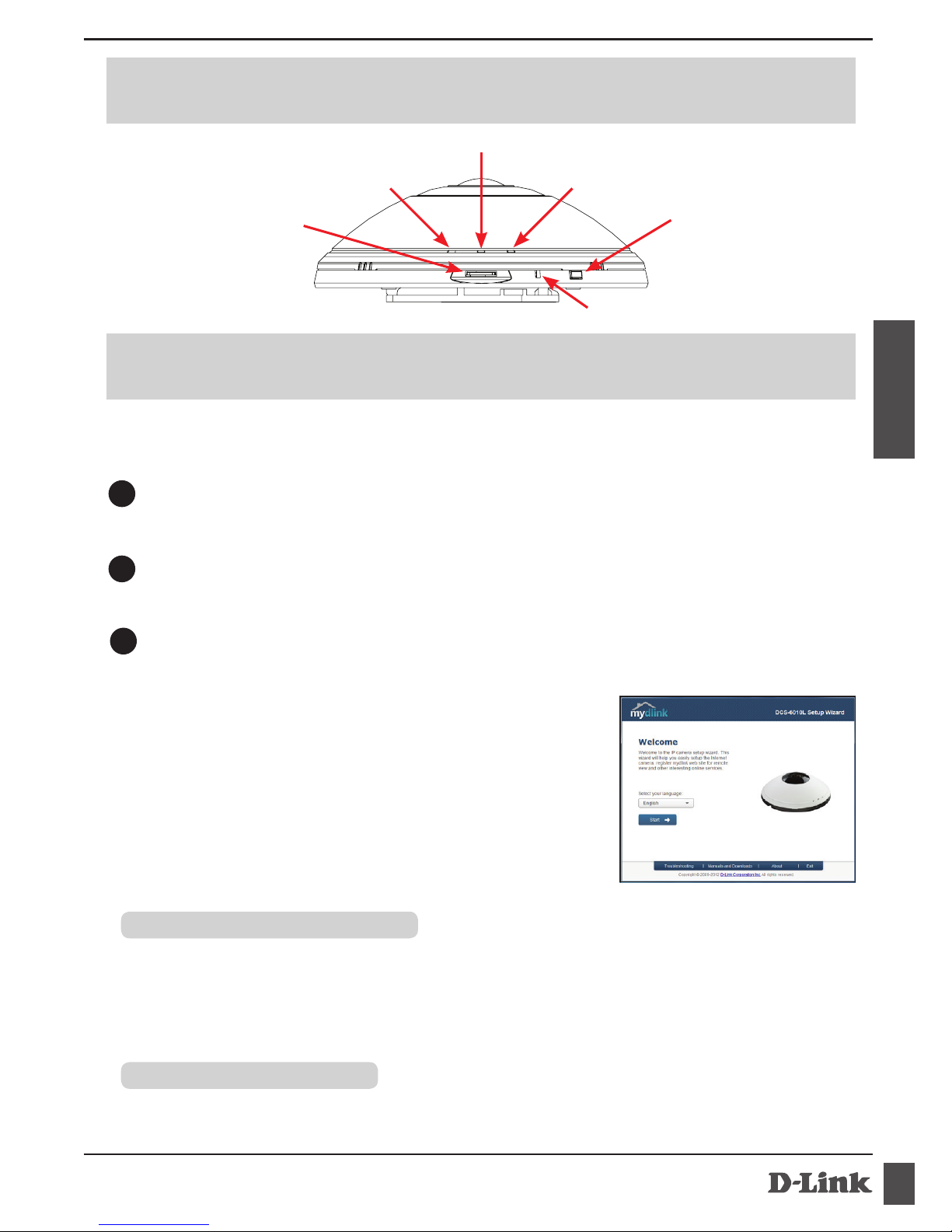

Hardware Overview
Using a mydlink Cloud Router (Zero Conguration Setup)
Using other routers (Setup Wizard)
From any computer connected to the cloud router, open a web
browser, go to http://www.mydlink.com and log into your account.
Once mydlink detects your camera, a notice will appear that there is a
new device detected. Click on your camera from the New Devices list
and then click Yes to add your camera.
If you wish to connect your camera wirelessly, you can simply
disconnect the Ethernet cable and move to its intended location.
Product Setup
Power LEDMIC WPS LED
Micro SD Card
Reset Button
WPS Button
• Windows Users - Insert the CD. If the CD Autorun function does not
automatically start on your computer, go to Start > Run. In the run box
type D:\autorun.exe (where D: represents the drive letter of your CD-
ROM drive) and click OK. When the autorun screen appears,click Set up
your Cloud Camera and follow the on-screen instructions.
• Mac Users - Insert the CD. On the desktop, open your CD drive and
double-click on the SetupWizard le and follow the instructions.
1
2
3

5
DCS-6010L
ENGLISH

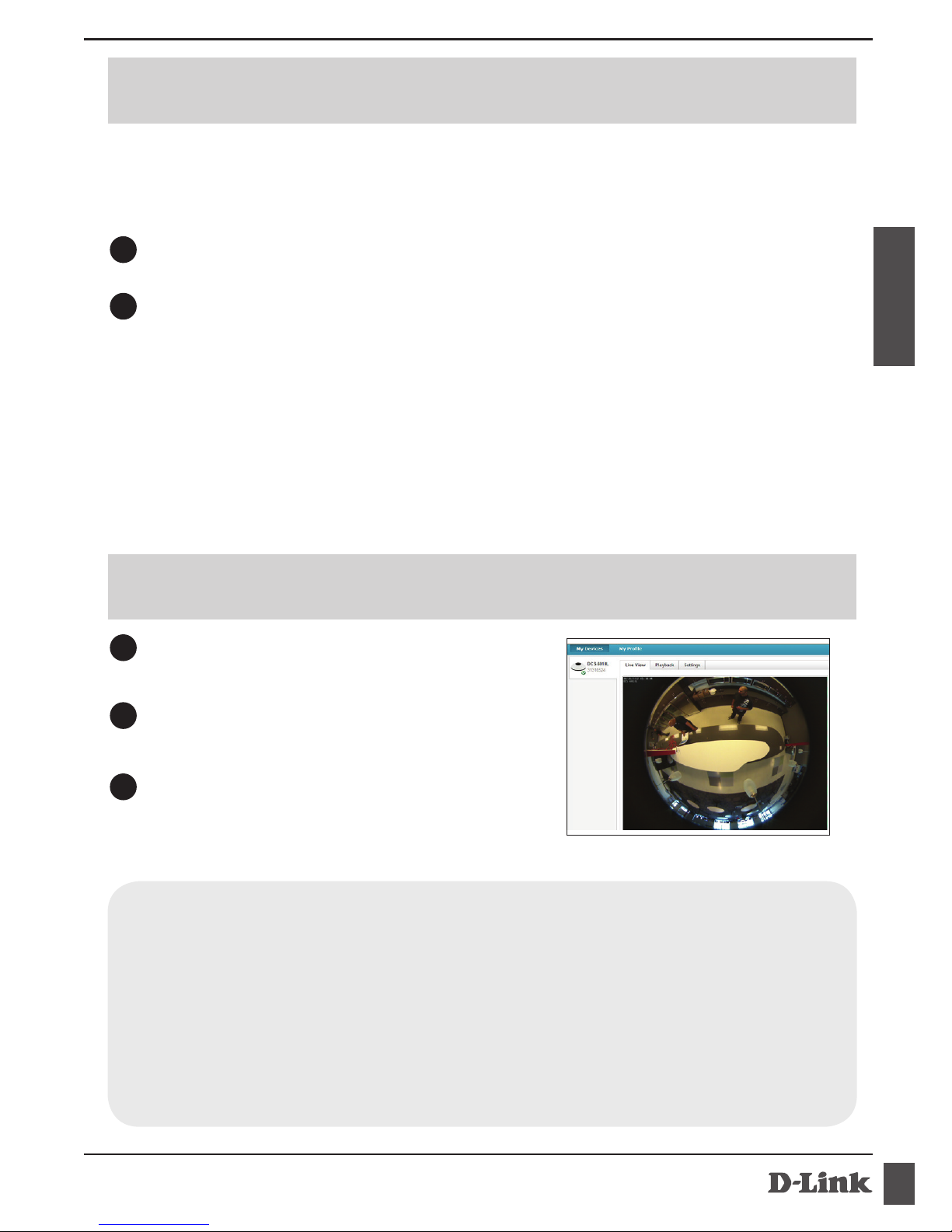

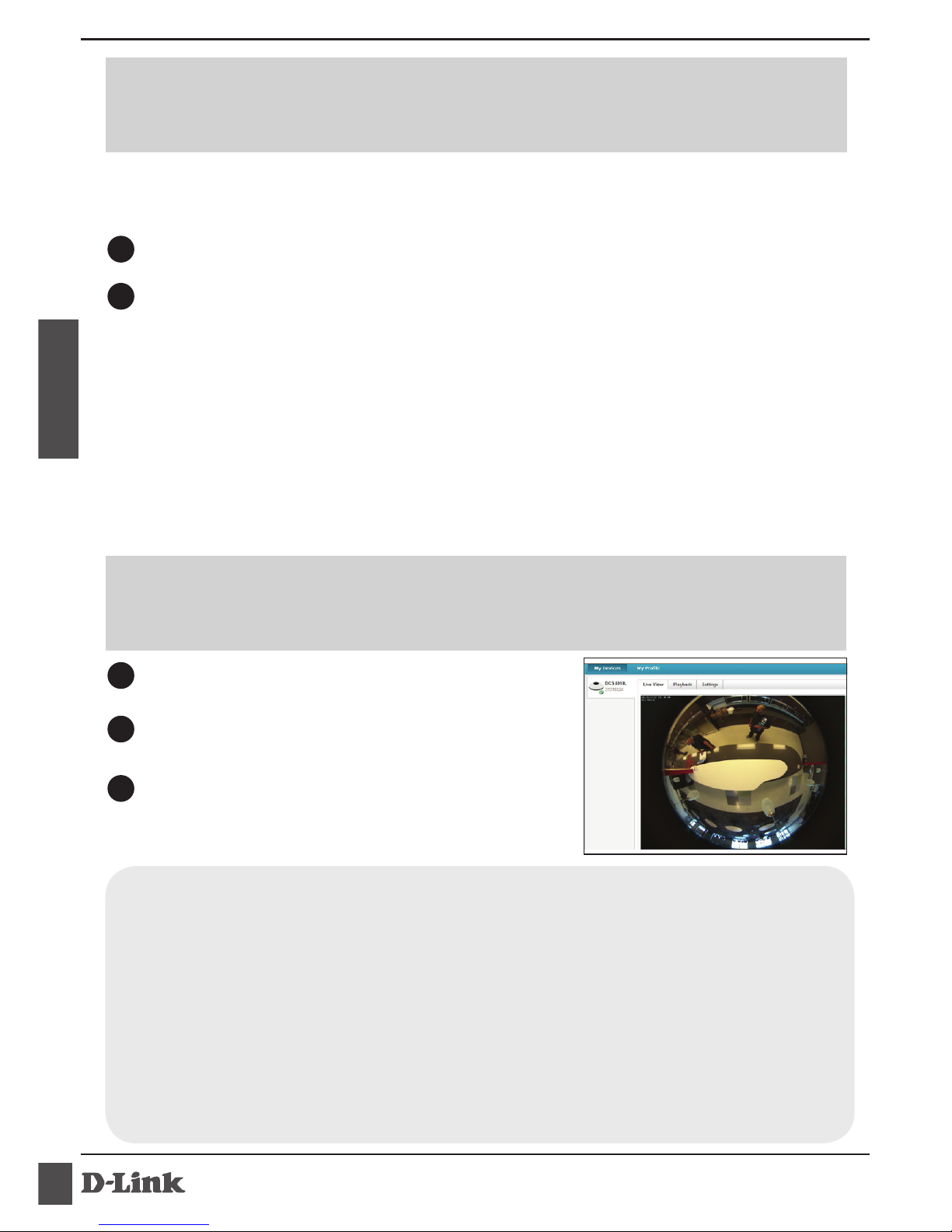

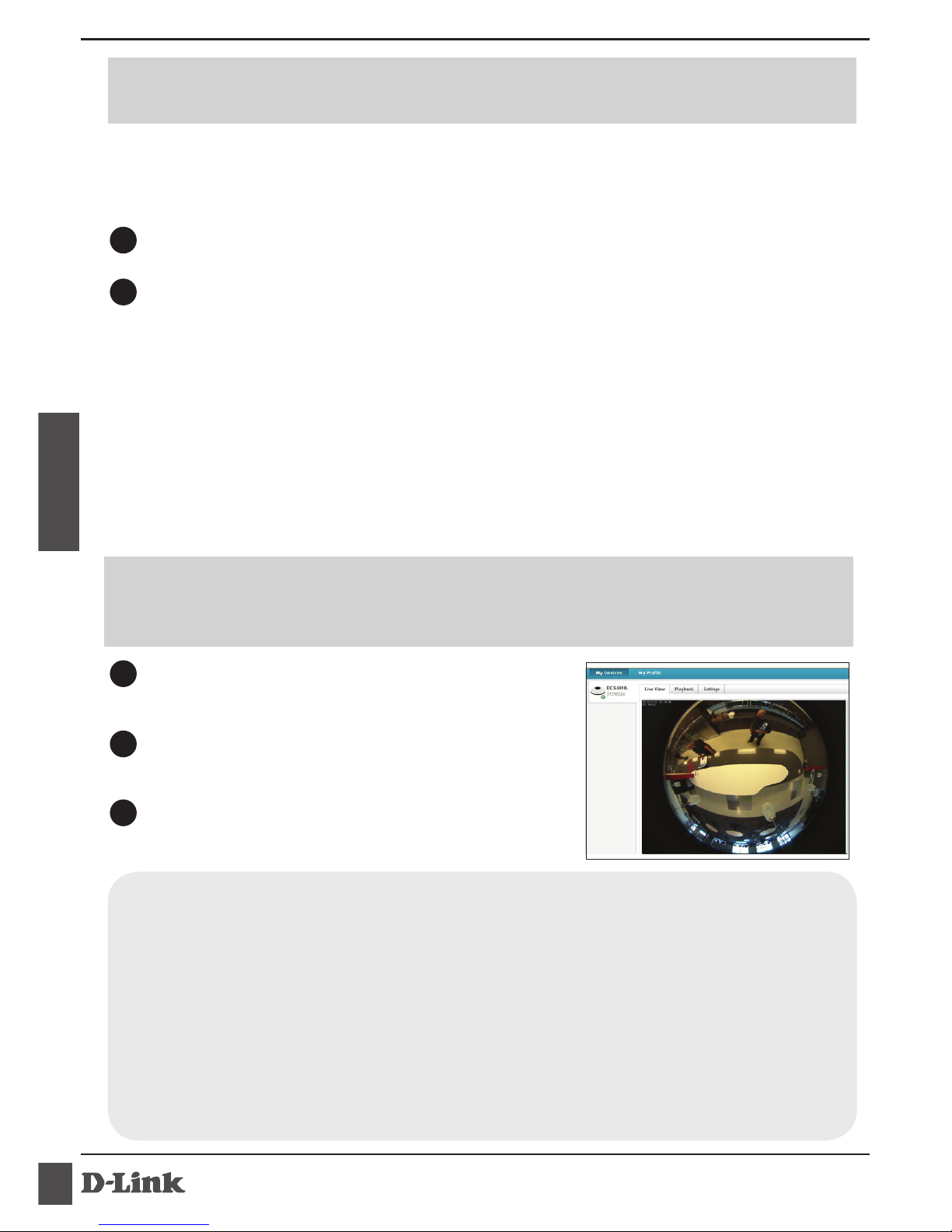

mydlink Portal (Remote Live View)
Sign in with your mydlink account
registered in the Install Wizard.
• Windows does not have Java installed by default. Please download it from
http://www.java.com.
• In Mac OS X 10.7.x, Java applets are disabled by default. Click the Finder >
Applications > Utilities > Java Preferences and check the Enable applet
plug-in and Web Start applications option.
• The ActiveX® controls in IE will install automatically if needed. We suggest that
you make sure that you have enabled the related options in Tools > Internet
Options > Security > Custom Level.
Open a web browser on any computer
connected to the Internet.
Enter http://www.mydlink.com in the
address bar and press Enter.
WPS - Push Button Setup
Press and hold the WPS button for approximately 5-6 seconds. The WPS
LED will blink.
Press the WPS button on your wireless router or access point within 60
seconds. On some routers, you may need to log into the web interface
and then click an onscreen button to activate the WPS feature. If you are
not sure where the WPS button is on your router or access point, please
refer to your router’s user manual.
The DCS-6010L will automatically create a wireless connection to your
router. While connecting, the status LED will ash. When the connection
process is complete, the status LED will turn solid.
If your router supports WPS, you can use the WPS button on the camera to
easily create a secure wireless connection to your network. To create a WPS
connection:
2
3
1
1
2

DCS-6010L
6
ENGLISH

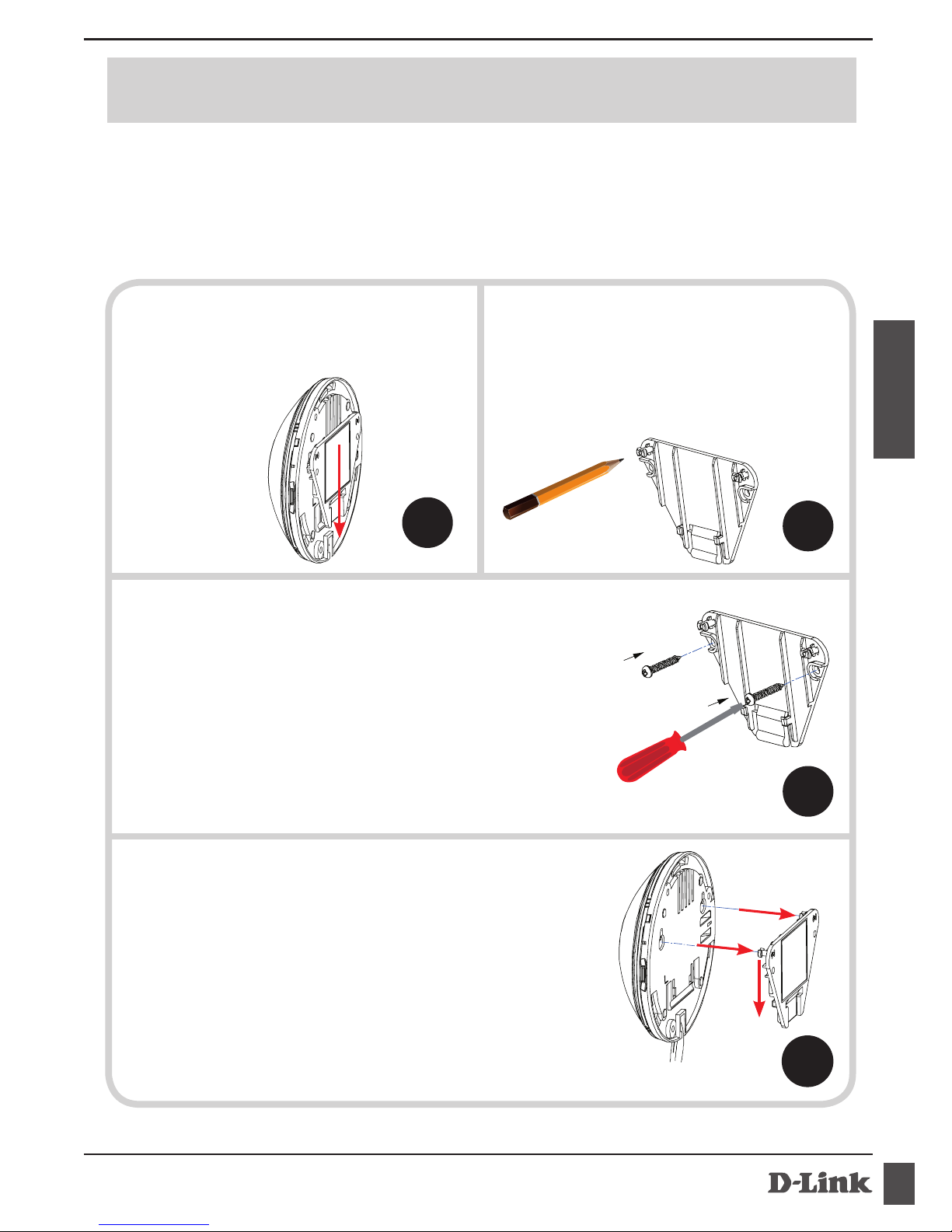

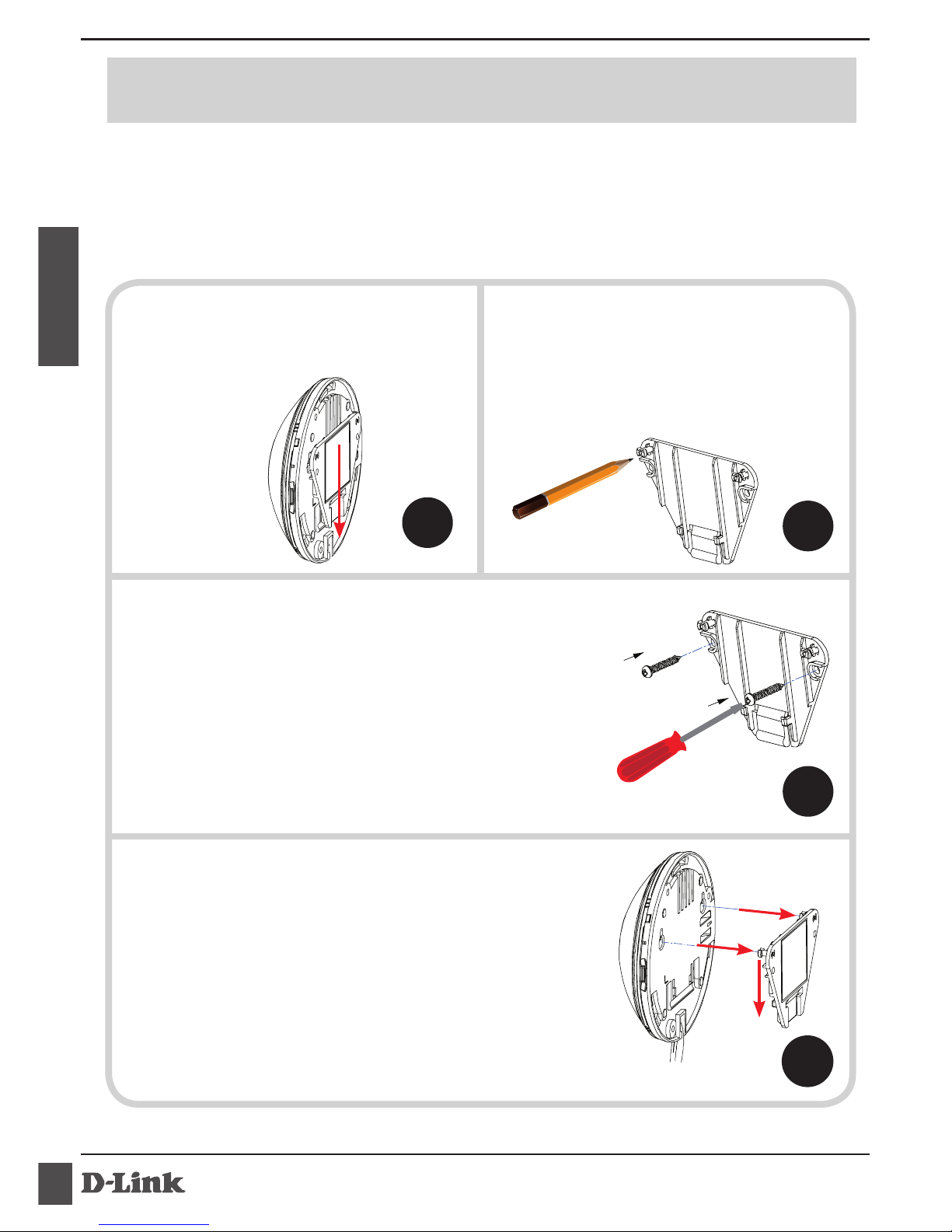

The DCS-6010L is suitable for mounting to a ceiling, wall or desktop using
the bracket provided. Please refer to the steps below to assist you with
mounting the camera.
Note: We suggest that you congure the camera before mounting.
Mount the Camera
Position the mounting bracket in
the desired location and mark the
surface behind it holes using the
bracket as a stencil / in pencil.
Depending on the material of the wall or ceiling,
use proper tools to drill two holes or screws
where you marked. If the wall is made out of
concrete, drill the holes approximately 25mm
deep rst, then insert the plastic anchors to
support the screws. Then ax bracket using the
screws provided.
Place the camera over the screw that is on the
bracket. Make sure to t the screw-heads over
the big holes and slide it downward to lock
rmly. Lightly pull the base forward to make
sure that it is locked. Note: if mounting on a wall
ensure the camera is oriented with the cables
positioned to the bottom of the device.
Unclip the wall bracket from the
DCS-6010L by sliding the base
down.
2
3
1
4
1
2

7
DCS-6010L
TECHNICAL SUPPORT
Australia:
Tel: [phone]
24/7 Technical Support
Web: http://www.dlink.com.au
E-mail: [email protected]
India:
Tel: [phone]
Toll Free 1800-233-0000
Web: www.dlink.co.in
E-Mail: [email protected]
Singapore, Thailand, Indonesia,
Malaysia, Philippines, Vietnam:
Singapore - www.dlink.com.sg
Thailand - www.dlink.co.th
Indonesia - www.dlink.co.id
Malaysia - www.dlink.com.my
Philippines - www.dlink.com.ph
Vietnam - www.dlink.com.vn
Korea:
Tel : [phone]
Monday to Friday 9:00am to 6:00pm
Web : http://d-link.co.kr
E-mail : [email protected]
New Zealand:
Tel: [phone]
24/7 Technical Support
Web: http://www.dlink.co.nz
E-mail: [email protected]
South Africa and Sub Sahara
Region:
Tel: [phone]
08600 DLINK (for South Africa only)
Monday to Friday 8:30am to 9:00pm South
Africa Time
Web: http://www.d-link.co.za
E-mail: [email protected]
D-Link Middle East - Dubai, U.A.E.
Plot No. S31102,
Jebel Ali Free Zone South,
P.O.Box 18224, Dubai, U.A.E.
Tel: [phone]
Fax: [phone]
Technical Support: [phone]
General Inquiries: [email protected]
Tech Support: [email protected]
Egypt
1, Makram Ebeid Street - City Lights Building
Nasrcity - Cairo, Egypt
Floor 6, ofce C2
Tel.: [phone]
Technical Support: [phone]
General Inquiries: [email protected]
Tech Support: [email protected]
Kingdom of Saudi Arabia
Ofce # 84 ,
Al Khaleej Building ( Mujamathu Al-Khaleej)
Opp. King Fahd Road, Olaya
Riyadh - Saudi Arabia
Tel: [phone]
Technical Support:
[phone]
General Inquiries: info.sa@ dlinkmea.com
Tech Support: support.sa@ dlinkmea.com
Pakistan
Islamabad Ofce:
61-A, Jinnah Avenue, Blue Area,
Suite # 11, EBC, Saudi Pak Tower,
Islamabad - Pakistan
Tel.: [phone]
Fax: [phone]
Karachi Ofce:
D-147/1, KDA Scheme # 1,
Opposite Mudassir Park, Karsaz Road,
Karachi – Pakistan
Phone: [phone]
Fax: [phone]
Technical Support: [phone], 34305069
General Inquiries: [email protected]
Tech Support: [email protected]
You can nd software updates and user documentation on the D-Link website.
Tech Support for customers in

DCS-6010L
8
TECHNICAL SUPPORT
Iran
Unit 5, 5th Floor, No. 20, 17th Alley , Bokharest
St. , Argentine Sq. ,
Tehran IRAN
Postal Code : 1513833817
Tel: [phone],19
+98-21-88706653,54
General Inquiries: [email protected]
Tech Support: [email protected]
Morocco
M.I.T.C
Route de Nouaceur angle RS et CT 1029
Bureau N° 312 ET 337
Casablanca , Maroc
Phone : [phone]
Email: [email protected]
Lebanon RMA center
Dbayeh/Lebanon
PO Box:901589
Tel: [phone] Ext:14
Fax: [phone] Ext:12
Email: [email protected]
Bahrain
Technical Support: [phone]
Kuwait:
Technical Support: + 965 22453939 / +965
22453949
Türkiye Merkez İrtibat Ofisi
Ayazağa Maslak yolu
Erdebil Cevahir İş Merkezi No: 5/A Ayazağa /
Maslak İstanbul
Tel: [phone]
Ücretsiz Müşteri Destek Hattı: 0 800 211 00 65
W e b : w w w . d l i n k . c o m . t r
Teknik Destek: [email protected]
073-796-2797

9
DCS-6010L
РУССКИЙ

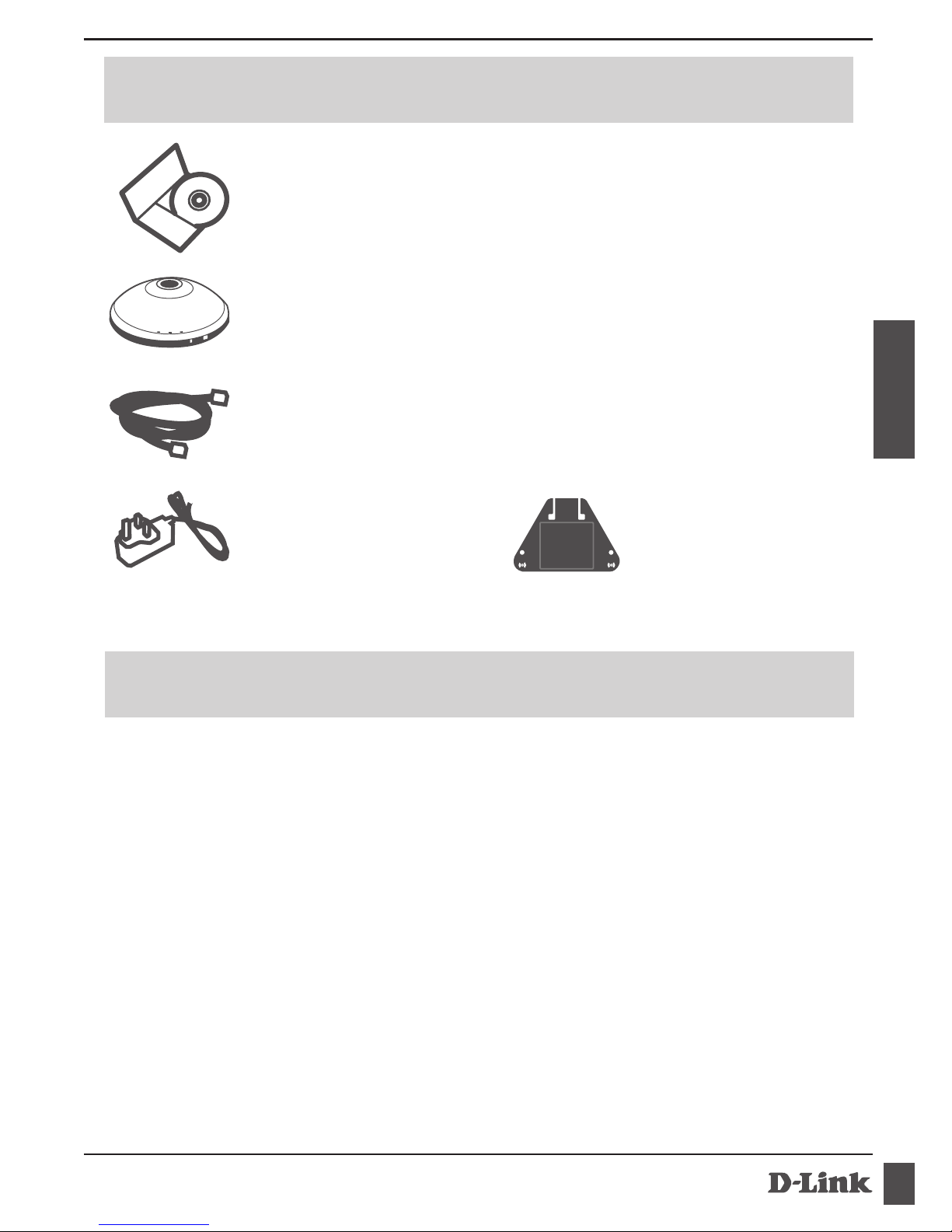

Комплект поставки
Если что-либо из перечисленного отсутствует, пожалуйста, обратитесь к поставщику.
Минимальные требования
Компьютер:
• ПК с частотой процессора 1,3 ГГц или выше и по крайней мере 128 МБ
RAM
• Windows® 8, Windows® 7, Vista® или XP (32-битная или 64-битная)
• Mac OS® X 10.6 или выше
Web-браузер
• Internet Explorer® 7, Firefox 12, Safari 4 или Chrome 20 и выше
• Установленные и включенные элементы управления ActiveX® и
Java
Сетевое устройство и сервисы:
• Маршрутизатор (Рекомендуется Cloud маршрутизатор D-Link)
• Подключение к Интернет
• Учетная запись e-mail (Требуется для регистрации на портале mydlink)
БЕСПРОВОДНАЯ 802.11n IP-ВИДЕОКАМЕРА
С УГЛОМ ОБЗОРА 360°
DCS-6010L
КРОНШТЕЙН
ETHERNET-КАБЕЛЬ (UTP 5 КАТЕГОРИИ)
ДЛЯ ПОДКЛЮЧЕНИЯ КАМЕРЫ К МАРШРУТИЗАТОРУ И
ПЕРВОНАЧАЛЬНОЙ НАСТРОЙКИ
УСТАНОВОЧНЫЙ КОМПАКТ-ДИСК
СОДЕРЖИТ МАСТЕР УСТАНОВКИ И ТЕХНИЧЕСКОЕ
РУКОВОДСТВО
АДАПТЕР ПИТАНИЯ

DCS-6010L
10
РУССКИЙ
Аппаратная установка
1. Поверните крышку против часовой стрелки.
2. Поднимите крышку.
1
2
3
4
5 6
3. Используя входящий в комплект
поставки Ethernet-кабель,
подключите камеру к сетевому
устройству.
4. Подключите внешний
источник питания к разъему
питания камеры и к розетке.
5. Убедитесь, что кабели
помещены в кабельный
желоб.
6. Установите крышку
и поверните ее, чтобы
совместить направляющий
паз с кабельным желобом.
Можно
отрегулировать
фокусировку,
поворачивая
объектив по часовой
стрелке или в
противоположном
направлении.
