ENGLISH

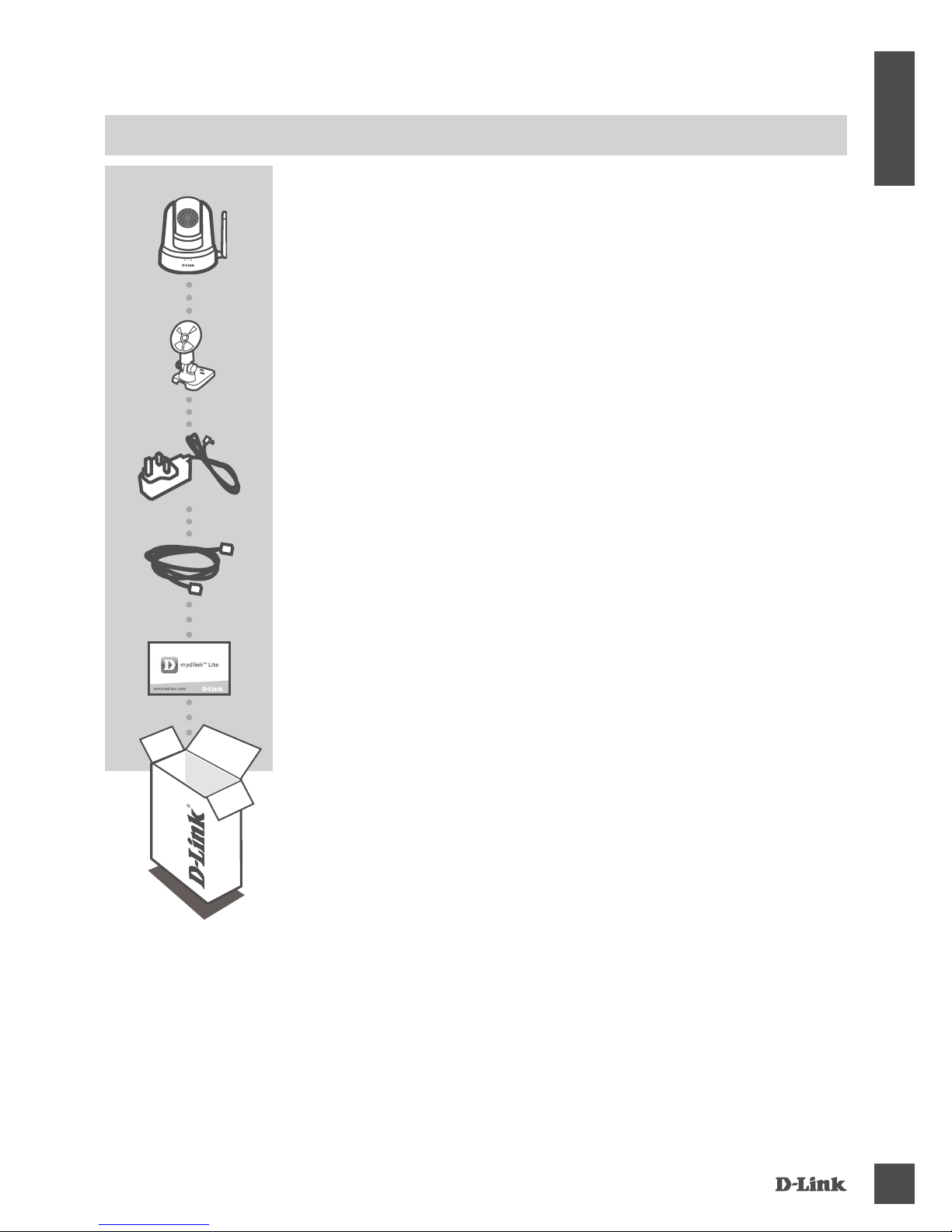

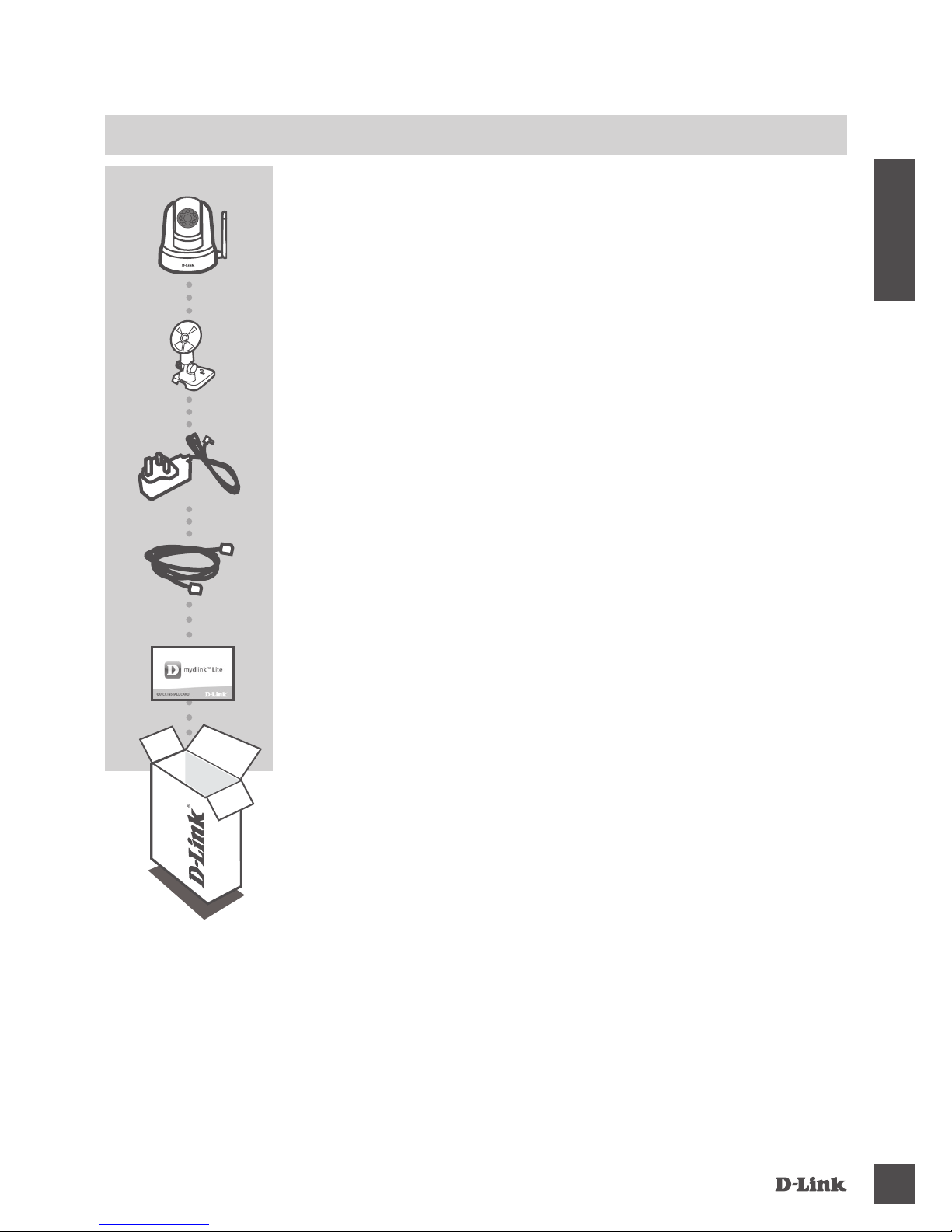

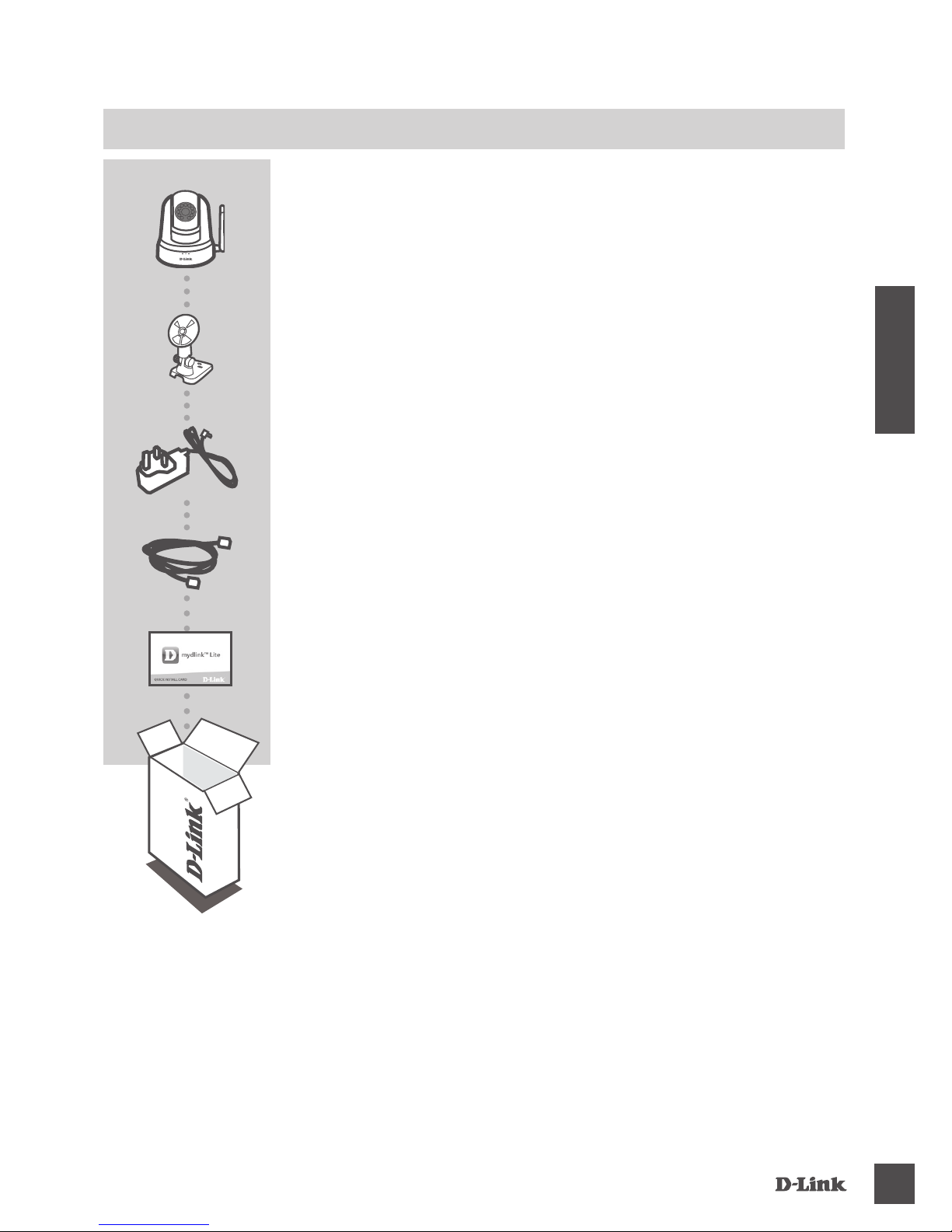

CONTENTS OF PACKAGING
HD PAN & TILT WI-FI DAY/NIGHT CAMERA
DCS-5030L
POWER ADAPTER
MOUNTING KIT
ETHERNET CABLE (CAT5 UTP)
CONNECTS THE CAMERA TO YOUR ROUTER DURING SETUP
If any of these items are missing from your packaging, contact your
reseller.
QUICK INSTALL CARD

DCS-5030l
2
ENGLISH
SYSTEM REQUIREMENTS
• 802.11ac/n/g router (a D-Link Cloud Router is recommended)
• A broadband Internet connection
• iPhone, iPad, Android, or Windows smartphone or tablet (please refer to the mobile app's store page
to check whether your device is compatible)
Please follow the instructions below to set up your mydlink camera.
Congratulations, your DCS-5030L is now ready to use! Be sure to check the mydlink.com website
periodically for the latest rmware updates to keep your product secure and up to date with the latest
features.
Note: If you experience issues registering this camera with your mydlink account, or if you purchased
an open box or resold unit, perform a hard reset by pressing and holding the reset button on the
device for 10 seconds while the device is powered on. If you are returning the device to the place
of purchase, please perform the hard reset procedure to clear the device of any personal
data.
Step 1: On your mobile device, download mydlink Lite by searching for mydlink Lite in the iTunes
App Store, Google Play, or the Windows Store.
Step 2: Launch the mydlink Lite app and create a new account or sign in to your existing account.
Follow the onscreen instructions to set up your camera.
When you are asked to scan a QR code, use the code on the Quick Install Card in your
package, or on the label attached to your device.
PRODUCT SETUP
SeTTing UP yOUr Camera WiTH myDlinK liTe

DCS-5030l 3
ENGLISH
Step 2:
Press the WPS button on your Cloud Router within 120 seconds.
The DCS-5030L will automatically create a wireless connection to
your router. While connected, the status LED will turn green.
Step 3:

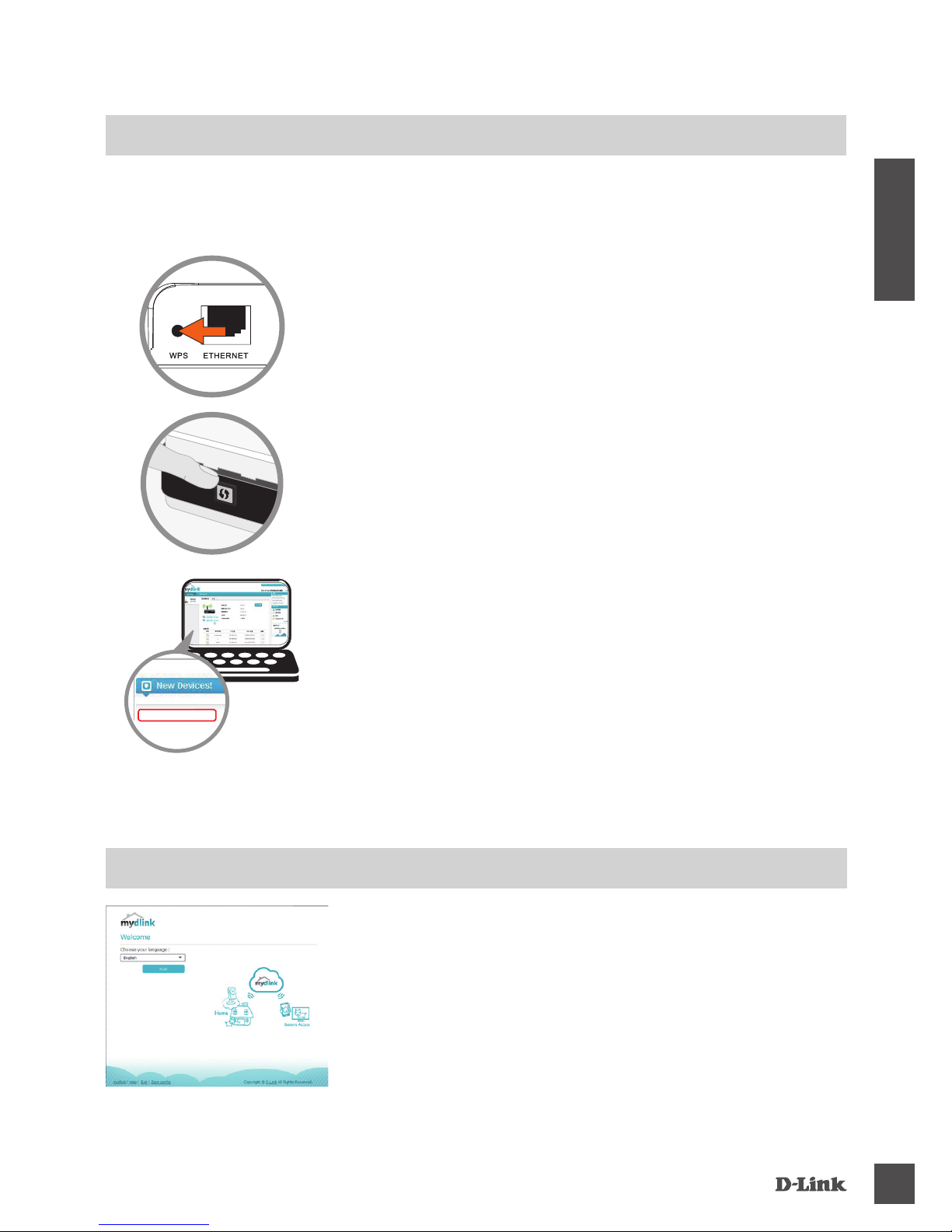

From any computer, open a web browser, go to
http://www.mydlink.com and log in to your account.
Click on the device name when the new device notication appears
to add the camera to your account.
DCS-5030L

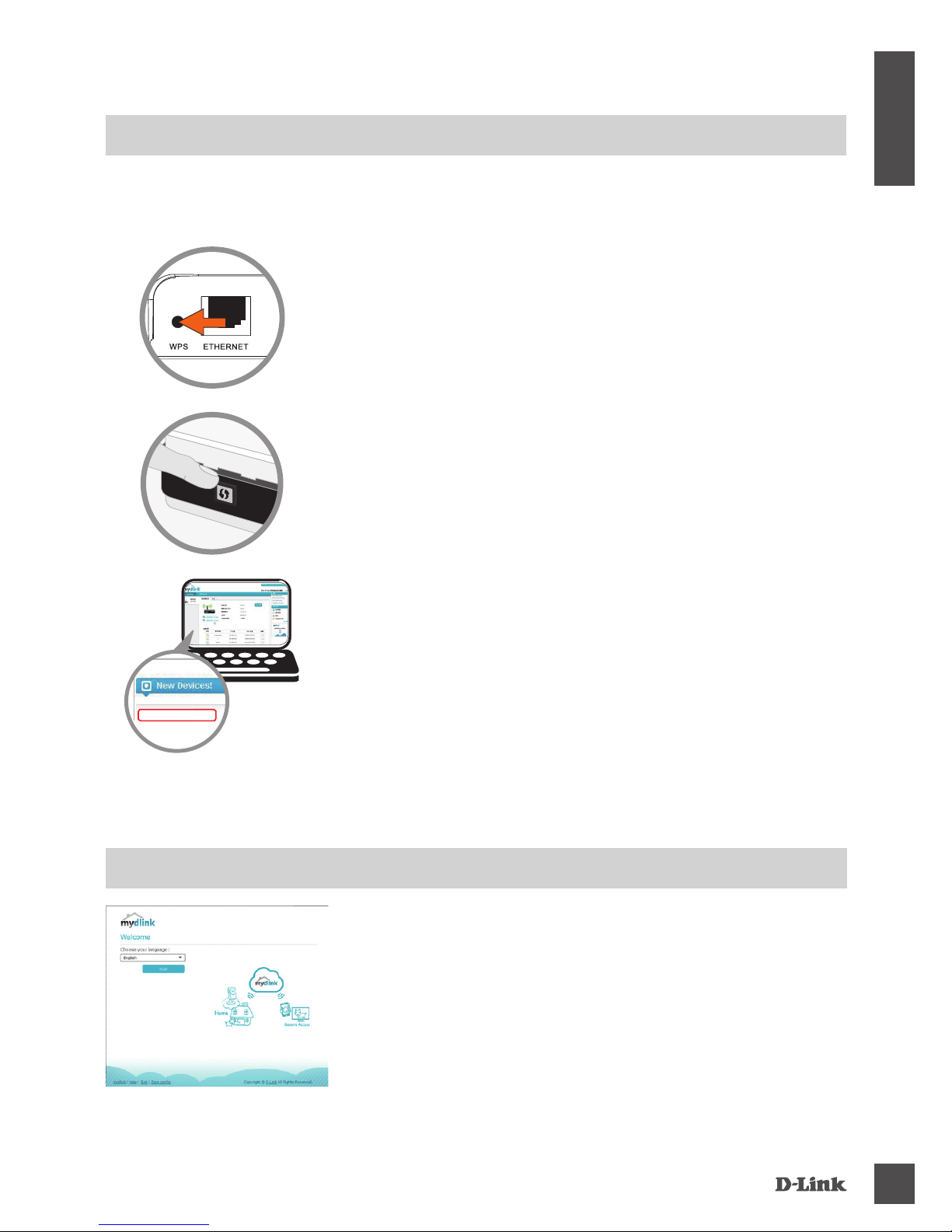

If you have a D-Link Cloud Router, you can take advantage of Zero Conguration Setup. This
feature congures your camera’s settings for you and adds it to your mydlink account automatically.
PRODUCT SETUP
ZerO COnFigUraTiOn SeTUP
Step 1:
Press the WPS button on the camera for 3 seconds. The WPS LED
will start blinking.
USing THe inSTallaTiOn WiZarD
You can also use any Windows or Mac computer to go through
the downloadable Setup Wizard, which will guide you through the
installation process from connecting your hardware to conguring
your camera.
To download the Setup Wizard, visit www.mydlink.com/support.

DCS-5030l
4
ENGLISH
Step 1:
Open Internet Explorer and go to www.mydlink.com, then sign into
mydlink.
Step 2:

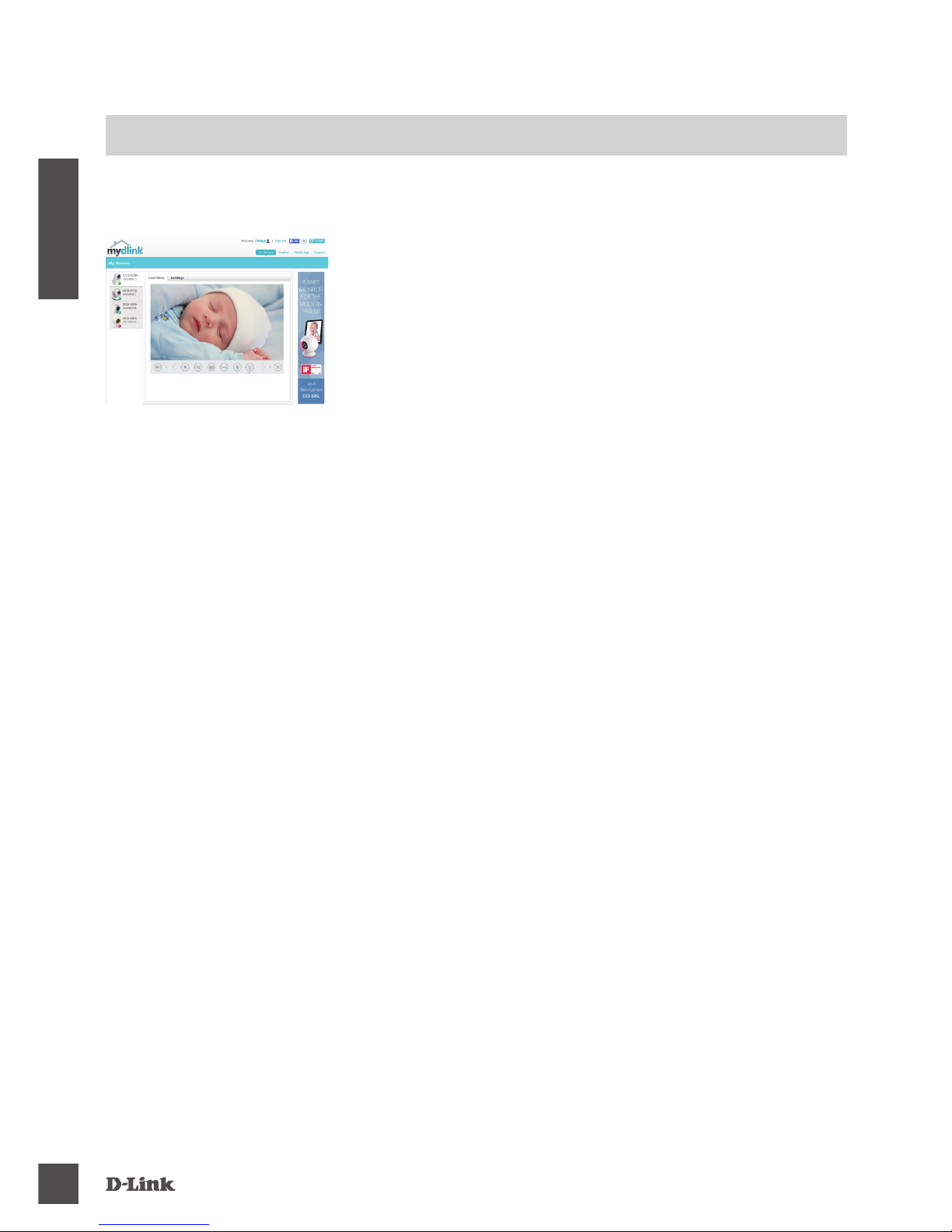

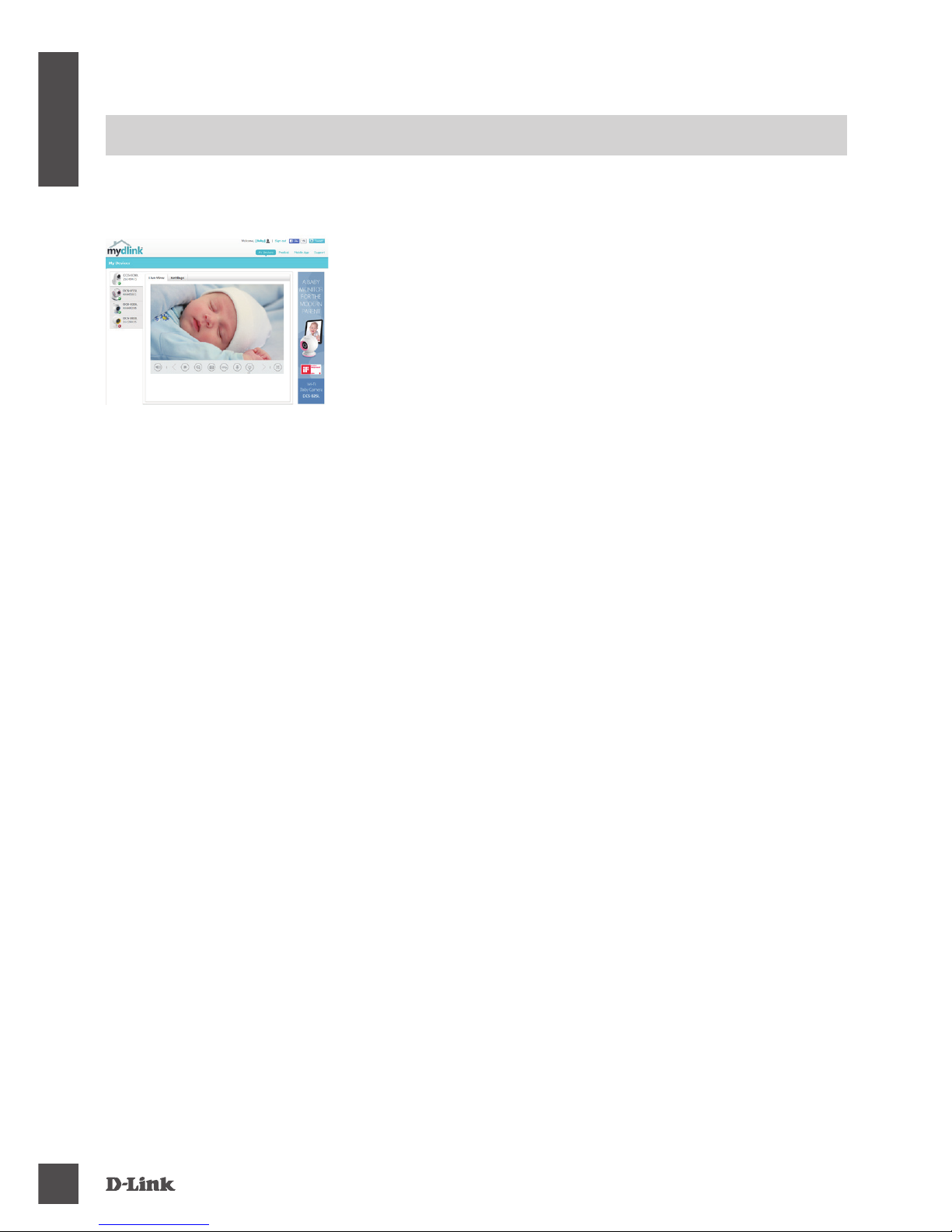

Select your camera from the device list, and your camera’s Live
View will appear.
After registering your DCS-5030L camera with a mydlink account in the mydlink Lite mobile app, you
will be able to remotely access your camera from the mydlink website.
mydlink PORTAL

DCS-5030l 5
ENGLISH

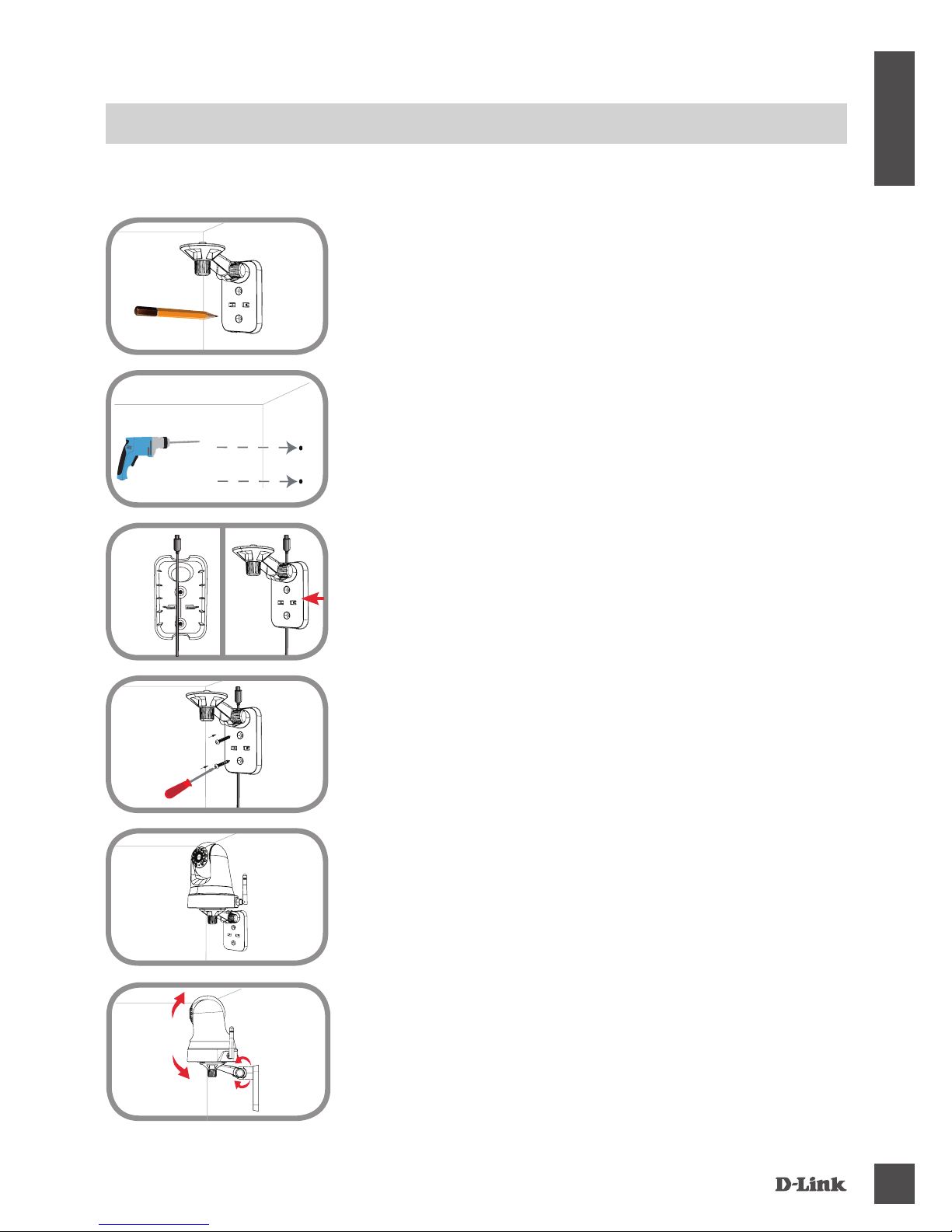

MOUNTING THE CAMERA
Please refer to the steps below to assist you with mounting the camera using the arm mount. We
suggest that you congure the camera before mounting.
Step 1:
Place the arm mount where you want to position the camera and
use a pencil to mark the holes. Ensure the arm mount is oriented
correctly with adequate space for the camera to be mounted and
necessary cables to be routed.
Step 2:
Depending on the material of the wall or ceiling, use proper tools to
drill two holes 25mm deep with a 6mm drill bit where you marked.
After drilling the holes, insert the plastic anchors to support the
screws.
Step 4:
Fasten the mounting bracket to the wall using the screws provided.
Step 5:
Using the supplied thumbscrew, fasten the camera to the mounting
bracket. Connect the power cable to the camera.
Step 3:
If desired, the cable can be concealed behind the mounting bracket.
Run the cable through the back of the mounting bracket, securing
it with the built-in guides. Be sure to leave enough cable length
protruding to allow connection to the camera.
Step 6:
Adjust the angle of the arm on the mounting bracket as required.
Tighten the thumbscrew to lock the arm in place.

DCS-5030l
6
ENGLISH
TROUBLESHOOTING
SeTUP anD COnFigUraTiOn PrOBlemS
1. THE IMAGE IS OUT OF FOCUS.
You can turn the focus ring on the front of the camera to adjust the focus.
2. WHY IS THE CAMERA VIEW HAZY OR BRIGHT WHEN USING NIGHT VISION MODE?
The IR night vision lights on the camera may be reecting off of a nearby surface or window. Try
repositioning your camera to avoid reections or glare.
3. WHAT CAN I DO IF I FORGET MY CAMERA PASSWORD?
If you forget your camera password, you will need to perform a hard reset of your camera. This
process will change all your settings back to the factory defaults.
To reset your camera, please use an unfolded paperclip to press and hold the RESET button for
at least 10 seconds while your camera is plugged in.

DCS-5030l 7
ENGLISH
TeCHniCal SUPPOrT
