Section 1 - Product Overview
• D-Link DHP-306AV Powerline AV Network Adapter
• CAT5 Ethernet Cable
• CD-ROM with Software and User Manual
• Quick Install Guide
System Requirements
• Windows® 7, Windows Vista®, XP (with Service Pack 2) or 2000 (with Service Pack 4)
• PC with 233MHz Processor, 64MB Memory
• Ethernet Adapter (100MBit/s)
Product Overview
Package Contents

4D-Link DHP-306AV User Manual
Section 1 - Product Overview

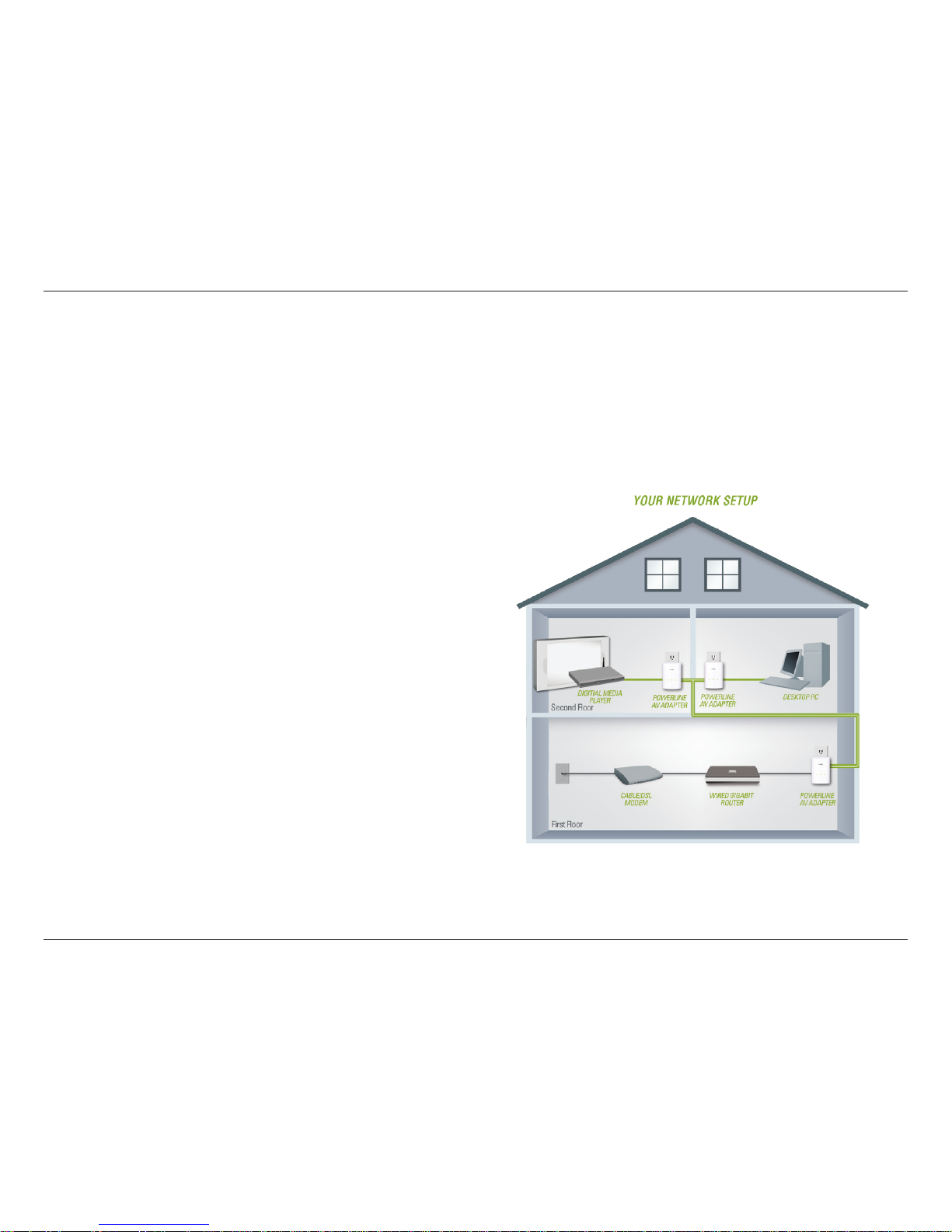

Introduction
D-Link announces a fast, 200Mbps* Powerline AV Network Adapter which allows you to connect your home computers,
networking devices and gaming devices through the most pervasive medium in your house - the electric powerlines -
and share Internet connections, printers, transfer les, play games, and more.
Features
• Provides Ethernet to Powerline Connection
• Fast Data Transfer Rate of Up to 200Mbps*
• One 10/100 Ethernet port
• Plug & Play, Easy Installation
• Easy to use Management Utility
• Firmware Upgrade Support
• Push Button Security
• Power Saving mode
* Maximum throughput based on theoretical transmission PHY rate. Actual date throughput will vary. Network conditions and environmental factors, including volume
of trafc and network overhead, may lower actual data throughput rate. Interference from devices that emit electrical noise, such as vacuum cleaners and hair dryers,
may adversely affect the performance of this product. This product may interfere with devices such as lighting systems that have a dimmer switch, short wave radios,
or other powerline devices that do not follow the HomePlug AV standard.

5D-Link DHP-306AV User Manual
Section 1 - Product Overview
Hardware Overview

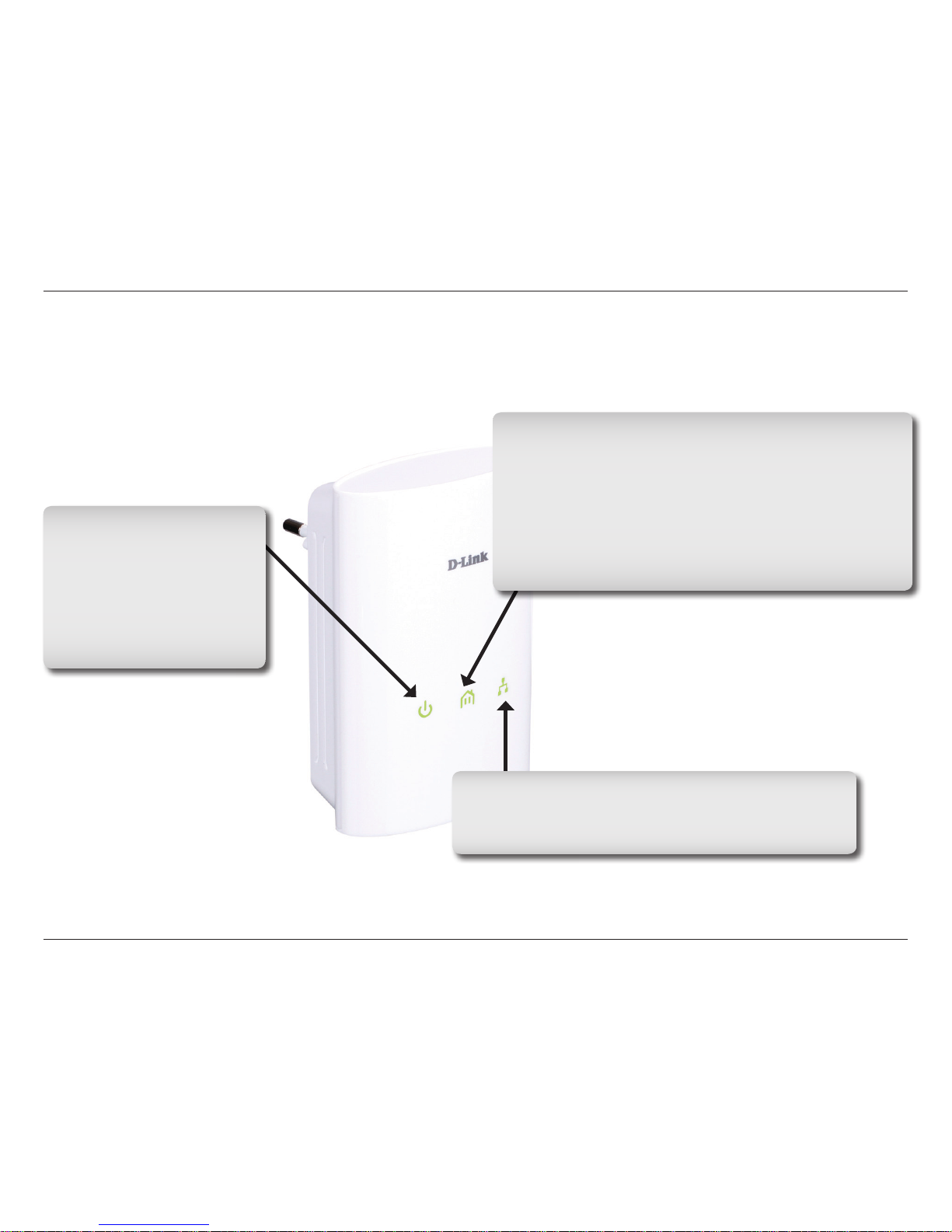

LEDs
Power LED
• Solid. The device is receiving
electrical power.
• Blinking. The device is setting
itself up after reset or security
button was pressed or power
saving mode enabled.
• Off. The device is not receiving
electrical power.
Ethernet LED
• Solid. The Ethernet port is linked but there is no data trafc.
• Blinking. The device is transmitting data.
• Off. There is no Ethernet connection.
Powerline LED
• Solid. The device is connected to a Powerline network.
• Blinking. The device is transmitting data.
• Off. The device has not found any other compatible Powerline
devices using the same encryption key.
The color indicates the Powerline link rate:
• Green. The Powerline link rate is faster than 80 Mbps.
• Amber. The Powerline link rate is between 50 Mbps and 80 Mbps.
• Red. The Powerline link rate is less than 50 Mbps.

6D-Link DHP-306AV User Manual
Section 1 - Product Overview
Hardware Overview

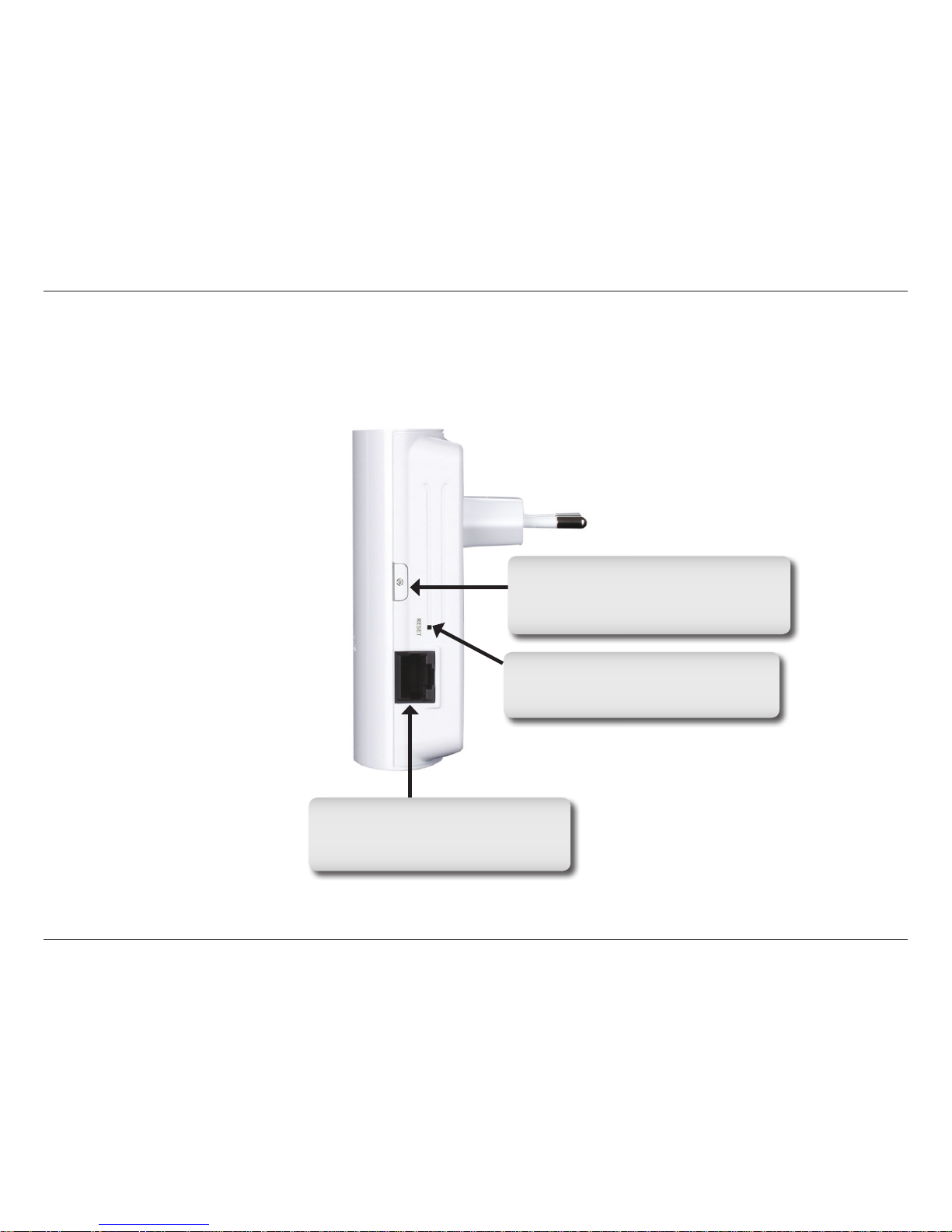

Connection
Ethernet Port
Connect CAT5 Ethernet cable to
DHP-306AV Ethernet port.
Security Button
Press to secure your network. Refer
to page 8 for more information.
Reset Button
Press and hold the button for 1
second to reset to factory default.

7D-Link DHP-306AV User Manual
Section 2 - Installation
Hardware Installation
Power
Plug in the DHP-306AV into an AC wall outlet or power strip.
Note: Power source is conrmed when the Power LED on the DHP-306AV is illuminated.
Connect the Ethernet Cable
Connect the included Ethernet cable to the network cable
connector located on the DHP-306AV and attach the other
end of the Ethernet cable to the network or PC. Network
Connectivity is conrmed when the Ethernet LED on the
DHP-306AV are illuminated.
Power Saving Mode Enabled
When the Ethernet link activity being down for 5 minutes, the
DHP-306AV will automatically go into power saving mode.
The Power LED will blink intermittently.

8D-Link DHP-306AV User Manual
Section 2 - Installation
Understanding Powerline AV Network Security
The Powerline AV network adapters on the same network must use an identical encryption key. The default encryption
key of each Powerline AV network adapter is HomePlugAV. All Powerline AV network adapters with default encryption
key can communicate with each other.
It’s recommended to create a private encryption key for network security purpose. The private encryption key allows
you to protect your network from unauthorized access via the Powerline network. To create a private encryption key
instead of the default encryption key, please follow below steps:
1. All Adapters
Plug in all the adapters to be congured and make sure each device’s encryption key is set to HomePlugAV (default
value). If the encryption key is not set to the default value, press the Reset button for 1 second or use Powerline AV
Utility on your CD for resetting it to the default value.
2. First Adapter
Press Security button of the rst adapter for no more than two seconds.
The Power LED will start blinking after you release the button. The adapter will create a private, randomly generated
encryption key that each Powerline AV network adapter will use.
3. Second Adapter
Within two minutes of pushing the Security button of the rst adapter, press Security button of second adapter in your
Powerline network for no more than two seconds. The Power LED will start blinking after you release the button.
Note: Both Security buttons must be pressed within two minutes.
Push Button Security

9D-Link DHP-306AV User Manual
Section 2 - Installation
4. Second Adapter
After above network security setup steps, your Powerline network will be securely congured with the same network
encryption key. The adapters will memorize the security settings even if they are unplugged.
Note: To change the private encryption key, please reset the adapter back to its default value by pressing the Reset
button for 1 second and then follow the security setup procedure above.
5. Adding More Adapters
If you would like to add more than two adapters, press the button of the additional adapter for no more than two seconds.
The Power LED will start blinking after you release the button.
Then press the button of any adapter in your existing Powerline network for no more than two seconds. The Power
LED will start blinking after you release the button.
Note: Both Security buttons must be pressed within two minutes.
After above network security setup steps, your Powerline network will be securely congured with the same network
encryption key.

10D-Link DHP-306AV User Manual
Section 2 - Installation
Follow the simple steps below to run the Setup Wizard to guide you quickly through the installation process.
Insert the D-Link DHP-306AV CD into your CD-ROM drive. If the CD Autorun function does not automatically start on
your computer, click Start > Run.
In the Run command box type “D:\DHP-306AV.exe”, where D: represents the drive letter of your CD-ROM. If it does
start, proceed to the next screen.
Click on Install Utility
Using the Setup Wizard

11D-Link DHP-306AV User Manual
Section 3 - Conguration
Conguration
After you have completed the D-Link Powerline AV Utility installation wizard, double-click the D-Link Powerline AV
Utility icon on your desktop to start the conguration of the DHP-306AV.

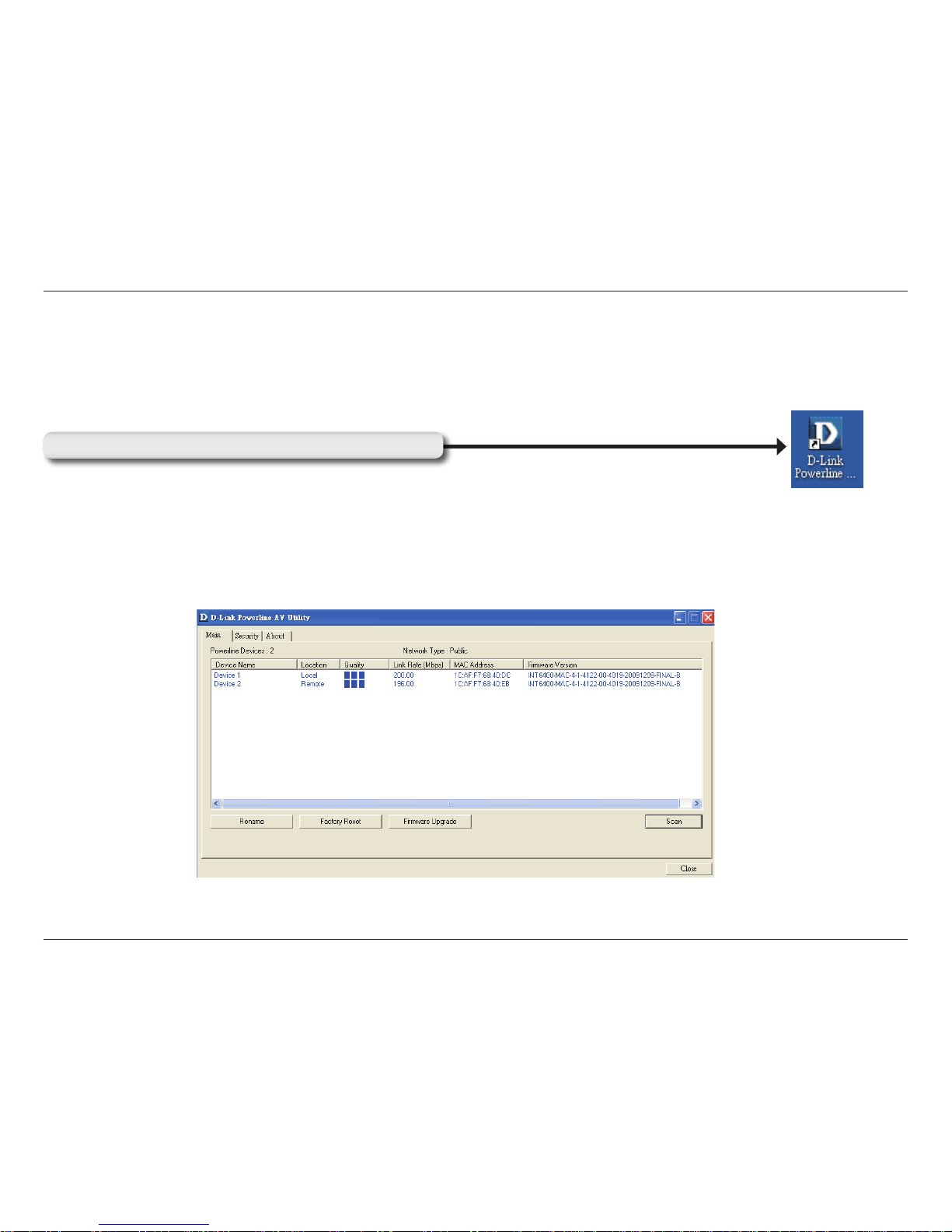

Double-click the D-Link Powerline AV Utility icon
The D-Link Powerline AV Utility provides you the option of setting your own Powerline network and the network
information of connected Powerline devices.

12D-Link DHP-306AV User Manual
Section 3 - Conguration

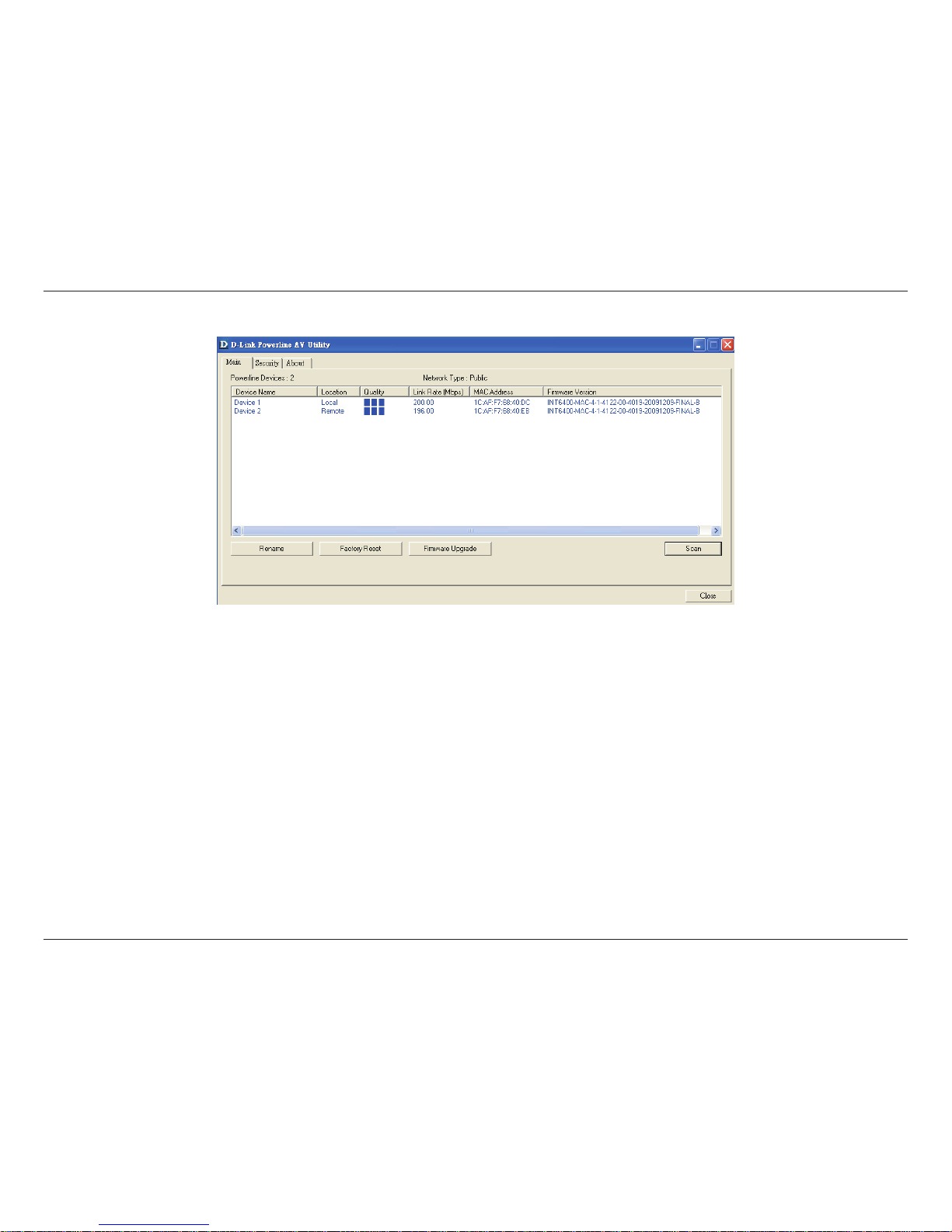

Device Information Tab:
Device Name: Shows the name of devices that have been discovered. The device name is initially set by the utility itself.
Location: Shows the device is local or remote.
Quality: Shows the network connection quality of the connected device.
• Three squares - Suitable for HD video stream connection.
• Two squares - Suitable for SD video stream connection.
• One square - Suitable for data and Internet activity connection.
Link Rate: Shows the link rate of the connected device.
MAC Address: Shows the MAC address of the connected device.
Firmware Version: Shows the rmware version of the connected device.
Main

13D-Link DHP-306AV User Manual
Section 3 - Conguration

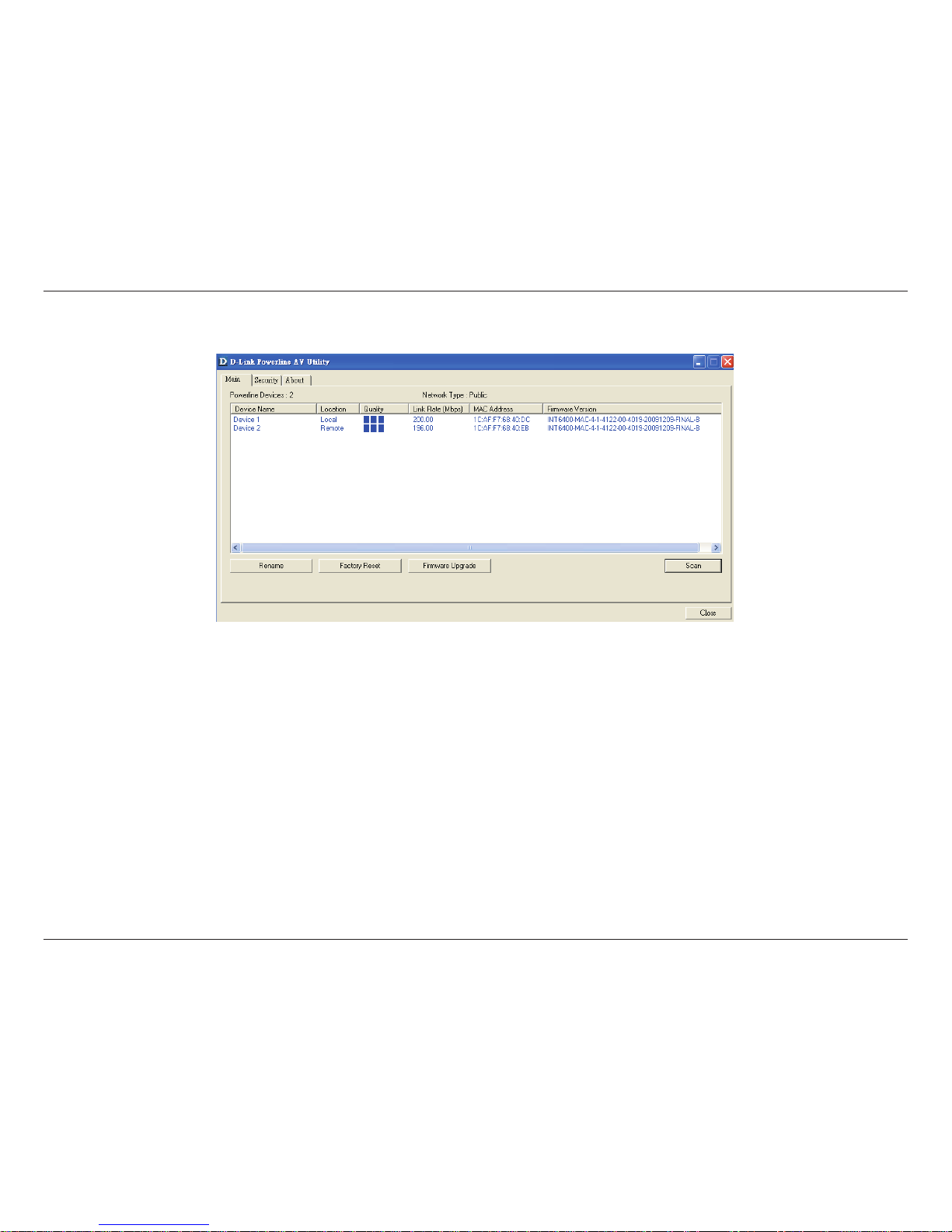

Conguration Buttons:
Scan Button: Scan for connected Powerline devices.
Rename Button: Select a Powerline device rst and then change the device name.
Factory Reset Button: Select a Powerline device rst and then reset to factory default encryption key and rmware
version.
Firmware Upgrade Button: The rmware upgrade is only for local device. Select the appropriate rmware les and
then proceed.

14D-Link DHP-306AV User Manual
Section 4 - Security
Security
Understanding the Encryption Key setting:
The Powerline devices on the same network must use an identical encryption key. The default encryption key of each
Powerline device is HomePlugAV. All devices with default encryption key can communicate with each other.
It’s recommended to create a private encryption key for network security purpose. The private encryption key allows
you to protect your network from unauthorized access via the Powerline network.

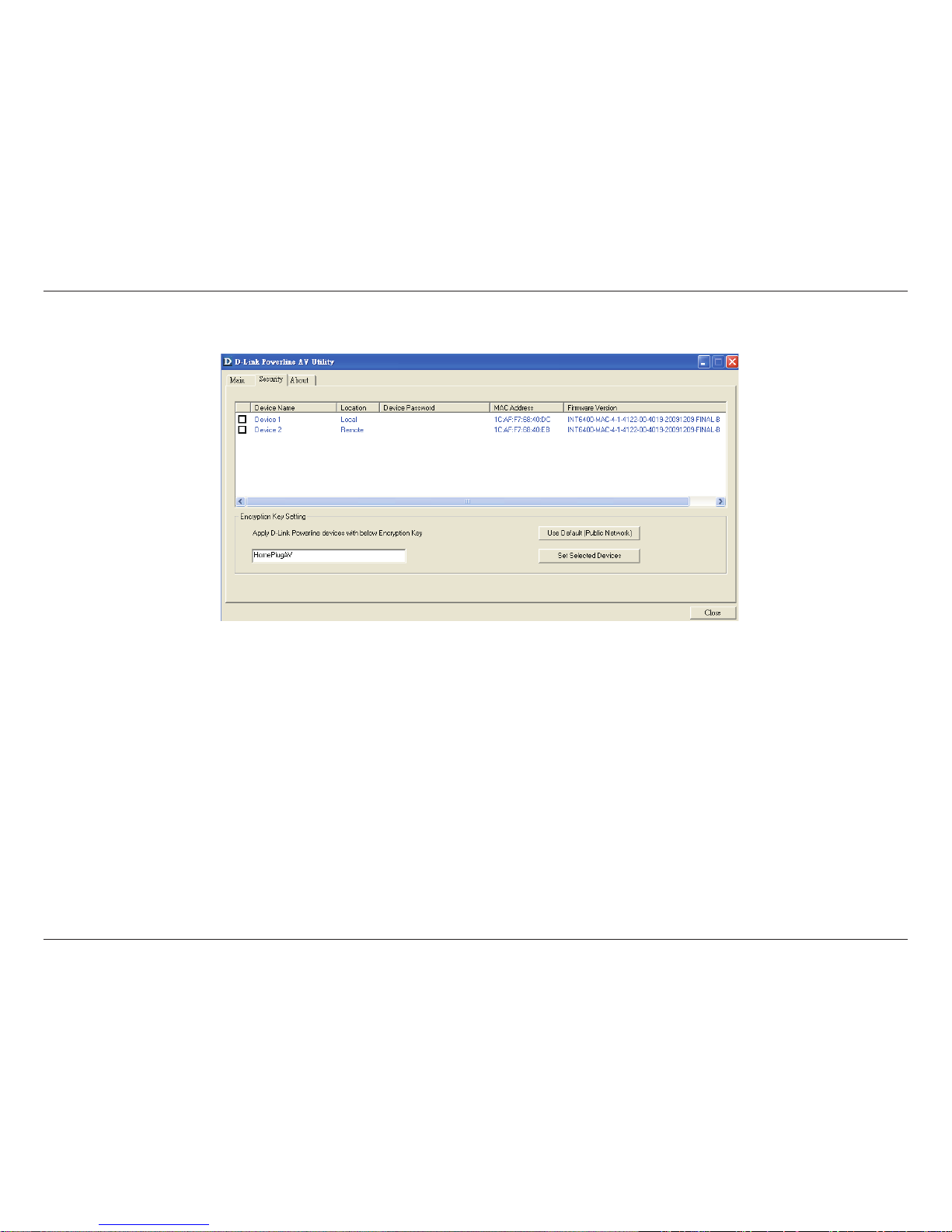

Setting your private Encryption Key
1. Enter the device password before changing the encryption key:
• Local Device: You do not need to enter the device password before changing the encryption key.
• Remote Device: You must enter the device password before changing the encryption key.
Note: Each device has a unique device password on the device label.

15D-Link DHP-306AV User Manual
Section 4 - Security

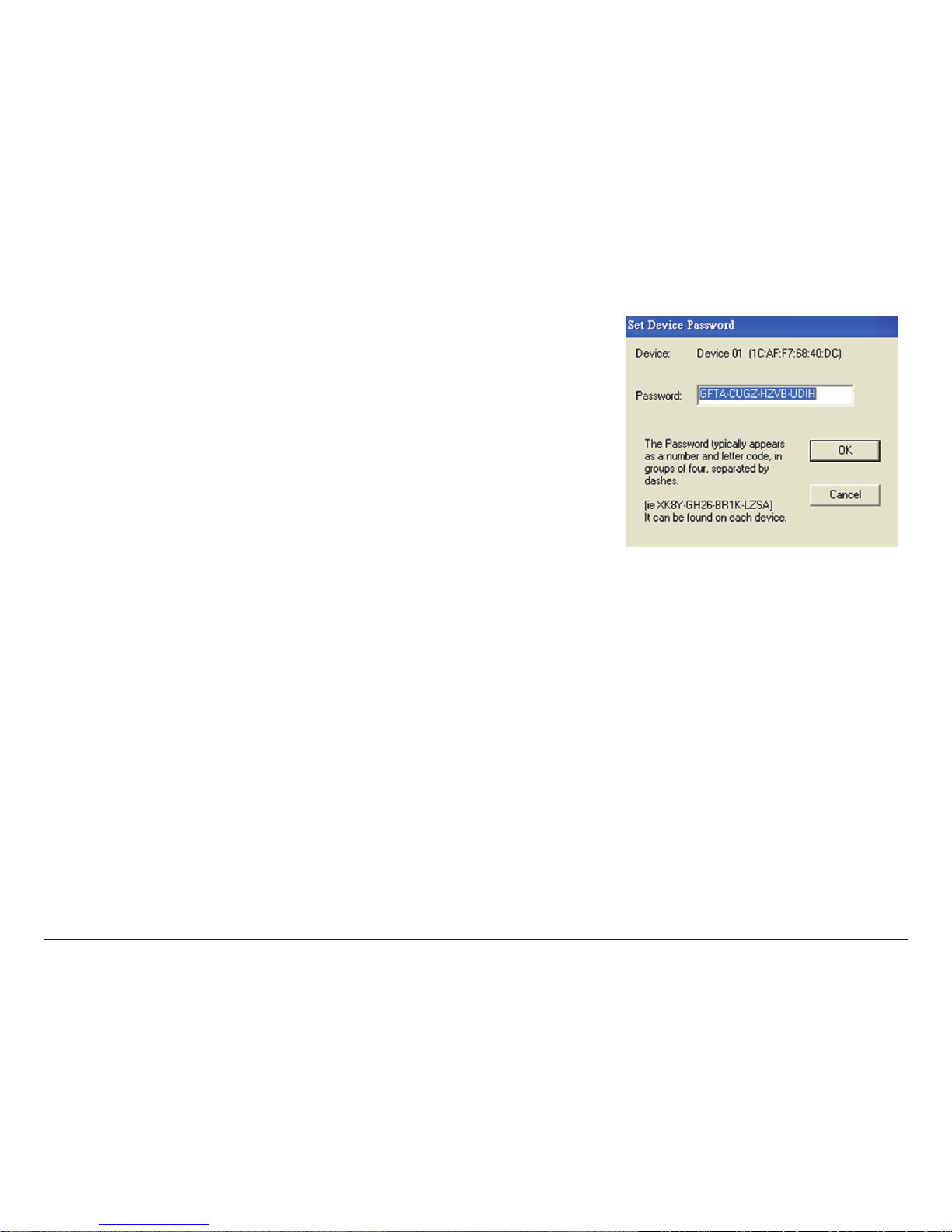

2. Select the remote device and then enter the device password into the Set
Device Password window. Then click OK.
3. Select the Powerline devices that you would like to apply the encryption key
setting. Then type your private encryption key into the Encryption Key Setting
eld and click Set Selected Devices. The utility will show a message once the
setting been completed.
Note: Please keep your private encryption key in your record after you change it.
4. Select the Main tab, and click Scan to check if the devices in the Powerline
network appear in the list.
Adding a Device to your Powerline network
If you use the default encryption key within existing Powerline network and the new device retains the default encryption
key, you can just plug the new device into a power outlet. Then all devices can communicate with each other.
If the encryption key within existing Powerline network has been customized, you have two ways to add the new device
to your Powerline network.
1. You can use Powerline AV Utility to apply the customized encryption key in your record to the new device. Then all
devices can communicate with each other by using the customized encryption key.
2. You can use Powerline AV Utility to set all devices within existing Powerline network and the new device back to the
default encryption key rst. Then follow the 1 to 4 steps of “Setting your private Encryption Key”. Your Powerline network
will securely be congured with a customized encryption key and all devices can communicate with each other after your
setting.

16D-Link DHP-306AV User Manual
Section 5 - Troubleshooting
Troubleshooting
• Powerline AV utility does not start correctly:
Reinstall the utility.
• Powerline AV utility does not detect the PowerLine AV Network Adapter:
Please make sure your Powerline AV Network Adapter is correctly plugged and connected to the computer or network
device.
• I can’t congure any parameter of the PowerLine AV Network Adapter, an error is shown when I try to congure
it:
Please make sure you have not unplugged the PowerLine AV Network Adapter while conguring it.
• I changed the connection cable to another Network adapter and now the utility does not work correctly:
Please restart the utility each time you disconnect the connection cable.
• I’m having a lot of problems conguring my network:
If you are having many problems conguring the network with two or more PowerLine AV Network Adapter, please
make a reset to all of the Network adapters and start conguring the adapters again.

17D-Link DHP-306AV User Manual
Appendix A - Technical Specications
Network Ports
• One 10/100 Ethernet ports
EMC
• FCC Part 15 Class B
• CE Class B
• C-Tick
AC Input
• 100-240Vac, 50/60Hz, 0.1A
Safety
• UL, CE LVD
Encryption
• 128 bit AES
Operation Temperature
• 0°C ~ 40°C
Storage Temperature
• -10°C ~ 70°C
Humidity
• Operation: 10% ~ 90% RH
• Storage: 5% ~ 90% RH
Technical Specications
