DAP-3711
Quick Installation Guide

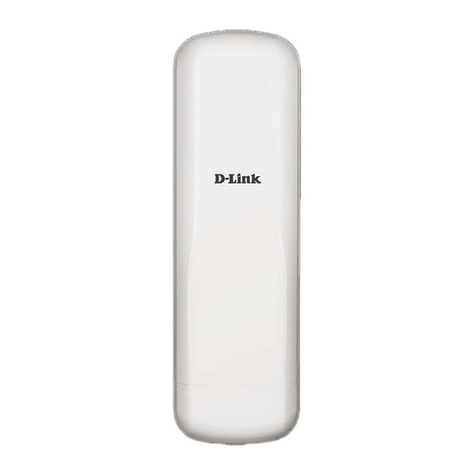

5km Long Range 802.11ac Wireless Bridge

Contents
English 1

Quick Installation Guide 1
ENGLISH

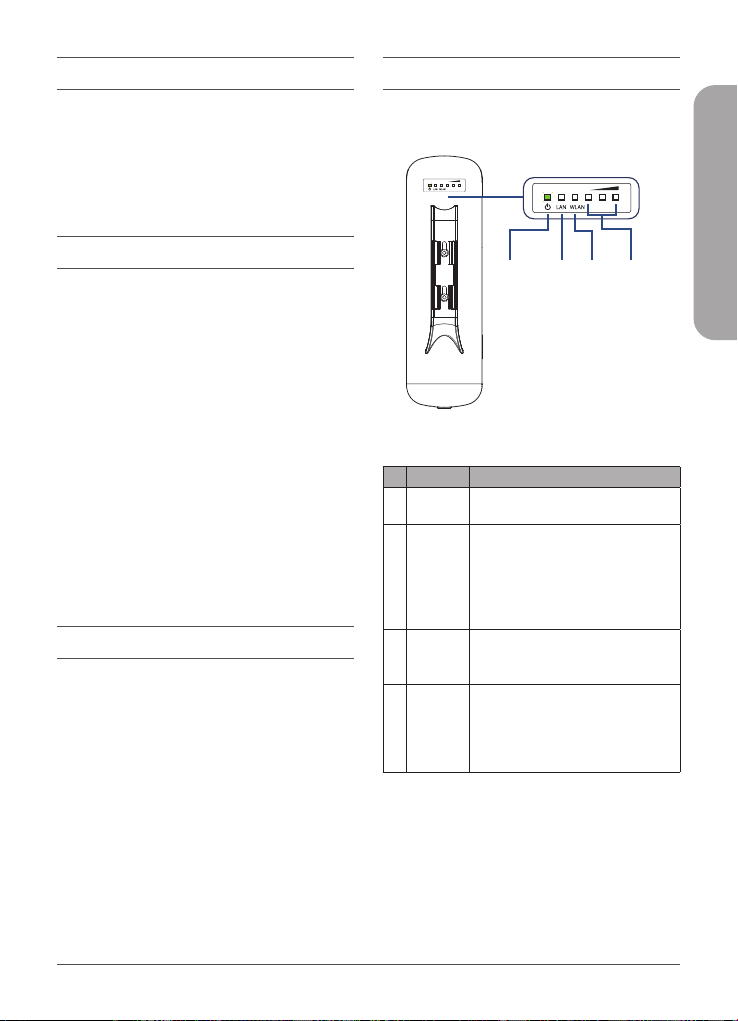

Hardware Overview
LED Indicators
Figure 1: DAP-3711 LEDs
# LED Description
1Power Power indicator. Green light indicates
the power is on.
2 LAN
Network connection light. A steady
green light indicates the LAN port of
the PoE power supply is connected
to a network device. A flashing
green light indicates data is being
transmitted.
3 WLAN
Wireless indicator. Lights up to
indicate wireless activation. Flashes
when data is being transmitted.
4Signal
Strength
Signal strength indicator. A red light
indicates a weak signal. Red and
yellow together indicates a medium
signal.Yellow, red and green together
indicates a strong signal.
Table 1: LED Descriptions
Before You Begin
This installation guide provides basic instructions
for installing the DAP-3711 on your network. For
additional information about how to use the
access point, please see the User Manual from
the D-Link support website.
Package Contents
This DAP-3711 should include the following
items:
• 5km Long Range 802.11ac Wireless Bridge
• PoE injector
• Power cord
• Mounting ties
• Quick Start Guide
If any of the above items are damaged or
missing, please contact your local D-Link reseller.
Note: Using a power supply with a different
voltage than the one recommended for the
device will cause damage and void the warranty
for this product.
System Requirements
• Microsoft Windows®, or a Linux-based
operating system
• An available Ethernet port
• Microsoft Edge, Firefox 60.0, or Chrome
68.0.3440.106
1 2 3 4

2Quick Installation Guide
ENGLISH
Cable Requirements
Use a CAT 5 cable with an even sheath. The
Ethernet ports on the DAP-3711 access point
cannot accept a CAT 5 cable that has an uneven
sheath; the RJ-45 connector on the cable will
not fit properly into the receptacle on the
access point.
Conguring the Access Point
To set up and manage the DAP-3711, use one
of the following methods.
Connecting Through a Computer
1. Use an Ethernet cable to connect the
DAP-3711 to the management computer.
2. Ensure the computer is configured with a
static IP address in the 192.168.0.2/255
subnet.
3. Launchawebbrowser.Enter192.168.0.50
in the address field of your browser.
4. Log in to the administration user interface.
The default login information is:
Username: admin
Password: admin
Figure 3: Direct Connection

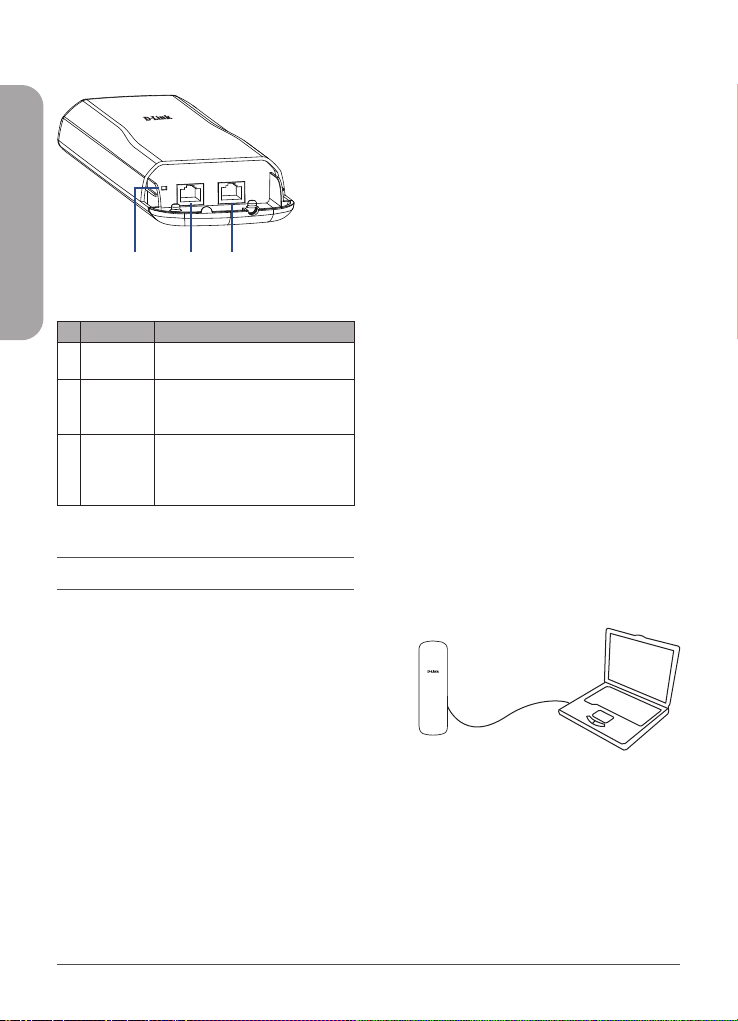

Interface Connectors
Figure 2: DAP-3711 Interface
# Feature Description
1Reset
Button
Resets the device to its factory
settings.
2 LAN Port
Uses a standard Ethernet cable
to connect to devices such as
computers and switches.
3 PoE Port
Uses a standard Ethernet cable to
connect the device to a PoE power
source such as a PoE switch or PoE
injector.
Table 2: Interface Descriptions
Hardware Installation
Powering the Access Point
To power the DAP-3711, use a standard Ethernet
cable to connect the PoE port on the DAP-3711
to a PoE power source device such as a PoE
switch or the included PoE injector.
DAP-3711 Computer
123

Quick Installation Guide 3
ENGLISH
Connecting Through a Switch or Router:
1. Use an Ethernet cable to connect the
DAP-3711 to the switch or router the
management computer is connected to.
2. If the access point did not acquire an
IP address from a DHCP server on the
network, enter the default IP address of
the access point (http://192.168.0.50)
in the address field of your browser. If the
access point is automatically assigned
an IP address by a DHCP server on your
network, enter the IP address assigned
to the access point into the web browser.
3. Log in to the administration user interface.
The default login information is:
Username: admin
Password: admin
Figure 4: Indirect Connection
Mounting the Device
Installation Recommendations
If you plan to install the DAP-3711 on a pole,
orient the front of the access point (the side
without the LEDs) toward the intended coverage
area. The radio antennas transmit through the
front of the access point but not through the
reverse side (where the bracket is).
Be sure to install the device at a height that
ensures that the alignment between the
devices is visible and there is no obstruction
in the middle.
Warning: The DAP-3711 is designed to receive
PoE power only from an 802.3at compliant
source. Connecting an access point to a PoE
device that is not approved by D-Link can
damage the equipment.

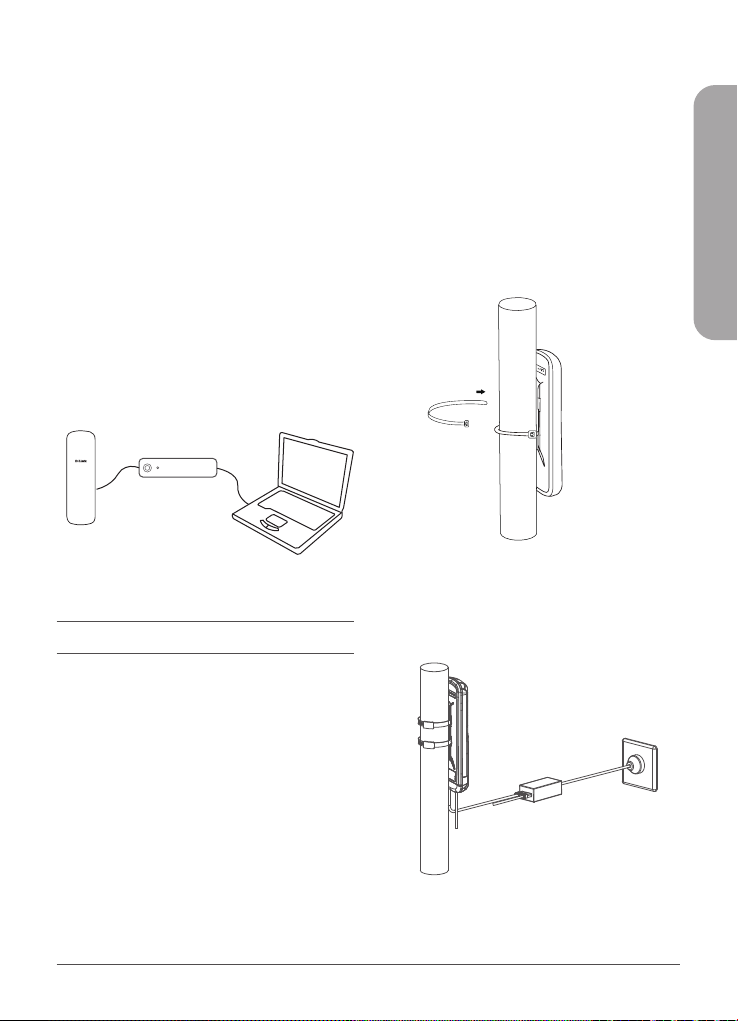

Mounting on a Pole
1. Connect an Ethernet cable to the LAN port
on the DAP-3711.
2. Place the DAP-3711 against the pole
where you want it to be positioned.
Figure 5: Mounting the Device
3. Wrap the metal mounting ties around the
pole and thread them through the holes
on the DAP-3711.
Figure 6: Completed Installation
DAP-3711
Switch or
router
Computer

4Quick Installation Guide
ENGLISH
RF Frequency Requirements
This device is for outdoor use only. High power
radars are allocated as primary users of the 5150
~ 5250 MHz, 5725 ~ 5850 MHz bands. These
radar stations can cause interference with and/
or damage PoE Adapter this device. This is fixed
point-to-point device.
