Overview

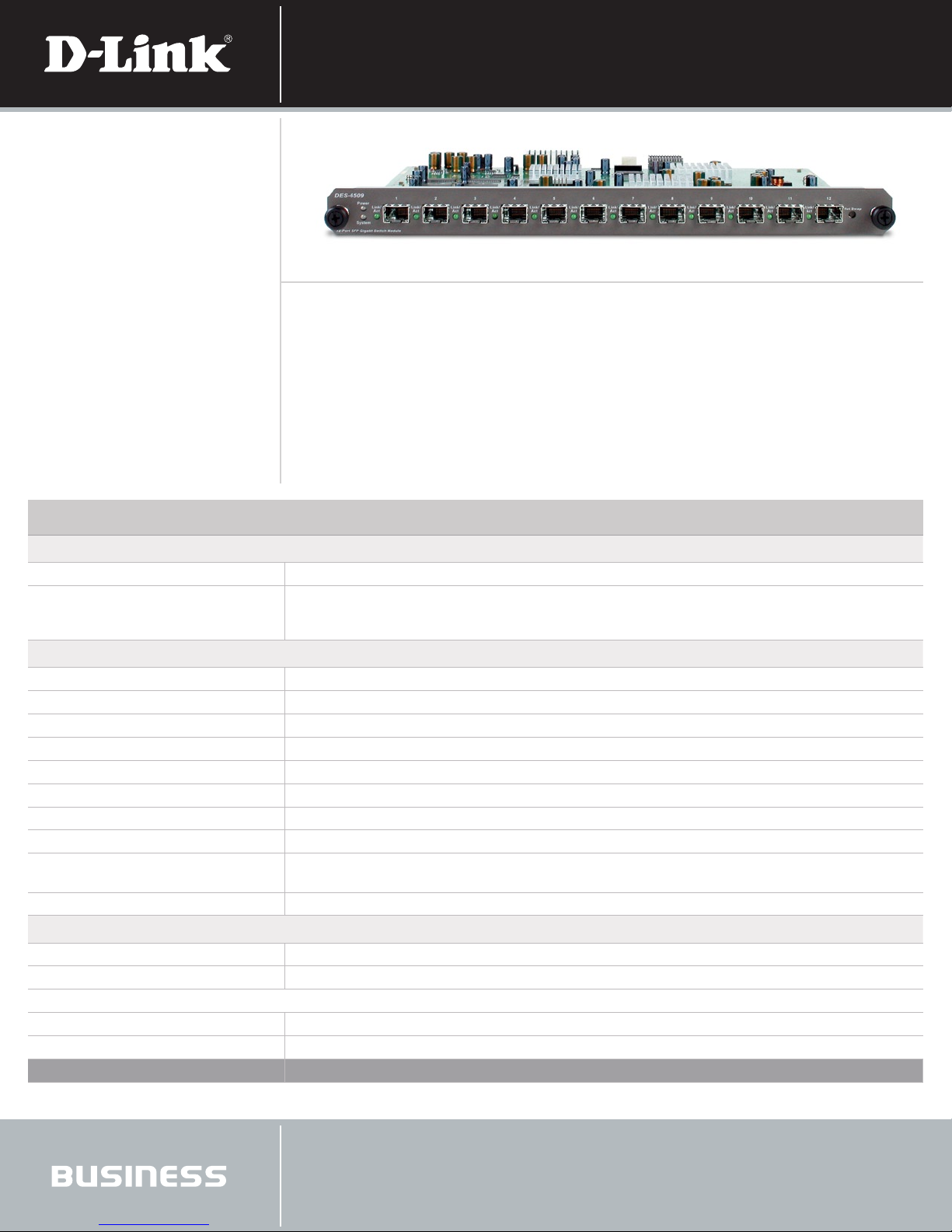

The DES-6509 is a 12-port SFP Module for the D-Link® DES-
6500 chassis. It uses standards-based 802.3z Gigabit SFP
transceivers to meet the demands of today’s enterprise and
service provider networking infrastructure. The DES-6509
is the perfect solution for uplinking to servers, storage, or
department level switches such as D-Link xStack
DXS-3200. Fiber media is a great solution because it allows
for increased distances over copper cabling. When used with
D-Link DEM-310GT SFP ber transceiver, a total distance of
up to 6.2 mi (10km) can be reached, which is often necessary
when running across larger distances such as campuses
or multi-building environments. If your situation consists of
shorter distances, the DEM-311GT transceiver from D-Link
provides Gigabit Multimode connection at distances of up to
1800 ft (550 m).
12-Port 1000BASE-X SFP Module
DES-6509
Standard
+ IEEE 802.3z compliance
High Performance Architecture
+ Supports Full-Duplex operation only
Transceivers Supported
+ SFP compliant
Hardware version B1/B2
Technical Specications
Product specications
Standard IEEE 802.3z
LEDs + Power
+ System
+ Link/Activity
Physical and Environmental
Dimension 13 in x 11.07in x 1.08in
Weight 2.51lbs
Heat Dissipation 68.24BTU/hr
Power Consumption 20 Watts Max.
Operating Temperature 0° – 104° F (0° - 40°C)
Storage Temperature -14° – 131°F (-10° - 55°C)
Operating Humidity 5% - 95% non-condensing
Storage Humidity 5% to 95%, non-condensing
Certifications + FCC Class A + CE mark
+ CSA International
Warranty 1-Year Limited1
Ordering Information
DES-6509 12-Port 1000BASE-X SFP Module For DES-6500 Chassis
DES-6500 9-Slot Layer 2/3/4 Chassis Switch
Supported SFPs
DEM-310GT 1000BASE-LX Mini Gigabit Interface Converter
DEM-311GT 1000BASE-SX Mini Gigabit Interface Converter
