D-Link DSL-520T User manual

Before You Begin
Make sure you have all the necessary information and equipment on hand before beginning the
installation.
Check Your Package Contents
If any of the items above are missing, please contact your reseller.
DSL-520T
ADSL Router
DSL-520T ADSL Router
CD-ROM (containing Manual)
Ethernet (CAT5 UTP) Cable
Telephone Cable
Power Adapter
Using a power supply
with a different voltage
rating will damage and void
the warranty for this product.
This product can be set up
using one of the following
web browsers: Internet
Explorer 6 or Netscape
Navigator 6.2.3.

2

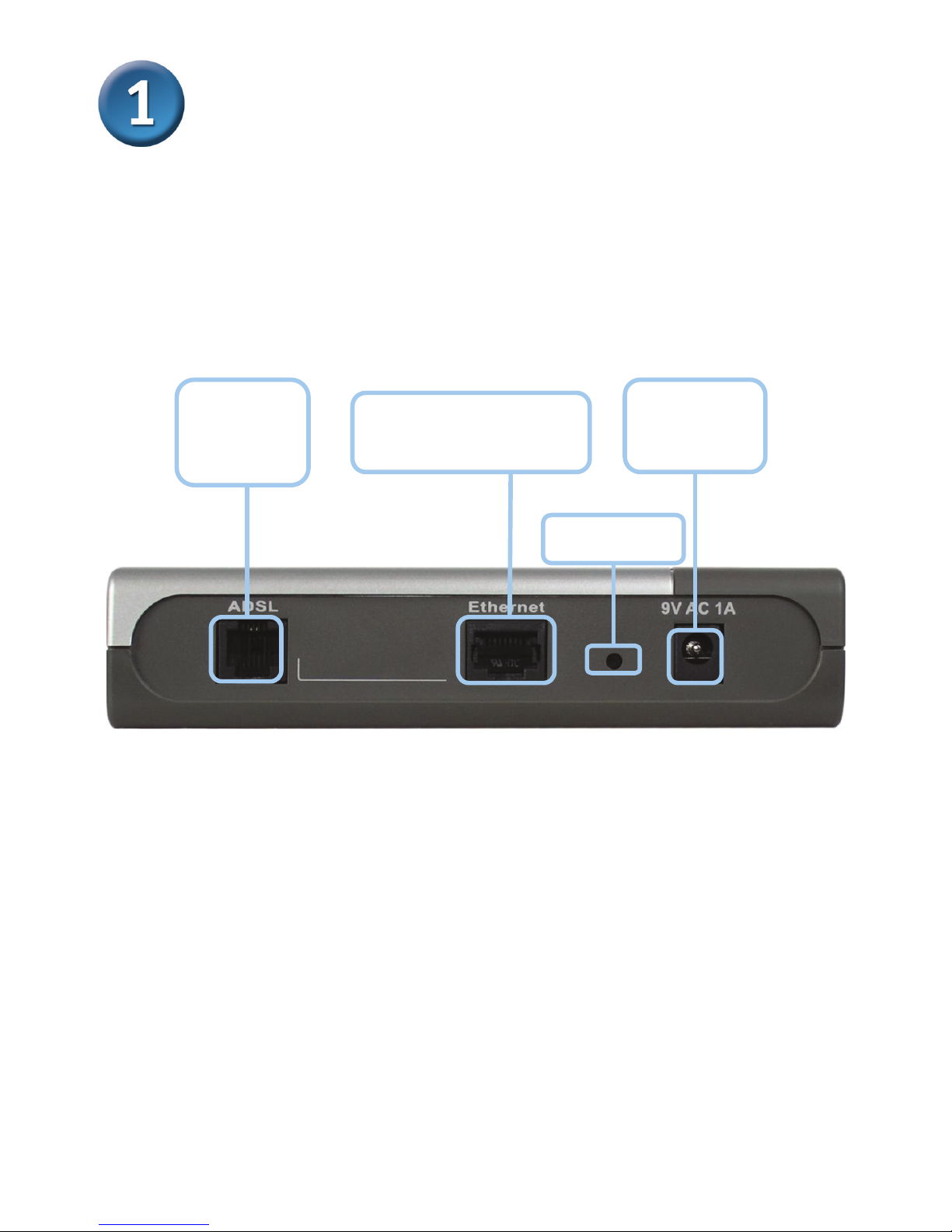

Connecting the Router to Your Computer
A. First, connect the power adapter to the receptor at the back panel of the
DSL-520T and then plug the other end of the power adapter to a wall outlet or
power strip. The Power LED will turn on to indicate proper operation.
B. Insert one end of the cable into any Ethernet port on the back panel of the
DSL-520T and the other end of the cable to an Ethernet Adapter or available Ethernet
port on your computer.
Ethernet Ports
Connect to Ethernet cable
Power Input
Connect to
power adapter
ADSL Port
Connect to
ADSL line
Reset Button

3
Configuring the Router
To use your Web browser to access the web pages used to set up the Router, your computer
must be configured to “Obtain an IP address automatically,”that is, you must change the IP
network settings of your computer so that it is a DHCP Client. If you are using Windows XP
and do not know how to change your network settings, skip ahead to Appendix A and read the
instructions provided. You may also read the User Manual for instructions on changing IP
settings for computers running Windows operating systems.
The logon pop-up screen will appear.

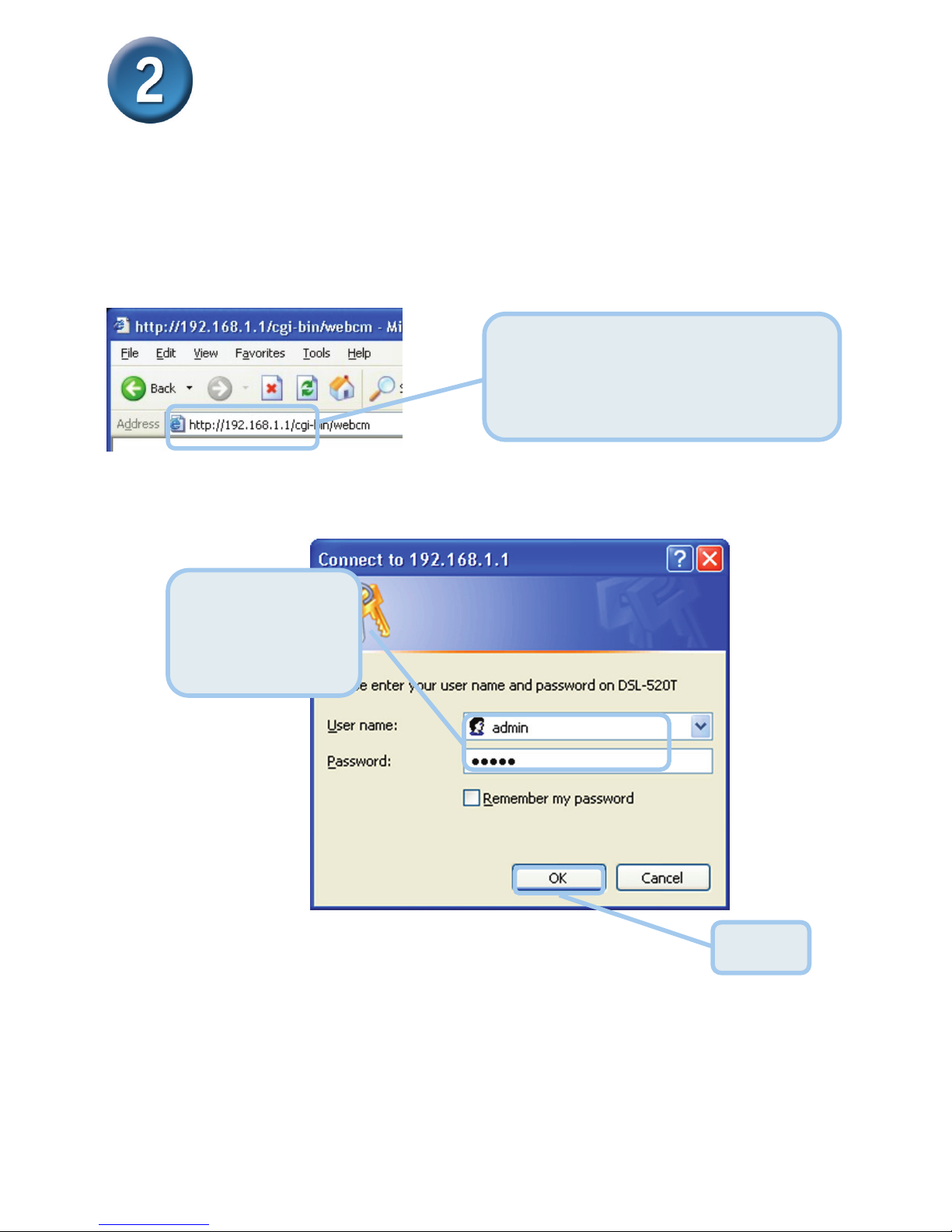

Open your Web browser and type
“http://192.168.1.1” into the URL address
box. Then press the Enter or Return key.
The login dialog appears.
Type “admin” for the
User Name and
“admin” in the
Password field.
Click OK.

4
Configuring the Router (continued)
Once you have logged in, the Home directory tab featuring the Setup Wizard window opens.
Most users will be able to use the Setup Wizard to establish the ADSL connection to your ISP.
To begin using the Setup Wizard, click on the Run Wizard button in the middle of the web page.
The first pop-up Setup Wizard window opens.
Click on the Run Wizard button.

5
Configuring the Router (continued)
The Setup Wizard procedure consists of these general steps:
1. Set the time zone
2. Set the Internet connection
3. Restart the Router
When you setup the Internet connection, you will need to enter information provided by your ISP.
If you have not been given information about the connection type, the VPI and VCI numbers, as
well as other information related to the connection type, you will not be able to complete the
setup.

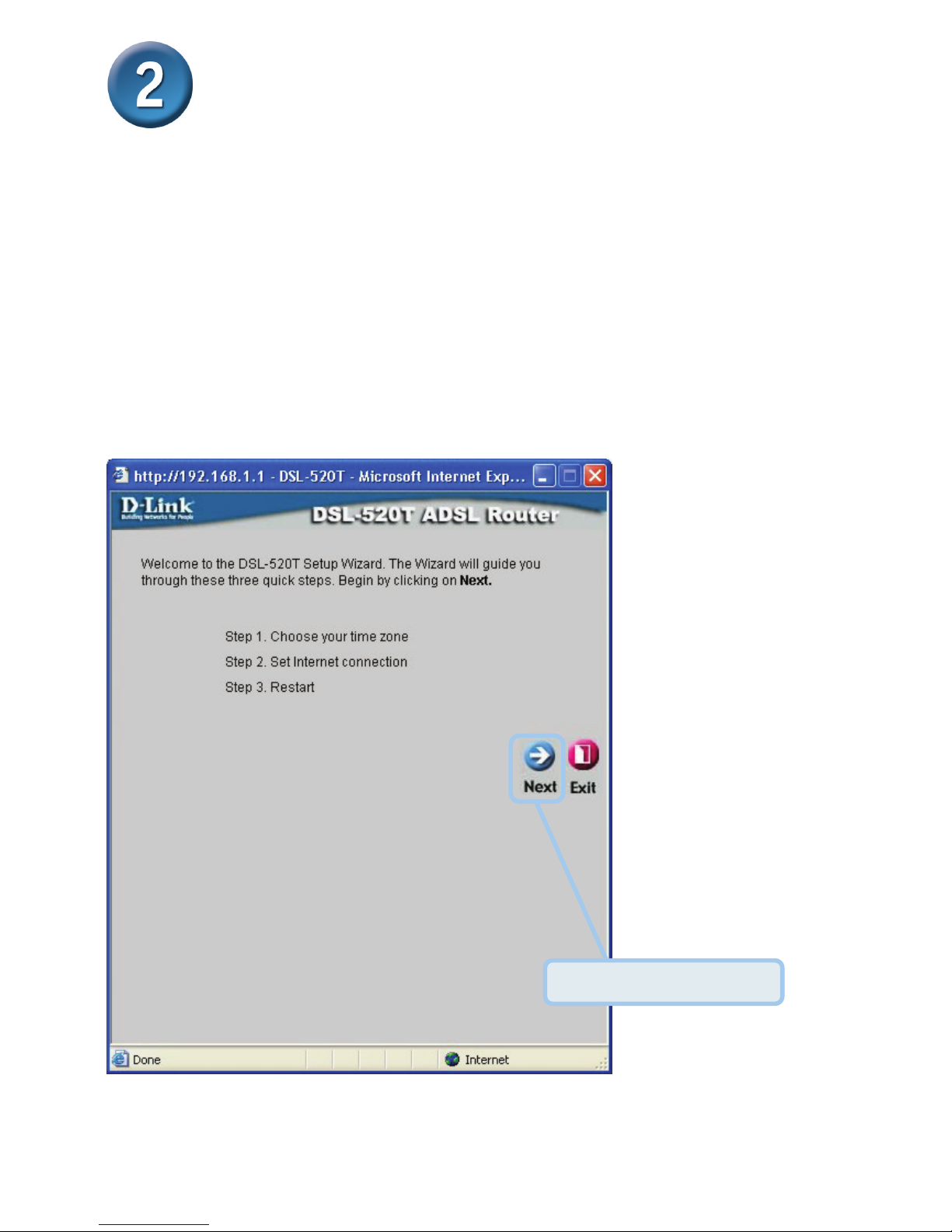

The first Setup Wizard window lists a summary of the steps required to complete the setup.
Click the Next button to begin setup.
Click the Next button.

6
Configuring the Router (continued)

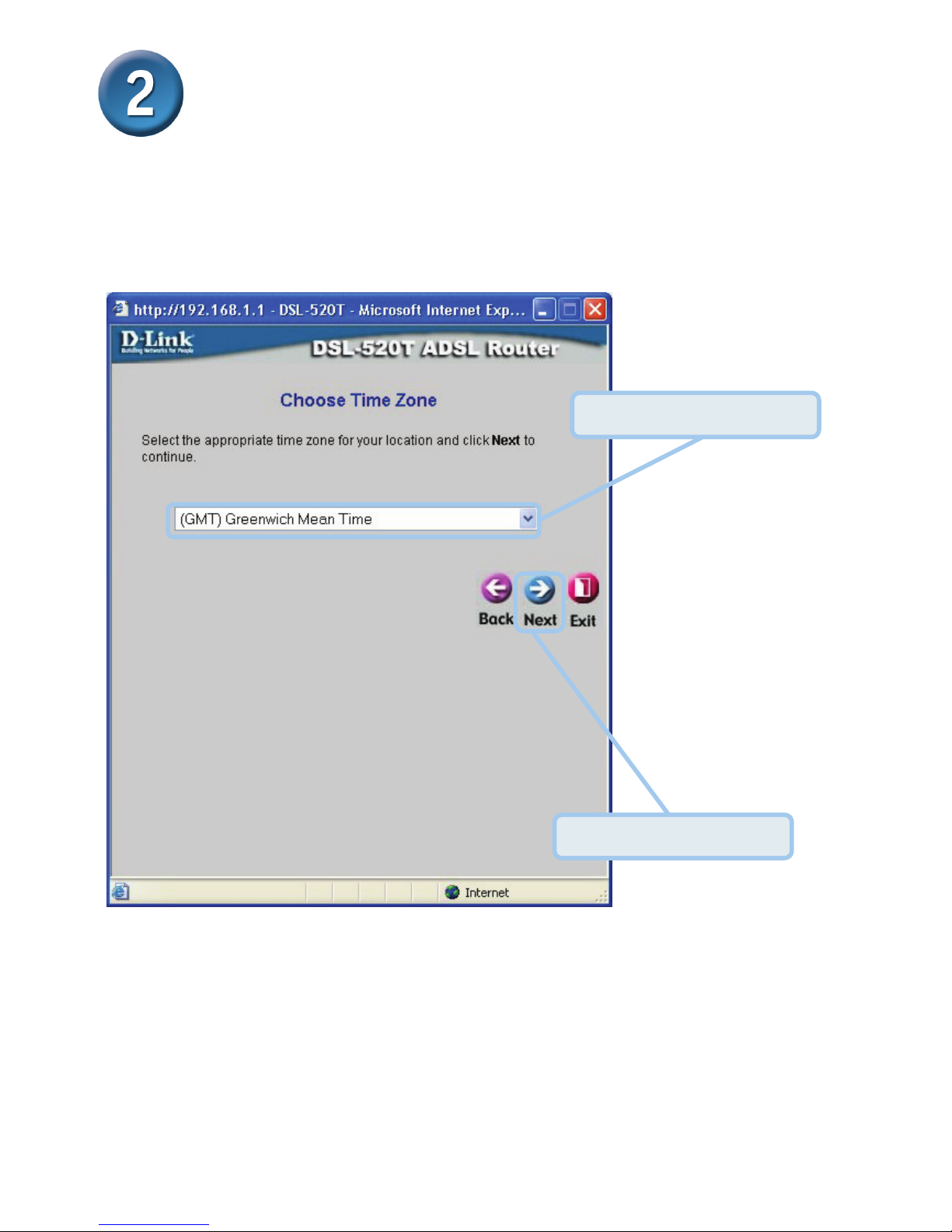

The initial step is to configure the Time Zone used for the Router’s system clock.
Select the appropriate time zone for your location. Click the Next button when you have
made your choice.
Select the Time Zone.
Click the Next button.

7
Configuring the Router (continued)

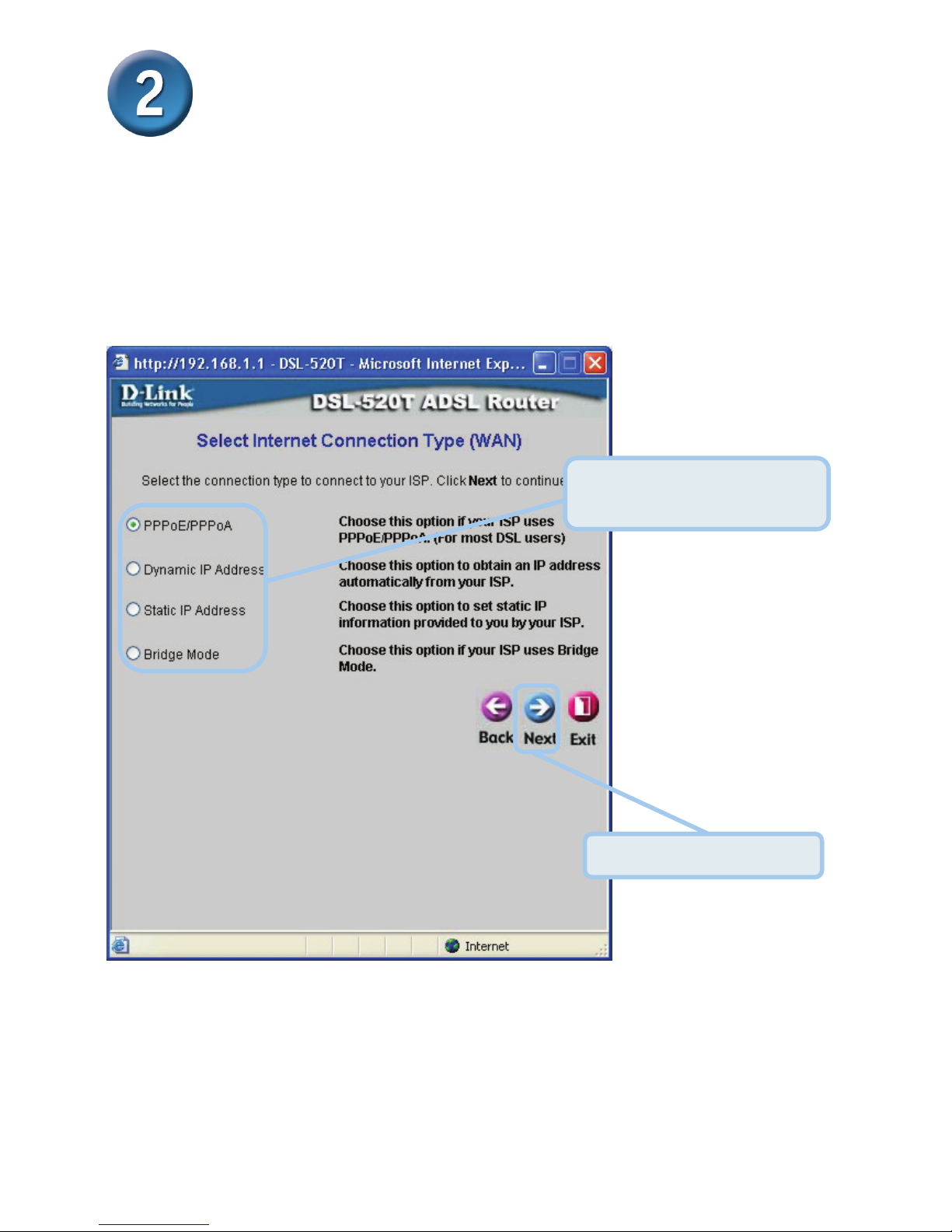

Next you will Select the Internet Connection Type for the WAN interface. Your ISP has given
this information to you. If you do not know what type of connection to use, exit the Setup Wizard
and contact your ISP for the information. The Setup Wizard window that appears when you click
the Next button depends on what connection type you select. The connection types available in
the Setup Wizard window are PPPoE/PPPoA , Dynamic IP Address, Static IP Address, and
Bridge Mode. Follow the instructions below for the type of connection you are using.
Select the Connection Type
used for your ADSL service.
Click the Next button.

8
Configuring the Router (continued)

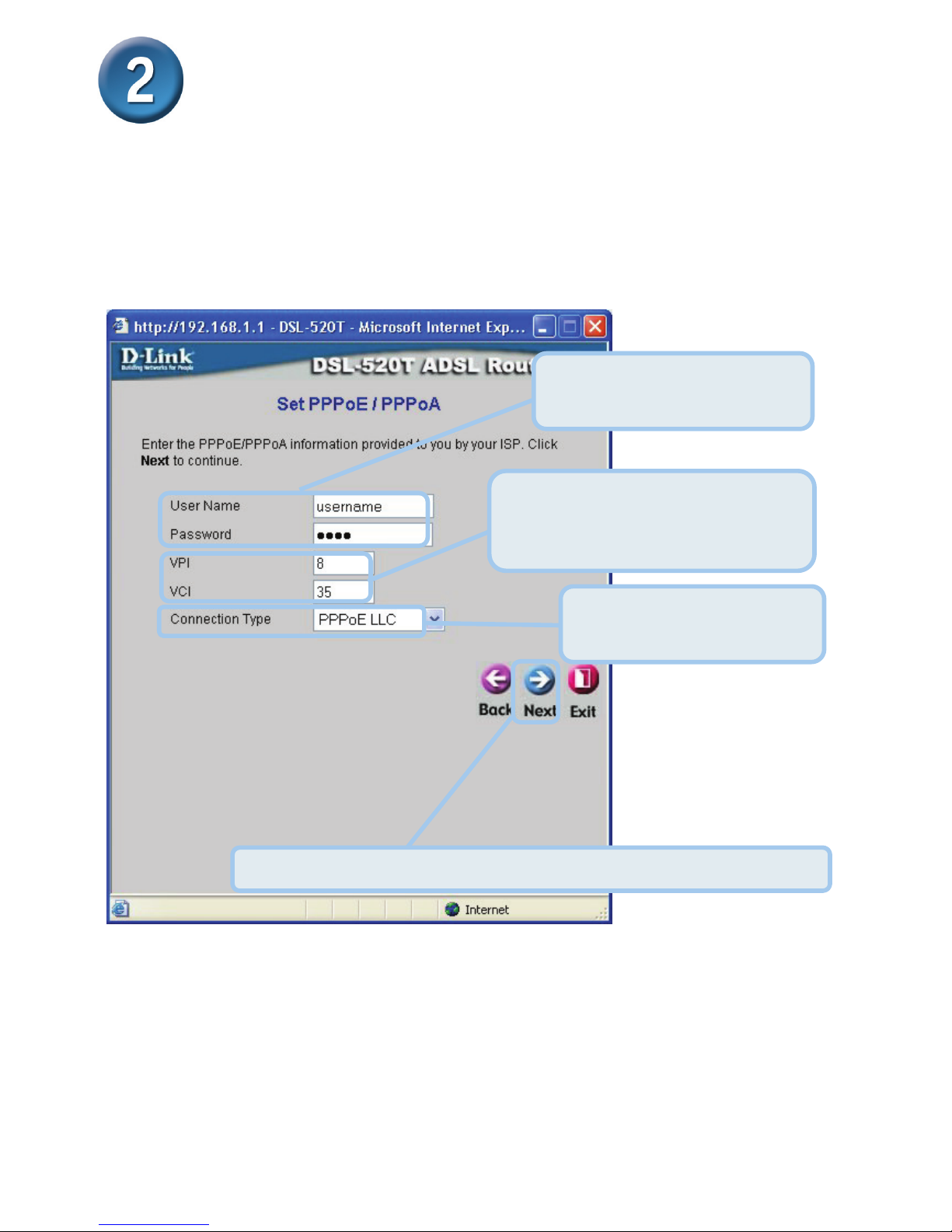

PPPoE/PPPoA Connections
If you selected the PPPoE/PPPoA connection type in the previous window, you will see the
Setup Wizard window pictured here. Type in the Username and Password used to identify and
verify your account to the ISP. If you have been instructed to change the VPI number and VCI
number, type in the new values. Select the Connection Type used for encapsulation specific to
your service. Click Next when you are ready to continue to the Setup Completed window.
Type the User Name and
Password for your ISP account.
Change the VPI and VCI numbers as
instructed by your ISP. Type the new
values in the spaces provided here.
Select the Connection Type
as instructed by your ISP.
Click the Next button. Skip ahead to the Setup Completed window below.

9
Configuring the Router (continued)

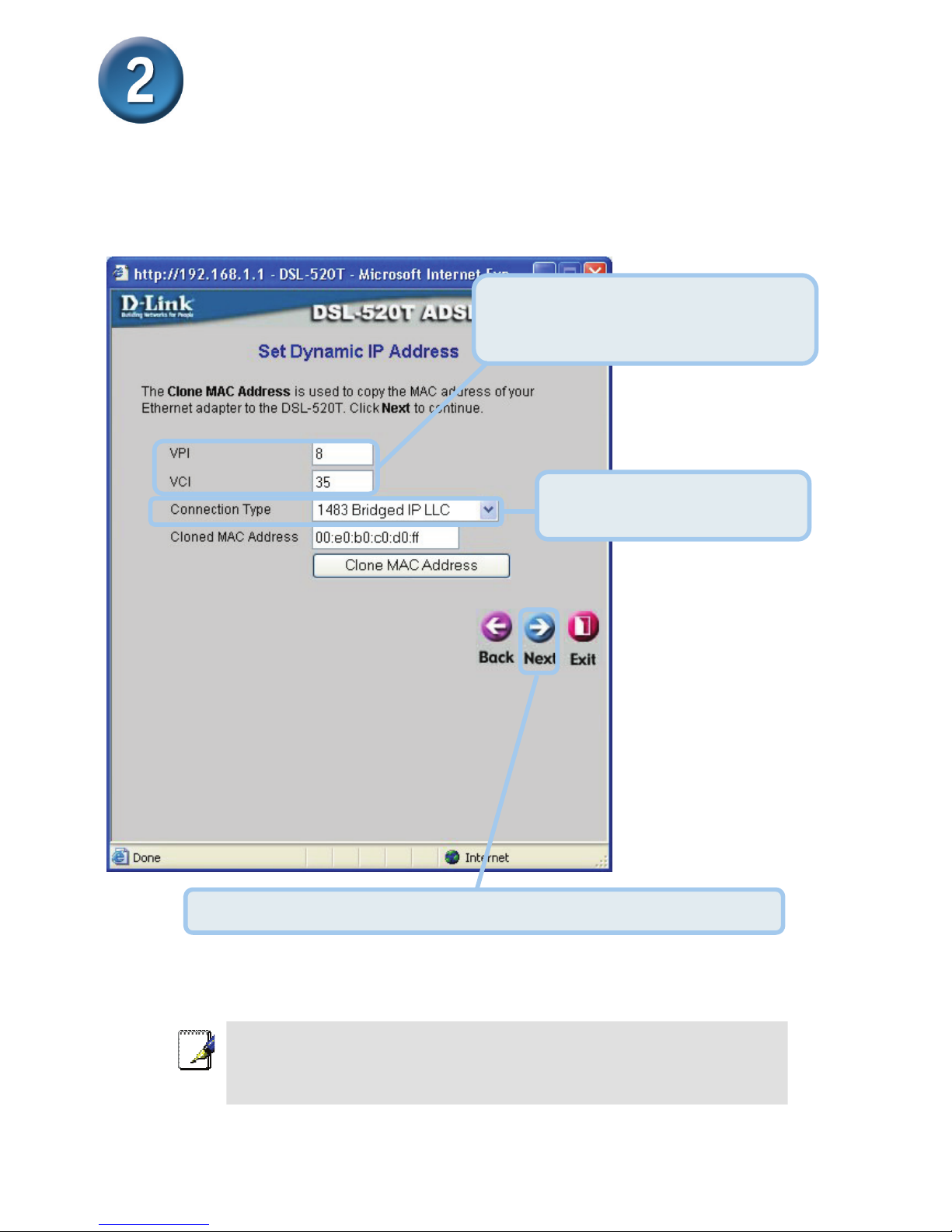

Dynamic IP Address Connections
If you selected the Dynamic IP Address connection type, select the Connection Type used for
encapsulation. If you have been instructed to change the VPI number and VCI number, type in
the new values. Click Next when you are ready to continue the Setup Completed window.
Note
An option for Dynamic IP Address connections is to use the MAC address from your
computer in place of the Router’s actual MAC address for the purpose of Address Resolution
by the ISP’s DHCP server. To implement this feature click on the Clone MAC Address
button before continuing to the next window.
Change the VPI and VCI numbers as
instructed by your ISP. Type the new
values in the spaces provided here.
Select the Connection Type as
instructed by your ISP.
Click the Next button. Skip ahead to the Setup Completed window below.

10
Configuring the Router (continued)

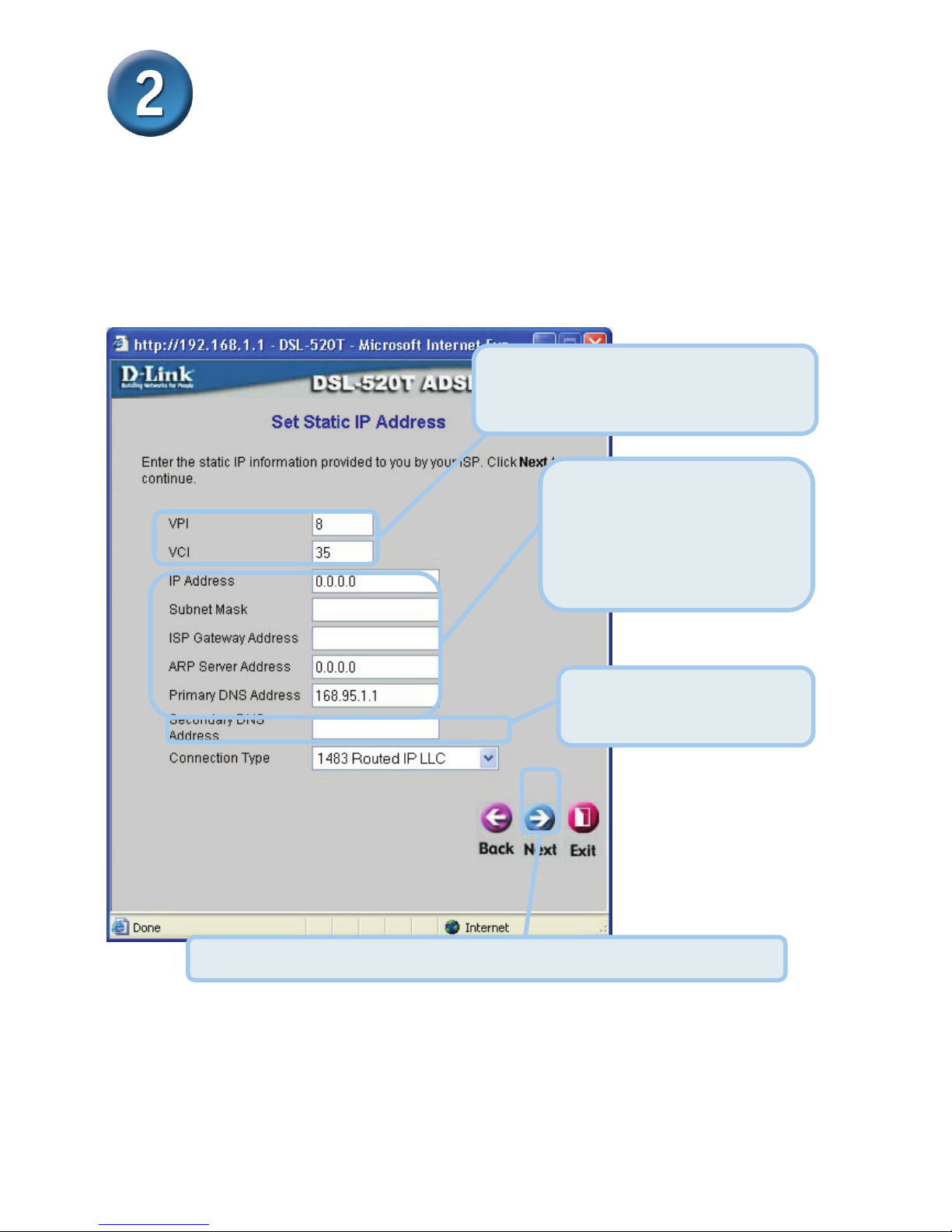

Static IP Address Connections
If you selected the Static IP Address connection type, change the WAN IP Address, Subnet
Mask, ISP Gateway Address,Primary DNS (Server IP) Address and (if available) Secondary
DNS (Server IP) Address as instructed by your ISP. Select the Connection Type used for
encapsulation. If you have been instructed to change the VPI number and VCI number, type in
the new values. Click Next when you are ready to continue to the Setup Completed window.
Select the Connection Type
as instructed by your ISP.
Change the VPI and VCI numbers as
instructed by your ISP. Type the new
values in the spaces provided here.
Type the IP addresses for the
WAN IP Address, WAN Subnet
Mask, ISP Gateway Address,
Primary DNS Address and
Secondary DNS Address.
Click the Next button. Skip ahead to the Setup Completed window below.

11
Configuring the Router (continued)

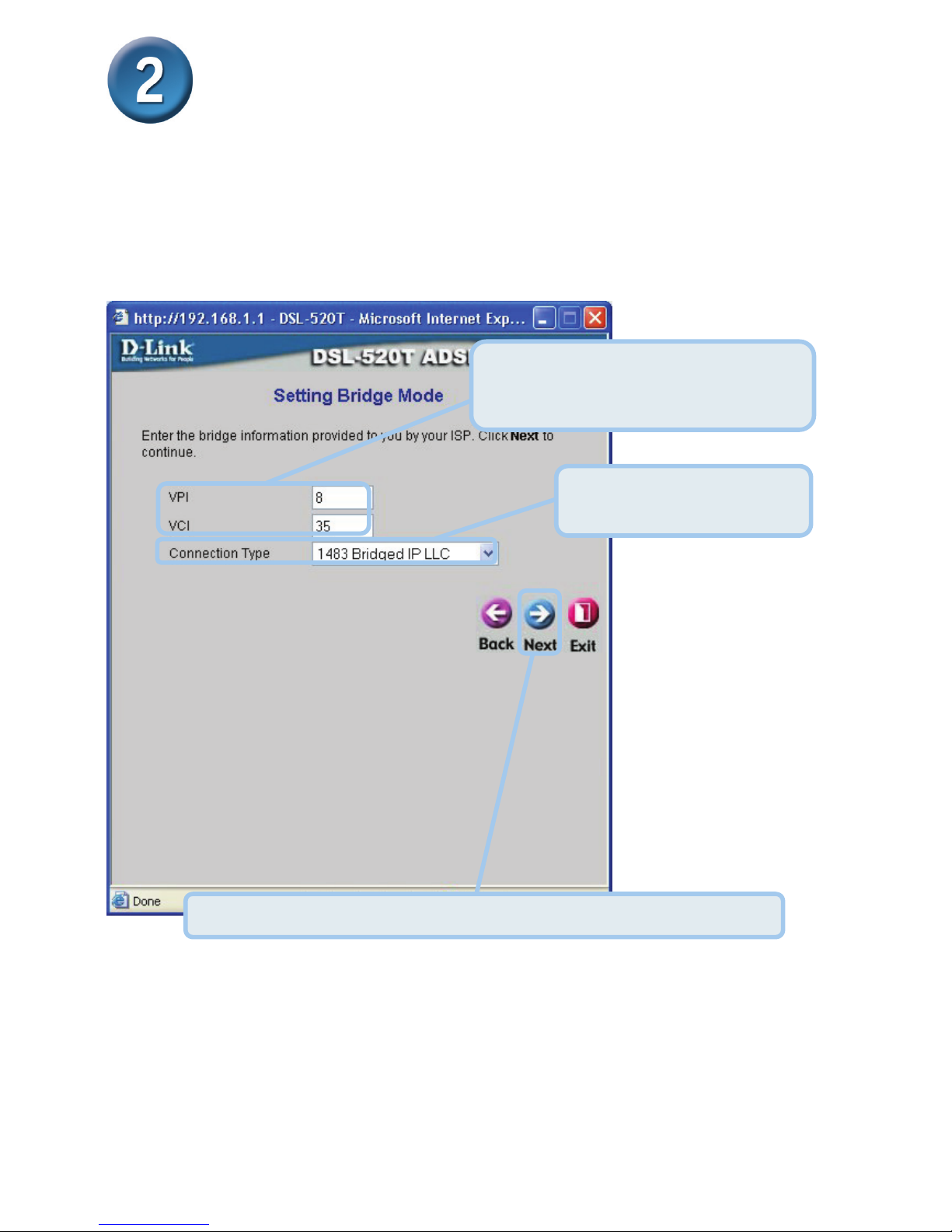

Bridge Connections
If you selected the Bridge connection type, select the Connection Type used for encapsulation.
If you have been instructed to change the VPI number and VCI number, type in the new values.
Click Next when you are ready to continue to the Setup Completed window.
Select the Connection Type
as instructed by your ISP.
Click the Next button. Skip ahead to the Setup Completed window below.
Change the VPI and VCI numbers as
instructed by your ISP. Type the new
values in the spaces provided here.

12
Configuring the Router (continued)

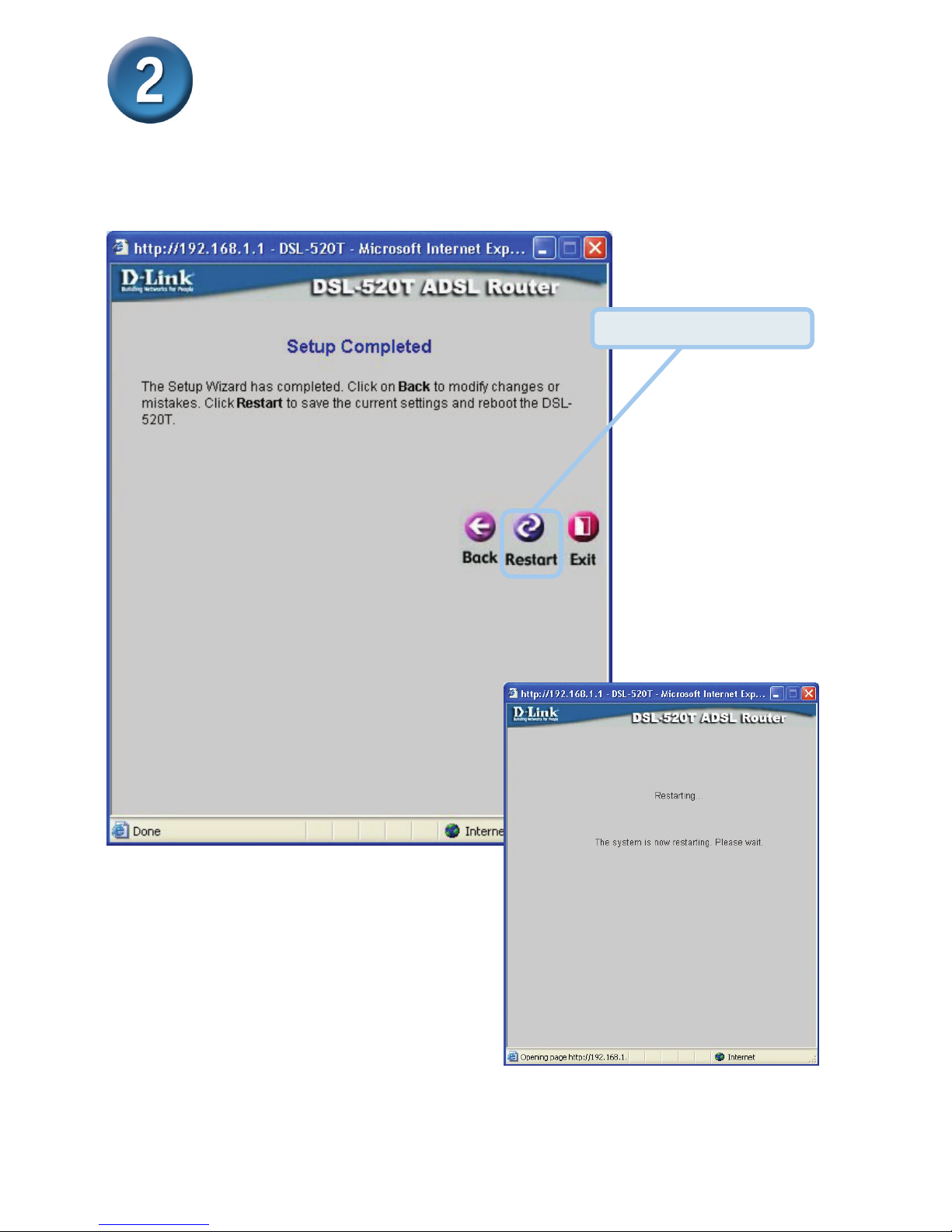

Setup Completed
All the settings for the ADSL connection are now completed. Click the Restart button to save
the new settings and restart the Router. It will take about two minutes to restart the Router.
The window pictured on the right appears
during the save and restart process.
Please do not turn off the Router while
this is still displayed!
Click the Restart button.

13
Appendix
For additional settings or information, refer to the Advanced,Tools,or Status tabs on the Web
Management interface; or to the manual located on the CD-ROM.

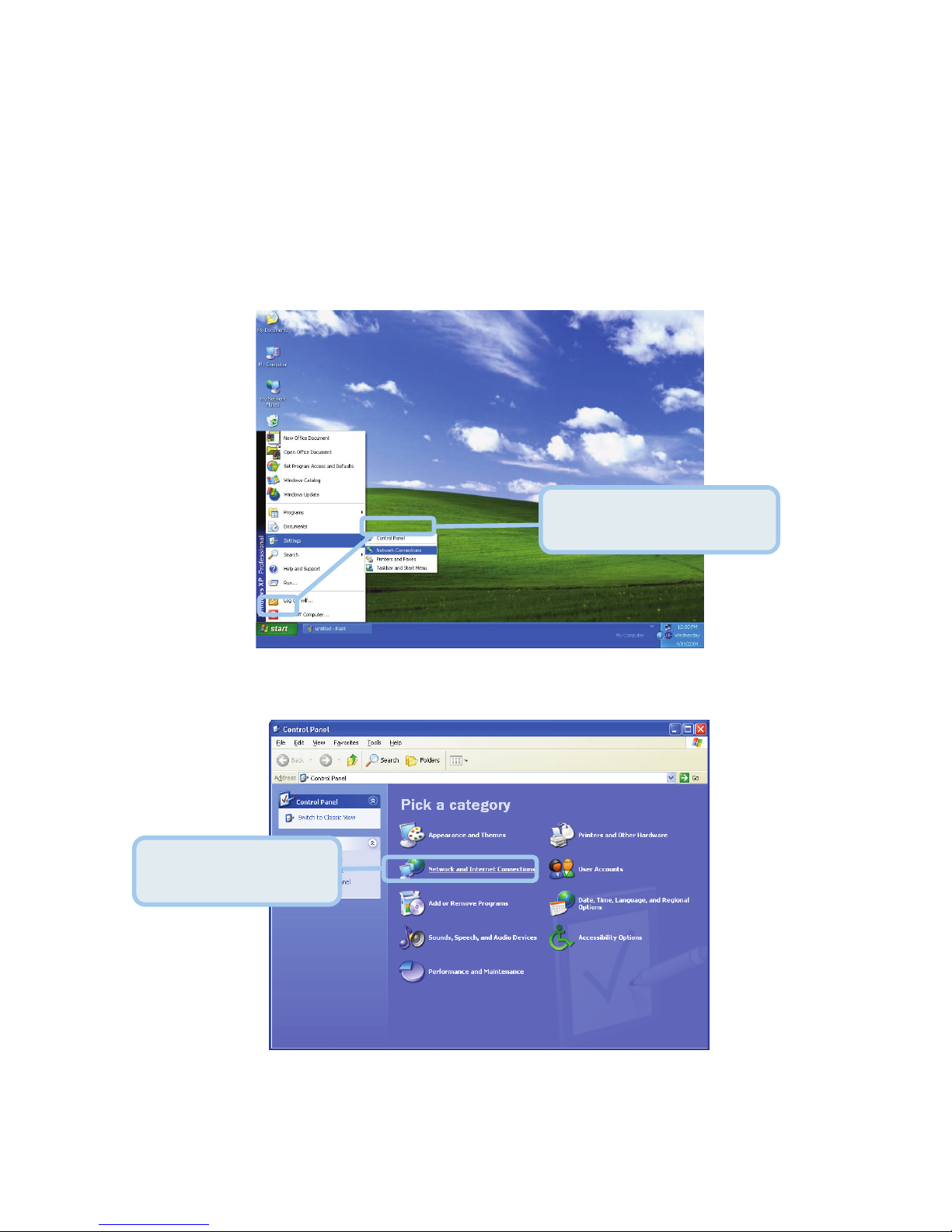

Configuring IP Settings in Windows XP
Use the following steps to configure a computer running Windows XP to be a DHCP client.
1. From the Start menu on your desktop, go to Control Panel.
2. In the Control Panel window, click Network and Internet Connections.
Click Network and
Internet Connections.
From the Start menu, go to
Control Panel.

14

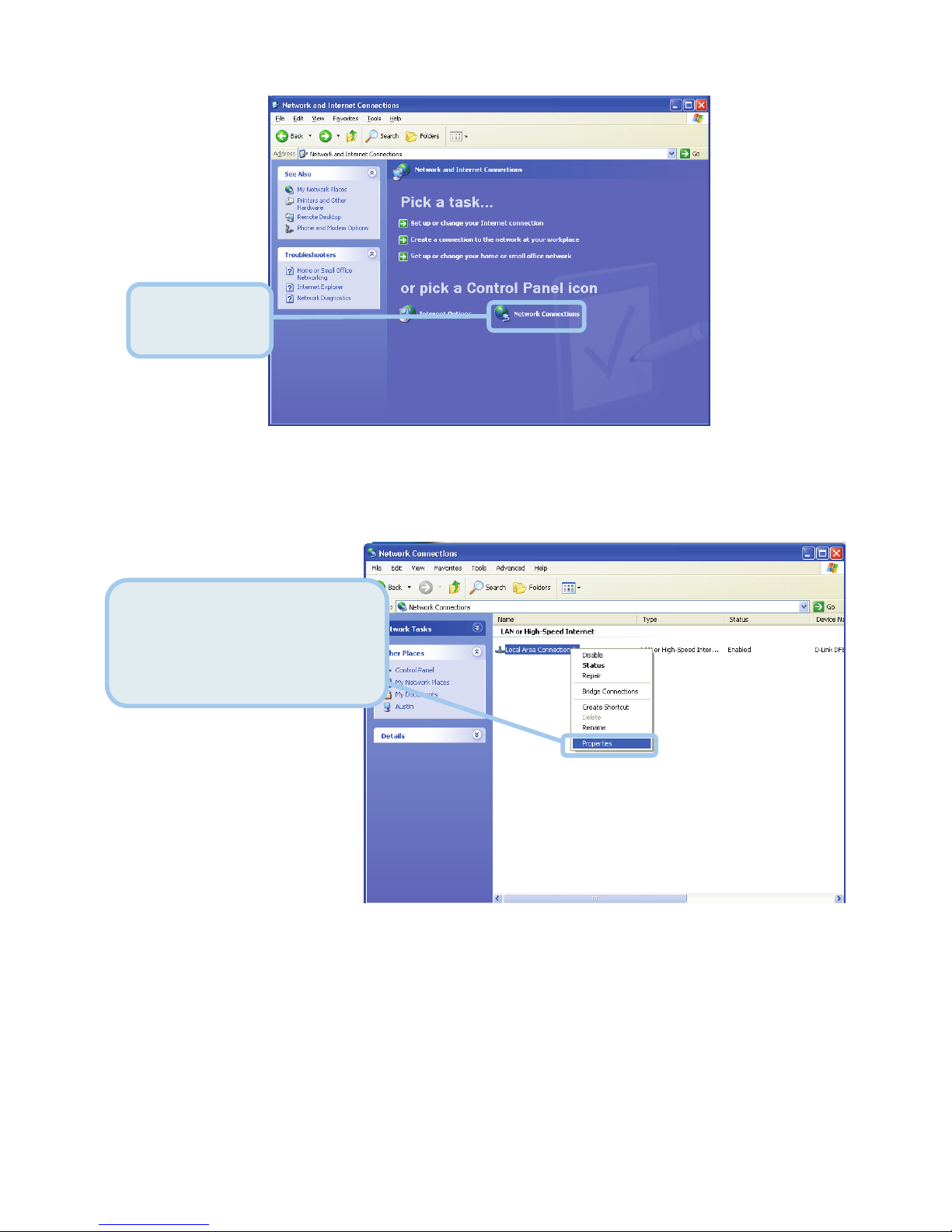

3. In the Network and Internet Connections window, click Network Connections.
4. In the Network Connections window, right-click on Local Area Connection, then click
Properties.
Right-click on the Local Area
Connection icon and select the
Properties option from the
pull-down menu.
Click Network
Connections.

15

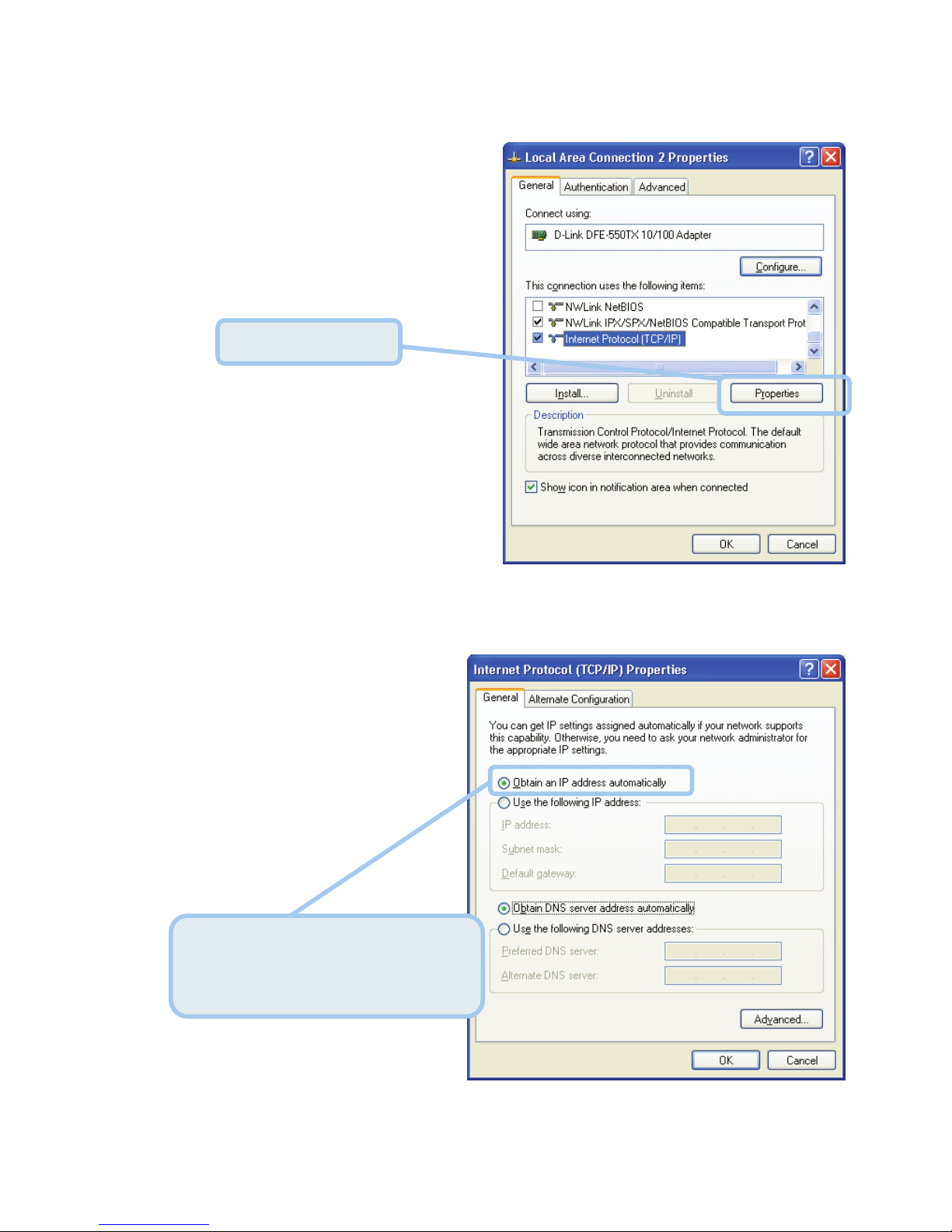

5. In the General tab of the Local Area Connection Properties window, highlight Internet
Protocol (TCP/IP) under “This connection uses the following items:” by clicking on it
once. Click on the Properties button.
6. Select “Obtain an IP address automatically” by clicking once in the circle. Click the OK
button.
Your computer is now ready to use the Router’s DHCP server.
Click Properties.
Select Obtain an IP address
automatically in the Internet
Protocol (TCP/IP) Properties window

16
