D-Link DES-3528 - xStack Switch - Stackable Manual

®
Hardware Installation Guide
Product Model: xStack® DES-3528/DES-3552 Series
Layer 2 Managed Stackable Fast Ethernet Switch
Release 2.61

_________________________________________________________________________________
Information in this document is subject to change without notice.
© 2010 D-Link Corporation. All rights reserved.
Reproduction in any manner whatsoever without the written permission of D-Link Corporation is strictly forbidden.
Trademarks used in this text: D-L ink and the D-LINK logo are trad emarks of D-Link Corporation; Microsoft and Windows are registered trademarks
of Microsoft Corporation.
Other trademarks and trade names may be used in this document to refer to either the entities claiming the marks and names or their products.
D-Link Corporation disclaims any proprietary interest in trademarks and trade names other than its own.
September 2010 P/N 651ES3500075G

xStack®DES-3528/DES-3552 Series Layer 2 Managed Stackable Fast Ethernet Switch Hardware Installation Guide
ii
FCC Warning
This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits
are designed to provide reasona ble protec tion against harmful interference when the equipment is operated in a commercial envir onment. This
equipment ge nerates, uses, and can radiate r adio freq uency ene rgy and, if not installed and use d in accordance with this man ual, ma y cause
harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case
the user will be required to correct the interference at their expense.
CE Mark Warning
This is a Class A product. In a domestic environment, this produ ct may cause ra dio interf erence in which case the user ma y b e required to take
adequate measures.
Warnung!
Dies ist ein Produkt der Klasse A. Im Wohnbereich kann dieses Produkt Funkstoerungen verursachen. In diesem Fall kann vom Benutzer verlangt
werden, angemessene Massnahmen zu ergreifen.
Precaución!
Este es un producto de Clase A. En un entorno doméstico, puede causar interferencias de radio, en cuyo case, puede requerirse al usuario para
que adopte las medidas adecuadas.
Attention!
Ceci est un produit de classe A. Dans un environnement domestique, ce produit pourrait causer des interférences radio, auquel cas l`utilisateur
devrait prendre les mesures adéquates.
Attenzione!
Il presente prodotto appartiene alla classe A. Se utilizzato in ambiente domestico il prodotto può causare interferenze radio, nel cui caso è possibile
che l`utente debba assumere provvedimenti adeguati.
VCCI Warning
この装置は、クラス A情報技術装置です。この装置を家庭環境で使用すると電波妨害を引き起こすことがあります。
この場合には使用者が適切な対策を講ずるよう要求されることがあります。 VCCI-A

xStack®DES-3528/DES-3552 Series Layer 2 Managed Stackable Fast Ethernet Switch Hardware Installation Guide
iii
Table of Contents
Intended Readers............................................................................................................................................................................ v
Typographical Conventions ............................................................................................................................................................................v
Notes, Notices, and Cautions......................................................................................................................................................... v
Safety Instructions ........................................................................................................................................................................ vi
Safety Cautions..............................................................................................................................................................................................vi
General Precautions for Rack-Mountable Products ......................................................................................................................................vii
Protecting Against Electrostatic Discharge................................................................................................................................................. viii
Introduction......................................................................................................................................................1
Gigabit Ethernet Technology..........................................................................................................................................................................1
Switch Description..........................................................................................................................................................................................1
Features...........................................................................................................................................................................................................2
Ports................................................................................................................................................................................................................3
Front-Panel Components.................................................................................................................................................................................4
LED Indicators................................................................................................................................................................................................5
Rear Panel Description....................................................................................................................................................................................8
Side Panel Description....................................................................................................................................................................................9
Gigabit Combo Ports.....................................................................................................................................................................................10
Installation......................................................................................................................................................11
Package Contents..........................................................................................................................................................................................11
Before You Connect to the Network.............................................................................................................................................................11
Installing the Switch without the Rack..........................................................................................................................................................12
Installing the Switch in a Rack......................................................................................................................................................................12
Mounting the Switch in a Standard 19" Rack................................................................................................................................................13
Power On (AC Power)..................................................................................................................................................................................13
Power Failure (AC Power)............................................................................................................................................................................13
Connecting DC Power to the DES-3528DC..................................................................................................................................................14
Connecting the Switch...................................................................................................................................15
Switch to End Node ......................................................................................................................................................................................15
Switch to Hub or Switch...............................................................................................................................................................................15
Connecting To Network Backbone or Server................................................................................................................................................16
Introduction to Switch Management ...........................................................................................................17
Management Options................................................................................................................................................................... 17
Web-based Management Interface................................................................................................................................................................17
SNMP-based Management............................................................................................................................................................................17
Connecting the Console Port (RS-232 DCE)................................................................................................................................................17
First Time Connecting to the Switch.............................................................................................................................................................19
Password Protection......................................................................................................................................................................................19
SNMP Settings..............................................................................................................................................................................................20
IP Address Assignment.................................................................................................................................................................................21
Web-based Switch Configuration.................................................................................................................23

xStack®DES-3528/DES-3552 Series Layer 2 Managed Stackable Fast Ethernet Switch Hardware Installation Guide
iv
Introduction.................................................................................................................................................................................. 23
Login to Web Manager .................................................................................................................................................................................23
Web-based User Interface.............................................................................................................................................................................24
Web Pages.....................................................................................................................................................................................................25
Technical Specifications ................................................................................................................................27
Cable Lengths.................................................................................................................................................34
Glossary ..........................................................................................................................................................35
Warranties and Tech Support Information................................................................................................38

xStack®DES-3528/DES-3552 Series Layer 2 Managed Stackable Fast Ethernet Switch Hardware Installation Guide
Intended Readers
The DES-3528/DES-3552 Switch Series Hardware Installation Guide contains i nformation fo r setup and
management of the Switch. This ma nual is inten ded fo r network man agers familiar with network manag ement
concepts and terminology.
Typographical Conventions
Convention Description
[ ] In a comma nd line, square brackets indicate an optional ent ry. For example: [co py
filename] means that optionally you can type copy followed by the name of the file. Do not
type the brackets.
Bold font Indicates a button, a toolbar icon, menu, or menu item. For example: Open the File menu
and choose Cancel. Used for emphasis. May also indicate system messages or prompts
appearing on your scre en. For examp le: Y ou have mail. Bold font is also used to
represent filename s, pro gram nam es and co mmands. For example: use the copy
command.
Boldface Typewriter
Font Indicates commands and responses to prom pts that must be typed exa ctly as pri nted in
the manual.
Initial capital letter Indicates a wind ow nam e. Name s of keys on the keyboard have initial capitals. Fo r
example: Click Enter.
Italics Indicates a windo w name or a field. Also ca n indica te a variables or para meter that is
replaced with an appro priate word or string. For example: type filename me ans that you
should type the actual filename instead of the word shown in italic.
Menu Name > Menu
Option Menu Name > Menu Option Indicates the menu structu re. Device > Port > Port
Properties mean s the Port Propertie s menu opti on under the Port menu option that is
located under the Device menu.
Notes, Notices, and Cautions
A NOTE indicates important information that helps you make better use of your device.
A NOTICE indicates either potential da mage to ha rdware or lo ss of data and t ells you
how to avoid the problem.
A CAUTION indicates a potential for property damage, personal injury, or death.
v

xStack®DES-3528/DES-3552 Series Layer 2 Managed Stackable Fast Ethernet Switch Hardware Installation Guide
Safety Instructions
Use the following safety guidelines to ensure your own personal safety and to help protect your system from potential
damage. Throughout this document, the cauti on icon ( ) is used to indicate cautions and precautions that you need
to review and follow.
Safety Cautions
To redu ce t he risk of bodily injury, electri cal shock, fire and damage to the equipm ent, observe the following
precautions.
• Observe an d fo llow service mark ings. D o no t s ervice any p roduct ex cept as expl ained in your system
documentation. Ope ning or removing covers that are marked with the tria ngular symbol with a lightni ng bolt
may expose you to electrical shock. Only a trained service technician should service components inside these
compartments.
• If any of the following conditions occur, unplug the pr oduct from the electri cal outlet and re place the part o r
contact your trained service provider:
The power cable, extension cable, or plug is damaged.
An object has fallen into the product.
The product has been exposed to water.
The product has been dropped or damaged.
The product does not operate correctly when you follow the operating instructions.
• Keep your system away from radiators and heat sources. Also, do not block cooling vents.
• Do not spill food or liqui ds on your system components, and never operate the product in a wet enviro nment.
If the system gets wet, see the appro priate se ction in your trouble shooting guide or co ntact your trained
service provider.
• Do n ot pu sh any obje cts into the op enings of your system. Doing so can cause fi re or electri c sho ck by
shorting out interior components.
• Use the product only with approved equipment.
• Allow the product to cool before removing covers or touching internal components.
• Operate the product only from the type of external power source indicated on the electrical ratings label. If you
are not sure of the type of power source required, consult your service provider or local power company.
• To help avoi d dama ging your sy stem, be su re the voltage on th e power supply is set to match the p ower
available at your location:
115 volts (V)/60 hertz (Hz) in most of North and South America and some Far Eastern countries
100 V/50 Hz in eastern Japan and 100 V/60 Hz in western Japan
230 V/50 Hz in most of Europe, the Middle East, and the Far East
48VDC for DES-3528DC
• Also, be sure that attached devices are electrically rated to operate with the power available in your location.
• Use only a pproved power cable(s). If you have not been provided with a power cable for y our system or for
any AC-powered option intende d for yo ur system, purcha se a power cable that is approve d for use in your
country. The power cable must be rated for the product and for the voltage and current marke d on the
product's electrical ratings label. The voltage and current rating of the cable should be greater than the ratings
marked on the product.
vi

xStack®DES-3528/DES-3552 Series Layer 2 Managed Stackable Fast Ethernet Switch Hardware Installation Guide
• To help prevent electric shock, plug the system and peripheral power cables into properly grounded electrical
outlets. These cable s are equipped wi th three-p rong pl ugs to help ensu re p roper gro unding. Do not use
adapter plugs or remove the grou nding prong from a cabl e. If you must use an extens ion cable, use a 3-wire
cable with properly grounded plugs.
• Observe extensi on ca ble and powe r strip ratin gs. Make sure that the total ampere ratin g of all product s
plugged into the extension cable or power strip does not exceed 80 percent of the ampere ratings limit for the
extension cable or power strip.
• To help protect your system from sudden, transient increases and decreases in electrical power, use a surge
suppressor, line conditioner, or uninterruptible power supply (UPS).
• Position system cables and power cables carefully; route cables so that they ca nnot be stepped on or tripped
over. Be sure that nothing rests on any cables.
• Do n ot modi fy power cables or pl ugs. Co nsult a licensed el ectrician or your po wer company for site
modifications. Always follow your local/national wiring rules.
• When con necting or di sconnecting po wer to hot-pl uggable po wer su pplies, if offered with your syste m,
observe the following guidelines:
Install the power supply before connecting the power cable to the power supply.
Unplug the power cable before removing the power supply.
If the system has multiple sources of power, disconnect power from the system by unplugging all power
cables from the power supplies.
• Move products with ca re; ensure that all caste rs and/or stabilizers are firmly connected to the system. Avoid
sudden stops and uneven surfaces.
General Precautions for Rack-Mountable Products
Observe the following preca utions for rack stabilit y and safe ty. Also, refer to the rack installation do cumentation
accompanying the system and the rack for specific caution statements and procedures.
• Systems are considered to be components in a rack. Th us, "component" refers to any sy stem as well as to
various peripherals or supporting hardware.
• Before working on the rack, make sure that the stab ilizers are secured to the rack, extended to the floor, and
that the full weight of the rack re sts o n the floor. In stall front a nd side sta bilizers on a si ngle ra ck or front
stabilizers for joined multiple racks before working on the rack.
• Always load the rack from the bottom up, and load the heaviest item in the rack first.
• Make sure that the rack is level and stable before extending a component from the rack.
• Use caution when pressing the component rail rele ase latches and sliding a component into or out of a rack;
the slide rails can pinch your fingers.
• After a component is inserted into the rack, ca refully extend the rail into a lo cking position, and then slide the
component into the rack.
• Do not overload the AC su pply branch circuit that provides power to the rack. The total ra ck load should not
exceed 80 percent of the branch circuit rating.
• Ensure that proper airflow is provided to components in the rack.
• Do not step on or stand on any component when servicing other components in a rack.
vii

xStack®DES-3528/DES-3552 Series Layer 2 Managed Stackable Fast Ethernet Switch Hardware Installation Guide
NOTE: A qualified electri cian must perform all connections to DC power and to safety groun ds.
All electrical wiring must comply with applicable local, regional or national codes and practices.
CAUTION: Never defeat t he gro und conductor o r o perate th e e quipment in the ab sence of a
suitably installed ground conductor. Contact the appropriate electrical inspection authority or an
electrician if you are uncertain that suitable grounding is available.
CAUTION: The system chassis must be positively gr ounded to th e rack cabin et frame. Do not
attempt to conne ct powe r to the system until grounding cabl es are connected. A qualified
electrical inspector must inspect completed power and safety g round wiring. An energy hazard
will exist if the safety ground cable is omitted or disconnected.
Protecting Against Electrostatic Discharge
Static electri city can h arm delicate compon ents i nside y our system. To prevent static damag e, discharge stati c
electricity from your body before you touch any of the electronic components, such as the microprocessor. You can do
so by periodically touching an unpainted metal surface on the chassis.
You can also take the following steps to prevent damage from electrostatic discharge (ESD):
1. When unp acking a static-sensitive component from its shipping carton, do not remove t he co mponent from
the antistati c packin g ma terial until yo u are ready to install t he comp onent in y our system. Ju st bef ore
unwrapping the antistatic packaging, be sure to discharge static electricity from your body.
2. When transporting a sensitive component, first place it in an antistatic container or packaging.
3. Handle all se nsitive components in a static-safe are a. If possible, use anti static floor pa ds, workbench pads
and an antistatic grounding strap.
viii

xStack®DES-3528/DES-3552 Series Layer 2 Managed Stackable Fast Ethernet Switch Hardware Installation Guide
Section 1
Introduction
Gigabit Ethernet Technology
Switch Description
Features
Ports
Front-Panel Components
LED Indicators

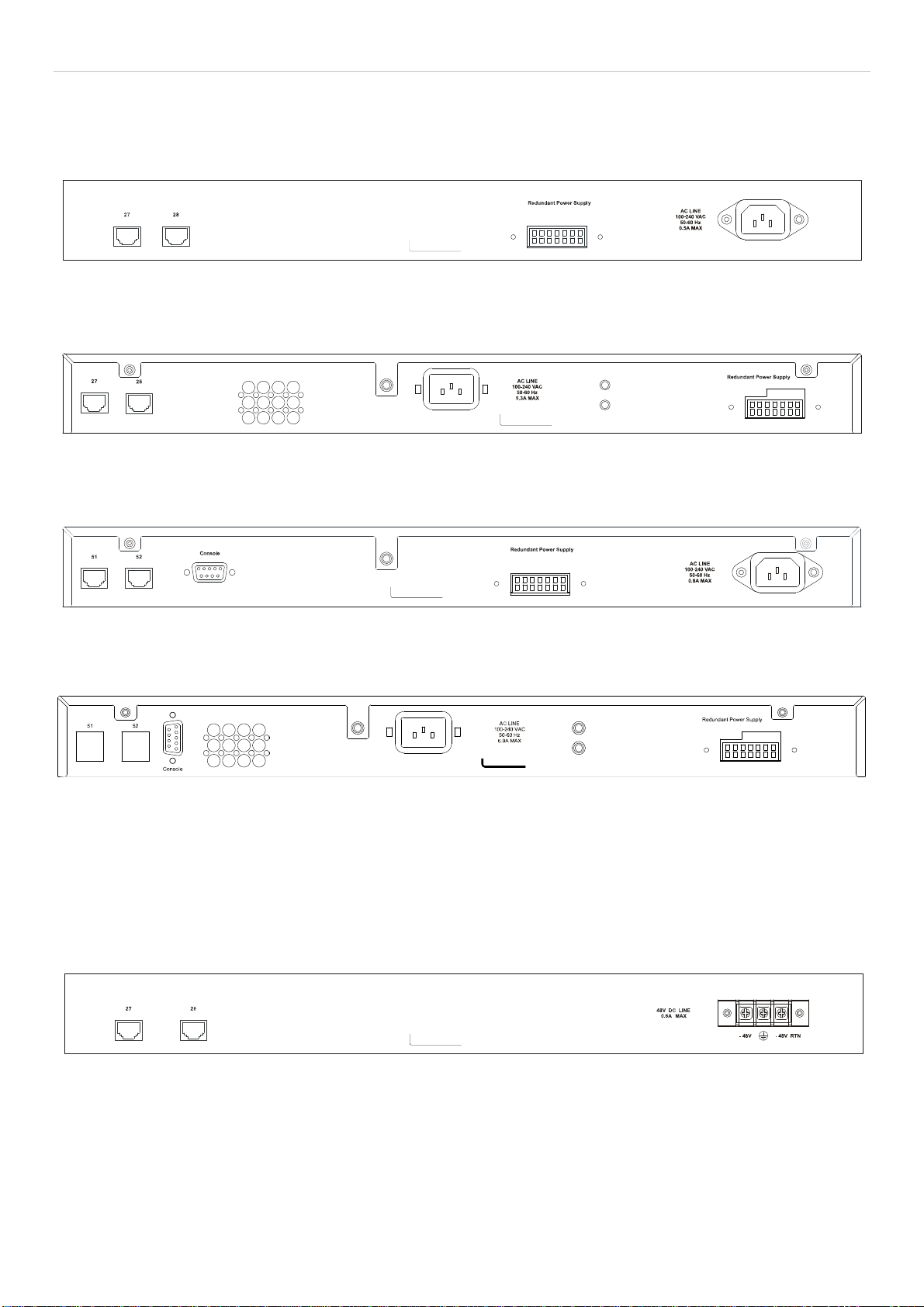

Rear Panel Description

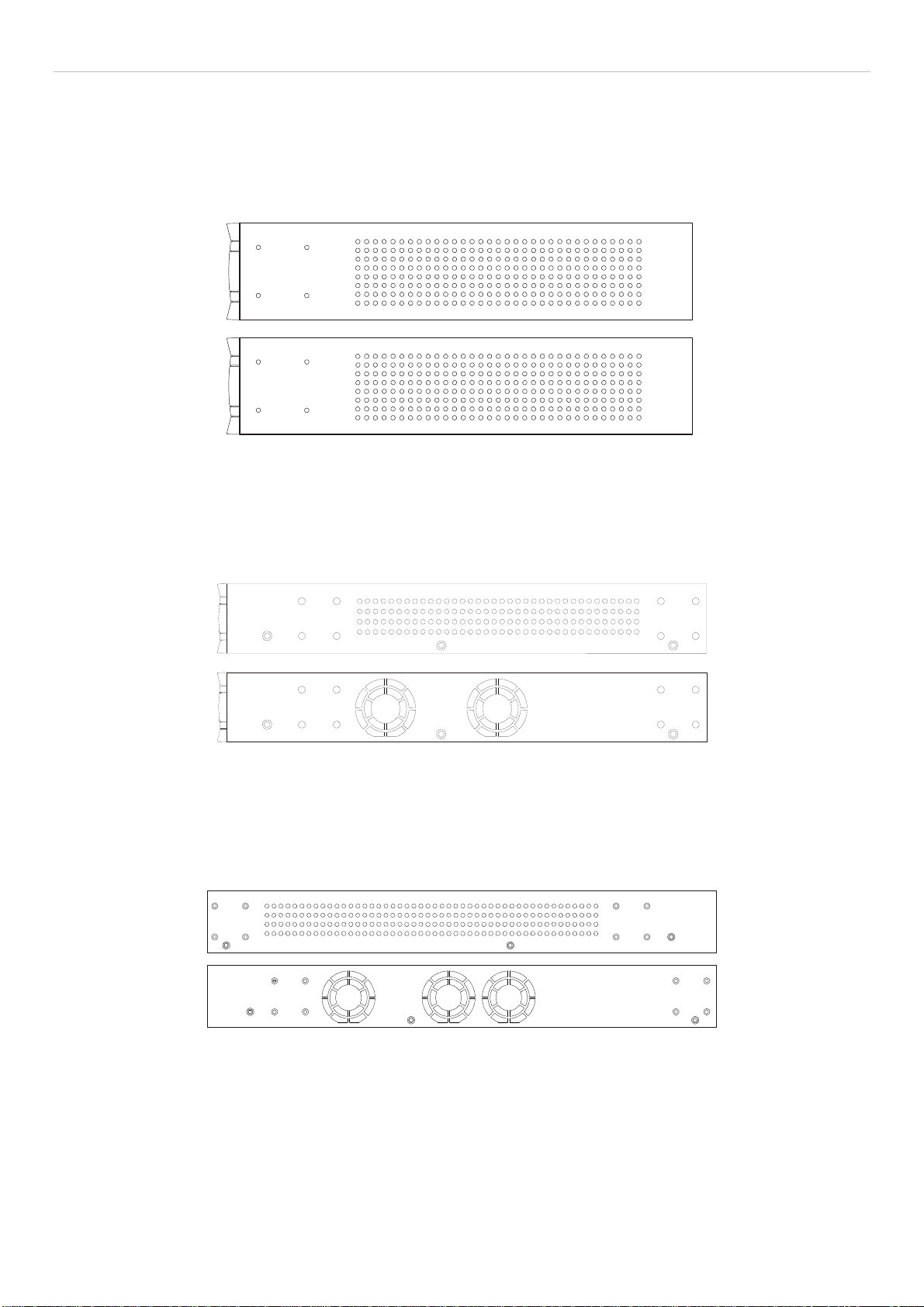

Side Panel Description
Gigabit Combo Ports
The DES-35 28/DES-3552 Series a re l ayer 2 Fa st Et hernet swit ches an d me mbers of the D-Lin k xStack ® family.
Ranging from 10/100M bps edge switches to core gi gabit switches, the xStack ® swit ch family has be en future -proof
designed to provide a stacking architecture with fault tolera nce, flexibility, port density, robust security and maximum
throughput with a user-friendly management interface for the networking professional.
The following manual de scribes the in stallation, maintenance and configurations concerning the xStack ® DES-3528,
DES-3528DC, DES-3528P, DES-3552 a nd DES-3552P switches. Please take no te that if this device was purchased
outside of Europ e, certai n cosmetic d ifferences b etween the a ctual switch a nd image s in this docum ent will be
apparent to the rea der, su ch as the faceplate and th e manual cover. The DE S-3528/DES-3552 Se ries has already
joined th e xStack ® family for the Eu ropean ma rket a nd is soon to be xStack ® converted, u niversally. Chang es are
made to the appearance of the device only and no configuration or internal hardware alterations occur.
NOTE: For t he re mainder of this man ual, all versi ons of the DES-3528, DES-3528P, DE S-
3528DC, DE S-3552 and DES-3552P switches will be re ferred t o as simply the Switch or the
DES-3528.
Gigabit Ethernet Technology
Gigabit Ethernet is an extension of IEEE 802.3 Ethernet utilizing the same packet structure, format, and support for full
duplex, flow control, and manag ement objects, but with a t enfold incre ase in theoretical throu ghput over 100Mb ps
Fast Ethern et and a one hundred-fold increase ove r 10Mbp s Ethernet. Since it is compati ble with all 10Mbp s and
100Mbps Ethernet enviro nments, Gigab it Et hernet provides a strai ghtforward upgrade without wasting a com pany's
existing investment in hardware, software, and trained personnel.
The in creased sp eed and extra ba ndwidth offe red by Gigabi t Ethernet a re essential to copi ng with the net work
bottlenecks that freque ntly develop a s computers and their bu sses get faste r and more users usi ng applications that
generate more traffic. Upgrading key components, such as your backbone and servers to Gigabit Ethernet can greatly
improve network response times as well as significantly speed up the traffic between your sub networks.
Gigabit Ethernet enabl es fast optical fi ber conne ctions to sup port video co nferencing, compl ex imaging, and simi lar
data-intensive applications. Likewise, since data transfers occur 10 times fa ster than Fast Ethernet, servers o utfitted
with Gigabit Ethernet NIC's are able to perform 10 times the number of operations in the same amount of time.
In addition, the pheno menal band width delivered by Gigabit Et hernet is the most cost -effective method to take
advantage of today and tomorrow's rapidly improving switching and routing internetworking technologies.
Switch Description
The DES-35 28/DES-3552 Switch Seri es is e quipped with unshielded twist ed-pair (UTP ) ca ble po rts providin g
dedicated 10 or 100 Mbps bandwidth. The Switch ha s 24/48 UT P ports and Auto MDI-X/MDI -II convertible ports that
can b e used for uplin king to another switch. Th ese ports can be use d for conne cting PCs, printe rs, servers, hub s,
1

xStack®DES-3528/DES-3552 Series Layer 2 Managed Stackable Fast Ethernet Switch Hardware Installation Guide
2
routers, switches and other networking devices. The dual speed ports use standard twisted-pair cabling and are ideal
for segmenting networks into small, connected sub networks for superior performance. Each 10/100 port can support
up to 200 Mbps of throughput in full-duplex mode.
In addition, the Switch has 2 SFP combo ports. These two-gigabit combo ports are ideal for connecting to a server or
network backbone. This stackable Switch enables the network to use some of the mo st demanding multimedia and
imaging a pplications concurrently with other user applications without creat ing bottlene cks. The b uilt-in co nsole
interface can be used to configure the Switch's settings for prio rity queuing, VLANs, and port trun k group s, port
monitoring, and port speed.
Features
• IEEE 802.3 10BASE-T compliant
• IEEE 802.3u 100BASE-TX compliant
• IEEE 802.1p Priority Queues
• IEEE 802.3x flow control in full duplex mode
• IEEE 802.3ad Link Aggregation Control Protocol
support.
• IEEE 802.1X Port-based and MAC-based Access
Control
• IEEE 802.1Q VLAN
• IEEE 802.1D Spanning Tree, IEEE 802.1W Rapid
Spanning Tree and IEEE 802.1s Multiple Spanning
Tree support
• Access Control List (ACL) support
• Single IP Management support
• Access Authentication Control utilizing TACACS,
XTACACS and TACACS+
• Dual Image Firmware
• Simple Network Time Protocol support
• MAC Notification support
• Asymmetric VLAN support
• System and Port Utilization support
• System Log Support
• Support port-based enable and disable
• Address table: Supports up to 16K MAC addresses
per device
• Supports a packet buffer of up to 1 Mbyte
• Supports Port-based VLAN Groups
• Port Trunking with flexible load distribution and fail-
over function
• IGMP Snooping support
• SNMP support
• Secure Sockets Layer (SSL) and Secure Shell
(SSH) support
• Port Mirroring support
• MIB support for:
• RFC1213 MIB II
• RFC14 93 Bridge
• RFC1907 SNMPv2 MIB
• RFC1757, 2819 RMON
• RFC20 21 RMONv2
• RFC1643, 2358, 2665 Ether-like MIB
• RFC2233, 2863 Interface MIB
• Private MIB
• RFC2674 for 802.1p
• RFC2618 RADIUS Authentication Client
• RFC2620 RADIUS Accounting Client
• RFC2925 Ping & Traceroute
• IEEE 802.1X MIB
• RS-232 DCE console port for Switch management
• Provides parallel LED display for port status such as
link/act, speed, etc.
• High performance switching engine performs forwarding and filtering at full wire speed, maximum 14, 881 packets/sec on
each 10Mbps Ethernet port, and maximum 148,810 packet/sec on 100Mbps Fast Ethernet port.
• Full- and half-duplex for both 10Mbps and 100Mbps connections. Full duplex allows the switch port to simultaneously
transmit and receive data. It only works with connections to full-duplex-capable end stations and switches. Connections to a
hub must take place at half-duplex
• Support broadcast storm filteringF
• Non-blocking store and forward switching scheme capability to support rate adaptation and protocol conversion
• Supports by-port Egress/Ingress rate control.
• Supports IP-MAC Port Binding.
• Efficient self-learning and address recognition mechanism enables forwarding rate at wire speed
• Supports STP Loopback Detection
• Safeguard Engine Support

xStack®DES-3528/DES-3552 Series Layer 2 Managed Stackable Fast Ethernet Switch Hardware Installation Guide
Ports
The following table lists the relative ports that are present within each switch:
Device Features DES-3528 DES-3528DC DES-3528P DES-3552 DES-3552P
10/100BASE-T Ports 24 Ports 24 Ports 24 Ports 48 Ports 48 Ports
PoE Function Alternative A N/A N/A 24 Ports N/A 48 Ports
1000Base-T/SFP Combo
Ports
2 Ports 2 Ports 2 Ports 2 Ports 2 Ports
1000Base-T Ports 2 Ports 2 Ports 2 Ports 2 Ports 2 Ports
DCE RS-232 DB-9 Console
Port
One Female One Female One Female One Female One Female
The follo wing table list s the feature s and compatibility for each type of port presen t in the DES-352 8/DES-
3528DC/DES-3528P/DES-3552/DES-3552P.
10/100 BASE-T SFP 1000BASE-T
IEEE 802.3 compliant
IEEE 802.3u compliant
IEEE 802.3x flow control support in
full-duplex
IEEE 802.3af compliant (DES-
3528P/DES-3552P only)
Auto MDI-X/MDI-II c ross over
support
SFP Transceivers Supported:
DEM-310GT (1000BASE-LX)
DEM-311GT (1000BASE-SX)
DEM-314GT (1000BASE-LHX)
DEM-315GT (1000BASE-ZX)
DEM-312GT2 (1000BASE-SX)
DEM-210 (Single Mode 100BASE-
FX)
DEM-211 (Multi Mode 100BASE-
FX)
WDM Transceiver Supported:
DEM-330T (TX-1550/RX-1310nm),
up to 10km,Single-Mode
DEM-330R (TX-1310/RX-1550nm),
up to 10km,Single-Mode
DEM-331T (TX-1550/RX-1310nm),
up to 40km, Single-Mode
DEM-331R (TX-1310/RX-1550nm),
up to 40km, Single-Mode
Compliant to the following
standards:
1. IEEE 802.3z compliance
2. IEEE 802.3u compliance
IEEE 802.3 compliant
IEEE 802.3u compliant
IEEE 802.3ab compliant
IEEE 802.3z compliant
IEEE 802.3x flow control support i n
full-duplex
NOTE: The SFP comb o ports on th e Switch cannot be used simultaneously with the
corresponding 1000BASE-T ports. If both ports are in use at the same time (ex . port 25
of the SFP and port 2 5 of the 1000BA SE-T), the SFP ports will take pri ority over the
combo ports and render the 1000BASE-T ports inoperable.
3

xStack®DES-3528/DES-3552 Series Layer 2 Managed Stackable Fast Ethernet Switch Hardware Installation Guide
NOTE: Fo r customers inte rested in D-View, D-Link Corporation's pro prietary SNMP
management software, go to the D-Link Website (www.dlink.com) and downlo ad the
software and manual.

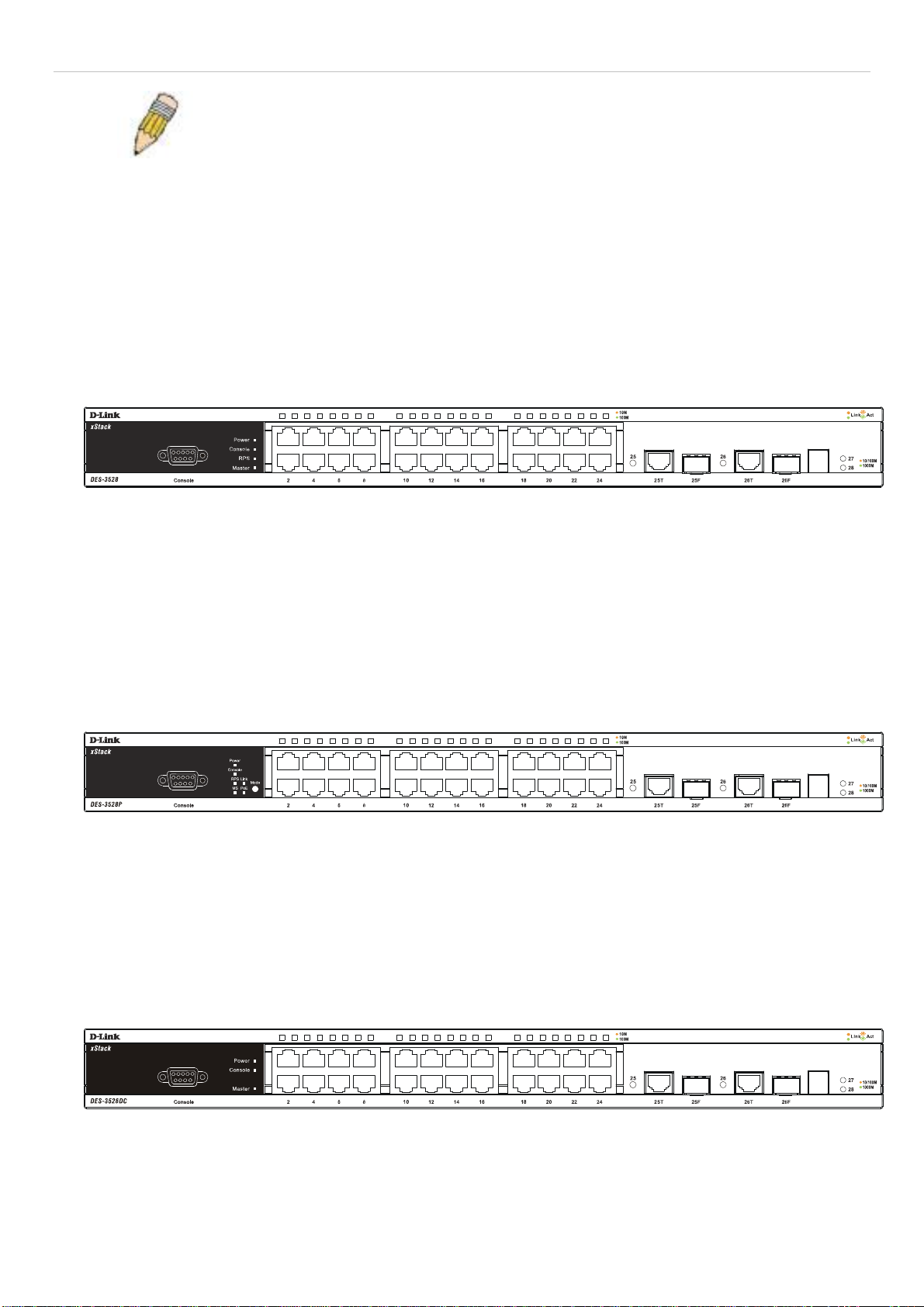

Front-Panel Components
DES-3528
• Twenty-four 10/100Mbps BASE-T ports
• Two Combo 1000BASE-T/SFP ports located to the right
• Two 1000BASE-T ports located to the rear
• One female DCE RS-232 DB-9 console port
• LEDs for Power, Console, RPS, Master, Link/Act/Speed for each port
Figure 1- 1. Front Panel View of the DES-3528 switch
DES-3528P
• Twenty-four 10/100Mbps BASE-T ports
• Two Combo 1000BASE-T/SFP ports located to the right
• Two 1000BASE-T ports located to the rear
• One female DCE RS -232 DB-9 console port
• One PoE Select Button
• LEDs for Power, Console, RPS, MS, Link, PoE, Link/Act/Speed for each port
Figure 1- 2. Front Panel View of the DES-3528P switch
DES-3528DC
• Twenty-four 10/100Mbps BASE-T ports
• Two Combo 1000BASE-T/SFP ports located to the right
• Two 1000BASE-T ports located to the rear
• One female DCE RS-232 DB-9 console port
• LEDs for Power, Console, Master, Link/Act/Speed for each port
Figure 1- 3. Front Panel View of the DES-3528DC switch
DES-3552
• Forty-eight 10/100Mbps BASE-T ports
• Two Combo 1000BASE-T/SFP ports located to the right
4

xStack®DES-3528/DES-3552 Series Layer 2 Managed Stackable Fast Ethernet Switch Hardware Installation Guide
• Two 1000BASE-T ports located to the rear
• One female DCE RS -232 DB-9 console port
• LEDs for Power, Console, RPS, Master, Link/Act/Speed for each port

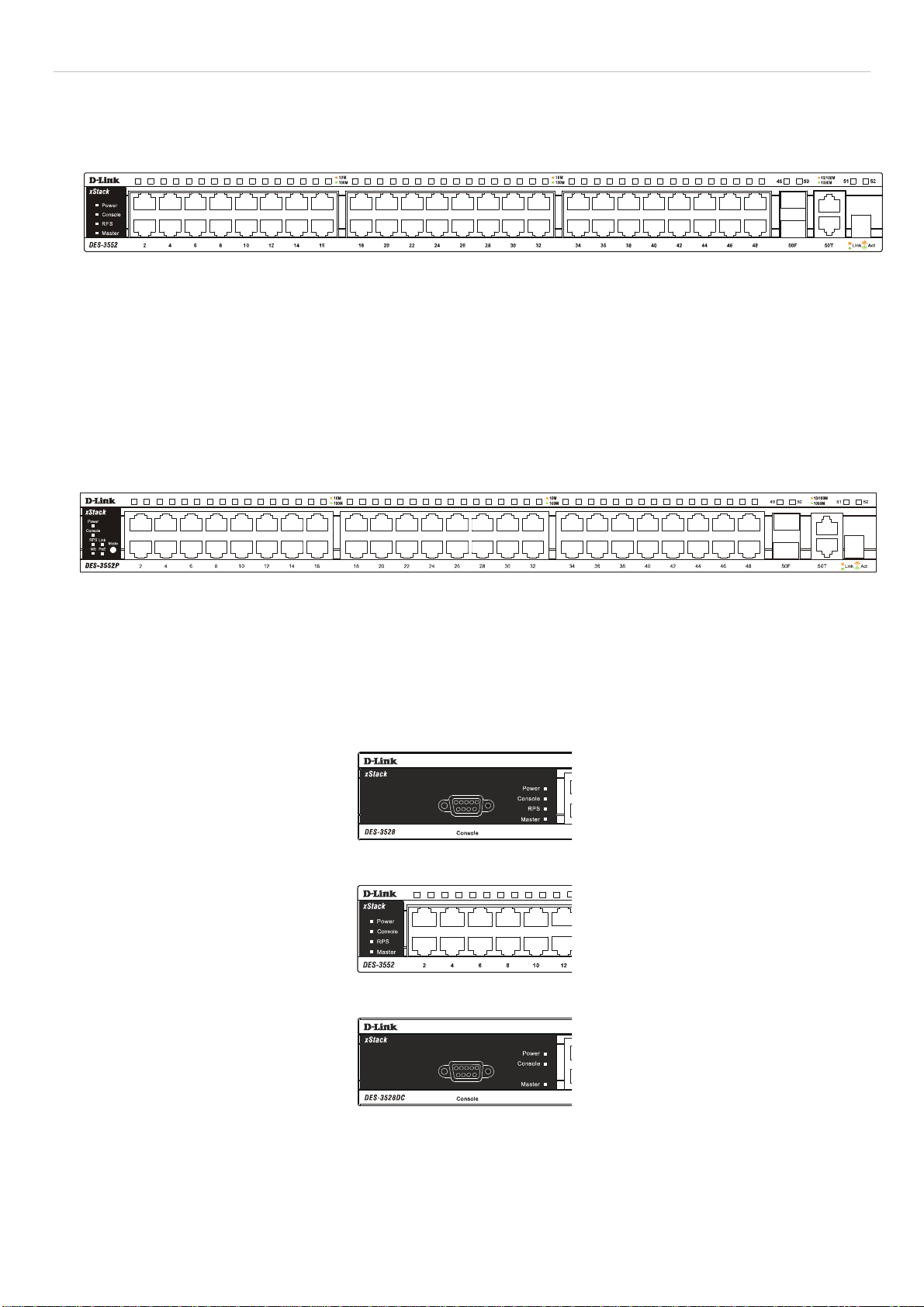

Figure 1- 4. Front Panel View of the DES-3552 switch
DES-3552P
• Forty-eight 10/100Mbps BASE-T ports
• Two Combo 1000BASE-T/SFP ports located to the right
• Two 1000BASE-T ports located to the rear
• One female DCE RS -232 DB-9 console port
• One PoE Select Button
• LEDs for Power, Console, RPS, MS, Link, PoE, Link/Act/Speed for each port
Figure 1- 5. Front Panel View of the DES-3552P switch

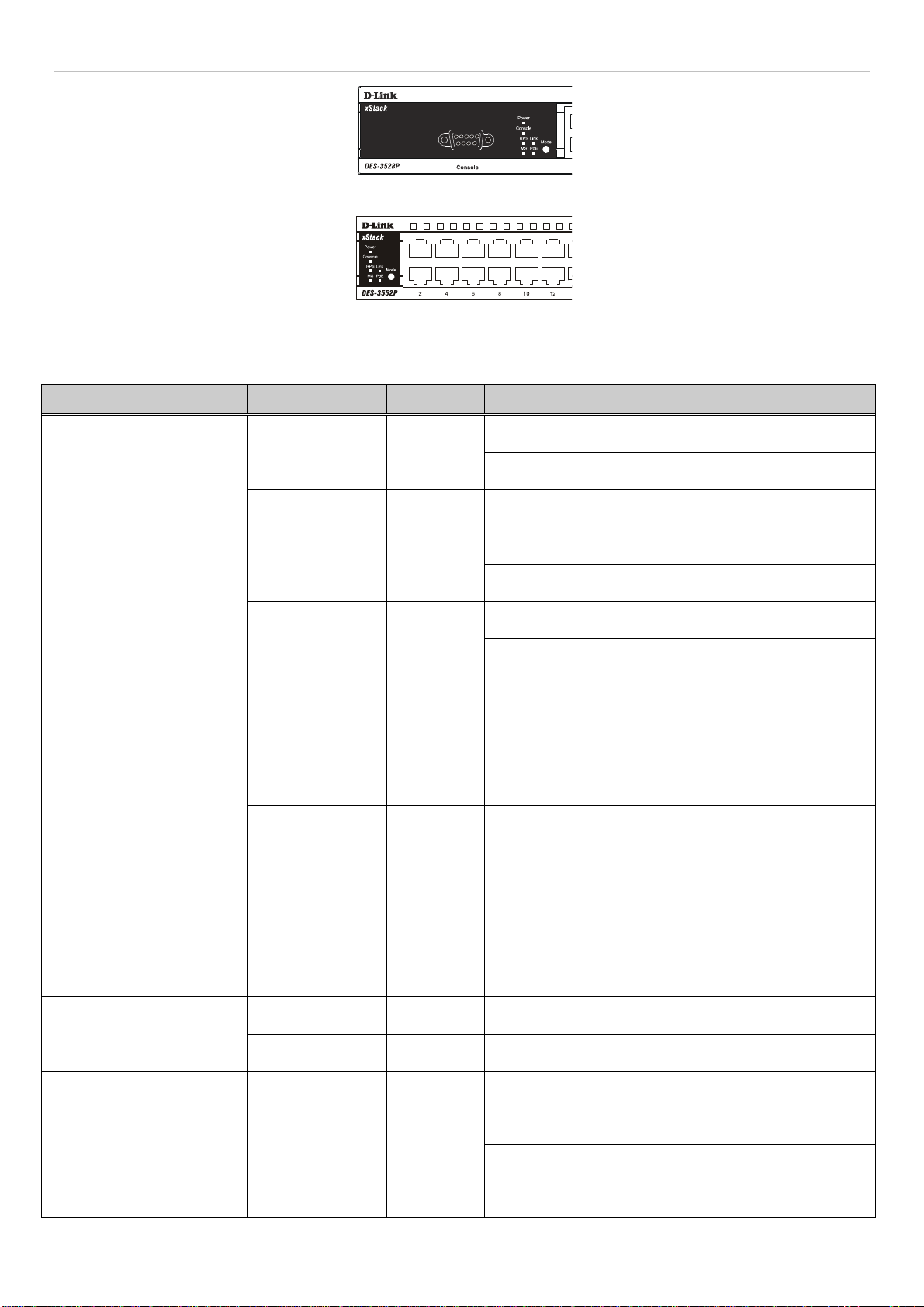

LED Indicators
The Switch suppo rts LED indicators for Power, Con sole, RPS, Master (on DE S-3528P and DES-3552P, this LED is
for MS) and Port LEDs. The following shows the LED indicators for the DES-3528/DES-3552 switch series along with
an explanation of each indicator. LEDs and their corresponding meanings are displayed below.
Figure 1- 6. LED Indicators on DES-3528 switch
Figure 1- 7. LED Indicators on DES-3552 switch
Figure 1- 8. LED Indicators on DES-3528DC switch
5

xStack®DES-3528/DES-3552 Series Layer 2 Managed Stackable Fast Ethernet Switch Hardware Installation Guide
Figure 1- 9. LED Indicators on DES-3528P switch
Figure 1- 10. LED Indicators on DES-3552P switch
LED indicators for DES-3528/DES-3528DC/DES-3552/DES-3528P/DES-3552P
Location LED Indicative Color Status Description
Per Device
Power Green
Solid Light Power On
Light off Power Off
Console Green
Solid Light Console on
Blinking POST is in progress.
Light off Console off
RPS (Not for
DES-3528DC) Green
Solid Light RPS is in Use
Light Off RPS Off
Master(MS) Green
Solid Light When the device is the stacking
master.
Light off Not the Stacking Master.
Stacking ID Green Capable 1-8
The Box ID is assigned either by the
user (static mode) or by the system
(automatic mode). When the box
becomes a primary master the 7
segments work bi-functionally. The box
ID and “H” indicate the primary Master
and the display on other switches will
be shown in turn. That is boxID- > H ->
boxID -> H…
Mode Select Button
(DES-3528P and
DES-3552P only)
Link/Act/Speed Green Solid Light Link/Act/Speed Mode
PoE Green Solid Light PoE Mode
LED Per 10/100 Mbps Port Link/Act/Speed Green/Amber
Solid Green
When there i s a secure 1 00Mbps F ast
Ethernet con nection (or link) at any of
the ports.
Blinking Green
When there is reception or transmission
(i.e. Activity—
A
ct) of data occurring at a
Fast Ethernet connected port.
6

xStack®DES-3528/DES-3552 Series Layer 2 Managed Stackable Fast Ethernet Switch Hardware Installation Guide
Solid Amber
When th ere is a secure 10Mbps
Ethernet con nection (or link) at any of
the ports.
Blinking Amber
When there is reception or transmission
(i.e. Ac tivity—
A
ct) of data occu rring at
an Ethernet connected port.
Light off No link
PoE (DES-3528P
and DES-3552P
only)
Green
Solid Green Power device is connected.
Blinking Port has detected an error condition.
Light off
Power device may receiv e powe r from
an AC p ower source or no
802.3af/802.3at PD is found.
LED Per GE Port Link/Act/Speed Green/Amber
Solid Green When there is a secure 1000Mb ps
connection (or link) at any of the ports.
Blinking Green
When there is reception or transmission
(i.e. Activity--
A
ct) of d ata occurring at a
1000Mbps connected port.
Solid Amber
When there is a se cure 10/100M bps
Fast Ethern et conne ction (or link) at
any of the ports.
Blinking Amber
When there is reception or transmission
(i.e. Activity—
A
ct) of data occurring at a
10/100Mbps Fast Etherne t conn ected
port.
Light off No link
LED per SFP Port Link/Act/Speed Green/Amber
Solid Green When there is a secure 1000Mb ps
connection (or link) at the ports.
Blinking Green
When there is reception or transmission
(i.e. Activity--
A
ct) of d ata occurring at a
1000Mbps connected port.
Solid Amber When there is a se cure 100 Mbps
connection (or link) at any of the ports.
Blinking Amber
When there is reception or transmission
(i.e. Activity—
A
ct) of data occurring at a
100Mbs connected ports.
Light off No link
7

xStack®DES-3528/DES-3552 Series Layer 2 Managed Stackable Fast Ethernet Switch Hardware Installation Guide
Rear Panel Description
The DES-35 28 rea r pa nel contain s po rts 27 a nd 2 8, ( 1000BASE-T), an AC power conn ector, an d an outlet for an
optional external RPS.
Figure 1- 11. Rear panel view of the DES-3528
The DES-3528P rear panel c ontains ports 27 and 28, (1000BASE-T), an A C power connector, and an outlet for an
optional external RPS.
Figure 1- 12. Rear panel view of the DES-3528P
The DES-3552 rear panel contains ports 51 and 52, (100 0BASE-T), RS-232 DCE Diagnostic port (console port ), an
AC power connector, and an outlet for an optional external RPS.
Figure 1- 13. Rear panel view of the DES-3552
The DES-3528P rear panel contains ports 51 and 52, (1000BASE-T), RS-232 DCE Diagnostic port (console port), an
AC power connector, and an outlet for an optional external RPS.
Figure 1- 14. Rear panel view of the DES-3552P
The AC p ower conn ector is a stan dard three -pronged conn ector that su pports the p ower cord. Plug -in the femal e
connector of the provide d power cord i nto this so cket, and the male side of the cord into a power outlet. The Switch
automatically adjusts its power setting to any supply voltage in the range from 100 ~ 240 VAC at 50 ~ 60 Hz.
The rear pan el also in cludes an outlet f or an optional external power supply. When power fails, the opti onal external
RPS will take over all the power immediately and automatically.
The rear panel of the DES-3528DC includes po rts 27 and 28, (1000BASE-T) , and an openi ng desi gned to
accommodate the DC power wiring assembly. See the installation instructions in Section 2 for details.
Figure 1- 15. Rear panel view of the DES-3528DC
8

xStack®DES-3528/DES-3552 Series Layer 2 Managed Stackable Fast Ethernet Switch Hardware Installation Guide
Side Panel Description
The left and right-hand panel of the DE S-3528 and DES-3528DC Switches contain a he at vent. The he at vents a re
used to dissipate heat. Do not block the se openings, and leave at least 6 inches of space at the rear and sides of the
Switch for proper ventilation. Be reminded that without proper heat dissipation and air circulation, system components
might overheat, which could lead to system failure.
Figure 1- 16. Side panels of the DES-3528/DES-3528DC
The right-hand side p anel of the DES-3552 and DES-3528P Switches contain two sy stem fans and ventilation alon g
the entire rig ht side. The left hand pan el includes a heat ven t. T he system fa ns are use d to dissi pate heat. Do not
block these openings on either side of the Switch. Leave at least 6 inches of space at the rear and sides of the Switch
for proper ventilation. Be reminde d that without proper heat dissipation and air circulation, system components might
overheat, which could lead to system failure.
Figure 1- 17. Side panels of the DES-3552/DES-3528P
The right-hand side pan el of the DES-3552P Switch contains three system fans and ventilation along the entire right
side. The left hand panel includes a heat vent. Th e system fans are u sed to dissi pate h eat. Do not block these
openings on either sid e of the Switch. Leave at least 6 inches of spa ce at the rear and sides of the Switch for prope r
ventilation. Be remin ded that without p roper heat dissipation and air circul ation, system co mponents might overheat,
which could lead to system failure.
Figure 1- 18. Side panels of the DES-3552P
9

xStack®DES-3528/DES-3552 Series Layer 2 Managed Stackable Fast Ethernet Switch Hardware Installation Guide
Gigabit Combo Ports
In addition to the 24/48 10/100 Mbp s ports, the Switch feat ures two Giga bit Ethernet Combo ports. The se two port s
are 1000BASE-T copper ports (provided) and SFP p orts (optional). See the di agram below to view the t wo SFP port
modules bei ng plug ged i nto the Switch. Please n ote that although the se t wo front pa nel module s can be u sed
simultaneously. At the same time, only one copper port or one SFP port can link up for each combo po rt. The SFP
port will always have the highest priority.

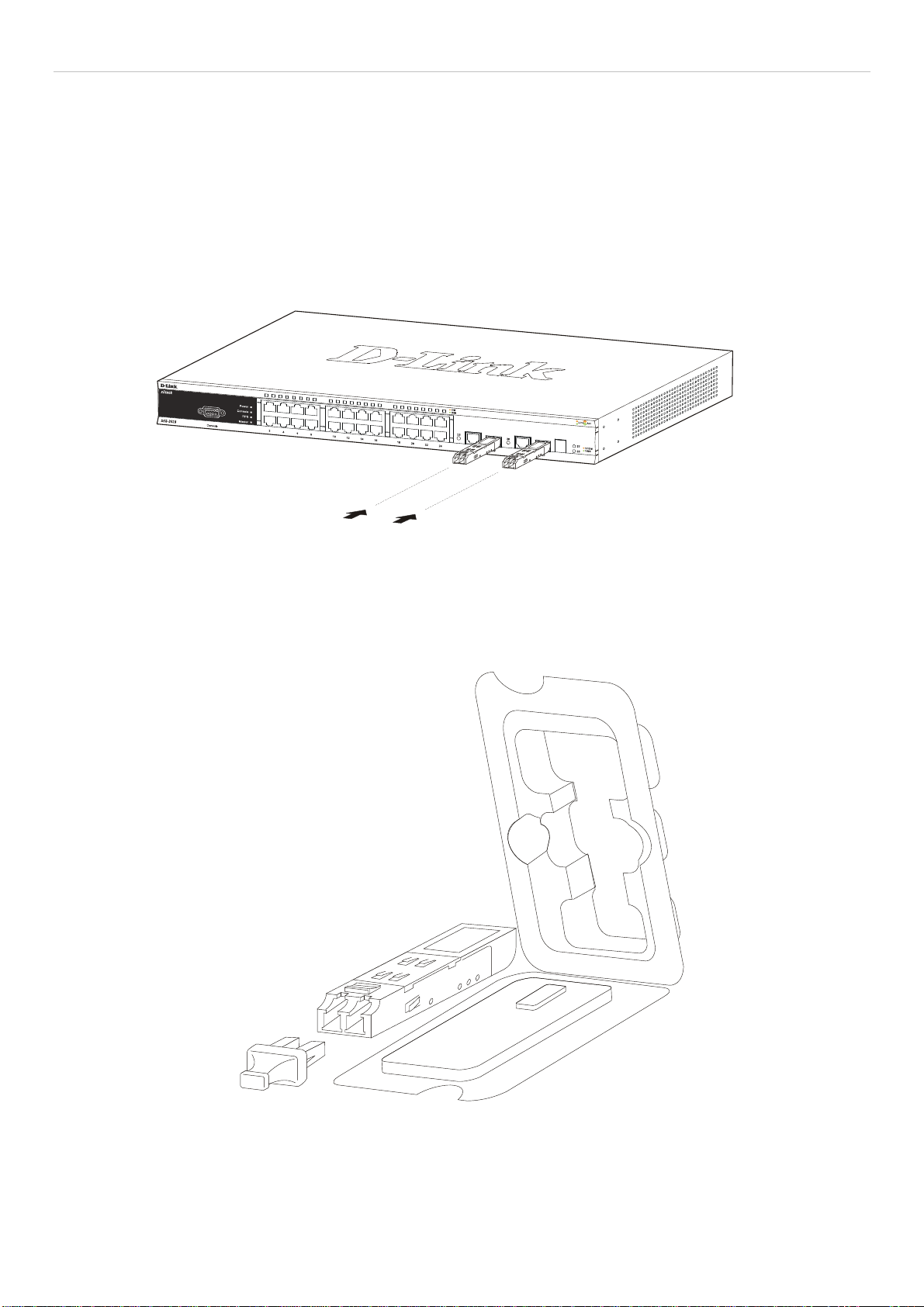

Figure 1- 19. Inserting the SFP modules into the DES-3528/DES-3528P/DES-3528DC/DES-3552/DES-3552P
Figure 1-20. Installing the SFP Module
10

xStack®DES-3528/DES-3552 Series Layer 2 Managed Stackable Fast Ethernet Switch Hardware Installation Guide
Section 2
Installation
Package Contents
Before You Connect to the Network
Installing the Switch without the Rack
Installing the Switch in a Rack
Mounting the Switch in a Standard 19" Rack
Power On (AC Power)
Power Failure (AC Power)
Connecting DC Power to the DES-3528DC
Package Contents
Open the shi pping carton of the Switch and carefull y unpack its conte nts. Th e carton should contai n the following
items:
• One xStack® stand-alone switch
• One AC power cord*
• Regi stration card
• Mounting kit (two brackets and screws)
• Four rubber feet with adhesive backing
• RS-232 console cable
If any item is found missing or damaged, please contact your local D-Link Reseller for replacement.
* Please Note the DES-3528DC Switch does not require an AC power cord therefore none is provided.
Before You Connect to the Network
The site where you in stall the Switch may greatly affect its performance. Please follow these guidelines for setting up
the Switch.
• Install the Switch o n a sturdy, level surface that c an su pport at least 6.6 lbs (3 kg) of weight for DES-
3528/DES-3528DC, at lea st 13.2 lb s (6 kg ) of weigh t fo r DES-3 552/DES-3528P, at least 1 5.4 lbs (7 kg) of
weight for DES-3552P. Do not place heavy objects on the Switch.
• The power outlet should be within 1.82 meters (6 feet) of the Switch.
• Visually inspect the power cord and see that it is fully secured to the AC power port.
• Make sure that there is proper he at dissipatio n from and adequat e ventilation arou nd the Switch. Leave at
least 10 cm (4 inches) of space at the front and rear of the Switch for ventilation.
• Install the Switch in a fairly cool and dry place for the acceptable temperature and humidity operating ranges.
• Install the Switch in a site free from st rong electromagnetic field generators (such as motors), vibration, dust,
and direct exposure to sunlight.
• When installing the Switch on a level surfa ce, attach the rubber feet to the bottom of the d evice. The ru bber
feet cushions help protect the casing from scratches and prevent it from scratching other surfaces.
11
