D-Link DIR-808L User manual

Wireless AC600 Dual Band Cloud Router
DIR-808L
Version 1.0 | 05/31/2013
User Manual

iD-Link DIR-808L User Manual
D-Link reserves the right to revise this publication and to make changes in the content hereof without obligation to notify any
person or organization of such revisions or changes.
Manual Revisions
Trademarks
D-Link and the D-Link logo are trademarks or registered trademarks of D-Link Corporation or its subsidiaries in the United
States or other countries. All other company or product names mentioned herein are trademarks or registered trademarks of
their respective companies.
Copyright © 2013 by D-Link Systems, Inc.
All rights reserved. This publication may not be reproduced, in whole or in part, without prior expressed written permission
from D-Link Corporation.
Revision Date Description
1.0 May 31, 2013 • Initial release for Revision A1
Preface

iiD-Link DIR-808L User Manual
Table of Contents
Preface ................................................................................. i
Manual Revisions ........................................................................... i
Trademarks ...................................................................................... i
Product Overview .............................................................. 1
Package Contents ......................................................................... 1
System Requirements ................................................................. 2
Introduction ................................................................................... 3
Features ............................................................................................ 4
Hardware Overview ..................................................................... 5
Connections ...........................................................................5
LEDs ...........................................................................................6
Installation ......................................................................... 7
Before you Begin ........................................................................... 7
Wireless Installation Considerations ...................................... 8
Manual Setup .................................................................................9
Conguration ...................................................................11
Quick Setup Wizard ....................................................................12
QRS Mobile App (iOS, Android) .............................................19
Web-based Conguration Utility ..........................................20
Internet Connection Setup .............................................21
Internet Connection Setup Wizard ...............................22
Internet (Manual Setup) ...................................................28
Internet Connection Type ...................................................29
Static (assigned by ISP) ................................................31
PPPoE (DSL) ......................................................................33
PPTP ....................................................................................35
L2TP ....................................................................................37
DS-Lite ...............................................................................39
Wireless Connection Setup Wizard ..............................40
Wi-Fi Protected Setup Wizard .........................................43
Manual Wireless Network Setup ...................................45
Manual Setup - 2.4 Ghz Band ....................................46
Manual Setup - 5 Ghz Band ........................................52
Wireless Security .................................................................57
What is WPA? ...................................................................57
Network Settings ................................................................58
Router Settings ...............................................................58
DHCP Server Settings ...................................................59
DHCP Reservation .........................................................61
IPv6 Internet Connection .................................................62
IPv6 Internet Connection Setup Wizard ................63
IPv6 Manual Setup.........................................................69
mydlinkTM Settings ..............................................................79
Advanced ...............................................................................82
Virtual Server ...................................................................82
Port Forwarding .............................................................83
Application Rules ...........................................................84
QoS Engine .......................................................................85
Network Filters ................................................................87
Access Control .................................................................88
Table of Contents

iiiD-Link DIR-808L User Manual
Table of Contents
Website Filters .................................................................91
Inbound Filters ................................................................92
Firewall Settings .............................................................93
Routing ..............................................................................95
Advanced Wireless ........................................................96
Wi-Fi Protected Setup (WPS) .....................................97
Advanced Network Settings ......................................99
Guest Zone .................................................................... 100
IPv6 Firewall .................................................................. 101
IPv6 Routing ................................................................. 102
Tools ..................................................................................... 103
Admin.............................................................................. 103
Time ................................................................................. 105
SysLog ............................................................................. 106
Email Settings............................................................... 107
System Settings ........................................................... 108
Firmware Update ........................................................ 109
Language Pack ............................................................. 109
Dynamic DNS ............................................................... 110
System Check ............................................................... 111
Schedules ...................................................................... 112
Status ................................................................................... 113
Device Info .................................................................... 113
Logs.................................................................................. 114
Statistics ......................................................................... 115
Internet Sessions ......................................................... 116
Routing ........................................................................... 117
Wireless........................................................................... 118
IPv6 .................................................................................. 119
IPV6 Routing ................................................................. 120
Support ............................................................................... 121
Connect a Wireless Client to your Router ....................122
WPS Button ................................................................................ 122
Windows® 8 ................................................................................ 123
WPA/WPA2 ......................................................................... 123
Windows® 7 ................................................................................ 125
WPA/WPA2 ......................................................................... 125
WPS ....................................................................................... 128
Windows Vista® ......................................................................... 132
WPA/WPA2 ......................................................................... 133
WPS/WCN 2.0 .................................................................... 135
Windows® XP ............................................................................. 136
WPA/WPA2 ......................................................................... 137
Troubleshooting ............................................................139
Wireless Modes ......................................................................... 143
Networking Basics .........................................................144
Check your IP address ............................................................ 144
Assign a Static IP address ...................................................... 145
Technical Specications ................................................146

1D-Link DIR-808L User Manual
Section 1 - Product Overview
Product Overview

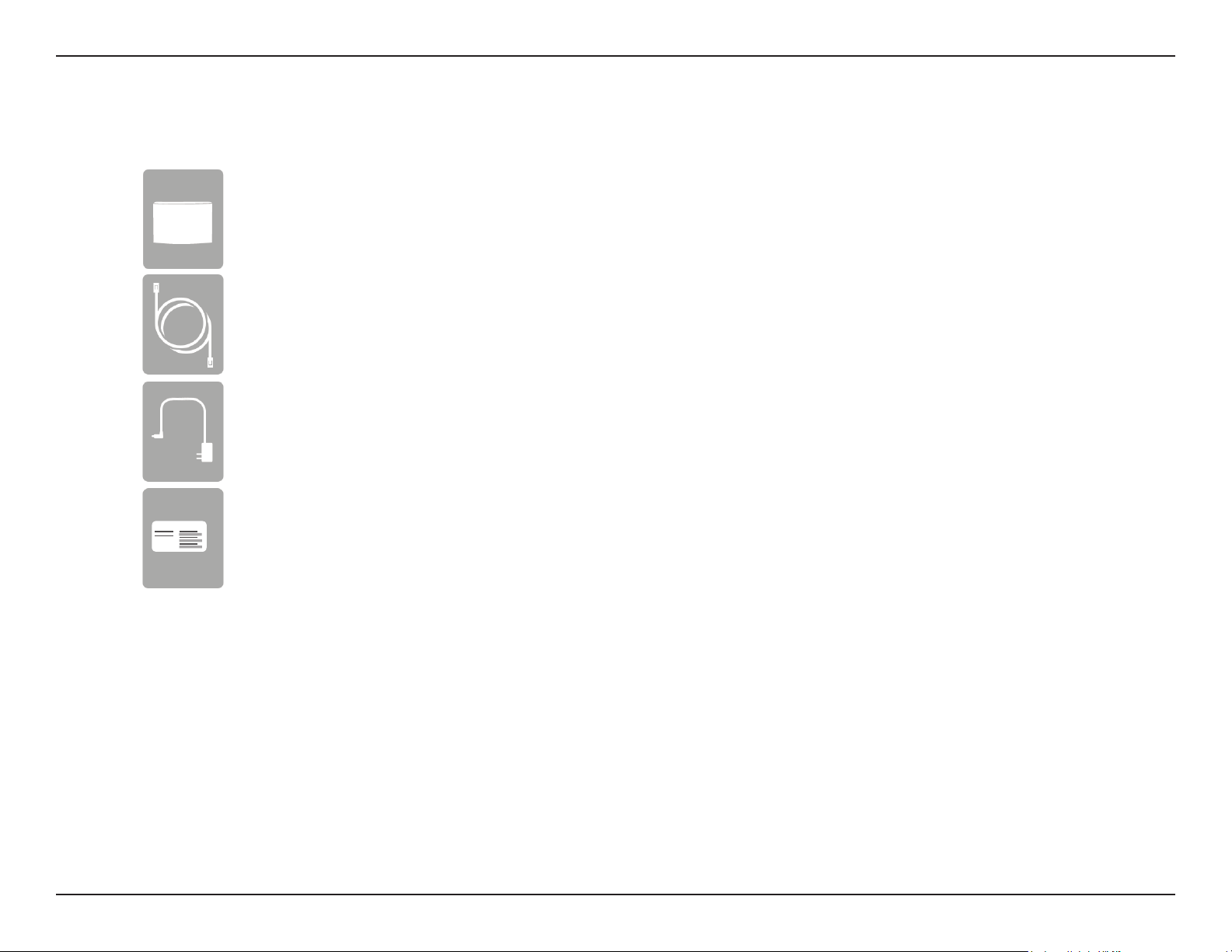

Package Contents
Note: Using a power supply with a dierent voltage rating than the one included with the DIR-808L will cause damage and void the warranty
for this product.
If any of the above items are missing, please contact your reseller.
DIR-808L Wireless AC600 Dual Band Cloud Router
Ethernet Cable
Power Adapter
Wi-Fi Conguration Note
Wi-Fi Conguration Note

2D-Link DIR-808L User Manual
Section 1 - Product Overview
Network Requirements
• An Ethernet-based cable or DSL modem
• 802.11a, 802.11g, 802.11n, or 802.11ac wireless clients
• 10/100 Ethernet
Web-based Conguration
Utility Requirements
Computer with the following:
• Windows®, Macintosh, or Linux-based operating system
• An installed Ethernet adapter
Browser Requirements:
• Internet Explorer 7 or higher
• Firefox 3.5 or higher
• Safari 4 or higher
• Chrome 8 or higher
Windows® Users: Make sure you have the latest version of Java
installed. Visit www.java.com to download the latest version.
mydlink Requirements
• iPhone/iPad/iPod Touch (iOS 3.0 or higher)
• Android device (1.6 or higher)
• Computer with the following browser requirements:
• Internet Explorer 7 or higher
• Firefox 3 or higher
• Safari 5 or higher
• Chrome 5 or higher
iPhone, iPad, and iPod touch are registered trademarks of Apple Inc. Android is a trademark of Google, Inc.
System Requirements

3D-Link DIR-808L User Manual
Section 1 - Product Overview
Introduction
The D-Link DIR-808L is a draft IEEE 802.11ac compliant device that delivers speeds up to 3 times faster than 802.11n, while
staying backward compatible with older 802.11b/g/n devices. Connect the DIR-808L to a cable or DSL modem and provide
high-speed Internet access to multiple wireless clients. Powered by the latest 802.11ac technology, this router provides superior
wireless coverage for small to medium sized homes. The DIR-808L also includes a 4-port 10/100 Fast Ethernet switch that
connects Ethernet wired devices for high-speed wired connectivity.
With the DIR-808L Wireless AC600 Dual Band Cloud Router you can monitor and manage your home network right from
your laptop, iOS™, or Android™ device. This cloud-enabled router can be congured to notify you whenever new devices are
connected to your network or unwanted access is detected. Monitor in real-time websites that are being visited, with recent
browser history displayed on the mydlink™ Lite app – which is great for parents keeping an eye on children using the Internet
at home. The D-Link Cloud Service can help you to detect and block unwelcome guests who attempt to access your wireless
network, and any suspicious activities will be displayed right on your mydlink Lite app or browser.
With some routers, all wired and wireless trac, including VoIP, video streaming, online gaming, and web browsing is mixed
together into a single data stream. By handling data this way, applications like video streaming could experience lags or delays.
With D-Link Intelligent QoS Technology, wired and wireless trac are analyzed and separated into multiple data streams. You
can also assign priorities to dierent data streams to ensure that the trac most important to you receives optimum bandwidth.
The DIR-808L supports the latest wireless security features to help prevent unauthorized access, be it from inside your wireless
network or from the Internet. Support for the WPA and WPA2 standards gives you a range of security and encryption choices,
based on the capabilities of your wireless clients. In addition, this router utilizes dual active rewalls (SPI and NAT) to prevent
potential attacks from across the Internet.

4D-Link DIR-808L User Manual
Section 1 - Product Overview
• Ultimate Fast Wireless Networking - The DIR-808L provides a wireless connection up to 150 Mbps on the
2.4 GHz band, and up to 433 Mbps on the 5 GHz band. This capability allows users to participate in real-time
activities online, such as video streaming, online gaming, and real-time audio. The performance of this 802.11ac
wireless router gives you the freedom of wireless networking at speeds up to three times faster than 802.11n.
• Compatible with 802.11a/g/n Devices - The DIR-808L remains fully compatible with the IEEE 802.11b, 802.11g
and 802.11n standards, so it can connect your existing wireless clients, providing backwards compatibility for
older devices.
• Advanced Security Features - The Web-based user interface displays a number of advanced network
management features including:
• Content Filtering - Easily applied content ltering based on MAC address, URL, and/or domain
name.
• Filter Scheduling - These lters can be scheduled to be active on certain days or for a duration of
hours or minutes.
• Secure Multiple/Concurrent Sessions - The DIR-808L can pass through VPN sessions. It supports
multiple and concurrent IPSec and PPTP sessions, so users behind the DIR-808L can securely access
corporate networks.
• User-friendly Setup Wizard - Through its easy-to-use web-based user interface, the DIR-808L guides you
through the process of setting up a customized, secure wireless network, allowing you to congure your router
to your specic settings within minutes.
* Maximum wireless signal rate derived from IEEE Standard 802.11b, 802.11g, 802.11n and draft 802.11ac specications. Actual data throughput will vary. Network conditions
and environmental factors, including volume of network trac, building materials and construction, and network overhead, lower actual data throughput rate. Environmental
conditions will adversely aect wireless signal range.
Features

5D-Link DIR-808L User Manual
Section 1 - Product Overview
Hardware Overview
Connections
1WPS Button Press to start the WPS process. The power LED will start to blink.
2LAN Ports (1-4) Connect 10/100 Ethernet devices such as computers, switches, storage (NAS) devices and game consoles.
3Internet Port Using an Ethernet cable, connect your broadband modem to this port.
4Power Button Press the power button to power on and o.
5Power Receptor Receptor for the supplied power adapter.
6Reset Button (Hole) Use a paperclip to depress the reset button and restore the router to its original factory settings.
3
4
562
1

6D-Link DIR-808L User Manual
Section 1 - Product Overview
Hardware Overview

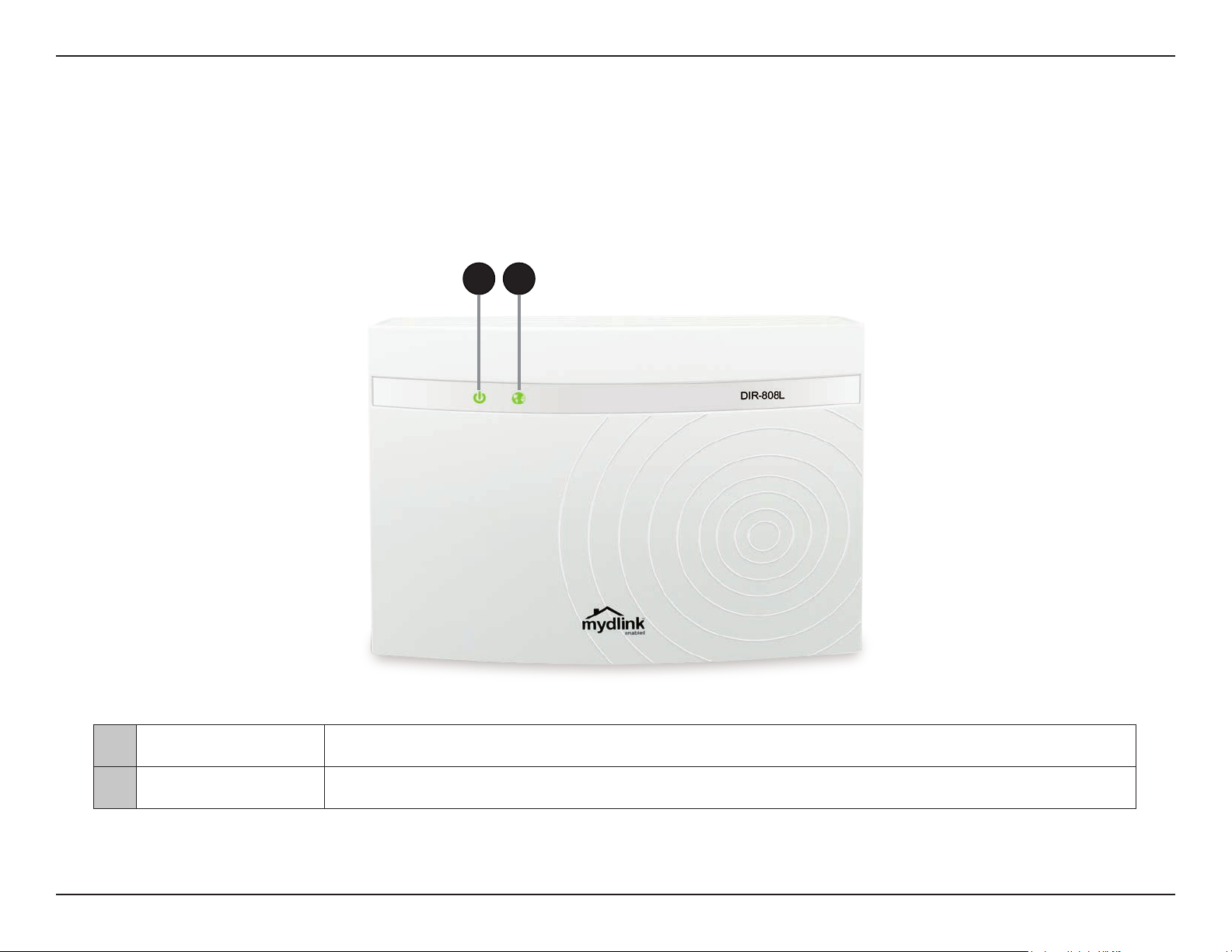

LEDs
1Power LED A solid green light indicates a proper connection to the power supply. The light will blink green during the
WPS process. The light will be solid orange during boot up.
2Internet LED A solid light indicates connection on the Internet port. If the LED is orange, a connection is present but the
router cannot connect to the Internet.
1 2

7D-Link DIR-808L User Manual
Section 2 - Installation
Before you Begin
Installation
This section will walk you through the installation process. Placement of the router is very important. Do not place the router
in an enclosed area such as a closet, cabinet, an attic, or a garage.
• Please congure the router with the computer that was last connected directly to your modem.
• You can only use the Ethernet port on your modem. If you were using the USB connection before using this router,
then you must turn o your modem, disconnect the USB cable and connect an Ethernet cable to the Internet port
on the router, and then turn the modem back on. In some cases, you may need to call your ISP to change connection
types (USB to Ethernet).
• If you have DSL and are connecting via PPPoE, make sure you disable or uninstall any PPPoE software such as WinPoET,
Broadjump, or Enternet 300 from your computer, or you will not be able to connect to the Internet.

8D-Link DIR-808L User Manual
Section 2 - Installation
Wireless Installation Considerations
The DIR-808L Wireless AC600 Dual Band Cloud Router lets you access your network using a wireless connection from virtually
anywhere within the operating range of your wireless network. Keep in mind, however, that the number, thickness and location
of walls, ceilings, or other objects that the wireless signals must pass through, may limit the range. Typical ranges vary depending
on the types of materials used and background RF (radio frequency) noise in your home or business. The key to maximizing
wireless range is to follow these basic guidelines:
1. Keep the number of walls and ceilings between the router and other network devices to a minimum - each wall
or ceiling can reduce your adapter’s range by 3-90 feet (1-30 meters.) Position your devices so that the number
of walls or ceilings is minimized.
2. Be aware of the direct line between network devices. A wall that is 0.5 meters thick (1.5 feet), at a 45-degree
angle appears to be almost 1 meter (3 feet) thick. At a 2-degree angle it can appear over 14 meters (42 feet)
thick! Position devices so that the signal will travel straight through a wall or ceiling (instead of at an angle) for
better reception.
3. Building materials can aect your wireless signal. A solid metal door or aluminum studs may have a negative
eect on range. Try to position access points, wireless routers, and computers so that the signal passes through
drywall or open doorways. Materials and objects such as glass, steel, metal, walls with insulation, water (sh
tanks), mirrors, le cabinets, brick, and concrete will degrade your wireless signal.
4. Keep your product away (at least 3-6 feet or 1-2 meters) from electrical devices or appliances that generate RF
noise.
5. If you are using 2.4 GHz cordless phones or X-10 wireless products (such as ceiling fans, lights, and home security
systems), your wireless connection may be degraded dramatically or even drop completely. Make sure your 2.4
GHz phone base is as far away from your wireless devices as possible. The base transmits a signal even if the
phone in not in use.

9D-Link DIR-808L User Manual
Section 2 - Installation
Manual Setup

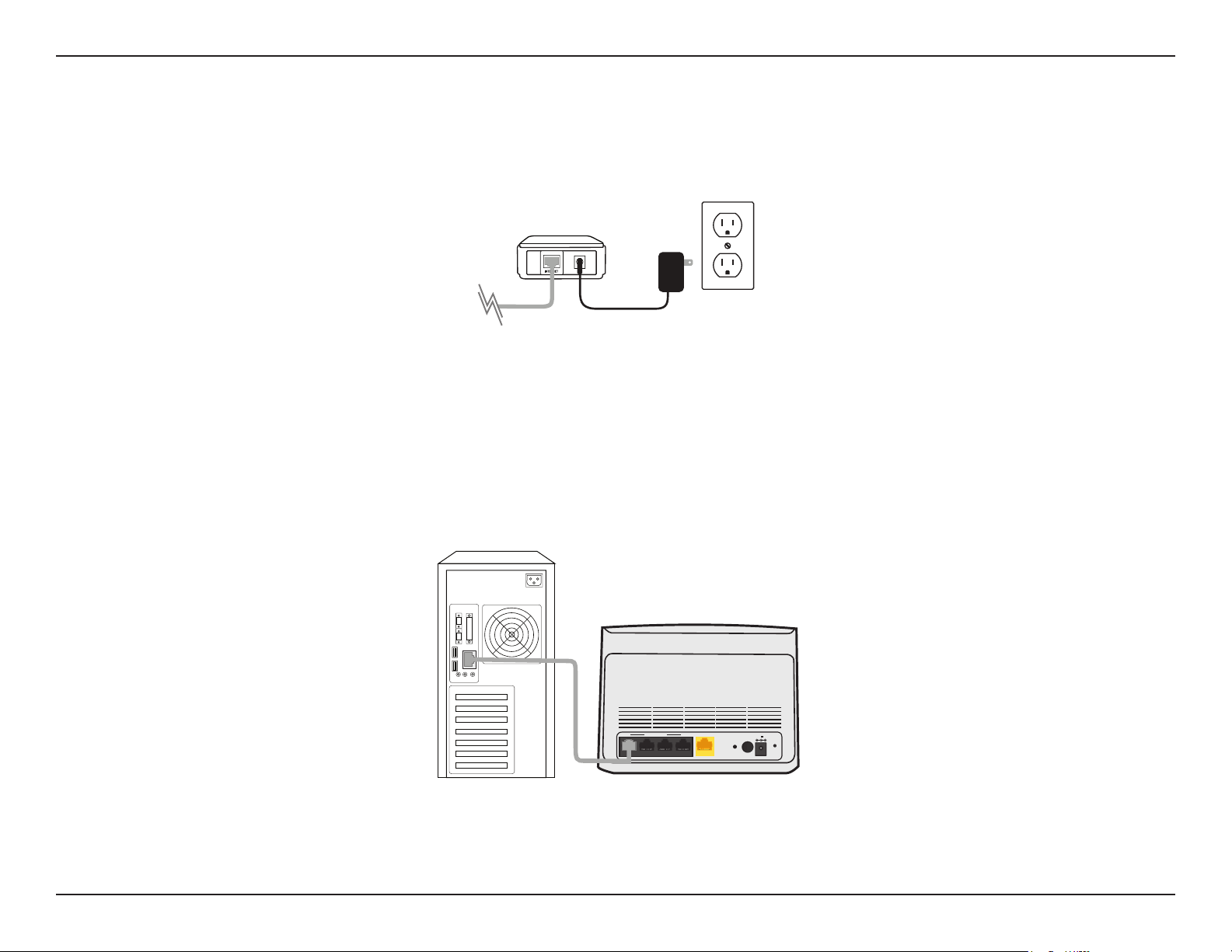

1. Turn o and unplug your cable or DSL broadband modem. This is required.
2. Position your router close to your modem and a computer. Place the router in an open area of your intended
work area for better wireless coverage.
3. Unplug the Ethernet cable from your modem (or existing router if upgrading) that is connected to your computer.
Plug it into the LAN port labeled 1 on the back of your router. The router is now connected to your computer.
Modem
LAN
RESET
INTERNET1234 12V 1A
POWER
WPS
DIR-808LComputer

10D-Link DIR-808L User Manual
Section 2 - Installation

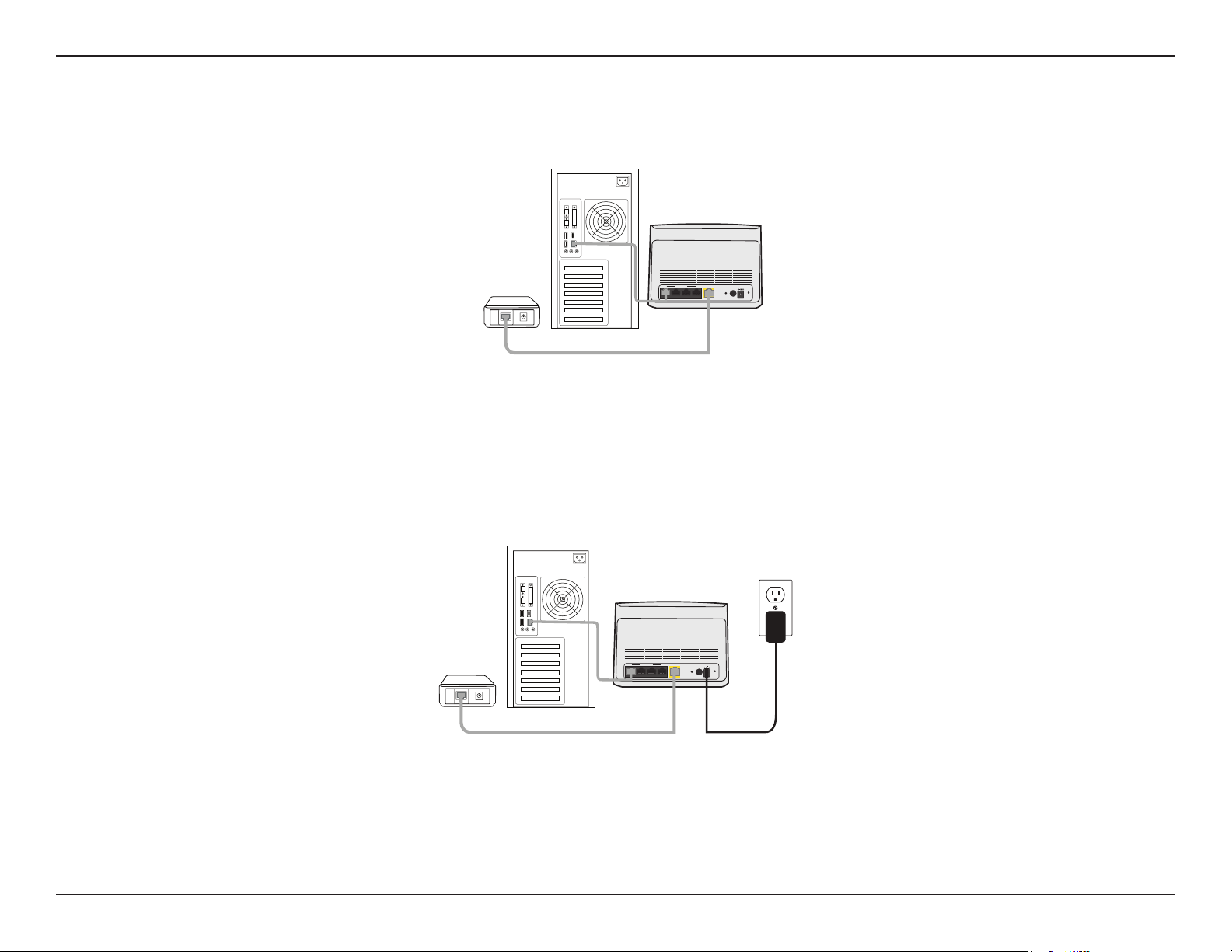

4. Plug one end of the included blue Ethernet cable that came with your router into the yellow port labeled
INTERNET on the back of the router. Plug the other end of this cable into the Ethernet port on your modem.
5. Reconnect the power adapter to your cable or DSL broadband modem and wait for two minutes.
6. Connect the supplied power adaptor into the power port on the back of the router and then plug it into a power
outlet or surge protector. Press the power button and verify that the power LED is lit. Allow 1 minute for the
router to boot up.
7. If you are connecting to a broadband service that uses a dynamic connection (not PPPoE), you may be online
already. Try opening a web browser and enter a web site. A solid light on the Internet LED indicates connection
on the Internet port and the router can connect to the Internet. If the LED is orange, a connection is present but
the router cannot connect to the Internet.
INTERNET
LAN
RESET
INTERNET1234 12V 1A
POWER
WPS
DIR-808L
Modem
Computer
DIR-808L
Modem
Computer
INTERNET
LAN
RESET
INTERNET1234 12V 1A
POWER
WPS

11D-Link DIR-808L User Manual
Section 3 - Conguration
There are several dierent ways you can congure your router to connect to the Internet and connect to your clients:
• Quick Setup Wizard - This wizard will launch when you log into the router for the rst time. Refer to “Quick Setup Wizard”
on page 12.
• QRS Mobile App - Use your iOS or Android device to congure your router. Refer to ”QRS Mobile App (iOS, Android)” on
page 19.
• Manual Setup - Log into the router and manually congure your router (advanced users only). Refer to ”Internet (Manual
Setup)” on page 28.
Conguration

12D-Link DIR-808L User Manual
Section 3 - Conguration

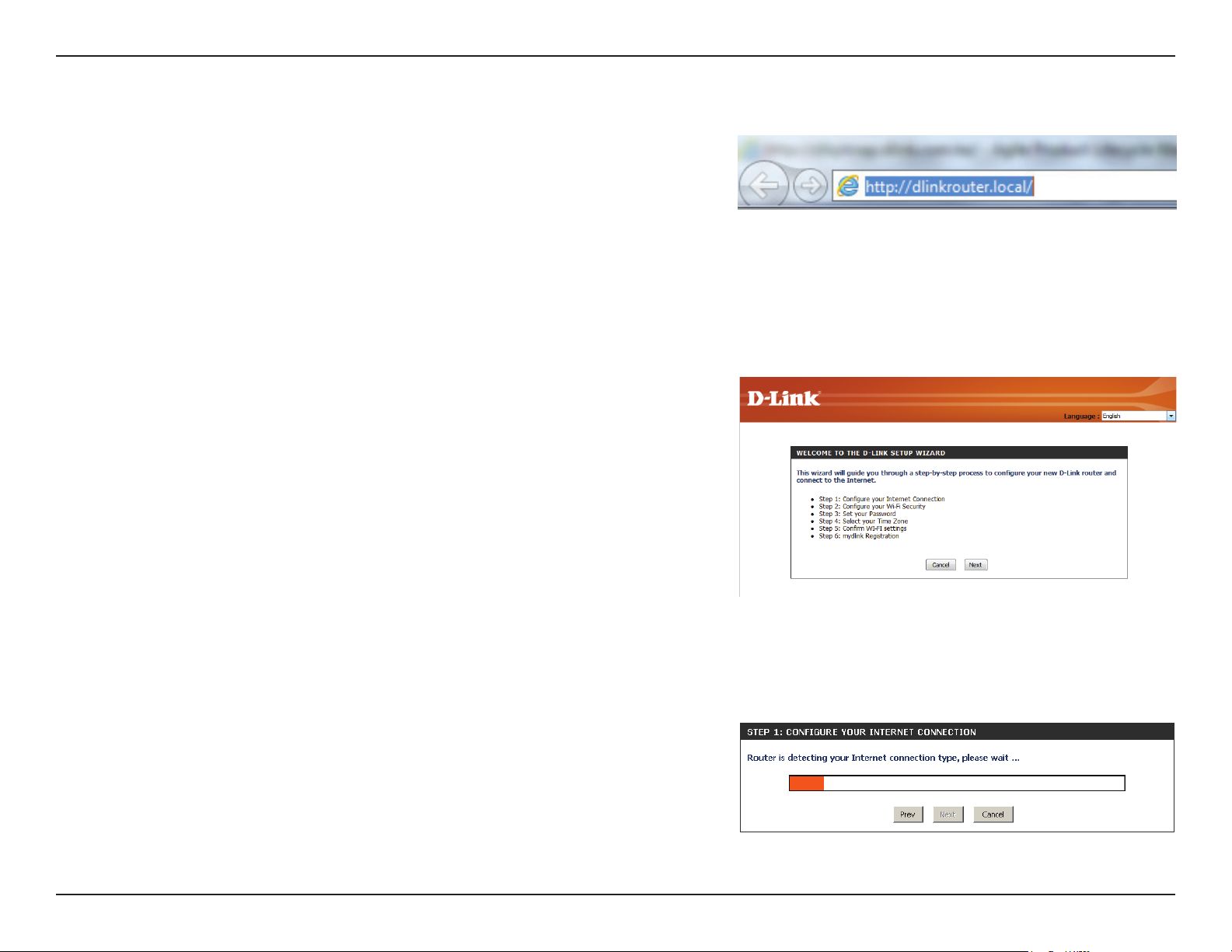

If this is your rst time logging into the router, this wizard will start
automatically.
This wizard is designed to guide you through a step-by-step process to
congure your new D-Link router and connect to the Internet.
Click Next to continue.
Quick Setup Wizard
If this is your rst time installing the router, open your web browser. You
will automatically be directed to the Wizard Setup Screen. If not, enter
“http://dlinkrouter.local”. Then, press Enter.
If you have already congured your settings and you would like to access
the conguration utility, please refer to “Internet (Manual Setup)” on page 28.
Please wait while your router detects your Internet connection type. This
process may take a few minutes.

13D-Link DIR-808L User Manual
Section 3 - Conguration

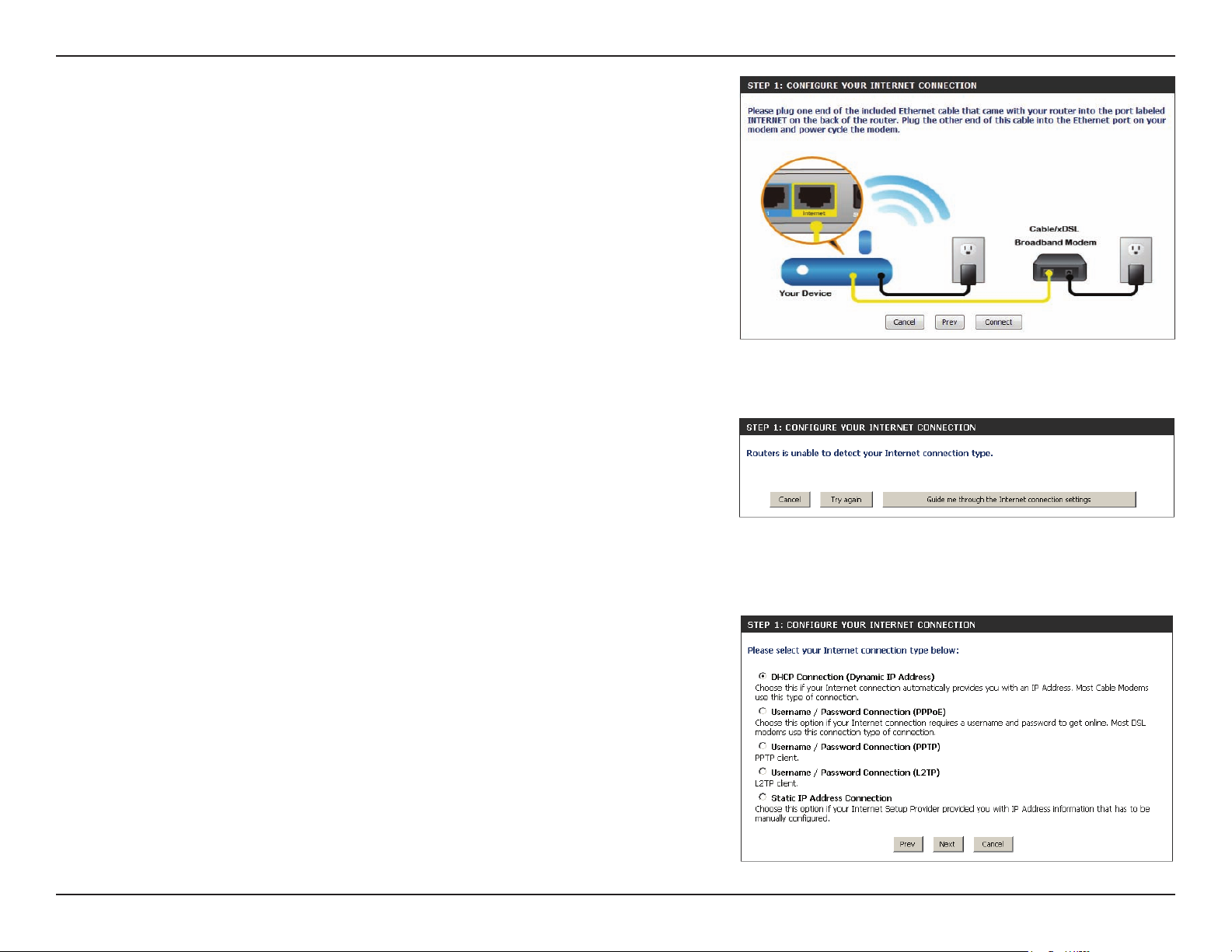

If the router does not detect a valid Ethernet connection from the
Internet port, this screen will appear. Check the connection between your
broadband modem to the Internet port and then click Prev to return to
the previous page and try again.
If the router detects an Ethernet connection but does not detect the type
of Internet connection you have, this screen will appear. Click Guide me
through the Internet Connection Settings to display a list of connection
types to choose from.
Select your Internet connection type and click Next to continue.

14D-Link DIR-808L User Manual
Section 3 - Conguration

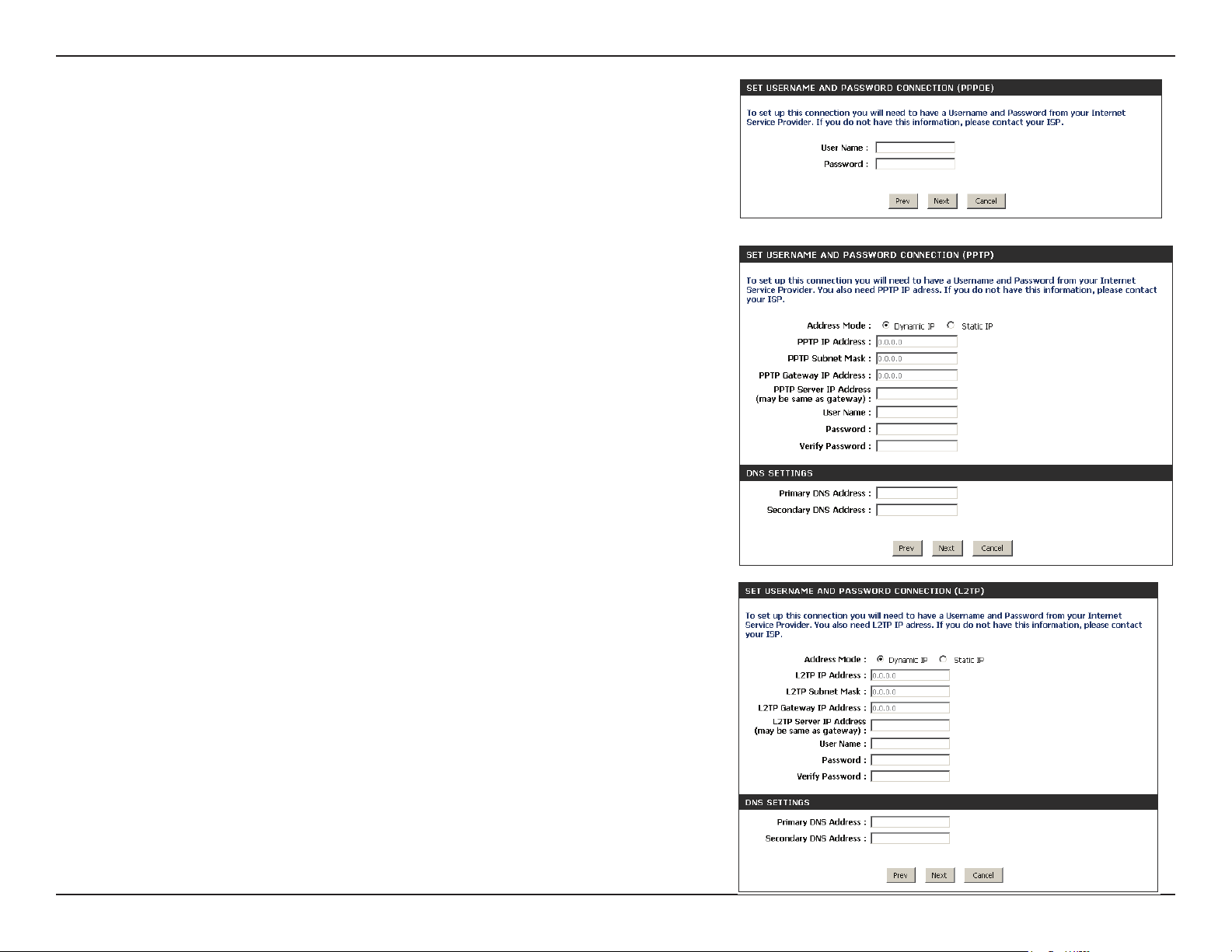

If the router detected, or you selected PPPoE, enter your PPPoE username
and password and click Next to continue.
Note: Make sure to remove any PPPoE software from your computer. The
software is no longer needed and will not work through a router.
If the router detected or you selected PPTP, enter your PPTP username,
password, and other information supplied by your ISP. Click Next to
continue.
If the router detected, or you selected L2TP, enter your L2TP username,
password, and other information supplied by your ISP. Click Next to
continue.

15D-Link DIR-808L User Manual
Section 3 - Conguration
If the router detected, or you selected Static, enter the IP and DNS settings
supplied by your ISP. Click Next to continue.
For both the 2.4 GHz and 5 GHz bands, create a Wi-Fi network name (SSID)
using up to 32 characters. These names will identify your wireless network.
Create a Wi-Fi password (Network Key) (between 8-63 characters). Your
wireless clients will need to have this password or key entered to be able
to connect to your wireless network. It is recommended that you make a
record of this information for future reference.
Click Next to continue.
In order to secure your router, please enter a new password, which will
be used to access the web-based conguration utility. Check the Enable
Graphical Authentication box to enable CAPTCHA authentication for
added security. Click Next to continue.

16D-Link DIR-808L User Manual
Section 3 - Conguration

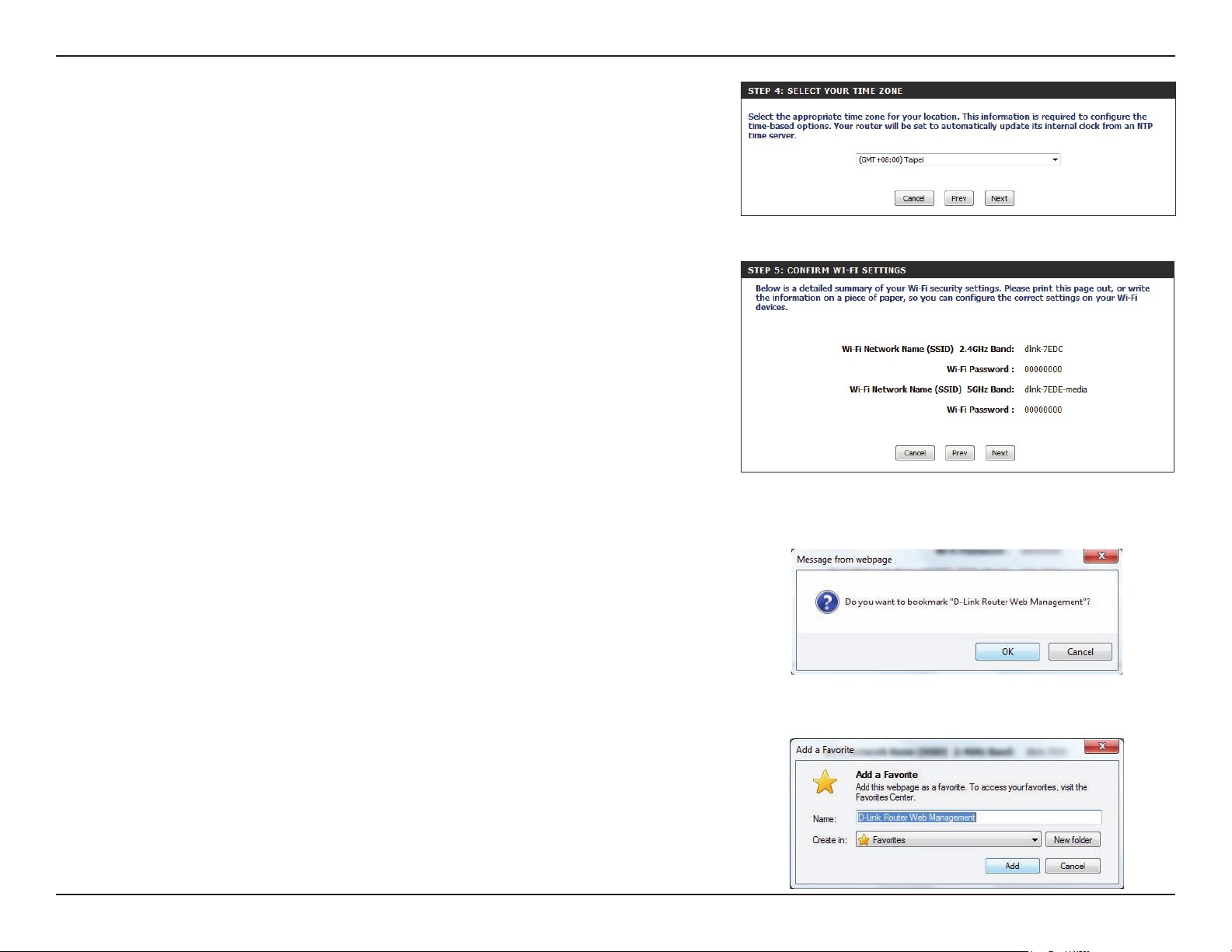

Select your time zone from the drop-down menu and click Next to
continue.
The next window will display your Wi-Fi settings and confirm the
completion of the setup process. Click Next to continue.
If you want to create a bookmark for the router’s web-based conguration
utility, click OK. Click Cancel if you do not want to create a bookmark.
If you clicked Yes, a window may appear (depending on which web
browser you are using) to create a bookmark.
