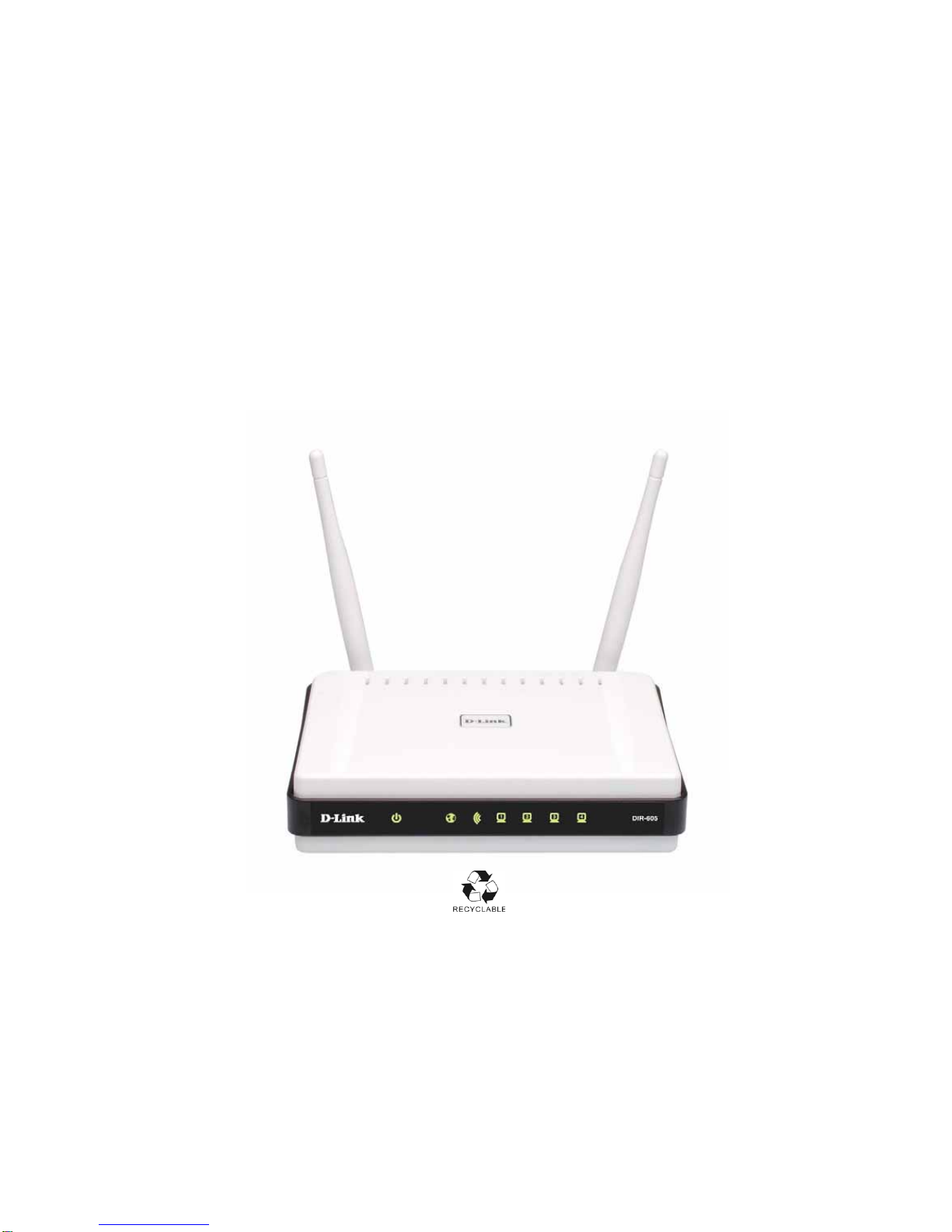

D-Link DIR-605 User manual

D-Link DIR-605
Wireless N Router
中文快速安裝/設定指南
無線寬頻路由器

i
D-Link DIR-605 User Manual
D-Link reserves the right to revise this publication and to make changes in the content hereof without obligation to
notify any person or organization of such revisions or changes.
Manual Revisions
Trademarks
D-Link and the D-Link logo are trademarks or registered trademarks of D-Link Corporation or its subsidiaries in the
United States or other countries. All other company or product names mentioned herein are trademarks or registered
trademarks of their respective companies.
Copyright © 2009 by D-Link Systems, Inc.
All rights reserved. This publication may not be reproduced, in whole or in part, without prior expressed written permission
from D-Link Systems, Inc.
Revision Date Description
1.0 July 31, 2008 t6QEBUFEGPSSFWJTJPO
Preface

ii
D-Link DIR-605 User Manual
Table of Contents
Preface....................................................................................................... i
Manual Revisions........................................................................... i
Trademarks ...................................................................................... i
Product Overview ................................................................................ 1
Package Contents......................................................................... 1
System Requirements................................................................. 2
Features............................................................................................ 3
Hardware Overview..................................................................... 4
Connections ........................................................................... 4
LEDs ........................................................................................... 5
Installation .............................................................................................. 6
Before you Begin........................................................................... 6
Wireless Installation Considerations...................................... 7

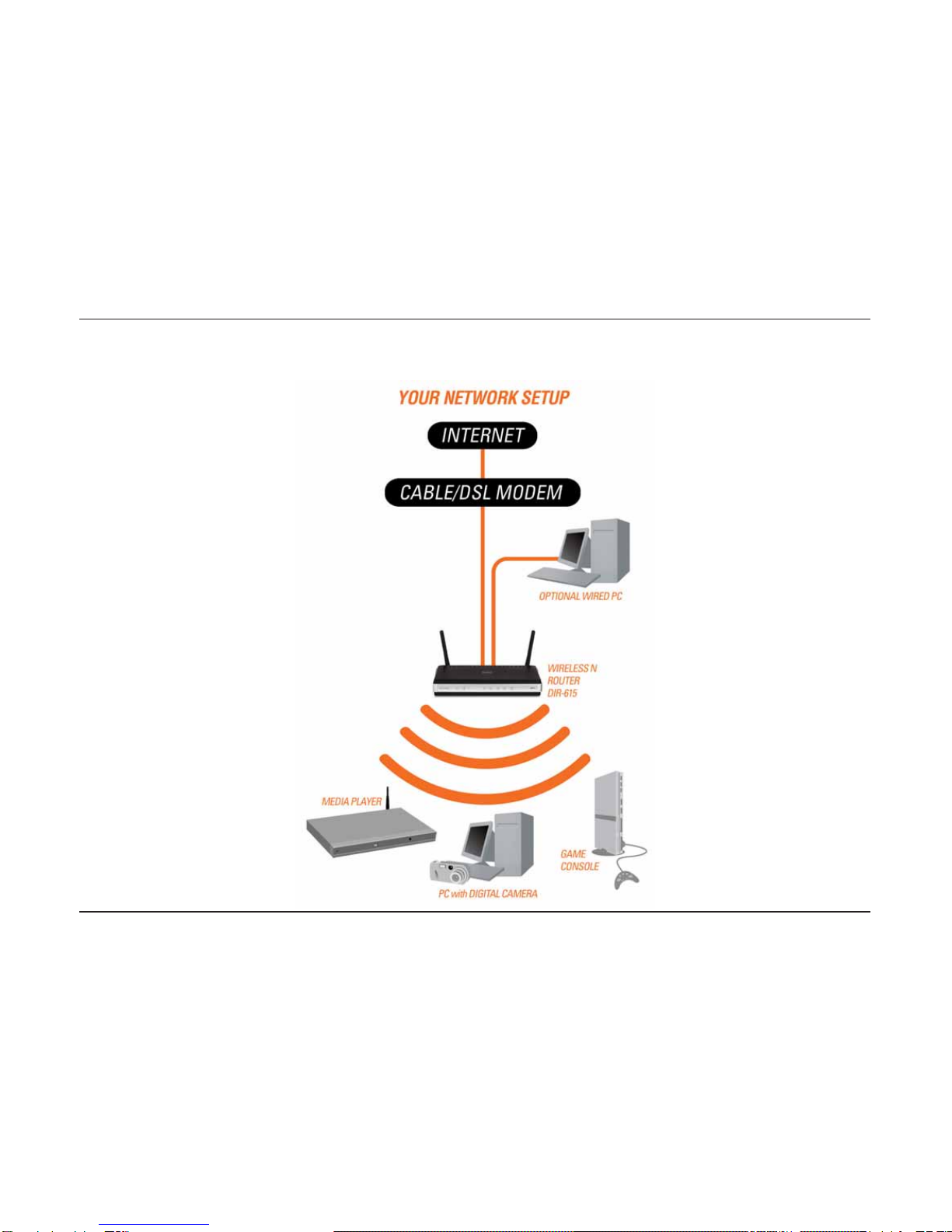

Network Diagram ......................................................................... 8
Connect to Cable/DSL/Satellite Modem.............................. 9
Connect to Another Router ....................................................10
Getting Started............................................................................12
Conguration.......................................................................................13
Web-based Conguration Utility..........................................13

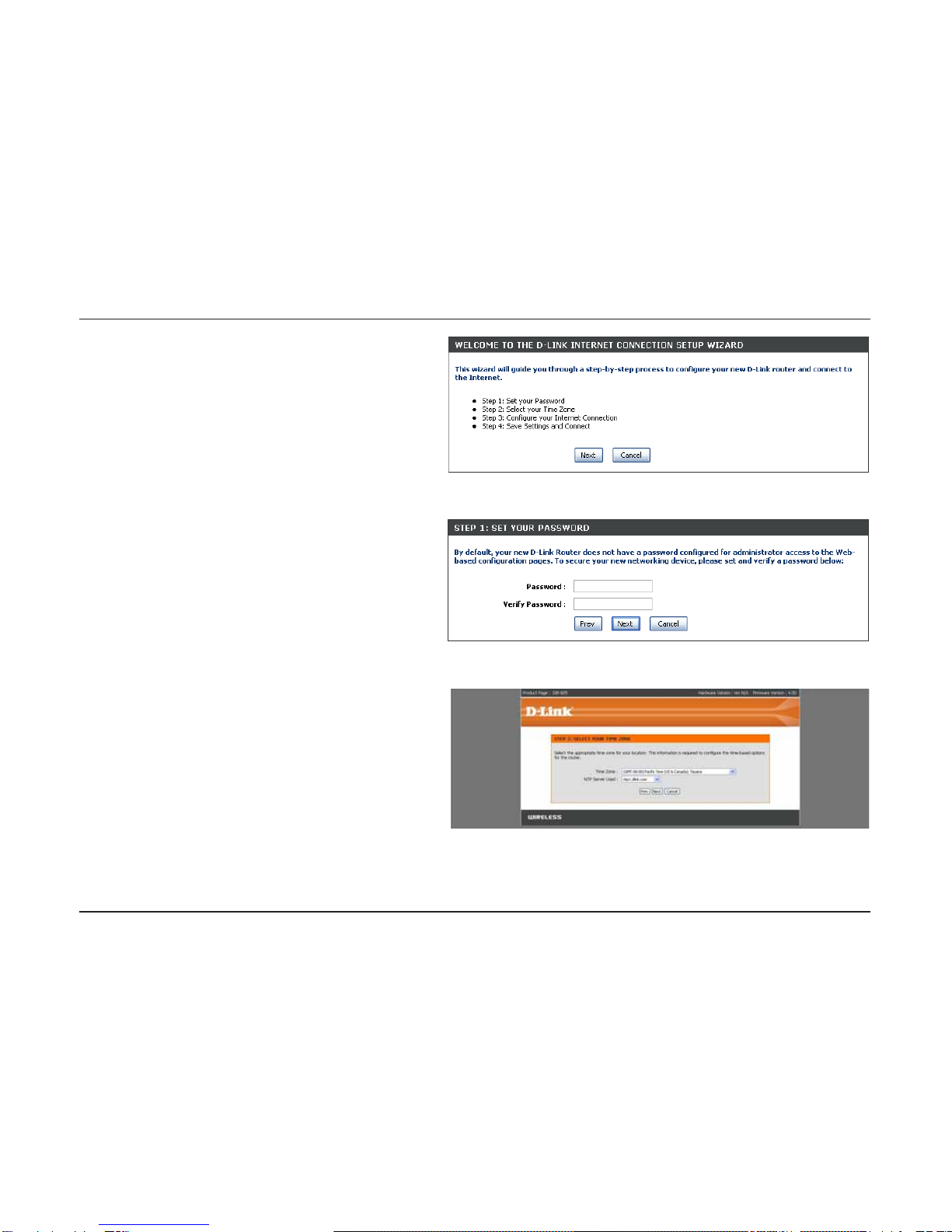

Internet Connection Setup Wizard...............................14
Manual Conguration.......................................................19
Dynamic (Cable).............................................................19

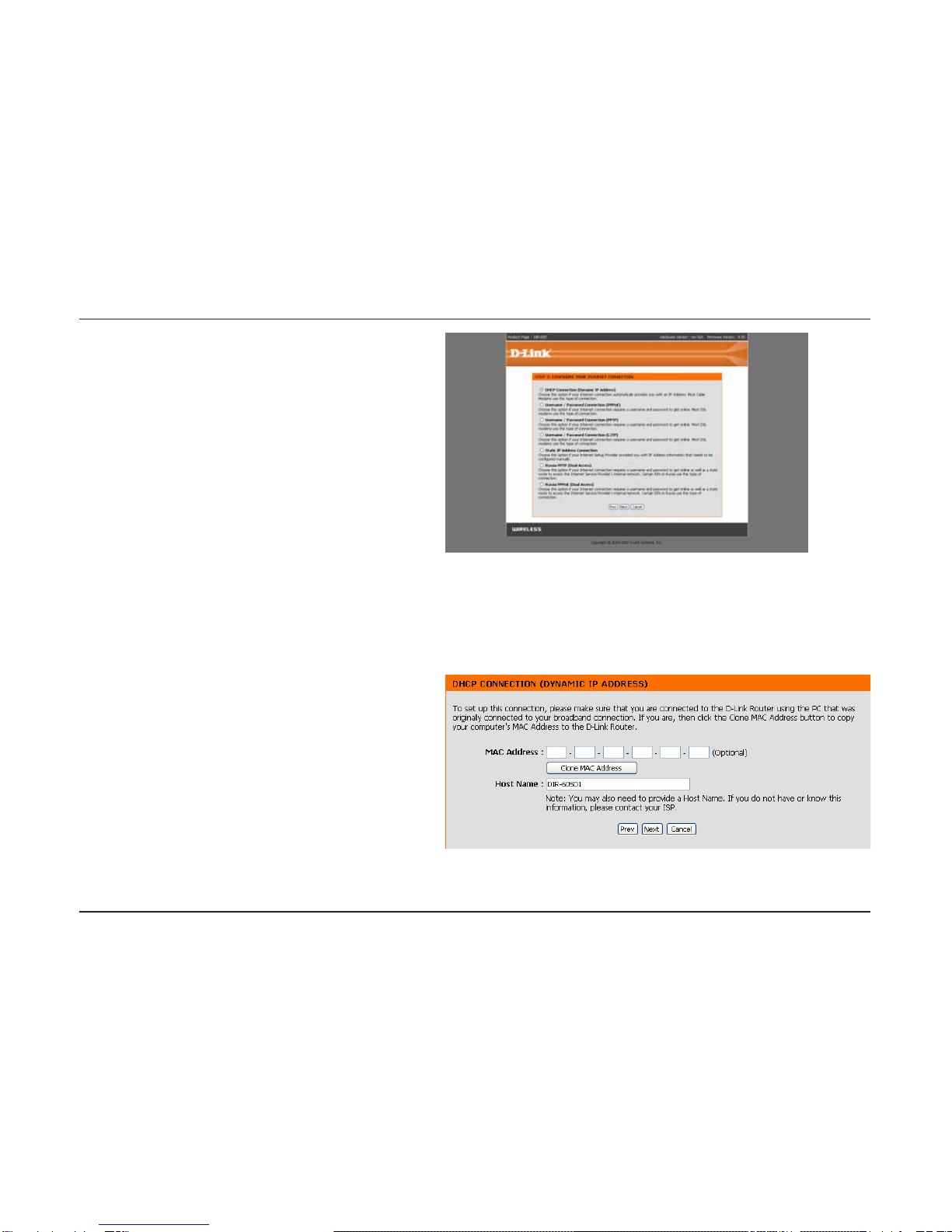

Dynamic IP Address (DHCP).......................................20
PPPoE (DSL)......................................................................21
PPTP....................................................................................22
L2TP ....................................................................................24
Static IP Address.............................................................26
Wireless Settings.................................................................27
Manual Wireless Network Setup ..............................28
Network Settings ................................................................30
DHCP Server Settings...................................................31
DHCP Reservation .........................................................32
Virtual Server........................................................................34
Port Forwarding ..................................................................36
Application Rules................................................................37
QoS Engine............................................................................38
Network Filters.....................................................................39
Access Control .....................................................................40
Access Control Wizard..................................................40
Website Filters......................................................................43
Inbound Filters.....................................................................44
Firewall Settings..................................................................45
Advanced Wireless Settings............................................46
Advanced Network Settings...........................................47
UPnP ...................................................................................47
Internet Ping Block........................................................47
Internet Port Speed.......................................................47
Multicast Streams ..........................................................47
IPv6 ..........................................................................................48
Link-Local Connectivity ...............................................49
Static IPv6 (Stateful)......................................................50
Static IPv6 (Stateless)....................................................51
Table of Contents

iii
D-Link DIR-605 User Manual
Table of Contents
DHCPv6 (Stateful) ..........................................................52
DHCPv6 (Stateless)........................................................53
IPv6 over PPPoE (Stateful)...........................................54
IPv6 over PPPoE (Stateless) ........................................56
6 to 4 Tunneling (Stateful) ..........................................58
6 to 4 Tunneling (Stateless) ........................................59
IPv6 in IPv4 Tunneling (Stateful)...............................60
IPv6 in IPv4 Tunneling (Stateless).............................61
Administrator Settings......................................................62
Time Settings .......................................................................63
SysLog.....................................................................................64
E-mail Settings.....................................................................65
System Settings...................................................................66
Update Firmware ................................................................67
DDNS.......................................................................................68
System Check.......................................................................69
Schedules ..............................................................................70
Device Information ............................................................71
Log ...........................................................................................73
Stats.........................................................................................74
Internet Sessions.................................................................75
Wireless ..................................................................................77
Support ..................................................................................78
Wireless Security.................................................................................79
What is WPA?................................................................................79
Wireless Connection Setup Wizard ......................................80
Add Wireless Device with WPS Wizard................................83
Congure WPA-Personal (PSK)...............................................84
Congure WPA-Enterprise (RADIUS)....................................85
Connect to a Wireless Network .....................................................87
Using Windows Vista®................................................................87
Congure WPA/WPA2........................................................88
Connect Using WCN 2.0 ...................................................90
Using Windows®XP ....................................................................91
Congure WPA-PSK............................................................92
Troubleshooting .................................................................................94
Wireless Basics.....................................................................................98
What is Wireless?.........................................................................99
Tips................................................................................................ 101
Wireless Modes......................................................................... 102
Networking Basics........................................................................... 103
Check your IP address............................................................ 103
Statically Assign an IP address............................................ 104
Technical Specications................................................................ 105
Warranty ............................................................................................. 106

1
D-Link DIR-605 User Manual
Section 1 - Product Overview
Product Overview
Note: Using a power supply with a dierent voltage rating than the one included with the DIR-605 will cause damage and void the warranty for this product.

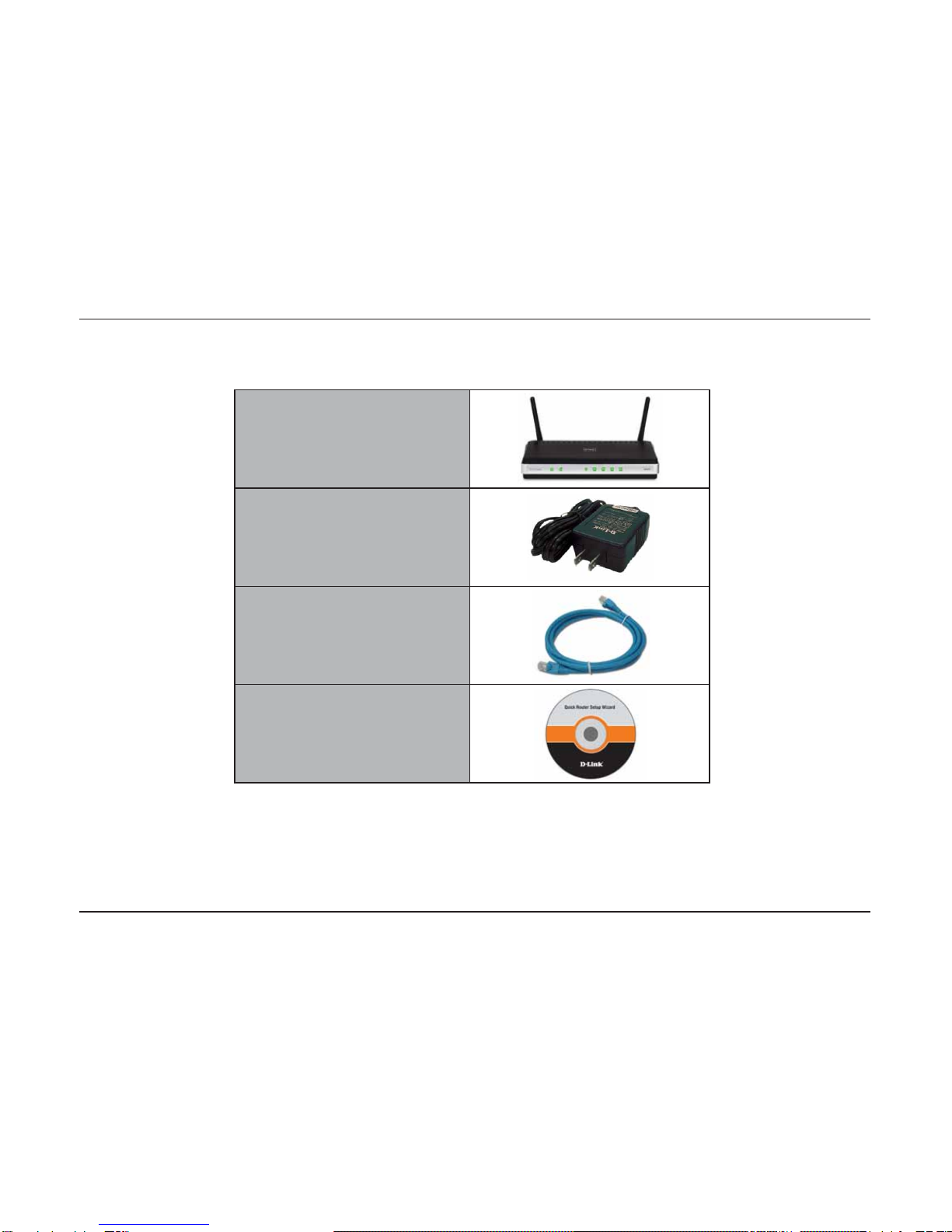

Package Contents
D-Link DIR-605 Wireless N Router
Power Adapter
Ethernet Cable
CD-ROM

2
D-Link DIR-605 User Manual
Section 1 - Product Overview
Network Requirements
t"O&UIFSOFUCBTFE$BCMFPS%4-NPEFN
t*&&&OESBGUHXJSFMFTTDMJFOUT
t&UIFSOFU
Web-based Conguration
Utility Requirements
Computer with the following:
t8JOEPXT®, Macintosh, or Linux-based operating
system
t"OJOTUBMMFE&UIFSOFUBEBQUFS
Browser Requirements:
t*OUFSOFU&YQMPSFSPSIJHIFS
t.P[JMMBPSIJHIFS
t'JSFGPYPSIJHIFS
t4BGBSJPSIJHIFSXJUI+BWBPSIJHIFS
t'MPDLPSIJHIFS
t0QFSBPSIJHIFS
Windows®Users: Make sure you have the latest version
of Java installed. Visit www.java.com to download the
latest version.
CD Installation Wizard
Requirements
Computer with the following:
t8JOEPXT®XP with Service Pack 2 or Vista®
t"OJOTUBMMFE&UIFSOFUBEBQUFS
t$%30.ESJWF
System Requirements

3
D-Link DIR-605 User Manual
Section 1 - Product Overview
t'BTUFS8JSFMFTT/FUXPSLJOH - The DIR-605 provides up to 300Mbps* wireless connection with other 802.11n
wireless clients.This capability allows users to participate in real-time activities online, such as video streaming,
online gaming, and real-time audio.
t$PNQBUJCMFXJUIH%FWJDFT - The DIR-605 is still fully compatible with the IEEE 802.11g standard, so it can
connect with existing 802.11g PCI, USB and Cardbus adapters.
t"EWBODFE 'JSFXBMM 'FBUVSFT - The Web-based user interface displays a number of advanced network
management features including:
tContent Filtering - Easily applied content filtering based on MAC Address, URL, and/or
Domain Name.
tFilter Scheduling - These filters can be scheduled to be active on certain days or for a
duration of hours or minutes.
tSecure Multiple/Concurrent Sessions - The DIR-605 can pass through VPN sessions. It supports
multiple and concurrent IPSec and PPTP sessions, so users behind the DIR-605 can securely access
corporate networks.
t6TFSGSJFOEMZ4FUVQ8J[BSE -Through its easy-to-use Web-based user interface, the DIR-605 lets you control what
information is accessible to those on the wireless network, whether from the Internet or from your company’s
server. Congure your router to your specic settings within minutes.
* Maximum wireless signal rate derived from IEEE Standard 802.11g and Draft 802.11n specifications. Actual data throughput will vary. Network conditions and
environmental factors, including volume of network trac, building materials and construction, and network overhead, lower actual data throughput rate. Environmental
conditions will adversely aect wireless signal range.
Features

4
D-Link DIR-605 User Manua
l
Section 1 - Pro
d
uct Overvie
w
Har
d
ware Overvie
w
Cti

5
D-Link DIR-605 User Manua
l
Section 1 - Pro
d
uct Overvie
w
Har
d
ware Overvie
w

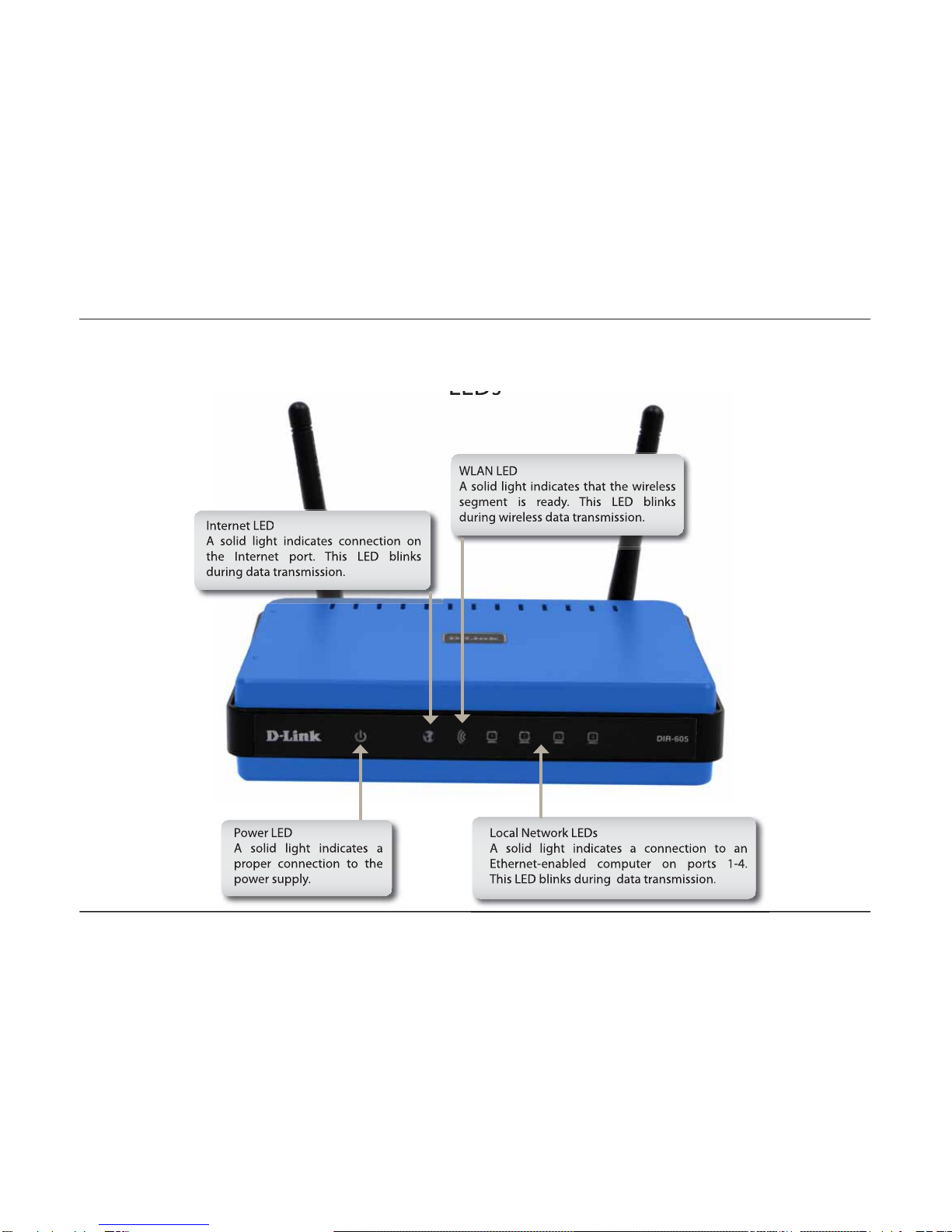

LEDs

6
D-Link DIR-605 User Manual
Section 2 - Installation
Before you Begin
This section will walk you through the installation process. Placement of the router is very important. Do not place the
router in an enclosed area such as a closet, cabinet, or in the attic or garage.
t 1MFBTFDPOöHVSFUIFSPVUFSXJUIUIFDPNQVUFSUIBUXBTMBTUDPOOFDUFEEJSFDUMZUPZPVSNPEFN
t :PV DBOPOMZVTF UIF&UIFSOFUQPSU POZPVS NPEFN*GZPV XFSFVTJOH UIF64#DPOOFDUJPOCFGPSFVTJOH
the router, then you must turn o your modem, disconnect the USB cable and connect an Ethernet cable
to the Internet port on the router, and then turn the modem back on. In some cases, you may need to
call your ISP to change connection types (USB to Ethernet).
t *GZPV IBWF%4- BOEBSF DPOOFDUJOH WJB111P&NBLFTVSFZPVEJTBCMF PSVOJOTUBMMBOZ111P& TPGUXBSF
such as WinPoet, Broadjump, or Enternet 300 from your computer or you will not be able to connect to
the Internet.
t 8IFOSVOOJOH UIF4FUVQ8J[BSE GSPNUIF %-JOL $% NBLFTVSF UIFDPNQVUFSZPVBSF SVOOJOHUIF$%
from is connected to the Internet and online or the wizard will not work. If you have disconnected any
hardware, re-connect your computer back to the modem and make sure you are online.
Installation

7
D-Link DIR-605 User Manual
Section 2 - Installation
Wireless Installation Considerations
The D-Link wireless router lets you access your network using a wireless connection from virtually anywhere within
the operating range of your wireless network. Keep in mind, however, that the number, thickness and location of
walls, ceilings, or other objects that the wireless signals must pass through, may limit the range. Typical ranges vary
depending on the types of materials and background RF (radio frequency) noise in your home or business. The key
to maximizing wireless range is to follow these basic guidelines:
1. Keep the number of walls and ceilings between the D-Link router and other network devices to a
minimum - each wall or ceiling can reduce your adapter’s range from 3-90 feet (1-30 meters.) Position
your devices so that the number of walls or ceilings is minimized.
2. Be aware of the direct line between network devices. A wall that is 1.5 feet thick (.5 meters), at a
45-degree angle appears to be almost 3 feet (1 meter) thick. At a 2-degree angle it looks over 42 feet
(14 meters) thick! Position devices so that the signal will travel straight through a wall or ceiling (instead
of at an angle) for better reception.
3. Building Materials make a dierence. A solid metal door or aluminum studs may have a negative eect on
range. Try to position access points, wireless routers, and computers so that the signal passes through
drywall or open doorways. Materials and objects such as glass, steel, metal, walls with insulation, water
(sh tanks), mirrors, le cabinets, brick, and concrete will degrade your wireless signal.
4. Keep your product away (at least 3-6 feet or 1-2 meters) from electrical devices or appliances that
generate RF noise.
5. If you are using 2.4GHz cordless phones or X-10 (wireless products such as ceiling fans, lights, and
home security systems), your wireless connection may degrade dramatically or drop completely. Make
sure your 2.4GHz phone base is as far away from your wireless devices as possible. The base transmits
a signal even if the phone in not in use.

8
D-Link DIR-605 User Manual
Section 2 - Installation
Network Diagram

9
D-Link DIR-605 User Manual
Section 2 - Installation
If you are connecting the router to a cable/DSL/satellite modem, please follow the steps below:
1. Place the router in an open and central location. Do not plug the power adapter into the router.
2. Turn the power o on your modem. If there is no on/o switch, then unplug the modem’s power adapter. Shut down
your computer.
3. Unplug the Ethernet cable (that connects your computer to your modem) from your computer and place it into the
Internet port on the router.
4. Plug an Ethernet cable into one of the four LAN ports on the router. Plug the other end into the Ethernet port on
your computer.
5. Turn on or plug in your modem. Wait for the modem to boot (about 30 seconds).
6. Plug the power adapter to the router and connect to an outlet or power strip. Wait about 30 seconds for the router
to boot.
7. Turn on your computer.
8. Verify the link lights on the router. The power light, Internet light, and the LAN light (the port that your computer is
plugged into) should be lit. If not, make sure your computer, modem, and router are powered on and verify the cable
connections are correct.
9. Skip to page 13 to congure your router.
Connect to Cable/DSL/Satellite Modem

10
D-Link DIR-605 User Manual
Section 2 - Installation
If you are connecting the D-Link router to another router to use as a wireless access point and/or switch, you will have
to do the following before connecting the router to your network:
t%JTBCMF61O1™
t%JTBCMF%)$1
t$IBOHFUIF -"/*1BEESFTTUPBO BWBJMBCMFBEESFTT POZPVS OFUXPSL5IF-"/QPSUT POUIFSPVUFSDBOOPU
accept a DHCP address from your other router.
To connect to another router, please follow the steps below:
1. Plug the power into the router. Connect one of your computers to the router (LAN port) using an Ethernet cable.
Make sure your IP address on the computer is 192.168.0.xxx (where xxx is between 2 and 254). Please see the
Networking Basics section for more information. If you need to change the settings, write down your existing settings
before making any changes. In most cases, your computer should be set to receive an IP address automatically in
which case you will not have to do anything to your computer.
2. Open a web browser and enter http://192.168.0.1 and press Enter. When the login window appears, set the user
name to Admin and leave the password box empty. Click Log In to continue.
3. Click on Advanced and then click Advanced Network. Uncheck the Enable UPnP checkbox. Click Save Settings
to continue.
4. Click Setup and then click Network Settings. Uncheck the Enable DHCP Server server checkbox. Click Save
Settings to continue.
5. Under Router Settings, enter an available IP address and the subnet mask of your network. Click Save Settings to
save your settings. Use this new IP address to access the conguration utility of the router in the future. Close the
browser and change your computer’s IP settings back to the original values as in Step 1.
Connect to Another Router

11
D-Link DIR-605 User Manual
Section 2 - Installation
6. Disconnect the Ethernet cable from the router and reconnect your computer to your network.
7. Connect an Ethernet cable in one of the LAN ports of the router and connect it to your other router. Do not plug
anything into the Internet port of the D-Link router.
 :PVNBZOPXVTFUIFPUIFS-"/QPSUTUPDPOOFDUPUIFS&UIFSOFUEFWJDFTBOEDPNQVUFST5PDPOöHVSFZPVSXJSFMFTT
network, open a web browser and enter the IP address you assigned to the router. Refer to the Conguration and
Wireless Security sections for more information on setting up your wireless network.

12
D-Link DIR-605 User Manual
Section 2 - Installation
Note: It is recommended to write down the login password on the provided CD holder.
The DIR-605 includes a Quick Router Setup Wizard CD. Follow the simple steps below to run the Setup Wizard to guide you
RVJDLMZUISPVHIUIFJOTUBMMBUJPOQSPDFTT:PVNBZNBOVBMMZDPOöHVSFZPVSSPVUFSXJUIPVUUIFXJ[BSE3FGFSUPUIFOFYUQBHF
to manually setup your router.
Insert the Quick Router Setup Wizard CD in the CD-ROM drive. The step-by-step instructions that follow are shown
in Windows®XP or Vista®. The steps and screens are similar for the other Windows®operating systems.
If the CD autorun function does not automatically start on your computer, go to Start > Run. In the run box type“D:\DIR605.
exe” (where D: represents the drive letter of your CD-ROM drive).
When the autorun screen appears, click Install Router and follow the on-screen instructions.
Getting Started

13
D-Link DIR-605 User Manual
Section 3 - Conguration
Conguration
This section will show you how to configure your new D-Link wireless router using the web-based configuration
utility.

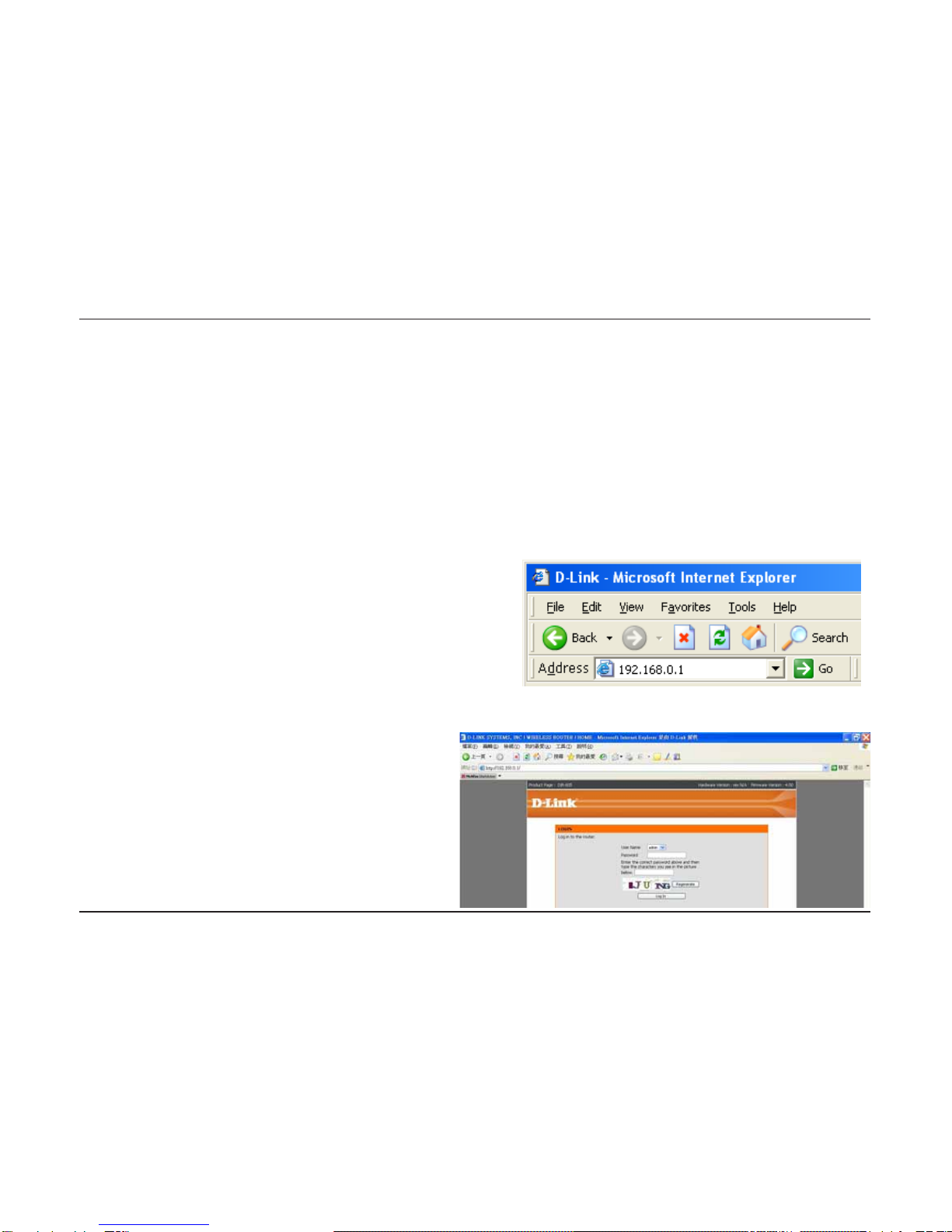

Web-based Conguration Utility
To access the conguration utility, open a web-browser
such as Internet Explorer and enter the IP address of
the router (192.168.0.1).
Select Admin from the drop-down menu and then enter
your password. Leave the password blank by default.
If you get a Page Cannot be Displayed error, please
refer to the Troubleshooting section for assistance.

14
D-Link DIR-605 User Manual
Section 3 - Conguration

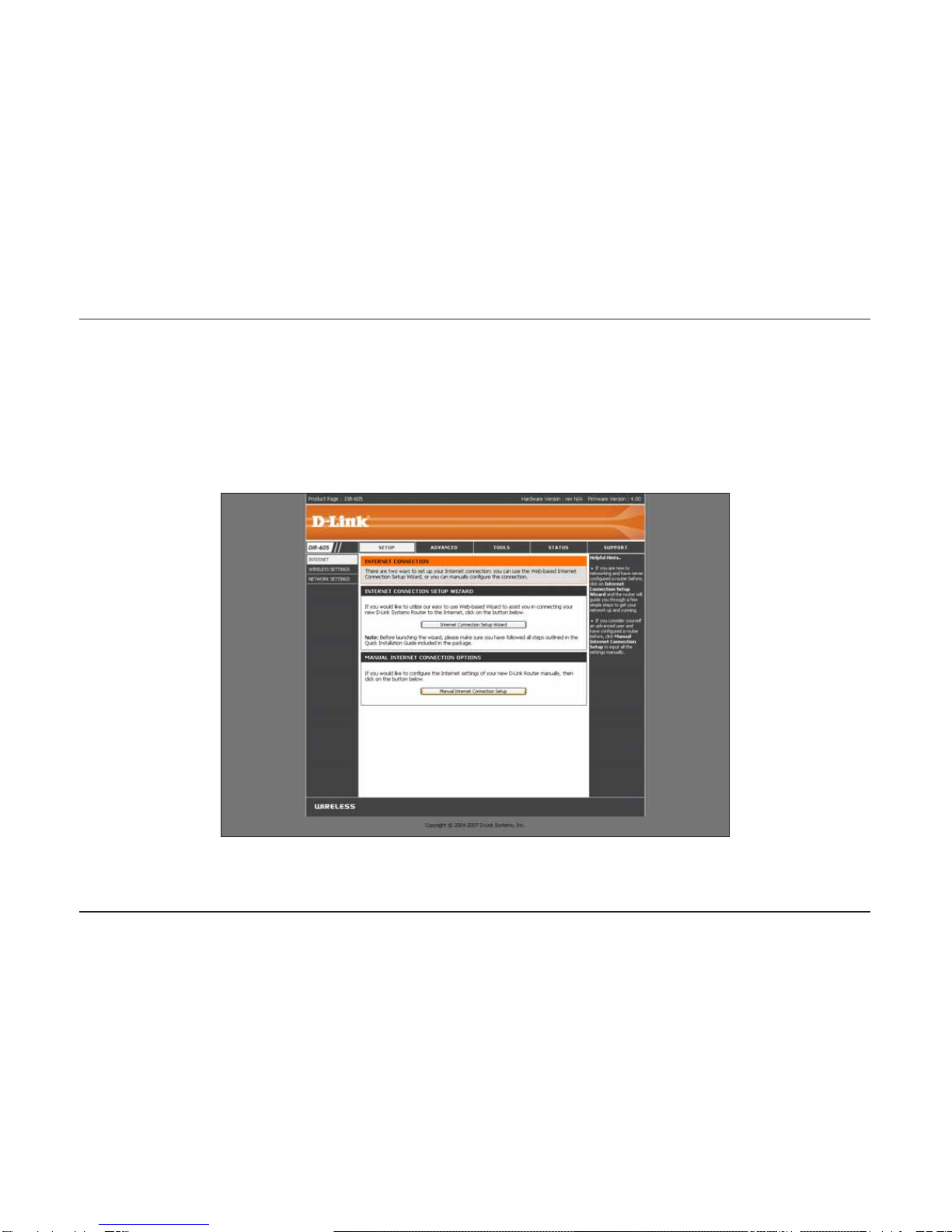

Internet Connection Setup Wizard
Once logged into the web interface of the router, the Setup > Internet page will appear. Click the Internet Connection
Setup Wizard button to quickly congure your router using the setup wizard.
If you want to enter your settings without running the wizard, click Manual Internet Configuration Wizard and skip
to page 19.

15
D-Link DIR-605 User Manual
Section 3 - Conguration
Click Next to continue.
Create a new password and then click Next to
continue.
Select your time zone from the drop-down menu and
then click Next to continue.

16
D-Link DIR-605 User Manual
Section 3 - Conguration
If you selected Dynamic, you may need to enter the
MAC address of the computer that was last connected
directly to your modem. If you are currently using that
computer, click $MPOF:PVS1$T ."$"EESFTT and
then click Next to continue.
The Host Name is optional but may be required by
some ISPs. The default host name is the device
name of the Router and may be changed.
Select the type of Internet connection you use and
then click Next to continue.
