D-Link DIR-809 User manual

Version 2.00 | 2019/02/11
DIR-809
User Manual
Wireless AC750 Dual Band Router

iD-Link DIR-809 User Manual
D-Link reserves the right to revise this publication and to make changes in the content hereof without obligation to notify any person or organization
of such revisions or changes.
Manual Revisions
Revision Date Description
2.00 11 February, 2019 Initial release for revision B1
Trademarks
D-Link and the D-Link logo are trademarks or registered trademarks of D-Link Corporation or its subsidiaries in the United States or other countries.
All other company or product names mentioned herein are trademarks or registered trademarks of their respective companies.
Internet Explorer®, Windows® and the Windows logo are trademarks of the Microsoft group of companies.
Copyright © 2019 by D-Link Corporation, Inc.
All rights reserved. This publication may not be reproduced, in whole or in part, without prior expressed written permission from D-Link Corporation, Inc.
The purpose of this product is to create a constant network connection for your devices. As such, it does not have a standby mode or use a power
management mode. If you wish to power down this product, please simply unplug it from the power outlet.
Preface

iiD-Link DIR-809 User Manual
Table of Contents
Package Contents..............................................................1
System Requirements.................................................................2
Introduction ................................................................................... 3
Features............................................................................................ 4
Hardware Overview.....................................................................5
LEDs........................................................................................... 5
Connections ...........................................................................6

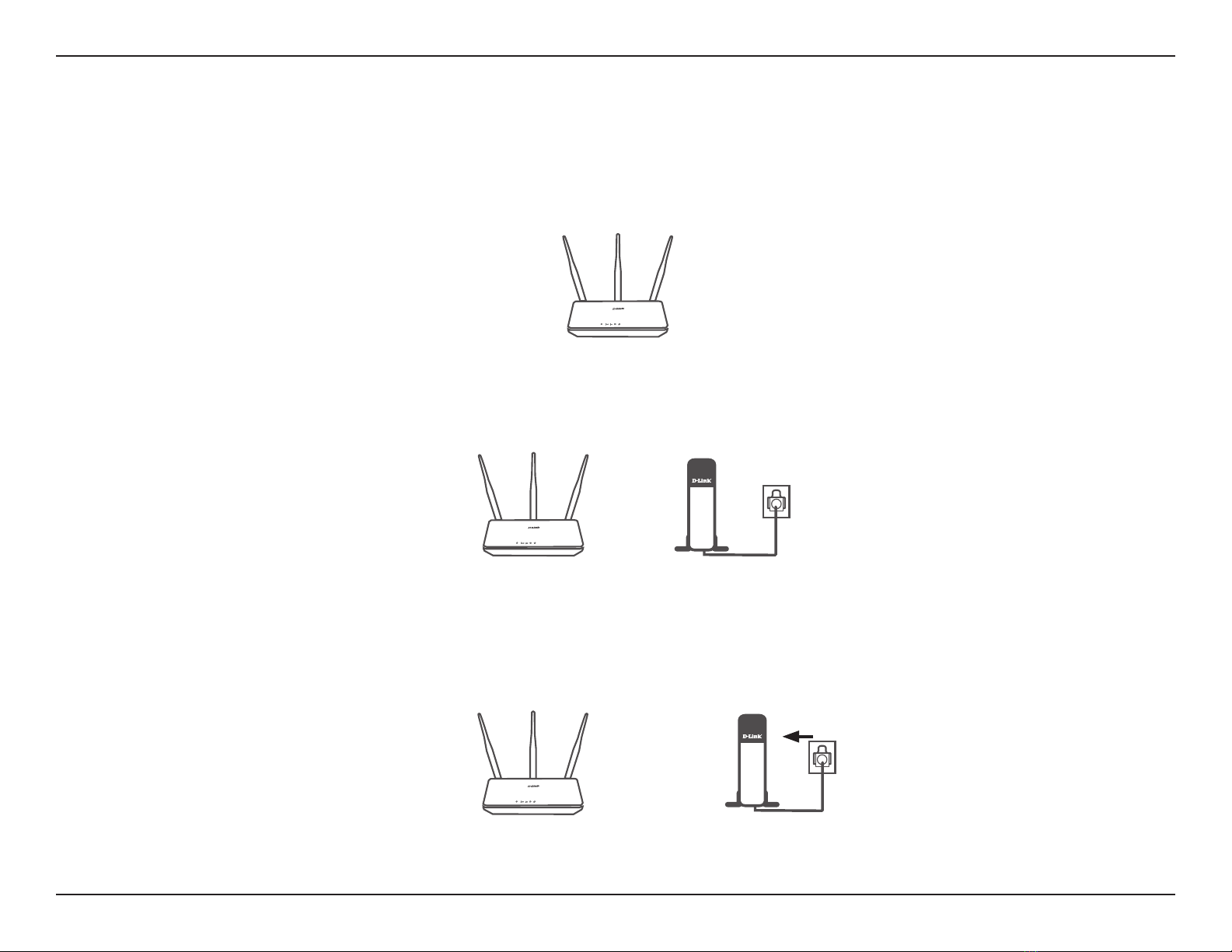

Device Mode .................................................................................. 7
Router Mode........................................................................... 8
Repeater Mode...................................................................... 9
Installation.......................................................................10
Before You Begin.........................................................................10
Wireless Installation Considerations....................................11

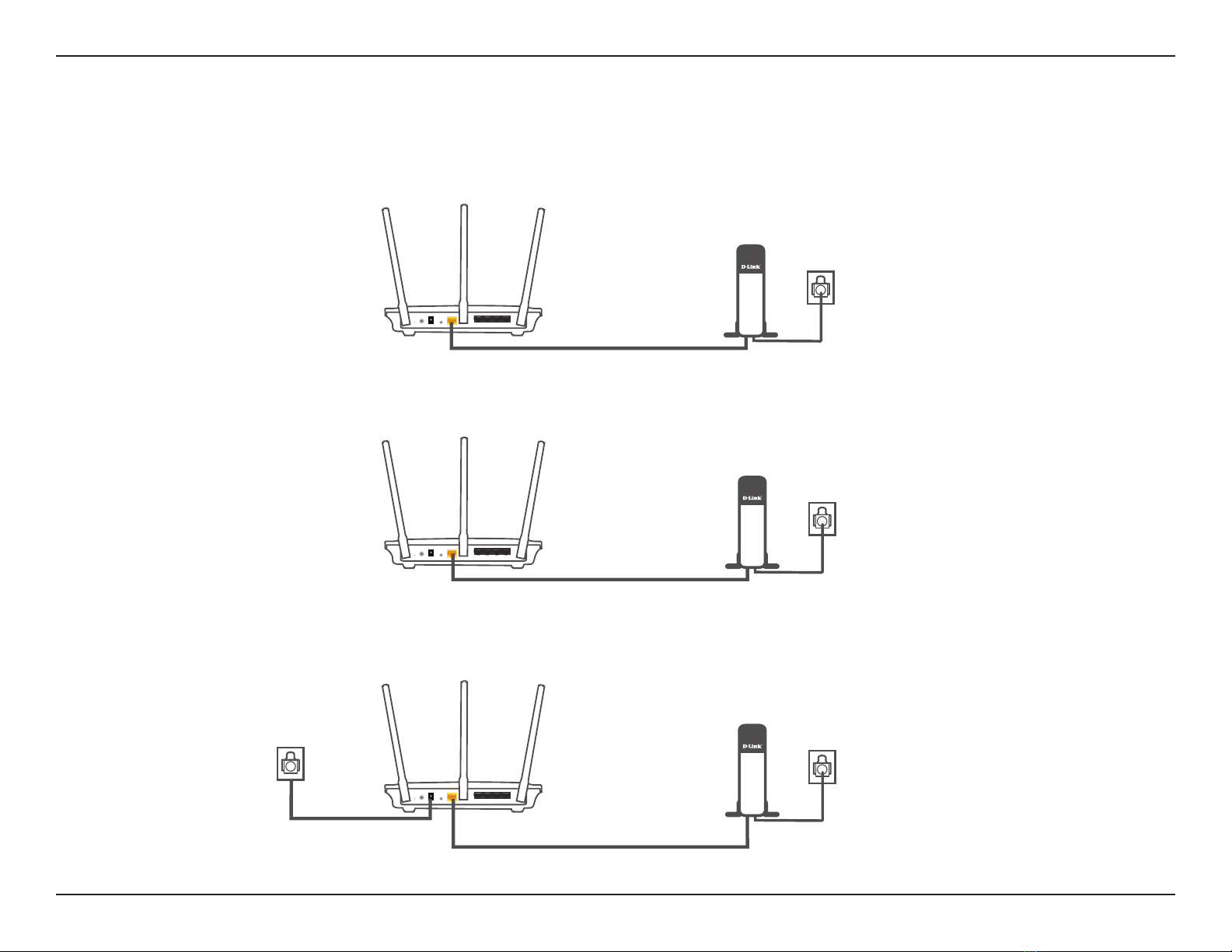

Hardware Setup ..........................................................................12

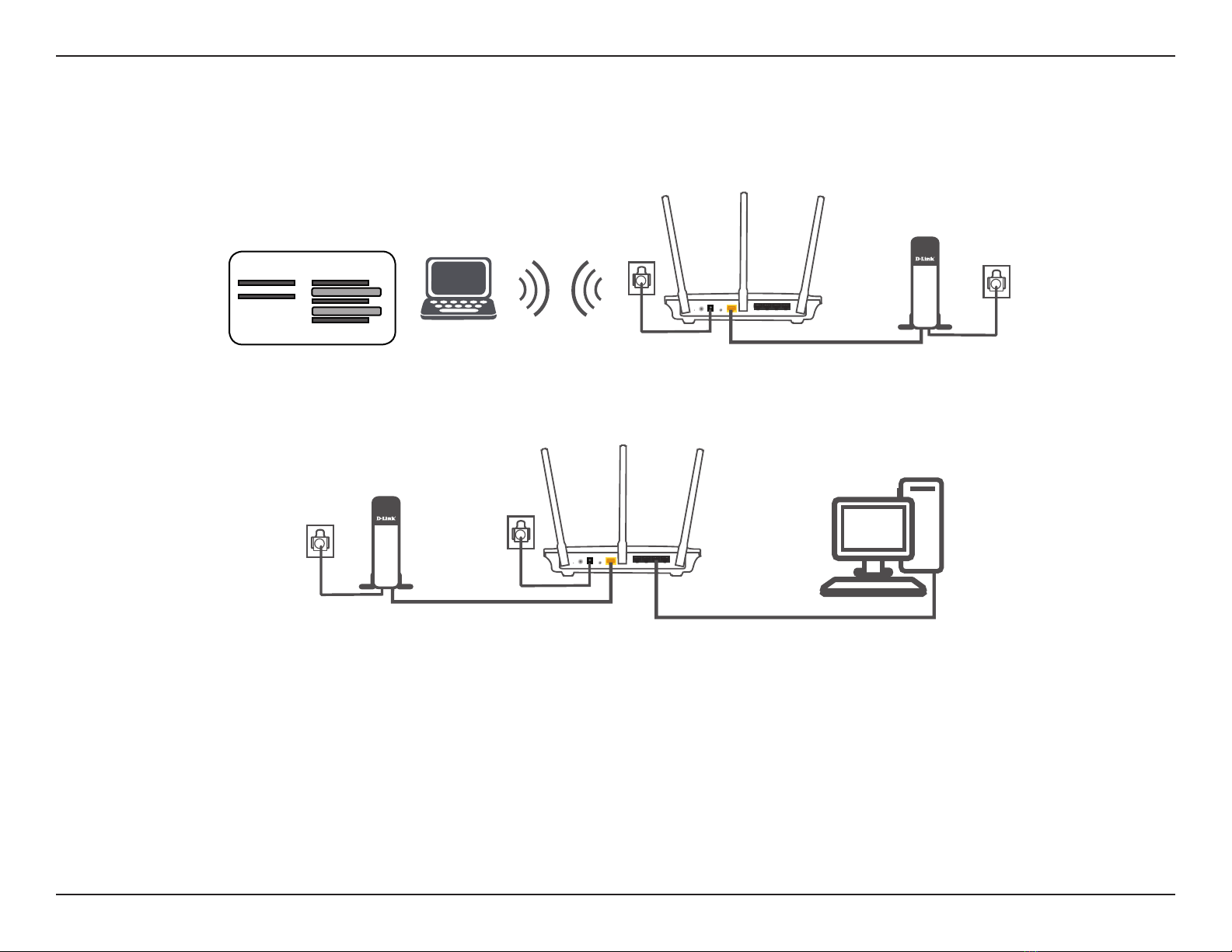

Completing Setup......................................................................15
Setup Wizard ................................................................................16
Conguration...................................................................24
Web UI Table of Contents ........................................................25
Setup...............................................................................................26
Internet...................................................................................27
Internet Connection Setup Wizard..........................28
Manual Internet Connection Setup ........................36
Wireless Settings.................................................................46
Wireless Connection Setup Wizard..........................47
Add Wireless Device with WPS..................................50
Manual Wireless Connection Setup ........................53
Wireless Security Mode ...............................................55
Network Settings ................................................................57
IPv6 ..........................................................................................60
IPv6 Internet Connection Setup Wizard ................61
IPv6 Local Connectivity Settings..............................65
Manual IPv6 Internet Connection Setup...............66
Device Mode ........................................................................82
Repeater Mode....................................................................83
2.4G/5G Repeater...........................................................84
Advanced ......................................................................................85
Virtual Server........................................................................86
Port Forwarding ..................................................................87
Application Rules................................................................88
QOS Engine...........................................................................89
Network Filter.......................................................................91
Inbound Filter ......................................................................92
Access Control .....................................................................93
Add Policy.........................................................................94
Website Filter........................................................................97
Firewall Settings..................................................................98
Routing................................................................................ 100
Advanced Wireless .......................................................... 101
Wi-Fi Protected Setup .................................................... 102
Advanced Network ......................................................... 103
Guest Zone......................................................................... 104
IPv6 Firewall....................................................................... 105
IPv6 Routing ...................................................................... 107
Table of Contents

iiiD-Link DIR-809 User Manual
Table of Contents
Tools ............................................................................................. 108
Admin .................................................................................. 109
Time...................................................................................... 110
Syslog................................................................................... 111
System ................................................................................. 112
Firmware ............................................................................. 113
Dynamic DNS .................................................................... 114
System Check.................................................................... 115
Schedules ........................................................................... 116
Status ........................................................................................... 117
Device Info ......................................................................... 118
Logs ...................................................................................... 120
Statistics.............................................................................. 121
Internet Sessions.............................................................. 122
Wireless ............................................................................... 123
Routing................................................................................ 124
IPV6....................................................................................... 125
IPv6 Routing ...................................................................... 126
Support ....................................................................................... 127
Connect a Wireless Client to Your Router.....................128
WPS Button................................................................................ 128
Windows® 10............................................................................. 129
Windows® 8................................................................................ 131
WPA/WPA2 ......................................................................... 131
Windows® 7................................................................................ 133
WPA/WPA2 ......................................................................... 133
WPS....................................................................................... 135
Windows Vista®......................................................................... 139
WPA/WPA2 ......................................................................... 140
Troubleshooting............................................................142
Wireless Basics...............................................................146
What is Wireless?...................................................................... 147
Tips................................................................................................ 149
Wireless Modes......................................................................... 150
Networking Basics.........................................................151
Check your IP address............................................................ 151
Statically Assign an IP address............................................ 152
Wireless Security ......................................................... 153
What is WPA? ................................................................ 153
Technical Specications................................................154
Regulatory Information ................................................155

1D-Link DIR-809 User Manual
Section 1 - Product Overview
Package Contents
Note: Using a power supply with a dierent voltage rating than the one included with the DIR-809 will cause damage and void the warranty
for this product.
If any of the above items are missing, please contact your reseller.
DIR-809 Wireless AC750 Dual Band Router
Power Adapter
Ethernet Cable
Wi-Fi Conguration Card
Quick Install Guide

2D-Link DIR-809 User Manual
Section 1 - Product Overview
Network Requirements
• An Ethernet-based cable or DSL modem
• IEEE 802.11ac, 802.11n, 802.11a, 802.11g, or 802.11b wireless clients
• 10/100 Ethernet
Web-based Conguration
Utility Requirements
Computer with the following:
• Windows®, Macintosh, or Linux-based operating system
• An installed Ethernet adapter
Browser Requirements:
• Internet Explorer 10 or higher
• Firefox 28 or higher
• Safari 6 or higher
• Chrome 28 or higher
Windows®Users: Make sure you have the latest version of Java installed.
Visit www.java.com to download the latest version.
System Requirements

3D-Link DIR-809 User Manual
Section 1 - Product Overview
Introduction
The D-Link DIR-809 Wireless AC750 Dual Band Router shares your Internet connection over a blazing-fast wireless connection of up to 750 Mbps
(up to 433 Mbps over 5 GHz Wireless AC and up to 300 Mbps over 2.4 GHzWireless N)1, using advanced AC beamforming technology to signicantly
outperform 802.11n and other 802.11ac devices. Equipped with one Fast EthernetWAN/Internet port and four Fast Ethernet LAN ports, the DIR-809
creates an excellent networking experience.
Featuring four antennas, the Wireless AC750 Dual Band Router oers better data rates, fewer dead-spots, more coverage, and higher reliability.
Operating exclusively in the 5 GHz band, the DIR-809’s 802.11ac wireless connections avoid the crowded 2.4 GHz band, giving you faster speeds while
still maintaining backwards compatibility with older 802.11n/g/b devices. A stronger Wi-Fi signal means you can install more wireless surveillance
cameras, baby monitors, sensors, and alarms in the places where you need them.
The DIR-809 supports the latest security features to help prevent unauthorized access. Support for WPA™ and WPA2™ standards ensure that you
will be able to use the best possible encryption regardless of your client devices. This router is also equipped with a dual-active rewall (SPI and
NAT) to prevent potential attacks over the Internet.
The DIR-809 is full of features to improve your home network. The rich parental controls allow you to easily control when the Internet should be
available in your home and what content is allowed. With all this and more, the DIR-809 Wireless AC750 Dual Band Router will serve your network
well for years to come.
1 Maximum wireless signal rate derived from IEEE Standard 802.11a, 802.11g, 802.11n and 802.11ac specications. Actual data throughput will vary. Network conditions and
environmental factors, including volume of network trac, building materials and construction, and network overhead, lower actual data throughput rate. Environmental
conditions will adversely aect wireless signal range.

4D-Link DIR-809 User Manual
Section 1 - Product Overview
•ExcellentWireless Networking -The DIR-809 provides wireless speeds of up to a combined 750 Mbps (433 Mbps 802.11ac 5 GHz, plus
300 Mbps 802.11n 2.4 GHz)1. This capability rivals wired connections, allowing users to participate in real-time activities online, such
as HD video communication, online gaming, and use mobile devices from anywhere in your home while still oering full 802.11n/g/b
backward compatibility.
• Fast Wired LAN andWAN Networking - With four 10/100 Fast Ethernet LAN ports, and a 10/100 Fast EthernetWAN port, the DIR-809
has an enormous amount of bandwidth to take full advantage of the highest speed broadband connections available.
• IPv6 Support -The DIR-809 fully supports IPv6 and includes support for a variety of IPv6 connection types including: SLAAC/DHCPv6,
6to4, 6rd, Static IPv6, IPv6 PPPoE, IPv6 in IPv4 tunneling, and local connectivity.
• Advanced Firewall Features - The web-based user interface displays a number of advanced network management features. Easily
apply content ltering based on MAC address, URL, and/or domain name. Schedule these lters to be active on certain days or for a
duration of hours or minutes.
• Secure Multiple/Concurrent Sessions - The DIR-809 can pass through VPN sessions. It supports multiple and concurrent IPSec and
PPTP sessions, so users behind the DIR-809 can securely access corporate networks.
• User-friendly Setup Wizard - Through its easy-to-use web-based user interface, the DIR-809 lets you quickly congure and secure
your router to your specic settings in minutes.
1 Maximum wireless signal rate derived from IEEE Standard 802.11a, 802.11g, 802.11n and 802.11ac specications. Actual data throughput will vary. Network
conditions and environmental factors, including volume of network trac, building materials and construction, and network overhead, lower actual data
throughput rate. Environmental conditions will adversely aect wireless signal range.
Features

5D-Link DIR-809 User Manual
Section 1 - Product Overview

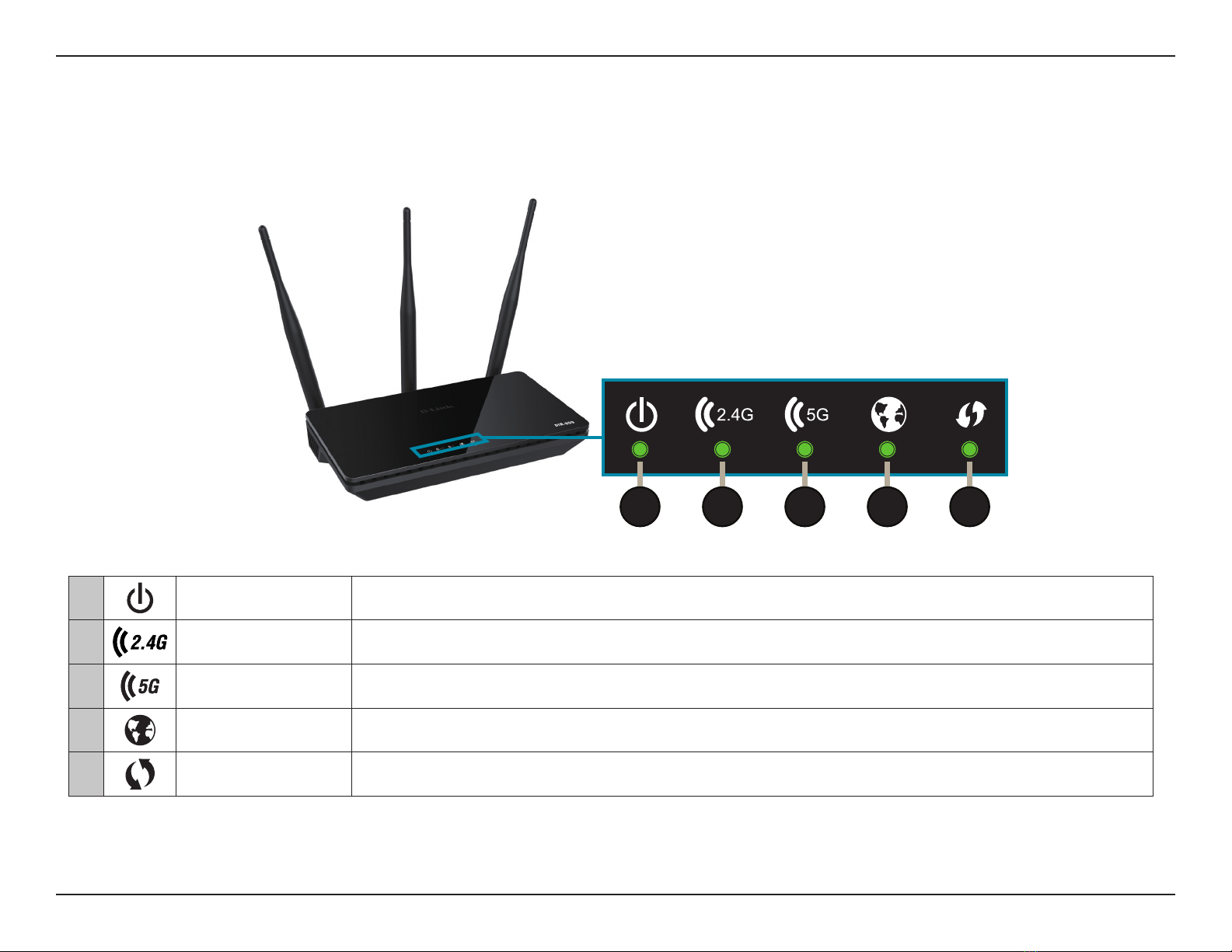

Hardware Overview
LEDs
1Power The Power LED indicates that the device is powered on with a proper connection to the power supply.
22.4 GHz Wireless TheWireless LED indicates that this wireless band is working. It blinks during wireless data transmission.
35 GHz Wireless TheWireless LED indicates that this wireless band is working. It blinks during wireless data transmission.
4Internet The Internet LED indicates that an Internet link is established. It blinks during data transmission.
5WPS The WPS LED blinks during the WPS pairing process.
1 2 3 4 5

6D-Link DIR-809 User Manual
Section 1 - Product Overview

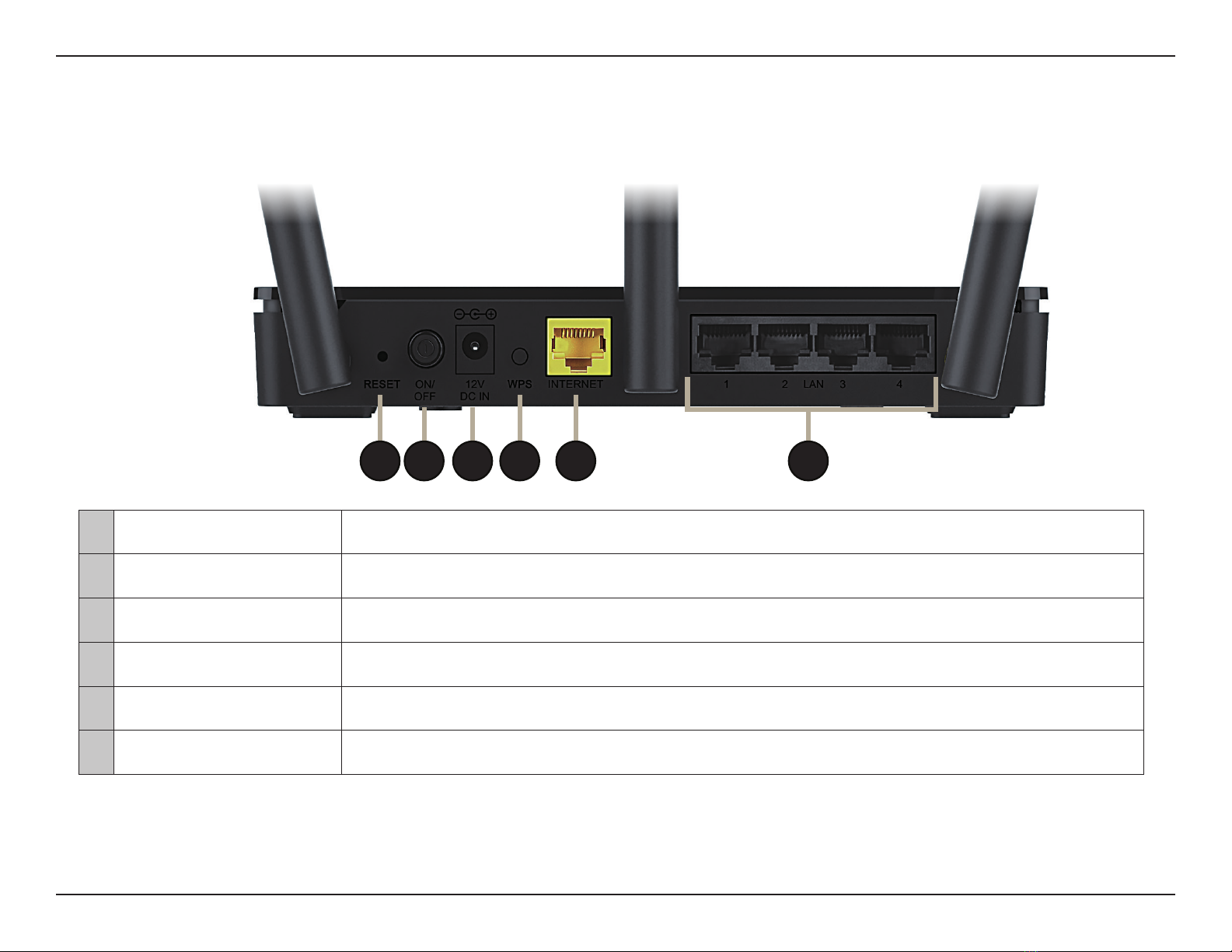

Hardware Overview
Connections
1 32 4 5 6
1 Reset Button Insert a paperclip in the hole, wait for 10 seconds, and release to reset the router to default settings.
2 Power Button Press the power button to power the device on and o.
3 Power Connector Connector for the supplied power adapter.
4 WPS Button Press to start the WPS process and automatically create a secure connection to a WPS client.
5 Internet Port Using an Ethernet cable, connect your broadband modem to this port.
6 LAN Ports (1-4) Connect Ethernet devices such as computers, switches, storage (NAS) devices and game consoles.

7D-Link DIR-809 User Manual
Section 1 - Product Overview
Device Mode
How you want to use your DIR-809 will determine which mode you use. The following pages describe each mode to help you determine which
one to use.
• Router Mode
• Repeater Mode
By default, the DIR-809 ships in Router Mode. If you wish to change to another mode, ensure that initial setup in Router Mode is complete, and then
change to the desired mode, described in Device Mode on page 82.

8D-Link DIR-809 User Manual
Section 1 - Product Overview

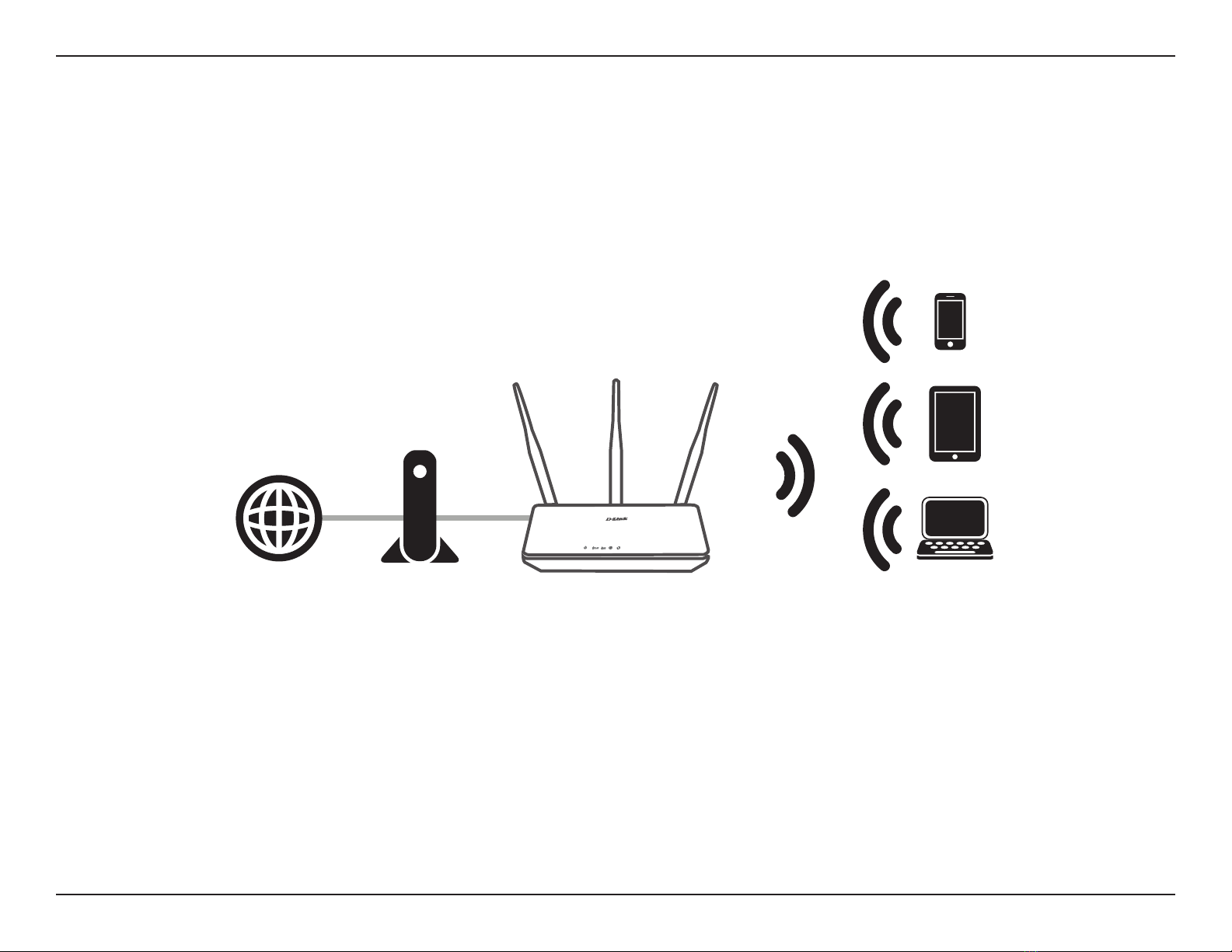

Router Mode
In Router Mode, the DIR-809 connects to your cable modem, DSL modem, or other Internet source and shares your Internet connection with your
devices wirelessly, providing Internet access for an entire home or oce. This is the default and recommended mode.
Router Mode
Cable/DSL Modem Wireless DevicesInternet
DIR-809

9D-Link DIR-809 User Manual
Section 1 - Product Overview

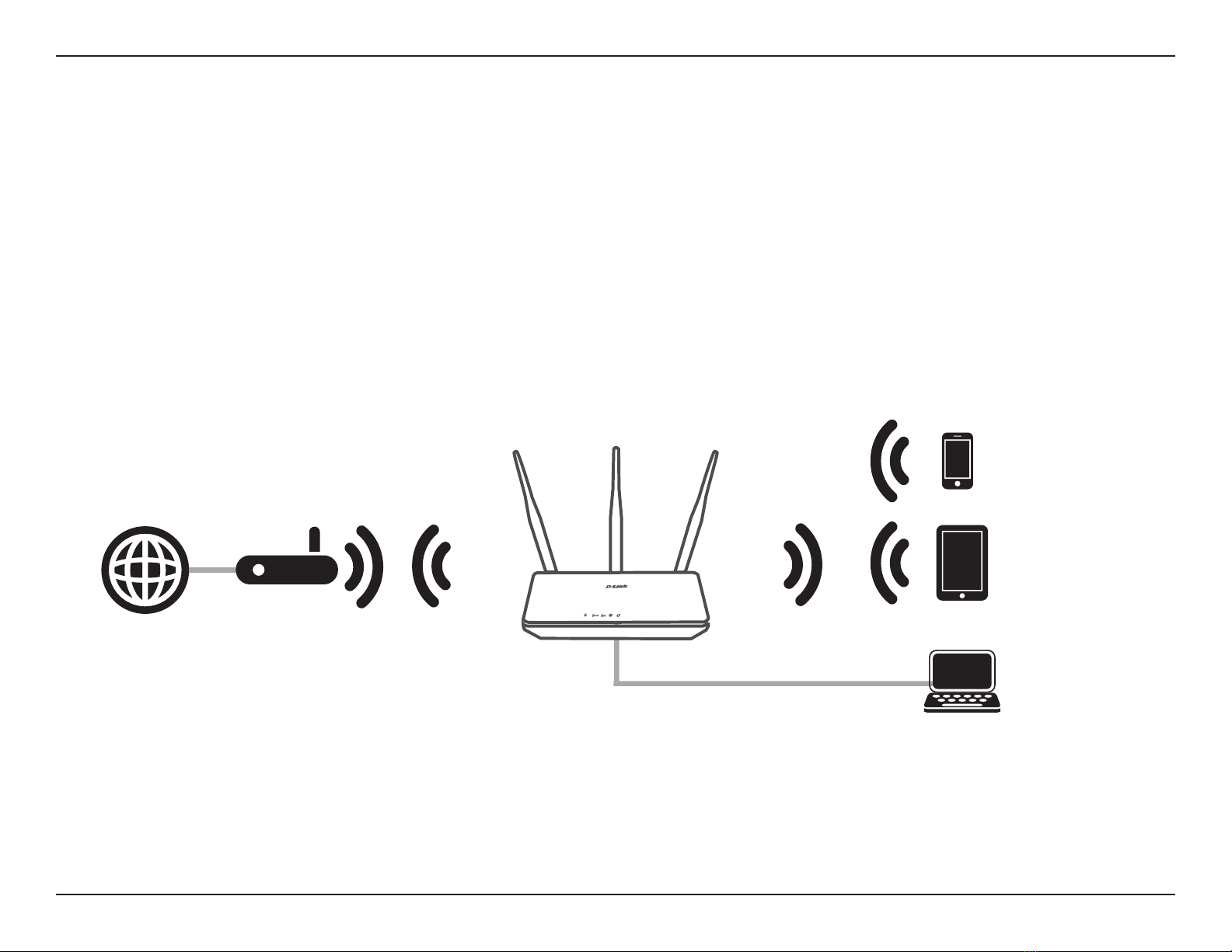

Repeater Mode
In Repeater Mode, the DIR-809 extends the range of an existing wireless network. You can use this to extend the coverage of an existing wireless
router to provide better signal for parts of your home or oce that may have poor reception. Additionally, you can use this mode to connect a wired
device to a wireless network, which can be useful for devices that do not have a built-in wireless card, such as some smart TVs, game consoles, or
DVRs.
Cable/DSL Modem
Wireless Devices
Internet
DIR-809

10D-Link DIR-809 User Manual
Section 2 - Installation
Before You Begin
Installation
• Placement of the router is very important. Do not place the router in an enclosed area such as a closet, cabinet, attic, or garage.
• Congure the router with the computer that was last connected directly to your Internet connection. Verify that it is connected to
the Internet before connecting additional devices.
• If your ISP provided you with a modem/router combo, you will need to set it to“bridge”mode so the router can work properly. Please
contact your Internet Service Provider (ISP) or refer to the user manual for your modem/router device.
• You can only use the Ethernet port on your modem. If you were using the USB connection before using the router, then you must
turn o your modem, disconnect the USB cable and connect an Ethernet cable to the Internet port on the router, and then turn the
modem back on. In some cases, you may need to call your ISP to change connection types (USB to Ethernet).
• If connecting to a DSL modem, make sure to have your DSL service information provided by your Internet Service Provider handy.
This information is likely to include your DSL account's username and password. Your ISP may also supply you with additional WAN
conguration settings which might be necessary to establish a connection.
• If you are connecting a considerable amount of networking equipment, it may be a good idea to take the time to label each cable
or take a picture of your existing setup before making any changes.
• If you have DSL and are connecting via PPPoE, make sure you disable or uninstall any PPPoE software such as WinPoET, BroadJump,
or EnterNet 300 from your computer or you will not be able to connect to the Internet.

11D-Link DIR-809 User Manual
Section 2 - Installation
Wireless Installation Considerations
This D-Link wireless device lets you access your network using a wireless connection from virtually anywhere within the operating range of your
wireless network. Keep in mind that the number, thickness and location of walls, ceilings, or other objects that the wireless signals must pass through
may limit the range. Typical ranges vary depending on the types of materials and background RF (radio frequency) noise in your home or business.
The key to maximizing wireless range is to follow these basic guidelines:
1. Keep the number of walls and ceilings between the D-Link router and other network devices to a minimum - each wall or ceiling
can reduce your adapter’s range from 1 to 30 meters (3 to 90 feet). Position your devices so that the number of walls or ceilings is
minimized.
2. Be aware of the direct line between network devices. A wall that is 0.5 meters (1.5 feet) thick, at a 45-degree angle appears to be
almost 1 meter (3 feet) thick. At a 2-degree angle it looks over 14 meters (42 feet) thick! Position devices so that the signal will
travel straight through a wall or ceiling (instead of at an angle) for better reception.
3. Building materials make a dierence. A solid metal door or aluminum studs may have a negative eect on range. Try to position
access points, wireless routers, and computers so that the signal passes through drywall or open doorways. Materials and objects
such as glass, steel, metal, walls with insulation, water (sh tanks), mirrors, le cabinets, brick, and concrete will degrade your
wireless signal.
4. Keep your product away at least 1 to 2 meters (3 to 6 feet) from electrical devices or appliances that generate RF noise.
5. If you are using 2.4 GHz cordless phones or X-10 (wireless products such as ceiling fans, lights, and home security systems), your
wireless connection may degrade dramatically or drop completely. Make sure your 2.4 GHz phone base is as far away from your
wireless devices as possible. The base transmits a signal even if the phone is not in use.

12D-Link DIR-809 User Manual
Section 2 - Installation
1. The DIR-809 is designed to give you the fastest, most stable network connection possible. In order to maximize performance, fully extend
the antennas to provide optimal wireless coverage. Keep the router in an open area for better wireless coverage.
2. Position your DIR-809 near your Internet-connected modem. Place it in an open area for better wireless coverage.
Hardware Setup
3. Turn o and unplug the power and Ethernet cable to your cable or DSL broadband modem. This is required. In some cases, you may need
to turn it o for up to ve minutes.
Modem
DIR-809
Modem
DIR-809
DIR-809

13D-Link DIR-809 User Manual
Section 2 - Installation
4. Use the included Ethernet cable to connect your modem to the yellow port labeled INTERNET on the router.
5. Turn on or plug your modem back in and wait approximately one minute before proceeding onward.
6. Connect the supplied power adapter to the router and a power outlet, press the power button, and verify that the power LED is lit. Allow
1 minute for the router to boot up.
Hardware Setup (continued)
INTERNET
POWER POWERPORT WPS
4321
RESET
DIR-809
INTERNET
POWER POWERPORT WPS
4321
RESET
DIR-809
Modem
INTERNET
POWER POWERPORT WPS
4321
RESET
DIR-809
Modem
Modem

14D-Link DIR-809 User Manual
Section 2 - Installation
7. If you are conguring the DIR-809 wirelessly from a PC, connect to a Wi-Fi network printed on the included Wi-Fi conguration card. You
can also nd the Wi-Fi network names and passwords printed on the label attached to the bottom of your router.
8. If you are connecting to a broadband service that uses a dynamic connection (not PPPoE), you may be online already. Try opening a web
browser and connecting to a website. If the website does not load, proceed to Completing Setup on page 15.
If you are conguring the DIR-809 from a PC with a wired Ethernet connection, plug one end of an Ethernet cable into the port labeled
1 on the back of the router, and the other end into the Ethernet port on your computer.
Hardware Setup (continued)
INTERNET
POWER POWERPORT WPS
4321
RESET
INTERNET
POWER POWERPORT WPS
4321
RESET
DIR-809
DIR-809
Wi-Fi Conguration Card
Modem
Modem

15D-Link DIR-809 User Manual
Section 2 - Installation
Completing Setup
There are several dierent ways you can congure your router to connect to the Internet and connect to your clients:
• D-Link Setup Wizard - This wizard will launch when you log into the router for the rst time, refer to Setup Wizard on page 16.
•Manual Setup - Log into the router and manually congure your router, refer to Conguration on page 24.

16D-Link DIR-809 User Manual
Section 2 - Installation
WELCOME TO THE D-LINK SETUP WIZARD
This wizard will guide you through a step-by-step process to congure your new D-Link router and connect to the
Internet.
• Step 1: Congure your Internet Connection
• Step 2: Congure your Wi-Fi Security
• Step 3: Set your Password
• Step 4: Select your Time Zone
• Step 5: Conrm Wi-Fi Settings
Cancel Next
The wizard is designed to guide you through a step-by-step process to congure your new
D-Link router and connect to the Internet.
Click Next to continue.
WELCOME TO THE DLINK SETUP WIZARD

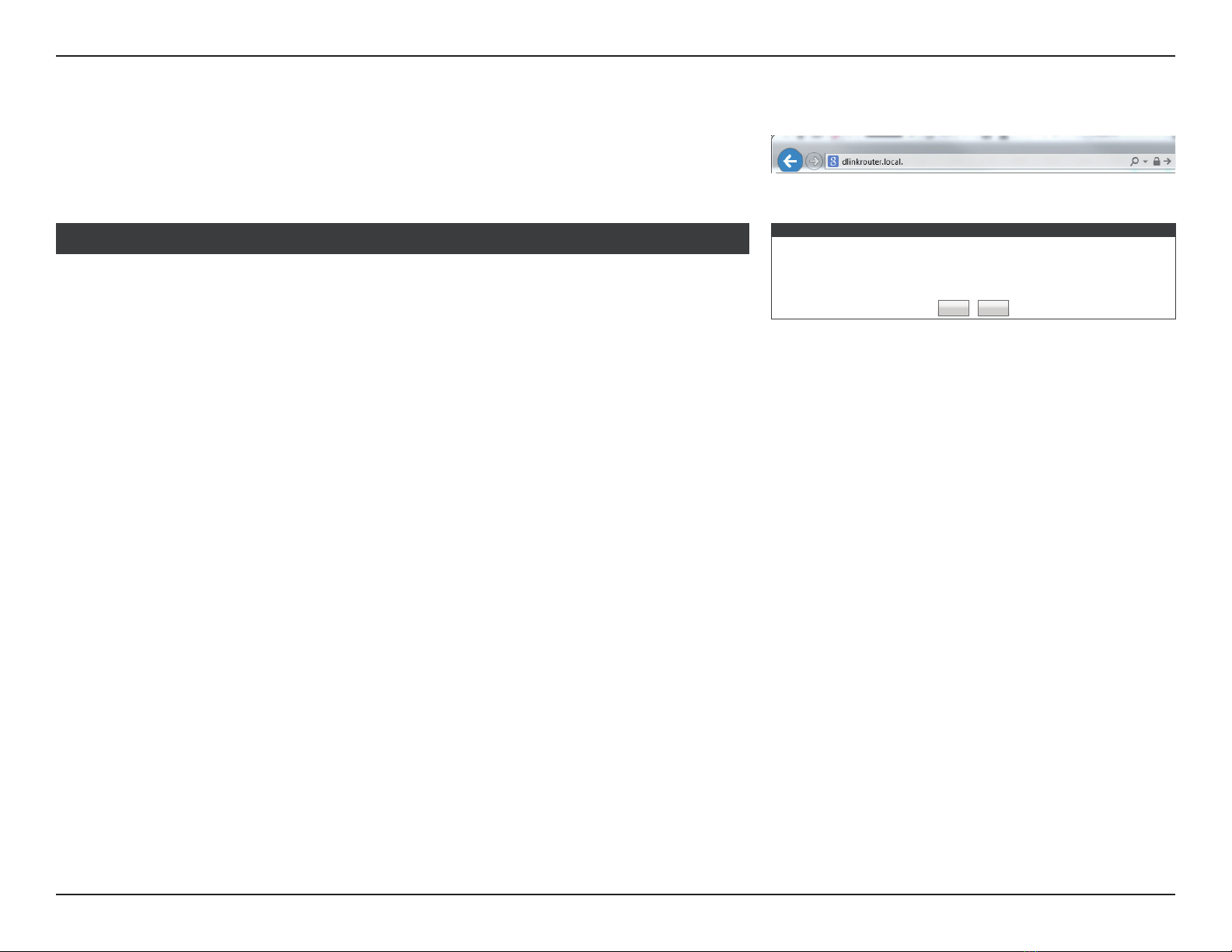

Setup Wizard
If this is your first time installing the router, open your web browser and enter
http://dlinkrouter.local./ in the address bar. Alternatively, enter the IP address of the router
(default: http://192.168.0.1). The rst time you log in, the setup wizard will run.
