D-Link DSL-G604T User manual

©2004 D-Link Systems, Inc. All rights reserved. Trademarks or registered trademarks are the property of
their respective holders. Software and specifications subject to change without notice. DSL-G604T
Wireless ADSL Router
1
ADSL Cable (standard telephone cable)
DSL-G604T
shown with antenna and stand
Ethernet Cable
(CAT5 UTP Straight-Through)
12V, 1.2A Power
Adapter
Before You Begin
1. If you purchased this Router to share your high-speed Internet connection with other
computers, you must have an established Internet account from an Internet Service
Provider (ISP).
2. It’s best to use the same computer that is connected to your router for configuring the
DSL-G604T Wireless ADSL Router. The DSL-G604T acts as a DHCP server and will
assign all the necessary IP address information on your network. See at the Quick
Installation Guide or the Manual on the CD-ROM for setting each network adapter to
automatically obtain an IP address.
Check Your Package Contents
If any of the above items is missing, please contact your reseller.
This product can be set up using
any current web browser, i.e.,
Internet Explorer 6 or Netscape
Navigator 6.2.3.
DSL-G604T
Wireless ADSL Route
r
Using a power adapter with
a different voltage rating will
damage and void the
warranty for this product.
CD-Rom
containing Manual and Warranty
EENGLISH

2

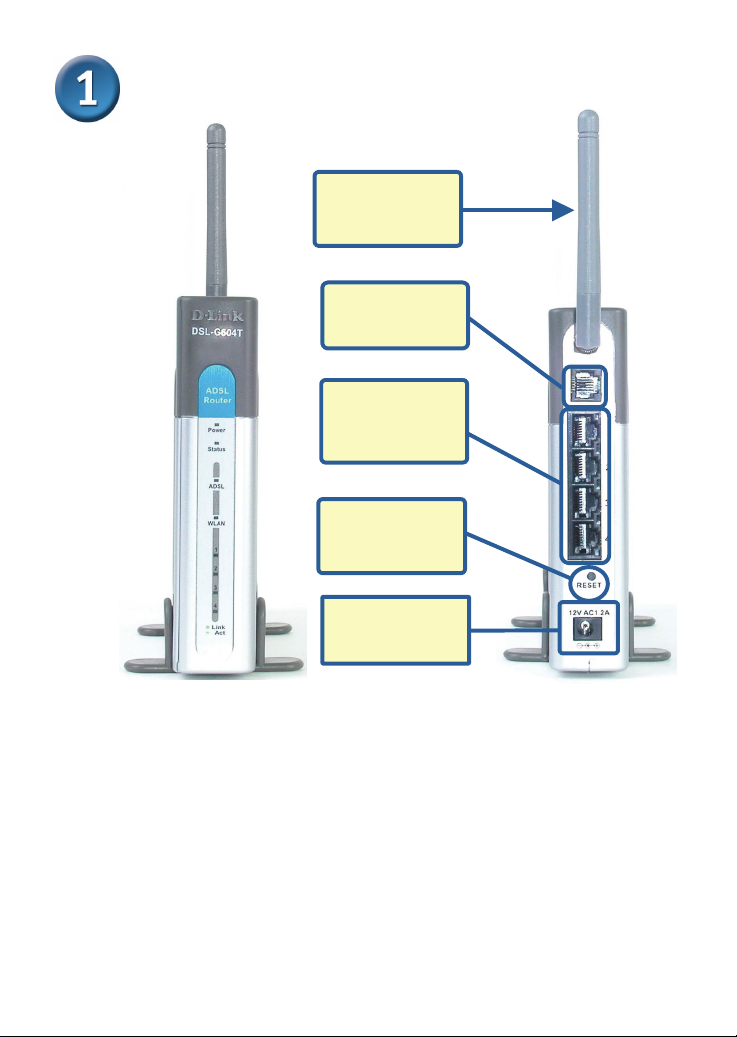

Connecting the Router to your Computer
A. First, connect the power adapter to the power input at the back
panel of the DSL-G604T and then plug the other end of the
power adapter to a wall outlet or power strip. On the front of the
device, the Power LED will turn ON to indicate proper operation.
B. Insert one end of the Ethernet cable into an Ethernet (LAN) port
on the back panel of the DSL-G604T and the other end of the
cable to an Ethernet Adapter or available Ethernet port on your
computer.
C. Insert the telephone cable included with the Router into the
ADSL port, then connect the cable to your telephone line.
D. Check the LED display on the front of the Router to confirm that
the connections have been made.
Power Input
Connect to AC
Adapter
Reset
Push to return to
factory settings
LAN Ports
Connect to the
LAN and other
computers
A
DSL Port
Connect to your
ADSL provider
A
ntenna
Ensures good
wireless reception

3
Configure IP Settings
For Microsoft Windows XP
To connect to the network, make sure the network adapter in
your computer is configured properly. Here’s how to configure
the network adapter to obtain an IP address automatically for
the DSL-G604T Wireless ADSL Router.

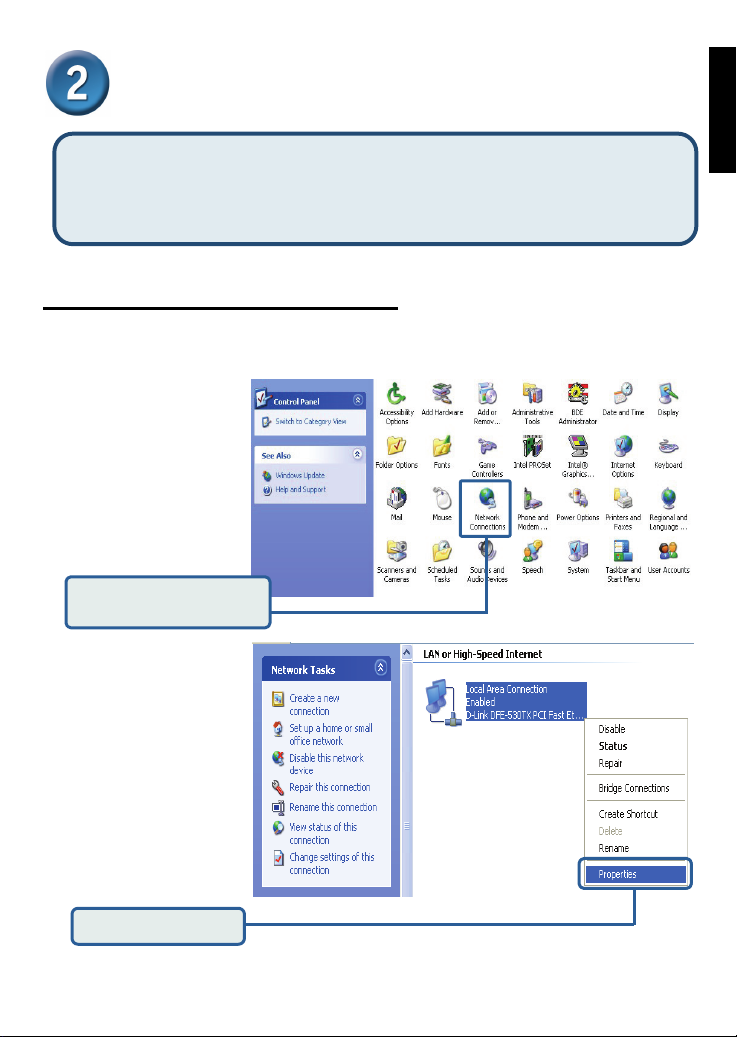

Go to Start > select
Settings > click
Control Panel >
Double-click on the
Network
Connections icon
Double-click on
Network Connections
Right-click the
Local Area
Connection icon,
and then select
Properties.
Select Properties
EENGLISH

4

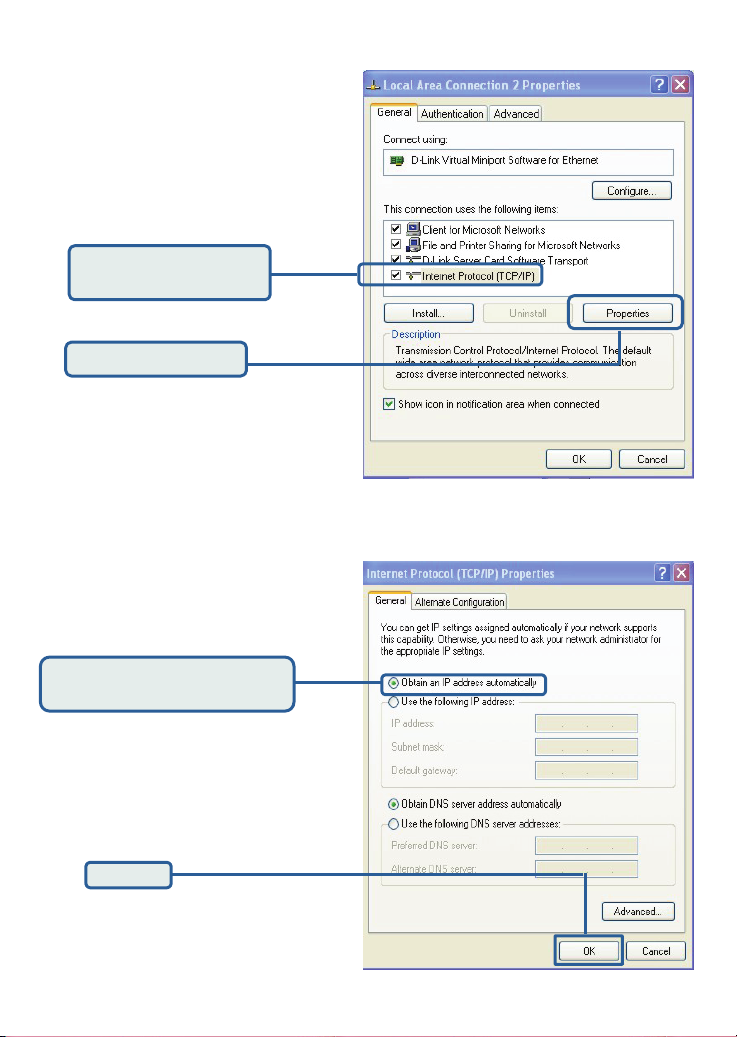

The dialog box displays with a
list of currently installed
network items.
Click Internet Protocol
(TCP/IP)
Make the choice to get IP
settings assigned
automaticall
y
.
Select Obtain an IP address
automatically
Click OK
Click Properties

5
Using additional Ethernet (CAT5 UTP) cables, connect your Ethernet-
equipped computers to the LAN ports on the back panel of the DSL-
G604T.
When you have completed the steps in this Quick Installation Guide,
your connected network should look similar to this:
Connecting Additional Computers
To The DSL-G604T
Wireless ADSL Router
EENGLISH

6
Configuring the Router
You can select two methods to configure your new router. The first
method is by using D-Link Click’n Connect Utility, which is included on
the CD designed to run on Windows XP/2000. Just follow the instructions
step by step to configure your router for Internet access for the first time.
The second method is to use your Web browser to access the built in
web server pages used to setup the Router, your computer’s network
adapter must be configured to “Obtain an IP address automatically”, that
is, you must set the IP network settings of your computer so it is DHCP
Client. If you are using Windows XP and do not know how to change your
network settings, skip ahead to Appendix and follow the instructions
provided. You may also read the User Manual for instructions on
changing IP settings for computers running other Windows operating
systems.

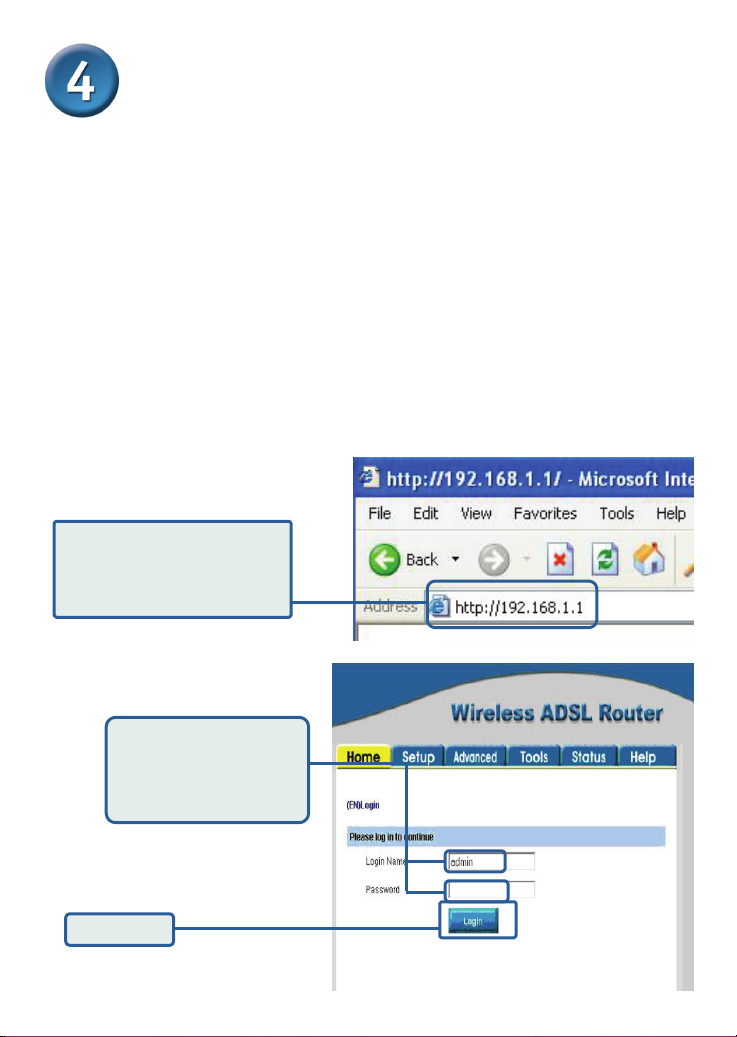

Open your Web browser and
type http://192.168.1.1 into
the URL address box. Press
Enter or Return.
The Home/Login page
appears.
When you first log in, your
Login Name is admin;
your password is also
admin. These may be
changed later.
Click Login

7

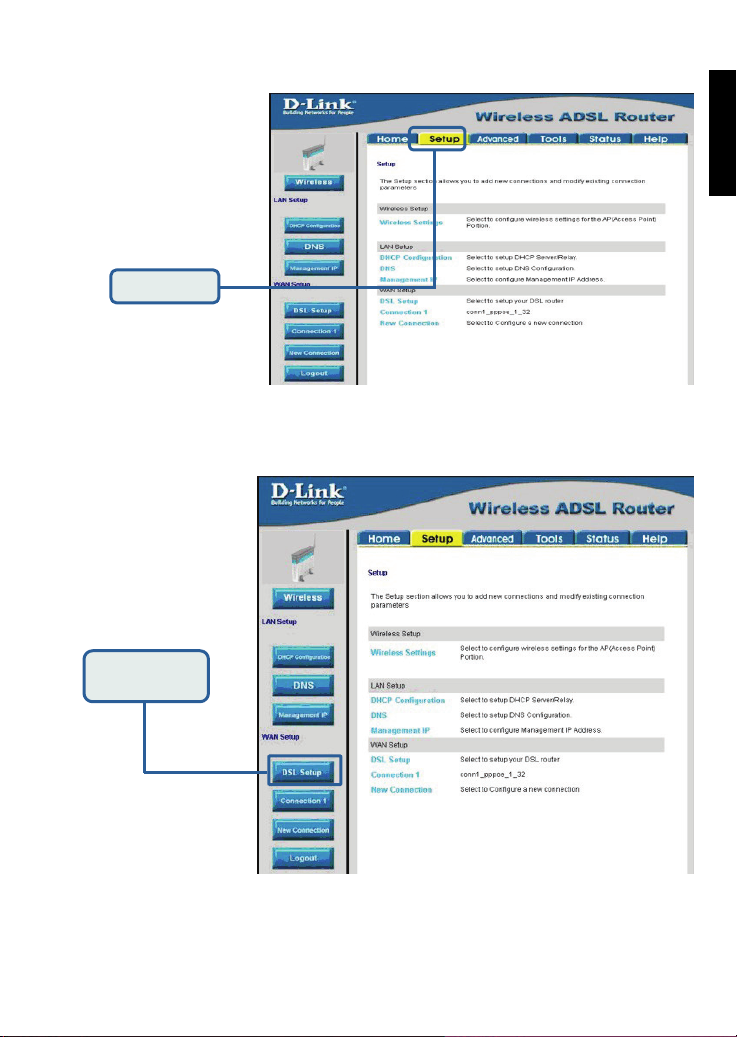

The Home screen
appears. Click on
the Setup tab to
bring up the Setup
menu.
Click Setup
Click the
Connection 1
button to go to the
configuration menu
to make the Internet
connection.
Click
Connection 1
EENGLISH

8

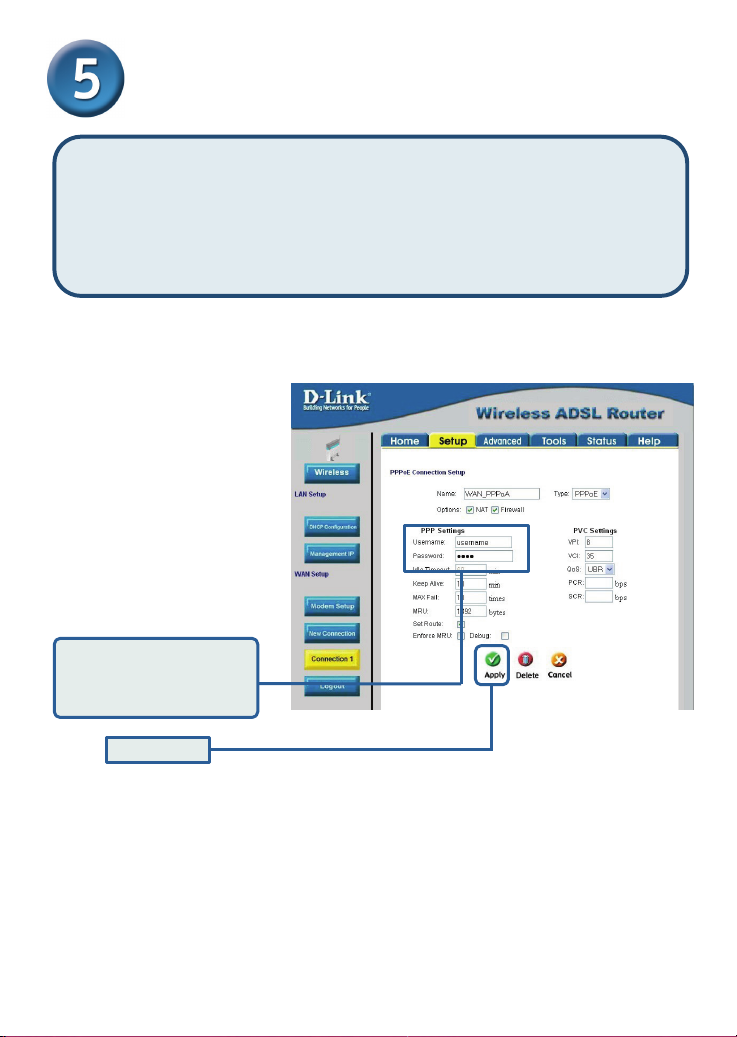

Configuring the WAN
Connection
Check your ISP information,
If you configure for PPPoA type, refer to Manual page 25-27.
If you configure for PPPoE type, refer to Manual page 27-28.
If you configure for Bridge type, refer to Manual page 29-30.
If you configure for DHCP type, refer to Manual page 32-33.
If you configure for CLIP type, refer to Manual page 33-34.
In the Connection 1
window, type the
Username and
Password used to verify
the identity of your ISP
account. Click the Apply
button when you have
entered the information.
Click Apply
Enter the Username and
Password assigned by
your ISP.

9

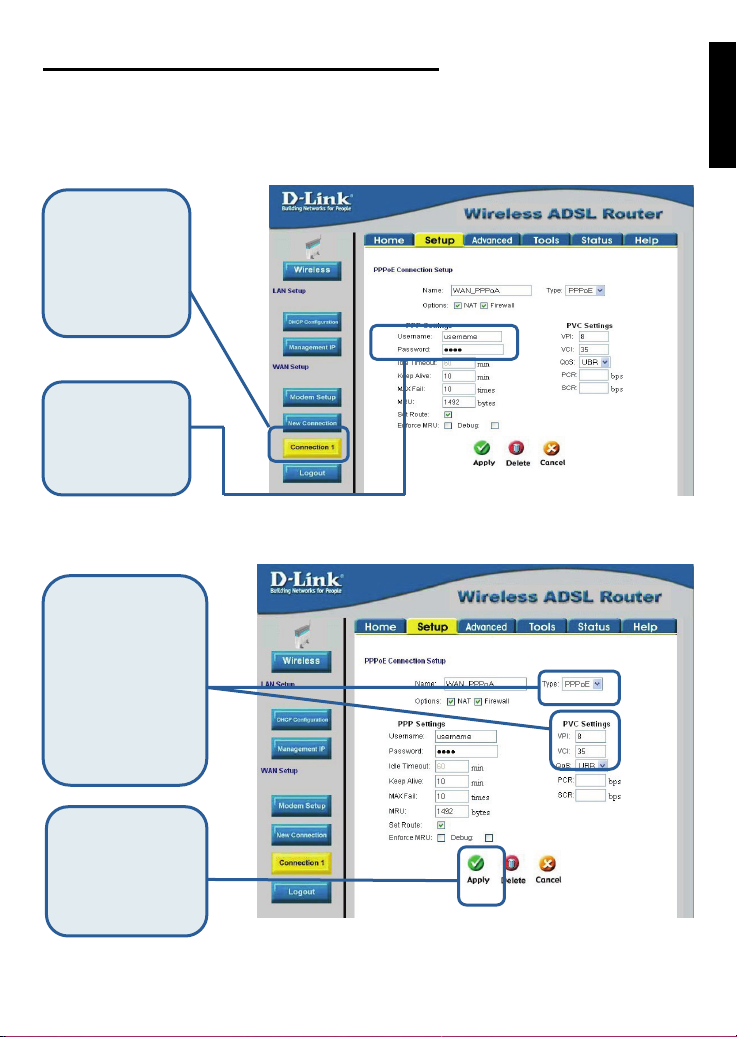

Configure Connection 1 for PPPoA
To configure the default connection type (PPPoA) for Connection 1,
follow the steps listed below. To change the connection type of
Connection 1 to an alternative type follow the instructions according to
the desired type as described below in change the connection type.
Type the
Username and
Password used
for your account.
Click the
Connection 1
button to view
the PPPoA
Connection
Setup menu
pictured.
EENGLISH
Select PPPoA
from the Type,
VPI: and VCI: -
if these values
are not correct,
change these
according to the
instruction of
y
our ISP.
Click the
Apply button
after you have
entered the
account
information.

10

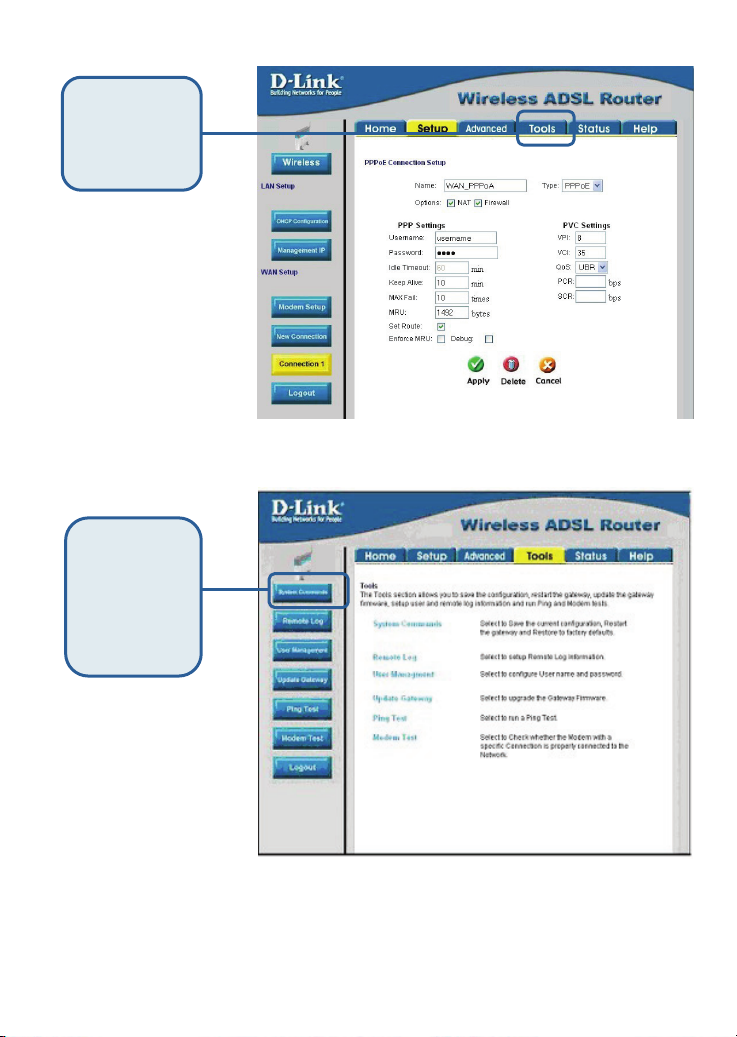

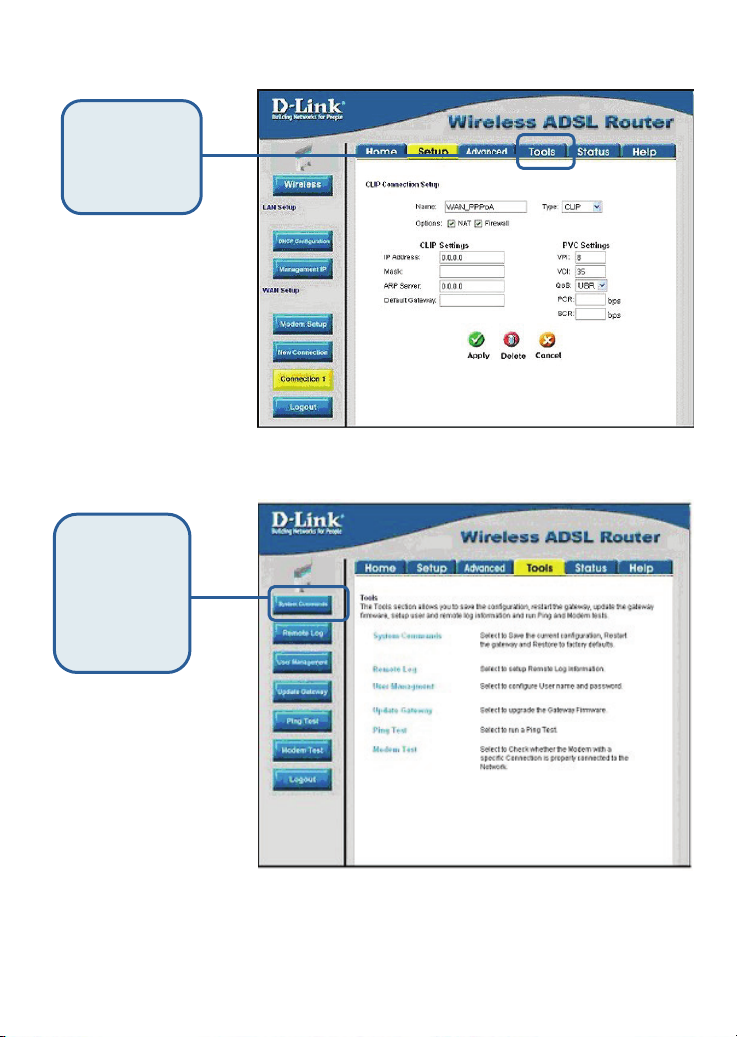

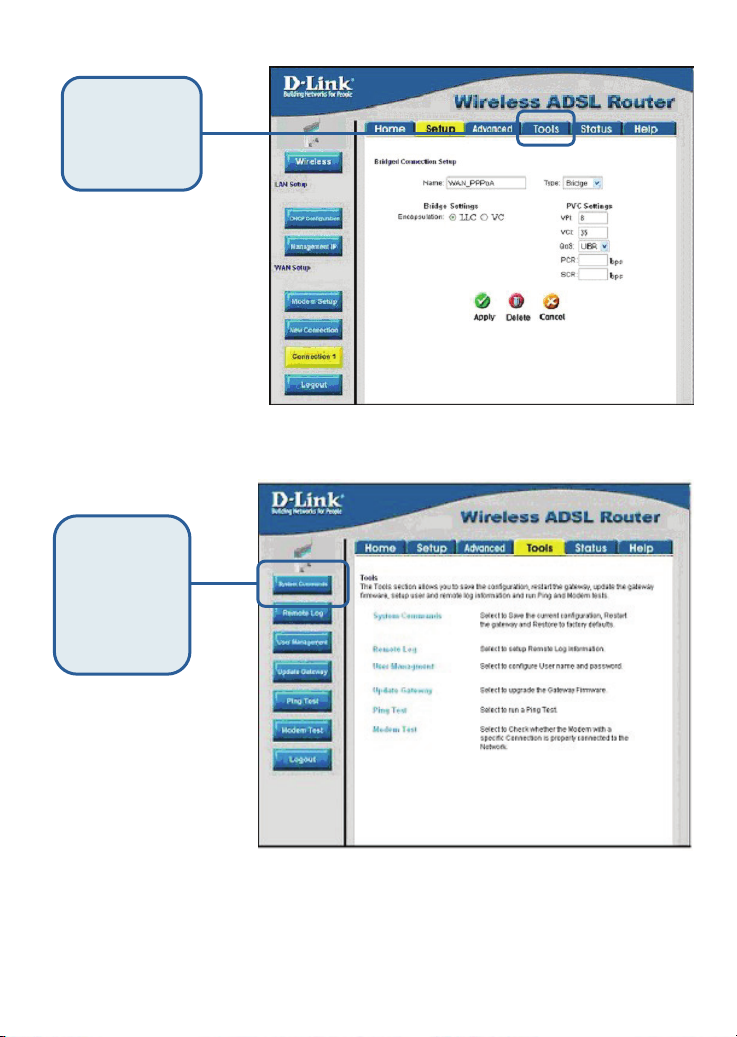

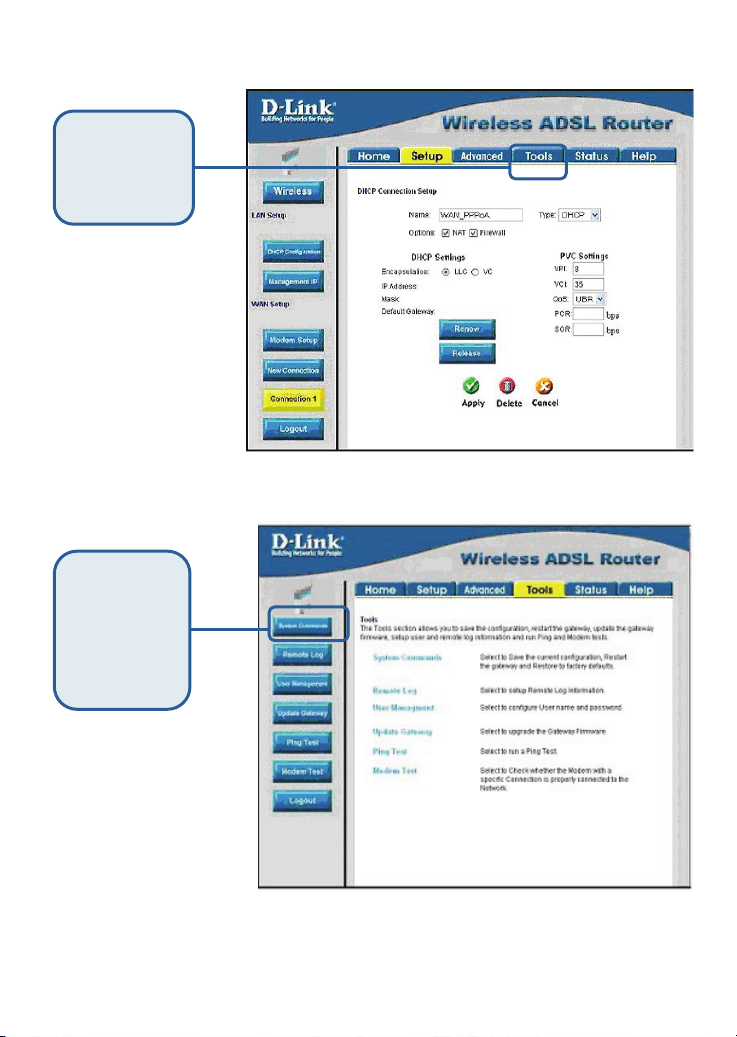

Click Tools
when you
have applied
the new
settings.
Click
System
Commands
to view the
menu used
to save
changes.

11

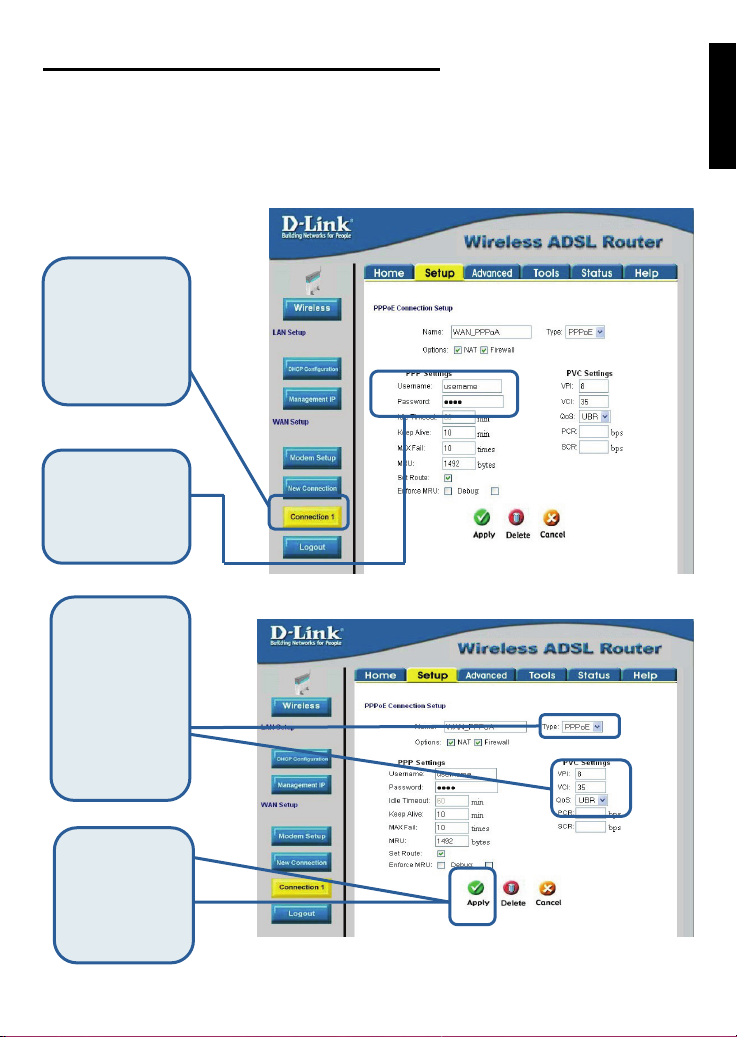

Configure Connection 1 for PPPoE
To configure Connection 1 for PPPoE, follow the steps listed below.
Some of the settings do not need to be changed the first time the device
is set up, but can be changed later if you choose.
EENGLISH
Type the
Username and
Password used
for your account.
Click the
Connection 1
button to view
the PPPoE
Connection
Setup menu
pictured.
Select PPPoE
from the Type,
VPI: and VCI: -
if these values
are not correct,
change these
according to the
instruction of
your ISP.
Click the
Apply button
after you have
entered the
account
information.

12
Click Tools
when you
have applied
the new
settings.
Click
System
Commands
to view the
menu used
to save
changes.

13

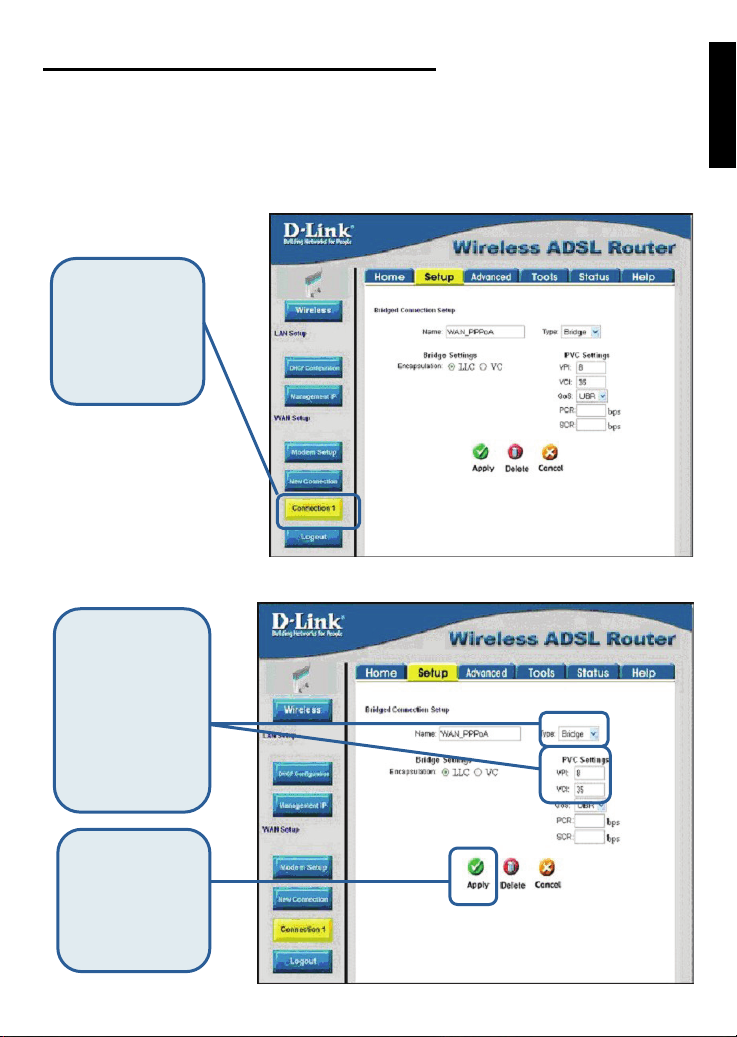

Configure Connection 1 for Bridge
To configure the WAN connection for Bridge, perform the steps listed
below. Some of the settings do not need to be changed the first time the
device is set up, but can be changed later if you choose.
EENGLISH
Click the
Connection 1
button to view
the Bridge
Connection
Setup menu
pictured.
Select Bridge
from the Type,
VPI: and VCI: -
if these values
are not correct,
change these
according to
the instruction
of
y
our ISP.
Click the
Apply button
after you have
entered the
account
information.

14
Click Tools
when you
have applied
the new
settings.
Click
System
Commands
to view the
menu used
to save
changes.

15
Configure Connection 1 for DHCP for WAN
To configure the WAN connection for DHCP, perform the steps listed
below. Some of the settings do not need to be changed the first time the
device is set up, but can be changed later if you choose.
EENGLISH
Click the
Connection 1
button to view
the DHCP
Connection
Setup menu
pictured.
Select DHCP
from the Type,
VPI: and VCI:
- if these
values are not
correct,
change these
according to
the instruction
of your ISP.
Click the
Apply button
after you have
entered the
account
information.

16
Click Tools
when you
have applied
the new
settings.
Click
System
Commands
to view the
menu used
to save
changes.

17

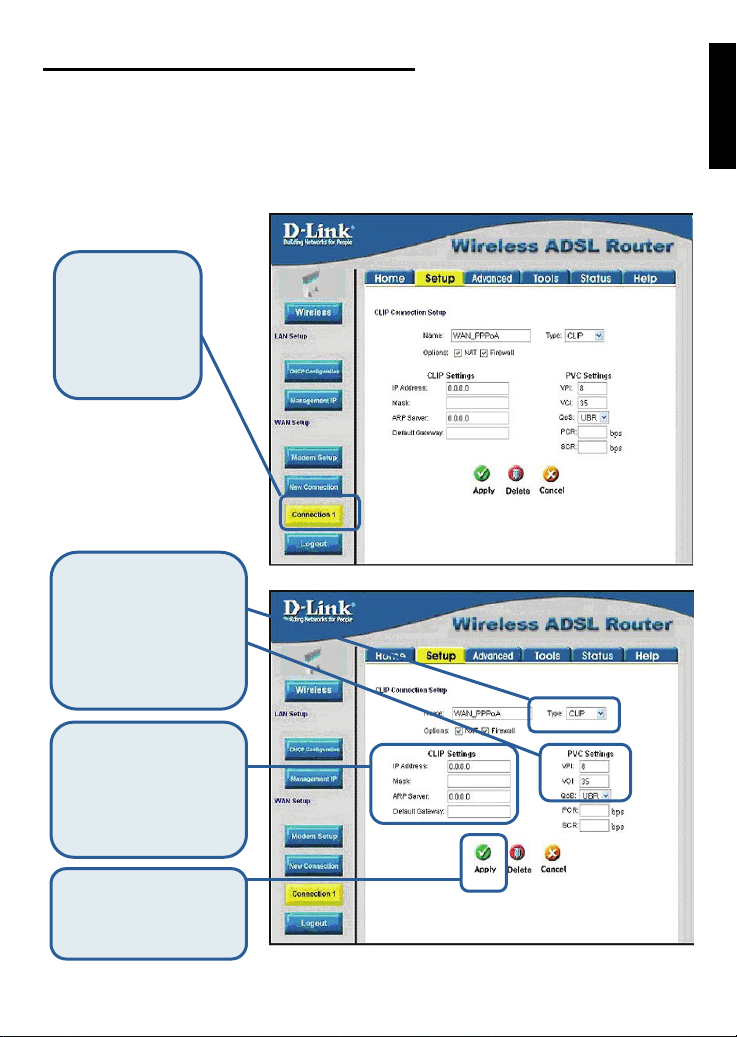

Configure Connection 1 for CLIP
To configure the WAN connection for CLIP, perform the steps listed
below. Some of the settings do not need to be changed when you first set
up the device but can be changed later if you choose.
EENGLISH
Click the
Connection 1
button to view
the CLIP
Connection
Setup menu
pictured.
Select CLIP from the
Type, VPI: and VCI:
- if these values are
not correct, change
these according to
the instruction of
your ISP.
Click the Apply
button after you have
entered the account
information.
Enter the IP Address
and ARP Server and
the Default Gateway
change these
according to the
instruction of
y
our ISP.

18
Click Tools
when you
have applied
the new
settings.
Click
System
Commands
to view the
menu used
to save
changes.

19

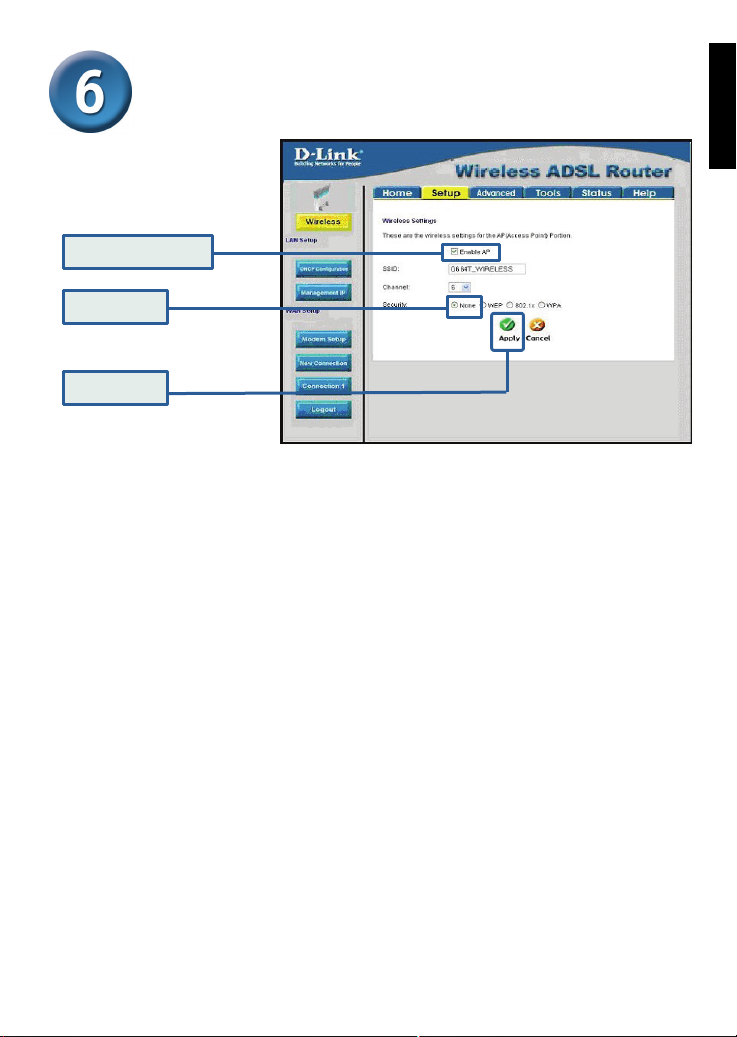

Wireless Configuration
For first-time setup, accept the default settings for SSID and Channel,
and bypass security by clicking None. These settings may be changed
later by following instructions as given in the User’s Guide.
Important Note: This Quick Installation Guide is designed to allow a first-
time user to install and operate the Router easily, in
order to ensure that everything is in working order.
For more advanced configuration settings, particularly
to do with security parameters, please consult the
User’s Guide that accompanies the Router.
Now, click on the
Wireless button. This
window will appear.
Click Enable AP
Click None
Click Apply
EENGLISH

20
Technical Support
You can find software updates and user documentation on the D-Link website.
D-Link provides free technical support for customers within the United States and
within Canada for the duration of the warranty period on this product.
U.S. and Canadian customers can contact D-Link technical support through our
website, or by phone.
Tech Support for customers within the United States:
D-Link Technical Support over the Telephone:
[phone]
24 hours a day, seven days a week.
D-Link Technical Support over the Internet:
http://support.dlink.com
email:[email protected]
Tech Support for customers within Canada:
D-Link Technical Support over the Telephone:
[phone]
Monday to Friday 8:30am to 9:00pm EST
D-Link Technical Support over the Internet:
http://support.dlink.ca
email:[email protected]
Tech Support for customers within
the United Kingdom & Ireland:
D-Link UK & Ireland Technical Support over the Telephone:
[phone] (United kingdom)
[phone] (Ireland)
Monday to Friday 8:00 am to 10:00 pm
D-Link Technical Support over the Internet:
http://www.dlink.co.uk
