D-Link DSL-2885A User manual

Version 1.00 |
User Manual
DSL-2885A
Wireless AC1200 Dual-Band Gigabit ADSL2+/VDSL2
Modem Router

iD-Link DSL-2885A User Manual
D-Link reserves the right to revise this publication and to make changes in the content hereof without obligation to notify any
person or organization of such revisions or changes.
Manual Revisions
Trademarks
D-Link and the D-Link logo are trademarks or registered trademarks of D-Link Corporation or its subsidiaries in the United States or other countries.
All other company or product names mentioned herein are trademarks or registered trademarks of their respective companies.
Apple®, Apple logo®, Safari®, iPhone®, iPad®, iPod touch® and Macintosh® are trademarks of Apple Inc., registered in the U.S. and other countries.
App StoreSM is a service mark of Apple Inc.
Chrome™ browser, Google Play™ and Android™ are trademarks of Google Inc.
Internet Explorer®, Windows® and the Windows logo are trademarks of the Microsoft group of companies.
Copyright © 2015 by D-Link Corporation, Inc.
All rights reserved. This publication may not be reproduced, in whole or in part, without prior expressed written permission from D-Link Corporation, Inc.
Power Usage
Preface
Revision Date Description
1.00 November 26, 2015 Initial release
ErP Power Usage
This device is an Energy Related Product (ErP) with High Network Availability (HiNA), and automatically switches to a power-saving Network
Standby mode within 1 minute of no packets being transmitted. It can also be turned o through a power switch to save energy when it is not
needed.
Network Standby: TBA watts
Switched O: TBA watts

iiD-Link DSL-2885A User Manual
Table of Contents
Preface................................................................................. i
Product Overview.............................................................. 1
Package Contents......................................................................... 1
System Requirements................................................................. 2
Introduction ................................................................................... 3
Features............................................................................................ 4
Antenna Setup............................................................................... 5
Hardware Overview..................................................................... 6
Back Panel ............................................................................... 6
Side Panel ................................................................................ 7
LEDs ........................................................................................... 8
Installation ......................................................................... 9
Before you Begin........................................................................... 9
Wireless Installation Considerations....................................10
Manual Setup...............................................................................11
Getting Started................................................................14
Setup Wizard ................................................................................15
...................................................................23
Home ..............................................................................................24
Internet...................................................................................24
DSL-2885A.............................................................................25
Connected Clients..............................................................26
USB Device............................................................................28
Settings ..........................................................................................29
Wizard .....................................................................................29
Internet...................................................................................29
IPv4 .....................................................................................31
DSL ......................................................................................40
ATM .....................................................................................41
PTM .....................................................................................42
IPv6 .....................................................................................43
Wireless ..................................................................................57
Guest Zone.......................................................................59
Network..................................................................................60
SharePort ...............................................................................62
Create User.......................................................................63
Features..........................................................................................65
QoS Engine............................................................................65
Firewall Settings..................................................................66
IPv4/IPv6 Rules ...............................................................68
Port Forwarding ..................................................................69
Virtual Server...................................................................70
Website Filter........................................................................71
Static Routes.........................................................................72
IPv6 .....................................................................................73
Dynamic DNS .......................................................................74
IPv6 Host ...........................................................................75
Management................................................................................76
Time & Schedule .................................................................76
Table of Contents

iiiD-Link DSL-2885A User Manual
Table of Contents
Time....................................................................................76
Schedule ...........................................................................77
System Log............................................................................78
Admin .....................................................................................79
System ...............................................................................81
Upgrade .................................................................................82
Statistics.................................................................................83
Connect a Wireless Client to your Router ......................84
WPS Button...................................................................................84
Windows® 8...................................................................................85
WPA/WPA2 ............................................................................85
Windows® 7...................................................................................87
WPA/WPA2 ............................................................................87
WPS..........................................................................................90
Windows Vista®............................................................................94
WPA/WPA2 ............................................................................95
Windows® XP................................................................................97
WPA/WPA2 ............................................................................98
Troubleshooting............................................................100
Wireless Basics...............................................................104
What is Wireless?...................................................................... 105
Tips................................................................................................ 107
Wireless Modes......................................................................... 108
Networking Basics.........................................................109
Check your IP address............................................................109
Statically Assign an IP address............................................ 110
Wireless Security ......................................................... 111
What is WPA? ................................................................ 111
Technical Specications................................................112

1D-Link DSL-2885A User Manual
Section 1 - Product Overview
Product Overview

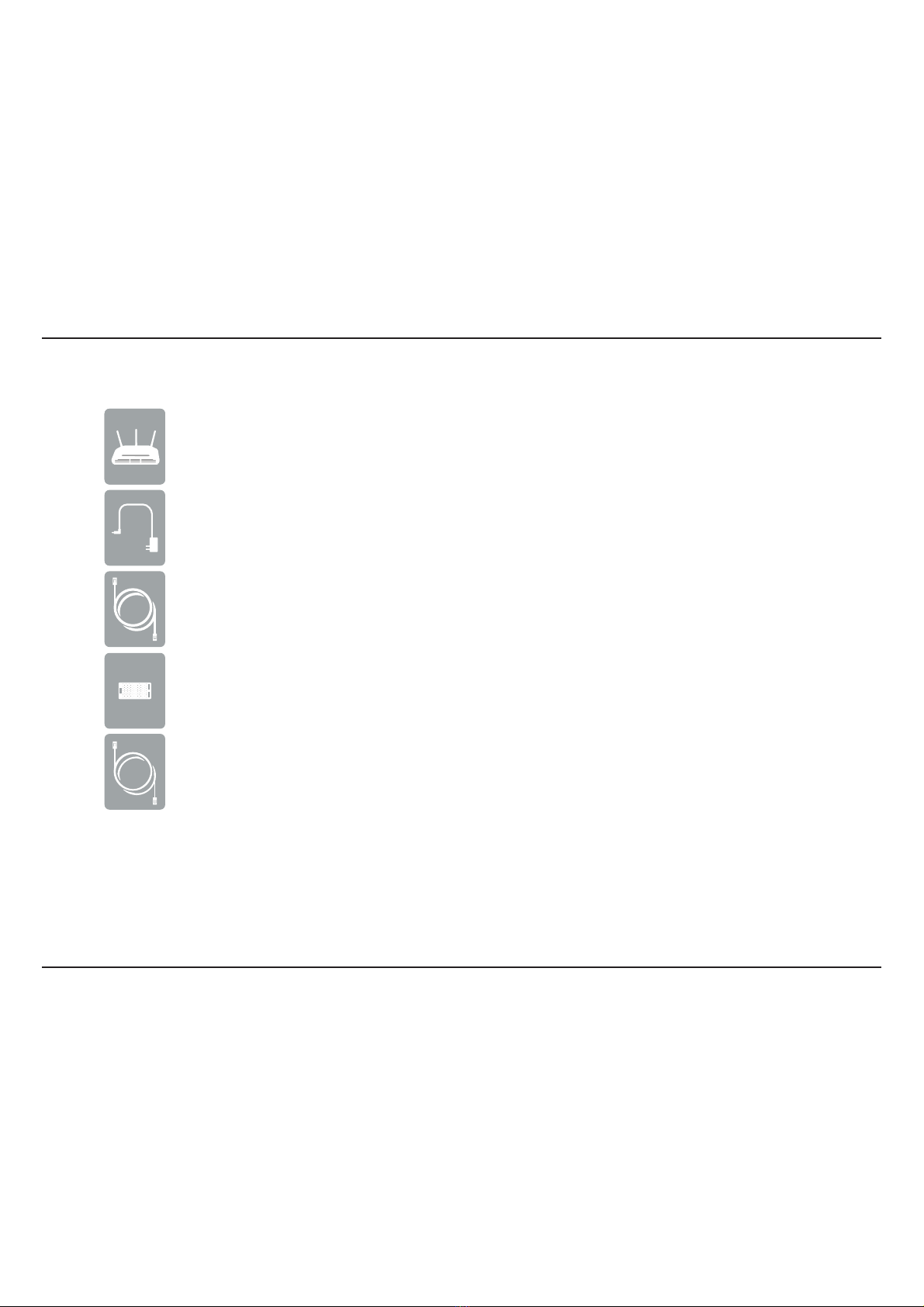

Package Contents
Note: Using a power supply with a dierent voltage rating than the one included with the DSL-2885A will cause damage and void the
warranty for this product.
If any of the above items are missing, please contact your reseller.
Wireless AC1200 Dual-Band Gigabit
ADSL2+/VDSL2 Modem Router(DSL-2885A)
Power Adapter
Ethernet Cable
DSL Microlter/Splitter
Phone Cable

2D-Link DSL-2885A User Manual
Section 1 - Product Overview
Network Requirements
• An active account with an Internet Service Provider using one of the
following connection types:
• A VDSL/ADSL connection to a telephone line using the DSL port
• A broadband device connected using the WAN port
• A mobile broadband 3G/4G/LTE connection using a USB modem
• 802.11ac, n, g, b, or a wireless or Ethernet port
Web-based Conguration
Utility Requirements
Computer with the following:
• Windows®, Macintosh, or Linux-based operating system
• An installed Ethernet adapter
Browser Requirements:
• Internet Explorer 10 or higher
• EDGE Browser (v20 and above)
• Firefox 11 or higher
• Safari 5 or higher
• Chrome 17 or higher
Windows®Users: Make sure you have the latest version of Java installed. Visit
www.java.com to download the latest version.
System Requirements

3D-Link DSL-2885A User Manual
Section 1 - Product Overview
Introduction
The D-Link DSL-2885A Wireless AC1200 Dual-Band Gigabit ADSL2+/VDSL2 Modem Router shares your DSL Internet connection
over a blazing-fast Wireless AC connection using advanced AC beamforming technology to maximize the speed and range of
your wireless signal to signicantly outperform 802.11n and other 802.11ac devices. It also comes equipped with four Gigabit
ports to provide speeds up to 10x faster than standard 10/100 ports. With the addition of Advanced Quality of Service (QoS),
data streams are separated, which helps organize and prioritize your network trac so your video streaming, gaming, and VoIP
calls run smoother over both your wired and wireless network.
SharePort technology lets you take advantage of the USB 2.0 porst found on the back and side of your DSL-2885A (as well as an
additional USB 2.0 port). Plug in a USB storage drive and you can access les, stream videos, view photos, or listen to music on
your laptop or mobile devices.
The DSL-2885A Wireless AC1200 Dual-Band Gigabit ADSL2+/VDSL2 Modem Router provides incredible speeds, smart antenna
technology, fast ports, cloud features, and terric security features. It also features an innovative design and easy installation
options.

4D-Link DSL-2885A User Manual
Section 1 - Product Overview
• Faster Wireless Networking - The DSL-2885A introduces Smart Connect, a new D-Link feature which when
combined with an additional 5 Ghz antenna can provide up to a full 1200 Mbps*wireless connection with
concurrent 801.11ac and 802.11n wireless clients . It also operates on both the 2.4 GHz and 5 GHz bands to
allow separation of trac so users can participate in high-bandwidth activities, such as video streaming, online
gaming, and real-time audio, without aecting low-priority trac like email and web surng.
• Compatible with 802.11n/g/b/a Devices - The DSL-2885A is still fully compatible with the 802.11n, IEEE
802.11g and 802.11a standards, so it can connect with existing 802.11n, 802.11g, 802.11b, and 802.11a wireless
devices.
• Advanced Firewall Features - The web-based user interface displays a number of advanced network
management features including:
• Content Filtering - Easily applied content ltering based on MAC address, URL, and/or domain
name.
• Scheduling - The Firewall, wireless, and port forwarding features can be scheduled to be active on
certain days, or for a duration of a set number of hours.
• Secure Multiple/Concurrent Sessions - The DSL-2885A can pass through VPN sessions. It supports
multiple and concurrent IPSec and PPTP sessions, so users behind the DSL-2885A can securely
access corporate networks.
• User-friendly Setup Wizard - Through its easy-to-use web-based user interface, the DSL-2885A lets you control
what information is accessible to those on the wireless network, whether from the Internet, or from your
company’s server. Congure your router to your specic settings within minutes.
* Maximum wireless signal rate derived from IEEE Standard 802.11a, 802.11b, 802.11g, 802.11n, and 802.11ac specications. Actual data throughput will vary. Network conditions
and environmental factors, including volume of network trac, building materials and construction, and network overhead, lower actual data throughput rate. Environmental
conditions will adversely aect wireless signal range.
Features

6D-Link DSL-2885A User Manual
Section 1 - Product Overview

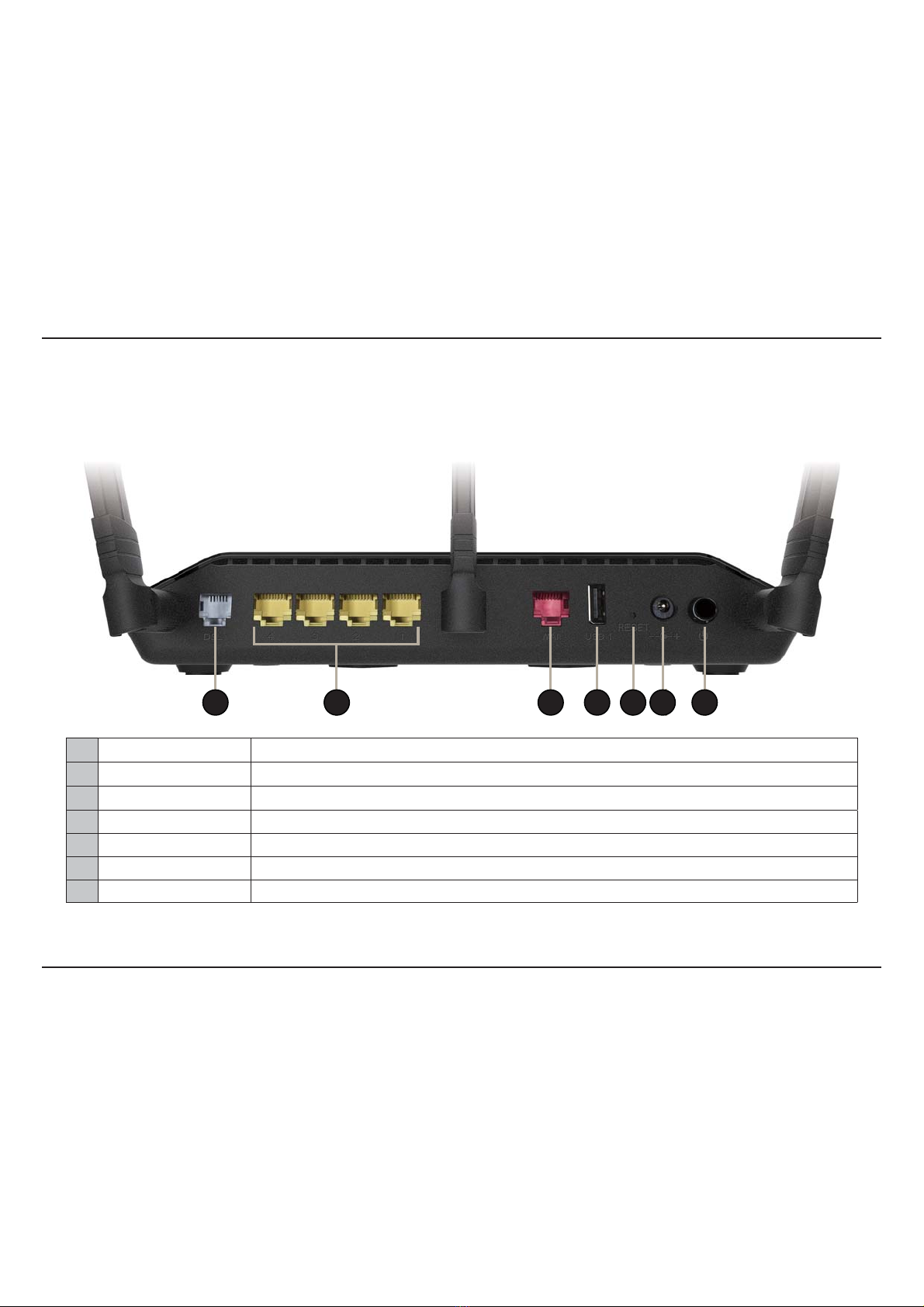

Hardware Overview
Back Panel
1 3 4 5 62 7
1 DSL Port Connect to an DSL-enabled telephone line and with the supplied microlter/splitter.
2 Gigabit LAN Ports (1-4) Connect Ethernet devices such as computers, switches, storage (NAS) devices and game consoles.
3 Gigabit WAN Port Connect broadband Ethernet WAN devices.
4 USB 2.0 Port Connect a USB ash drive to share content , or connect it to a USB printer to share it on your network.
5 Reset Button Insert a paperclip in the hole and wait for several seconds to reset the router to default settings.
6 Power Connector Connector for the supplied power adapter.
7 Power Button Press the power button to power on and o.

7D-Link DSL-2885A User Manual
Section 1 - Product Overview
1 USB 2.0 Port Connect a USB ash drive to share content , or connect it to a USB printer to share it on your network.
2 WPS Button Press to start the WPS process and automatically create a secure connection to a WPS client.
3Wi-Fi Button Press and hold for 2 seconds to enable or disable Wi-Fi.

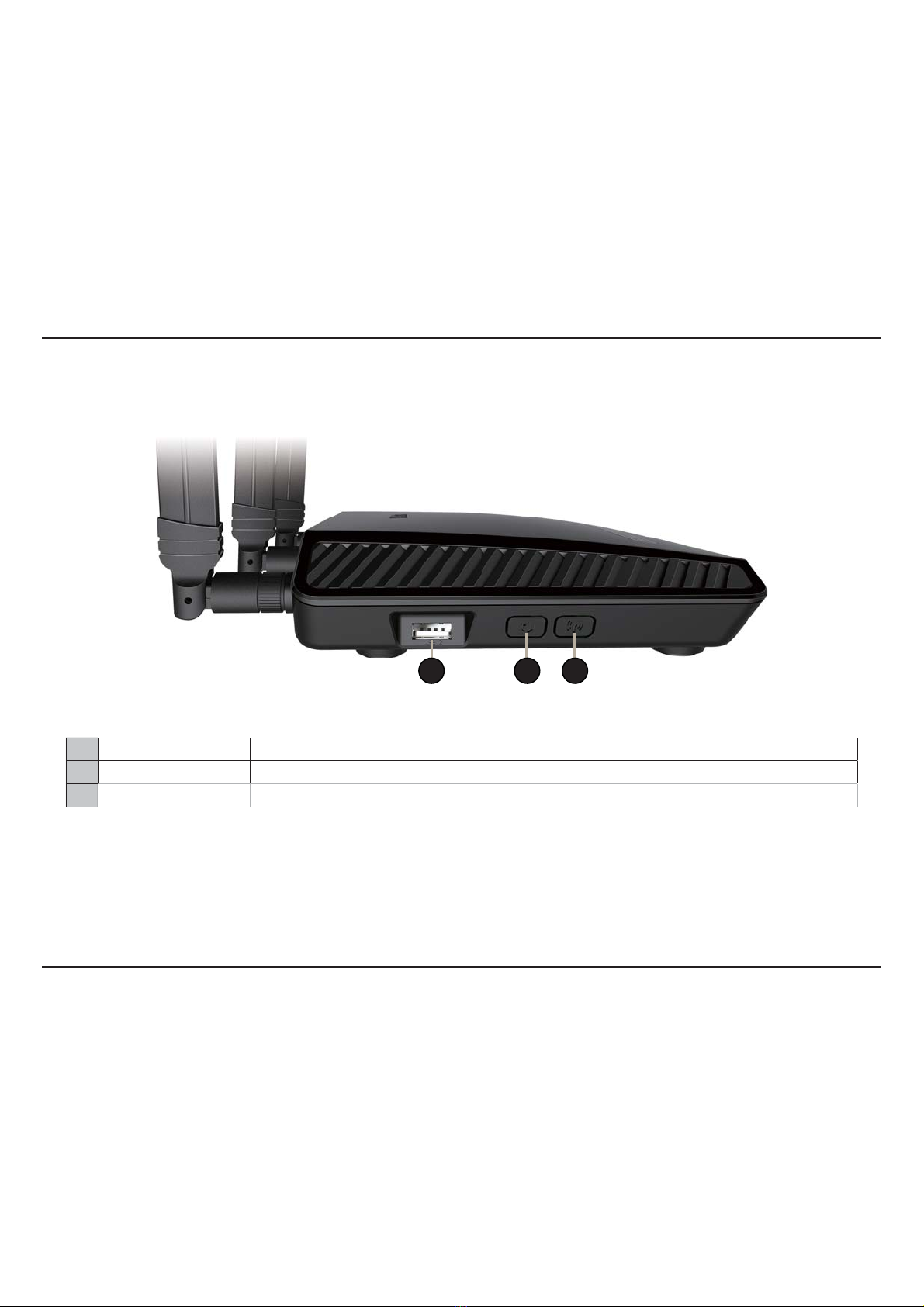

Side Panel
1 2 3

8D-Link DSL-2885A User Manual
Section 1 - Product Overview
2 3 4 56 7 81
Hardware Overview

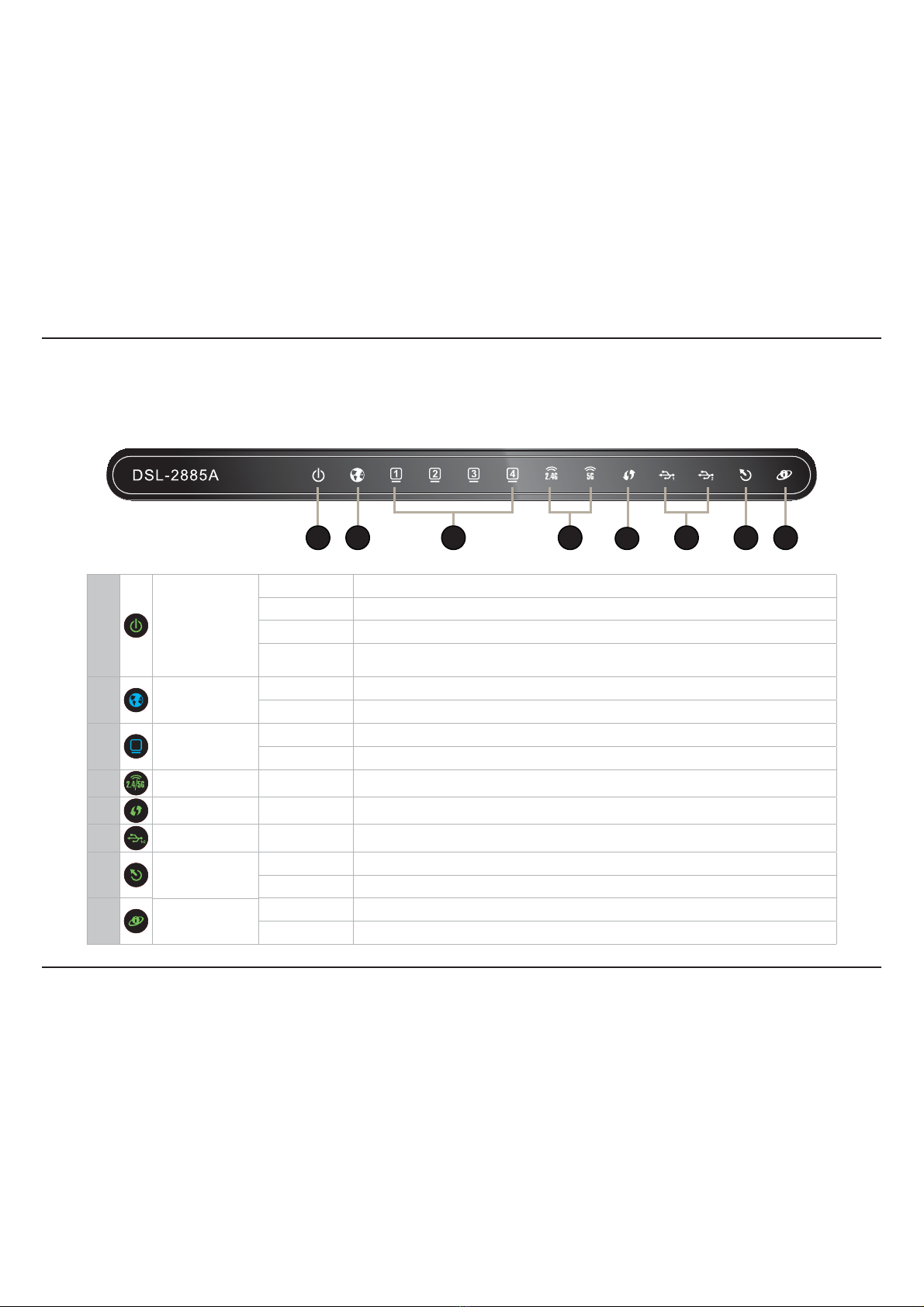

LEDs
1Power
Solid Green A solid green light indicates a proper connection to the power supply.
Solid Red A solid red light indicates a the device is booting or an error has occurred.
Blinking Green A blinking green light indicates that backup mode is active.
Blinking Red A blinking red light indicates that the device is resetting to factory defaults or the
rmware is being updated.
2WAN Solid Blue A solid blue light indicates a WAN Port connection.
Blinking Blue A blinking blue light indicates a WAN Port activity.
3LAN Ports 1-4 Solid Blue A solid blue light indicates a LAN Port connection.
Blinking Blue A blinking blue light indicates a LAN Port activity.
4Wireless 2.4/5G Solid Green A solid green light indicates that the 2.4/5 GHz wireless band is enabled.
5WPS Blinking Green A blinking green light indicates the WPS process is active.
6USB 1-2 Solid Green A solid green light indicates that a USB device is detected on a USB port.
7DSL Solid Green A solid green light indicates a proper connection to a DSL enabled telephone line.
Blinking Green A blinking green light indicates the DSL port is negotiating a connection.
8Internet Solid Green A solid green light indicates an Internet connection.
Solid Red A solid red light indicates no Internet connection is available.

9D-Link DSL-2885A User Manual
Section 2 - Installation
Before you Begin
Installation
This section will walk you through the installation process. Placement of the router is very important. Do not place the router in
an enclosed area such as a closet, cabinet, attic, or garage.
Note: This installation section is written for users who are setting up their home Internet service with the DSL-2885A Wireless
AC1200 Dual-Band Gigabit ADSL2+/VDSL2 Modem Router for the rst time. If you are replacing an existing DSL modem and/or
router, you may need to modify these steps.
• Make sure to have your DSL service information provided by your Internet Service Provider handy. This
information is likely to include your DSL account's Username and Password.Your ISP may also supply you with
additional WAN conguration settings which are necessary to establish a connection. This information may
include the connection type (DHCP IP, Static IP, PPPoE, or PPPoA) and/or ATM PVC details.
• If you are connecting a considerable amount of networking equipment, it may be a good idea to take the time to
label each cable or take a picture of your existing setup before making any changes.
• We suggest setting up your DSL-2885A from a single device and verifying that it is connected to the Internet
before connecting additional devices.
• If you have DSL and are connecting via PPPoE, make sure you disable or uninstall any PPPoE connection software
such as WinPoET, BroadJump, or EnterNet 300 from your computer as the DSL-2885A will be providing this
functionality.

10D-Link DSL-2885A User Manual
Section 2 - Installation
Wireless Installation Considerations
The D-Link wireless router lets you access your network using a wireless connection from virtually anywhere within the
operating range of your wireless network. Keep in mind that the number, thickness and location of walls, ceilings, or other
objects that the wireless signals must pass through may limit the range. Typical ranges vary depending on the types of
materials and background RF (radio frequency) noise in your home or business. The key to maximizing wireless range is to
follow these basic guidelines:
1. Keep the number of walls and ceilings between the D-Link router and other network devices to a minimum -
each wall or ceiling can reduce your adapter’s range from 3-90 feet (1-30 meters.) Position your devices so that
the number of walls or ceilings is minimized.
2. Be aware of the direct line between network devices. A wall that is 1.5 feet thick (0.5 meters), at a 45-degree
angle appears to be almost 3 feet (1 meter) thick. At a 2-degree angle it looks over 42 feet (14 meters) thick!
Position devices so that the signal will travel straight through a wall or ceiling (instead of at an angle) for better
reception.
3. Building materials make a dierence. A solid metal door or aluminum studs may have a negative eect on
range. Try to position access points, wireless routers, and computers so that the signal passes through drywall or
open doorways. Materials and objects such as glass, steel, metal, walls with insulation, water (sh tanks), mirrors,
le cabinets, brick, and concrete will degrade your wireless signal.
4. Keep your product away (at least 3-6 feet or 1-2 meters) from electrical devices or appliances that generate RF
noise.
5. If you are using 2.4 GHz cordless phones or X-10 (wireless products such as ceiling fans, lights, and home
security systems), your wireless connection may degrade dramatically or drop completely. Make sure your 2.4
GHz phone base is as far away from your wireless devices as possible. The base transmits a signal even if the
phone is not in use.

11D-Link DSL-2885A User Manual
Section 2 - Installation
Manual Setup
Microlter
Telephone Outlet
PHONE
DSL-2885A
DS
L-
28
85
A
Phone Cable Microlter

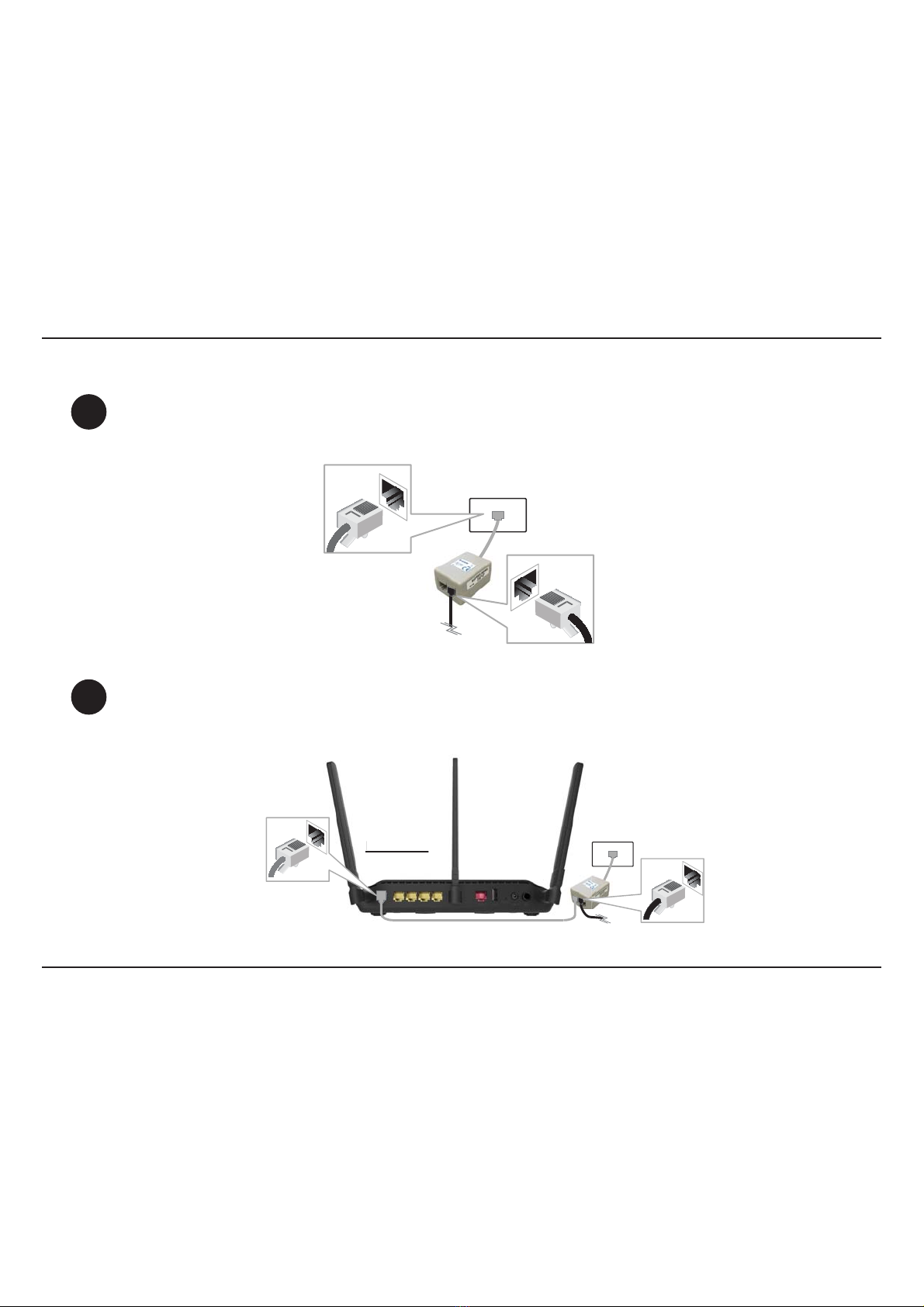

1Connect the supplied micro-lter to the telephone outlet. If you are using a telephone handset on the same
outlet, connect it to the PHONE port on the micro-lter.
Connect the phone cable from the DSL port on the microlter to the DSL port of the modem router.
2Caution: - To reduce the risk of re, use only No. 26 AWG or larger telecommunication line cord.

12D-Link DSL-2885A User Manual
Section 2 - Installation

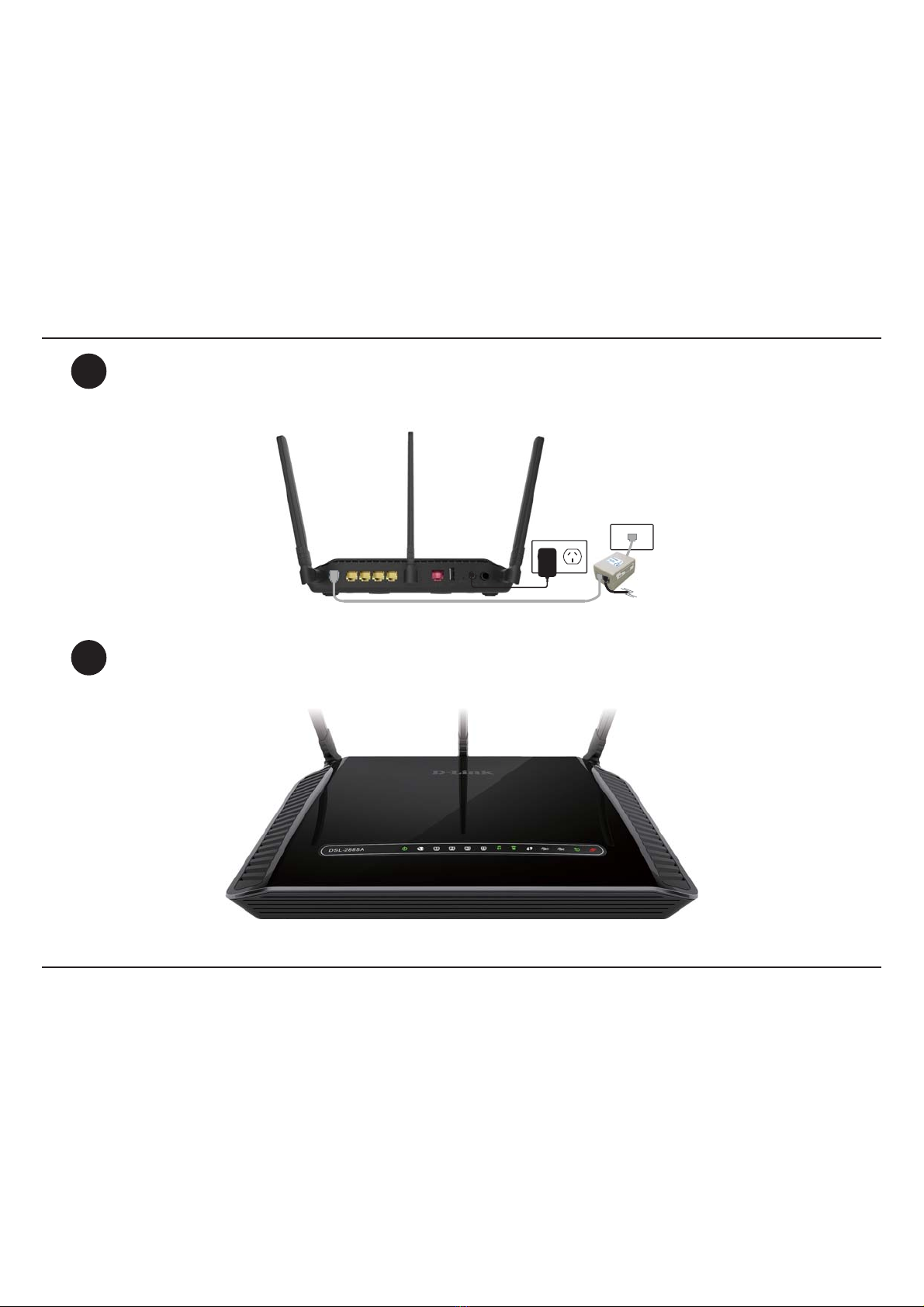

4Press the power button and verify that the power LED is lit. Allow one minute for the router to boot up.
After the modem router has powered up, verify that the Power and DSL LEDs are both lit.
3
DSL-2885A
Power Adapter
Plug the power adapter into your modem router and connect to an available power outlet or surge protector.
Caution: - Use only the included power adapter with this product.

13D-Link DSL-2885A User Manual
Section 2 - Installation
Computer
5
6

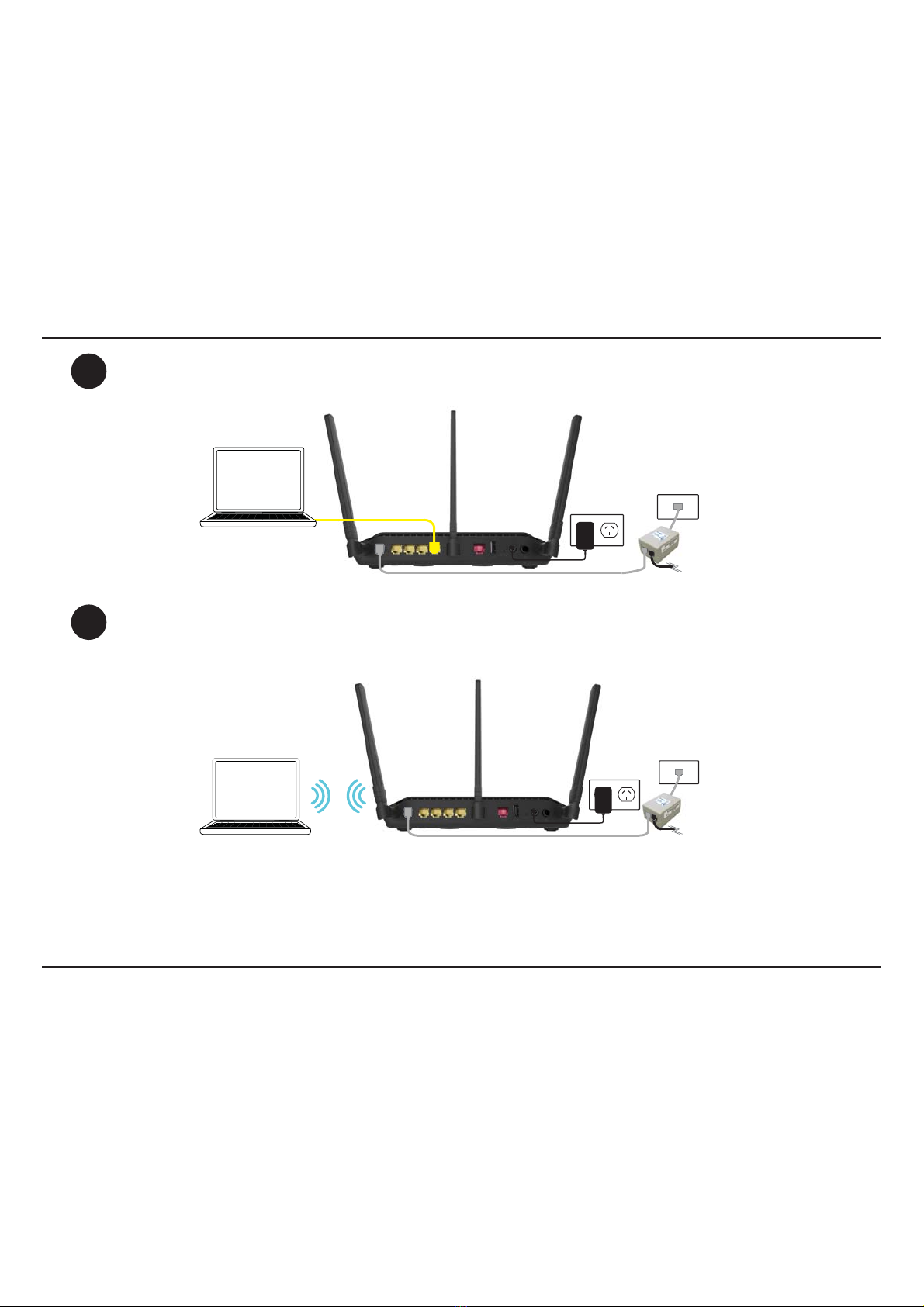

If you wish to use a wired connection, connect the Ethernet cable from a LAN port of the DSL-2885A to the
Ethernet port on your computer.
If you wish to use a wireless connection, the default Wi-Fi Networks are dlink-2885A-z and dlink-2885A5G-z.
Select either one from your computer’s wireless utility and connect. Enter the default Wi-Fi password printed
on the product label on the bottom of the DSL-2885A.
Computer
Ethernet Cable

14D-Link DSL-2885A User Manual
Section 3 - Getting Started
There are two ways you can congure your router to connect to the Internet and connect to your clients:
• D-Link Setup Wizard -This wizard will launch when you log into the router for the rst time. Refer to page "SetupWizard"
on page 15.
• Manual Setup - Log into the router and manually congure your router. Refer to "Conguration" on page 22.
Getting Started

26D-Link DSL-2885A User Manual
Section 4 - Conguration

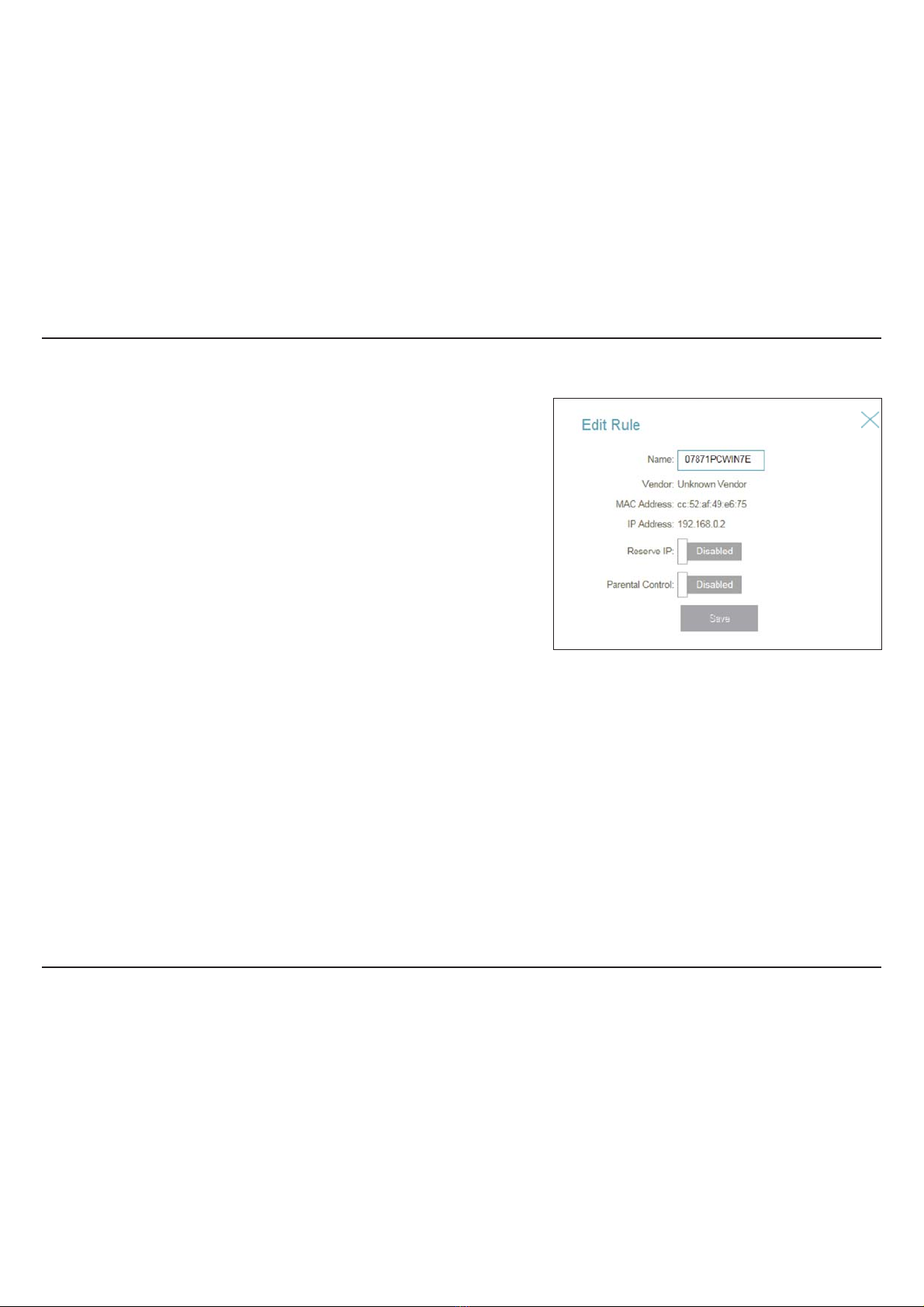

Enter a custom name for this client.
Displays the vendor of the device.
Displays the MAC address of the device.
Enter a specic IP address for this client.
Enable to reserve this IP address for this client.
Allow or Block access to the router.
Click Save when you are done.
Name:
Vendor:
MAC Address:
IP Address:
Reserve IP:
Parental
Control:

29D-Link DSL-2885A User Manual
For Dynamic IP (DHCP) refer to Dynamic IP (DCHP) on page 30.
For Static IP refer to Static IP on page 31.
For PPPoE refer to PPPoE on page 32.
For PPPoA refer to PPPoA on page 33.
For PPTP refer to PPTP on page 34.
For L2TP refer to L2TP on page 36.
Select whether the device should act as an xDSL Router or a
Residential Gateway.
Use the default setting unless otherwise instructed by your ISP.
If you selected Residential Gateway, sselect the Ethernet port that
will connect to the WAN. Use this setting if you do not intend to use
the built-in DSL modem.
Enable or disable tagged VLAN.
Enter the VLAN ID.
Enter the VLAN Priority from the default 0 (lowest) to 7 (highest).
Choose your Internet connection type from the drop-down menu.
You will be presented with the appropriate options for your
connection type.
WAN Access
Type:
PVC:
Ether WAN Port:
Enable Tagged
Vlan:
VLAN ID:
VLAN Priority:
My Internet
Connection Is:

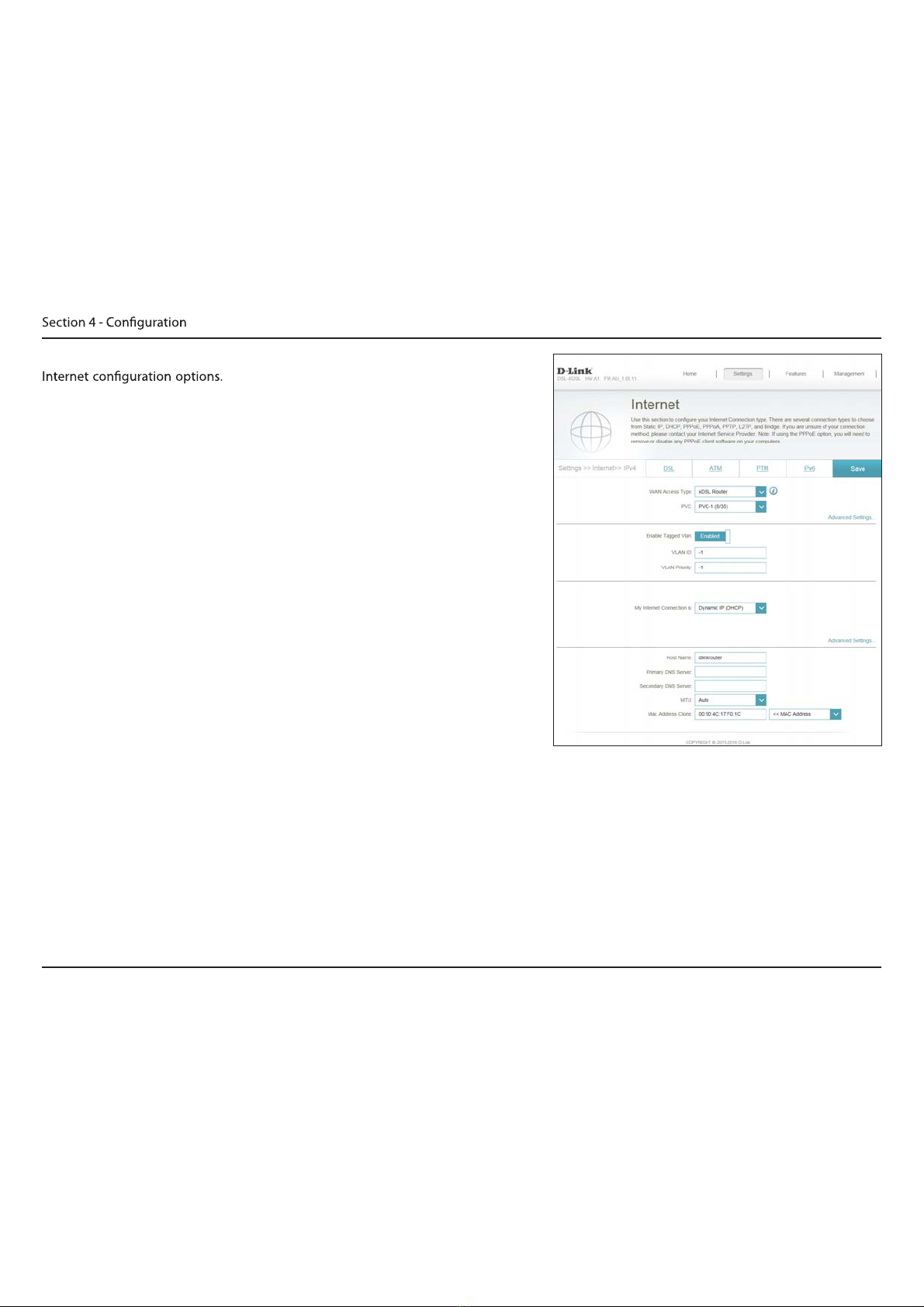

In the Settings menu on the bar on the top of the page, click Internet to see the
Click Advanced Settings... to expand the list and
see all of the options.

30D-Link DSL-2885A User Manual
Section 4 - Conguration
The host name is optional but may be required by some ISPs. Leave
it blank if you are not sure.
Enter the primary DNS server IP address assigned by your ISP. This
address is usually obtained automatically from your ISP.
Enter the secondary DNS server IP address assigned by your ISP.This
address is usually obtained automatically from your ISP.
Maximum Transmission Unit - you may need to change the MTU for
optimal performance with your ISP.
The default MAC address is set to the Internet port’s physical interface
MAC address on the router. You can use the drop-down menu to
replace the Internet port’s MAC address with the MAC address of a
connected client.
Click Save when you are done.
Host Name:
Primary DNS
Server:
Secondary DNS
Server:
MTU:
MAC Address
Clone:

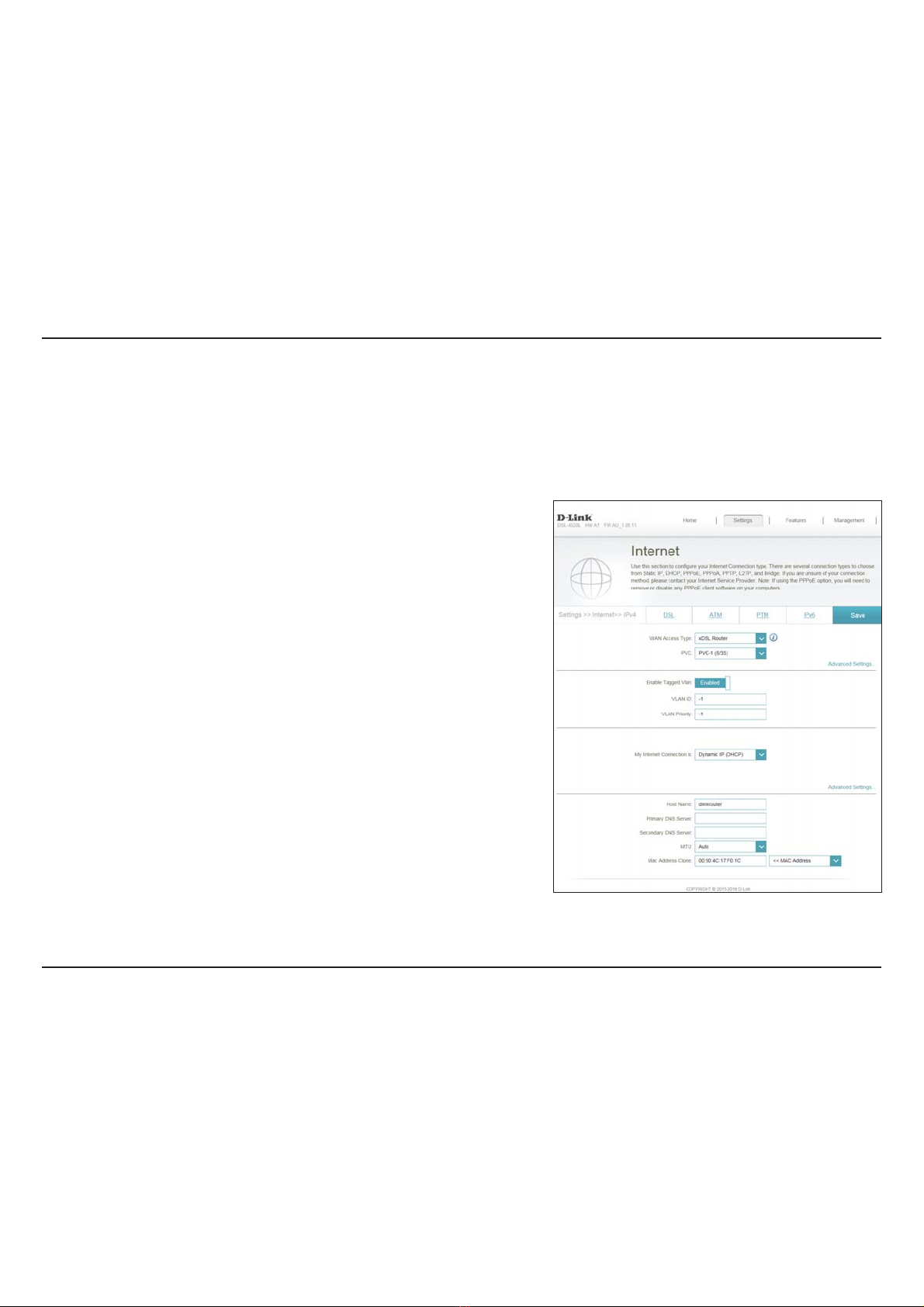

Dynamic IP (DCHP)
Select Dynamic IP (DHCP) to obtain IP address information automatically from your Internet Service Provider (ISP). Select this option if your ISP
does not give you an IP address to use.
IPv4
