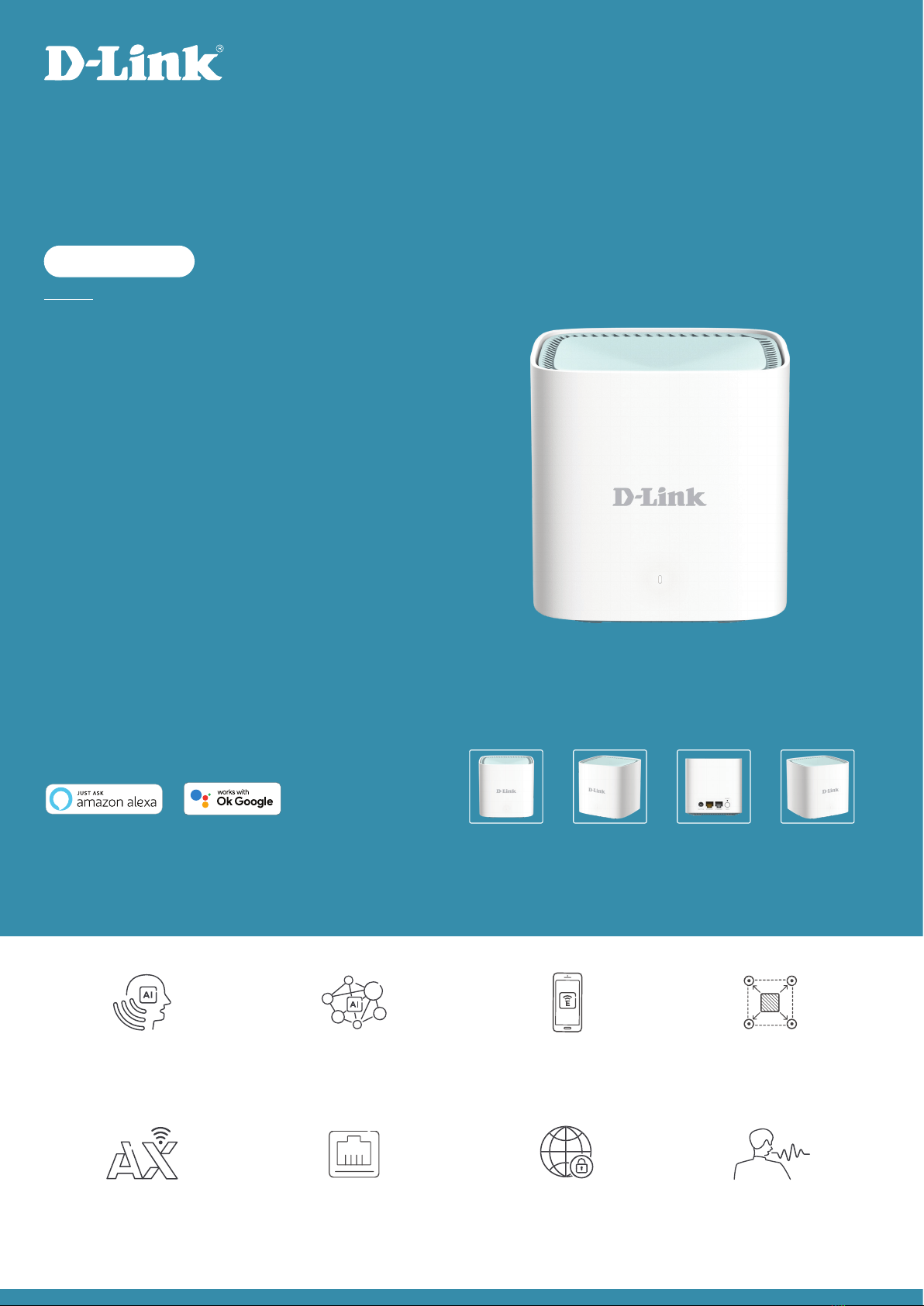

D-Link EAGLE PRO AI M15 User manual

• Wi-Fi 6 technology provides faster speeds, greater capacity
and less network congestion
• Wi-Fi 6 speeds up to 1.5Gbps, built for the modern
device-dense Smart Home
• Dual-band Wi-Fi makes 4K streaming, gaming and video
chatting a breeze
• 1 Gigabit Ethernet LAN port and 1 Gigabit Ethernet WAN
port provide optional wired connectivity
• D-Link Wi-Fi Mesh lets you add other compatible EAGLE PRO
AI Series to expand your network as you wish
• BSS colouring helps organise data packets, making your
network more efficient and improving overall Wi-Fi 6
performance
• Mesh Smart Roaming technology auto connects you to the
strongest signal
• Voice Control for an even easier home Wi-Fi networking
experience
• Free EAGLE PRO AI app
M15
EAGLE PRO AI M15
AX1500 Mesh System
Wi-Fi that’s smarter, safer, faster, and more affordable than ever.
Connectivity
Optimisation
The EAGLE PRO AI engine
automatically keeps you on the
optimal channel
Improvement
Mesh nodes collaborate with
each other to optimise
network traffic
The EAGLE PRO AI app provides
notifications and usage reports to help
you manage your network more efficiently
Expandable
The EAGLE PRO AI series can scale
to any size home for dead-zone
free Wi-Fi coverage
Wi-Fi 6 Performance Gigabit Ports Clean Network Voice Control
Future-proof your Wi-Fi with
coverage that’s better, faster, and
more efficient
Plug in smart TVs, game consoles,
and other devices for a fast and
reliable connection
Compliant with the latest security
standards like WPA3™ and IEC
62443-4-1
Works with Amazon Alexa and
Google Assistant for convenient
voice control

Technical Specications
M15
General
Device Interfaces 1 x Gigabit Ethernet LAN port, 1 x Gigabit Ethernet WAN port, 1 x WPS button, 1 x power connector
LED Power/ Status
Antenna Type 2 x 2.4G WLAN Internal Antenna, 2 x 5G WLAN Internal Antenna
Wi-Fi Data Rate 2.4GHz Up to 300Mbps1, 5 GHz Up to 1201Mbps1
Wireless IEEE Standard IEEE 802.11ax/ac/n/g/b/k/v/a/h, IEEE 802.3u/ab
Minimum Requirements Windows 10/8.1/8/7/Vista or Mac OS X 10.6 or higher, Supports Internet Explorer 10/Firefox 28.0/Chrome
28.0/Safari 6.0 and up, Network Interface Card, Cable/DSL modem or other ISP
equipment with Ethernet port
WAN Interface Static IP, Dynamic IP, PPPoE, PPTP, L2TP, DS-Lite, Support 802.1p & 802.1q
VLAN tagging and Priority bit, Concurrent session: 30000
Functionality
Security Protocol WPA/WPA2 -Personal, WPA2-Personal, WPA2/WPA3 – Personal (WPS
not supported), WPA3 Only (WPS Not supported)
Firewall DoS, Stateful Packet Inspection, Anti-spoofing Checking, IP/MAC Address Filtering, 1 x DMZ
Mesh D-Link Wi-Fi Mesh
QoS D-Link Intelligent QoS Technology
SpeedTest Ookla SpeedTest
Software
Device Management EAGLE PRO AI app (iOS and Android), Web UI
Voice Assistants Amazon Alexa, the Google Assistant
Physical
Hardware version A1
Dimensions 92 x 92 x 93 mm
Weight 200 g
Power Input 12 V 1A
Maximum Operating Voltage 12 V
Maximum Power
Consumption
12 W
Operating Temperature 0 to 40 °C (32 to 104 °F)
Storage Temperature -20 to 65 °C (-4 to 149 °F)
Operating Humidity 10% to 90% non-condensing
Storage Humidity 5% to 95% non-condensing
Certifications CE , FCC, RCM
Ordering Information
M15 M15-2PK / EAGLE PRO AI AX1500 Mesh System (2-Pack)
1 Maximum wireless signal rate derived from IEEE Standard 802.11ax specifications. Actual data throughput will vary. Network conditions and environmental factors, including volume of network traffic, building materials and
construction, and network overhead, may lower actual data throughput rate. Environmental factors will adversely affect wireless signal range.
D-LINK AUSTRALIA | 6-10 Talavera Rd, North Ryde, NSW 2113
Specifications are subject to change without notice. © 2022D-Link. All Rights Reserved. D-Link and the D-Link logo are trademarks
or registered trademarks of D-Link. All other third-party marks mentioned herein may be trademarks of their respective owners.
M15-3PK / EAGLE PRO AI AX1500 Mesh System (3-Pack)

AX1500 MESH ROUTER M15

iD-Link M15 User Manual
D-Link reserves the right to revise this publication and to make changes in the content hereof without obligation to notify any
person or organization of such revisions or changes.
Manual Revisions
Hardware Revision Date Description
A1 1.01 2021/10/22 Update CE warning statement
A1 1.02 2021/11/12 New cover, removal of Parental Control notice
Trademarks
D-Link and the D-Link logo are trademarks or registered trademarks of D-Link Corporation or its subsidiaries in the United States or other countries.
All other company or product names mentioned herein are trademarks or registered trademarks of their respective companies.
Apple®, Apple logo®, Safari®, iPhone®, and Macintosh® are trademarks of Apple Inc., registered in the U.S. and other countries. App StoreSM is a service
mark of Apple Inc.
Chrome™ browser, Google Play™ and Android™ are trademarks of Google Inc.
Internet Explorer®, Windows® and the Windows logo are trademarks of the Microsoft group of companies.
Copyright © 2021 by D-Link Corporation, Inc.
All rights reserved. This publication may not be reproduced, in whole or in part, without prior expressed written permission from D-Link Corporation, Inc.
Power Usage
ErP Power Usage
This device is an Energy Related Product (ErP) that automatically switches to a power-saving Network Standby mode within 1 minute of no
packets being transmitted. If it is not needed during certain periods of time, it can be unplugged to save energy.
Network Standby: 4.47W
Preface

iiD-Link M15 User Manual
Table of Contents
Table of Contents
Product Overview..............................................................1
Package Contents......................................................................... 1
System Requirements................................................................. 2
Introduction ................................................................................... 3
Features....................................................................................3
Hardware Overview.....................................................................4
M15 LED Indicator................................................................ 4
M15 Rear..................................................................................5
Hardware Setup ............................................................................ 6
Using the EAGLE PRO AI App .......................................... 6
Web Based Installation ......................................................8
Conguration.....................................................................9
Accessing the Web User Interface ..........................................9
Home ..............................................................................................10
Internet...................................................................................11
M15..........................................................................................12
Connected Clients..............................................................13
Extenders...............................................................................14
Mesh Network......................................................................15
Settings ..........................................................................................16
Wizard .....................................................................................16
Internet...................................................................................17
IPv4 .....................................................................................17
IPv6 .....................................................................................28
Internet - VLAN ...............................................................41
Internet - VLAN (Continued) ......................................42
Wireless ..................................................................................43
Wi-Fi....................................................................................43
Guest Zone.......................................................................47
Network..................................................................................49
D-Link Cloud.........................................................................51
Operation Mode..................................................................52
Features..........................................................................................53
Parental Control ..................................................................53
QoS Engine............................................................................56
Firewall ...................................................................................58
IPv4/IPv6 Rules ...............................................................60
Port Forwarding .............................................................62
Virtual Server...................................................................63
Static Routes.........................................................................64
IPv4 .....................................................................................64
IPv6 .....................................................................................65
Dynamic DNS .......................................................................66
Quick VPN..............................................................................68
Management................................................................................69
Time & Schedule .................................................................69
Time....................................................................................69
Schedule ...........................................................................70
System Log............................................................................71
System Admin......................................................................73
Admin.................................................................................73
System ...............................................................................75

iiiD-Link M15 User Manual
Table of Contents
Connect or Disconnect.................................................. 115
Troubleshooting............................................................116
Wireless Basics ...............................................................118
Tips................................................................................................ 121
Technical Specications................................................122
Regulatory Information ................................................124
User..........................................................................................76
Upgrade .................................................................................77
Statistics.................................................................................78
Adding Additional Mesh Points......................................79
Using the EAGLE PRO AI App .................................................79
EAGLE PRO AI...................................................................86
Voice Control....................................................................90
Link D-Link Cloud Service to Other Services ....................91
Google Home Setup..........................................................91
Amazon Alexa Setup .........................................................96
Amazon Alexa Voice Commands ..................................99
Google Assistant Setup ................................................. 100
Google Assistant Voice Commands .......................... 102
Connect to a Wireless Client .........................................103
WPS Button................................................................................ 103
Windows 10............................................................................... 104
VPN Setup Instructions.................................................. 104
Connect or Disconnect.................................................. 106
Android ....................................................................................... 107
VPN Setup Instructions.................................................. 107
Connect or Disconnect.................................................. 109
Mac OS X..................................................................................... 110
VPN Setup Instructions.................................................. 110
Connect or Disconnect.................................................. 112
iOS Devices ................................................................................ 113
VPN Setup Instructions.................................................. 113

1D-Link M15 User Manual
Section 1 - Product Overview
If any of the above items are missing or damaged, please contact your local reseller.
Note: Using a power supply with a dierent voltage rating than the one included with the device will cause damage and void the warranty for this product.
Product Overview
Package Contents
M15 AX1500 Mesh Router
Power Adapter (12V, 1A)
Ethernet Cable ( RJ45, 1m)
Quick Installation Guide

2D-Link M15 User Manual
Section 1 - Product Overview
Network Requirements • An Ethernet-based cable, DSL or ber modem • IEEE 802.11ax/ac/n/g/b/a wireless clients
• 10/100/1000 Mbps Ethernet
Web-based
Conguration Utility
Requirements
Computer with the following:
• Windows, Macintosh, or Linux-based operating system
• An installed Ethernet adapter or Wi-Fi interface
Browser requirements:
• Internet Explorer 11 or higher
• Firefox 28 or higher
• Safari 6 or higher
• Chrome 28 or higher
EAGLE PRO AI App
Requirements
• iOS® or Android™ device (Please refer to the app's store page to
check whether your device is compatible.)
System Requirements

3D-Link M15 User Manual
Section 1 - Product Overview
Introduction
The M15 provides a breakthrough Wi-Fi solution that’s the perfect t for your modern home. It features high-performance
mesh technology that answers your demand for seamless, fast, and reliable connectivity throughout your home, oce, and
event venues. It oers 802.11ax WLAN with speed up to 1500 Mbps*as well as one on-board Gigabit Ethernet port (per unit)
for wired connectivity. Furthermore, you enjoy Wi-Fi that's not only smart, but also manageable with AI-capable assistance.
Featuring integrated voice assistance compatibility for Amazon Alexa and the Google Assistant, you can control your network
with voice commands. Features
• AI-capableWi-Fi with Smart Roaming - Seamlessly connects your devices to the strongest signal and optimal channel
as well as wireless band as you move from room to room, eliminating the need for them to disconnect and reconnect.
• Simple Setup - Mesh capability comes with auto-pairing out of the box, just plug them in and get started.
• Prole-based Parental Controls - Assign devices to family members’proles to individually block devices and websites,
set schedules for full access or limited access, and receive reports on overly active Internet access during nighttime.
• Expandable Network - D-Link’s Wi-Fi Mesh is a scalable solution. Add extra mesh points with our EAGLE PRO AI series
of routers and extenders where you need more coverage.
• Works with Your Existing Router or Gateway - Simply connect to the Router or Gateway provided by your ISP to add
whole home coverage to your network.
• Easy Setup and Flexible Management - Managing your Internet utilization has never been easier; just download the
free EAGLE PRO AI for your mobile device and follow the on-screen step-by-step instructions to add your device. You
also have the option to use a web browser to access the setup wizard for basic conguration and advanced features.
Support for industry-standard Wi-Fi Protected Setup (WPS) lets you create encrypted connections to new devices by
pressing a button.
*Maximum wireless signal rate derived from IEEE Standard 802.11ax, 802.11ac, 802.11n, and 802.11g/b/a specications. Actual data throughput will vary. Network conditions
and environmental factors, including volume of network trac, building materials and construction, and network overhead, may lower actual data throughput rate.
Environmental conditions will adversely aect wireless signal range.

4D-Link M15 User Manual
Section 1 - Product Overview
Hardware Overview

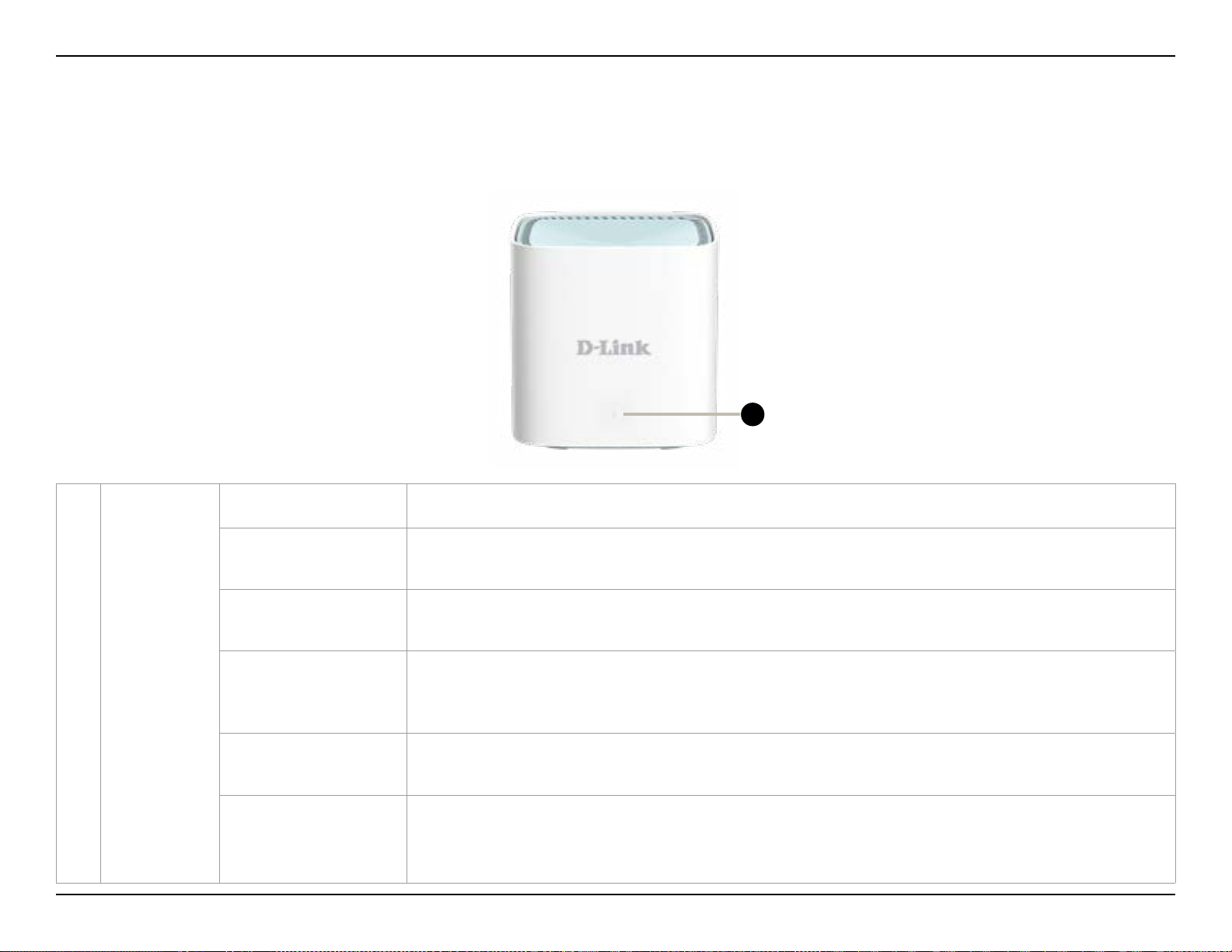

M15 LED Indicator
1 Status LED
Solid red The M15 is booting up or being factory reset.
Blinking orange The M15 is syncing to another M15 mesh point or trying to establish an uplink connection.
Once set up, a blinking orange LED indicates there is no uplink connection to the device.
Blinking Orange &
White Alternately The device is undergoing the rmware upgrade process.
Solid white The M15 is powered on and running.
Once set up, a solid white LED indicates there is an uplink connection to the device.
Blinking white Once set up, a blinking white LED indicates a weak connection, or that the mesh point is
connecting to a wireless client using Wi-Fi Protected Setup (WPS).
O
The M15 is powered o.
If the device is powered on and Status LED is disabled, the device is working as normal. Refer
to the Admin section on page 73 for more information.
1

5D-Link M15 User Manual
Section 1 - Product Overview

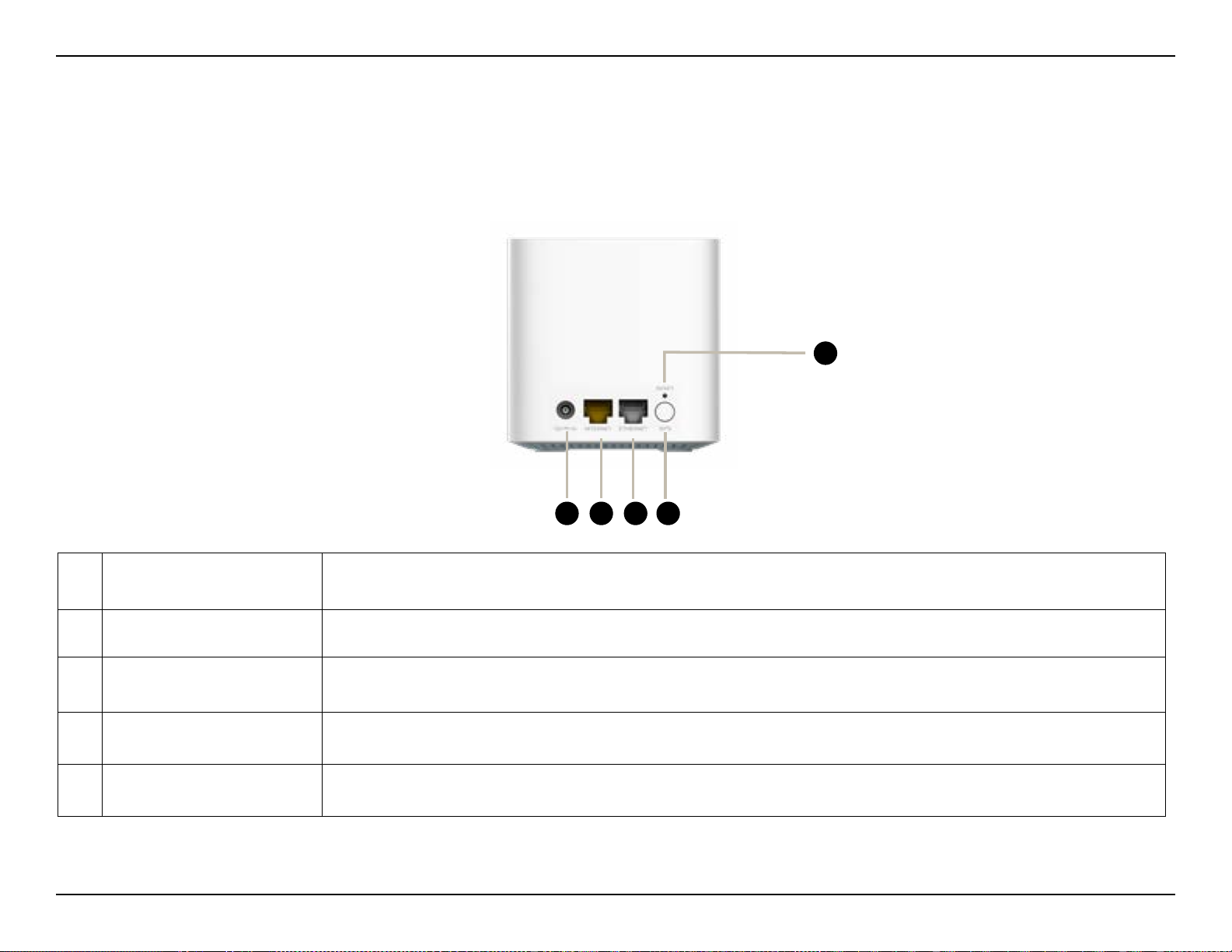

M15 Rear
1
23 4 5
1 Reset Button Insert a paperclip in the hole and wait for the Status LED turns solid red, then release to reset the router
to default settings.
2 Power Connector Connect the included power adapter here to power on the device.
3Gigabit WAN Port Using an Ethernet cable, connect your broadband modem to this port.
4 Gigabit LAN Port Connect Ethernet devices such as computers, switches, storage (NAS) devices, and game consoles.
5 WPS Press this button to establish an instant connection to a wireless client using Wi-Fi Protected Setup
(WPS).

6D-Link M15 User Manual
Section 2 - Installation
Hardware Setup
Using the EAGLE PRO AI App
The EAGLE PRO AI allows you to install and congure your M15 from your compatible Android or iOS device.
Note: The screenshots may be dierent depending on your mobile device’s OS version. However, the process is the same.
Step 1
Search and install the free EAGLE PRO AI available on the App Store or on
Google Play.
Step 2
Launch the EAGLE PRO AI from the home screen of your device.
Step 3

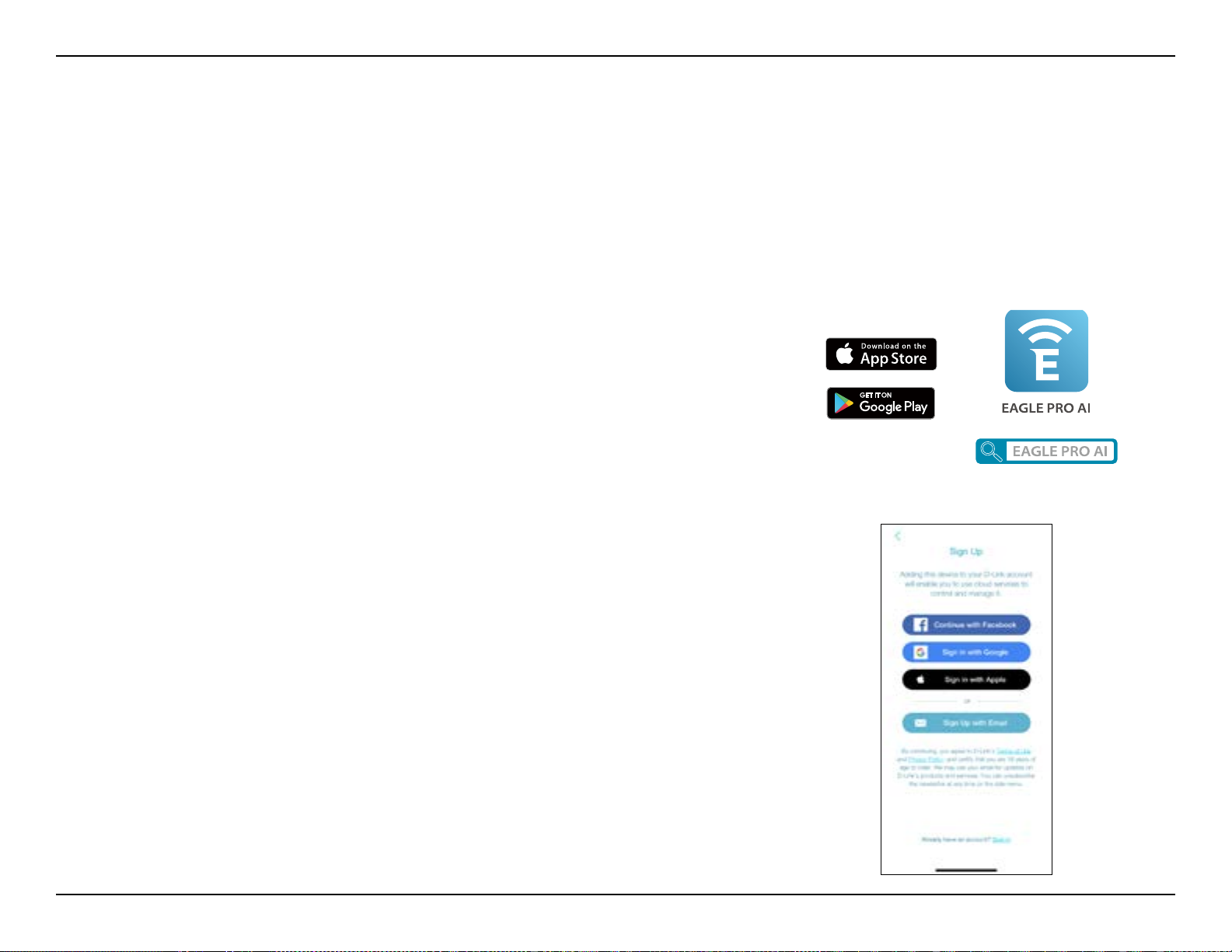

Sign in to the app using one of the following methods: Facebook, Google,
Apple ID, or an email account. If you already have a D-Link account, you can
tap the Log In link at the bottom of the screen to be redirected to the login
page. It allows you to use cloud services to control and manage your device
including the third-party voice control apps.

7D-Link M15 User Manual
Section 2 - Installation
Step 4

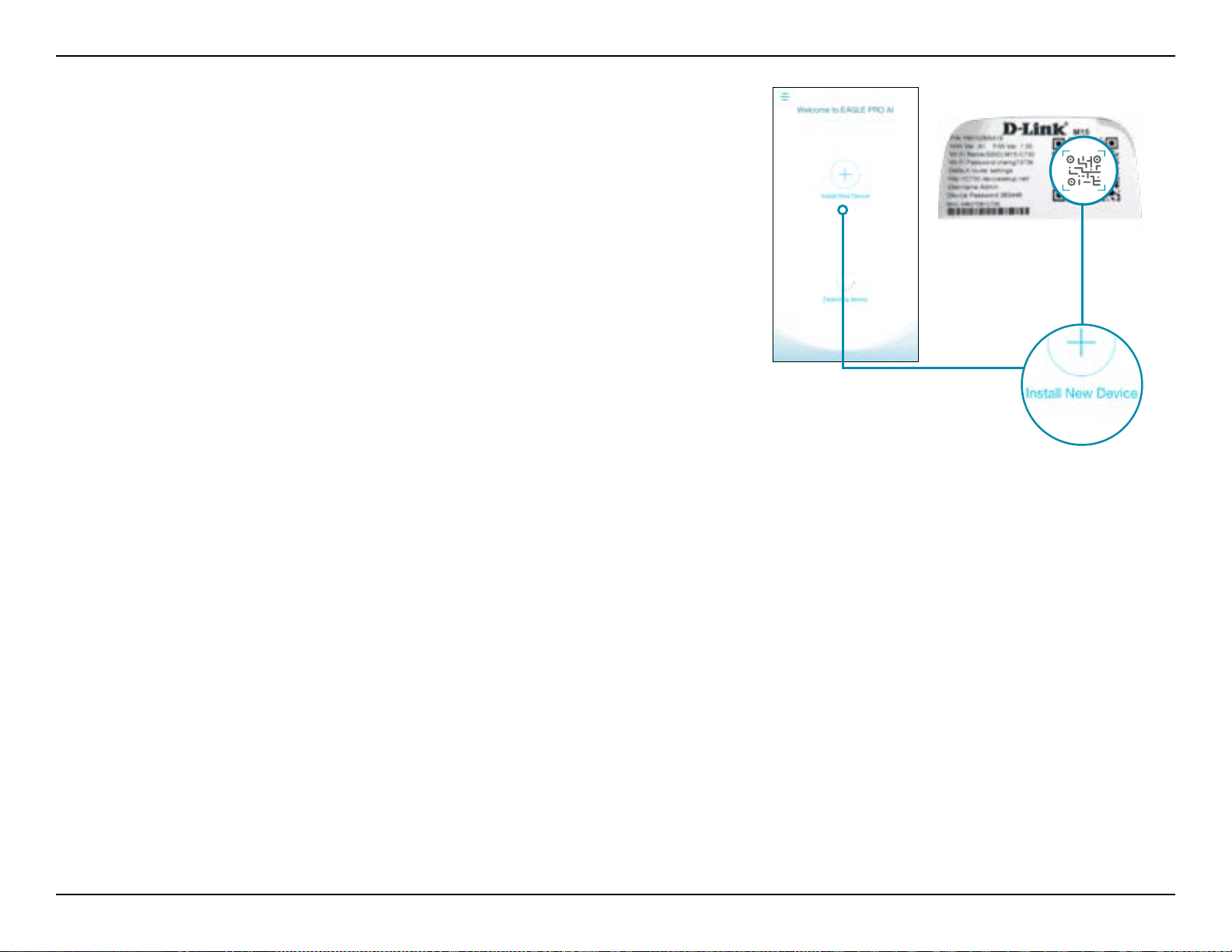

Tap Install New Device. Scan the setup code on the bottom of the device.
Follow the on-screen instructions to complete the setup.

8D-Link M15 User Manual
Section 2 - Installation
Web Based Installation
You can also set up your M15 and congure your Wi-Fi network following the instructions of the web-based user interface.

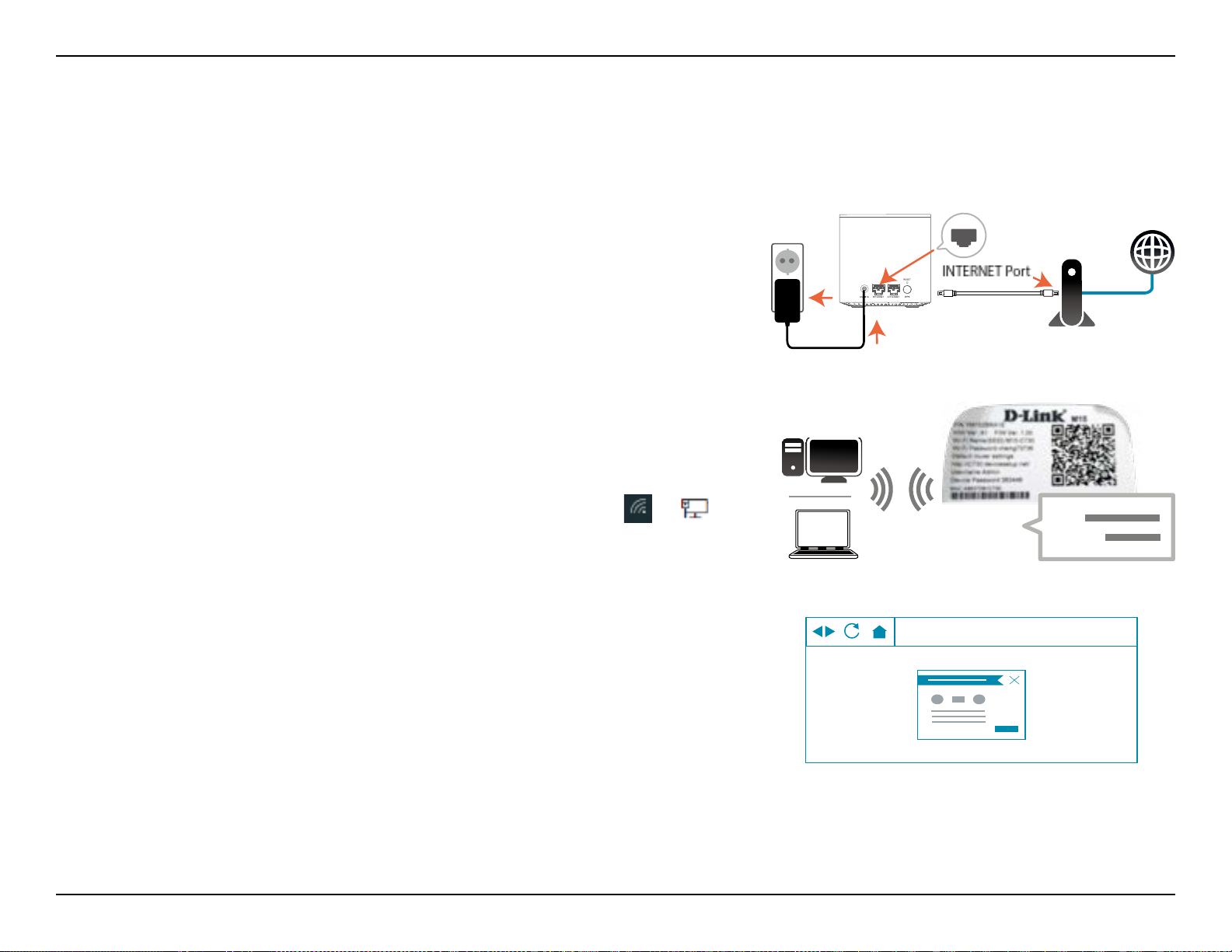

Step 1
Position the M15 close to your Internet-connected modem. Turn o and
unplug the power to your cable or DSL broadband modem. This is required.
In some cases, you may need to turn it o for up to ve minutes. Then
connect an Ethernet cable to the modem and to INTERNET Port of the M15.
You can now power your modem back on.
Step 2
Connect the power adapter and plug the M15 into a power outlet. Wait for the
M15 to boot up. When the LED starts blinking orange, wirelessly connect your
computer to the Wi-Fi name (SSID) printed on the device label on the bottom
of the device. On Windows, click on the Network Settings icon ( or ) in
the notication area of the Windows taskbar to view available networks.
Note: The Wi-Fi name (SSID), Wi-Fi password, and device password are printed
on the device label on the bottom of the device.
Your M15 is now set up and ready to use. You can now congure your Wi-Fi settings using EAGLE PRO AI or the web-based user
interface. Refer to the Conguration section on page 9 for more information on conguring your network using the web-
based user interface.
Step 3
Type http://XXXX.devicesetup.net/ into a web browser and follow the on-
screen instructions to complete the setup.
Note: XXXX are the last four digits of the device's MAC address. Please refer
to the device label for the MAC address.
MODEM
http://xxxx.devicesetup.net/
SSID:
Password:
Wi-Fi
Wi-Fi

9D-Link M15 User Manual
Section 3 - Conguration
Conguration
Accessing the Web User Interface
http://xxxx.devicesetup.net/
You can access the web-based user interface using one of the following web
browsers:
• Internet Explorer 11 or higher
• Firefox 28 or higher
• Safari 6 or higher
• Chrome 28 or higher

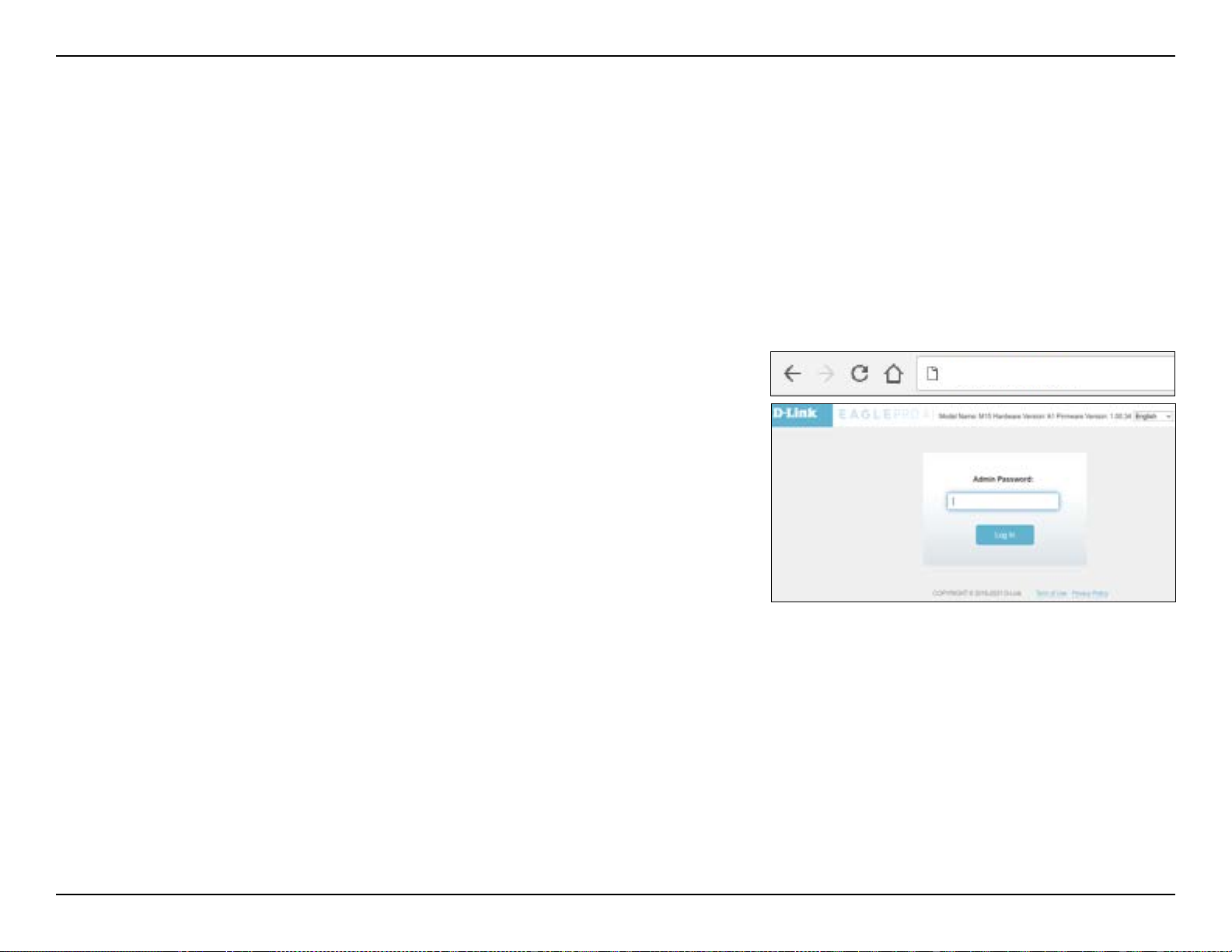

1. Open a web browser.
2. Type http://XXXX.devicesetup.net/ in the address bar. (XXXX represents
the last 4 digits of the device's MAC address)
3. Specify the admin password.
• If this is the rst login, enter the device password printed on the device
label on the bottom of the device.
• If you have previously completed the initial setup, specify the password
you created during initial setup.
4. Click Log In.
Note: The system will automatically log out after a period (180 seconds) of
inactivity.

10D-Link M15 User Manual
Section 3 - Conguration
Home

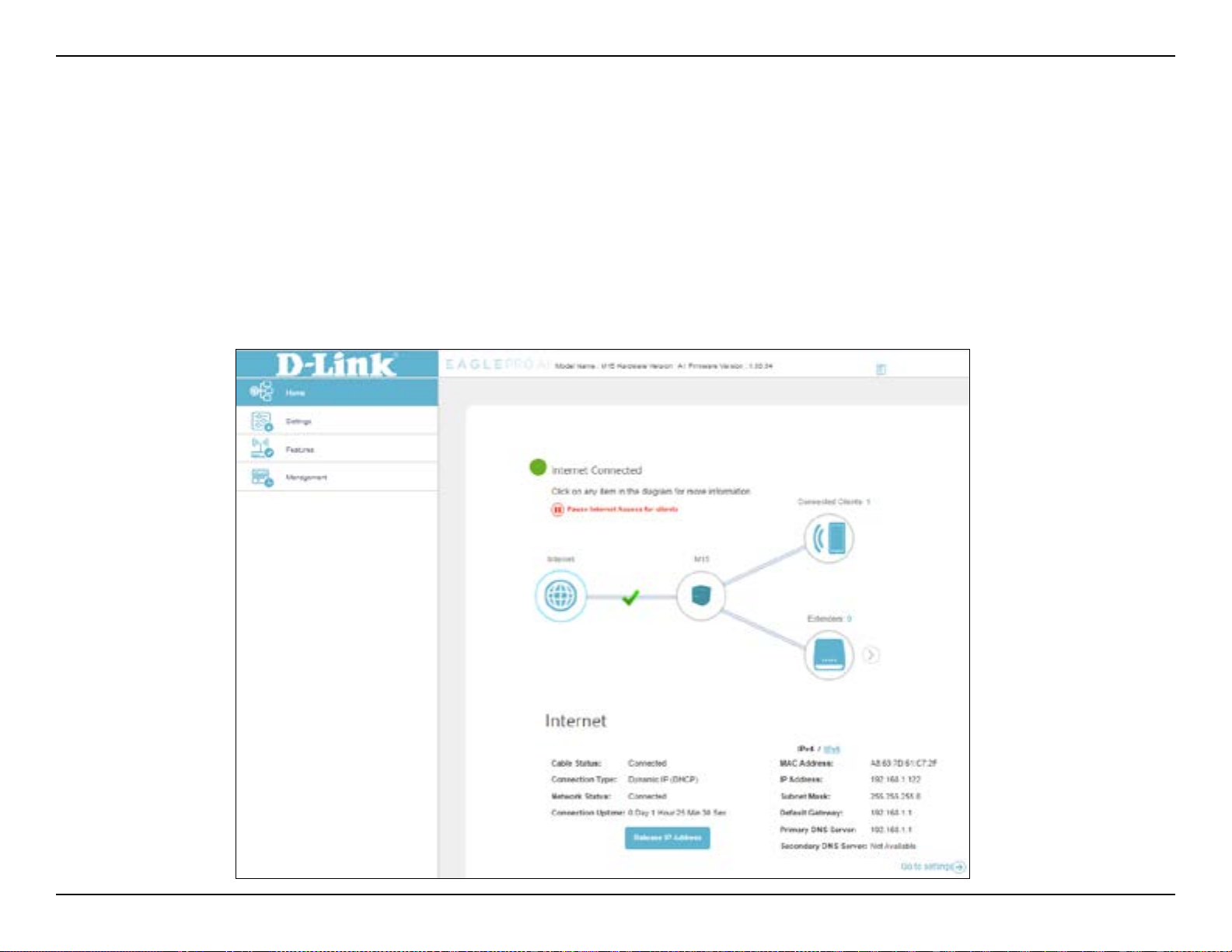

The Home page displays the status of your network connectivity in the form of an interactive topology. You can click each icon
to display information about components of the network at the bottom of the screen. The left navigation pane allows you to
quickly navigate to other pages. Refer to the following sections for a description of these functional pages.
You can access AI Assistant (an AI-assisted message center) for reports on Wi-Fi conditions and bandwidth utilization at the
top right. Note that you need to turn on AI-assisted functions to receive messages.

11D-Link M15 User Manual
Section 3 - Conguration

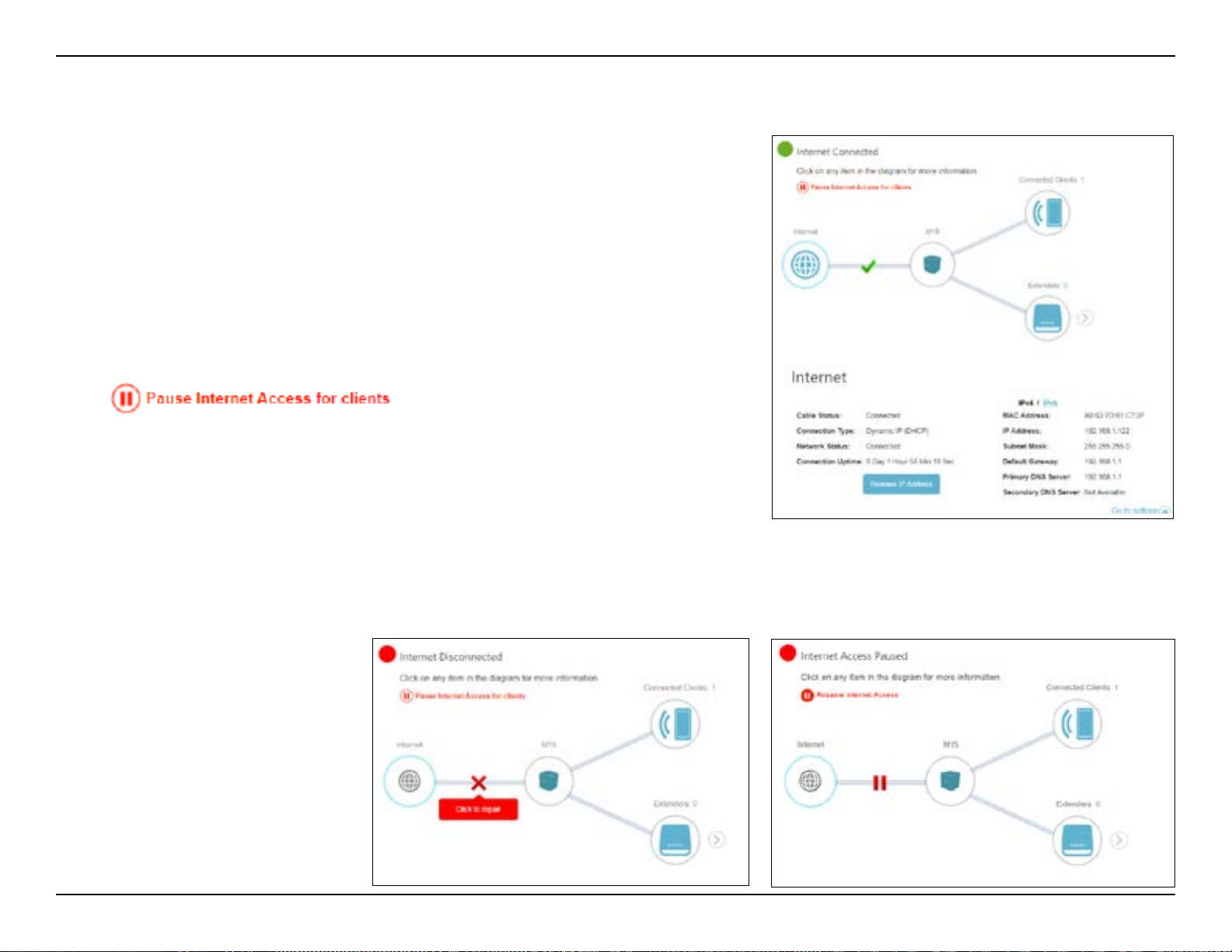

Internet
To view more details about your Internet connection, click on the Internet
icon.
Click IPv4 or IPv6 to see details of the IPv4 connection and IPv6 connection
respectively.
Click Release IP Address to disconnect from the Internet. To reconnect with
a new IP address assignment, click Renew IP Address.
Click to stop Internet access for all clients.
Click Click to repair to bring up the setup wizard and go through the initial
conguration again.
To recongure the Internet settings, click Go to settings -> at the bottom
right.

12D-Link M15 User Manual
Section 3 - Conguration

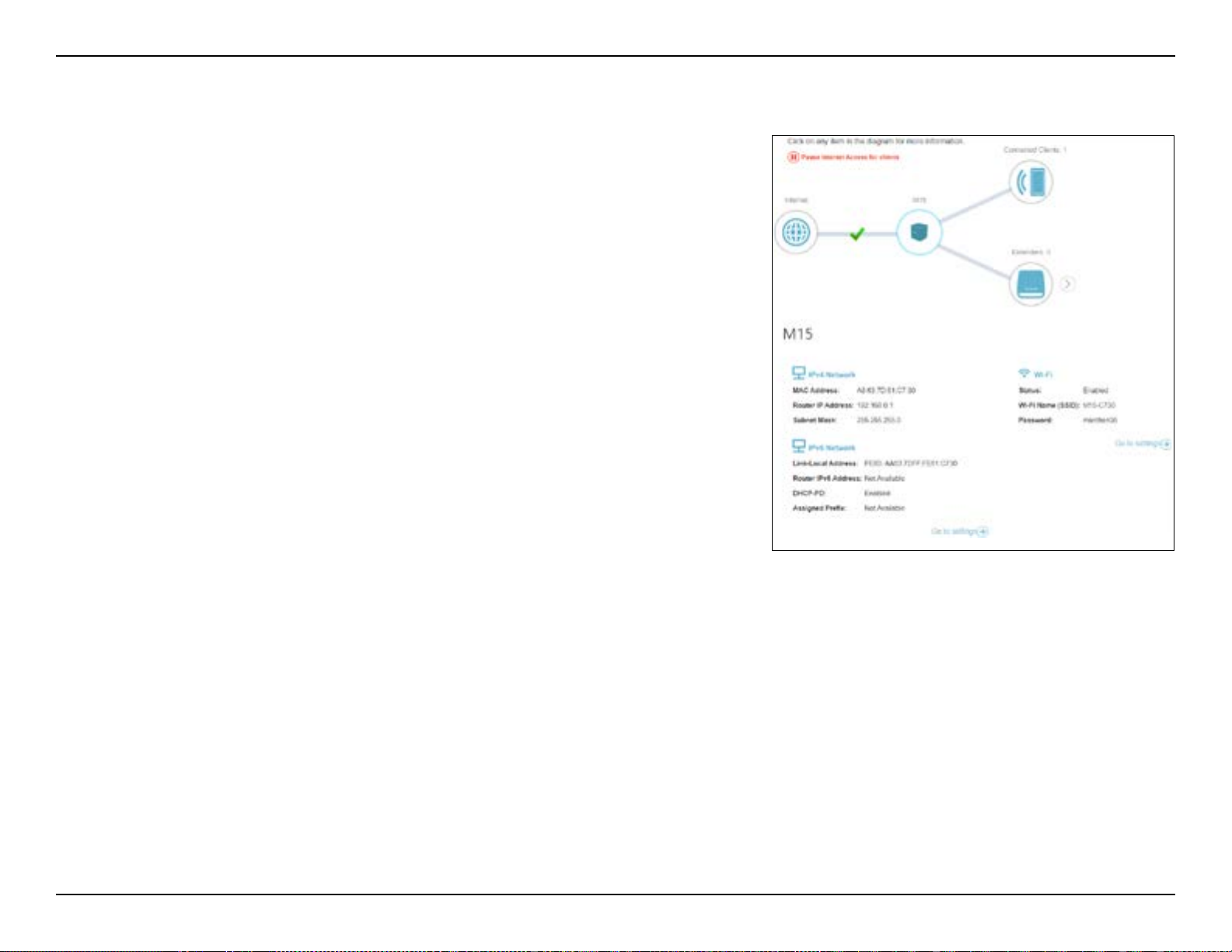

M15
Click on the M15 icon to view details about the M15's wireless and local network
settings. This includes IPv4 and IPv6 local networks, and Wi-Fi information.
To recongure the network or wireless settings, click Go to settings -> at the
bottom right to access the conguration page.

13D-Link M15 User Manual
Section 3 - Conguration

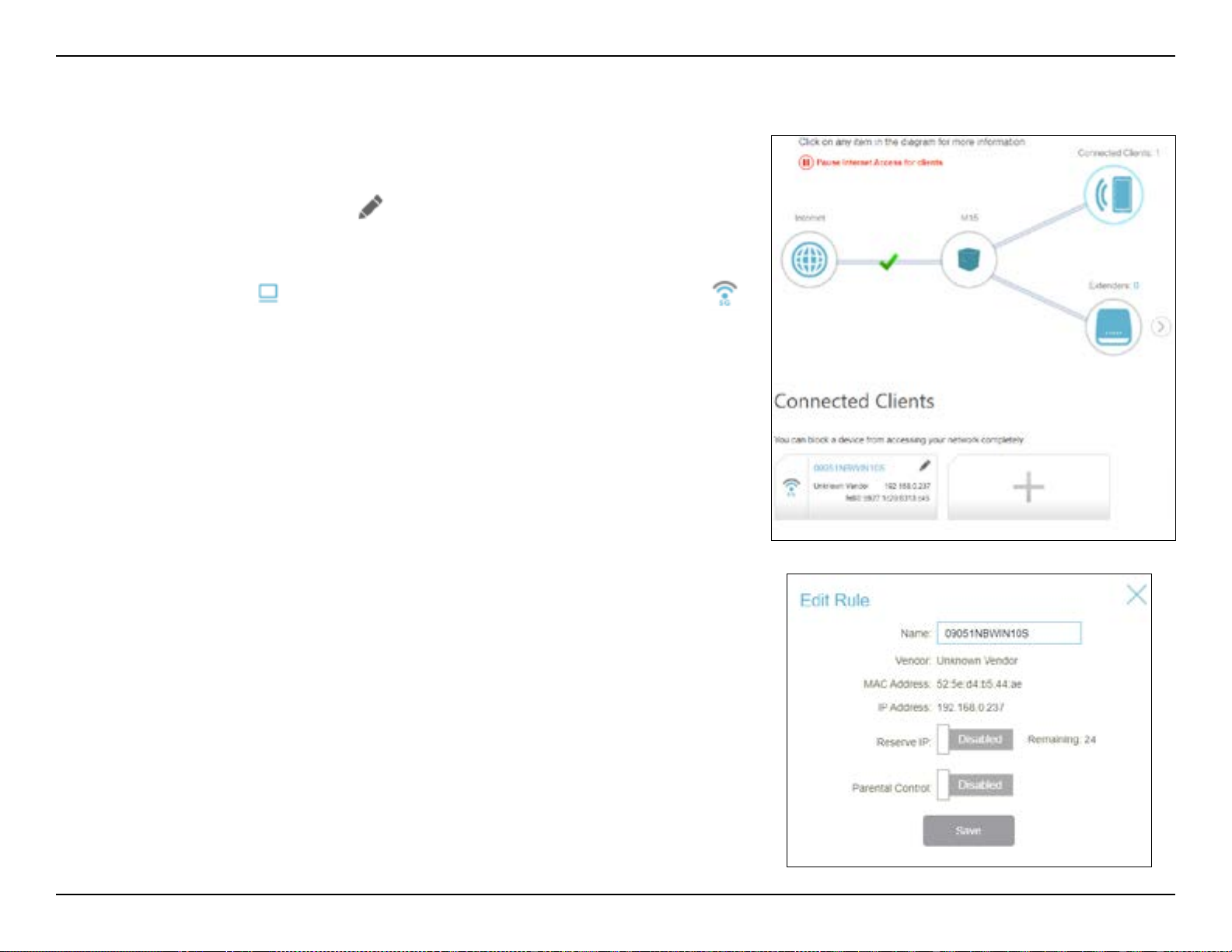

Connected Clients
Click on the Connected Clients icon to view details about the clients currently
connected to your Wi-Fi network.
To edit each client’s settings, click on the client you want to edit.
Name Displays the name of this client. You can edit the client's name here.
The icon shows the client is connected through a cable. The
icon shows the client is connected wirelessly.
Vendor Displays the vendor of the device.
MAC Address Displays the MAC address of the device.
IP Address Displays the current IP address of this client.
Reserve IP Enable this option to reserve an IP address for this client.
IP Address
(Reserved)
Specify an IP address for the DHCP server to assign to this client.
Parental Control Enable Parental Control and select a prole to control the client's
Internet access. Make sure that this device is also on the device list
of the selected prole. Refer to Parental Control on page 53 for
more information.
Prole Use the drop-down menu to select a prole to be used for Parental
Control. The prole can be set to Always Block to have this client
blocked from accessing the Internet, or you can create your own
proles to specify the times that the client can access the network.
You can also block access to unwanted websites. Refer to Features
> Parental Control on page 53 for more information.
Click Save when you are done.

14D-Link M15 User Manual
Section 3 - Conguration
Extenders

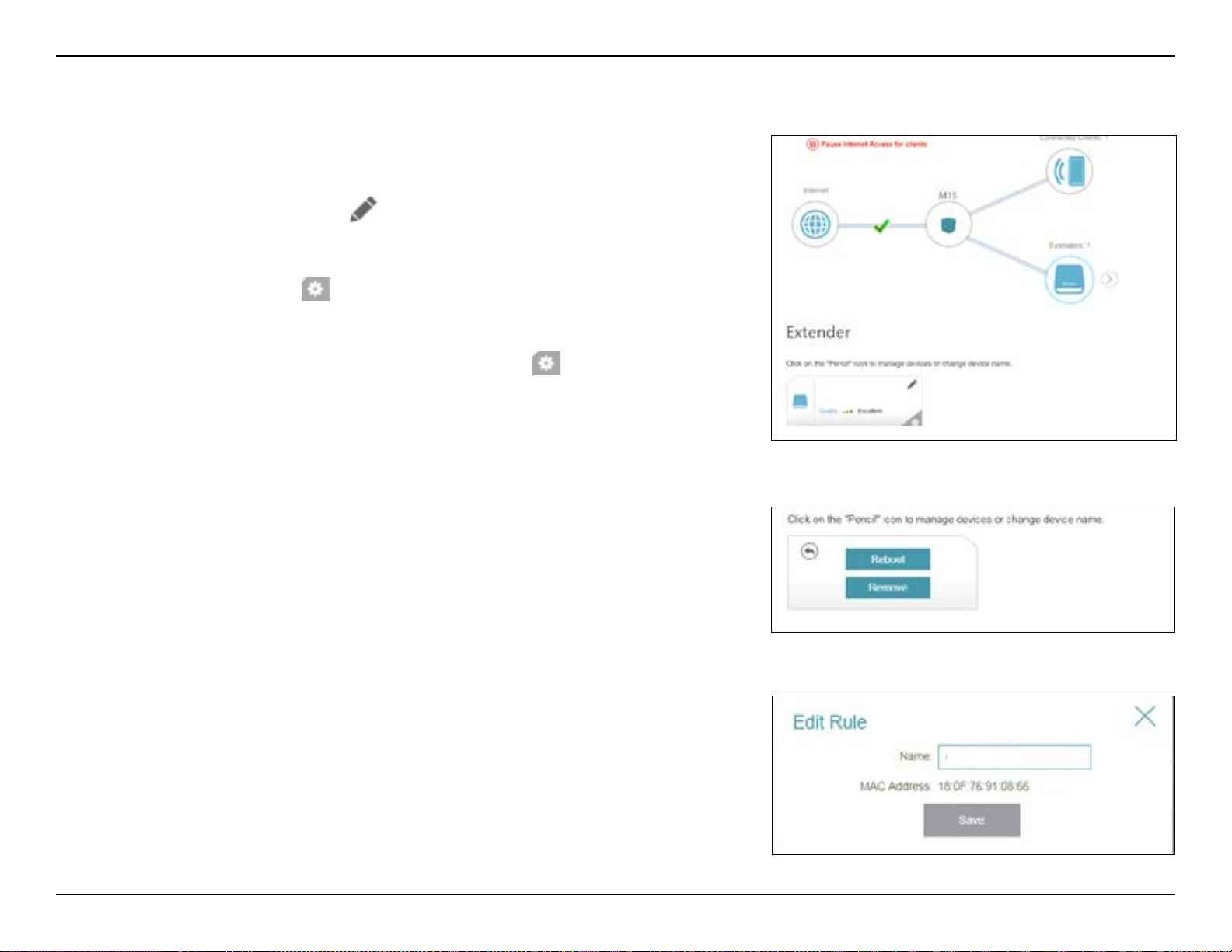

Click on the Extenders icon to view details about all extenders in your Wi-Fi
network.
To edit an Extender’s name, click on the top right of the Extender's card
that you want to rename.
To reboot an Extender, click on the bottom right of the Extender's card and
click Reboot.
To remove an Extender from your Wi-Fi network, click on the bottom right
of the Extender's card and click Remove.
Name Enter a descriptive name for the M15.
MAC Address Displays the MAC address of the M15.
Flash LED Flash the Status LED of the M15.
Click Save when you are done.
M15
M15
