D-Link DFE-528TX User manual

Contents of Package:
•DFE-528TX Fast Ethernet Adapter
•Quick Install Guide
•CD-ROM, which includes driver software
If any of the above items are missing, please contact your reseller.
Installing the DFE-528TX into the
computer’s PCI slot
Note: To avoid static electric charges, please touch an unpainted screw on the
outside of the power supply before installing or working with the DFE-528TX.
•Turn off your computer and unplug the power cord.
•Remove the back cover of your computer. (Refer to your computer’s
manual if needed.)
•Locate an available PCI slot. PCI slots are usually white or cream
colored.
•Remove the backplate (the small piece of metal that covers the opening
for the PCI card on the back cover that you just removed.)
•Insert the DFE-528TX carefully and firmly into the PCI slot.
•Secure the DFE-528TX with the screw from the backplate.
•Replace your computer’s cover.
TURN OFF the computer and
unplug the power cord.

Installing the Drivers
•TURN ON the computer.
•Go to Settings>Control Panel>Network
Double-click on the Network icon.
At the “Network” window, click on the “Adapters” tab.
Click “Add”
Click on “Have Disk”

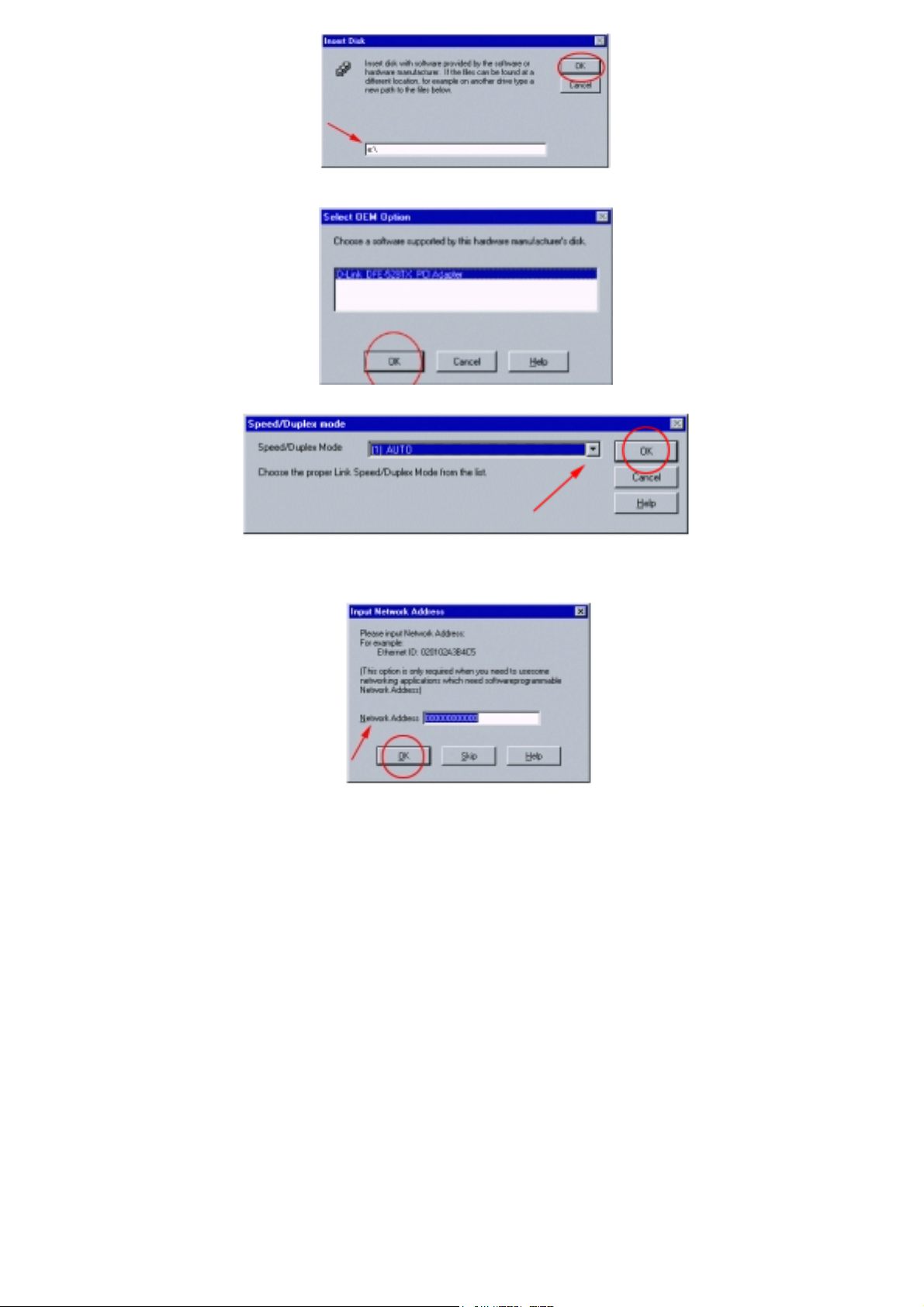

Type in the CD-ROM drive letter.
Click OK
Click OK
Click “OK” to accept the “Auto” speed mode. To choose a fixed speed
mode, make a selection from the “Speed/Duplex Mode” pull-down
menu.
Click “OK” if you are not using IPX networking.
(Type the IPX network number into the “Network
Address” field, if you are using IPX networking.)

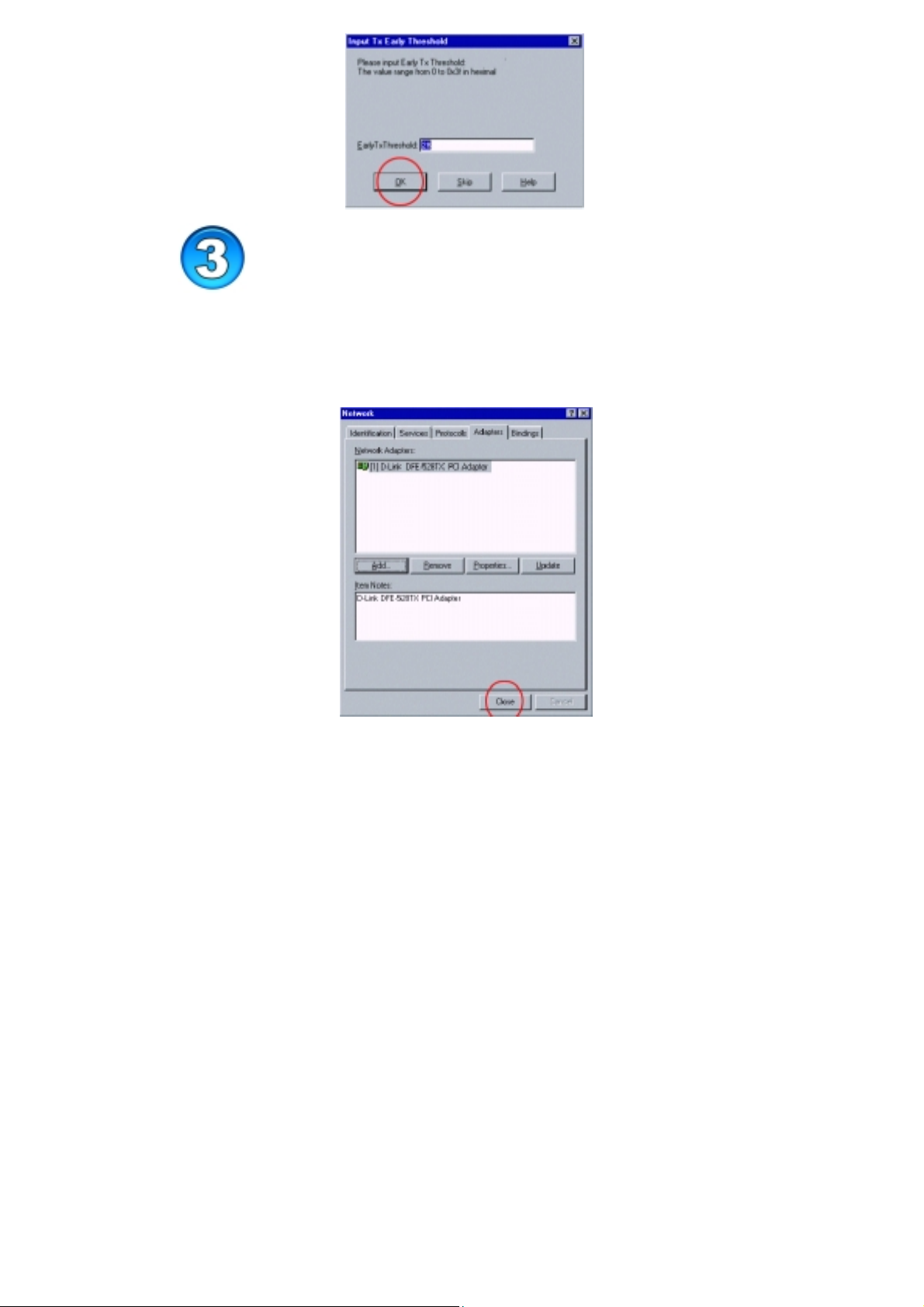

Click “OK” to accept default setting.
Checking the Installation
Go to Start>Settings>Control Panel
Double-click on the Network icon.
Under “Adapters,” check to see that the
“D-Link DFE-528TX PCI Adapter” is displayed.
Click “Close.” The installation is complete.

Technical Support
You can find the most recent software and user
documentation on the D-Link website.
D-Link provides free technical support for customers
within the United States for the duration of the
warranty period on this product.
U.S. customers can contact D-Link technical support
through our web site or by phone.
D-Link Technical Support over the Telephone:
[phone]
24 hours a day, seven days a week
D-Link Technical Support over the Internet:
http://support.dlink.com
