D-Link DCS-4602EV User manual

This document will guide you through the
basic installation process for your new
D-Link Network Camera.
DCS-4602EV
Documentation also available on
CD and via the D-Link Website
Quick Installation Guide
Vigilance Full HD Outdoor Vandal-Proof PoE Dome Camera
Quick Installation Guide
Installationsanleitung
Guide d’installation
Guía de instalación
Guida di Installazione
Краткое руководство по установке
Guia de Instalação Rápida
快速安裝指南
Petunjuk Pemasangan Cepat

D-Link DCS-4602EV Quick Installation Guide
2
ENGLISH
Quick Installation Guide
This installation guide provides basic instructions for installing the Network Camera on
your network. For additional information about how to use the camera, please see the
User’s Manual which is available on the CD included in this package or from the D-Link
support website.
Package Contents
DCS-4602EV Vigilance Full HD Outdoor Vandal-Proof PoE Dome Camera
Cable Waterproong Connector
Rubber Power Connector Plug
Mounting Kit
Manual and Software on CD-ROM
If any of the above items are missing, please contact your reseller.
Safety Notice:
Installation and servicing should be done by certied technicians so as to conform to all
local codes and prevent voiding your warranty.

D-Link DCS-4602EV Quick Installation Guide 3
ENGLISH

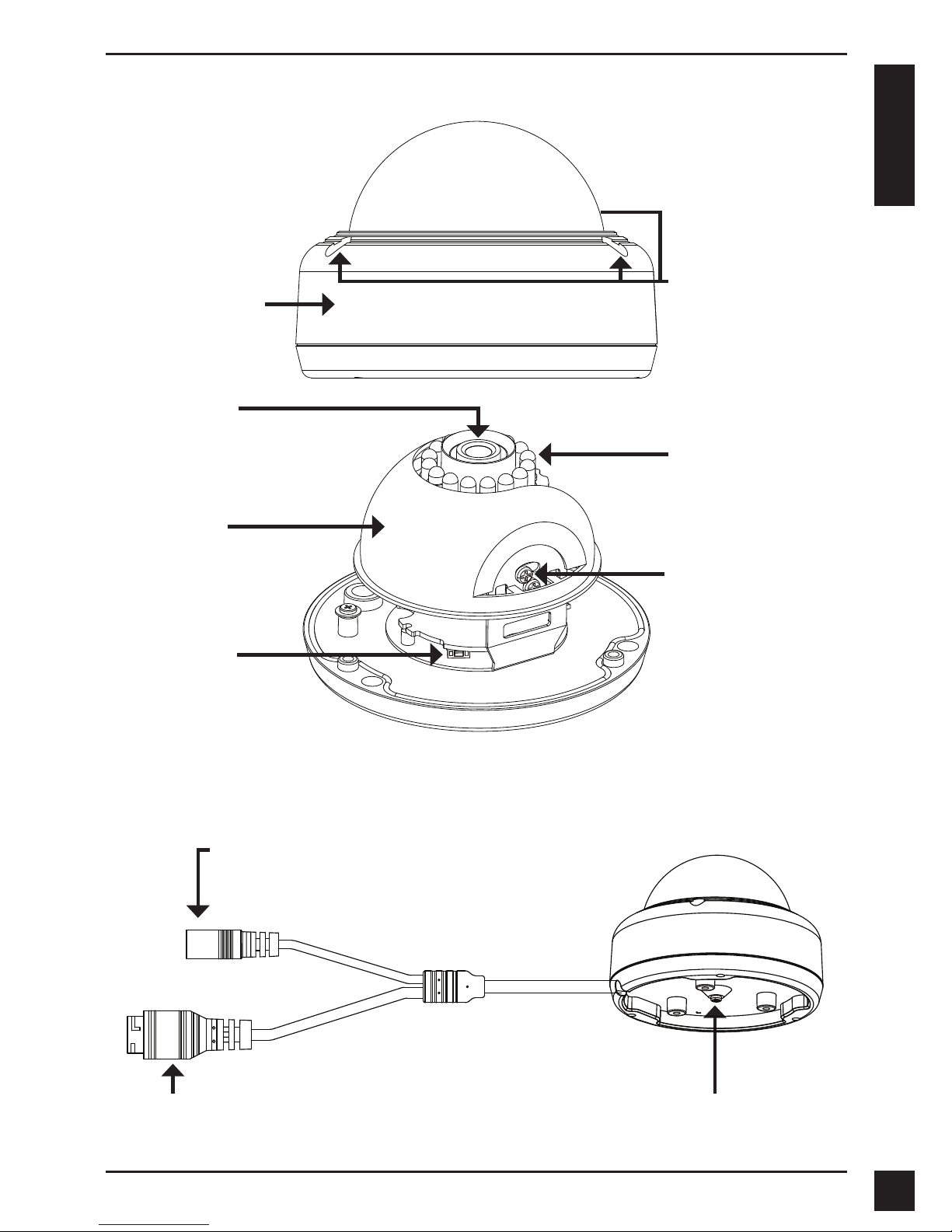

Hardware Overview
IR LEDs
Provide illumination for
low-light environments
Camera Lens
Reset Button
Resets camera to
factory default settings
Grounding Screw
Can be attached to a
grounding wire if desired
Ethernet Jack
RJ-45 connector for Ethernet, can also be used to power
the camera using Power over Ethernet (PoE)
Power Connector
Connects to an optional 12 V / 1.5 A
power adapter (not included)
Protective Cover
Cover Screws
The three screws can be
removed with the included
wrench
Tilt Adjustment Screw
Can be loosened to adjust
camera angle
Inner Cover

D-Link DCS-4602EV Quick Installation Guide
4
ENGLISH

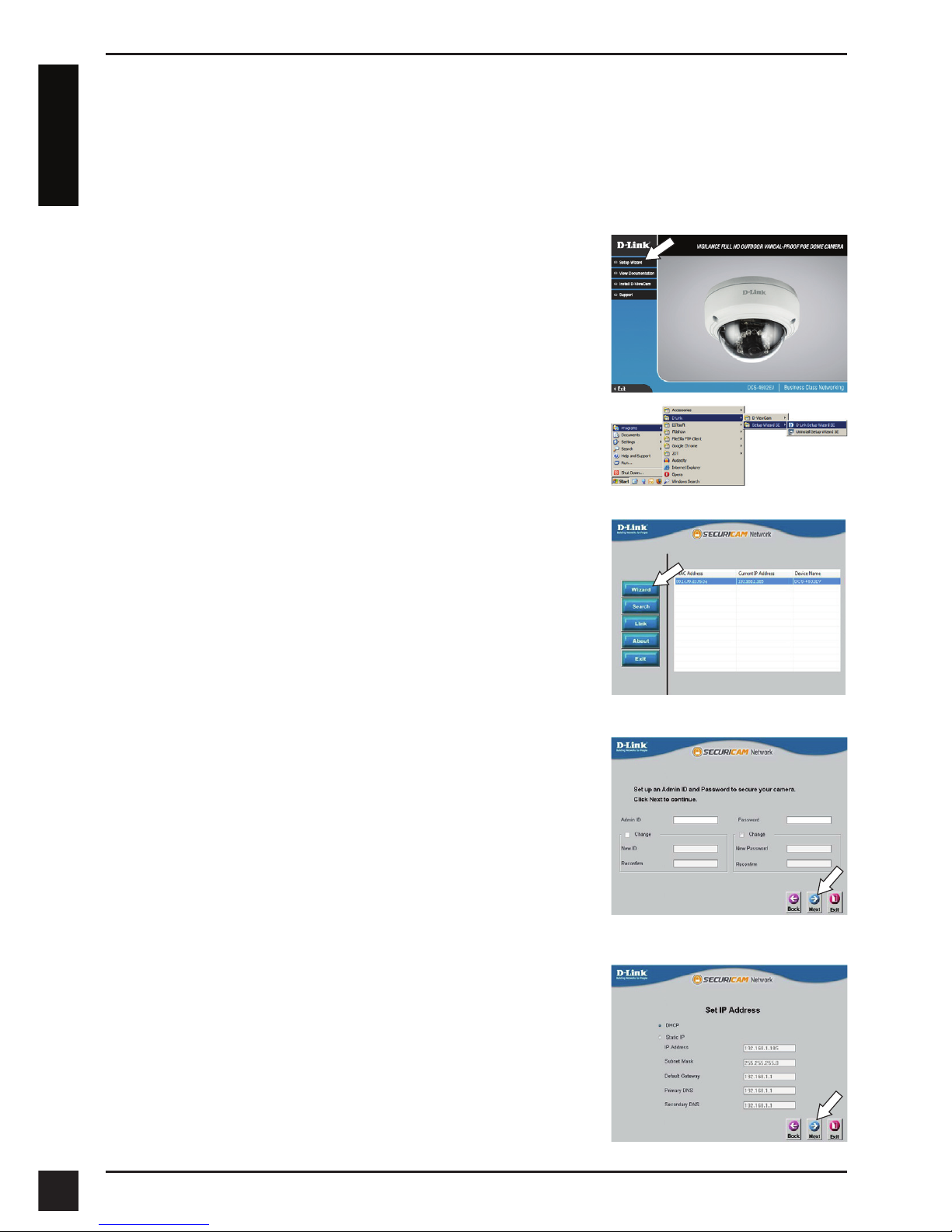

Conguring the Camera
Insert the DCS-4602EV CD into your computer's CD-ROM drive to begin the installation.
If the Autorun function on your computer is disabled, or if the D-Link Launcher fails to
start automatically, click the Start button and type D:\autorun.exe (where D: represents
the drive letter of your CD-ROM drive) and press Enter.
Click on the D-Link Setup Wizard SE icon that was
created in your Windows Start menu (Start > D-Link >
Setup Wizard SE).
The Setup Wizard will appear and display the MAC
address and IP address of your camera(s). If you have a
DHCP server on your network, a valid IP Address will be
displayed. If your network does not use a DHCP server,
the network camera's default static IP 192.168.0.20 will be
displayed.
Select your camera, then click the Wizard button to
continue.
Click Setup Wizard and follow the instructions to install
the Setup Wizard.
Enter the Admin ID and password. When logging in for
the rst time, the default Admin ID is admin with the
password left blank.
Click the checkboxes if you wish to change the admin ID
and password for the camera, and enter the new ID and
password you wish to use.
Click Next to continue.
Select DHCP if your camera obtains an IP address
automatically from a DHCP server such as a router.
Select Static IP if you want to manually enter the IP
settings for the camera.
Click Next to continue.

D-Link DCS-4602EV Quick Installation Guide 5
ENGLISH

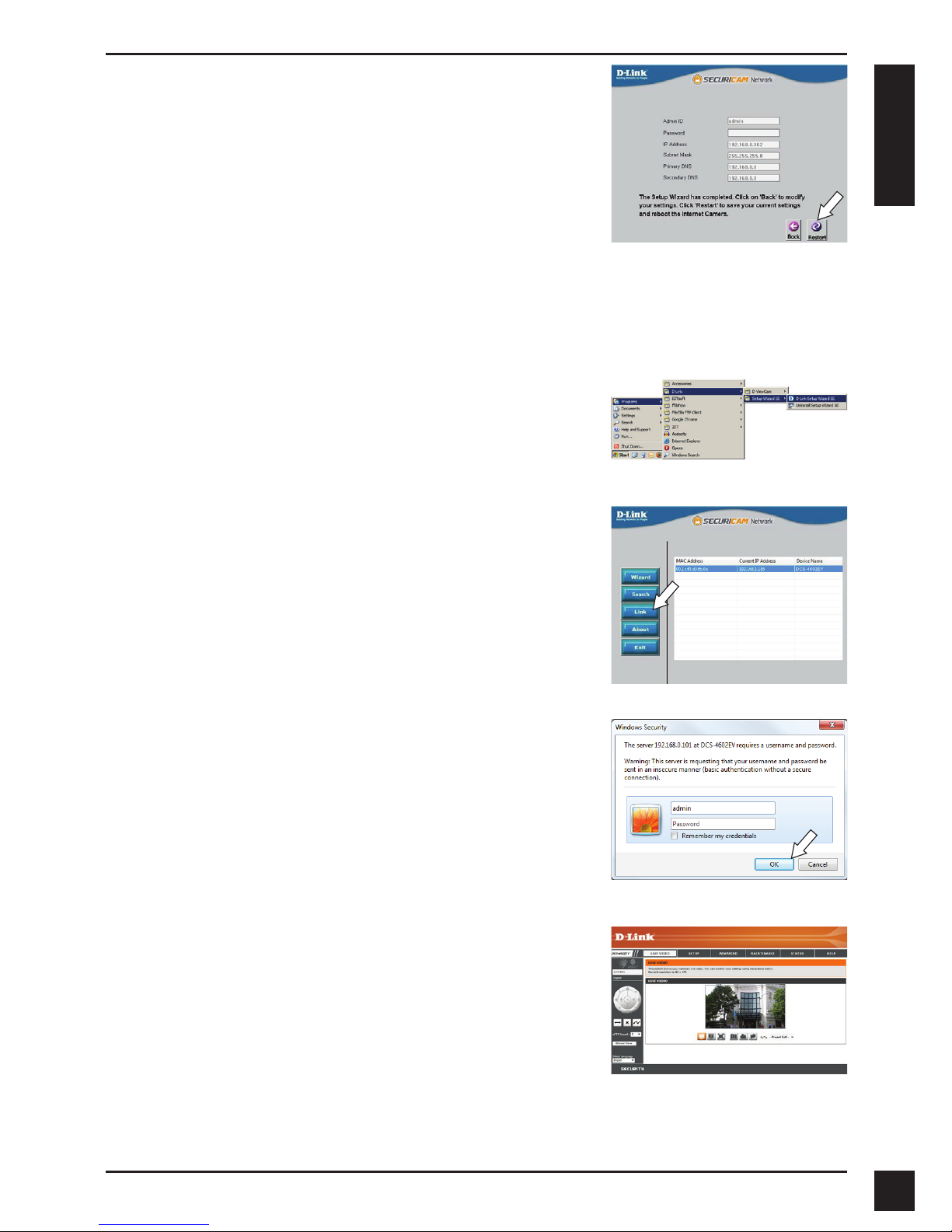

Viewing Your Camera via Web Browser
Click on the D-Link Setup Wizard SE icon that was
created in your Windows Start menu (Start > D-Link >
Setup Wizard SE).
Select the camera and click Link to access the web
conguration.
The Setup Wizard will automatically open your web
browser to the IP address of the camera.
This section displays your camera’s live video. You can
select your video prole and view or operate the camera.
For additional information about web conguration, please
refer to the user manual included on the CD-ROM or the
D-Link website.
Enter admin as the default username and leave the
password blank. Click OK to continue.
Take a moment to conrm your settings and click Restart.

D-Link DCS-4602EV Quick Installation Guide
6
ENGLISH

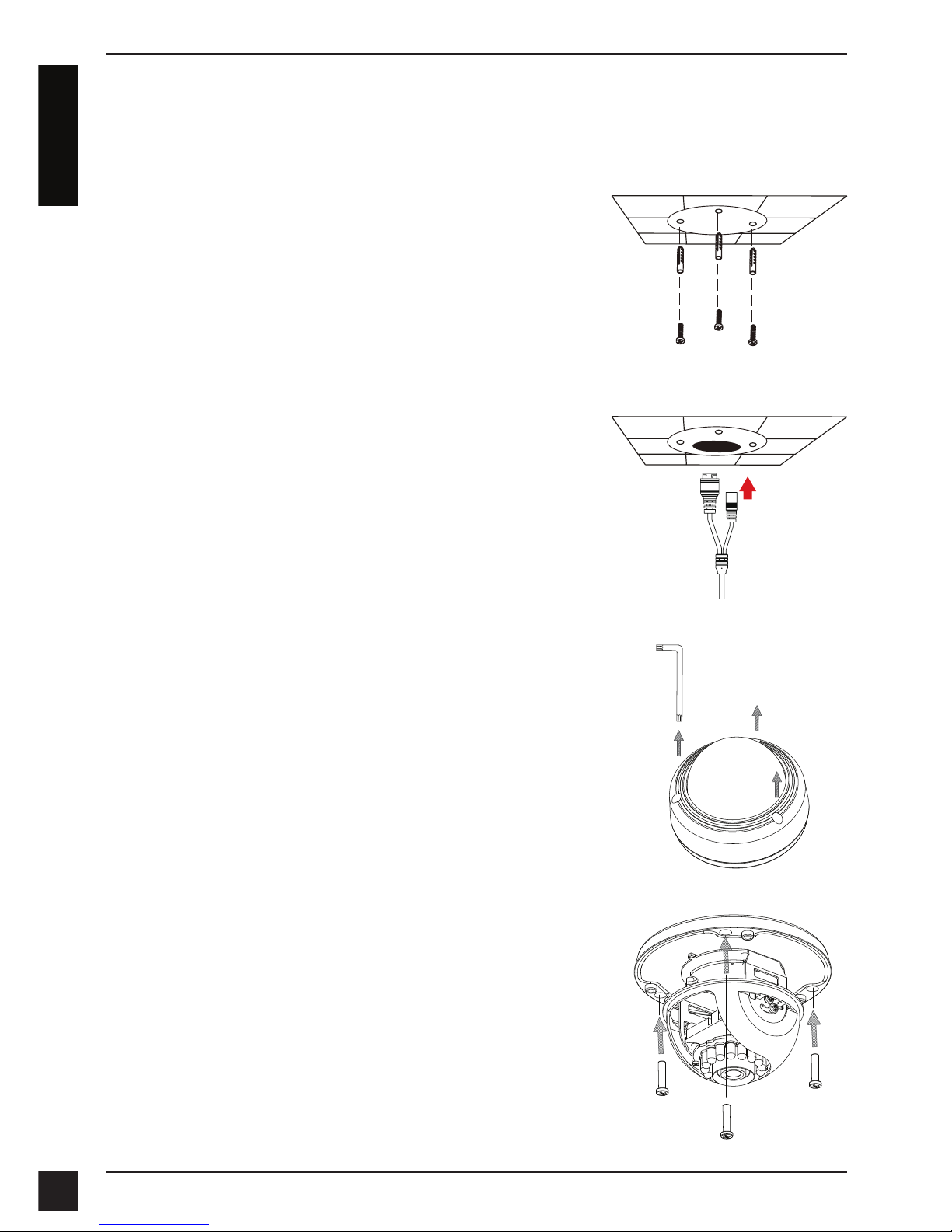

Mounting Instructions
It is highly recommended that you congure and test your camera before mounting it.
Place the mounting sticker where you want to position the
camera.
Use a 6 mm drill bit to make the required holes
approximately 25 mm deep, then insert the wall anchors
into the holes.
If you are running the camera cables through the wall,
drill a hole in the center and pull the cables through the
hole.
Use the included wrench to loosen the 3 screws on the
top of the camera, then lift the camera cover off.
Use the screws provided to mount the camera to the wall.
If you are running the camera cables out the side of
the camera, guide the camera cables through the cable
channel on the base.

D-Link DCS-4602EV Quick Installation Guide 7
ENGLISH

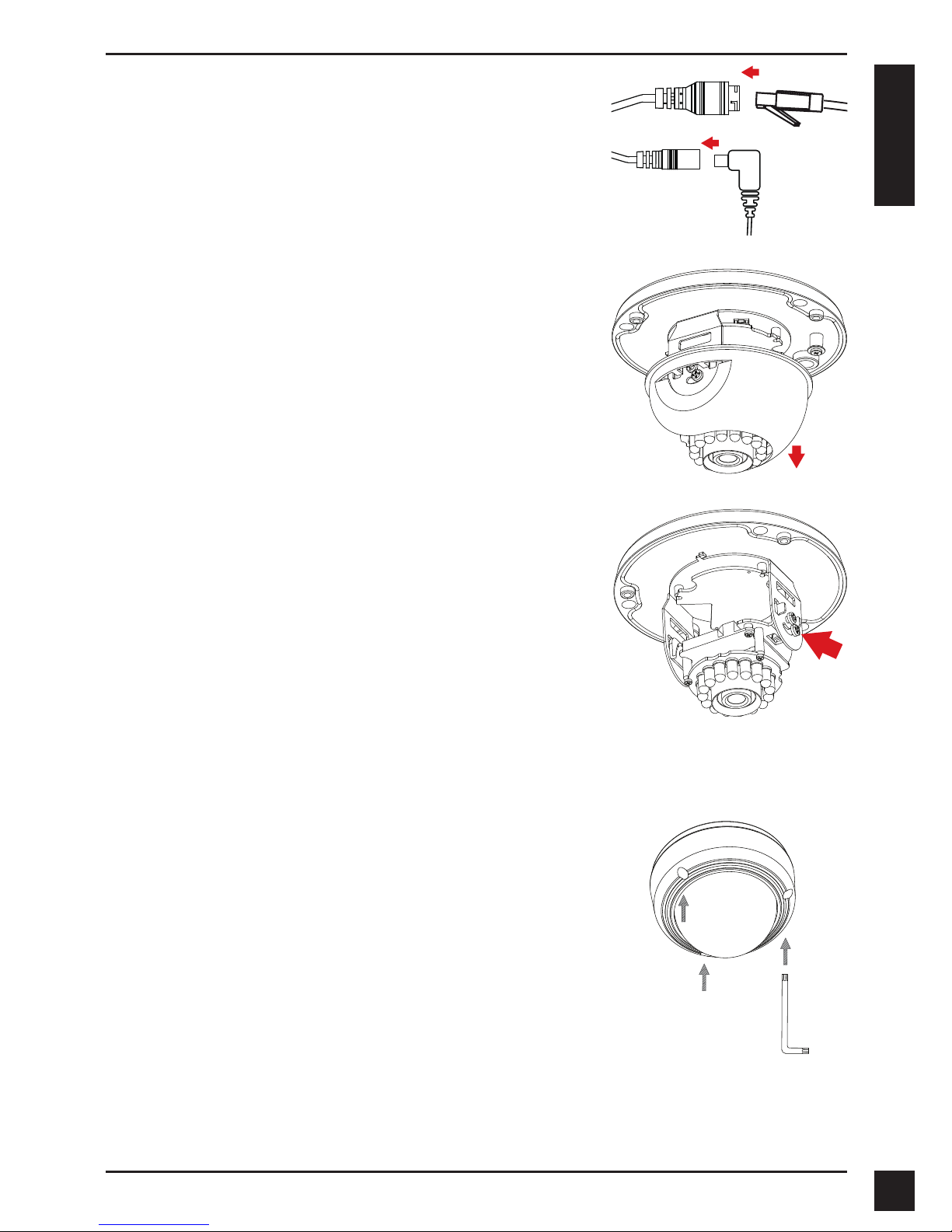

If you need to waterproof your installation, please continue to the next page.
Connect the power and Ethernet cables, or just the
Ethernet cable if you are using a PoE connection.
Reattach the camera cover.
If you are running the camera cables out the side of
the camera, guide the camera cables through the cable
channel on the base.
To adjust the camera's angle, pull the black inner cover
and remove it from the camera.
Loosen the adjustment screw on the side of the camera,
then retighten it after moving the camera to the desired
angle. You can also rotate the camera by grasping the
camera and turning it left or right.
When you are done adjusting the camera's angle, put the
inner cover back into place.
Note: The camera has a limited range of motion; if it stops
when you are adjusting it, do not attempt to rotate or tilt
the camera any further in that direction.

D-Link DCS-4602EV Quick Installation Guide
8
ENGLISH

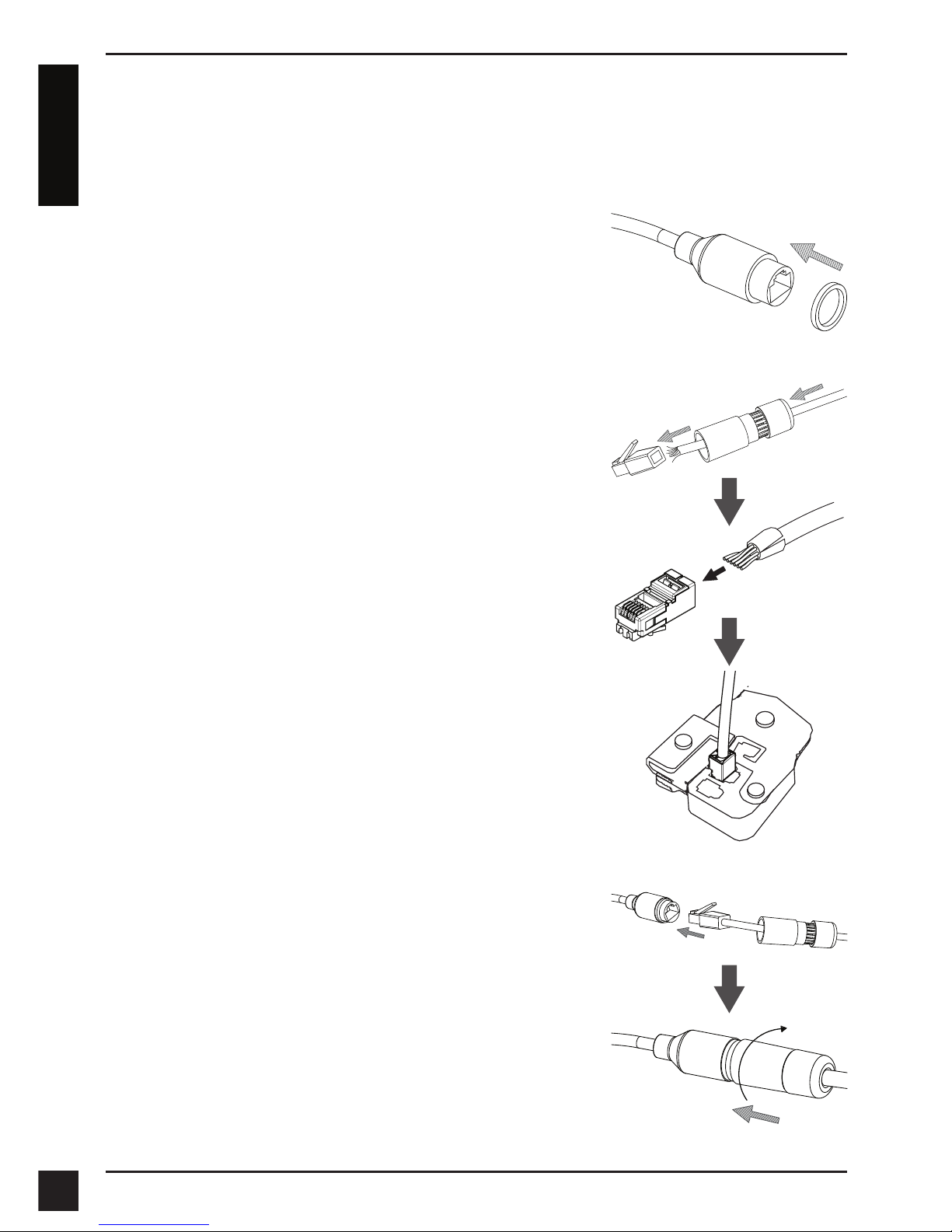

To waterproof your camera installation, follow the instructions below. Round Ethernet
cable, a crimping tool, and RJ-45 plugs are required for this procedure.
Waterproong Your Installation
Place the washer around the base of the Ethernet
connector as shown.
Connect the RJ-45 plug into the Ethernet connector, then
screw the waterproof connector to the Ethernet connector
by turning it about a half-turn clockwise.
Thread bare Ethernet cable through the waterproof
connector as shown, then crimp an RJ-45 plug onto the
cable.

D-Link DCS-4602EV Quick Installation Guide 9
ENGLISH

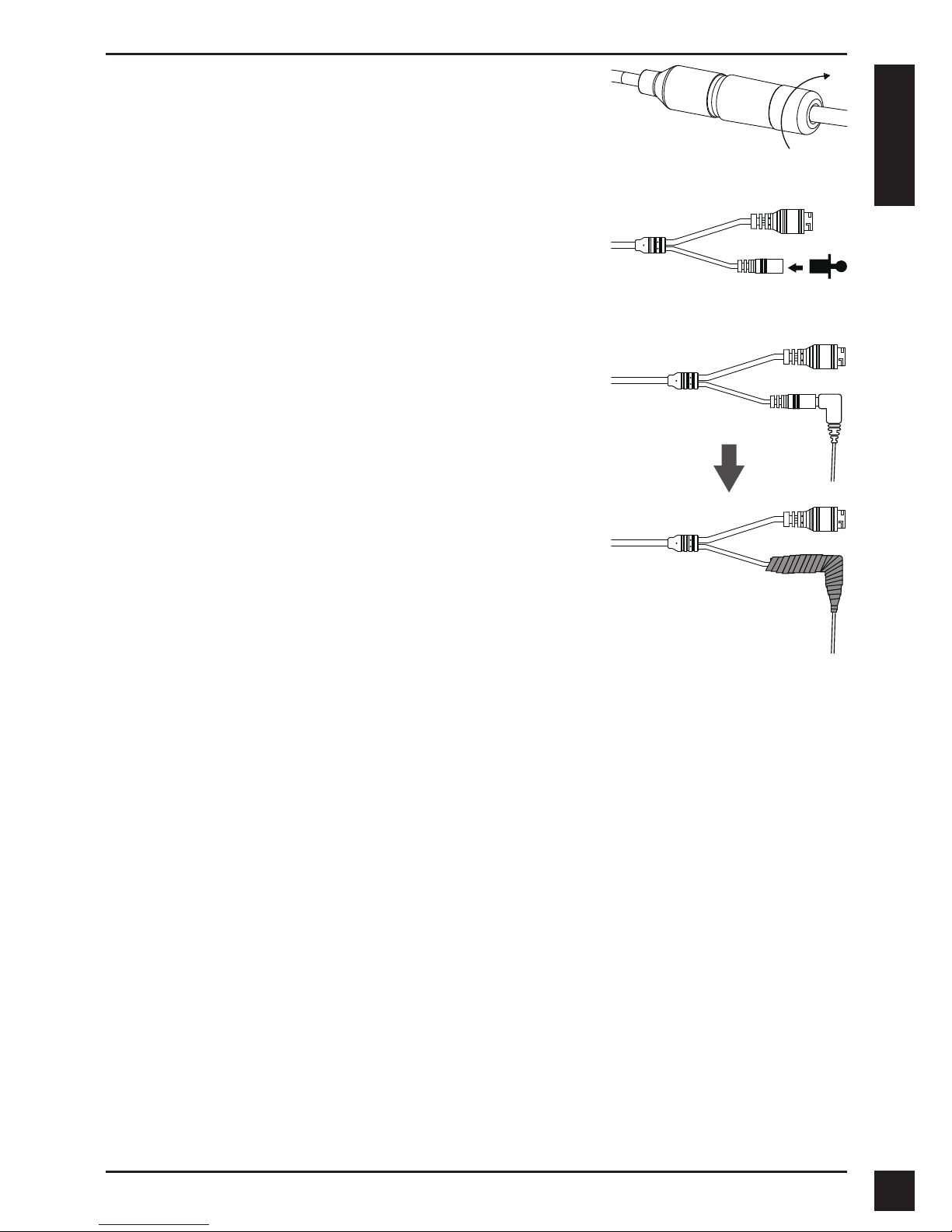

If you are using PoE to power your camera, use the
included rubber power connector plug to the power
connector.
If you are using a power adapter(not included) to
power your camera, wind waterproof tape around the
connection in an overlapping manner to cover it.
Additional Information
Additional help and product information is available online at http://www.dlink.com.
Warranty Information
Please visit http://warranty.dlink.com/ for warranty information for your region.
Screw the back part of the waterproof connector clockwise
until there is a tight seal around the Ethernet cable.

Ver. 1.00(DI)_90x130
2015/04/28
RMN0101611
