D-Link DCS 6210 User manual

This document will guide you through the
basic installation process for your new D-Link
Network Camera.
DCS-6210
Documentation also available on
CD and via the D-Link Website
Quick Installation Guide
Full HD Mini Fixed Dome Network Camera
Quick Installation Guide

Guía de Instalación Rápida
Guia de Instalação Rápida
快速安裝指南
Petunjuk Pemasangan Cepat

D-Link DCS-6210 Quick Install Guide 1
ENGLISH
DCS-6210 Quick Install Guide
This installation guide provides basic instructions for installing the DCS-6210 Network
Camera on your network. For additional information about how to use the camera,
please see the User’s Manual which is available on the CD included in this package or
from the D-Link support website.
Installation Steps
1. Verify the package contents against the list below.
2. Hardware Overview
3. SD Card Installation
4. Hardware Installation
5. Conguration with Wizard
6. Adjusting the lens 3-axis angel
1. Package Contents
DCS-6210 Network camera
Manual and Software on CD-ROM
Quick Installation Guide
Power Adaptor
CAT-5 Ethernet cable
Screwdriver and Screws for installation
Alignment Sticker
Rubbers
If any of the above items are missing, please contact your reseller.
Safety Notice:
Installation and servicing should be done by certied technicians so as to conform to all
local codes and prevent voiding your warranty.

D-Link DCS-6210 Quick Install Guide
2
ENGLISH

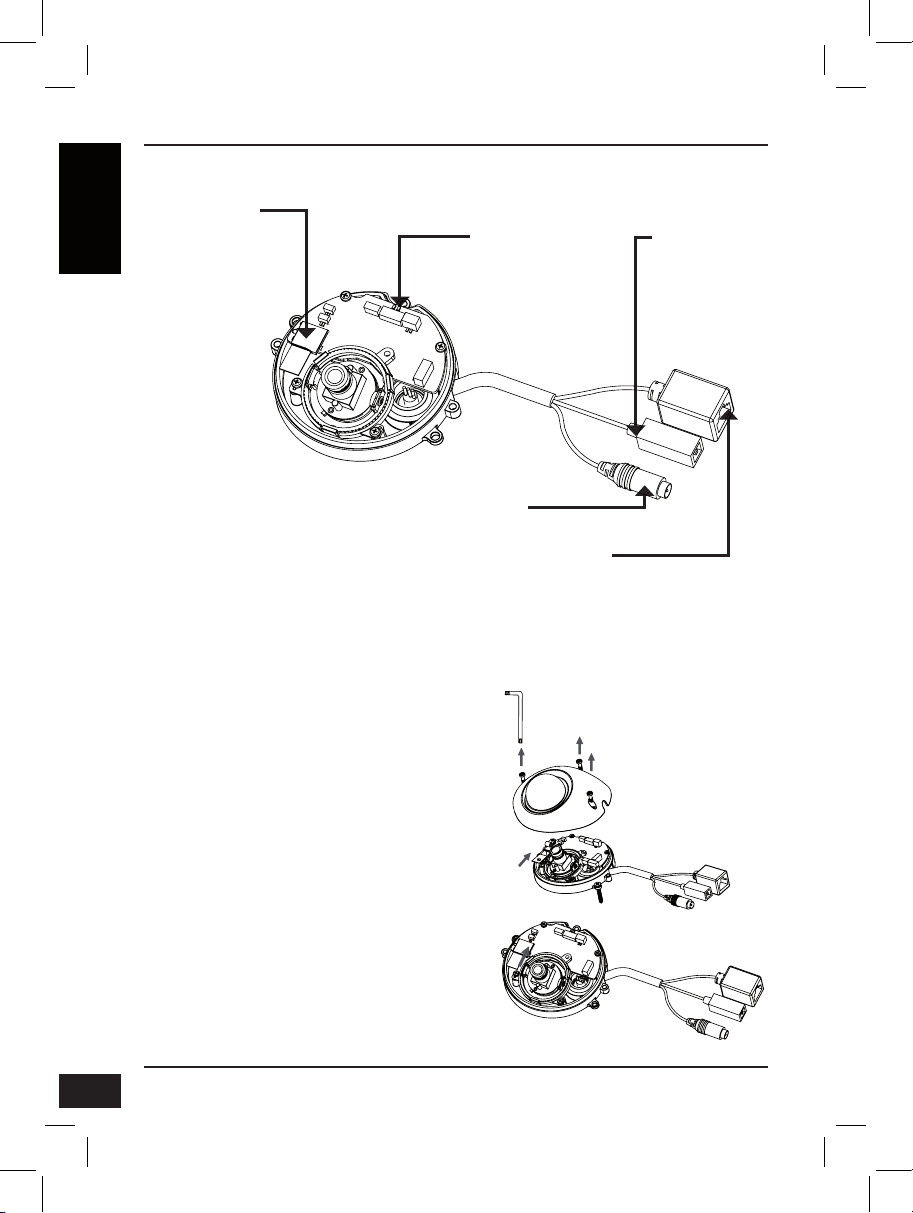

2. Hardware Overview
SD/SDHC card slot
SD/SDHC card for storing
recorded images and video
Power Connector
Connects to 12 V DC power
Ethernet Jack
RJ-45 connector for Ethernet
whichcan also be used to
power the camera using
Power over Ethernet (PoE)
Install the SD Card
Push the SD card into the camera with the
gold contacts oriented towards the base of
the camera. To eject the SD card, push the
SD card into the slot.
3. SD Card Installation
Disassemble the Camera
Open the camera enclosure by loosen the
3 screws. Lift the dome off the base of the
camera.
LED
Power and network
indicator
Reset
Press and hold this
button for 10seconds to
reset the camera
SD

D-Link DCS-6210 Quick Install Guide 3
ENGLISH
4. Hardware Installation

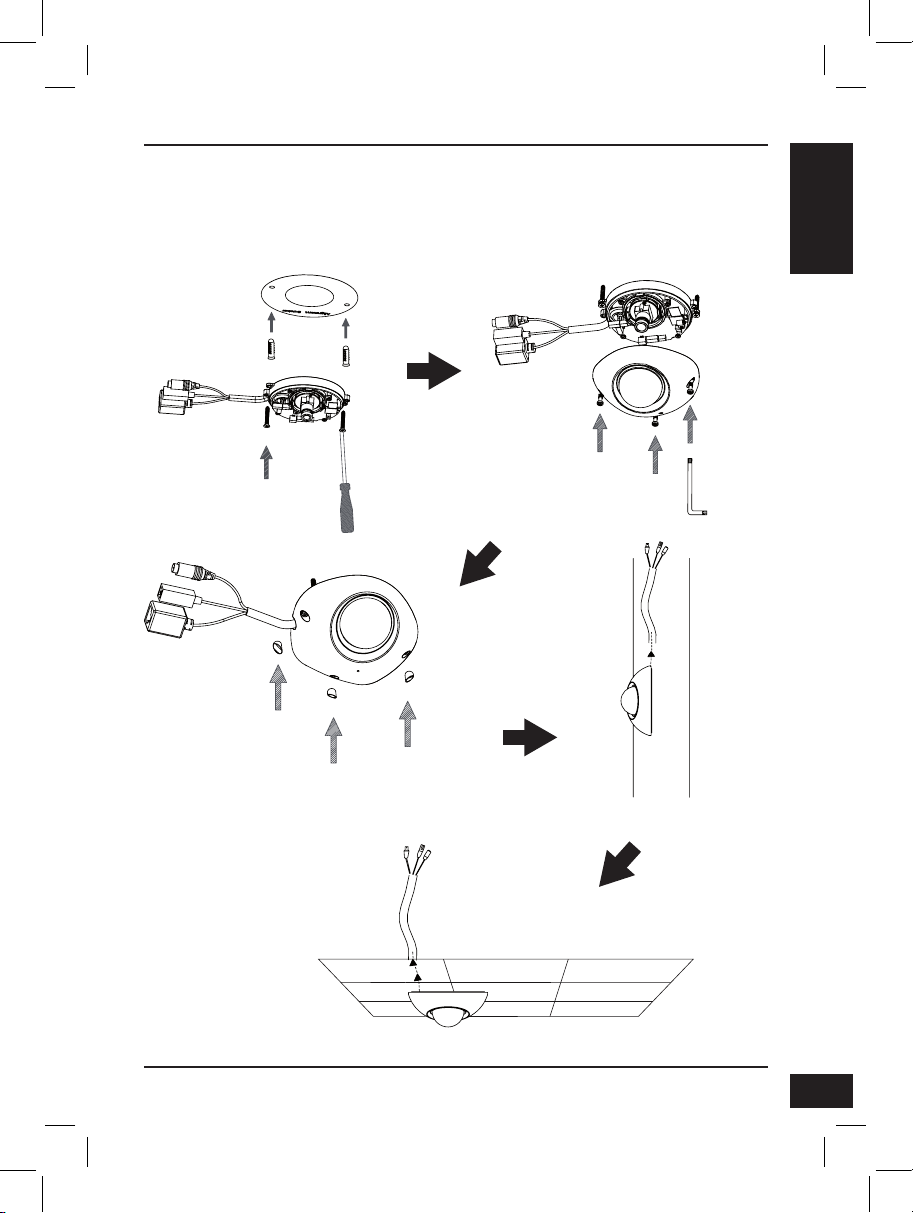

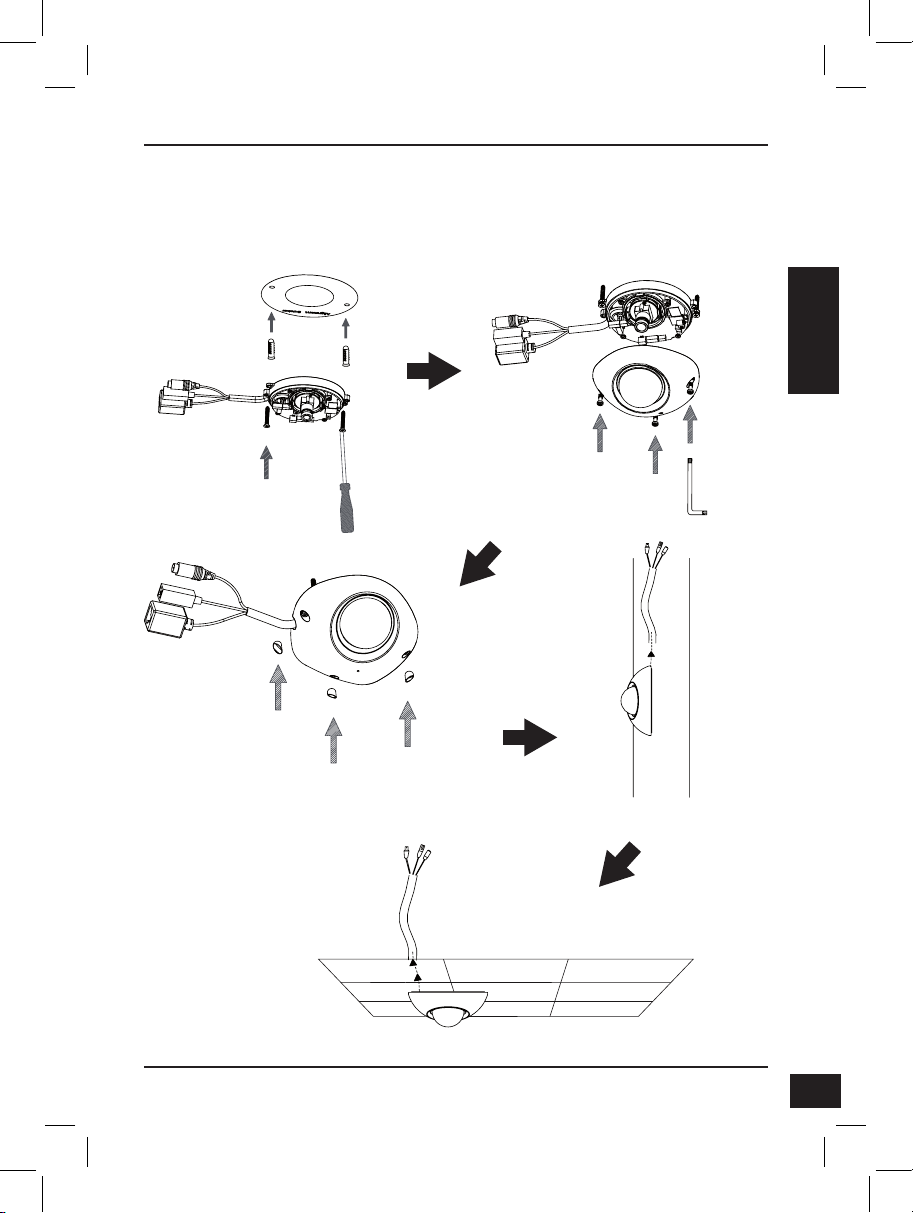

Mounting Installation
Please see the User Manual for detailed instructions regarding installation and mounting
of the camera.
Reset
Press and hold this
button for 10seconds to
reset the camera
Figure 4.1 Figure 4.2
Figure 4.3 Figure 4.4
Figure 4.5

D-Link DCS-6210 Quick Install Guide
4
ENGLISH

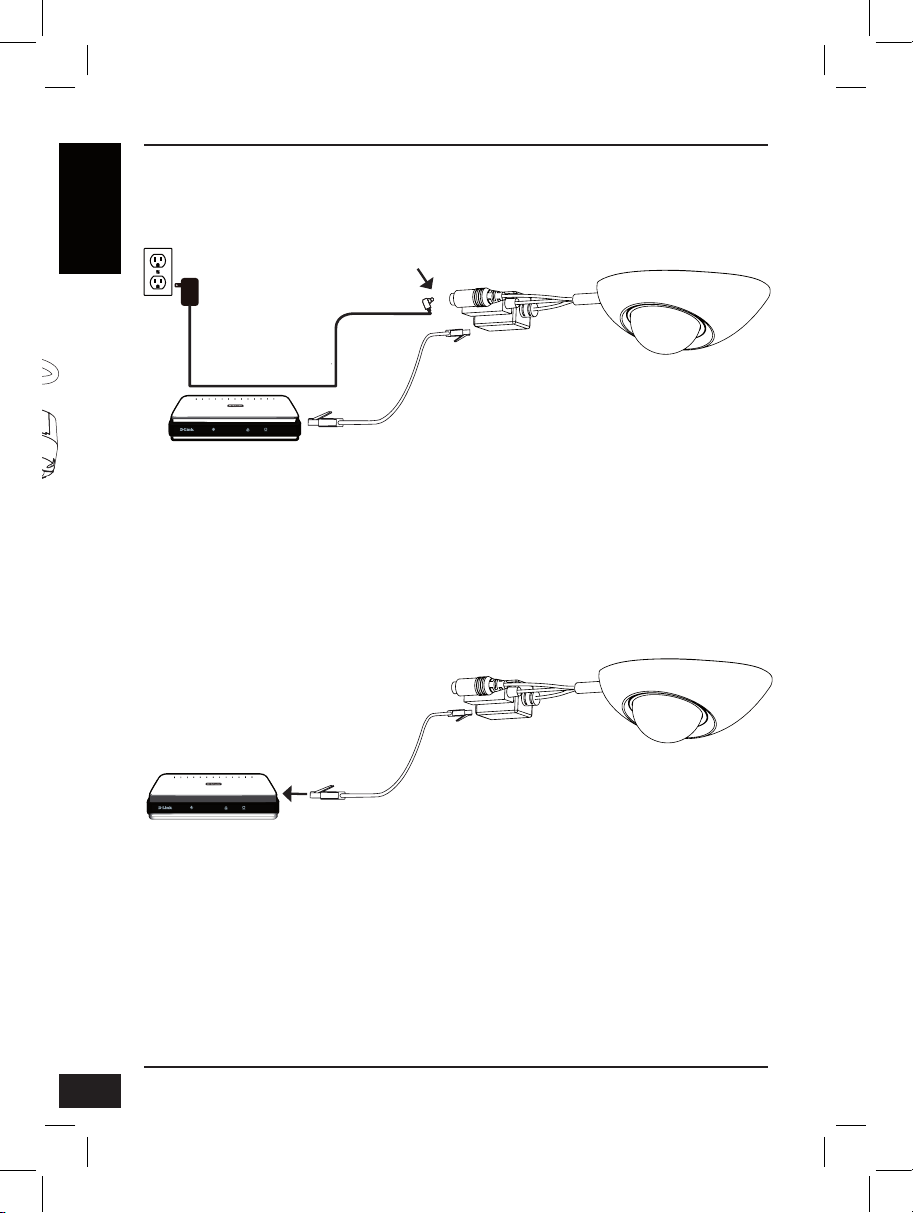

Connection with a PoE Hub
If you are using a PoE hub, connect the IP camera to the hub via an Ethernet cable,
which will provide transmission of both power and data over a single cable.
General Connection Using 12 V DC Power Adapter
1. Connect the network camera to a hub via an Ethernet cable.
2. Connect the supplied power cable from the camera to a power outlet.

D-Link DCS-6210 Quick Install Guide 5
ENGLISH

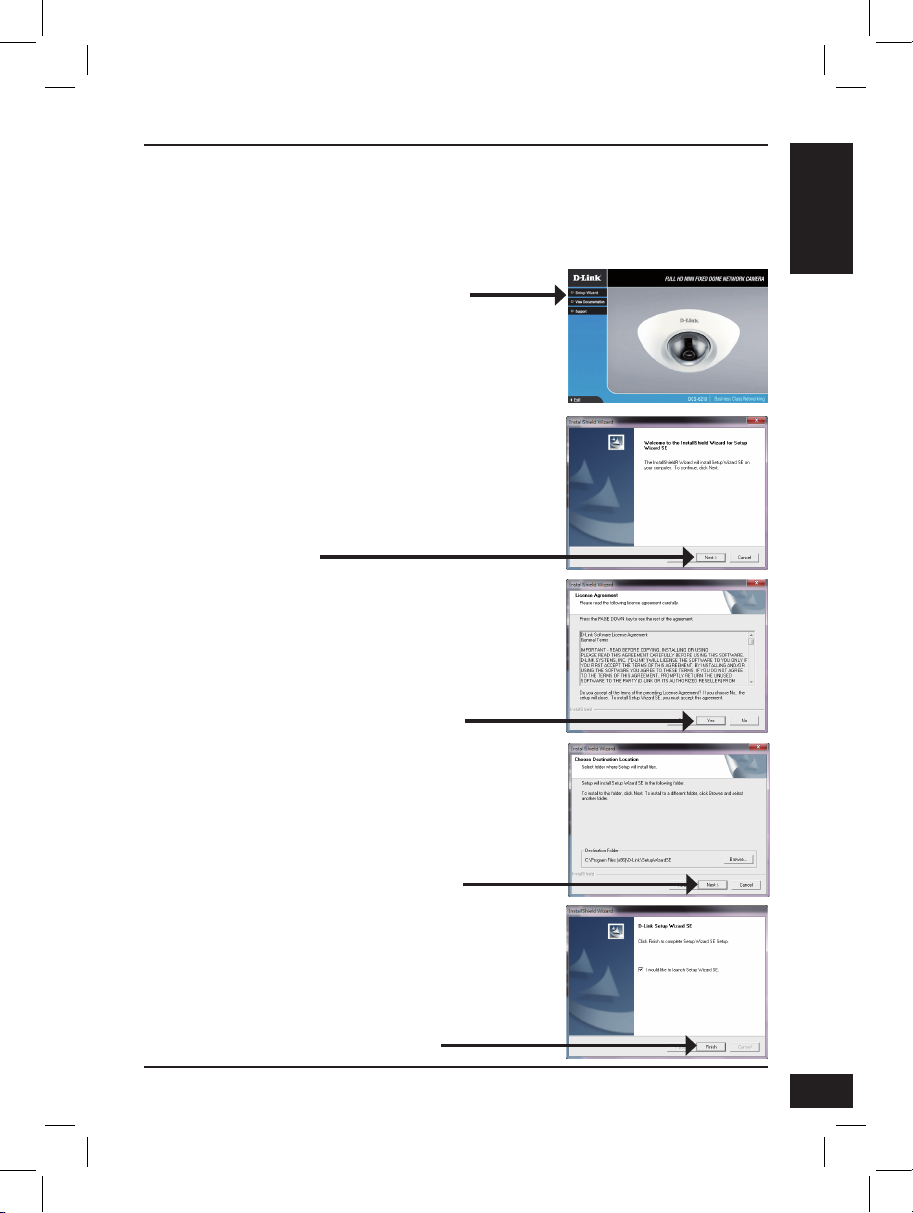

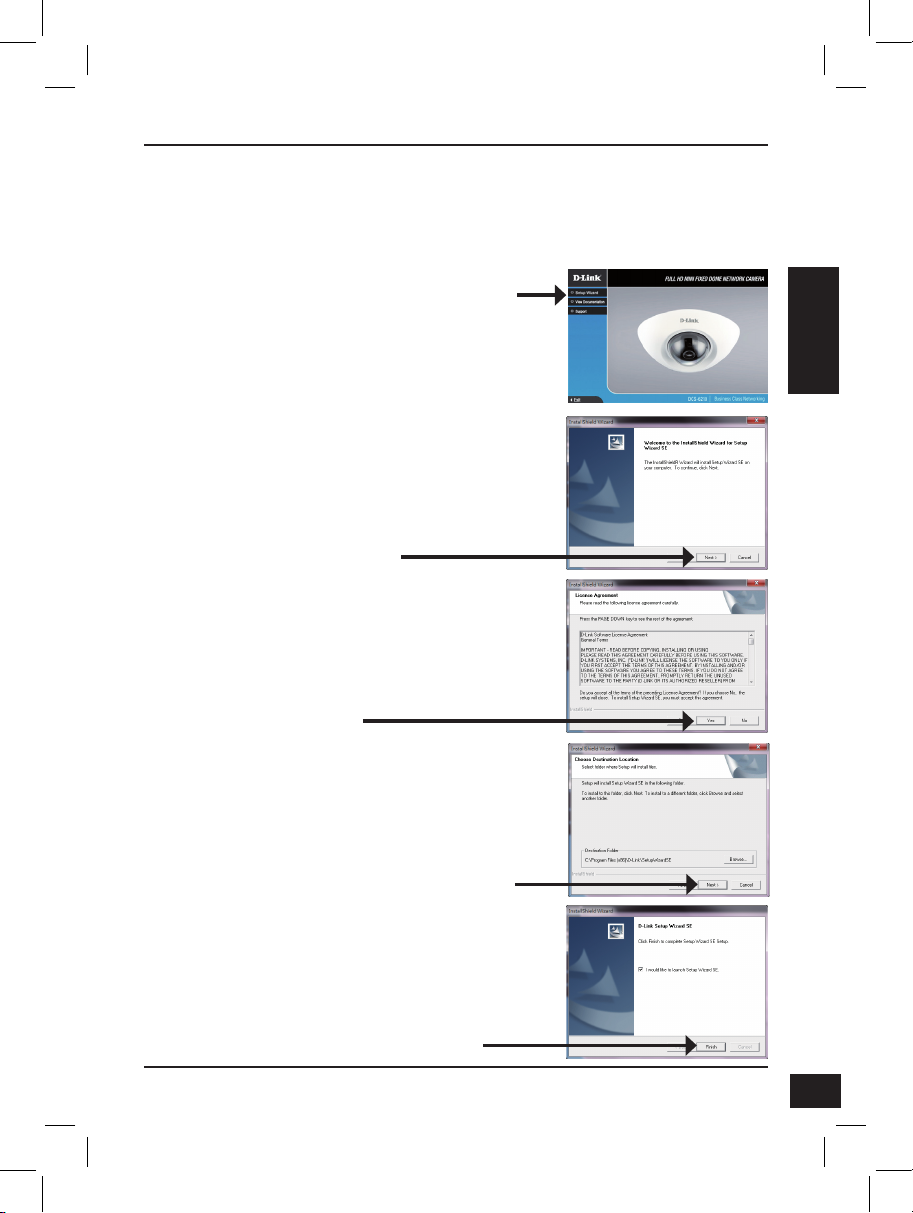

5. Conguration with Wizard
Click Setup Wizard to begin the installation.
Insert the DCS-6210 CD into your computer's CD-ROM drive to begin the installation. If
the Autorun function on your computer is disabled, or if the D-Link Launcher fails to start
automatically, click Start > Run. Type D:\autorun.exe, where D: represents the drive
letter of your CD-ROM drive.
After clicking Setup Wizard, the following window will open.
Click Next to continue.
Click Yes to accept the License Agreement.
Click Finish to complete the installation.
To start the installation process, click Next.
Note: The installation may take several minutes to
nish.

D-Link DCS-6210 Quick Install Guide
6
ENGLISH

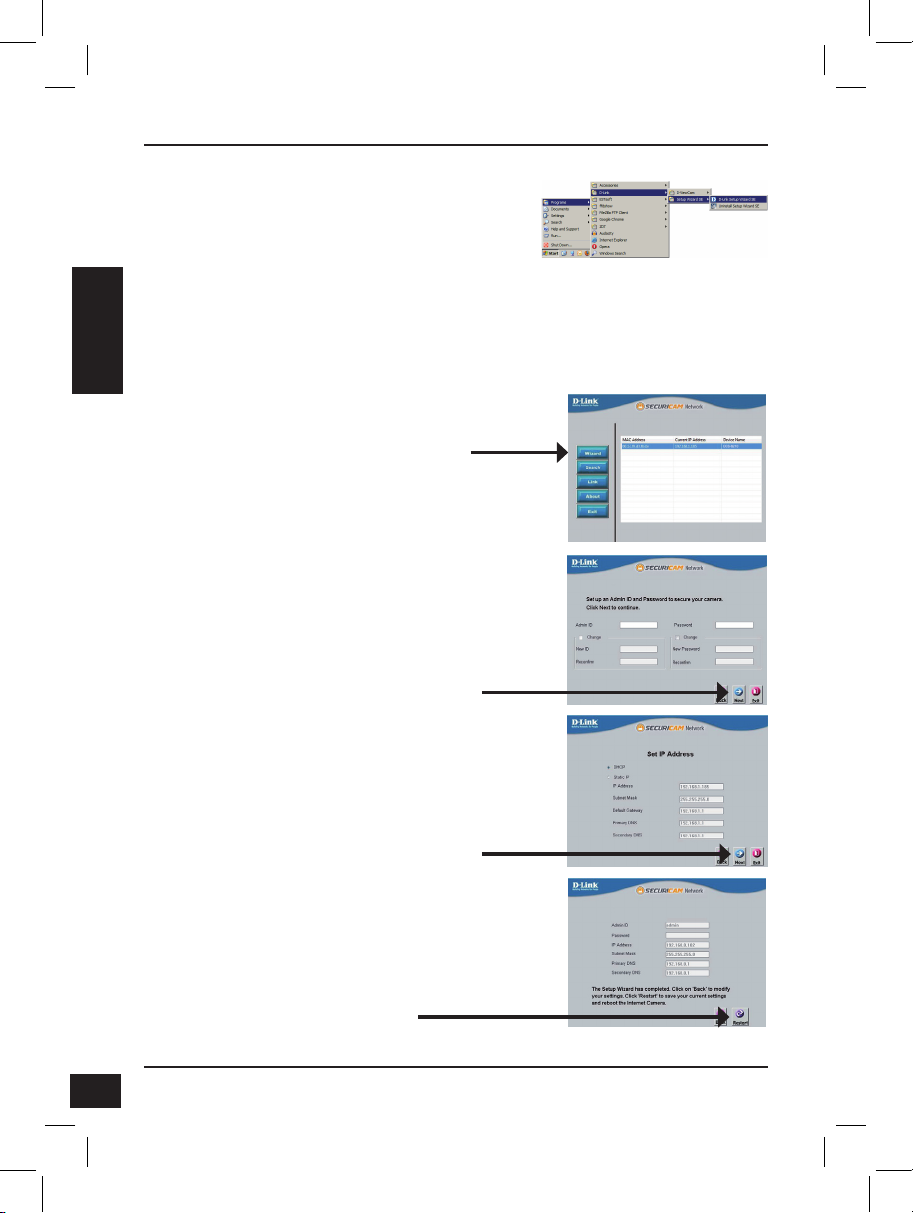

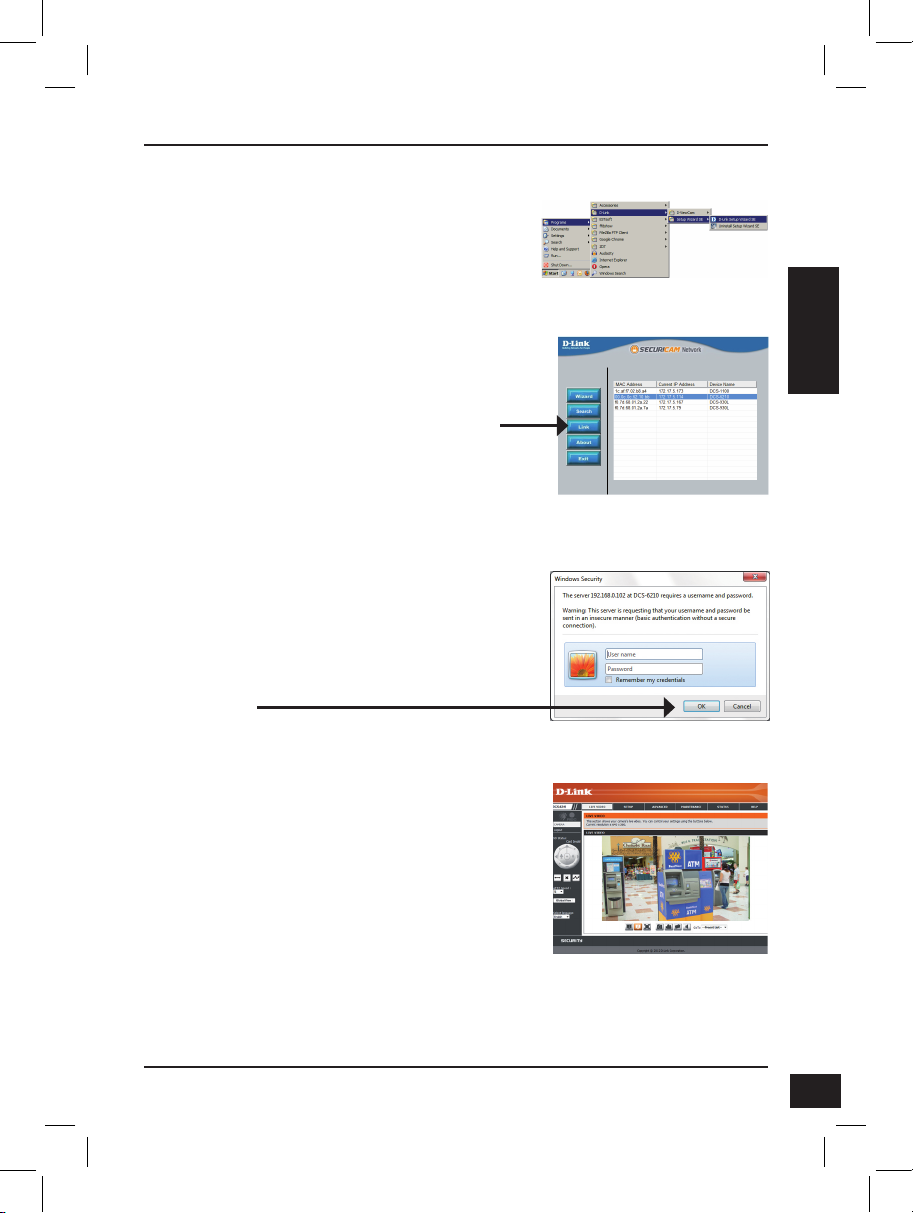

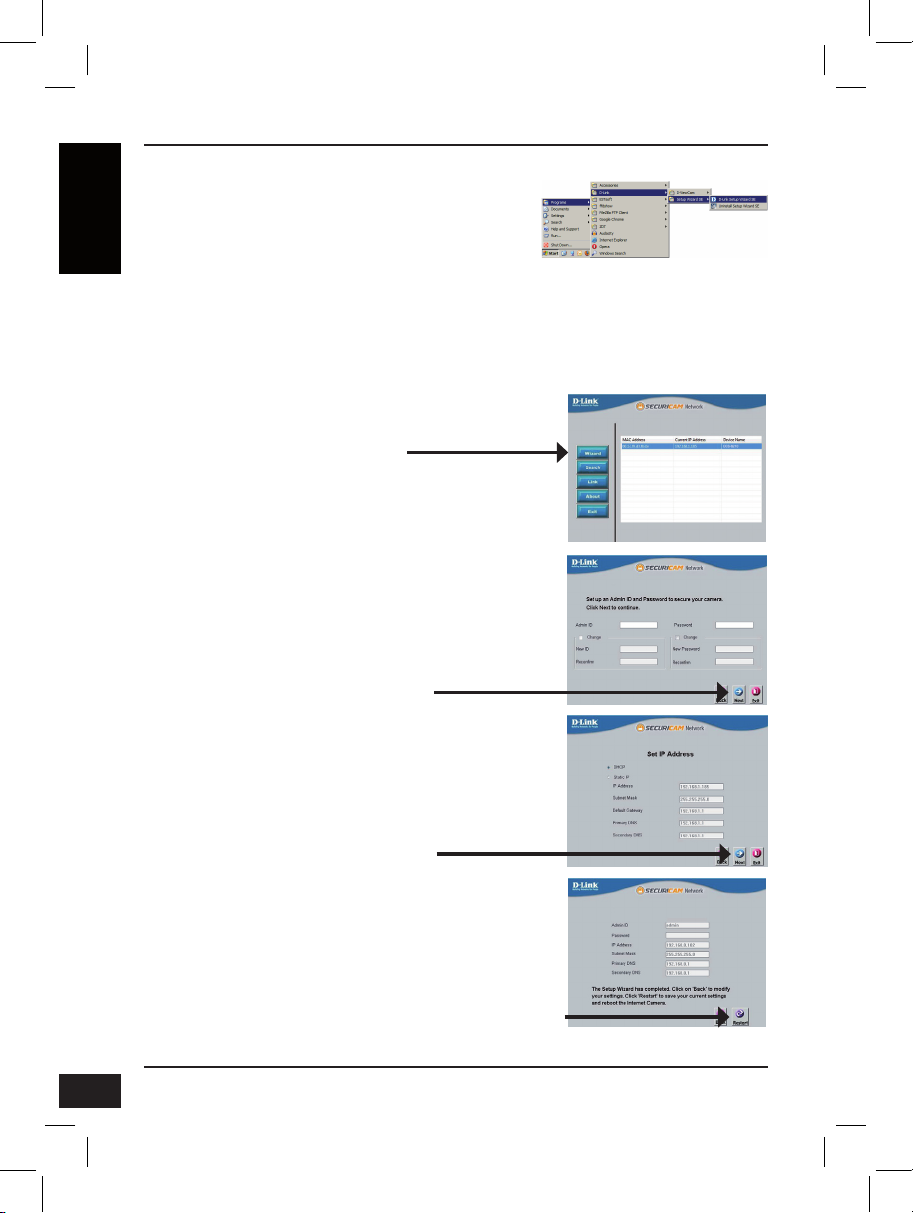

Click on the D-Link Setup Wizard SE icon that was
created in your Windows Start menu.
Start > D-Link > Setup Wizard SE
Take a moment to conrm your settings and click Restart.
Select DHCP if your camera obtains an IP address
automatically when it boots up. Select static IP if the
camera will use the same IP address each time it is
started.
Click Next, to proceed to the next page.
Enter the Admin ID and password. When logging in for
the rst time, the default Admin ID is admin with the
password left blank.
Click Next, to proceed to the next page.
The Setup Wizard will appear and display the MAC
address and IP address of your camera(s). If you have
a DHCP server on your network, a valid IP Address
will be displayed. If your network does not use a
DHCP server, the network camera's default static IP
192.168.0.20 will be displayed.
Click the Wizard button to continue.

D-Link DCS-6210 Quick Install Guide 7
ENGLISH
Click on the D-Link Setup Wizard SE icon that was
created in your Windows Start menu.
Start > D-Link > Setup Wizard SE

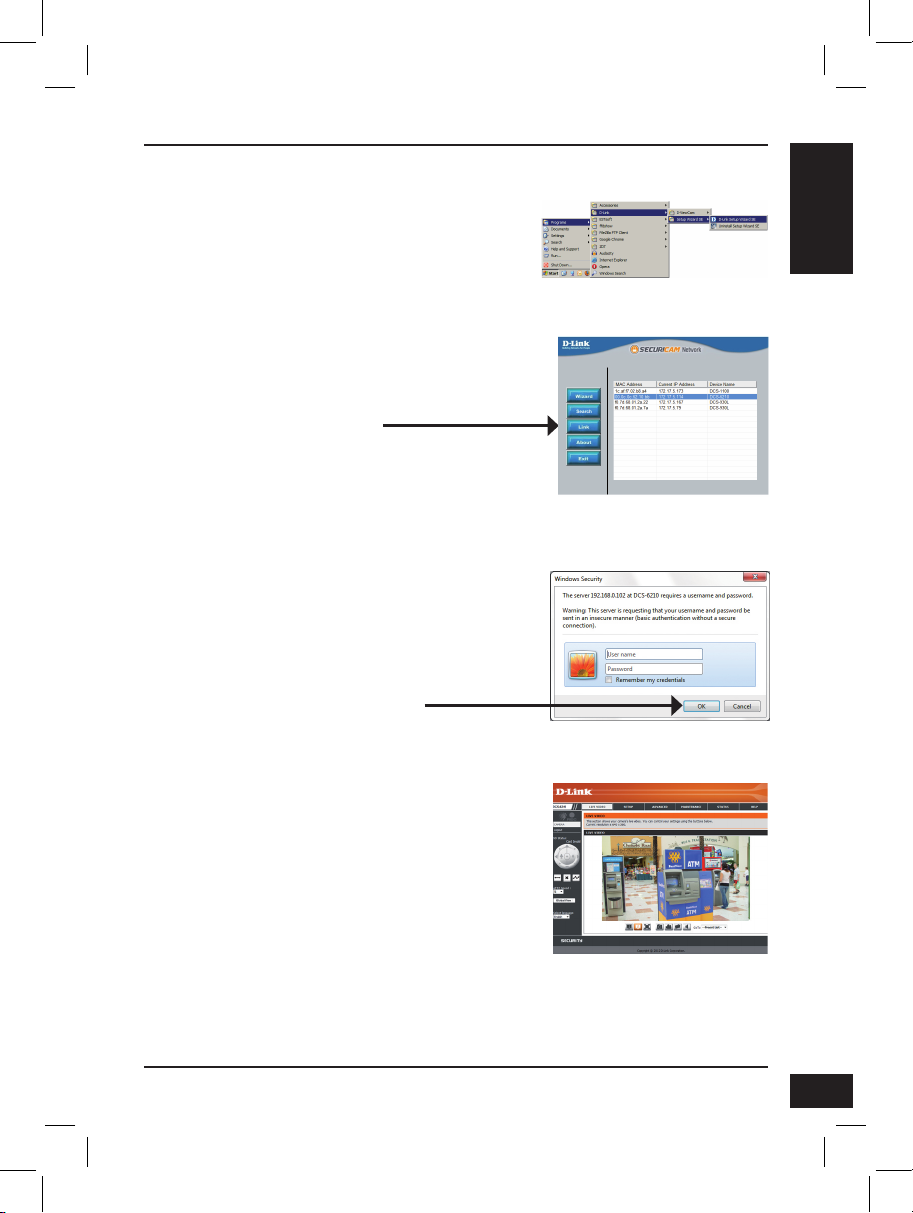

Viewing Camera via Web Browser
This section shows your camera’s live video. You
can select your video prole and view or operate
the camera. For additional information about web
conguration, please refer to the user manual included
on the CD-ROM or the D-Link website.
Enter admin as the default username and leave the
password blank. Click OK to continue.
Select the camera and click the button labeled "Link"
to access the web conguration.
The Setup Wizard will automatically open your web
browser to the IP address of the camera.

D-Link DCS-6210 Quick Install Guide
8
ENGLISH

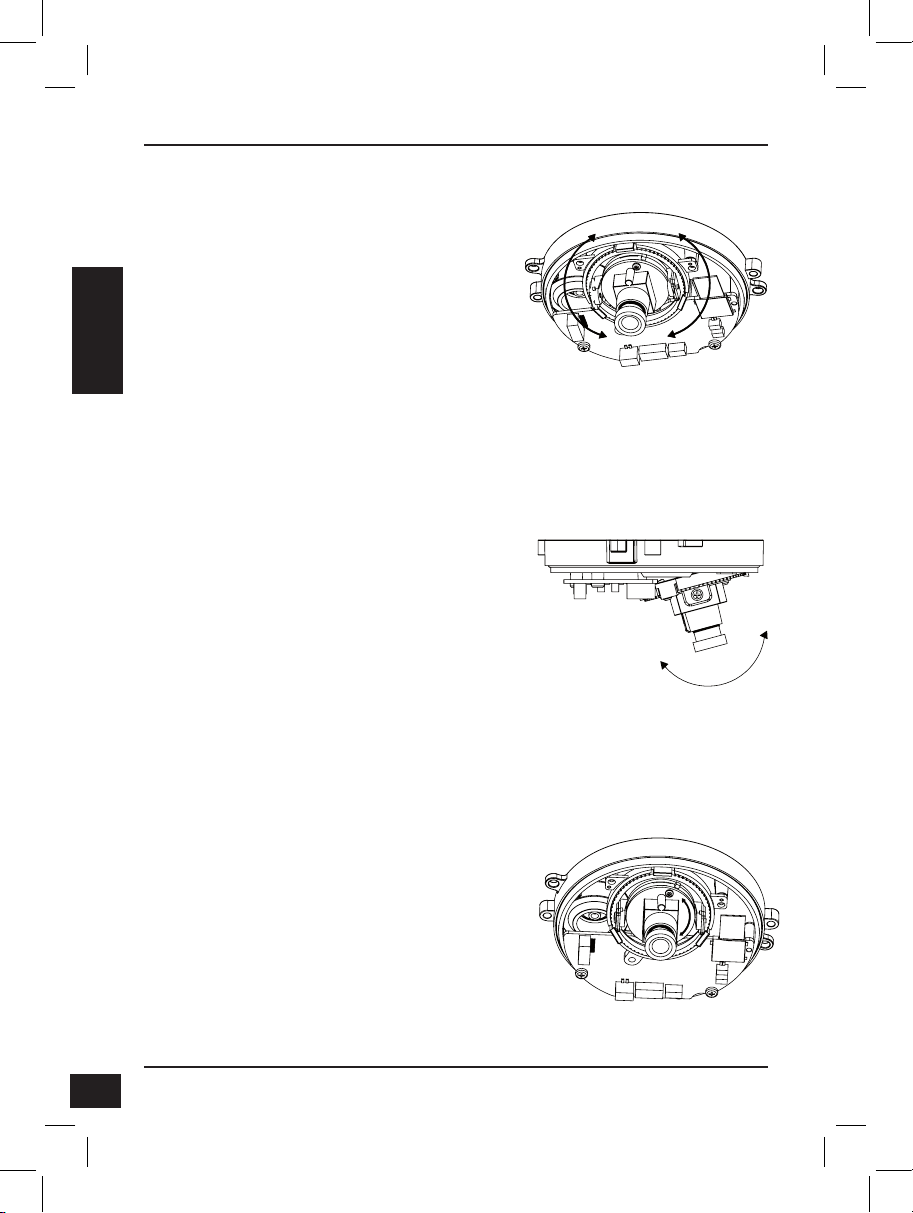

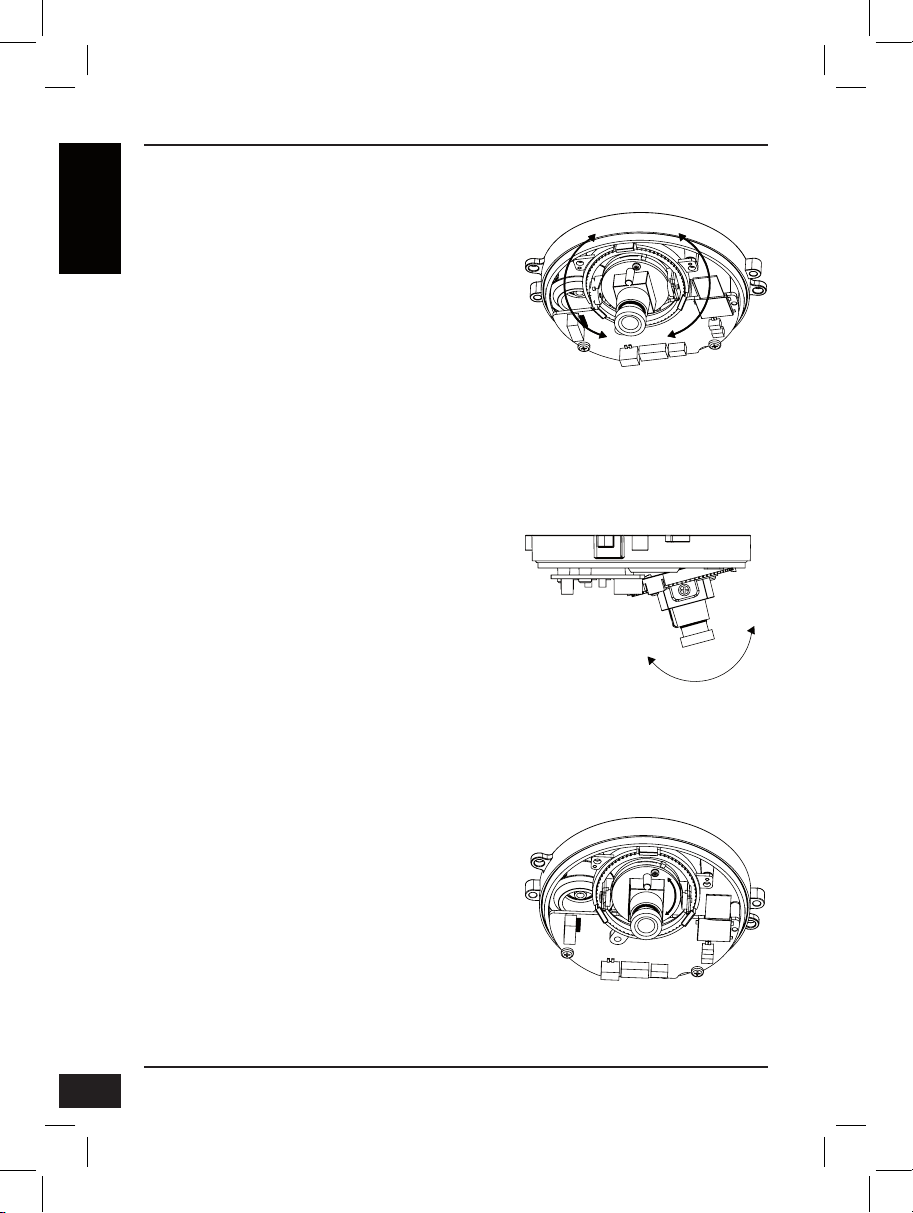

Adjust the Viewing Angle of the 3-axis
Mechanism
Turn the lens module left and right until the
desired position is achieved.
Turn the lens up and down until the desired
position is achieved.
Turn the lens to adjust the IP camera’s image
until the desired orientation is achieved.
6. Adjusting the lens 3-axis angel
