D-Link DCS-3715 User manual

USER MANUAL
DCS-3715
VERSION 1.0

2D-Link DCS-3715 User Manual
D-Link reserves the right to revise this publication and to make changes in the content hereof without obligation to notify any person or
organization of such revisions or changes.
Manual Revisions
Trademarks
D-Link and the D-Link logo are trademarks or registered trademarks of D-Link Corporation or its subsidiaries in the United States or
other countries. All other company or product names mentioned herein are trademarks or registered trademarks of their respective
companies.
Copyright © 2011 by D-Link Corporation.
All rights reserved. This publication may not be reproduced, in whole or in part, without prior expressed written permission from D-Link
Corporation.
Revision Date Description
1.0 May 03, 2011 DCS-3715 Revision A1 with rmware version 1.00
Preface

3D-Link DCS-3715 User Manual
Table of Contents
Product Overview ........................................................ 5
Package Contents ................................................... 5
System Requirements ............................................. 6
Introduction ..............................................................7
Features ..................................................................8
Hardware Overview ................................................. 9
Front Panel ........................................................9
Rear Panel .......................................................10
Installation ..................................................................11
Hardware Installation .............................................11
Conguration with Wizard ...................................... 12
Viewing Camera via Web Browser ............... 17

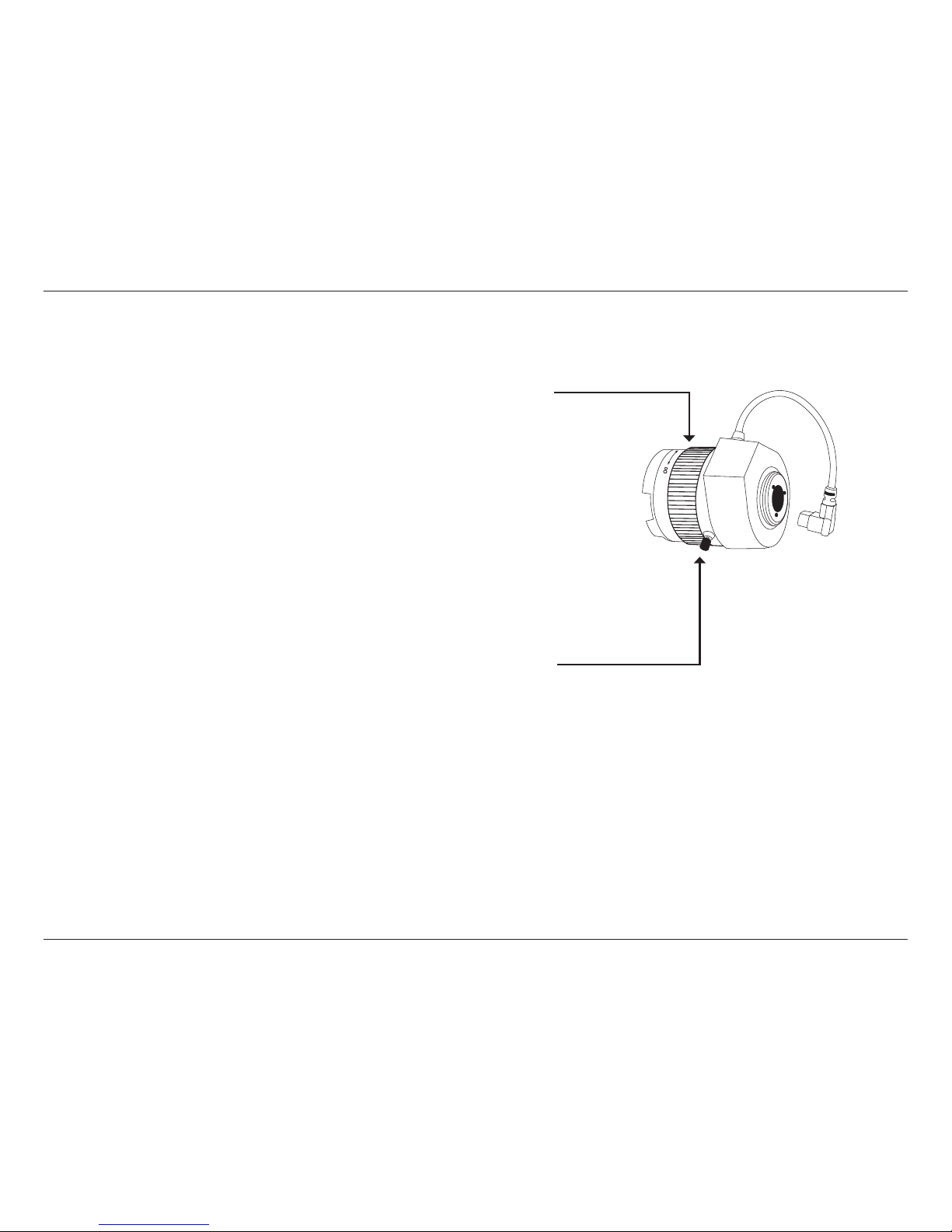

Adjust the Zoom/Focus ....................................19
D-ViewCam Setup Wizard ...............................20
Conguration ............................................................. 22
Live Video ..............................................................22
Client Setup ...........................................................26
Setup .....................................................................27
Basic Setup ......................................................27
Advanced Setup .............................................. 28
System Overview ................................................... 29
Video ................................................................30
Video Settings ............................................... 30
Image Settings .............................................. 33
Audio Settings ............................................... 35
Day and Night Settings ................................. 36
Network ............................................................37
IP Settings ..................................................... 37
Port and Access Name Settings ................... 40
Dynamic DNS ............................................... 43
HTTPS .......................................................... 44
Access List .................................................... 46
Advanced Settings ........................................ 48
Event Management ..........................................52
Motion Detection ........................................... 52
Tamper Detection ......................................... 53
DI and DO ..................................................... 54
Event Settings ............................................... 55
Recording ........................................................ 62
Recording Settings ........................................ 62
Local Storage ................................................ 64
PTZ Control .....................................................65
Digital PTZ .................................................... 65
Mechanical PTZ ............................................ 66
User Customization .........................................68
Live Video Page Conguration ..................... 68
HTML Code Examples .................................. 69
System .............................................................70
User Settings ................................................ 70
Device Settings ............................................. 71
Time and Date .............................................. 72

4D-Link DCS-3715 User Manual
Maintenance ................................................. 73
Parameter List ............................................... 75
Logs .............................................................. 76
Appendix A - Technical Specications ................... 77
Technical Specications ........................................77

5D-Link DCS-3715 User Manual
Product OverviewProduct Overview
If any of the above items are missing, please contact your reseller.
DCS-3715
Full HD Day & Night
Network Camera
Mounting Bracket
Power Adapter CAT5 Ethernet Cable
User Manual and Software
on CD-ROM
Quick Install Guide
FULL HD DAY & NIGHT
DCS-3715
Ver. 1.00(WW)
©
2
0
1
0
D
-
L
i
n
k
C
o
r
p
o
r
a
t
i
o
n
/
D
-
L
i
n
k
S
y
s
t
e
m
s
,
I
n
c
.
A
l
l
R
i
g
h
t
s
R
e
s
e
r
v
e
d
.

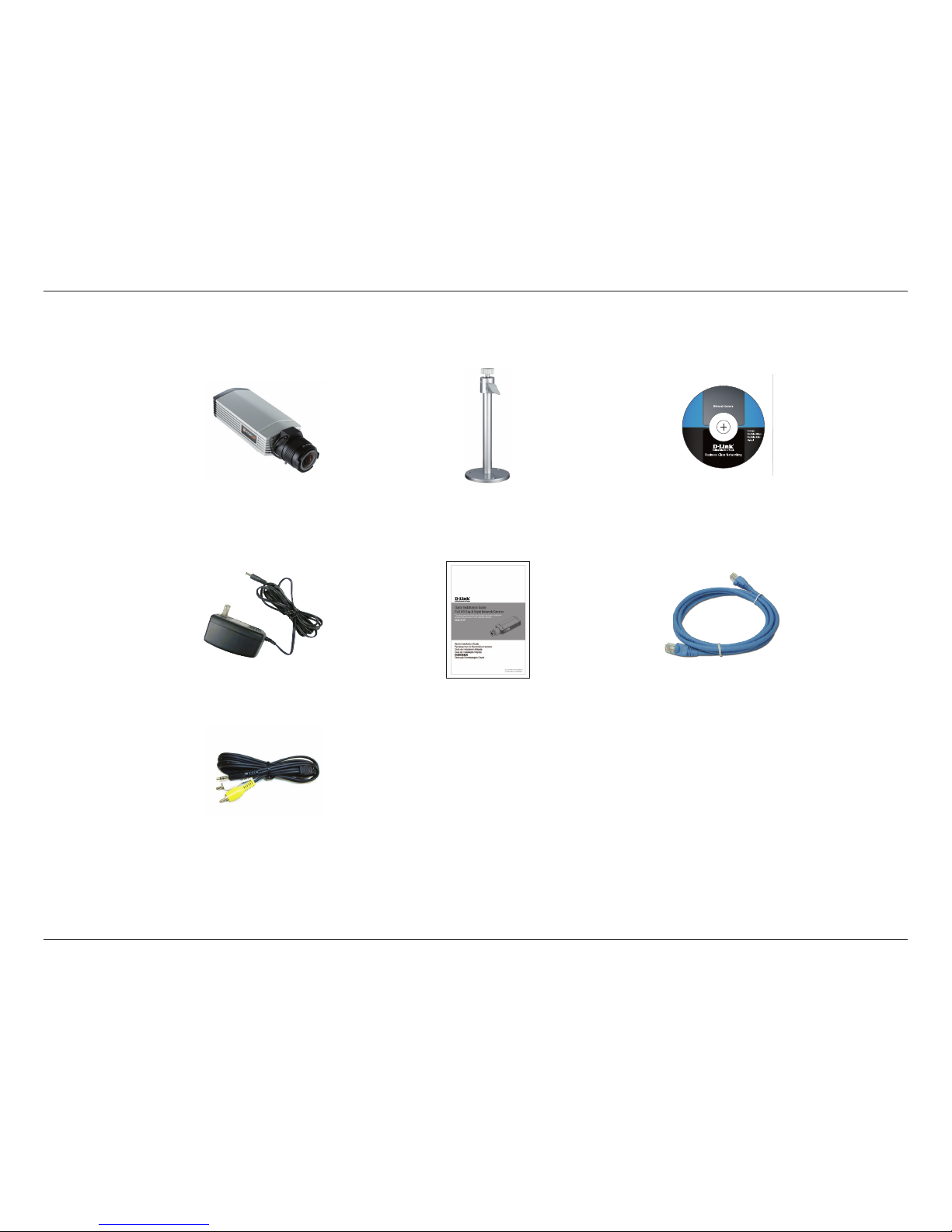

Package Contents
AV Cable

6D-Link DCS-3715 User Manual
Product Overview
System Requirements
Operating System: Microsoft Windows ®, 2000, XP, Vista, 7
Memory : At least 256MB of memory (512MB recommended)
Web Browser: Internet Explorer 6.x or higher
VGA card resolution: SVGA or XGA (1024x768 or above)
CPU: 1.7GHz or above (2.8GHz plus processor with 512MB memory and a 32MB video card is
required for multiple camera viewing and recording in IP surveillance program)
An available Ethernet connection

7D-Link DCS-3715 User Manual
Product Overview
Introduction
DCS-3715 is a full HD, full frame rate network camera with H.264 compression. The DCS-3715 connects to a network to provide high-
quality live video over the Internet. With the vivid video quality and superb high resolution, it can provide most detail of the video which
is useful to identify any suspected object. DCS-3715 provides multiple streaming and exible viewing window settings for different
purpose of surveillance, either for regular recording or mobile view. It also equipped with IR-cut removable (ICR) lte for day & night
view. Built-in SD card slot can record important events in SD card as a local backup and it's very easy to retrieve.
The included D-Link D-ViewCam™ is sophisticated software which allows users to manage up to 32 network cameras, set e-mail alert
notications, create recording schedules, and use motion detection to record directly to a hard drive. D-ViewCam™ also allows users to
upload a oor plan to create a realistic layout of the premises where cameras are located, further simplifying the management process.

8D-Link DCS-3715 User Manual
Product Overview
Features
Full HD Surveillance
DCS-3715 provides Full HD industral standard 16:9 wide screen video for IP surveillance. With the auto iris vari-focal lens, it is a
high performance high quality network camera. To utilize the advantage of high resolution, the "viewing window" design can provide
user a exible settings to monitor multiple ROI(Region of Interest) by a single camera. And the "ePTZ" can also simulate wide area
surveillance by digital zoom and pan, tilt control.
Flexible Connectivity
The DCS-3715 includes input and output ports for connectivity to external devices such as IR sensors, switches, and alarm relays. It
also comes with an RS-485 interface, providing connectivity to an optional pan/tilt scanner. The DCS-3715 also incorporates Power
over Ethernet (PoE), allowing it to be easily installed in a variety of locations without the need for supplemental power cabling.
Advanced Web User Interface
The DCS-3715 features D-Link’s latest-generation graphical user interface. This freshly-designed web interface features a clean,
compact, and professional home screen which dramatically increases usability. Menu navigation is simplied thanks to a tree view
which logically groups functions, helping users to quickly nd what they need. Likewise, intuitive graphic icons reduce the amount
text and clutter within the browser window. New users will appreciate the convenient contextual help which offers an easy way to nd
assistance with camera management tasks.
3GPP Mobile Surveillance
Support for 3GPP Mobile Surveillance allows users to view a live video feed from a 3GPP compatible Internet-ready mobile device.
This extends monitoring capability, allowing users to check the camera’s video feed while on the go without a computer.

9D-Link DCS-3715 User Manual
Product Overview
Hardware Overview

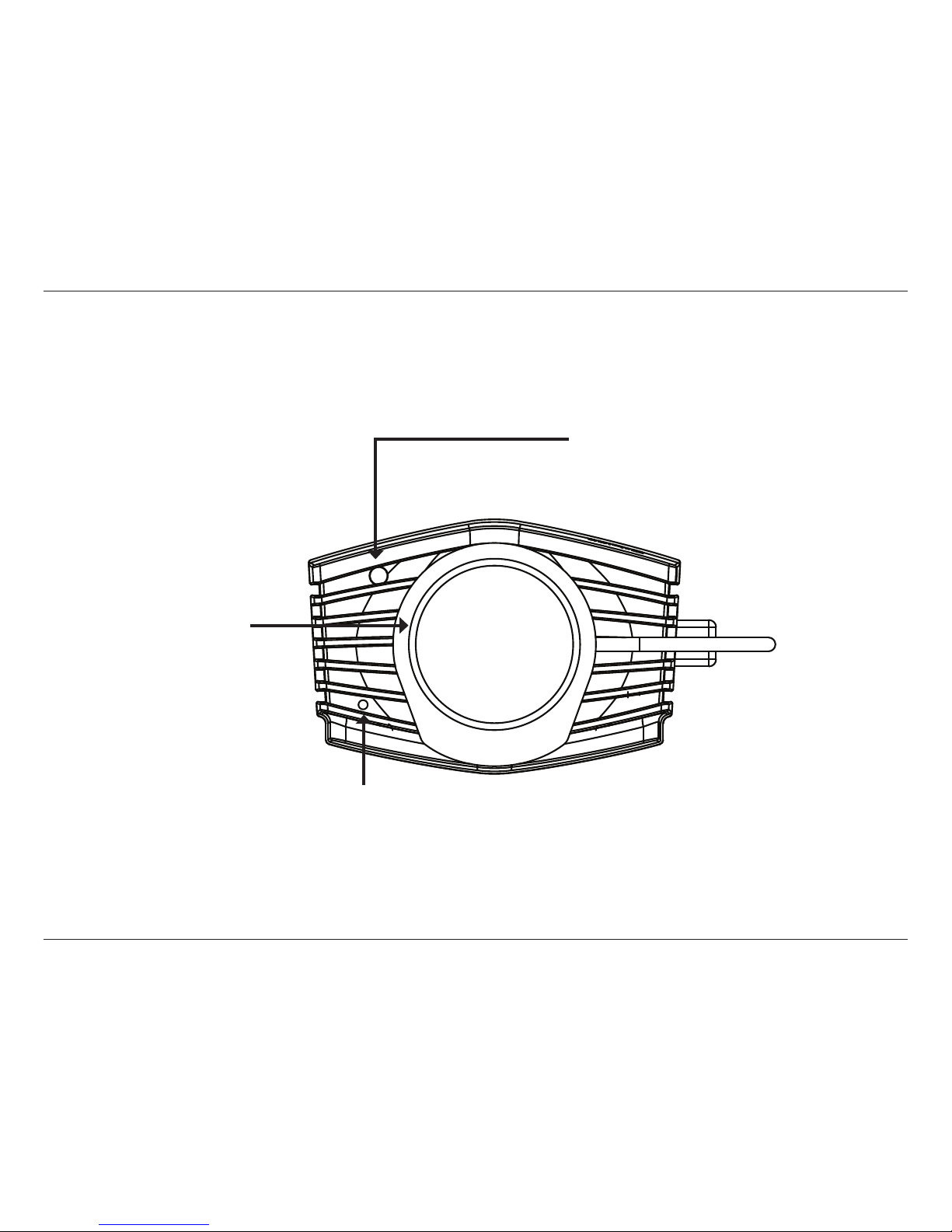

Front Panel
Lens Connector
Connect to a CS mount
ICR Sensor
The IR-Cut Removable sensor
judges lighting conditions and
switches from color to infrared
accordingly
Built-in MIC
Internal microphone

10D-Link DCS-3715 User Manual
Product Overview
Rear Panel
1. MIC ON: Internal/External microphone on
2. MIC OFF: Internal/External microphone mute
3. NTSC: TV output signal selector
4. PAL: TV output signal selector
LED
Power and
network
indicator
I/O Connector
I/O connectors for external devices
AV Output
Audio and Video output connector for external
speaker and TV/Monitor
Reset
Press and hold this
button for 10 seconds to
reset the camera
DC Power
12V DC
Ethernet (PoE)
RJ-45 connector for Ethernet
which can also be used to
power the camera using PoE
12V 1.25V
SD
AV OUT
MIC IN
ETHERNET (PoE)
RESET
DO +
DO -
DI +
DI -
AC24V AC24V
485 +
485 -
1
2
3
4
1 MIC ON
2 MIC OFF
3 NTSC
4 PAL
DIP Switch
Toggles between
several regional
formats.
SD Card Slot (with cover)
Local SD card for storing
recorded images and video
Microphone Port
Use to Connect
an External
microphone

11D-Link DCS-3715 User Manual
InstallationInstallation

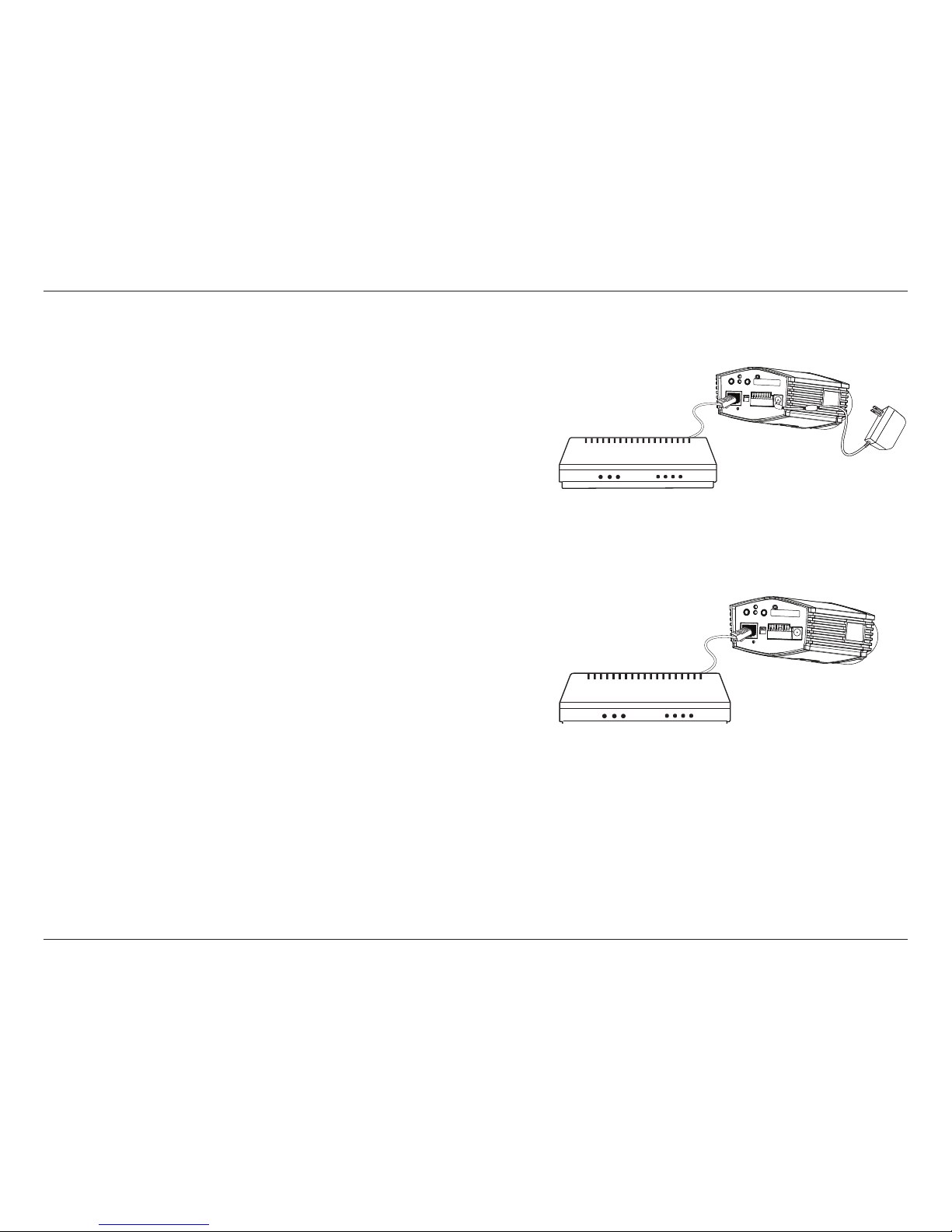

Hardware Installation
Basic Connection (without PoE)
Connect the camera to your switch or router via Ethernet cable.
Connect the supplied power cable from the camera to a power outlet.
Connection Using a PoE Switch
If using a PoE switch or router, connect the network camera via Ethernet
cable.
PoE will transmit both power and data over a single cable.
Note: Once power has been established, the LED will turn red. When the device has obtained an IP address and is accessible, the
LED will turn green.

12D-Link DCS-3715 User Manual
Installation
Conguration with Wizard

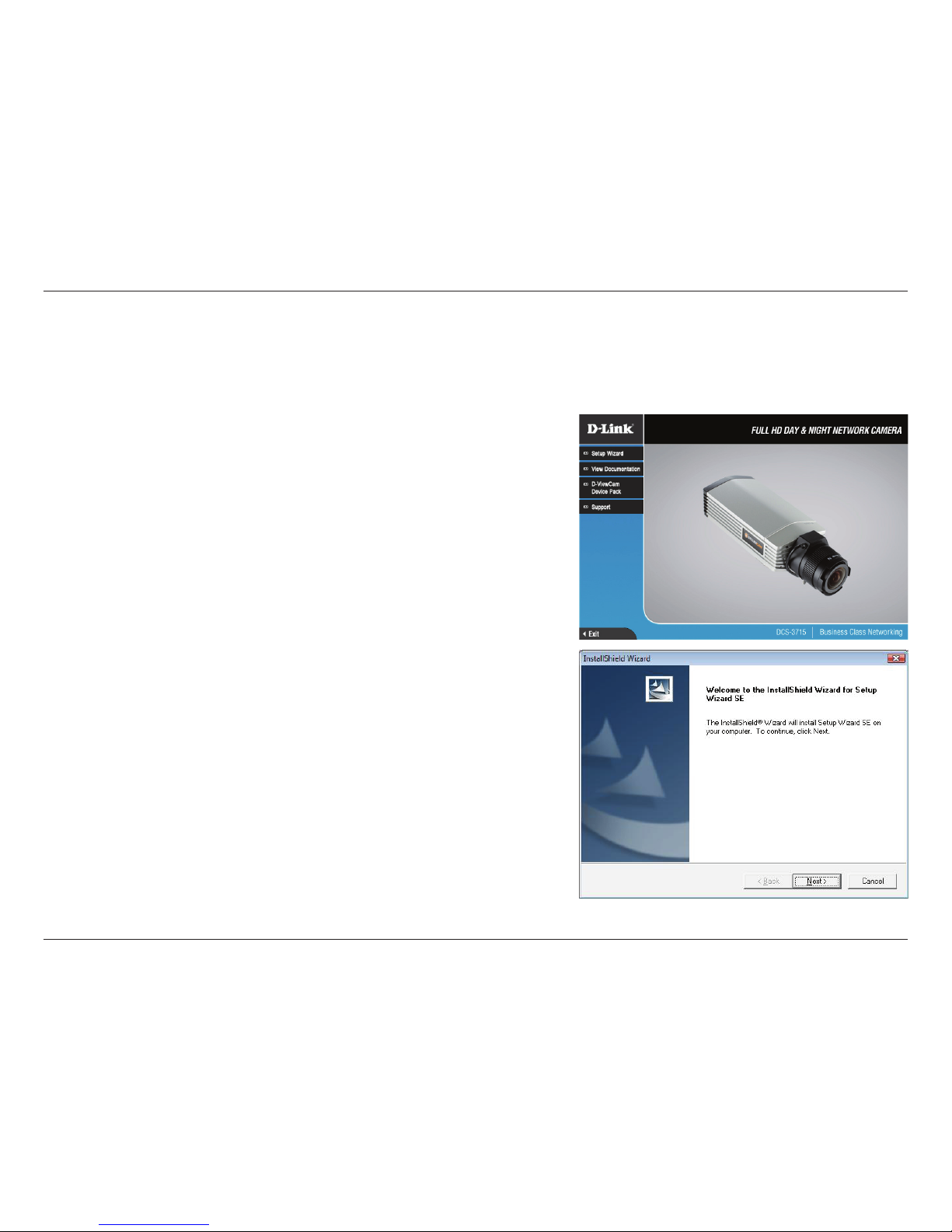

Click Setup Wizard to begin the installation.
Insert the DCS-3715 CD into your computer's CD-ROM drive to begin the
installation. If the Autorun function on your computer is disabled, or if the
D-Link Launcher fails to start automatically, click Start > Run. Type D:\
autorun.exe, where D: represents the drive letter of your CD-ROM drive.
After clicking Setup Wizard, the following window will open.
Click Next to continue.

13D-Link DCS-3715 User Manual
Installation

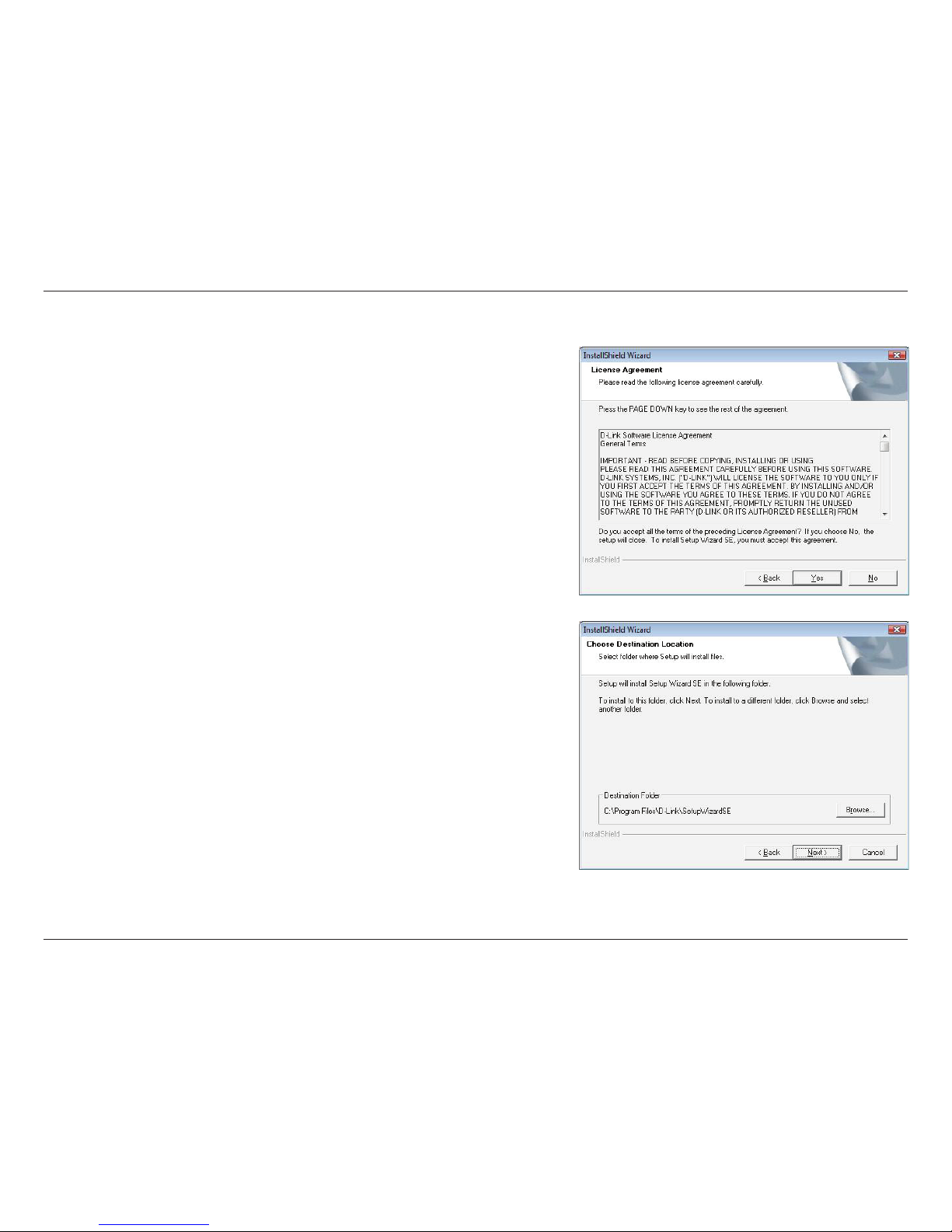

Click Yes to accept the License Agreement.
To start the installation process, click Next.
Note: The installation may take several minutes to nish.

14D-Link DCS-3715 User Manual
Installation

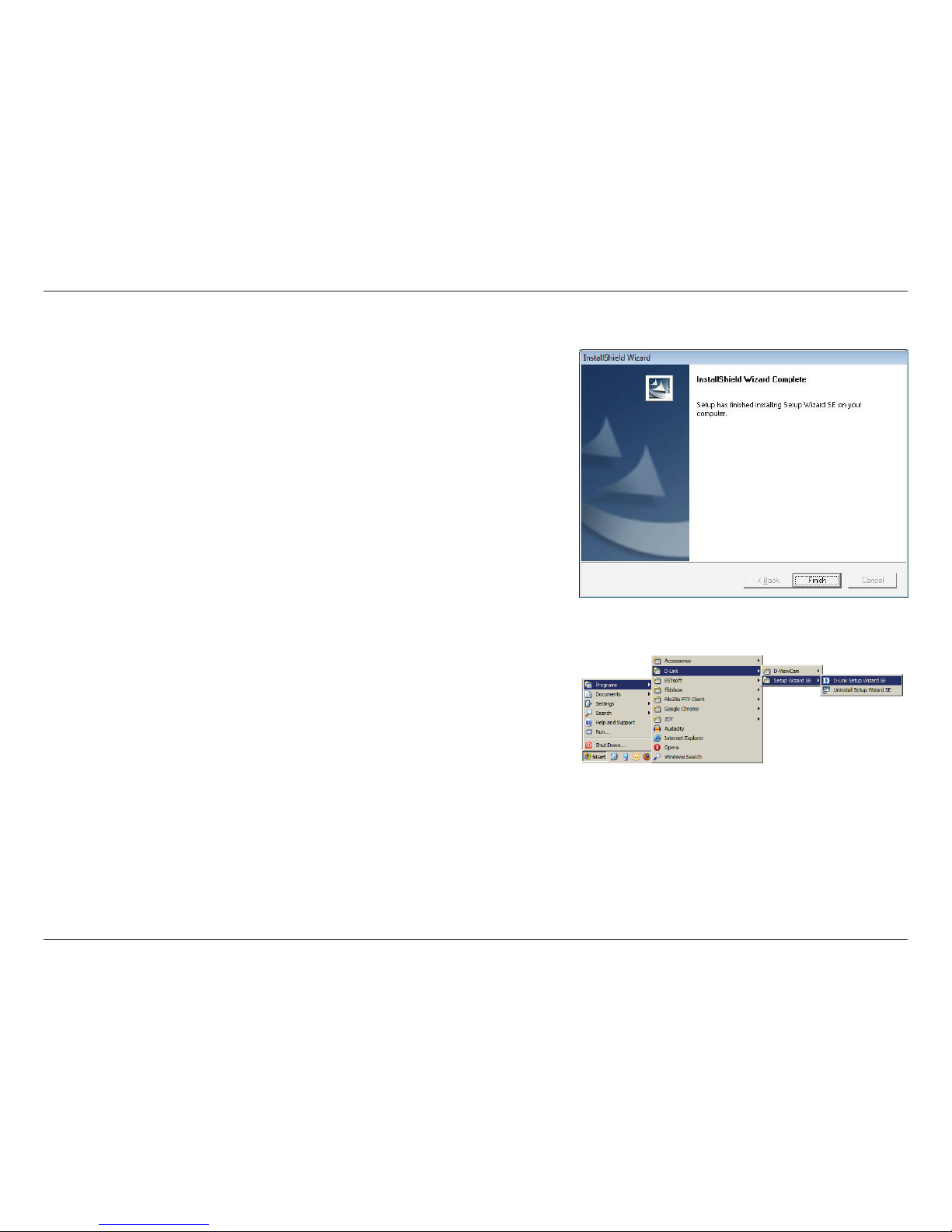

Click Finish to complete the installation.
Click on the D-Link Setup Wizard SE icon that was created in your Windows
Start menu.
Start > D-Link > Setup Wizard SE

15D-Link DCS-3715 User Manual
Installation

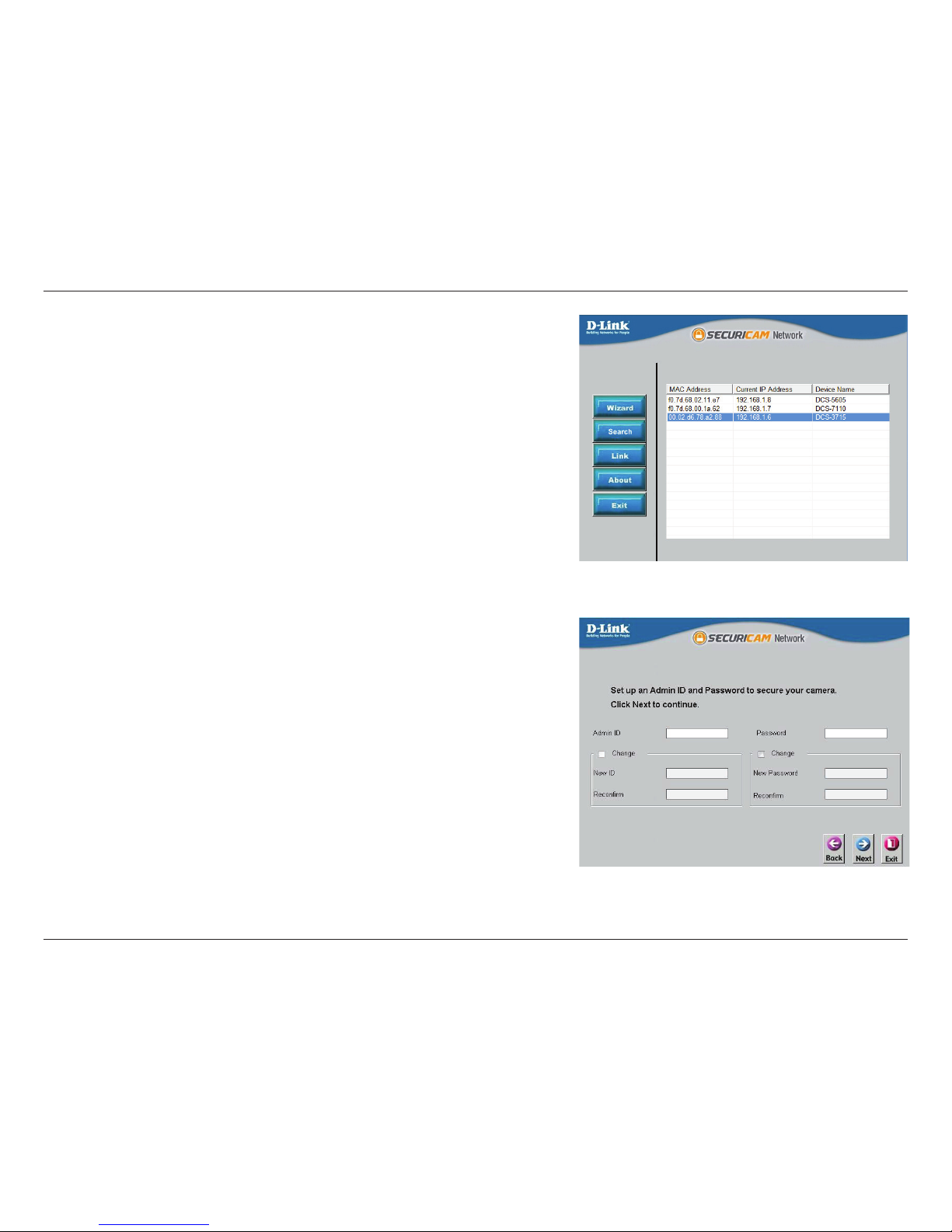

Enter the Admin ID and password. When logging in for the rst time, the
default Admin ID is admin with the password left blank.
Click Next, to proceed to the next page.
The Setup Wizard will appear and display the MAC address and IP address
of your camera(s). If you have a DHCP server on your network, a valid IP
Address will be displayed. If your network does not use a DHCP server, the
network camera's default static IP 192.168.0.20 will be displayed.
Click the Wizard button to continue.

16D-Link DCS-3715 User Manual
Installation

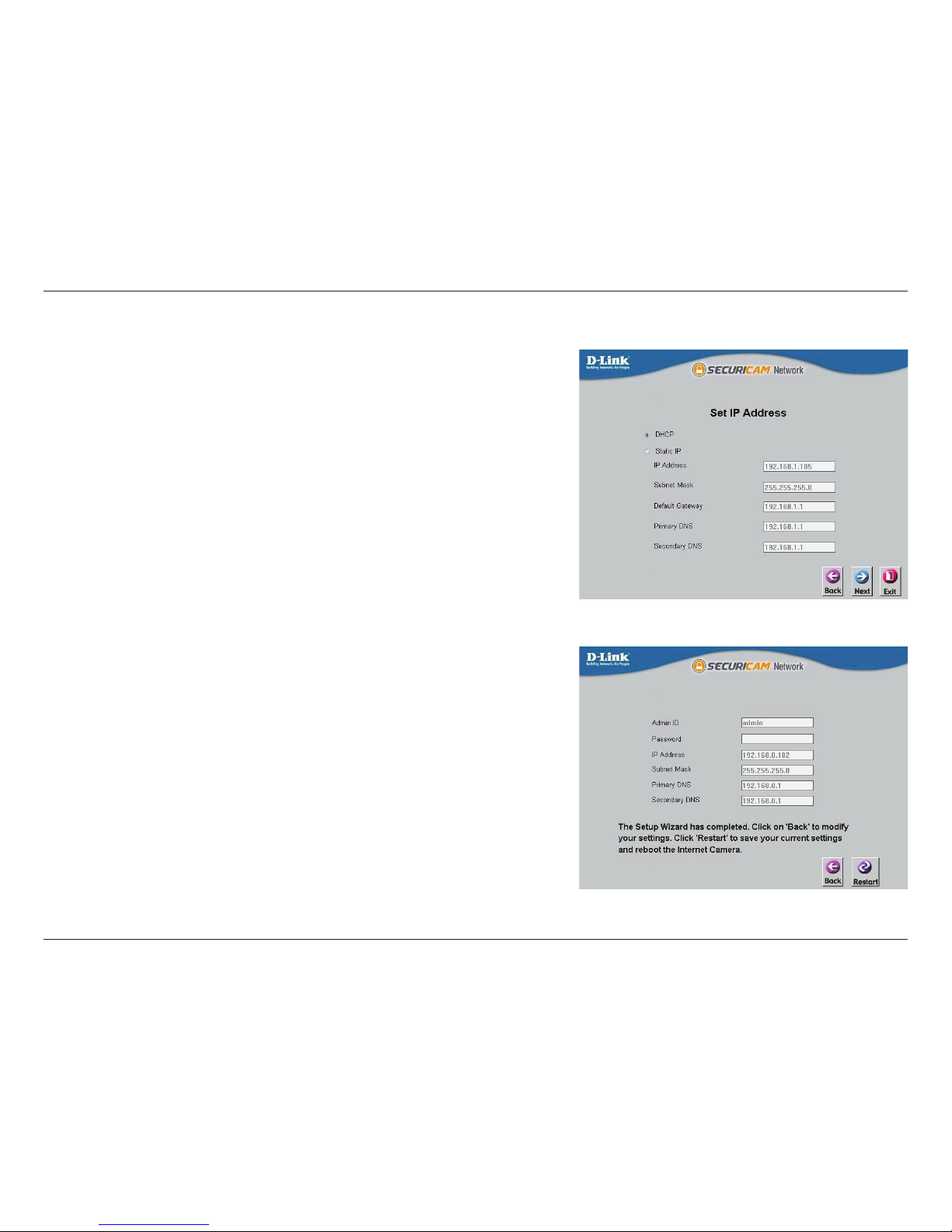

Take a moment to conrm your settings and click Restart.
Select DHCP if your camera obtains an IP address automatically when it boots
up. Select static IP if the camera will use the same IP address each time it is
started.
Click Next, to proceed to the next page.

17D-Link DCS-3715 User Manual
Installation

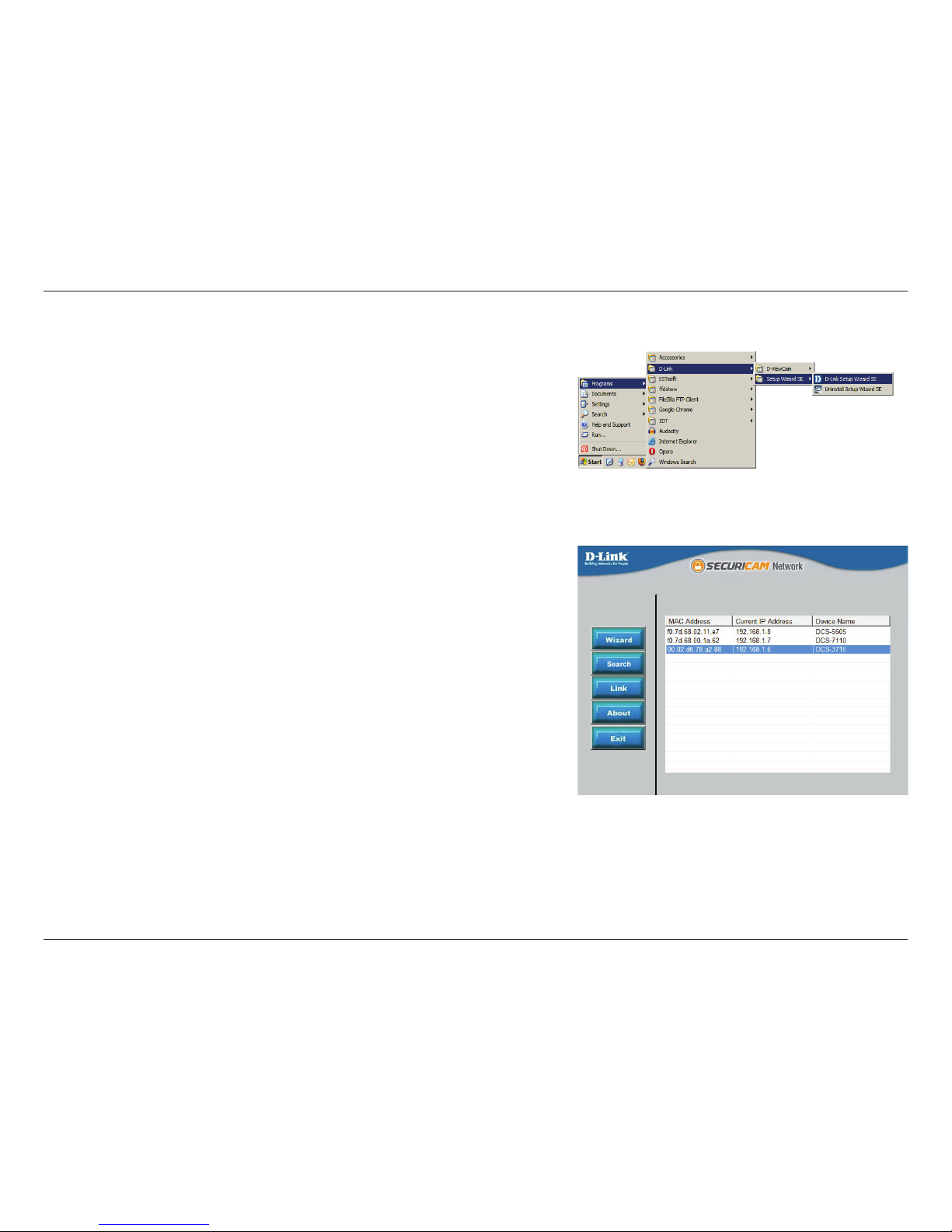

Click on the D-Link Setup Wizard SE icon that was created in your Windows
Start menu.
Start > D-Link > Setup Wizard SE
Viewing Camera via Web Browser
Select the camera and click the button labeled "Link" to access the web
conguration.
The Setup Wizard will automatically open your web browser to the IP address
of the camera.

18D-Link DCS-3715 User Manual
Installation

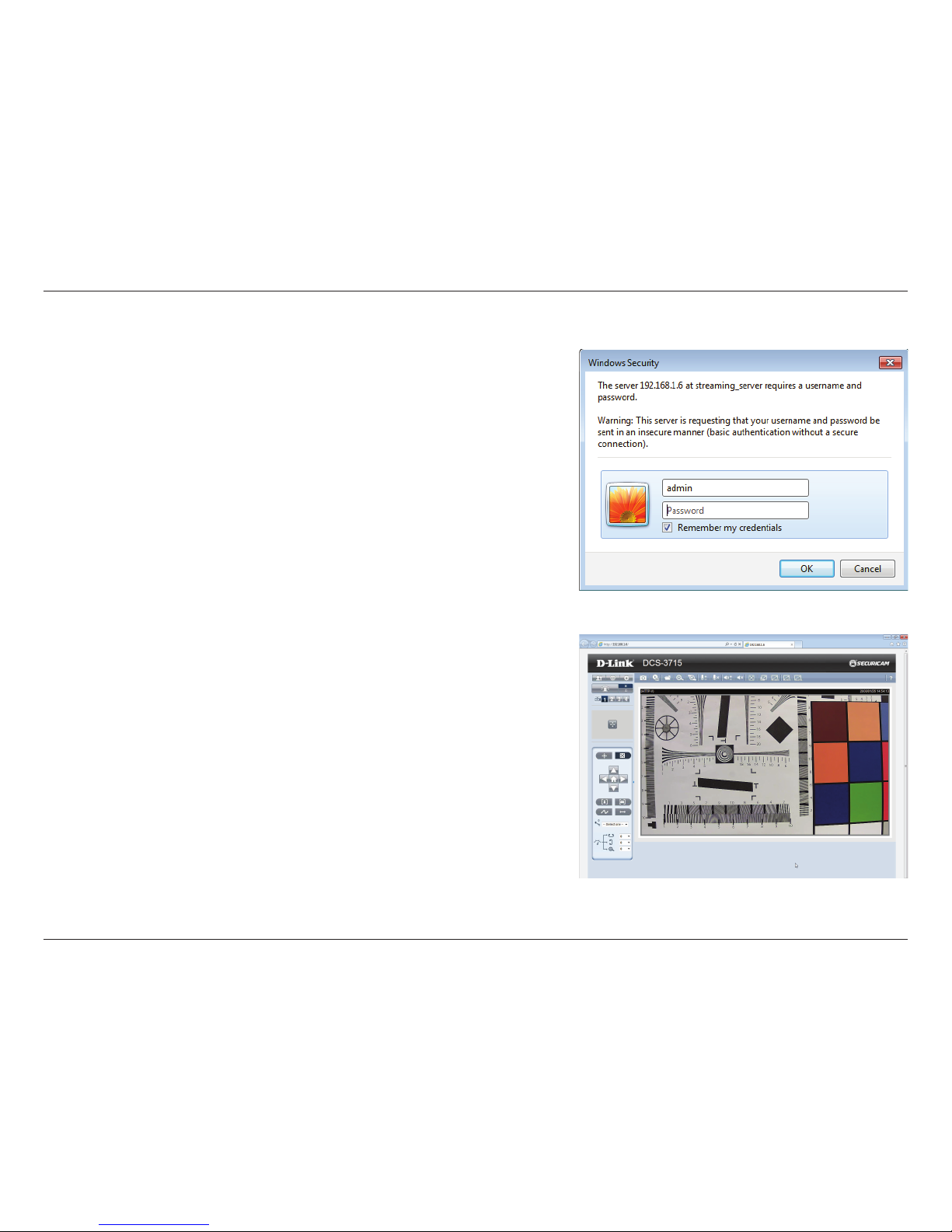

This section shows your camera’s live video. You can select your video
prole and view or operate the camera. For additional information about web
conguration, please refer to the user manual included on the CD-ROM or the
D-Link website.
Enter admin as the default username and leave the password blank. Click OK
to continue.

19D-Link DCS-3715 User Manual
Installation
Adjust the Zoom/Focus
Adjust Zoom Ratio
Unscrew the focus controller to loosen the zoom controller. Adjust the zoom
factor by moving the controller the left or right until the desired range is
achieved. Tighten the zoom controller once completed.
Adjust Focus
Unscrew the focus controller to loosen it. Adjust the focal range by rotating the
ring to the left or right until the image is clear. Tighten the focus controller once
completed.

20D-Link DCS-3715 User Manual
Installation
D-ViewCam Setup Wizard
D-ViewCam software is included for the administrator to manage multiple
D-Link IP cameras remotely. You may use the software to congure all
the advanced settings for your cameras. D-ViewCam is a comprehensive
management tool for IP surveillance.
Insert the CD-ROM into the CD-ROM drive. A menu screen will appear as
shown below.
Follow the Installation Wizard to install D-ViewCam.
