Section 1: Product Overview
Product Overview
Package Contents
If any of the above items are missing, please contact your reseller.
Note: Using a power supply with a dierent voltage than the one included with your
product will cause damage and void the warranty for this product.
Quick Installation Guide
CAT5 Ethernet cable (Pre-Attached)
Power adapter (Pre-Attached)
CD-ROM with User Manual and software
DCS-2310L HD PoE Outdoor Cube Network Camera

6D-Link DCS-2310L User Manual
Section 1: Product Overview
Introduction
Congratulations on your purchase of the DCS-2310L HD PoE Outdoor Cube Network Camera. The DCS-2310L is a versatile and
unique solution for your small oce or home. Unlike a standard webcam, the DCS-2310L is a complete system with a built-in
CPU and web server that transmits high quality video images for security and outdoor surveillance. The DCS-2310L can be
accessed remotely, and controlled from any PC/Notebook over your local network or through the Internet via a web browser.
The simple installation and intuitive web-based interface oer easy integration with your Ethernet/Fast Ethernet network.
The DCS-2310L weatherproof housing and Power over Ethernet make it an ideal solution for a complete and cost-eective
surveillance solution with an easy clutter-free installation. The remote monitoring, infrared, motion detection and event
notications features enable you be truly responsive to your surveillance deployment.
• Computer with Microsoft Windows® 7/8/Vista/XP, or Mac with OS X 10.6 or higher
• PC with 1.3GHz or above; at least 128MB RAM
• Internet Explorer 7, Firefox 12, Safari 4, or Chrome 20 or higher version with Java installed and enabled
• Existing 10/100 Ethernet-based network
• A MicroSD memory card (optional) is required for recording to onboard storage. SDHC Class 6 or above is recommended.
• Broadband Internet connection
System Requirements

7D-Link DCS-2310L User Manual
Section 1: Product Overview
Simple to Use
The DCS-2310L is a stand-alone system with a built-in CPU, requiring no special hardware or software. The DCS-2310L supports both ActiveX mode
for Internet Explorer and Java mode for other browsers such as Firefox® and Safari®.
Supports a Variety of Platforms
Supporting TCP/IP networking, HTTP, and other Internet related protocols. The DCS-2310L can also be integrated easily into other Internet/Intranet
applications because of its standards-based features. The DCS-2310L oers Ethernet/Fast Ethernet connectivity, making the DCS-2310L easy to
integrate into your existing network environment. The DCS-2310L works with a 10Mbps Ethernet based network or 100Mbps Fast Ethernet based
network for traditional wired environments.
Web Conguration
Using a standard Web browser, administrators can congure and manage the Network Camera directly from its own Web page via Intranet or
Internet. This means you can access your DCS-2310L anytime, anywhere in the world.
Broad Range of Applications
With today’s high-speed Internet services, the Network Camera can provide the ideal solution for delivering live video images over the Intranet and
Internet for remote monitoring. The Network Camera allows remote access using a Web browser for live image viewing, and allows the administrator
to manage and control the Network Camera anytime, anywhere in the world. Many applications exist, including industrial and public monitoring
of homes, oces, banks, hospitals, child-care centers, and amusement parks.
Remote Monitoring Utility
The D-ViewCam application adds enhanced features and functionality for the Network Camera and allows administrators to congure and access
the Network Camera from a remote site via Intranet or Internet. Other features include image monitoring, recording images to a hard drive, viewing
up to 32 cameras on one screen, and taking snapshots.
IR LED for Day and Night Functionality
The built-in infrared LEDs enables night time viewing of up to 16 feet (5 meters).
IP65 Weatherproof Housing
The DCS-2310L uses an IP65 weatherproof housing, allowing you to rest assured that in the toughest of conditions, it will continue to provide
round-the-clock surveillance.
PoE (Power over Ethernet) for Flexible Installation
The DCS-2310L can draw all the power it needs from a powered Ethernet port meaning installation is simple and clutter free.
Features

8D-Link DCS-2310L User Manual
Section 1: Product Overview
Front
Hardware Overview

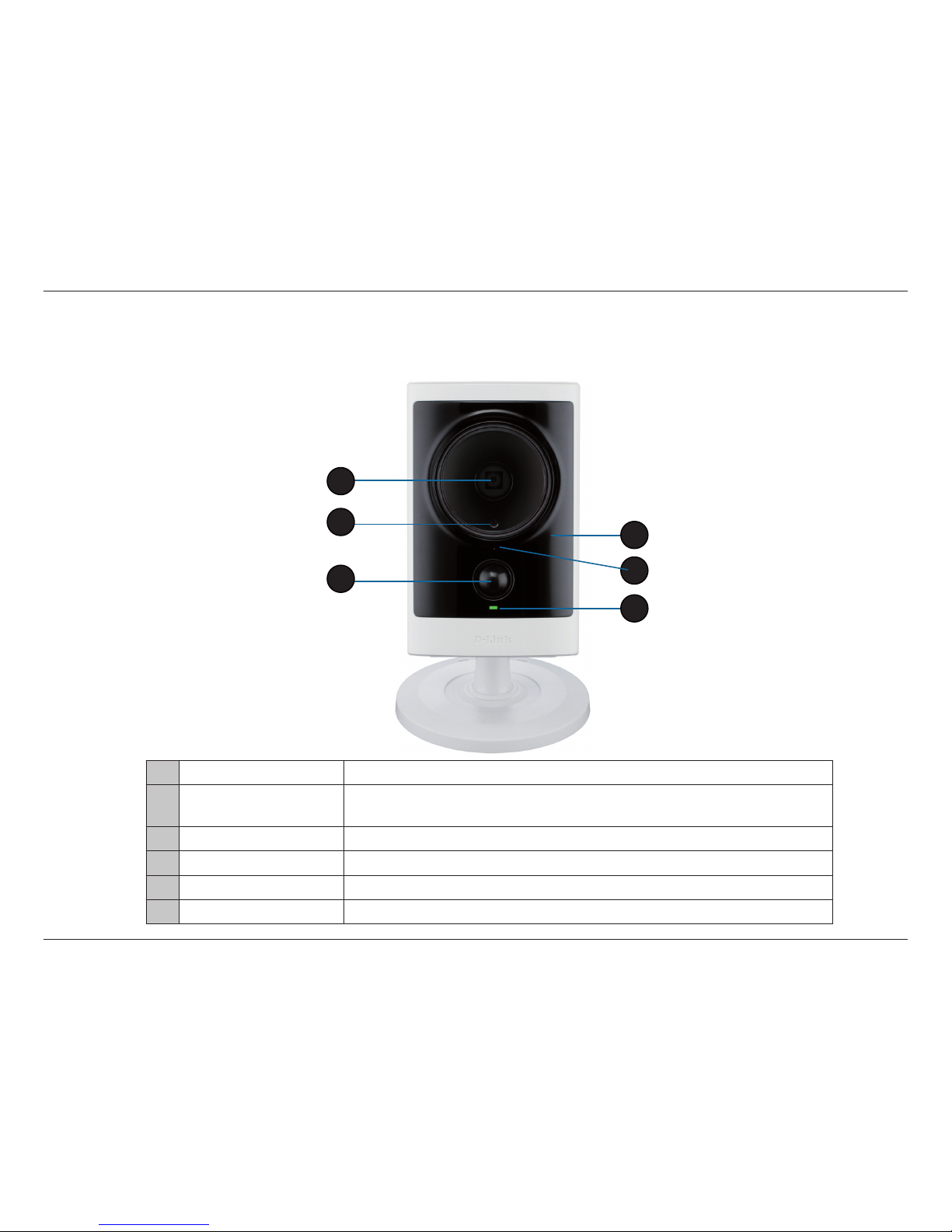

1 Camera Lens Records video of the surrounding area
2 ICR Sensor The IR-Cut Removable sensor measures the lighting conditions and switches
between color and infrared accordingly
3 IR LED Infrared LED illuminates the camera's eld of view at night
4 Microphone Records audio from the surrounding area
5 PIR Passive Infrared sensor for motion detection
6 Power/Status LED Indicates the camera's current status
1
4
5
3
6
2

9D-Link DCS-2310L User Manual
Section 1: Product Overview

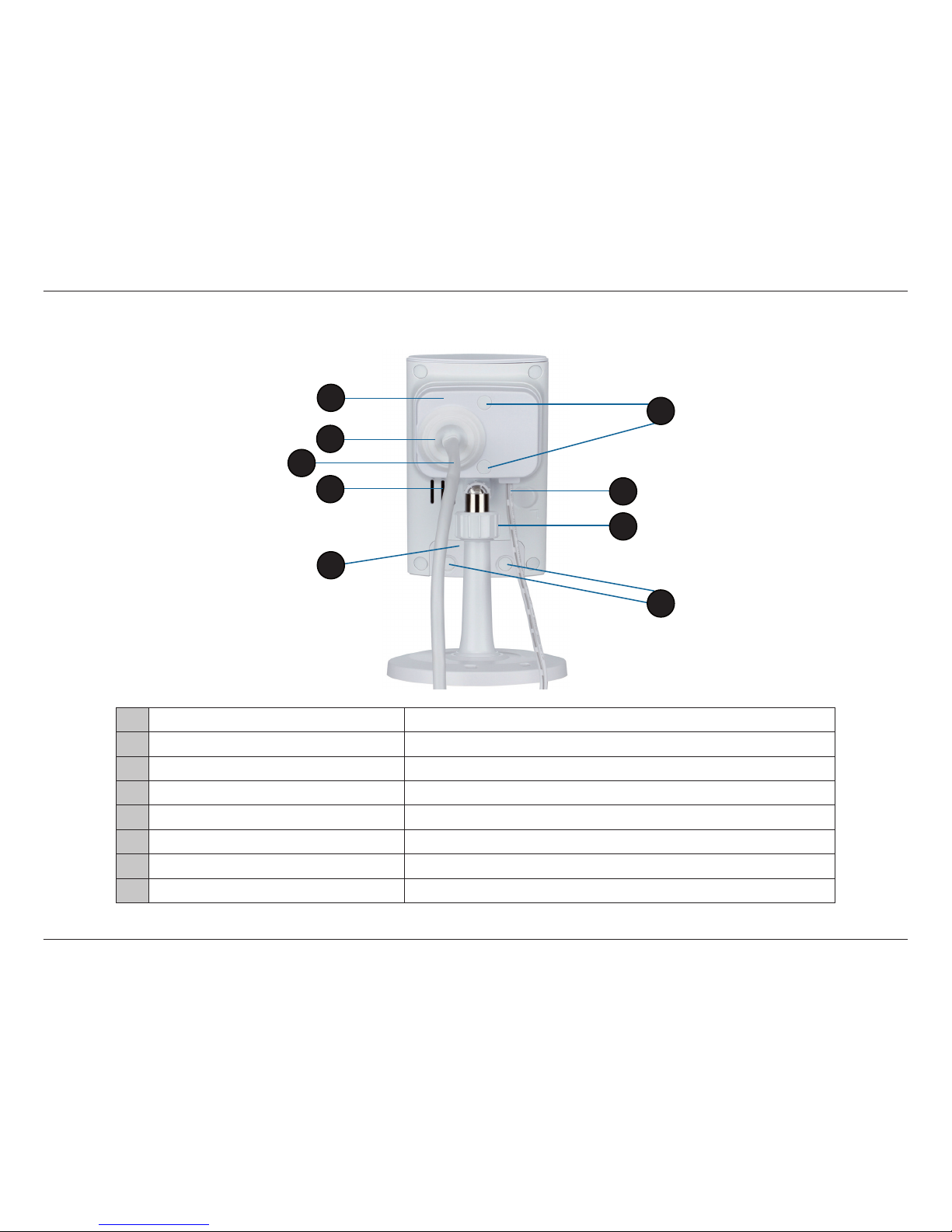

Rear: External
1 Weatherproof Cover Weatherproof protective panel
2 Protective Cable Cover Weatherproof cable connection cover
3 Ethernet Cable RJ45 Ethernet cable to connect to your network
4 Power Cable Connected to the included DC 5 V power adapter
5 Adjustment Ring Tighten or loosen the adjustment ring to adjust the camera's position
6 Speaker Audio output
7 Weatherproof Cover Weatherproof cover for the MicroSD Card slot and reset button
8 Weatherproof Screw Covering Weatherproof protective covering for enclosure screws
1
3
4
5
2
7
6
8
8

10D-Link DCS-2310L User Manual
Section 1: Product Overview
Rear: Internal

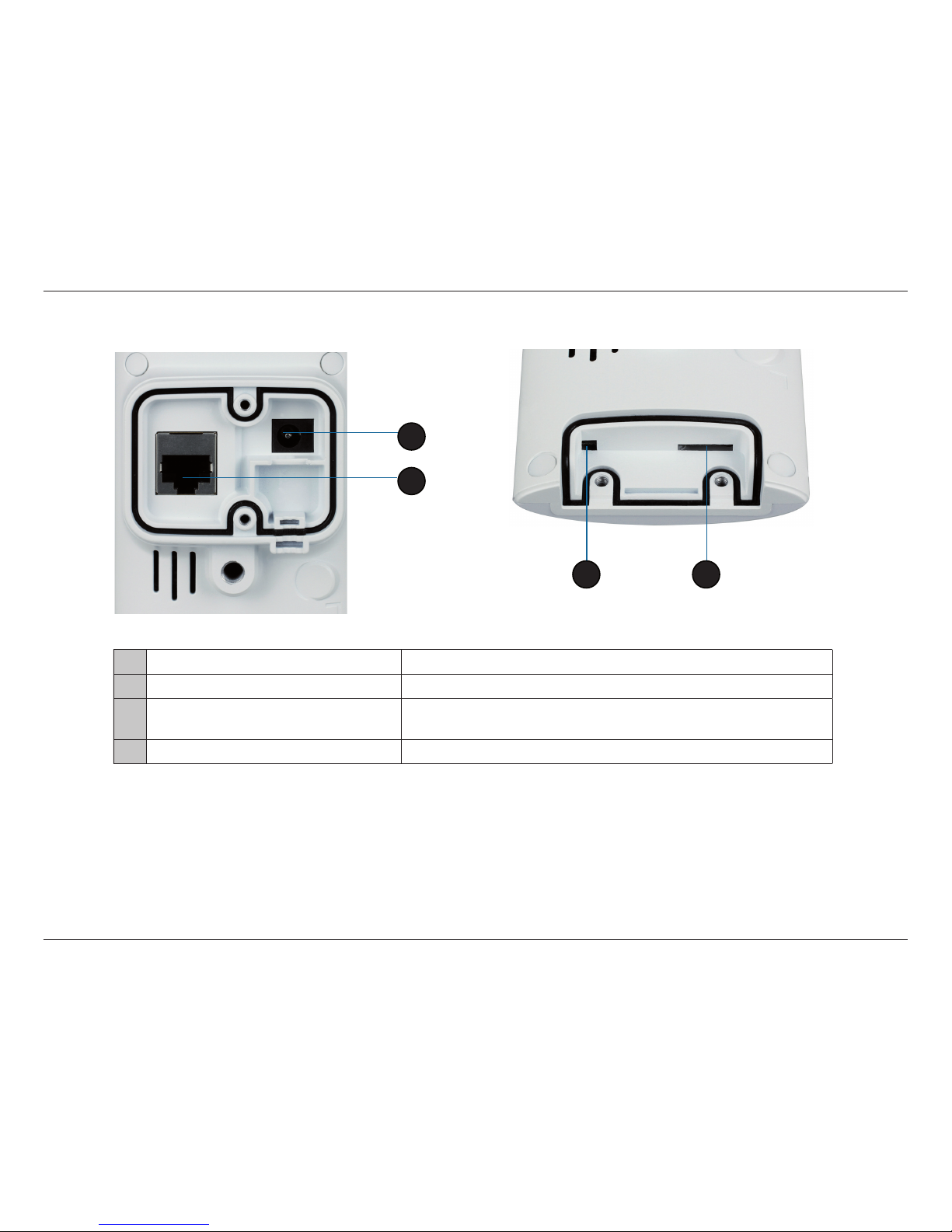

1 DC Power Connector Connected to the included DC 5 V power adapter
2 RJ45 Ethernet Port RJ45 connector for Ethernet
3 Reset Button Use a paperclip or similar tool to press and hold the recessed button for
10 seconds to reset the camera
4 SD Memory Card Slot Insert a MicroSD card for for storing recorded images and video
1
2
4
3

11D-Link DCS-2310L User Manual
Section 1: Product Overview

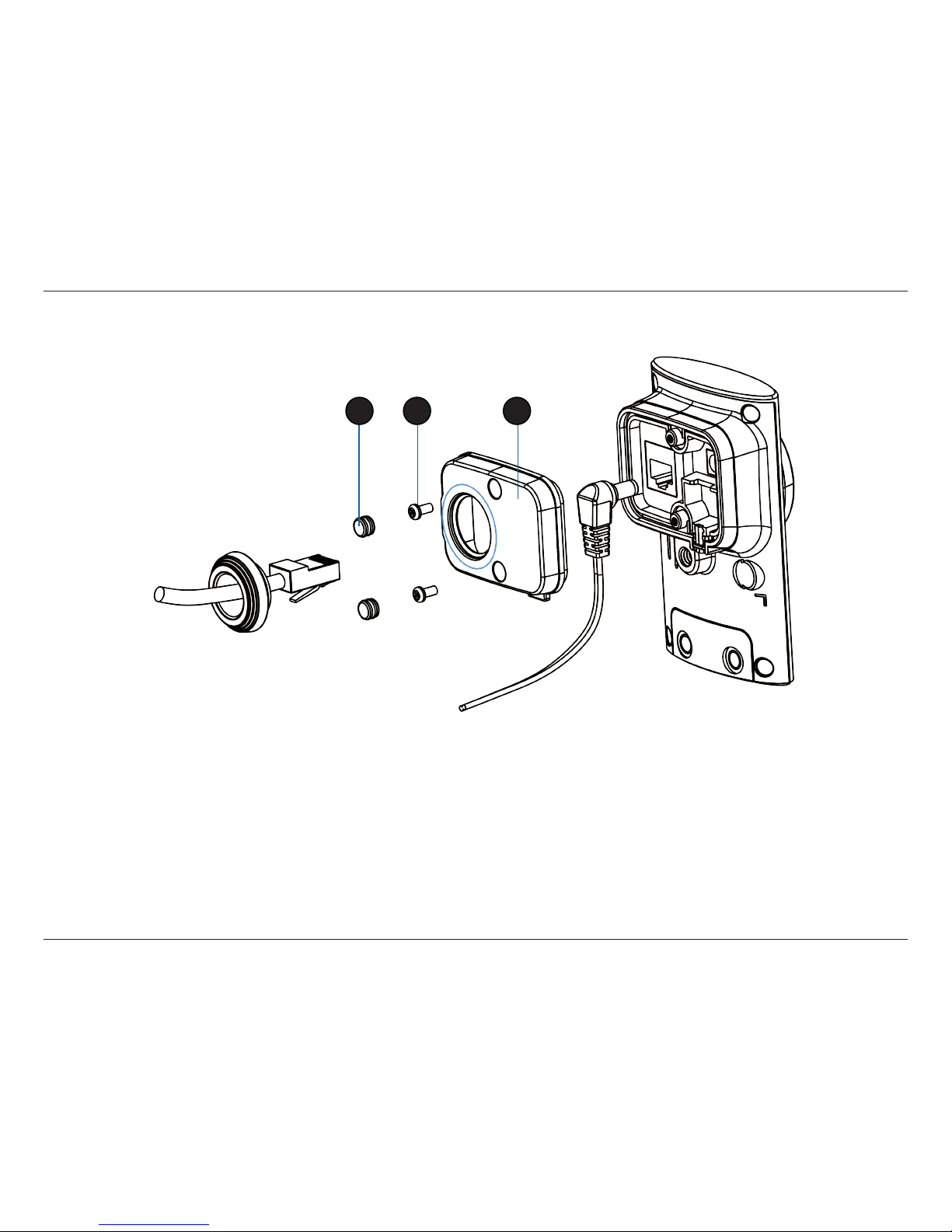

Removing the Top Panel

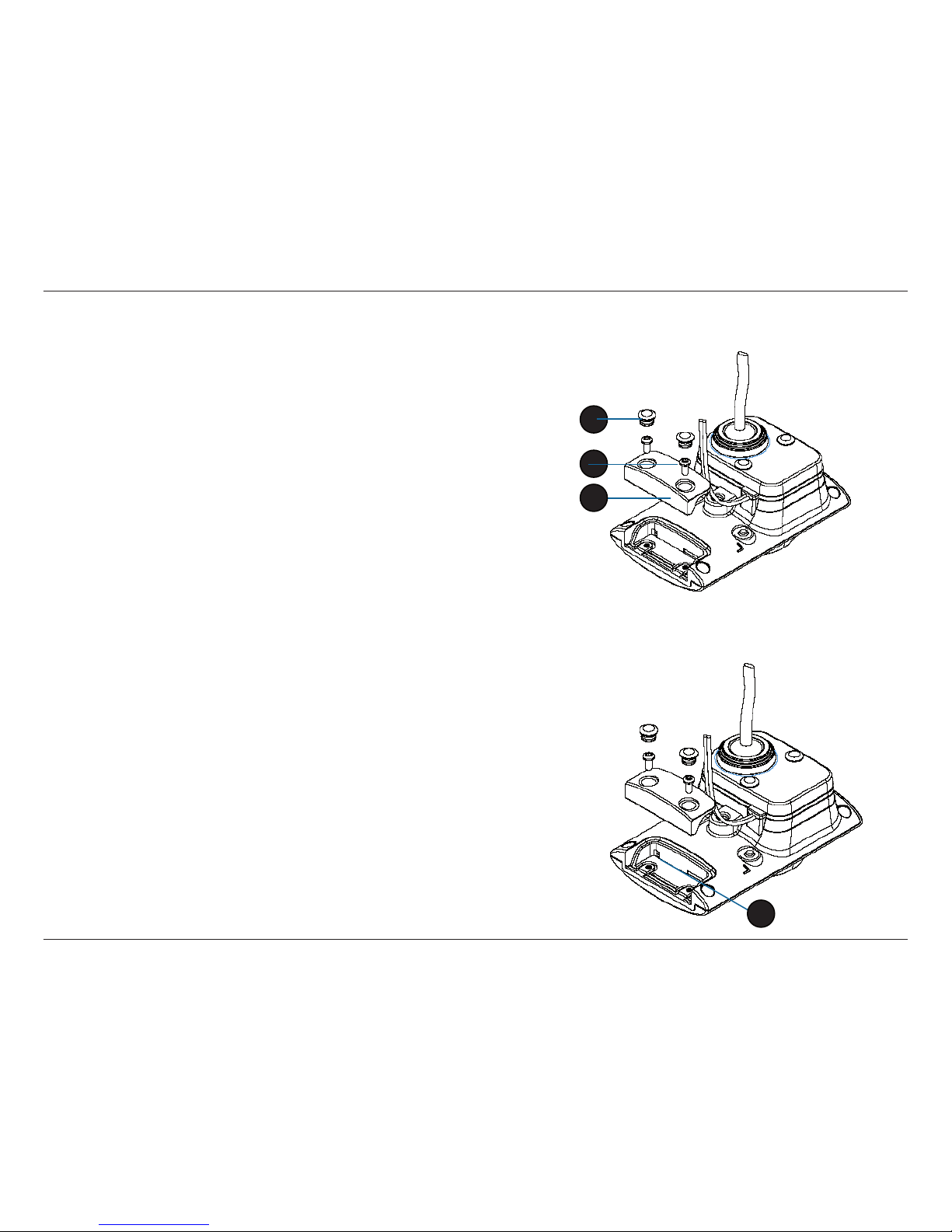

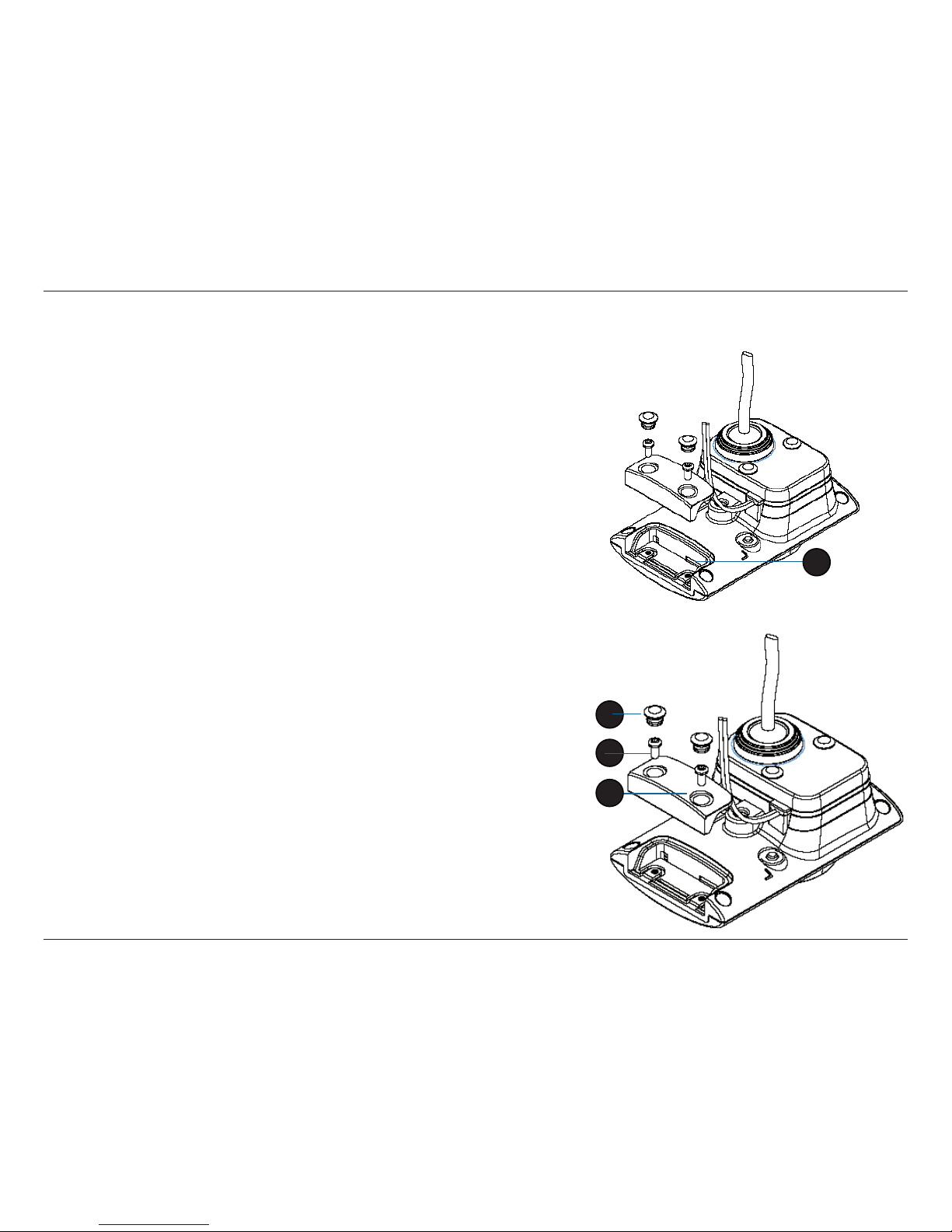

Step 1:
Place the camera face down on a non-slip at surface.
Step 2:
Carefully pry out the two protective rubber screw coverings using a thin at blade.
Step 3:
Undo the two screws using a Philips #00 Screwdriver.
Step 4:
Lift o the protective panel.
Note: To ensure that the camera stays weatherproof, users are advised to ensure that all the rubber seals are secured rmly in place.
2 3 4

12D-Link DCS-2310L User Manual
Section 1: Product Overview

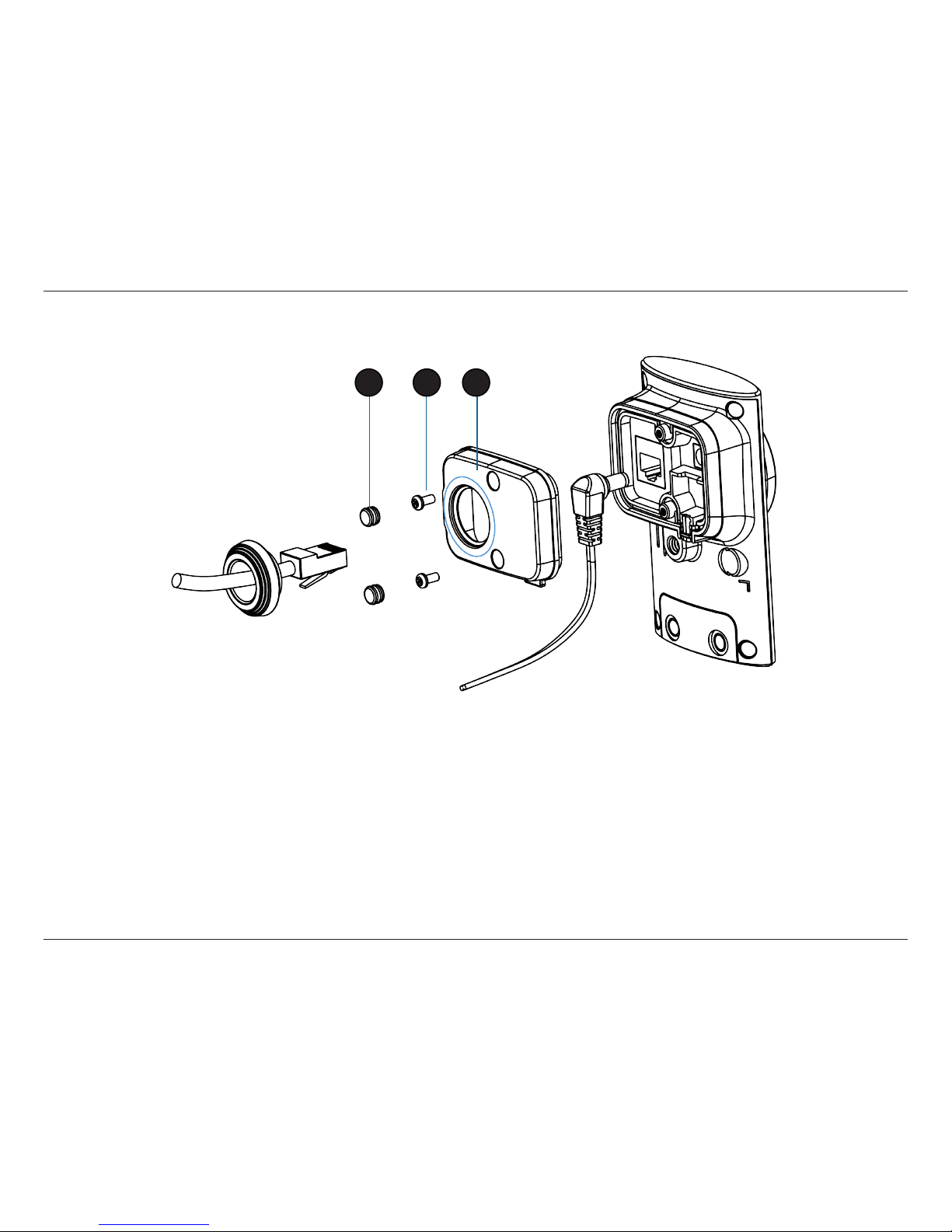

Removing the Power Cable

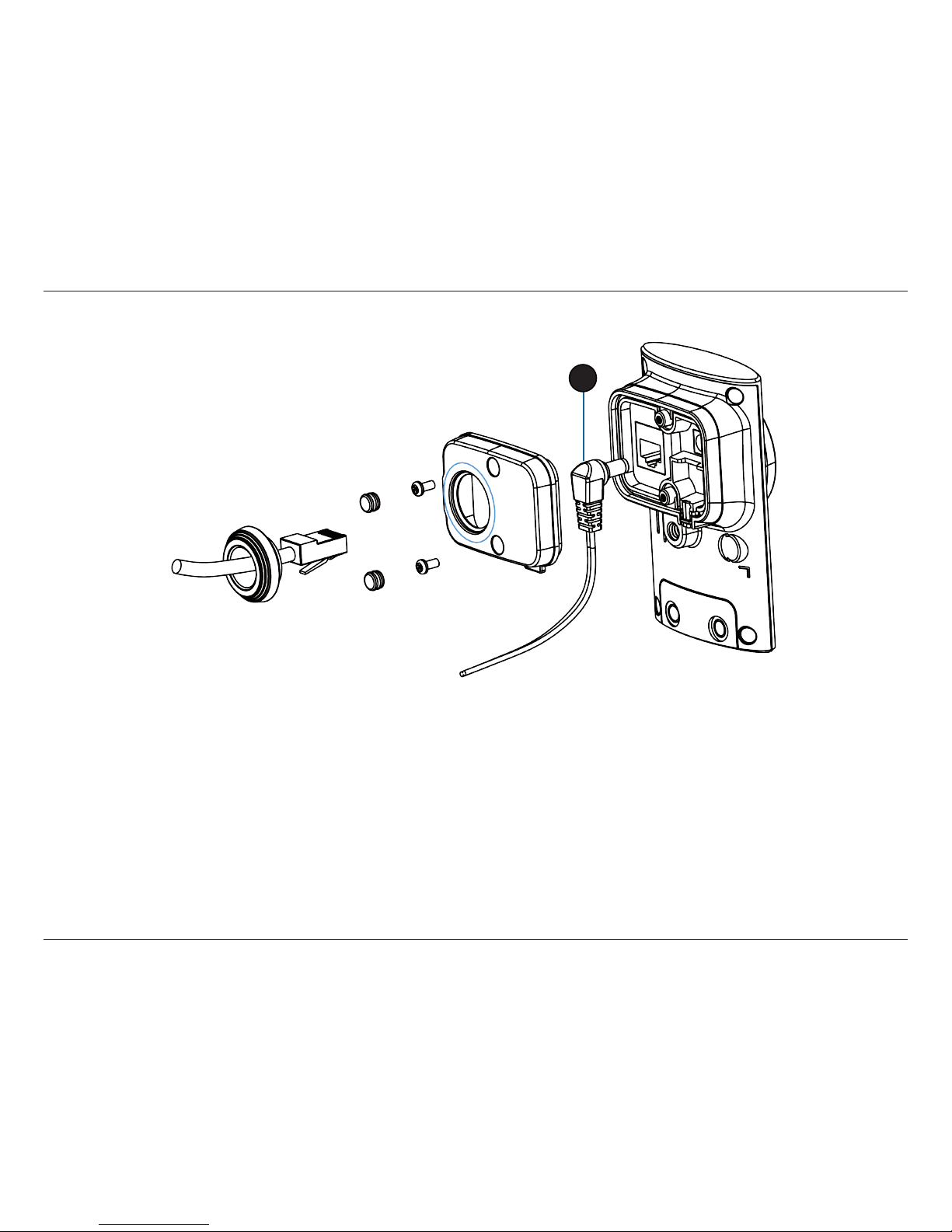

Step 1:
Follow the steps outlined in "Removing the Top Panel" on page 11
Step 2:
Unplug the power cable from the DC power connector.
Step 3:
Insert the rubber weatherproof plug ensuring it aligns with the space left by the power cable.
Step 4:
Follow the steps outlined in "Reattaching the Top Panel" on page 14
Note: To avoid damage to the weatherproof aspects of the camera, users are advised to ensure the weatherproof plug is seated correctly.
2

13D-Link DCS-2310L User Manual
Section 1: Product Overview

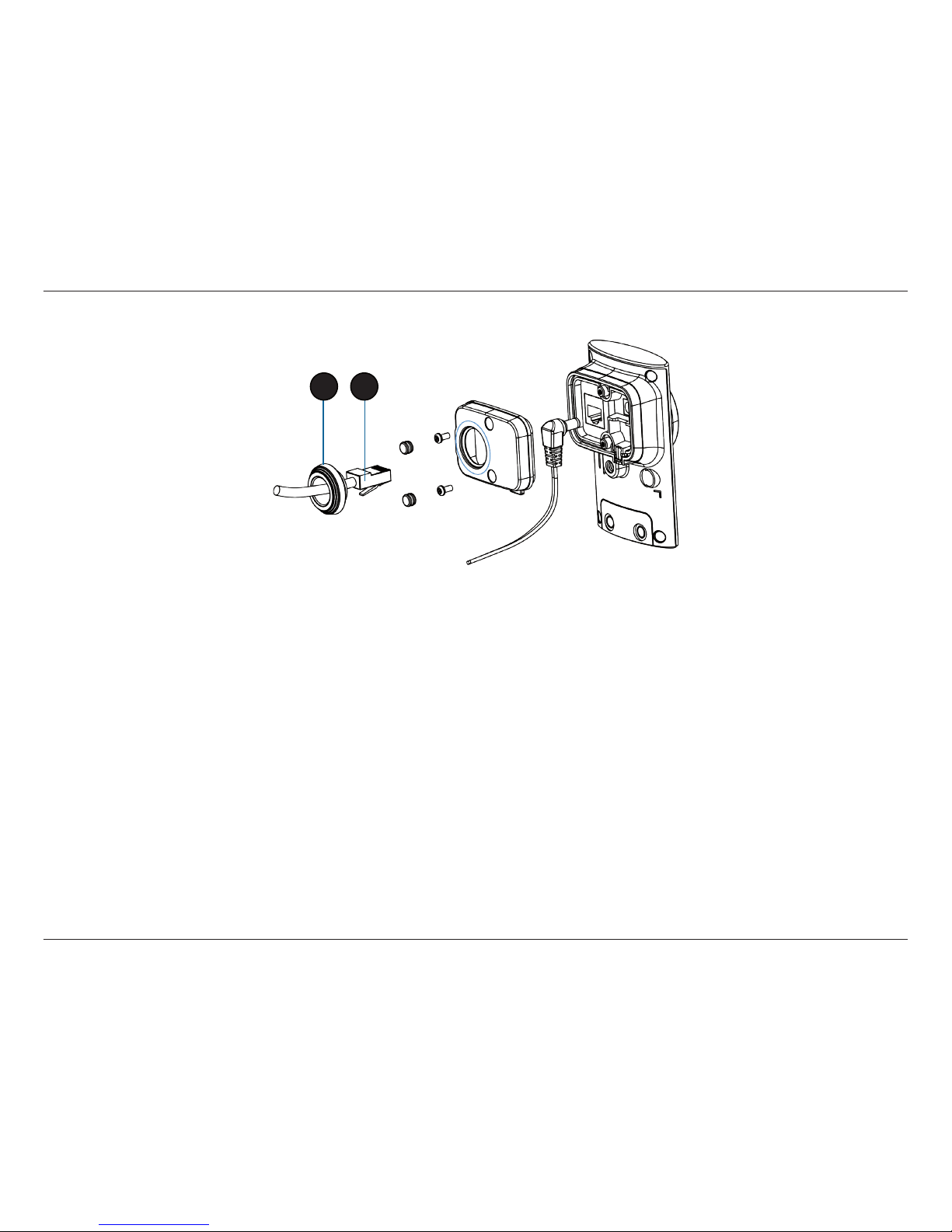

Replacing the Ethernet Cable
Step 1:
Follow the steps outlined in "Removing the Top Panel" on page 11
Step 2:
Unplug the Ethernet cable from the RJ45 connector.
Step 3:
Carefully remove the weatherproof cable connection cover.
Step 4:
Attach the weatherproof cable connection cover to the new Ethernet cable.
Step 5:
Plug the new Ethernet cable into the RJ45 connector.
Step 6:
Follow the steps outlined in "Reattaching the Top Panel" on page 14
Note: To avoid damage to the weatherproof aspects of the camera, users are advised not to remove the rear cable connection covering. To use a
longer Ethernet cable install a coupling adaptor.
3 2

14D-Link DCS-2310L User Manual
Section 1: Product Overview
Reattaching the Top Panel
Step 1:
Seat the protective panel, ensuring a tight t with the inlaid rubber seal.
Step 2:
Replace the two screws. Ensure that the screws are tightened rmly.
Step 3:
Firmly replace the protective rubber screw coverings.
Note: To ensure that the camera stays weatherproof, users are advised to ensure that all the rubber seals are secured rmly in place.
23 1

15D-Link DCS-2310L User Manual
Section 1: Product Overview
Removing the Bottom Panel
Step 1:
Place the camera face down on a non-slip at surface.
Step 2:
Carefully pry out the two protective rubber screw coverings using a thin at blade.
Step 3:
Undo the two screws using a Philips #00 Screwdriver.
Step 4:
Lift o the protective panel.
If you need to install an SD Memory Card please skip to "Installing an SD Memory Card" on
page 16. If you need to use the Reset Button follow these steps.
Using the Reset Button
Step 1:
Follow the steps outlined in "Removing the Bottom Panel" on page 15
Step 2:
Using a paperclip or similar tool, press and hold the Reset Button for 10 seconds. This will reset
the device to it's factory settings.
Step 3:
Follow the steps outlined in "Reattaching the Bottom Panel" on page 16
2
2
3
4

16D-Link DCS-2310L User Manual
Section 1: Product Overview
Reattaching the Bottom Panel
Step 1:
Seat the protective panel, ensuring a tight t with the inlaid rubber seal.
Step 2:
Replace the two screws. Ensure that the screws are tightened rmly.
Step 3:
Firmly replace the protective rubber screw coverings.
Note: To ensure that the camera stays weatherproof, users are advised to ensure that all the
rubber seals are secured rmly in place.
Installing an SD Memory Card
Step 1:
Follow the steps outlined in "Removing the Bottom Panel" on page 15.
Step 2:
Insert a MicroSD Memory card into the slot, with the notch facing right.
Step 3:
Follow the steps outlined in "Reattaching the Bottom Panel" on page 16.
2
2
3
4

17D-Link DCS-2310L User Manual
Section 2: Installation
If you have a mydlink-enabled Cloud Router, you can take advantage of Zero Conguration. Zero Conguration automatically
congures your camera's settings for you, and adds it to your mydlink account automatically. This type of setup allows you to
set up your camera by simply plugging it in and connecting it to your router.
Connect your camera to your mydlink-enabled Cloud Router and Zero Conguration will automatically congure your DCS-2310L
and automatically add the camera to your mydlink account. After the short time it takes to do this you can remotely access
your camera from the www.mydlink.com website to manage and monitor your DCS-2310L.

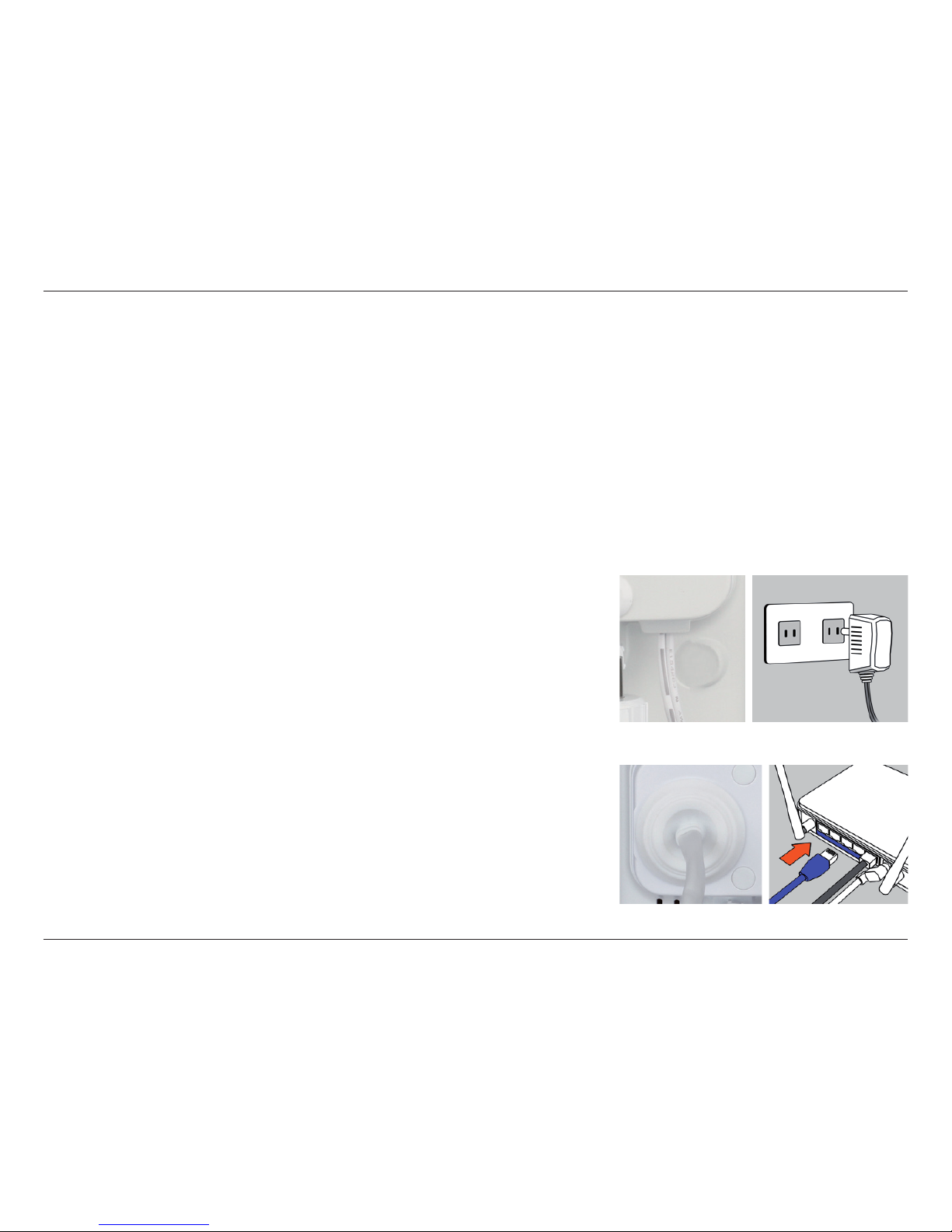

Attach the External Power Supply
Attach the external power supply to your wall outlet or power strip. Please skip
this step if your camera is connected using PoE (Power over Ethernet).
Note: If you choose to take advantage of the Power over Ethernet feature you may
unplug the power cable. However, to avoid water ingress ensure the provided
rubber weatherproof plug is used to ll the gap. See "Removing the Power Cable"
on page 12 for further instructions.
Installation
Zero Conguration Setup
Connect the Ethernet Cable
Using the pre-attached Ethernet cable connect the free end to your network.
Note: To avoid damage to the weatherproof aspects of the camera, users are
advised not to remove the rear cable connection covering. To use a longer
ethernet cable or power cord install a coupling adaptor, or power extension strip.

18D-Link DCS-2310L User Manual
Section 2: Installation

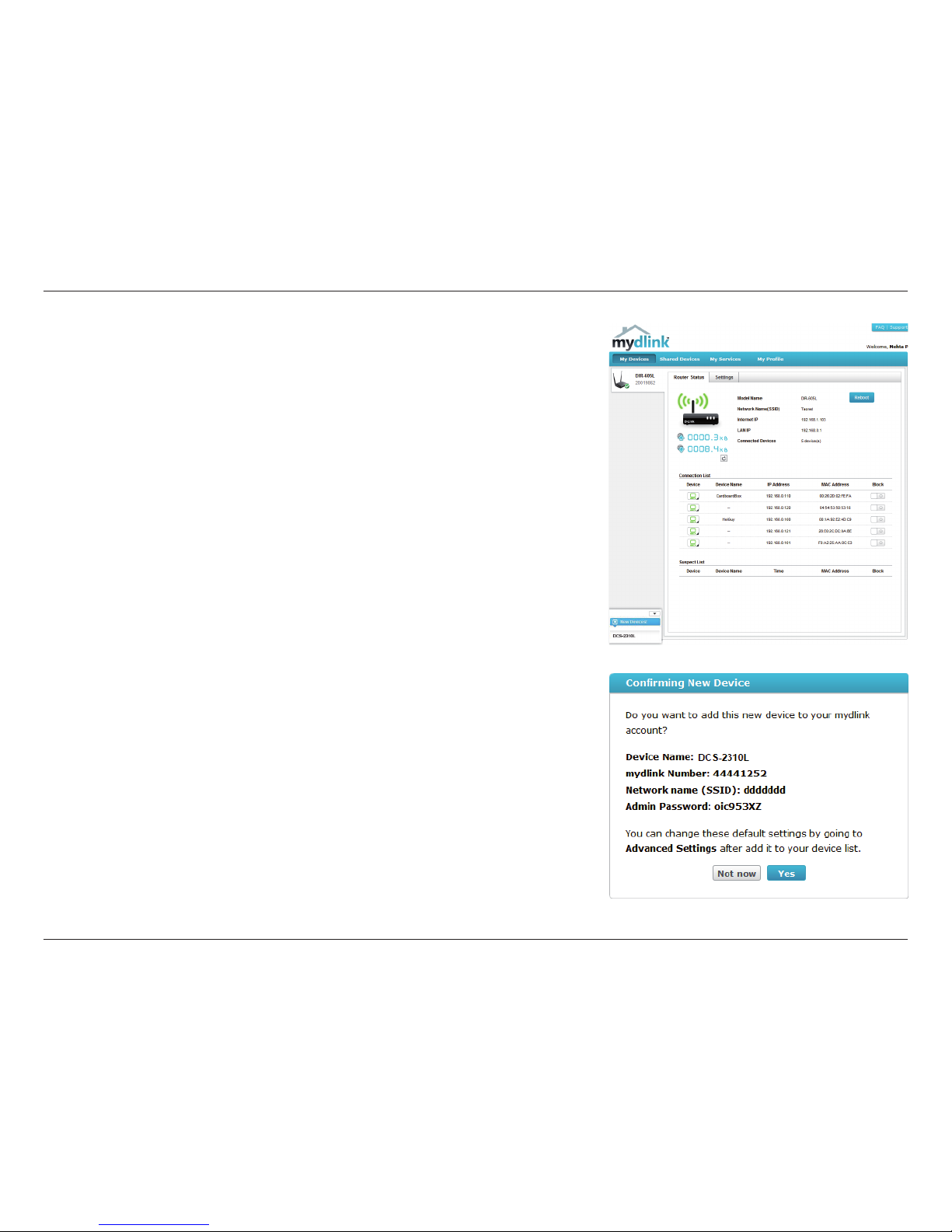

A summary and conrmation notication will appear with the automatically
congured details. Make a note of the details and click OK to add the camera to
your account.
Check Your mydlink Account
Open a web browser and login to your mydlink account. The mydlink page will
check for new devices and display a New device Found! pop-up notication in
the bottom-left corner. Click the notication to continue.

19D-Link DCS-2310L User Manual
Section 2: Installation
Zero Conguration will navigate to the mydlink Live View tab for your camera
where you will see a screen similar to the following.
Your camera is now set up, and you can skip to "mydlink" on page 30 to learn
more about the mydlink features of this camera, or to "Conguration" on page 25
for advanced conguration of your camera.

20D-Link DCS-2310L User Manual
Section 2: Installation

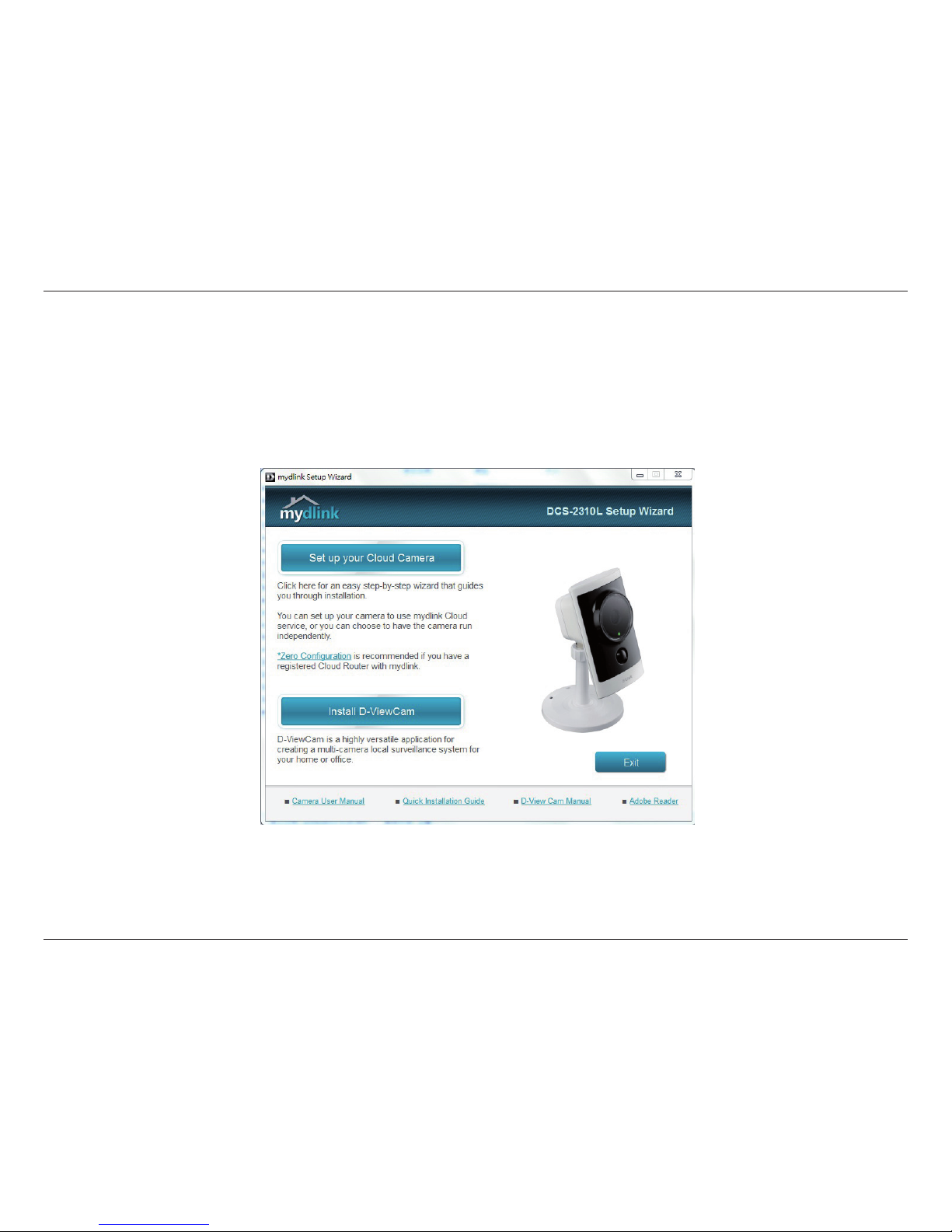

Insert the Installation CD-ROM into your computer’s optical drive to start the autorun program.
Simply click Set up your Cloud Camera to go through the Setup Wizard, which will guide you step-by-step through the installation
process from connecting your hardware to conguring your camera and registering it with your mydlink account.
Camera Installation Wizard
Windows Users
Note: If the autorun program does not open, go to My Computer, browse to your CD drive, and double-click
on the autorun.exe le.
