D-Link SECURICAM DCS-5605 User manual

USER MANUAL
DCS-5605/5635
VERSION 1.20

2D-Link DCS-5605/5635 User Manual
Table of Contents
Product Overview ........................................................ 4
Package Contents ................................................... 4
System Requirements ............................................. 4
Introduction ..............................................................5
Hardware Overview ..................................................... 7
Front ........................................................................ 7
Rear .........................................................................8
Right Panel ............................................................10
DI/DO Input Specications ....................................11
Mounting Instructions ............................................12
Wireless Installation Considerations ...................... 14
Software Installation ................................................. 15
Enabling UPnP for Windows® XP .......................... 26
Conguration ......................................................... 31
Web-based Conguration Utility ............................35
Setting up a Wireless Connection with WPS .........36
Testing the DCS-5605/5635 ..................................37
Viewing Your DCS-5605/5635 ............................... 38
Using the DCS-5605/5635 with an Internet Browser .
39
Live Video...................................................................40
DCS-5605/5635 Conguration .................................. 43
Setup .....................................................................43
Wizard ...................................................................44
Network Setup .......................................................45
HTTPS settings .....................................................46
Wireless Setup (DCS-5635 only) ........................... 47
Dynamic DNS ........................................................48
Image Setup .......................................................... 49
Audio and Video .................................................... 51
Motion Detection .................................................... 53
Time and Date .......................................................55
Preset Position ......................................................56
Patrol Position .......................................................57
Recording .............................................................. 58
Snapshot ...............................................................61
SD Card .................................................................63
Advanced ................................................................... 64
ICR ........................................................................64
Digital Output .........................................................65
Maintenance ............................................................... 66
Admin ....................................................................66
System ...................................................................68
Table of Contents

3D-Link DCS-5605/5635 User Manual
Table of Contents
Firmware Update ...................................................69
Status..........................................................................70
Device Info .............................................................70
Log .........................................................................71
Help ....................................................................... 72
Wireless Security.......................................................73
What is WEP? .......................................................73
What is WPA? .......................................................74
Conguration and Use with a NAT Router ............75
Router Set-Up and Installation .........................79
Using & Conguring 3G Compatible Cell Phones . 82
Play from RealPlayer .......................................83
Play from PVPlayer ..........................................88
Troubleshooting ........................................................ 91
Wireless Basics .........................................................94
Networking Basics .................................................... 99
Check your IP Address ..........................................99
Statically Assign an IP Address ...........................100
Technical Specications......................................... 101

4D-Link DCS-5605/5635 User Manual
Section 1 - Product Overview
• D-Link DCS-5605/5635 Wireless N/Wired PoE PTZ H.264 Network Camera
• CAT5 Ethernet Cable
• Power Adapter
• A/V Cable
• Mounting Plate
• Mounting Screws
• Manual and Software on CD
• Quick Install Guide
• 2 wireless antennas (DCS-5635 only)
Note: Using a power supply with a different voltage than the one included with your
product will cause damage and void the warranty for this product.
If any of the above items are missing, please contact your reseller.
System Requirements
• Windows® 2000 or XP or Vista
• At least 256MB of memory (512MB recommended)
• A wireless (802.11n or 802.11g) or Ethernet network
• Internet Explorer 6.x or higher Internet Web Browser
• VGA card resolution: 800x600 or above
• CPU: 1.3GHz or above processor (2.4GHz processor or higher with 512MB memory and a 32MB
video card is required for multiple camera viewing and recording in IP surveillance program)
Product Overview
Package Contents

5D-Link DCS-5605/5635 User Manual
Section 1 - Product Overview

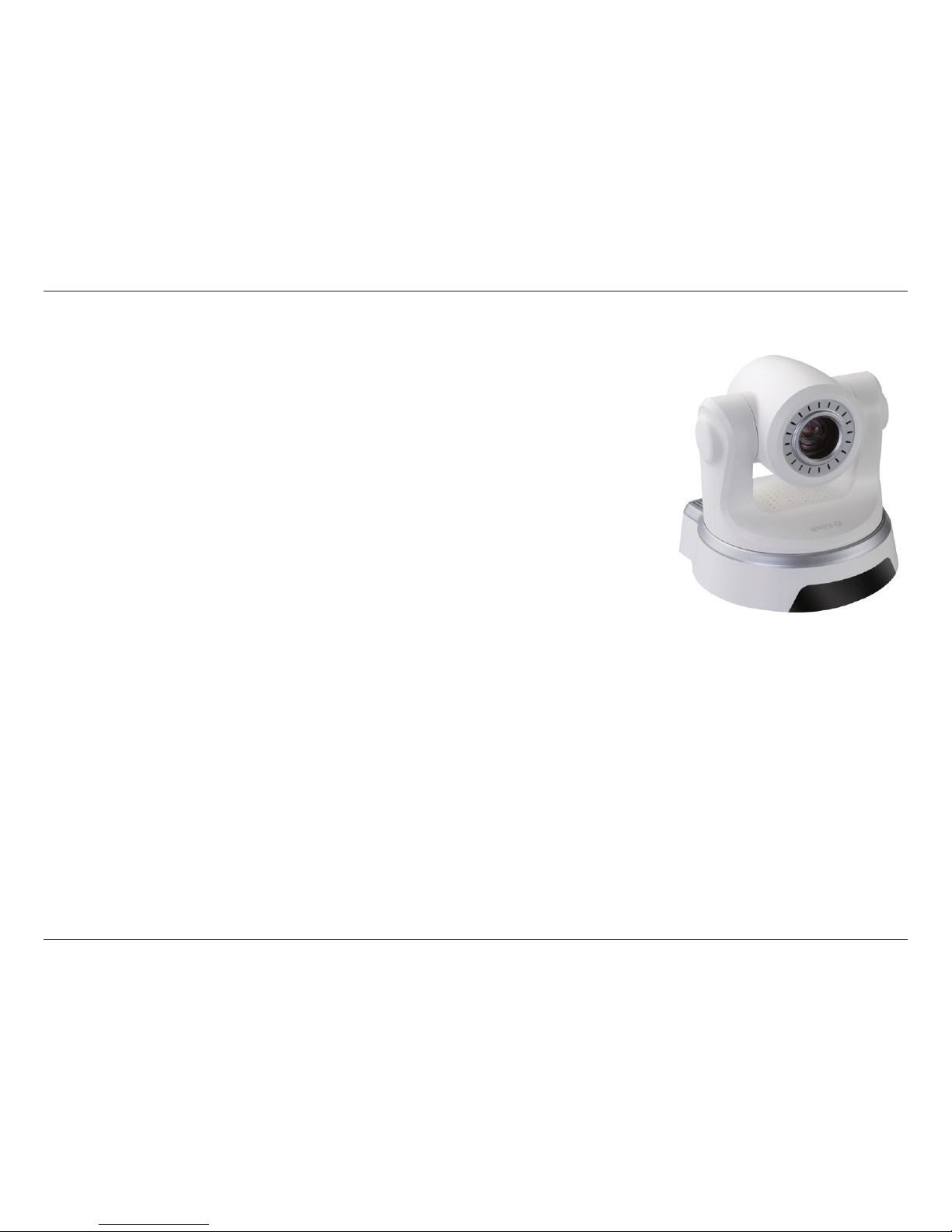

Introduction
A HIGH-PERFORMANCE SURVEILLANCE SOLUTION
The DCS-5605/DCS-5635 is a high performance camera for professional surveillance and remote monitoring. This
network camera features motorized pan, tilt, and optical/digital zoom for ultimate versatility. The 10x optical zoom
lens delivers the level of detail necessary to identify faces, license plate numbers, and other important details that
are difcult to clearly distinguish using digital zoom alone.
ADVANCED VIDEO ENCODING
To maximize bandwidth efciency and improve image quality, the DCS-5605/5635 offers real-time video
compression in MJPEG, MPEG-4 and H.264 formats. The H.264 codec can reduce the size of a video stream by up
to 80% compared to Motion JPEG. Thus, less network bandwidth and storage space is required.
SURVEILLANCE ON THE GO
The DCS-5605/5635 supports 3GPP mobile surveillance. A live feed from the camera can be accessed on a 3G
cellular network using a compatible phone, PDA or mobile device capable of RTSP (Real Time Streaming Protocol)
streaming. This enables you to monitor your home or ofce space in real time even when you are on the go.
THE PERFECT MATCH FOR YOUR NETWORK
Two comparable models are available depending on your unique network requirements. The DCS-5605 includes
an Ethernet port, while the DCS-5635 offers both Ethernet and 802.11n wireless interfaces. The wireless model
offers installation exibility and freedom of wireless connectivity in difcult locations without the hassle of running
Ethernet cables. The wireless camera supports WEP and WPA-PSK/TKIP for establishing secure connections to
your wireless network.

6D-Link DCS-5605/5635 User Manual
Section 1 - Product Overview
EASY TO INSTALL AND SIMPLE TO MANAGE
The DCS-5605/DCS-5635 can be mounted on a at surface or with a metal ceiling mount. Manage and monitor
up to 32 cameras using D-Link’s D-ViewCam software. You can also set up automated e-mail alerts to be instantly
informed of unusual activities. In addition, this network camera supports the Universal Plug-n-Play feature, which
allows computers running on Windows XP/Vista to automatically recognize the camera and add it to the network.
Sign up with one of the free Dynamic DNS services available on the web, to assign a name and domain to the
camera (for example, mycamera.dlinkddns.com). This way, you may remotely access the camera without having to
remember the IP address.

7D-Link DCS-5605/5635 User Manual
Section 1 - Product Overview

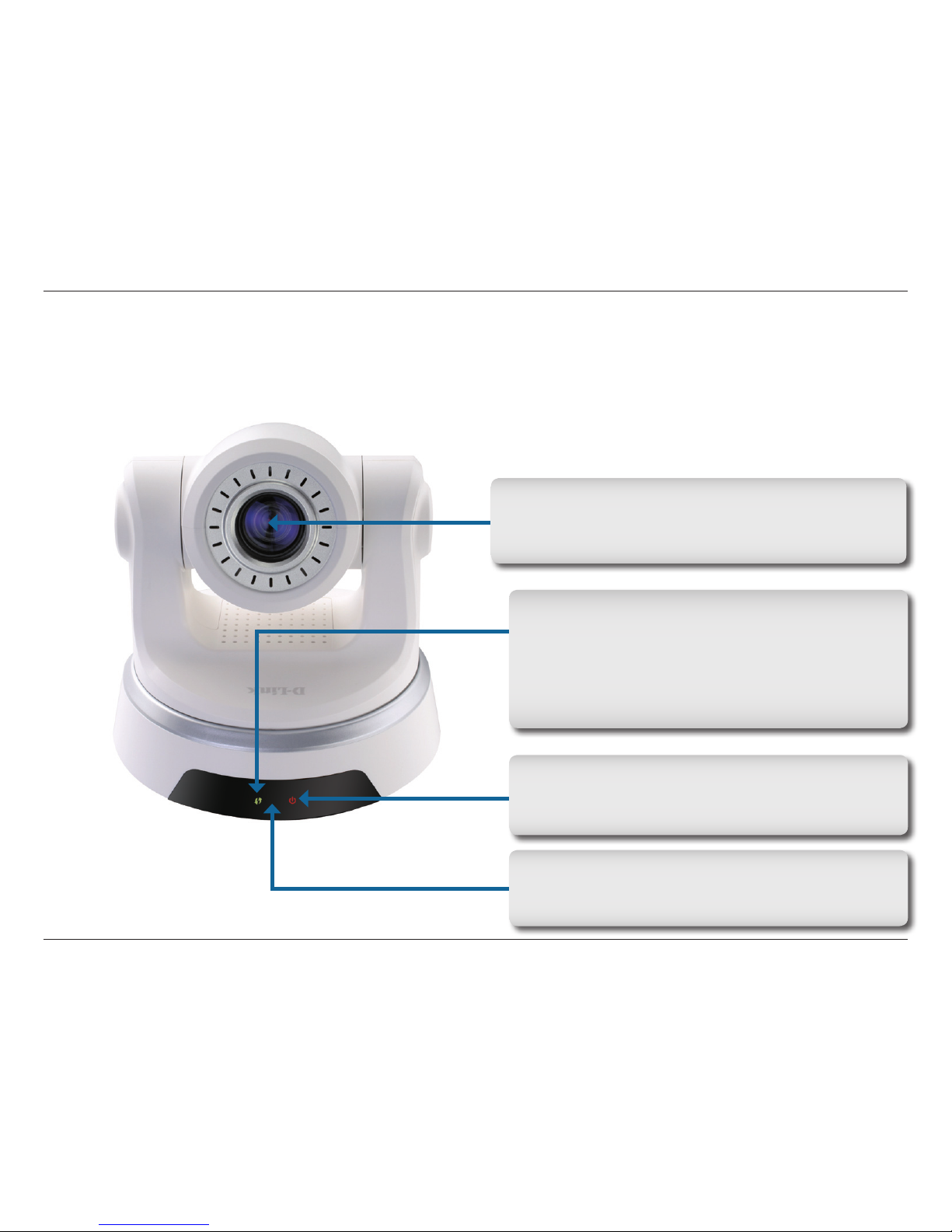

Hardware Overview
Camera Lens with ICR Filter
The IR-Cut Removable sensor judges lighting conditions
and switches from color to infrared accordingly.
Front
WPS/LINK LED
The WPS LED will blink blue when initializing a
connection, and illuminate with solid blue once the
connection has been established. The Link LED
will illuminate green once a connection has been
established.
Power LED
The Power LED will illuminate red when the camera
is receiving power.
Microphone
This built-in microphone can be used capture audio
from sources nearby the camera.

8D-Link DCS-5605/5635 User Manual
Section 1 - Product Overview

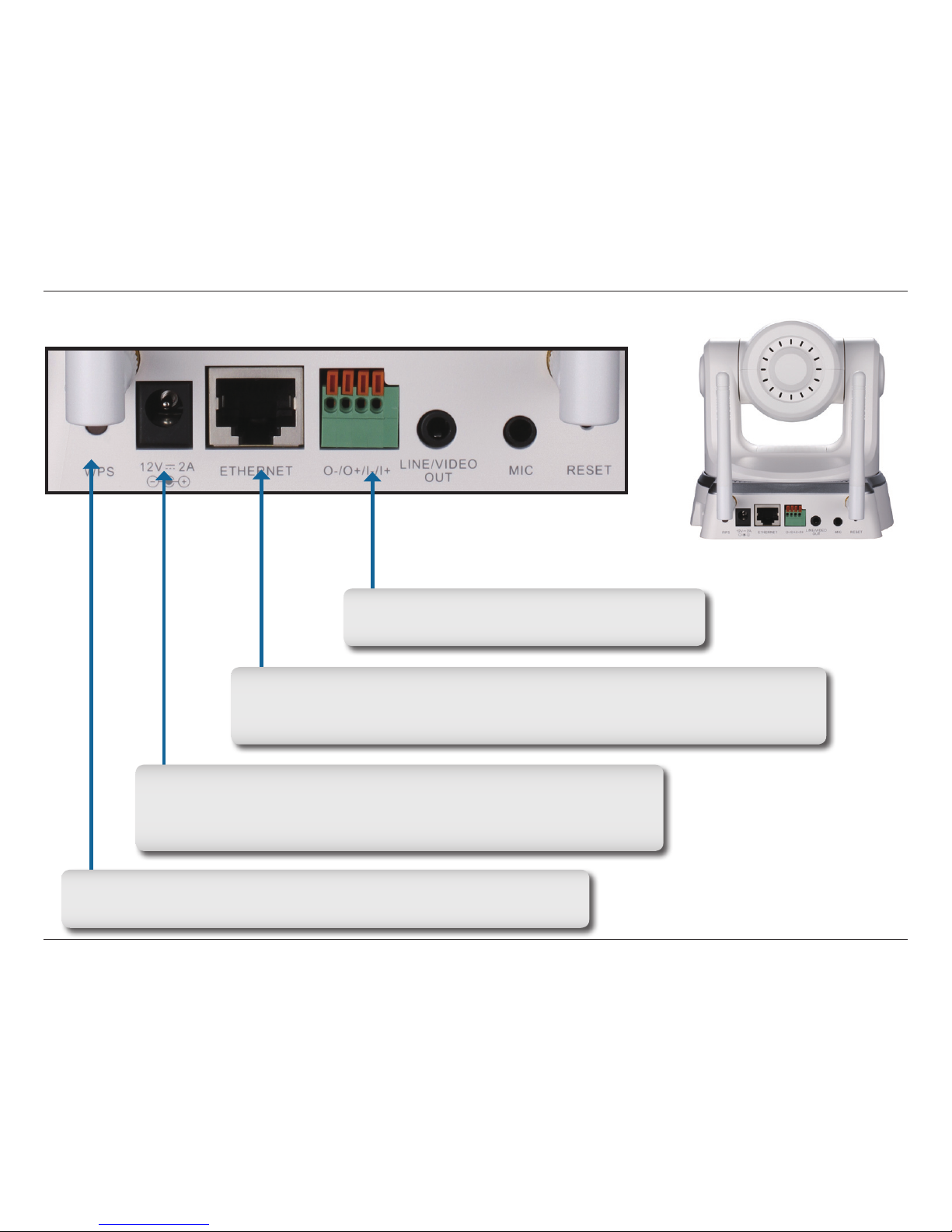

Rear
Digital I/O Connector
Connect a digital I/O device to this pin block.
Ethernet Port
Connect an Ethernet cable to a router, switch, or computer. The Ethernet port
can also be used to power the camera using a PoE switch (DCS-5605 only)
WPS Button
Press this button to establish a WPS connection. (DCS-5635 only)
DC Power Connector
The DC Power input connector is labeled DC 12V with a single jack
socket to supply power to the DCS-5605/5635.

9D-Link DCS-5605/5635 User Manual
Section 1 - Product Overview
Line/Video Out
Connect to an A/V cable for output to a monitor/speaker.
Microphone
Connect a 3.5mm audio cable for input from a microphone.
Reset
Depress this button with a straightened paper clip for about
20 seconds to reset the camera to factory default settings.
Antenna connector(DCS-5635 Only)
Connects to the wireless antennas

10D-Link DCS-5605/5635 User Manual
Section 1 - Product Overview

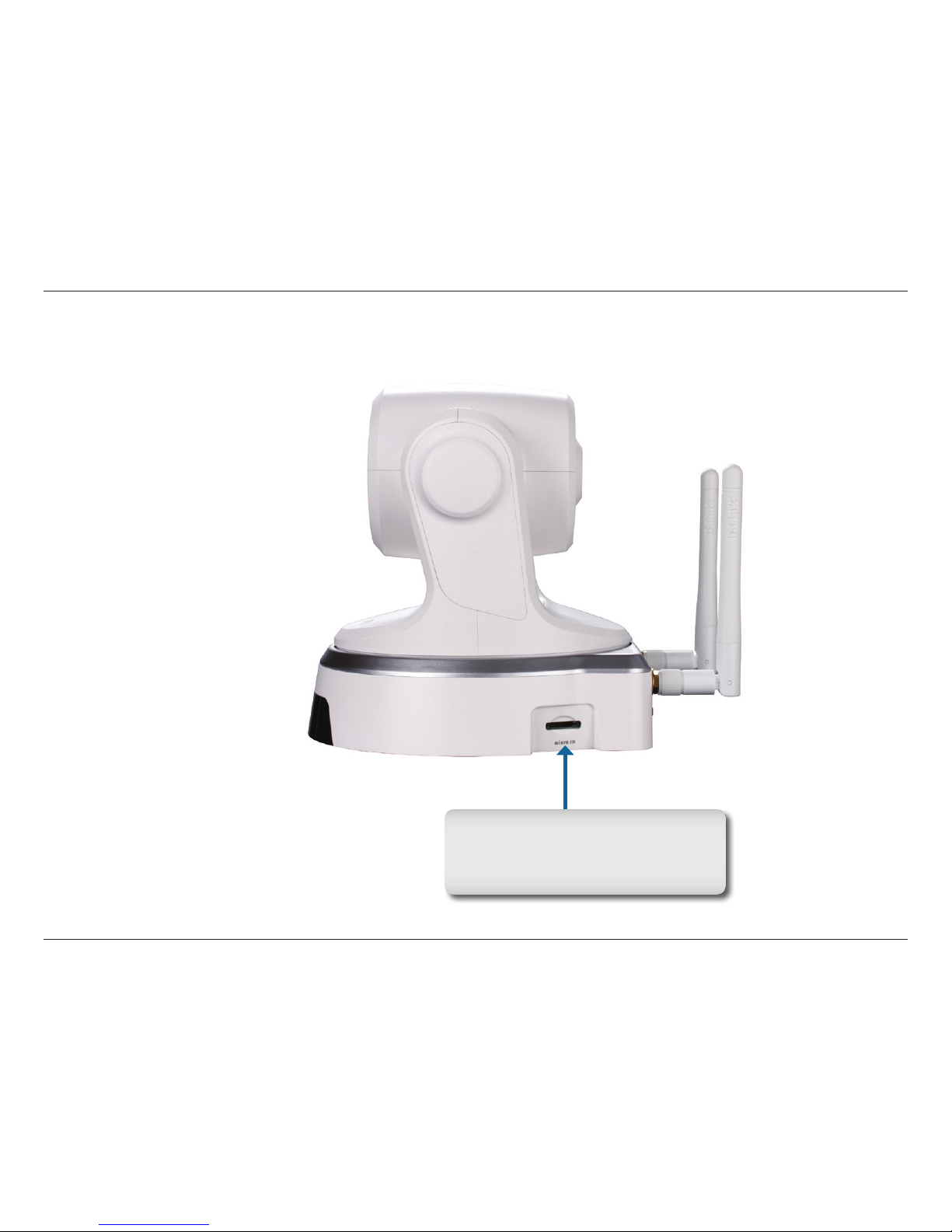

Right Panel
MicroSD Card Slot
Insert a standard MicroSD card into
this slot for image storage.

11D-Link DCS-5605/5635 User Manual
Section 1 - Product Overview

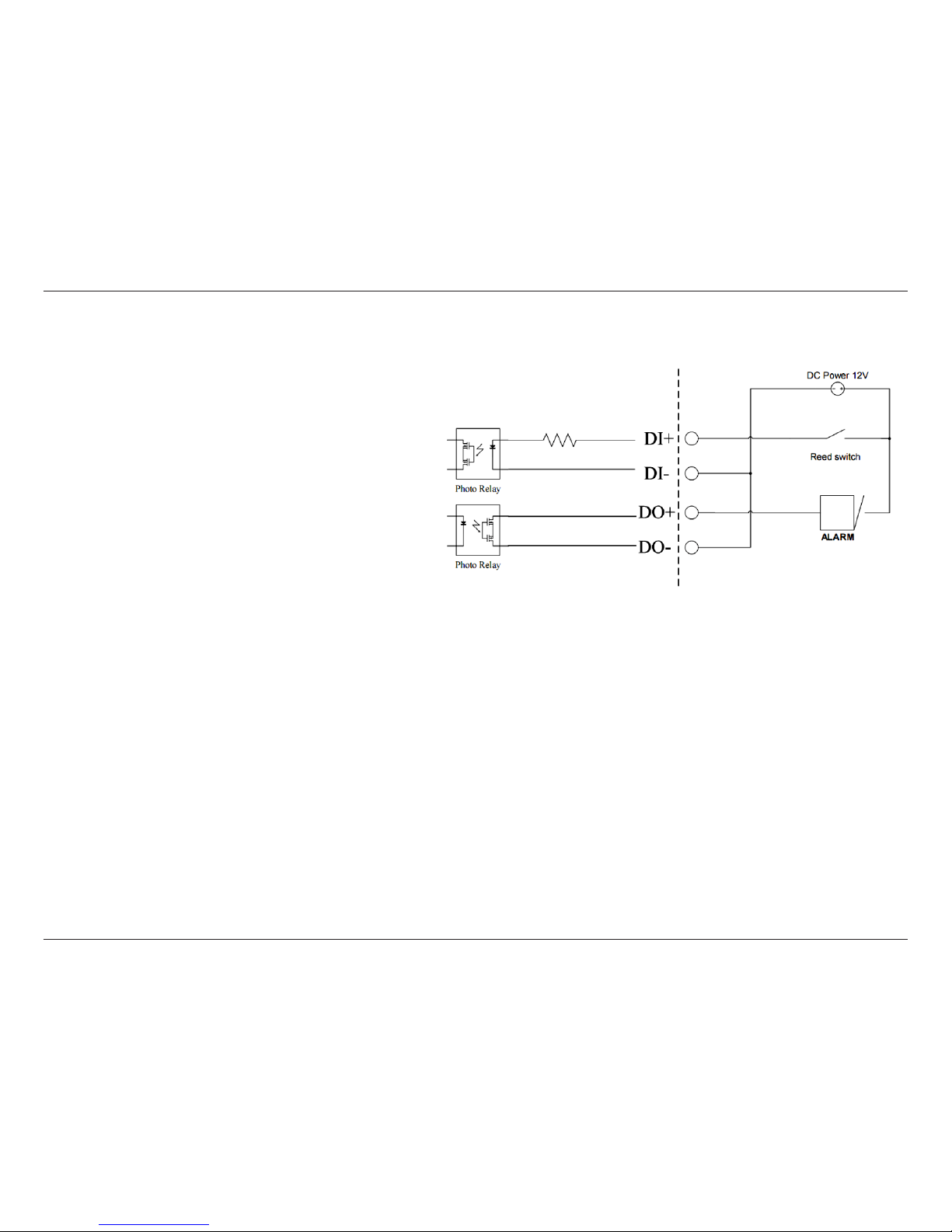

As the Digital Input signal is controlled by an external device, we recommend that you set your device to feed no current
normally, and feed a 12V current only to trigger a DI event on the DCS-5605/5635.
Example use of DI/DO:
You can connect a motion sensor to the DI port, signaling the camera to take a snapshot and to trigger an alarm
connected to the DO port.
DI: Receives signals from an outside sensor. Connect any external security device to the DI port.
DO: Triggers an output device such as a buzzer or alarm.
Note: External device ports connected to the DI or DO port must provide 12V power.
DI/DO Input Specications
DO (Digital Output):
Normal: Open circuit
Trigger: Short circuit
After powering on or rebooting the DCS-
5605/5635, the camera will be in Normal mode
by default.
DI (Digital Input):
Normal: No current
Trigger: 12V current Camera External Device

12D-Link DCS-5605/5635 User Manual
Section 1 - Product Overview

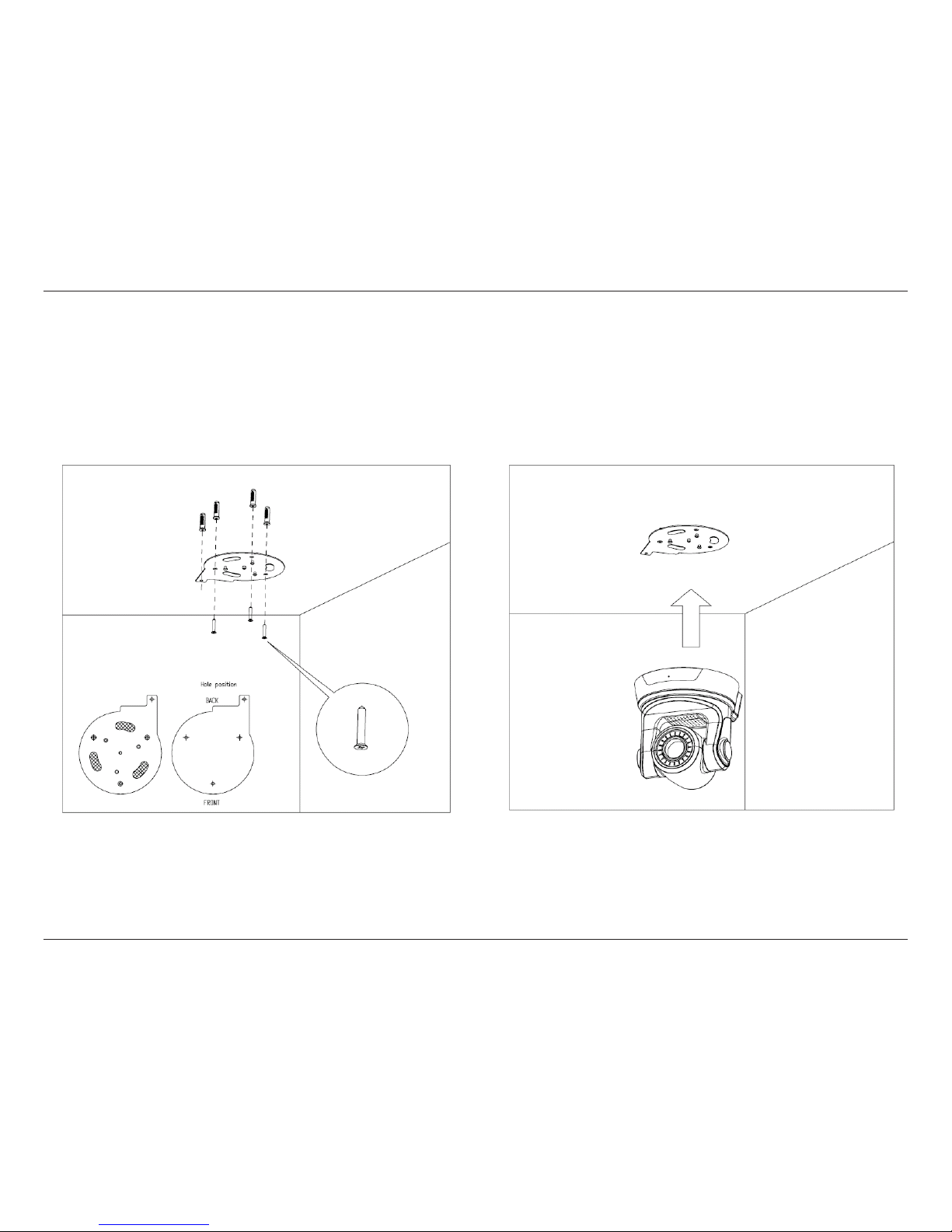

Mounting Instructions
The DCS-5605/5635 can be mounted on a ceiling using the included mounting bracket and screws.
1. Use 3 screws to afx the metal mounting bracket to the ceiling. 2. Push the camera up onto the metal mounting bracket.

13D-Link DCS-5605/5635 User Manual
Section 1 - Product Overview

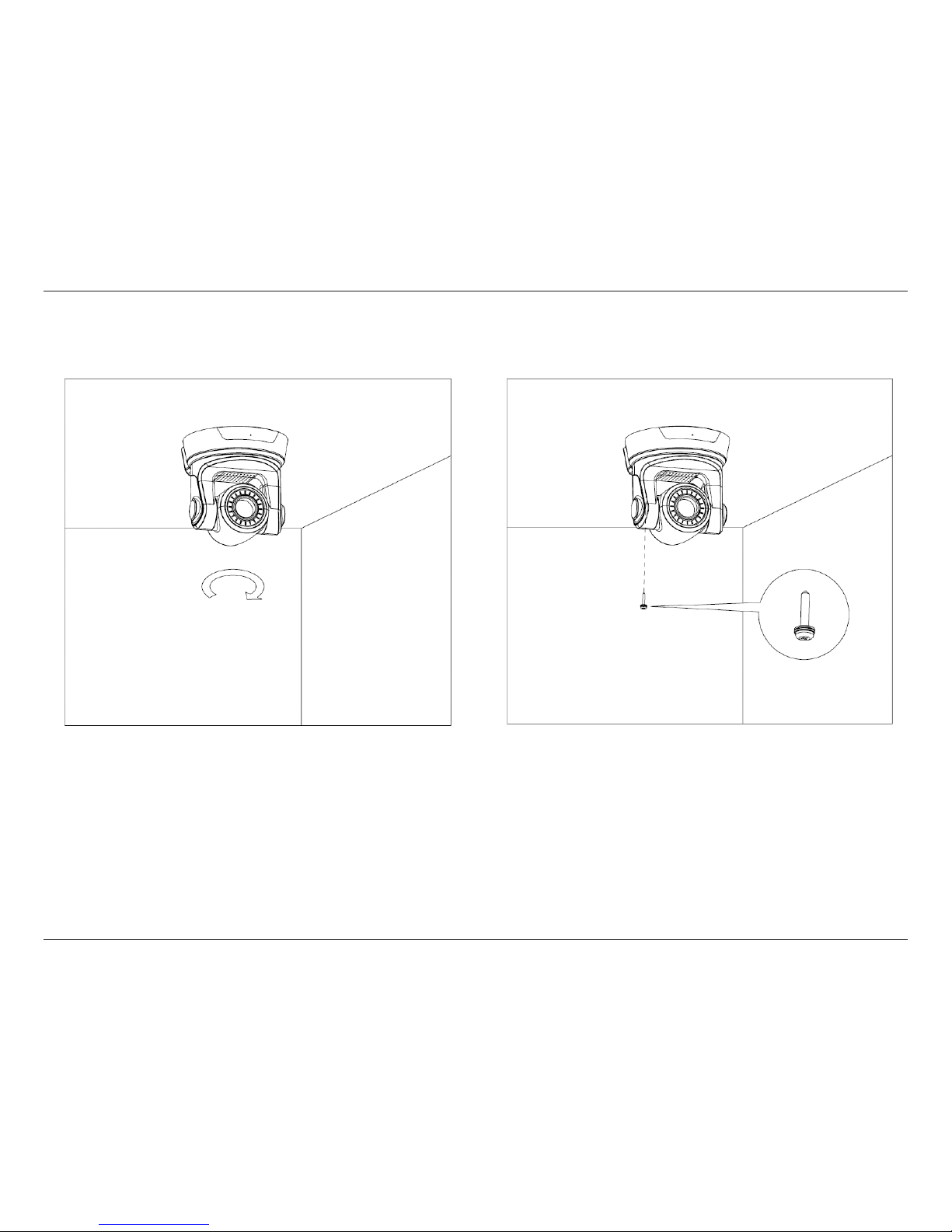

3. Rotate the base of the camera to lock it onto the bracket.
4. Install the nal screw so that the camera cannot be
removed without the use of a tool.

14D-Link DCS-5605/5635 User Manual
Section 2 - Installation
Wireless Installation Considerations
The DCS-5635 can be accessed using a wireless connection from virtually anywhere within the operating range of your
wireless network. Keep in mind, however, that the quantity, thickness and location of walls, ceilings, or other objects
that the wireless signals must pass through, may limit the range. Ranges vary depending on the types of materials and
background RF (radio frequency) noise in your home or ofce. The key to maximizing the wireless range is to follow
these basic guidelines:
1. Minimize the number of walls and ceilings between the D-Link router and other network devices. Each
wall or ceiling can reduce your adapter’s range from 3 to 90 feet (1 to 30 meters).
2. Be aware of the direct line between network devices. A wall that is 1.5 feet thick (0.5 meters), at a
45-degree angle appears to be almost 3 feet (1 meter) thick. At a 2-degree angle it looks over 42 feet
(14 meters) thick. Position devices so that the signal will travel straight through a wall or ceiling (instead
of at an angle) for better reception.
3. Try to position access points, wireless routers, and computers so that the signal passes through open
doorways and drywall. Materials such as glass, metal, brick, insulation, concrete and water can affect
wireless performance. Large objects such as sh tanks, mirrors, le cabinets, metal doors and aluminum
studs may also have a negative effect on range.
4. Keep your product at least 3 to 6 feet (1-2 meters) away from electrical devices or appliances that
generate RF noise.
5. If you are using 2.4GHz cordless phones, make sure that the 2.4GHz phone base is as far away from
your wireless device as possible. The base transmits a signal even if the phone in not in use. In some
cases, cordless phones, X-10 wireless devices, and electronic equipment such as ceiling fans, uorescent
lights, and home security systems may dramatically degrade wireless connectivity.

15D-Link DCS-5605/5635 User Manual
Section 2 - Installation
Turn on the computer and Insert the D-Link DCS-5605/5635 Driver CD in the CD-ROM drive. The step-by-step
instructions that follow are shown in Windows® XP. The steps and screens are similar for the other Windows operating
systems.
If the CD Autorun function does not automatically start on your computer, click Windows Start > Run. In the Run
command box type “D:\autorun.exe”, where D: represents the drive letter of your CD-ROM. If it does start, proceed
to the next screen.

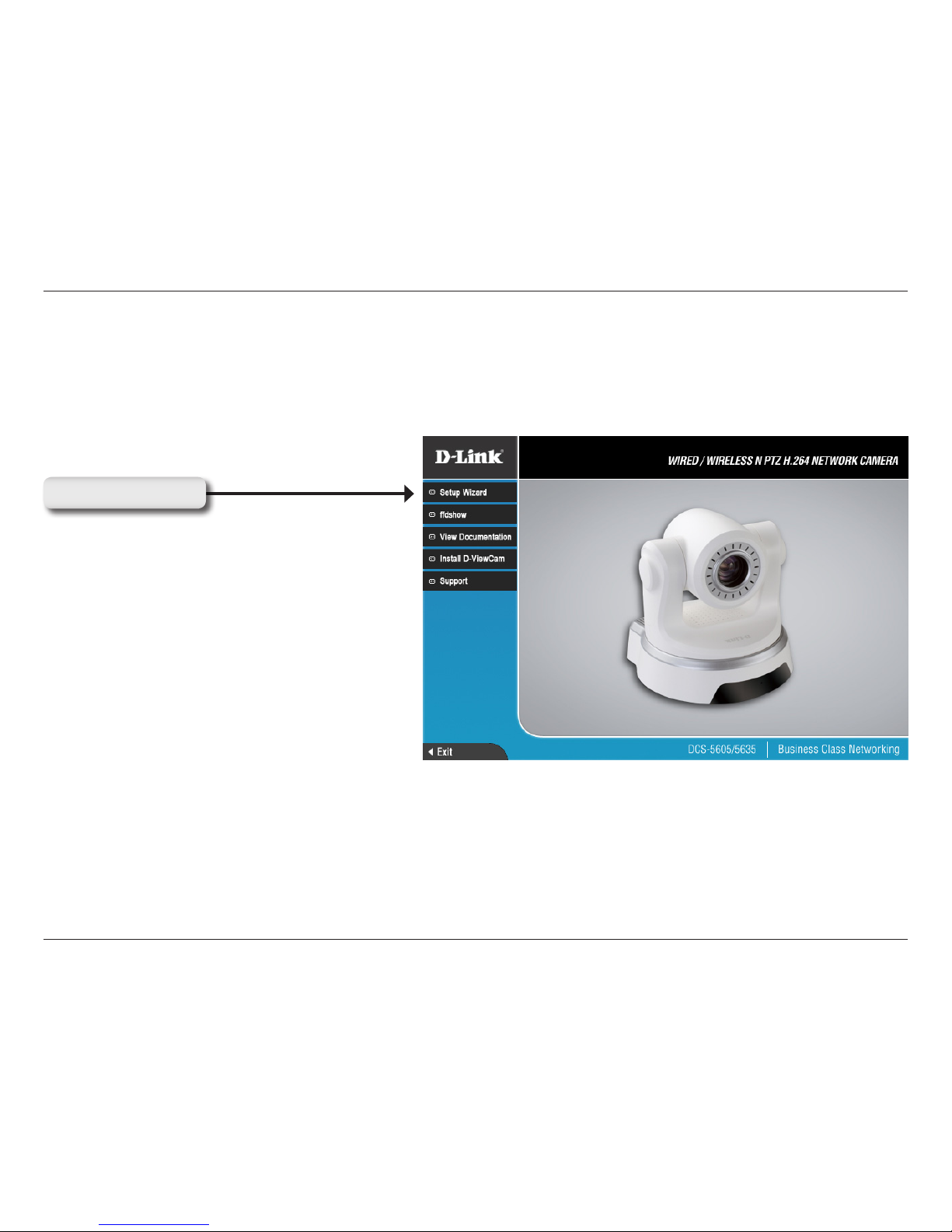

Software Installation
Click Setup Wizard

16D-Link DCS-5605/5635 User Manual
Section 2 - Installation

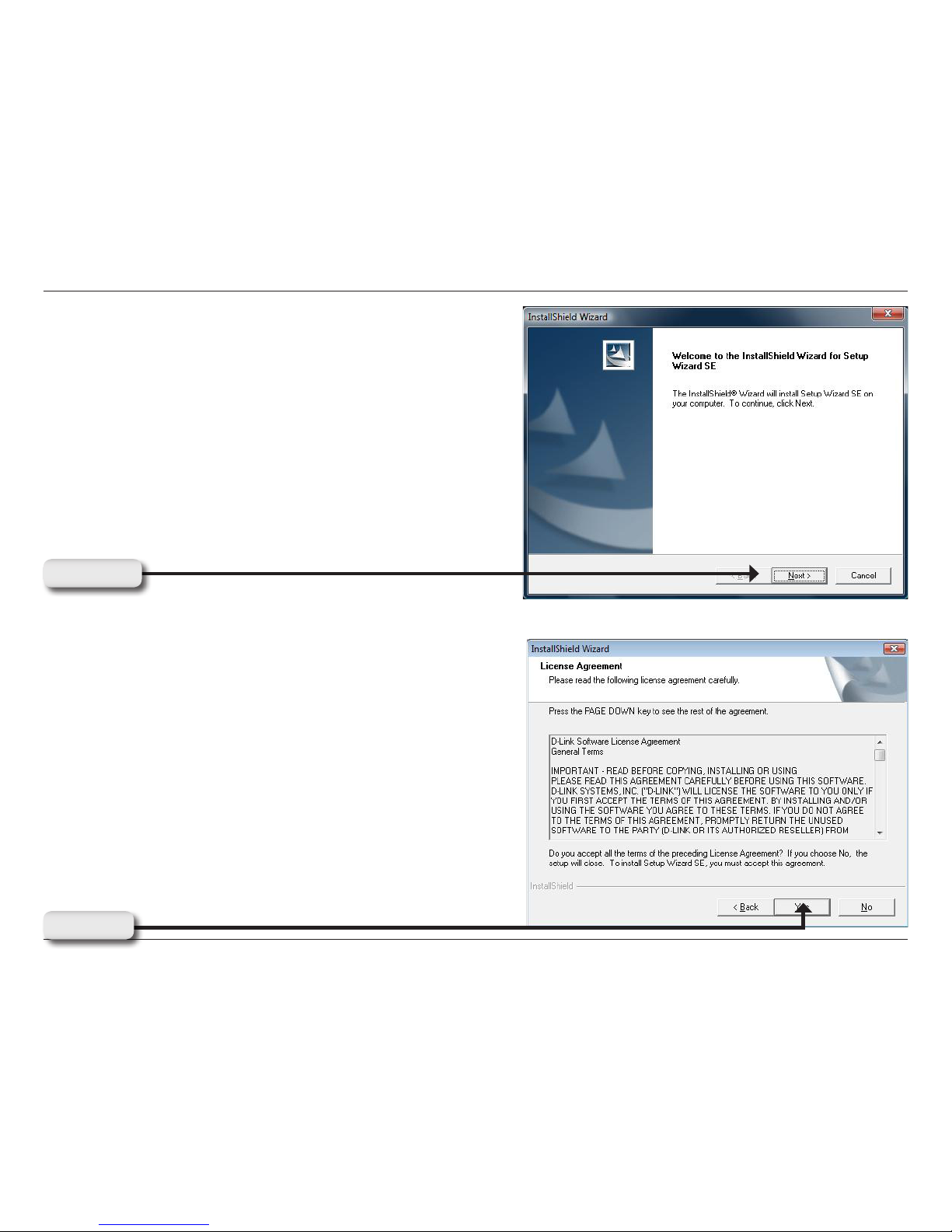

Click Next to continue.
Click Yes to accept the License Agreement.
Click Next
Click Yes

17D-Link DCS-5605/5635 User Manual
Section 2 - Installation

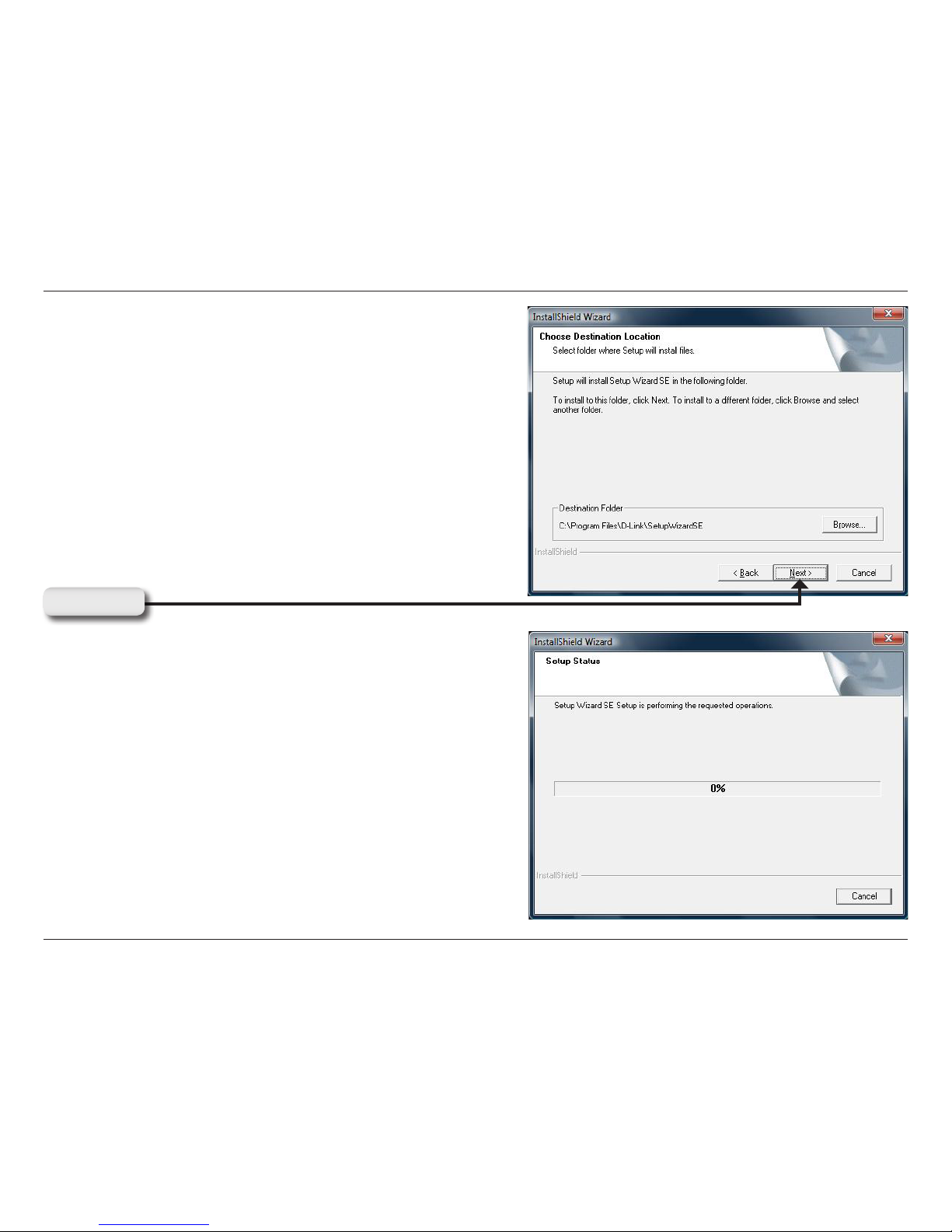

To start the installation click Next.
Note: The installation may take several minutes to complete.
Click Next

18D-Link DCS-5605/5635 User Manual
Section 2 - Installation

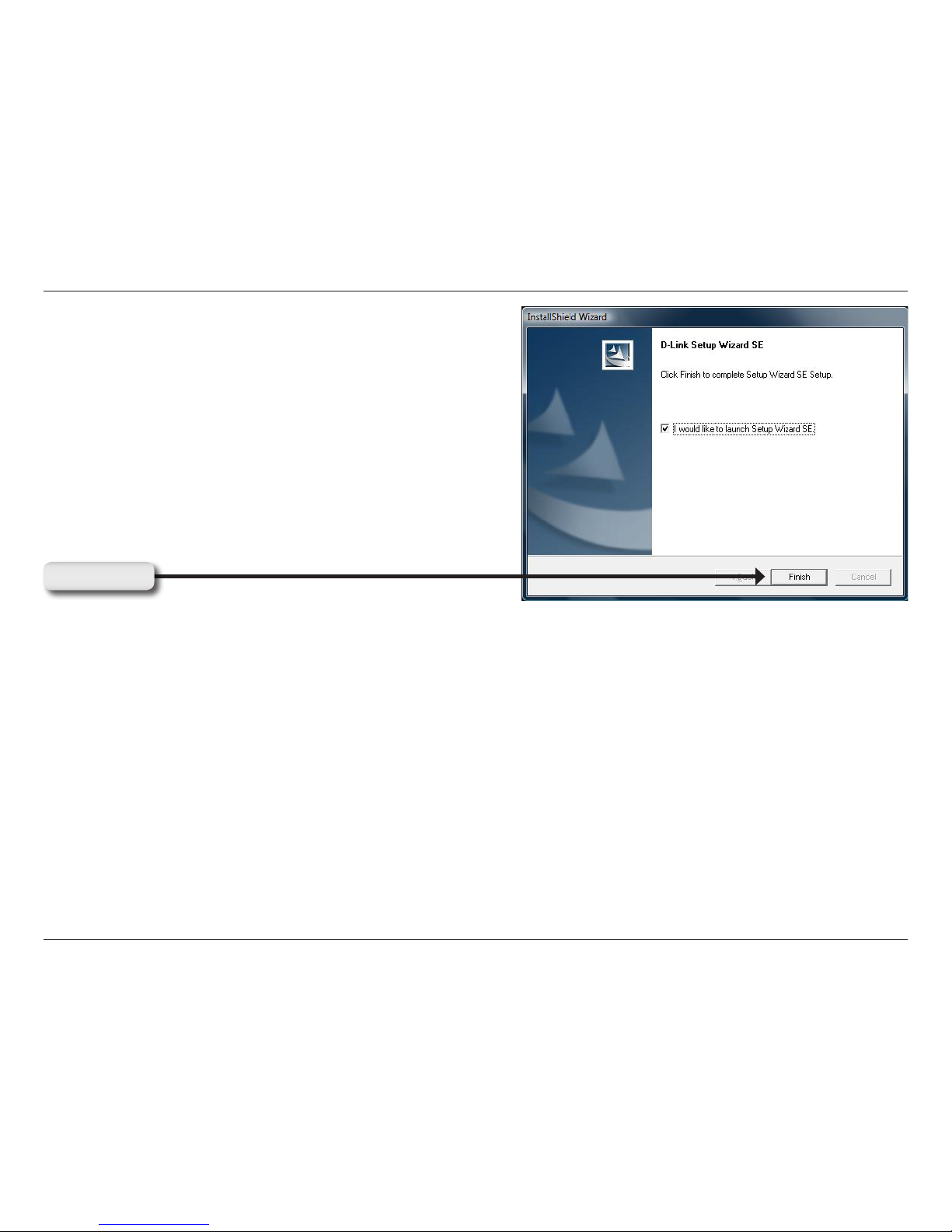

Click Finish to complete the installation.
Click Finish

19D-Link DCS-5605/5635 User Manual
Section 2 - Installation

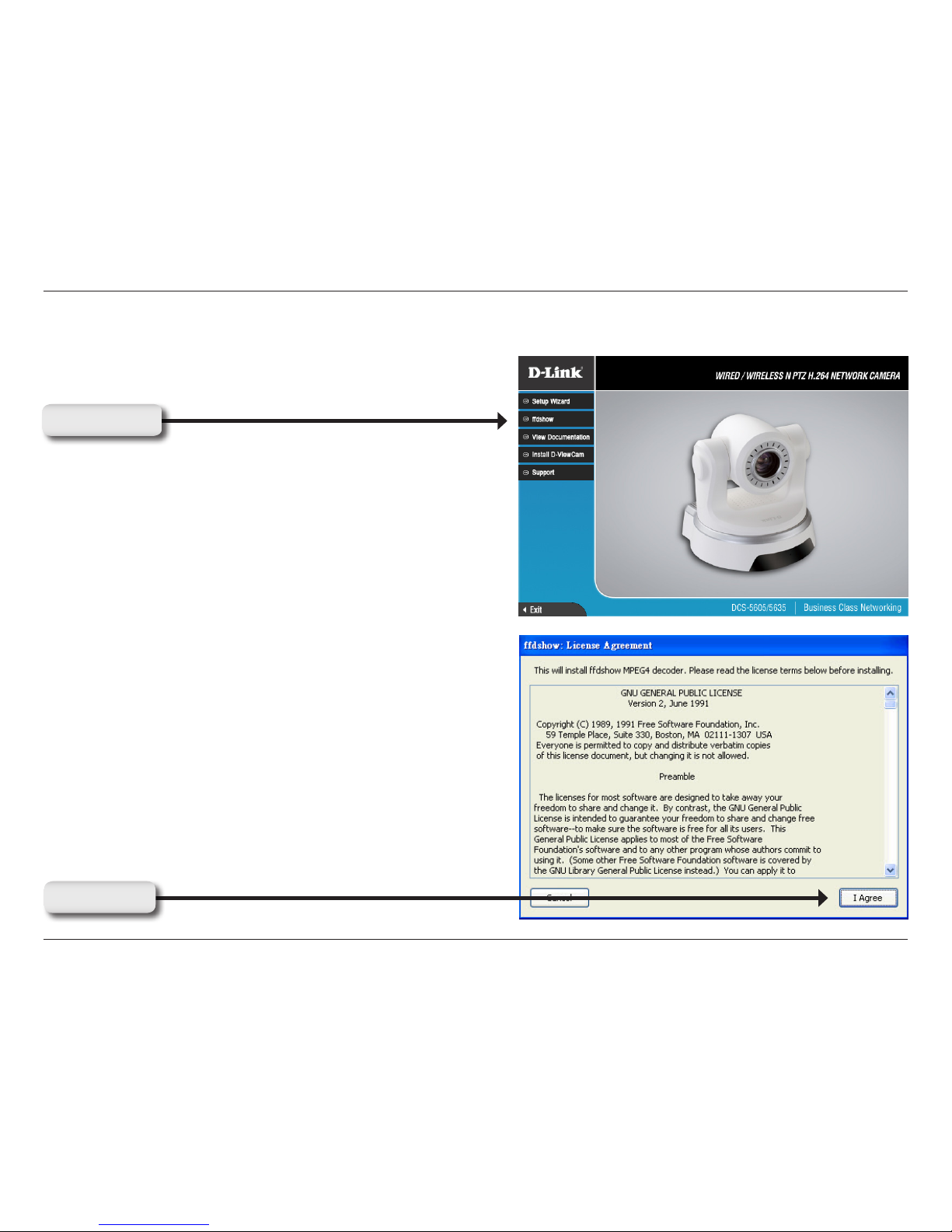

Click ffdshow
Now, click on ffdshow from the autorun screen. This will install the proper codecs that will allow you to playback video
taken by the DCS-5605/5635.
Click I Agree

20D-Link DCS-5605/5635 User Manual
Section 2 - Installation
Select Language, and then click OK.
Click OK
Click Next
