D-Link DCS-6915 Quick Install Guide
2
ENGLISH
DCS-6915
Quick Install Guide
1. Package Contents
° DCS-6915 Dome Network Camera
° Cap
° Software CD
° Waterproof Collar
° Lubricant
° Screws
° Power Cable
° Power Adapter
° Screwdriver

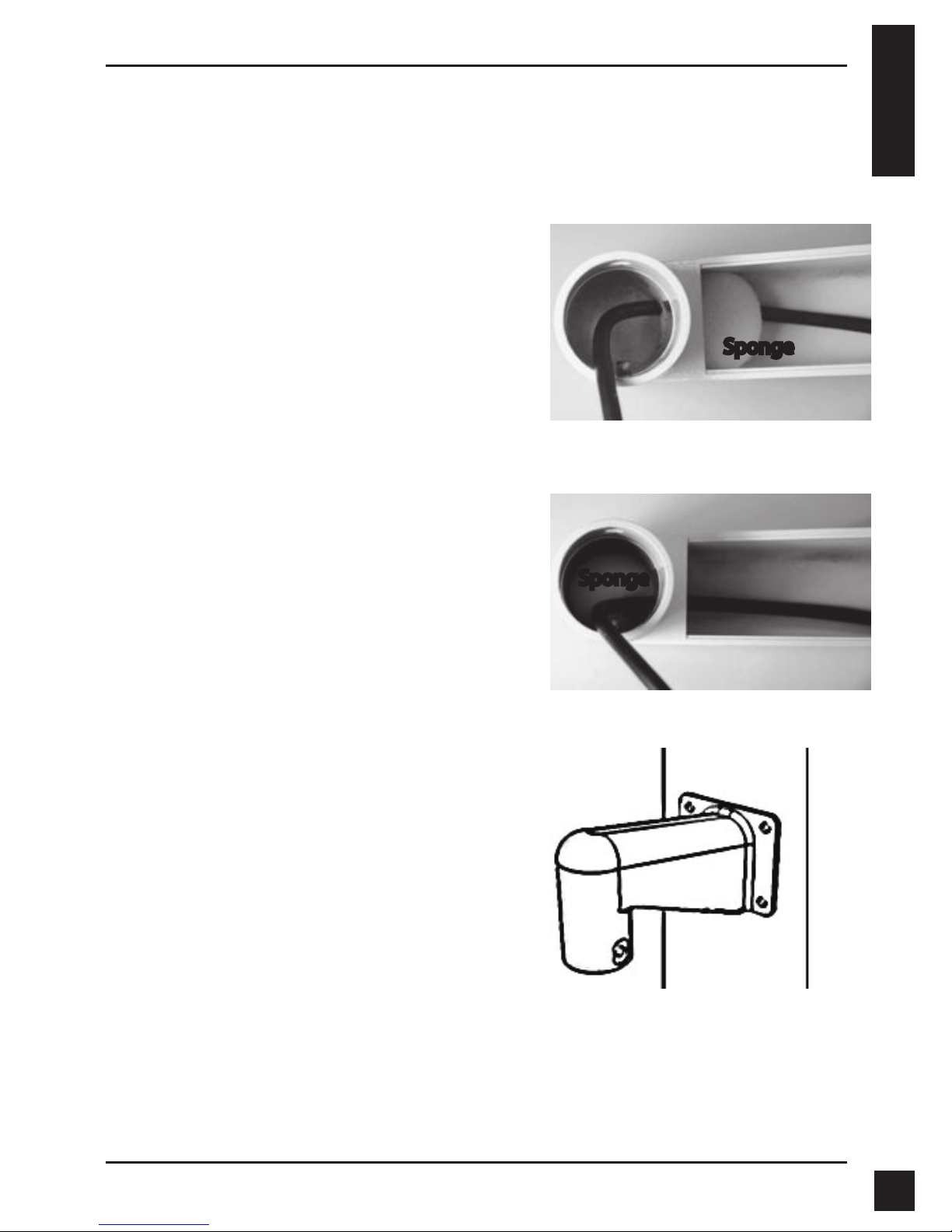

° Mini Pendant (Included Bugblocking sponge)
If any of the items are missing, please contact your re-
seller.
2. System Requirements
° CPU: Pentium 4 1.4GHz or above
° Hard Disk: 40GB or above
° Memory: 256MB or above
° Browser: Internet Explorer 6.0 or above
° Video Resolution: SVGA or XGA (1024x768 or above)

D-Link DCS-6915 Quick Install Guide 3
ENGLISH
Reset Button:The button can be used to reset the system or restore the factory default
settings. To reset, simply press and hold the button for 10 seconds.
Power Socket:This is 3 pin socket accepts the power cable.
RJ45 connector:Connect you category 5 ethernet cable to this port.
Mounting Point:This part of the cap is used to mount the dome camera enclosure.
Cap:This cap covers the Connection Panel.
Optical Cover:This clear dome protects the camera apparatus from.
Dome Camera
Mounting Point
Cap
Optical Cover
3. Hardware Overview

D-Link DCS-6915 Quick Install Guide
4
ENGLISH

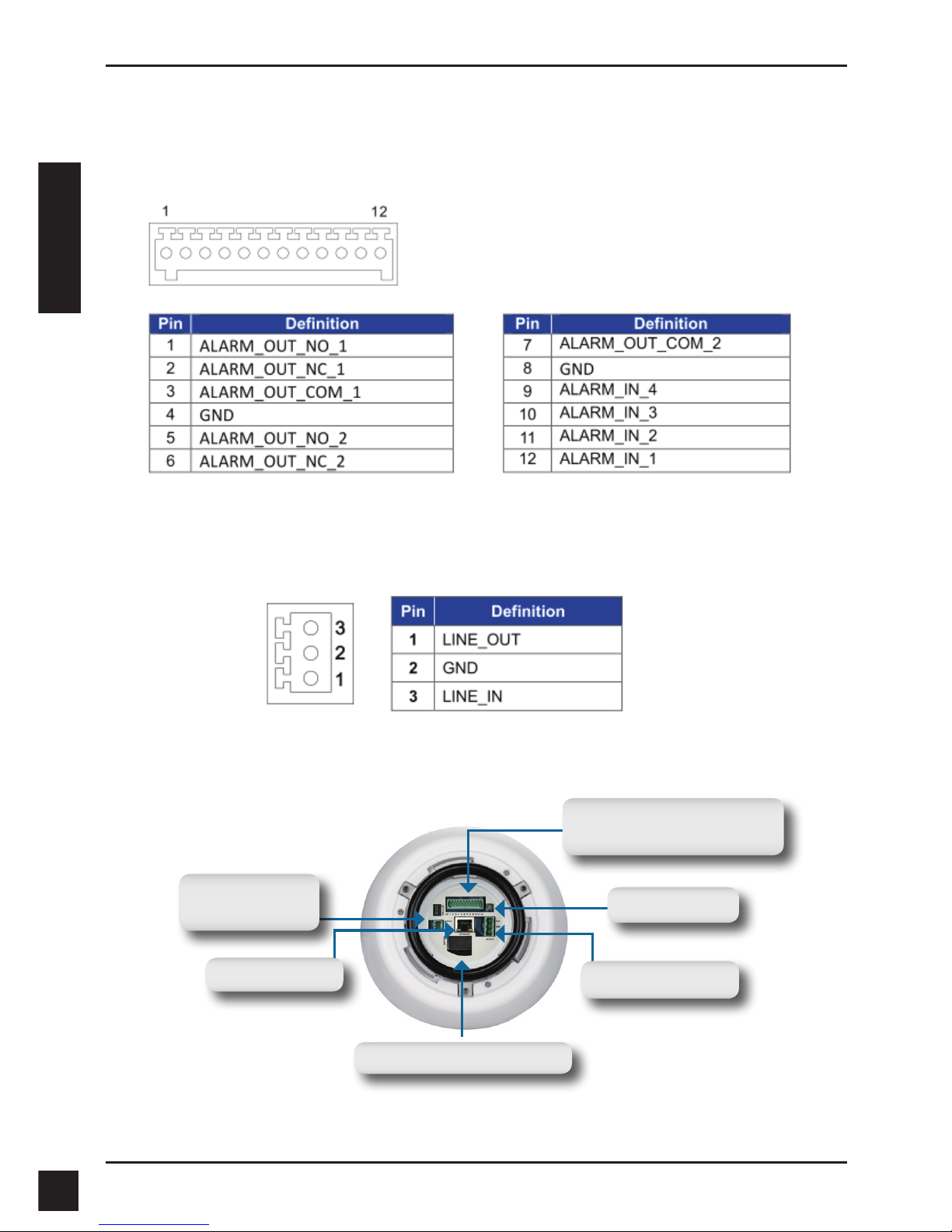

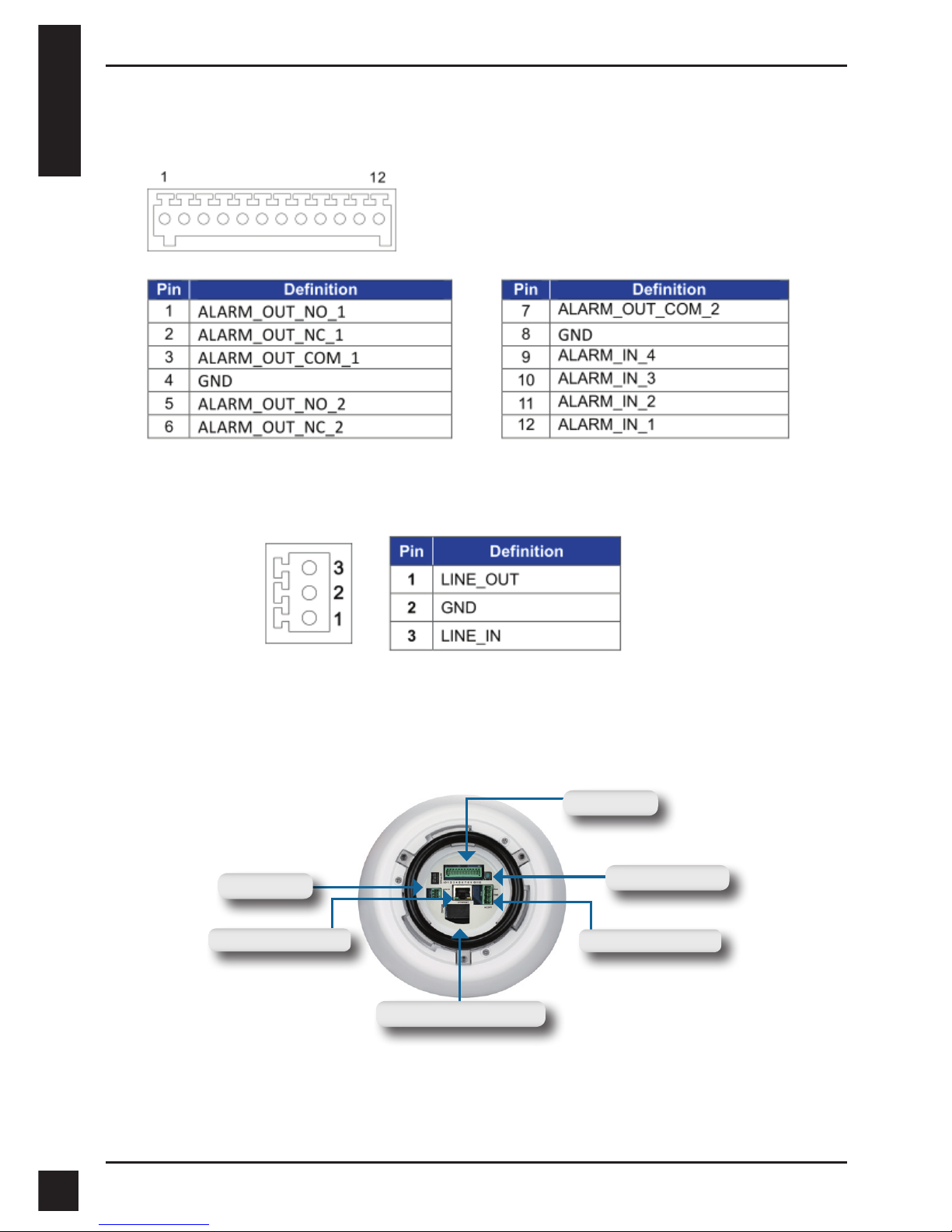

Connections Panel
Ethernet (PoE)
Audio I/O Reset Button
Alarm I/O
Power Socket
Micro SD card slot
Alarm I/O:Support two digital alarm outputs and four digital alarm inputs.
Audio I/O:Support one audio input and one audio ouput.
Micro SD card slot:Support micro SD card storage.
3. Hardware Overview

D-Link DCS-6915 Quick Install Guide 5
ENGLISH

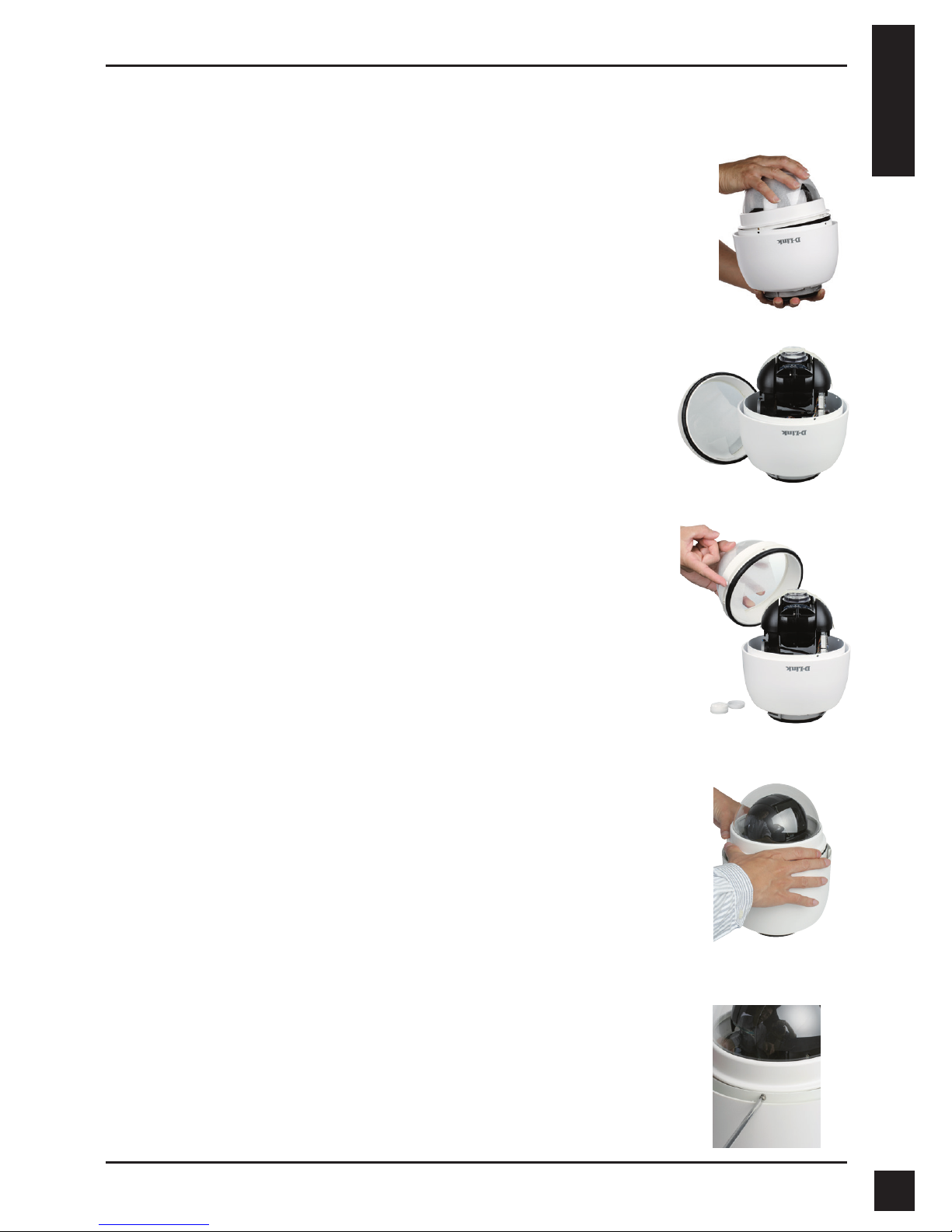

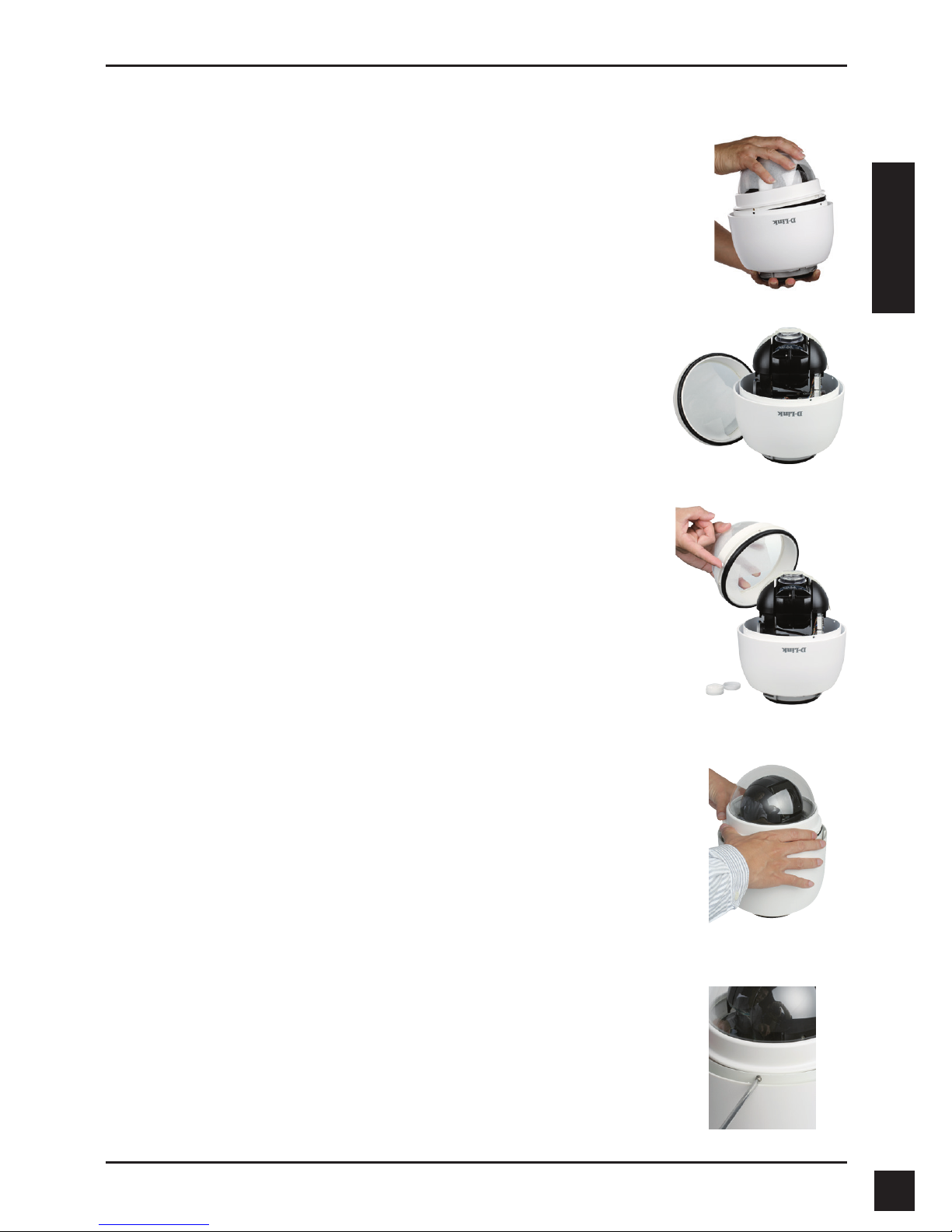

STEP 1
Unpack the DCS-6915 and remove the dome camera unit.
STEP 2
Remove the protective cover and PE sheet.
STEP 3
Apply some lubricant on the cover’s waterproof seal to make
the installation process smoother. Attach the optical cover to the
camera body.
The small protrusions on the cover must align with the four holes
on the camera body.
STEP 4
Gently press down the dome cover with two hands on the side of it.
Warning: DO NOT press down on the optical cover. This might
cause damage to the camera.
STEP 5
Screw the dome cover and body together.
4. Hardware Installation

D-Link DCS-6915 Quick Install Guide
6
ENGLISH

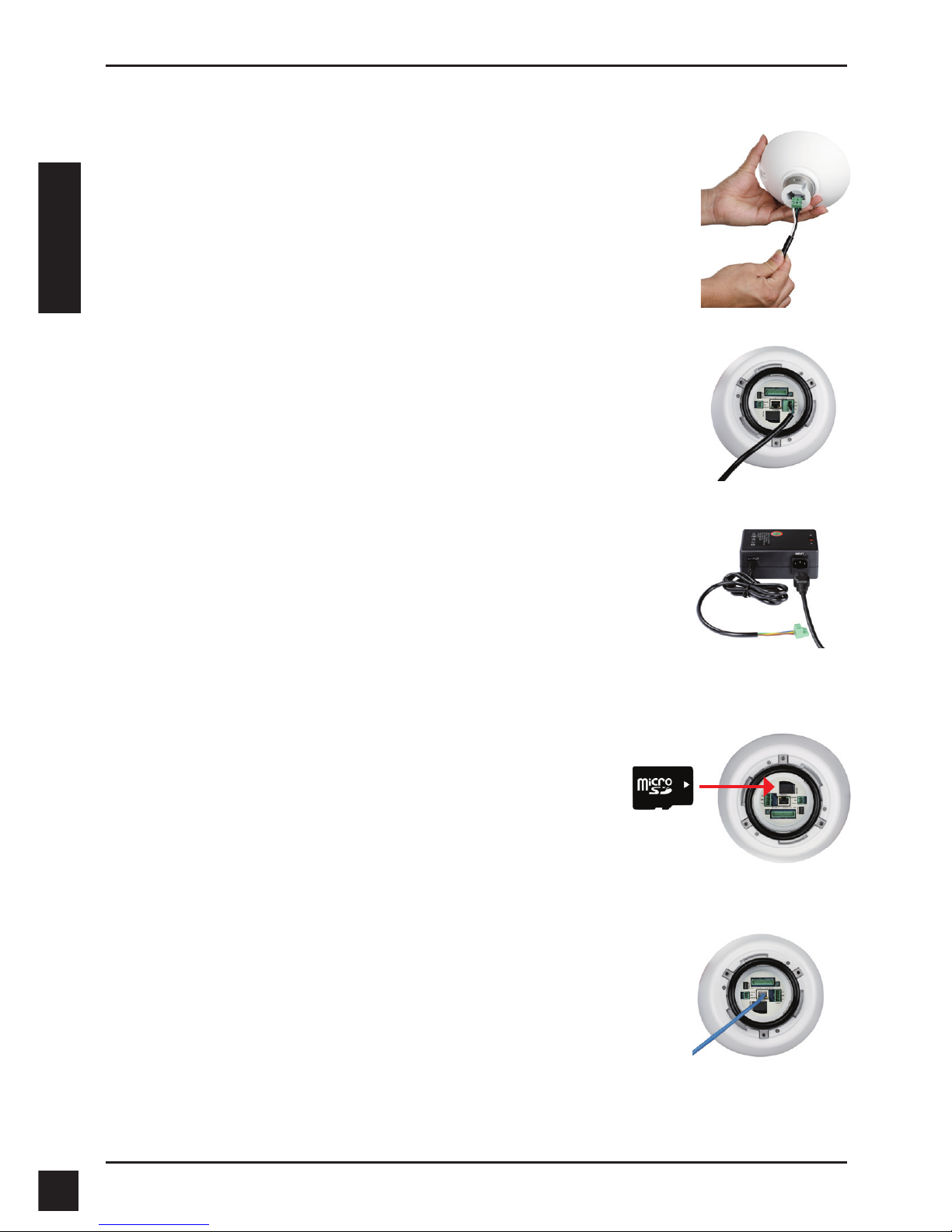

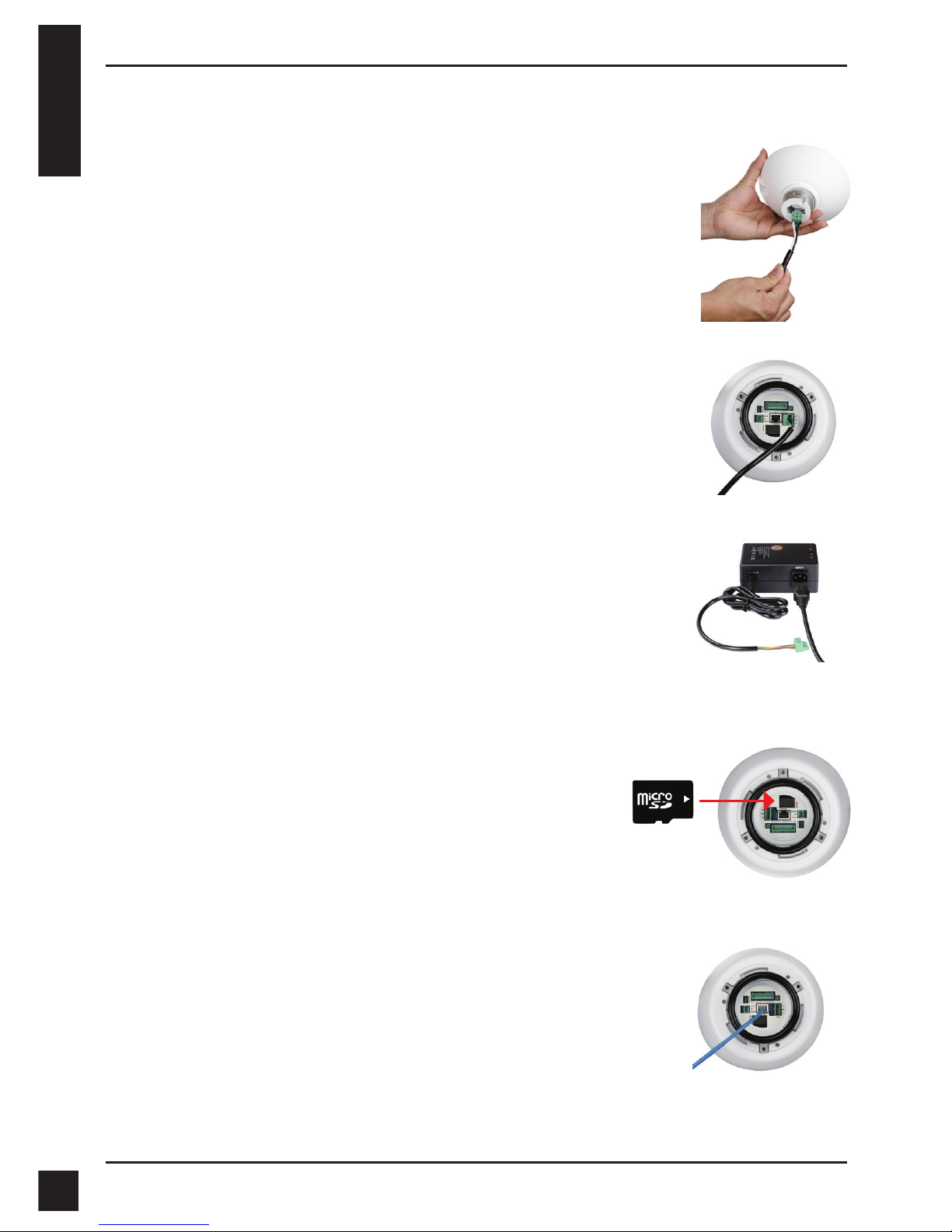

STEP 6
Insert the Power connector into the opening on the cap.
STEP 7
Connect the 3-pin connector to the slot on the camera enclosure. The
connector will lock into place.
STEP 8
Connect the power cable to the power adapter.
STEP 9
Connect one end of the CAT 5 Ethernet cable to the RJ-45 connector
of the camera enclosure, and the other end of the cable to your
network.
STEP 10
Insert the MicroSD card into the slot.
STEP 11
Plug the power cable into a wall outlet.
4. Hardware Installation

D-Link DCS-6915 Quick Install Guide 7
ENGLISH

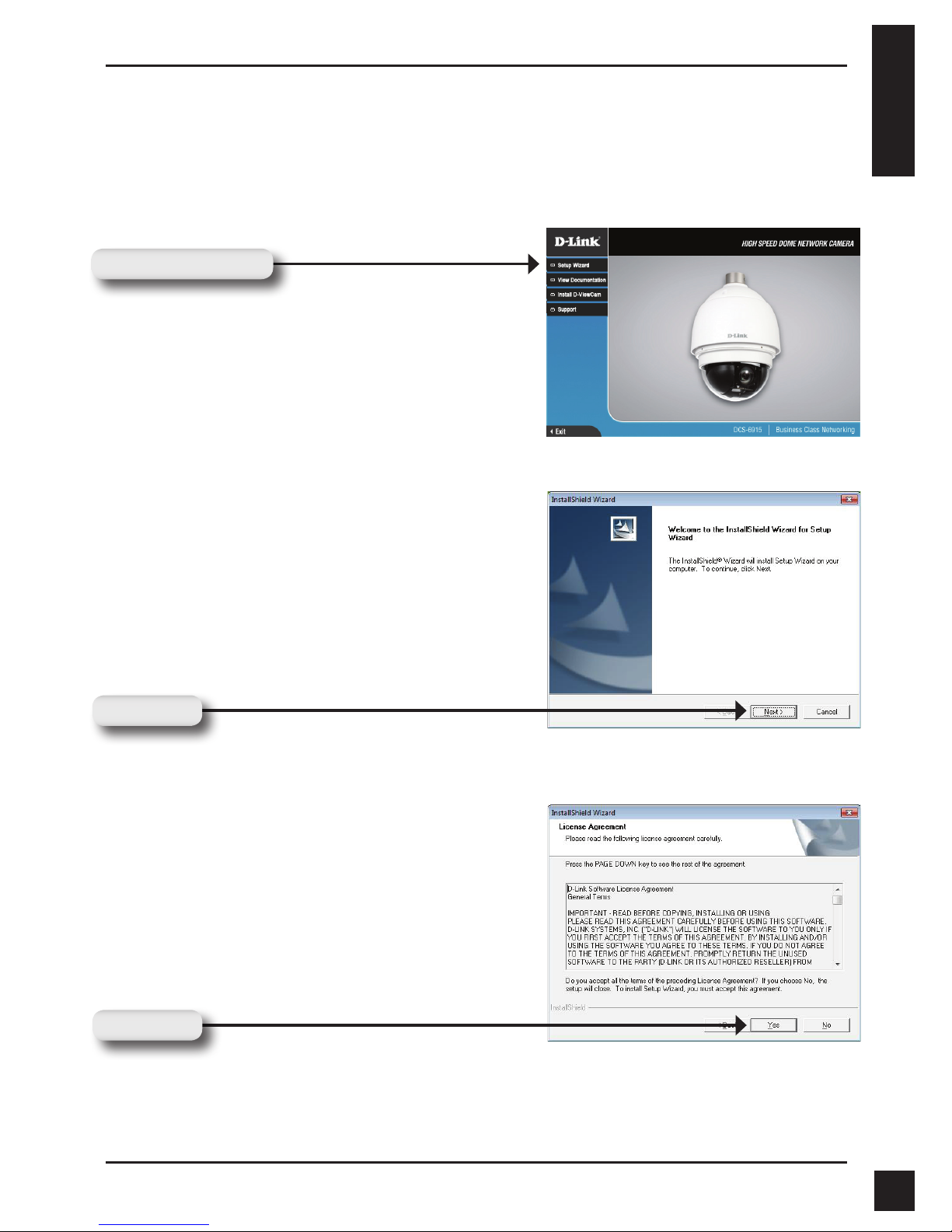

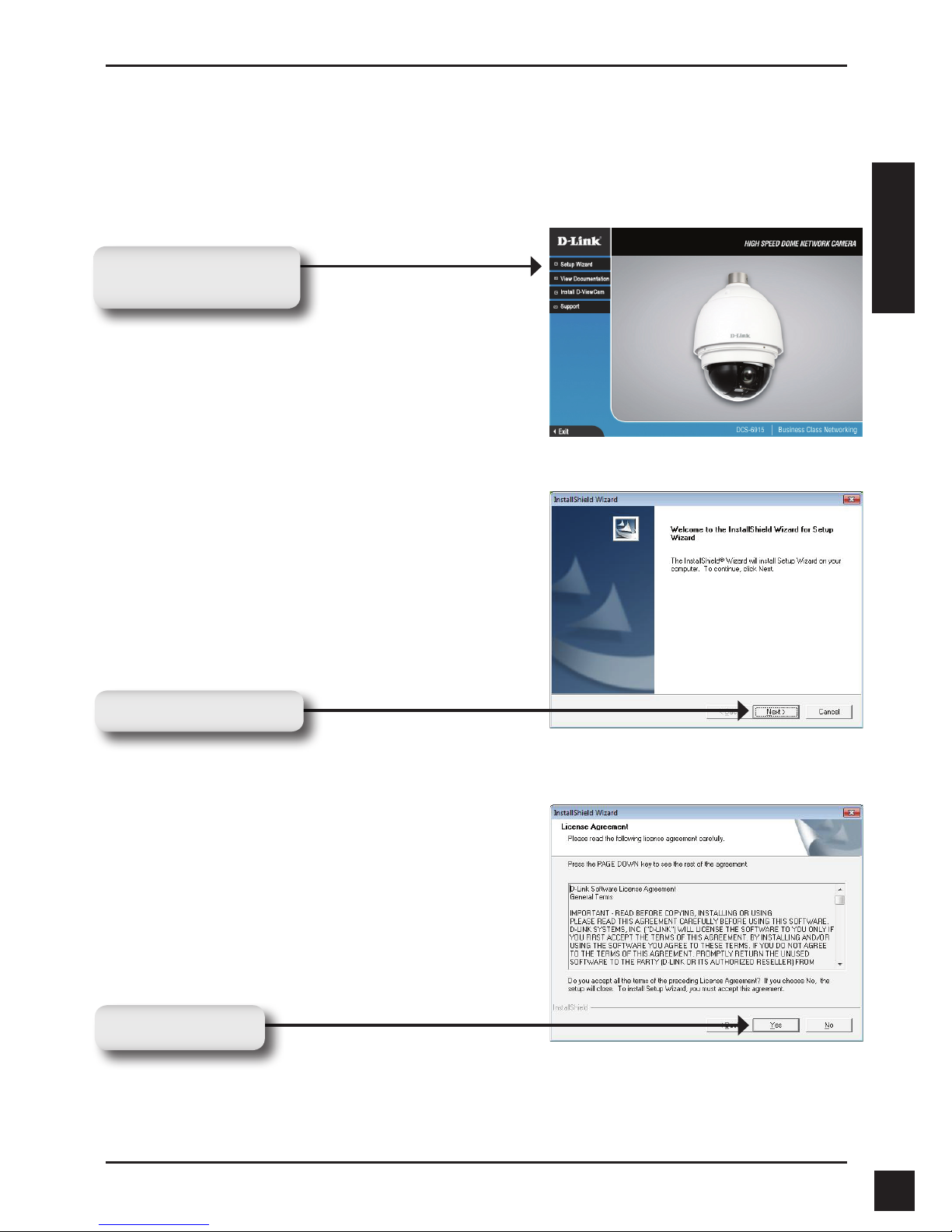

Insert the DCS-6915 CD into the CD-ROM drive. If the CD Autorun function does not
automatically start on your computer, click Windows®Start > Run. In the Run command box
type “D:\autorun.exe”, where D: represents the drive letter of your CDROM. If it does start,
proceed to the next screen.
Click Setup Wizard
Click Next to continue.
Click Next
Click Yes to accept the License Agreement.
Click Yes
5. Software Installation

D-Link DCS-6915 Quick Install Guide
8
ENGLISH

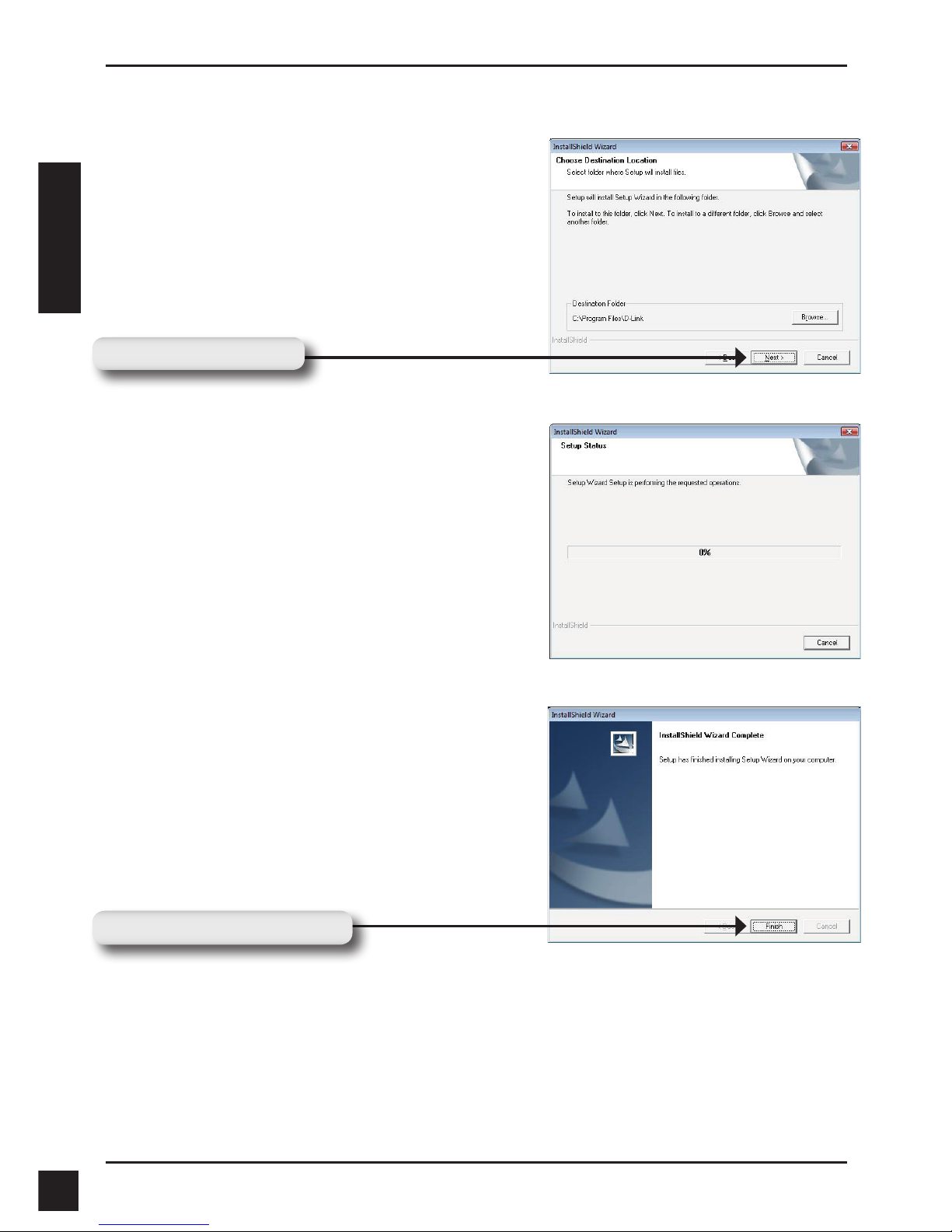

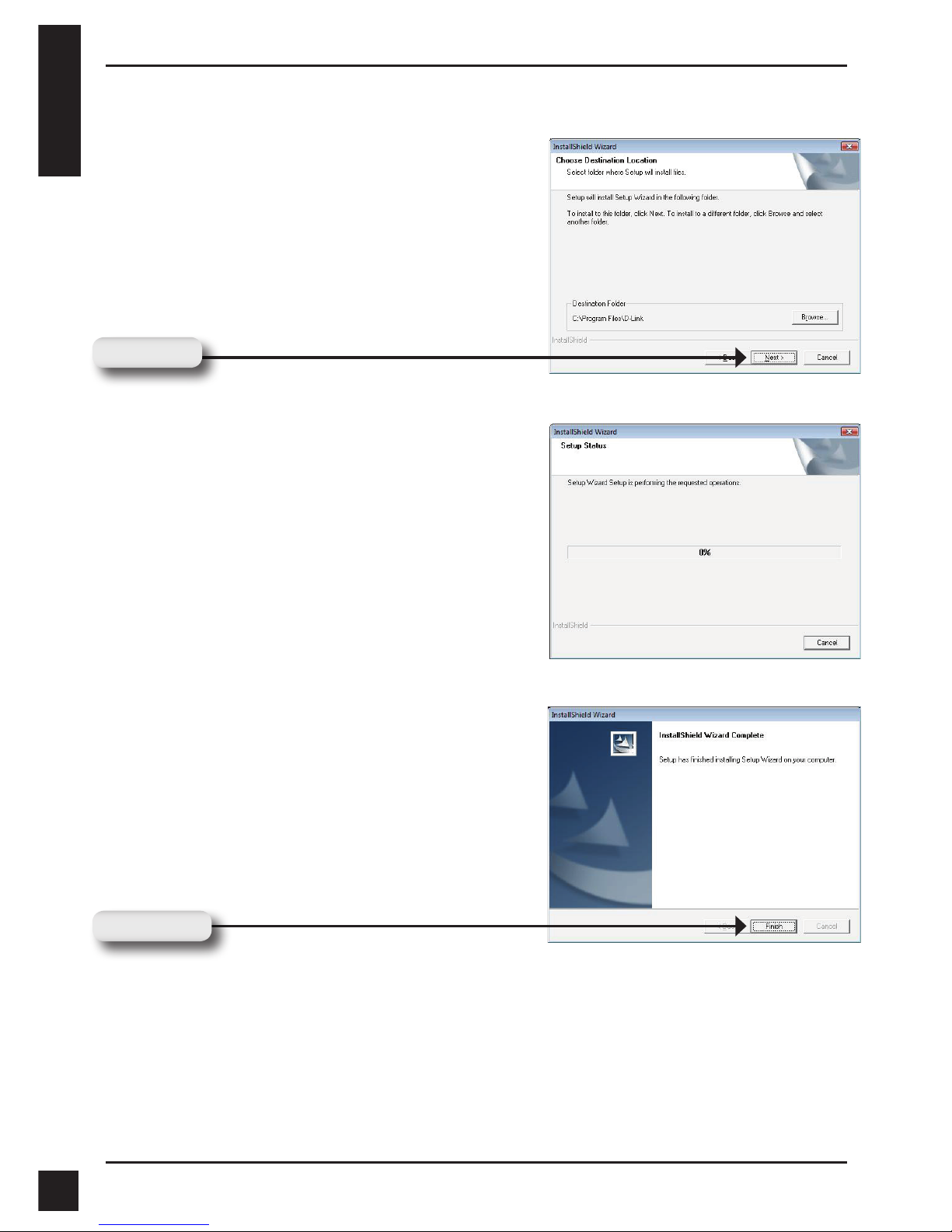

Click Finish
Click Finish to complete the installation.
To start the installation click Next.
Note: The installation may take several
minutes to complete.
Click Next
5. Software Installation

D-Link DCS-6915 Quick Install Guide 9
ENGLISH

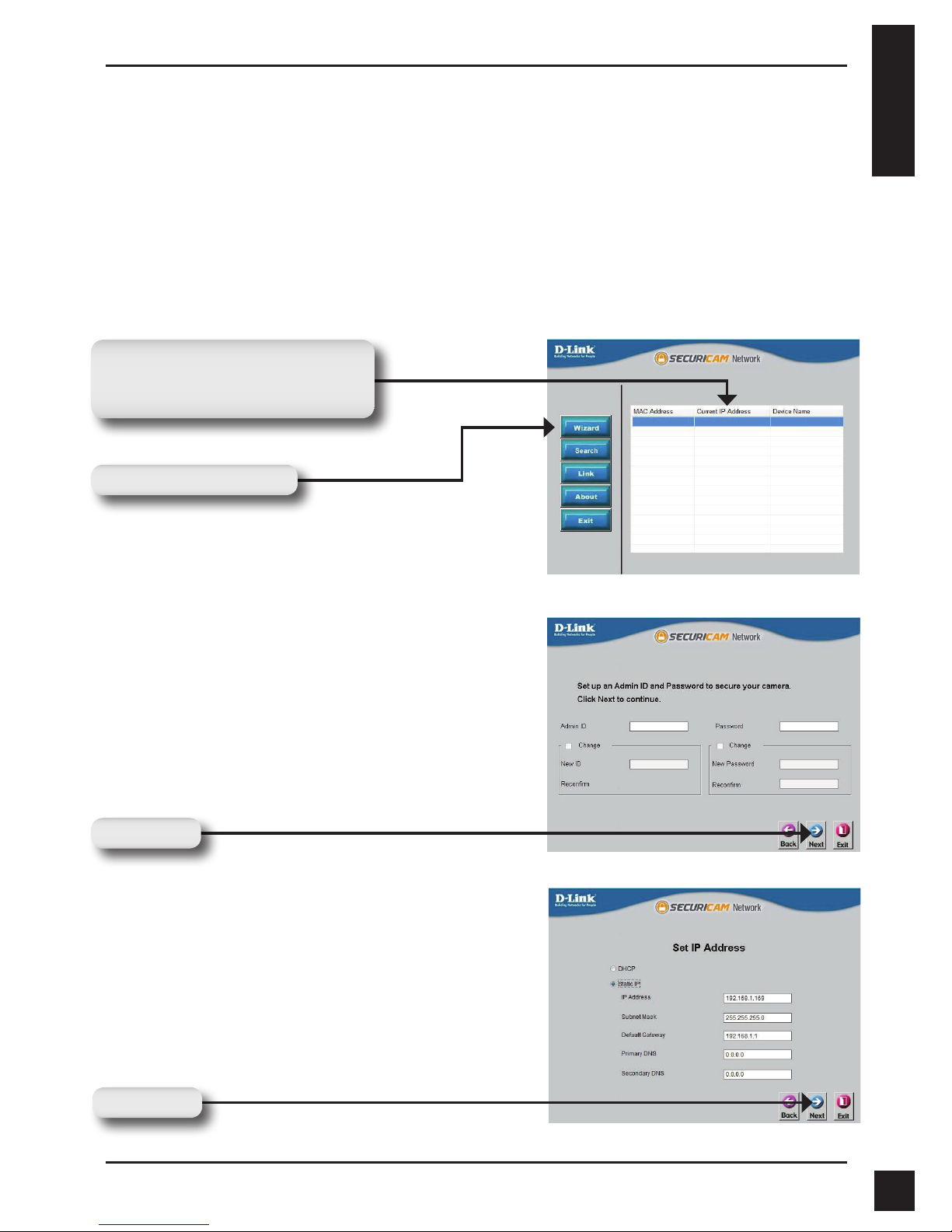

Click on the D-Link Setup Wizard SE icon that was created in your Windows Start menu.
The Setup Wizard will appear and show the MAC address of the DCS-6915 and
an IP Address (which may or may not be correct depending on what you have your
DCS-6915 connected to). If you have a DHCP server on your network, there will be a valid
IP Address displayed here.
Note: A DHCP server is a device that supplies IP addresses to your network devices
automatically.
00.ff.11.11.66.88 192.168.0.20 DCS-6915B1
Click the Wizard button
Your camera’s IP Address will be
displayed here along with its
corresponding MAC Address.
Select DHCP if you want to obtain a new IP
address every time the camera boots up, or
select static IP to use the same IP address
at each boot up.
Click Next
Enter the admin ID and password.
Note: The default Admin ID is admin with
the password left blank.
Click Next
6. Conguring Your Camera with the Installation Wizard

D-Link DCS-6915 Quick Install Guide
10
ENGLISH
This section shows your camera’s live
video. You can control your settings using
the buttons below. For more information on
using the web conguration, please refer to
the user manual.
Install the ActiveX control to
view live video.

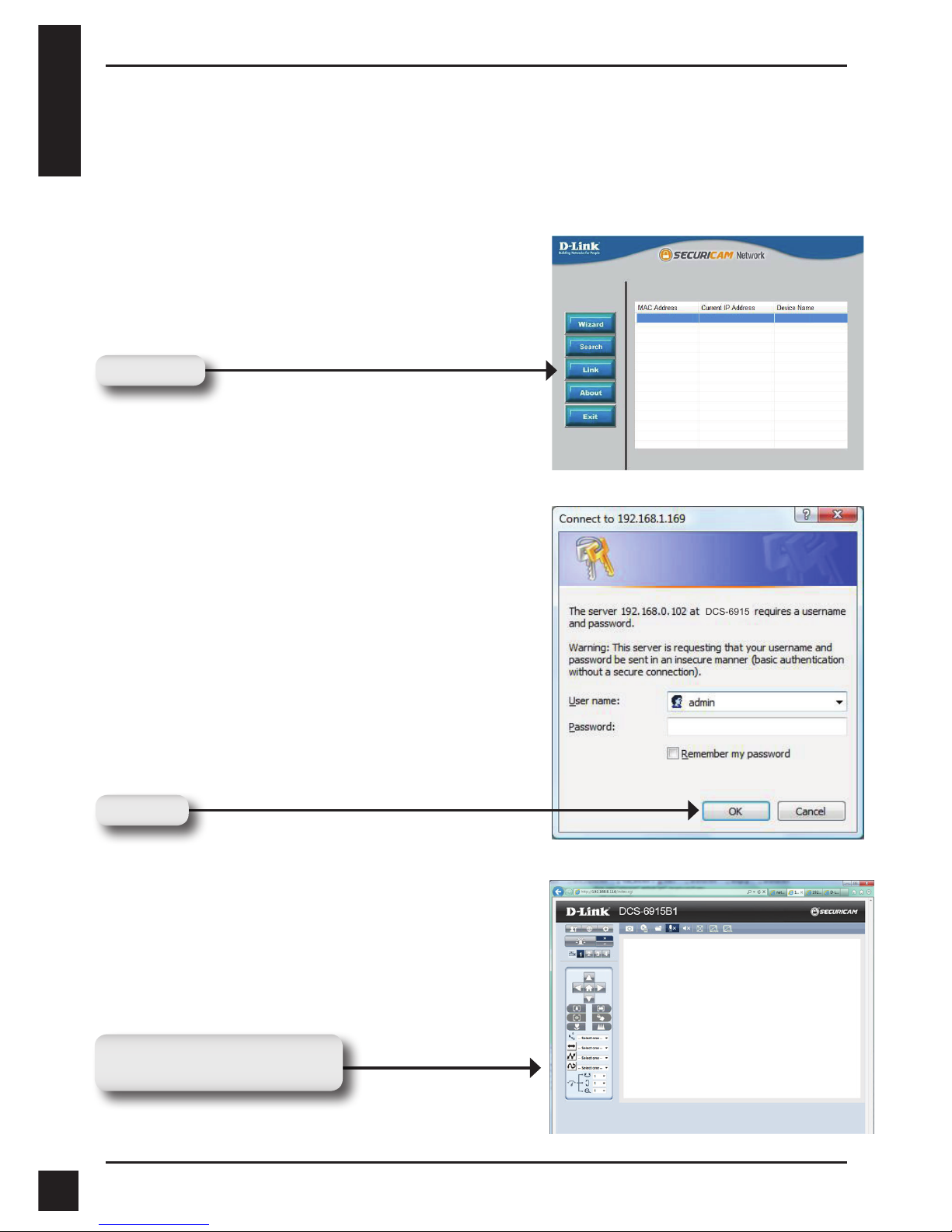

Click the button labeled Link to access the web conguration. The Setup Wizard will
automatically open your web browser to the IP address of the DCS-6915, in this example it
is:http://192.198.0.20. Your camera may have a different IP Address.
Enter admin as the default username and
leave the password blank. Click OK to
continue.
00.ff.11.11.66.88 192.168.0.20 DCS-6915B1
DCS-6915
Click Link
Click OK
7. Viewing Your Internet Camera
