Vigilance 2 Megapixel H.265 Outdoor Dome Camera

D-Link DCS-4602EV Quick Installation Guide 1
ENGLISH
Quick Installation Guide
This installation guide provides basic instructions for installing the
DCS-4602EV. For additional information about how to use the camera, please
see the User Manual on the CD included in this package or from the D-Link
support website.
Package Contents
DCS-4602EV Vigilance 2 Megapixel H.265 Outdoor Dome Camera

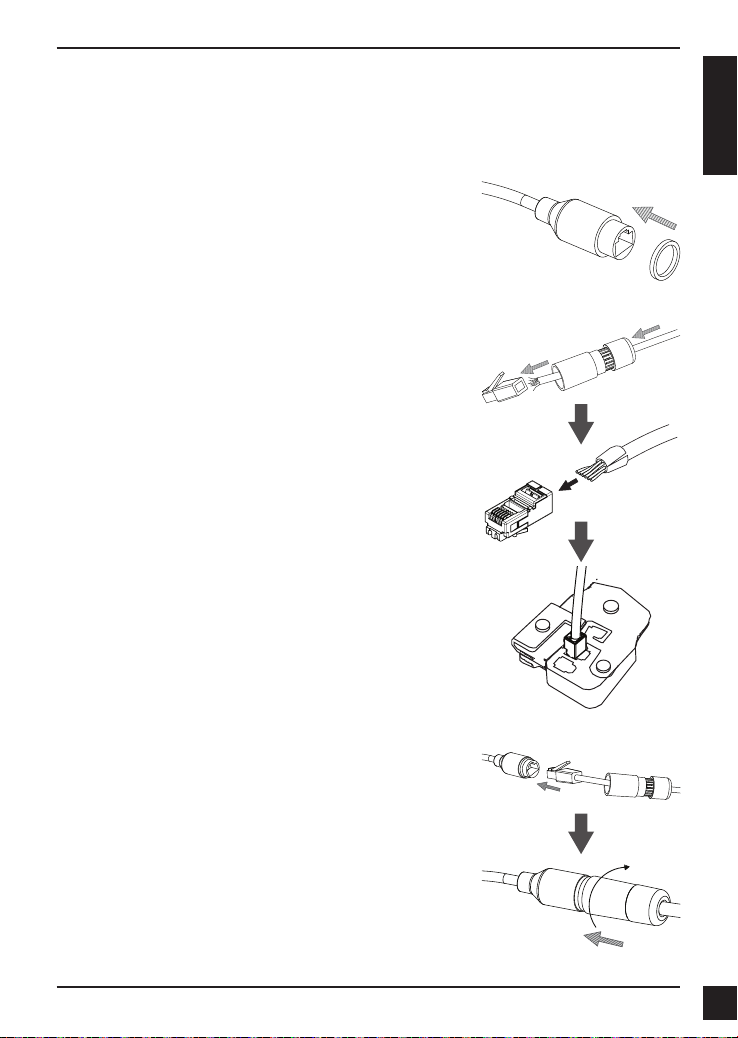

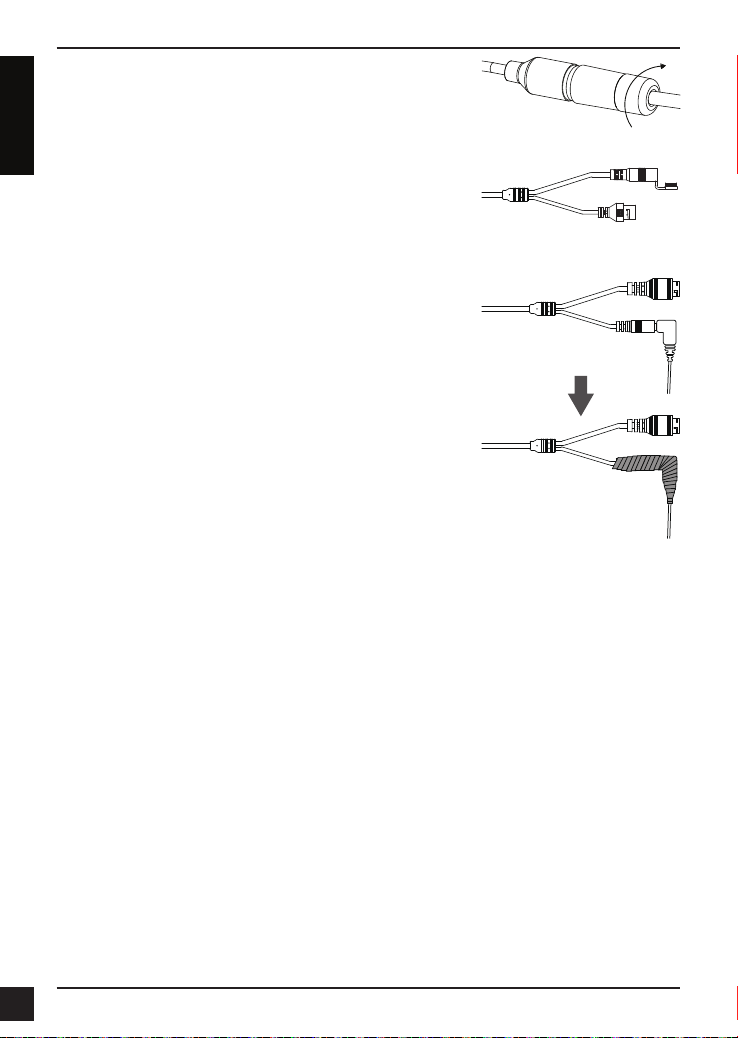

Cable Waterproong Connector
Mounting Kit
Manual and Software on CD-ROM
Quick Installation Guide
If any of the above items are missing, please contact your reseller.
Safety Notice:
Installation and servicing should be done by certied technicians in order to
conform to all local codes and prevent voiding your warranty.

D-Link DCS-4602EV Quick Installation Guide
2
ENGLISH
Hardware Overview

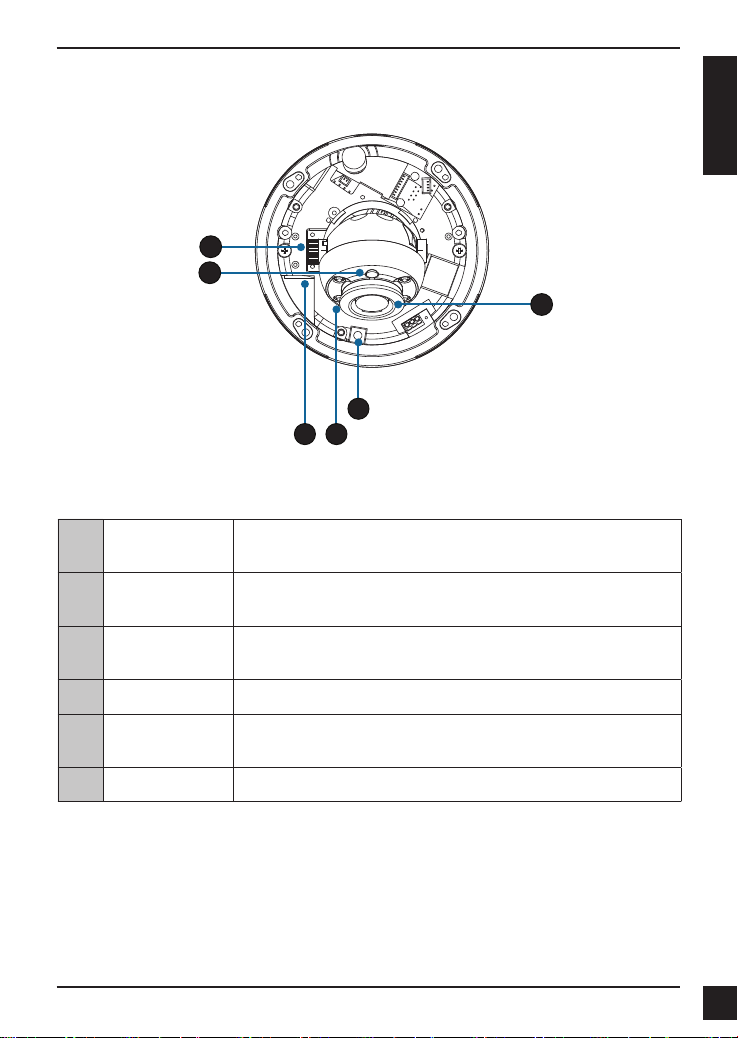

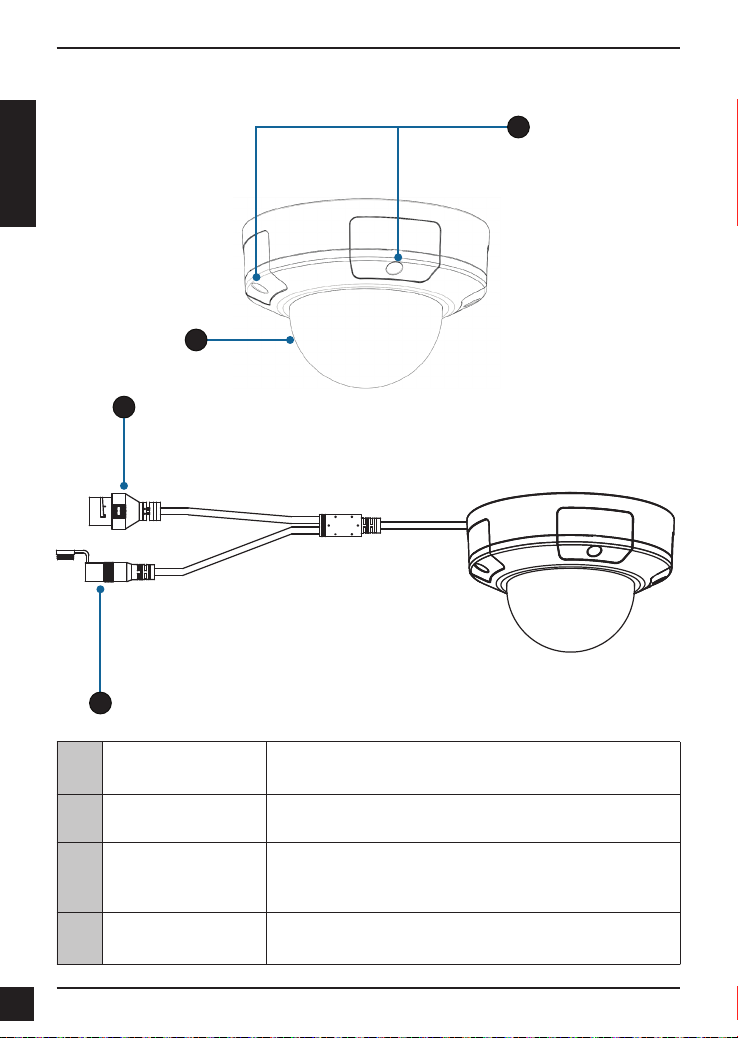

1 Cover Screws These four screws can be removed with the included
wrench.
2Protective
Cover Protects the camera lens assembly from the environment.
3 Ethernet Port RJ-45 connector for Ethernet which can also be used to
power the camera using Power over Ethernet (PoE).
4 Power Port Connects to an optional 12 V / 1.5 A power adapter (not
included).
1
2
3
4

D-Link DCS-4602EV Quick Installation Guide 3
ENGLISH

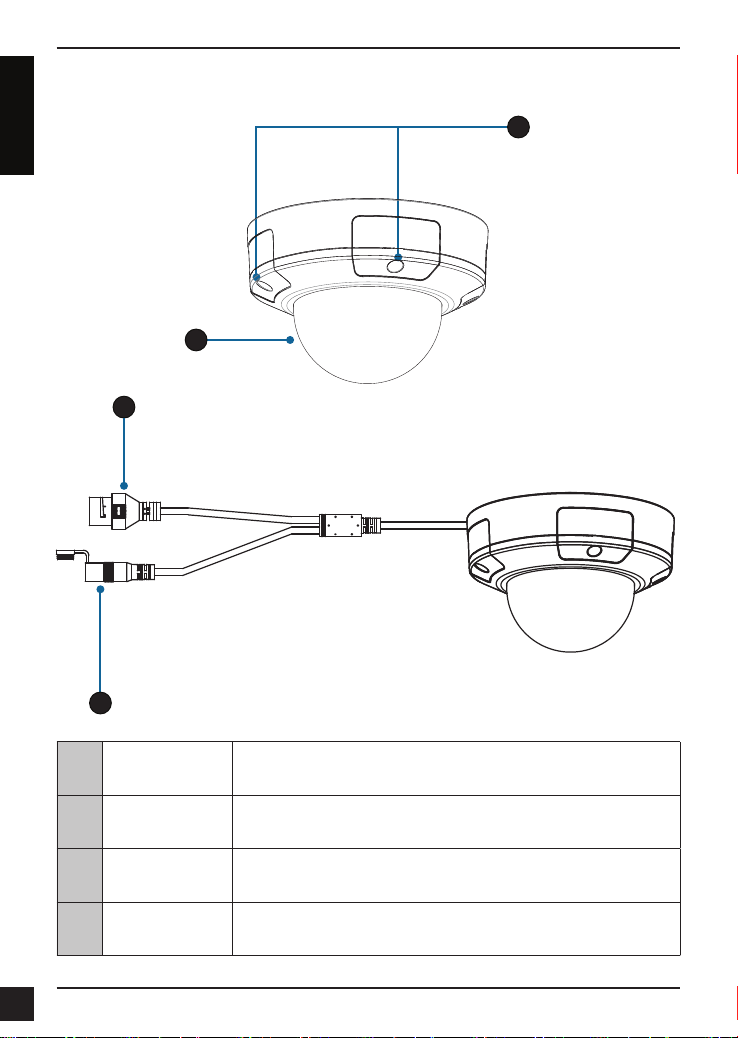

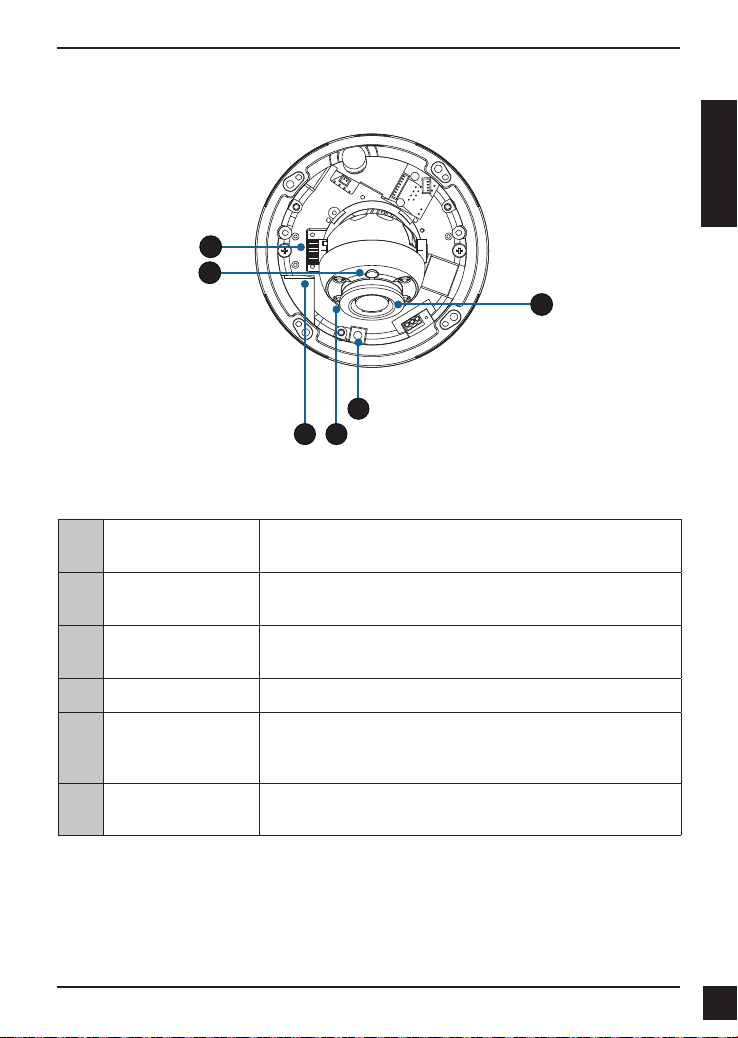

1Tilt Lock
Screw Can be loosened to adjust the camera's tilt angle.
2 Light Sensor Detects lighting levels and switches between day and night
mode accordingly.
3microSD Card
Slot
Insert a microSD card for onboard storage of snapshots
and video.
4 IR LEDs Provide illumination for low-light environments.
5 Reset Button Press and hold this button down for 10 seconds to reset the
camera to factory default settings.
6 Camera Lens Camera lens to record video of the surrounding area.
Hardware Overview
2
1
4
6
3
5

D-Link DCS-4602EV Quick Installation Guide
4
ENGLISH
Conguring the Camera
Insert the included CD into your computer's CD-ROM drive to begin the installation. If
the Autorun function on your computer is disabled, or if the D-Link Launcher fails to start
automatically, click the Windows button, type D:\autorun.exe (where D: represents the
drive letter of your CD-ROM drive), and press Enter.
Note: You can also go to the D-Link website to download the Setup Wizard in the
Downloads section for your product model.

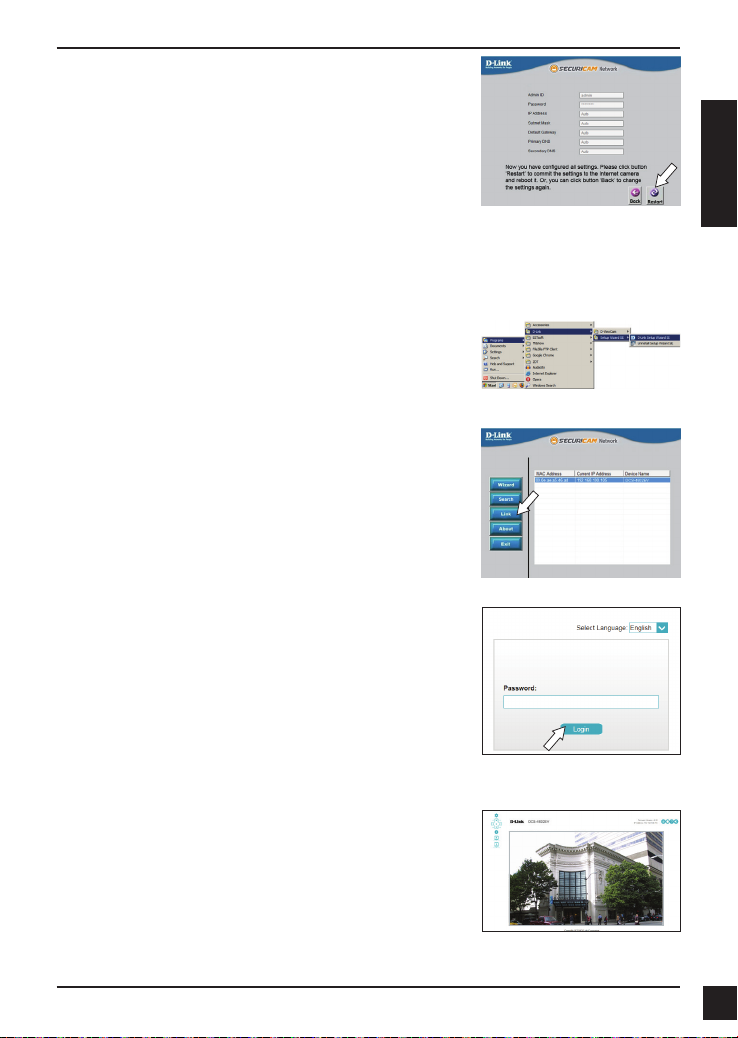

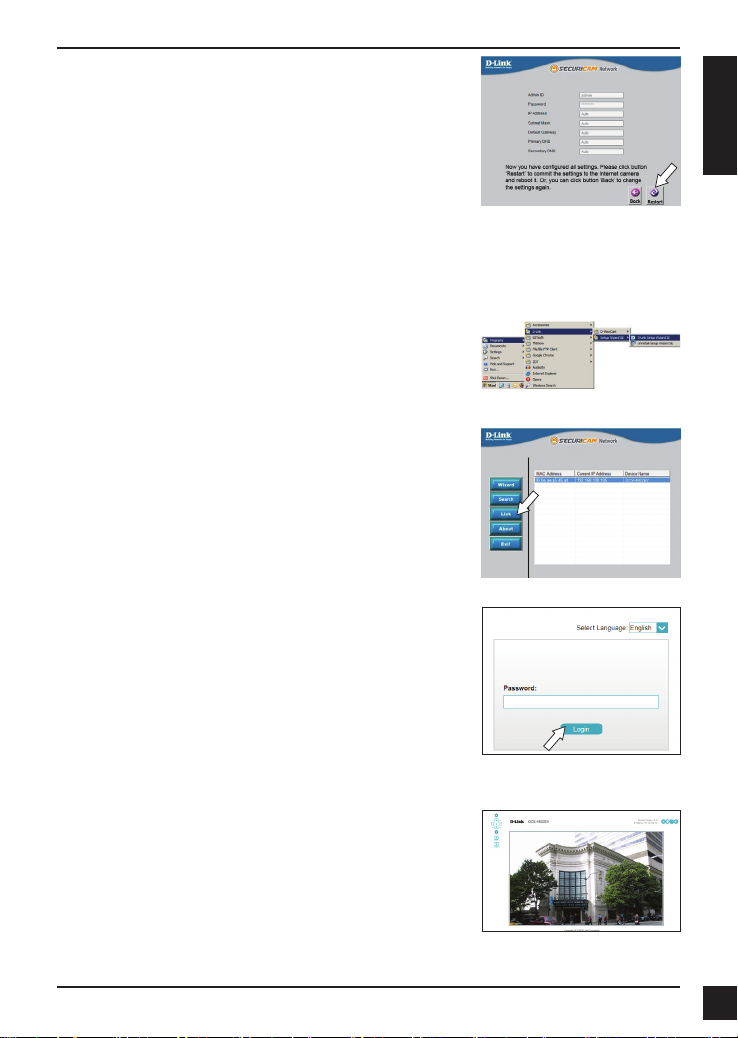

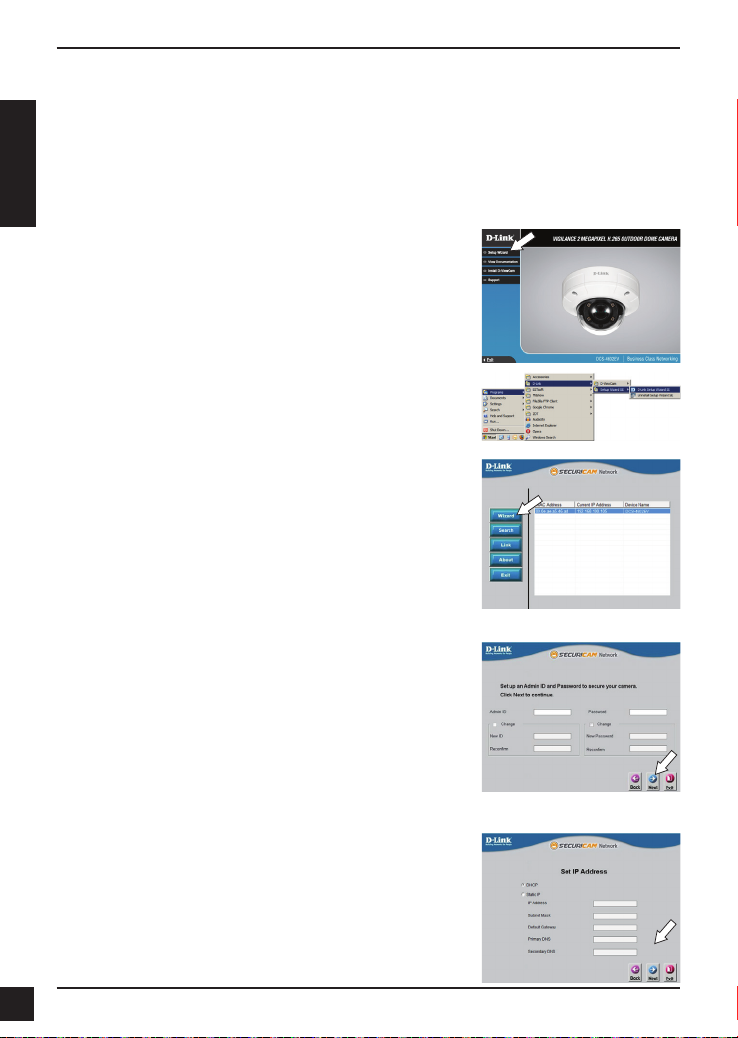

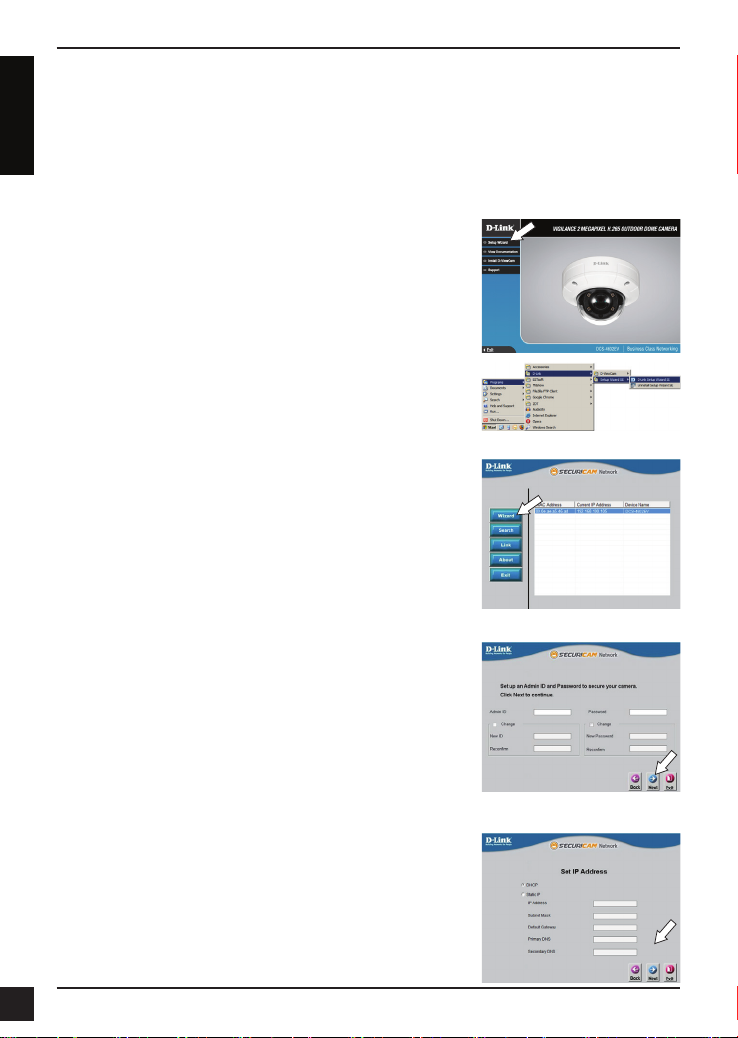

Click on the D-Link Setup Wizard SE icon that was
created in your Windows Start menu (Start > D-Link >
Setup Wizard SE).
The Setup Wizard will appear and display the MAC
address and IP address of your camera(s). If you have a
DHCP server on your network, a valid IP Address will be
displayed. If your network does not use a DHCP server,
the network camera's default static IP 192.168.0.20 will be
displayed.
Select your camera, then click the Wizard button to
continue.
Click Setup Wizard and follow the instructions to install
the Setup Wizard.
Enter the Admin ID and password. When logging in for the
rst time, the default Admin ID is admin with the password
left blank.
Click the checkboxes if you wish to change the admin ID
and password for the camera, and enter the new ID and
password you wish to use.
Click Next to continue.
Select DHCP if your camera obtains an IP address
automatically from a DHCP server such as a router.
Select Static IP if you want to manually enter the IP
settings for the camera.
Click Next to continue.

D-Link DCS-4602EV Quick Installation Guide 5
ENGLISH
Viewing Your Camera via Web Browser
Click on the D-Link Setup Wizard SE icon that was
created in your Windows Start menu (Start > D-Link >
Setup Wizard SE).
Select the camera and click Link to access the web
conguration.
The Setup Wizard will automatically open your web
browser to the IP address of the camera.
This section displays your camera’s live video. You can
quickly select your screen mode and video prole and
view or operate the camera. For additional information
about web conguration, please refer to the user manual
included on the CD-ROM or the D-Link website.
Take a moment to conrm your settings and click Restart
when you are done.
The rst time you connect to the camera, you will be
asked to set a password for the administrator account.
After entering a password, click Save.
OR
Under Password, enter the same password that you
congured during setup and click Login to continue.

D-Link DCS-4602EV Quick Installation Guide
6
ENGLISH
Mounting Instructions
It is highly recommended that you congure and test your camera before mounting it.

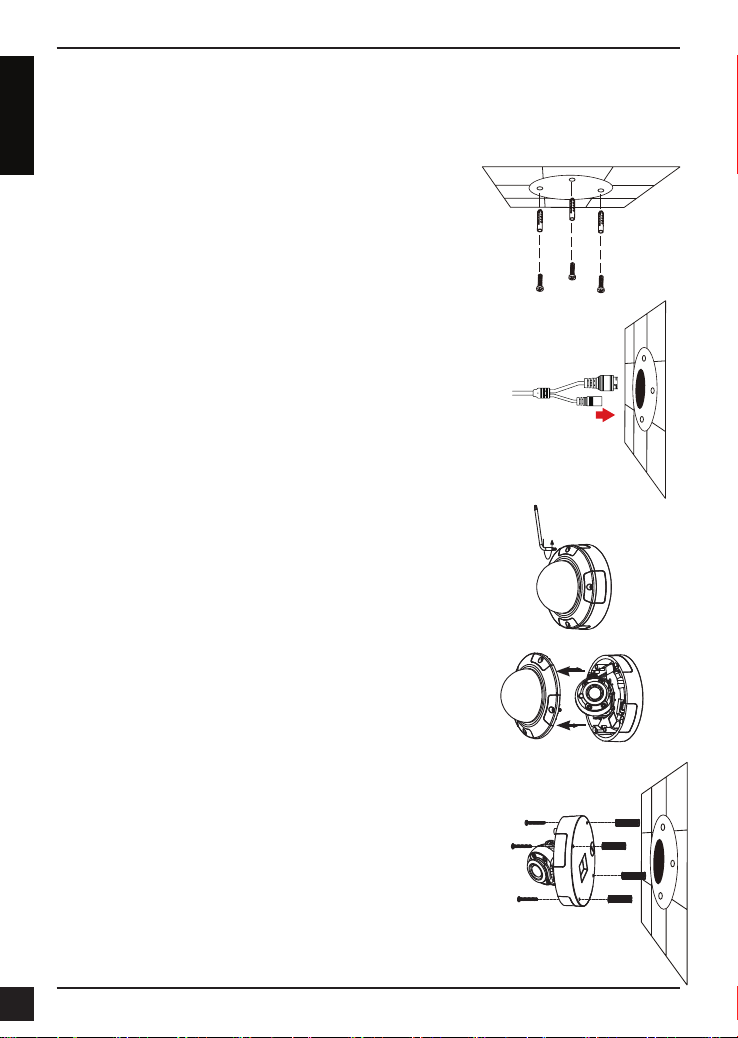

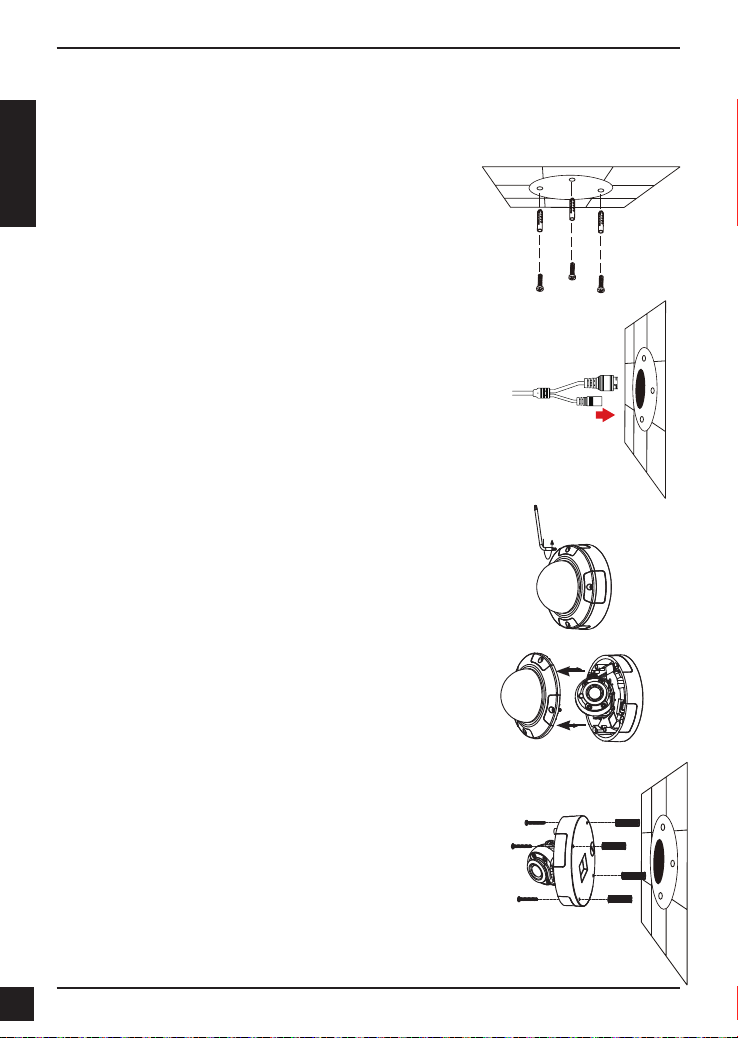

Place the mounting sticker where you want to position the
camera.
Use a 6 mm drill bit to make the required holes
approximately 25 mm deep, then insert the wall anchors
into the holes.
If you are running the camera cables through the wall,
drill a hole in the center and pull the cables through the
hole.
Use the included wrench to loosen the 4 screws on the
top of the camera, then lift the camera cover off.
Use the screws provided to mount the camera to the wall.
If you are running the camera cables out the side of
the camera, guide the camera cables through the cable
channel on the base.

D-Link DCS-4602EV Quick Installation Guide 7
ENGLISH

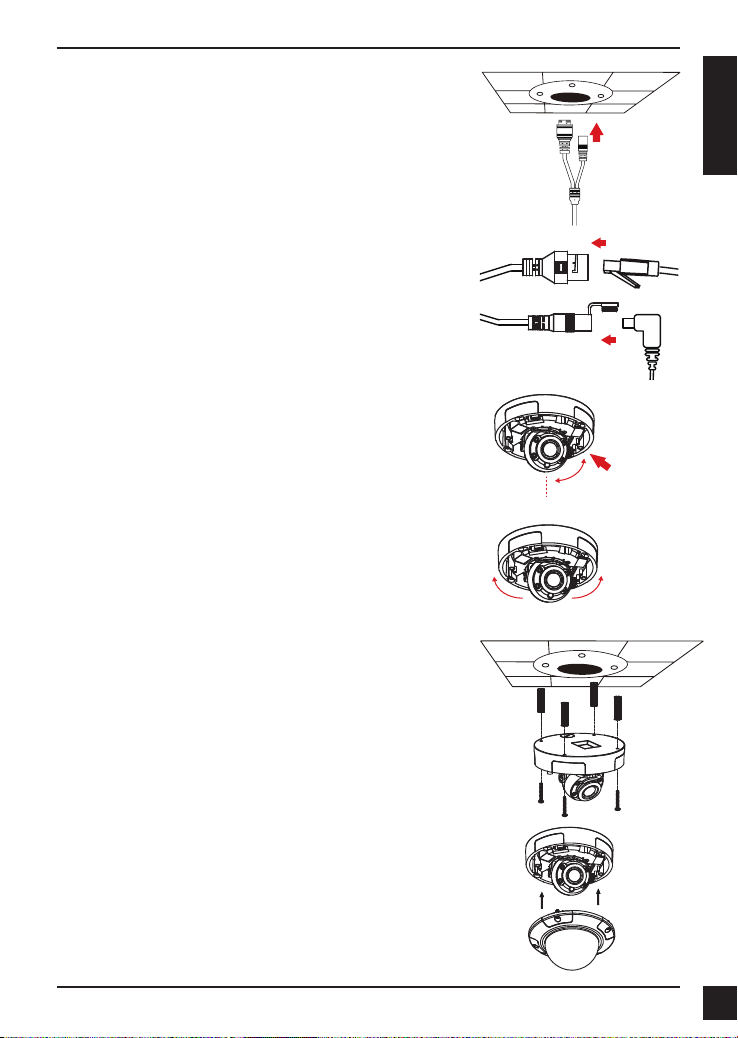

Connect the power and Ethernet cables, or just the
Ethernet cable if you are using a PoE connection.
Loosen the adjustment screw on the side of the lens
assembly, then re-tighten it after adjusting the lens
assembly to the desired vertical angle. The camera
supports from 30°to 90°of tilt.
You can also adjust the pan within a -120°to 120° range by
rotating it clockwise or counter-clockwise.
When you are done adjusting the camera's angle, put the
inner cover back into place.
Note: The camera has a limited range of motion; if it stops
when you are adjusting it, do not attempt to rotate or tilt
the camera any further in that direction.
Re-attach the camera cover.
If you are mounting the camera to the ceiling, use a
athead screwdriver to remove the plastic hole cover from
the bottom of the base, then guide the cables through the
bottom.
Use the screws provided to mount the camera to the
ceiling.
120o
Pan(Total 240o)
120o
90o
Tilt(Total 60o)
30o
120o
Pan(Total 240o)
120o
90o
Tilt(Total 60o)
30o

D-Link DCS-4602EV Quick Installation Guide
8
ENGLISH

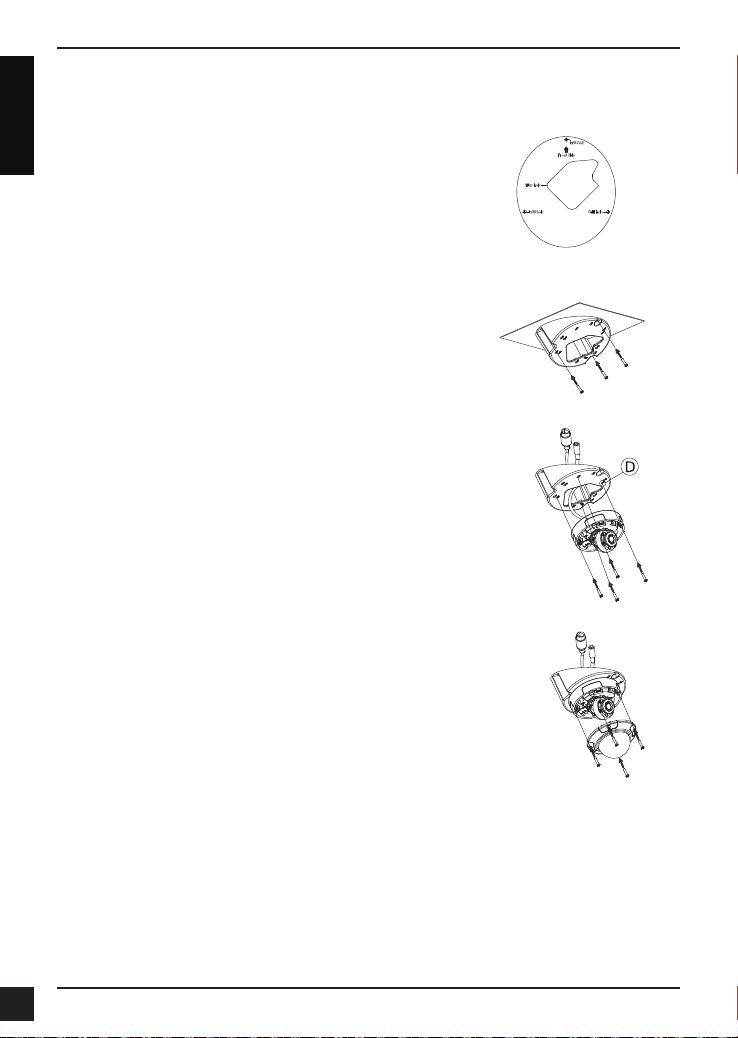

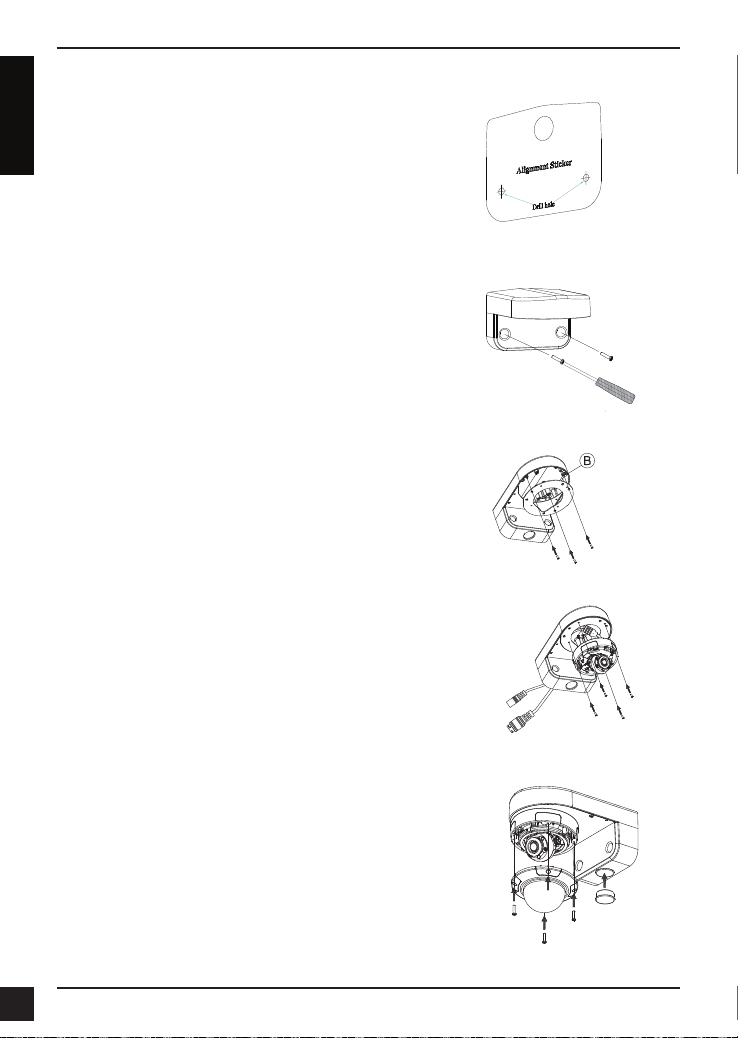

Using the DCS-37-1 Mount (optional)
Use the provided screws to mount the DCS-37-1 to the
wall.
Place the DCS-37-1 mounting sticker in the desired
location, then use a 6 mm drill bit to drill the required holes
25 mm deep and insert the wall anchors into the holes.
If you plan to pass cables through the wall, you will also
need to drill a hole for the cable channel.
Note: The camera in the corresponding graphics may be
different from your product, but the basic process is the
same.
Guide the camera connectors through the back or bottom
cable channel on the DCS-37-1. Then screw the mounting
plate to the bracket using the set of mounting holes
marked B.
Remove the cover from the camera.
Use the provided screws to mount the camera to the
DCS-37-1, then adjust the angle and rotation of the
camera as desired using the tilt lock screw.
Attach the camera cover.
If you are passing the camera cables through the wall,
place the rubber stopper into the bottom cable channel on
the mount to seal it.
