D-Link SECURICAM Network DCS-2120 User manual

2D-Link DCS-2120 User Manual
Table of Contents
Table of Contents
Product Overview ........................................................ 4
Package Contents ................................................... 4
System Requirements ............................................. 4
Introduction..............................................................5
Features .................................................................. 6
Hardware Overview ................................................. 7
LEDs........................................................................ 8
Hardware Installation ............................................... 9
Wireless Installation Considerations....................... 10
Conguration............................................................. 11

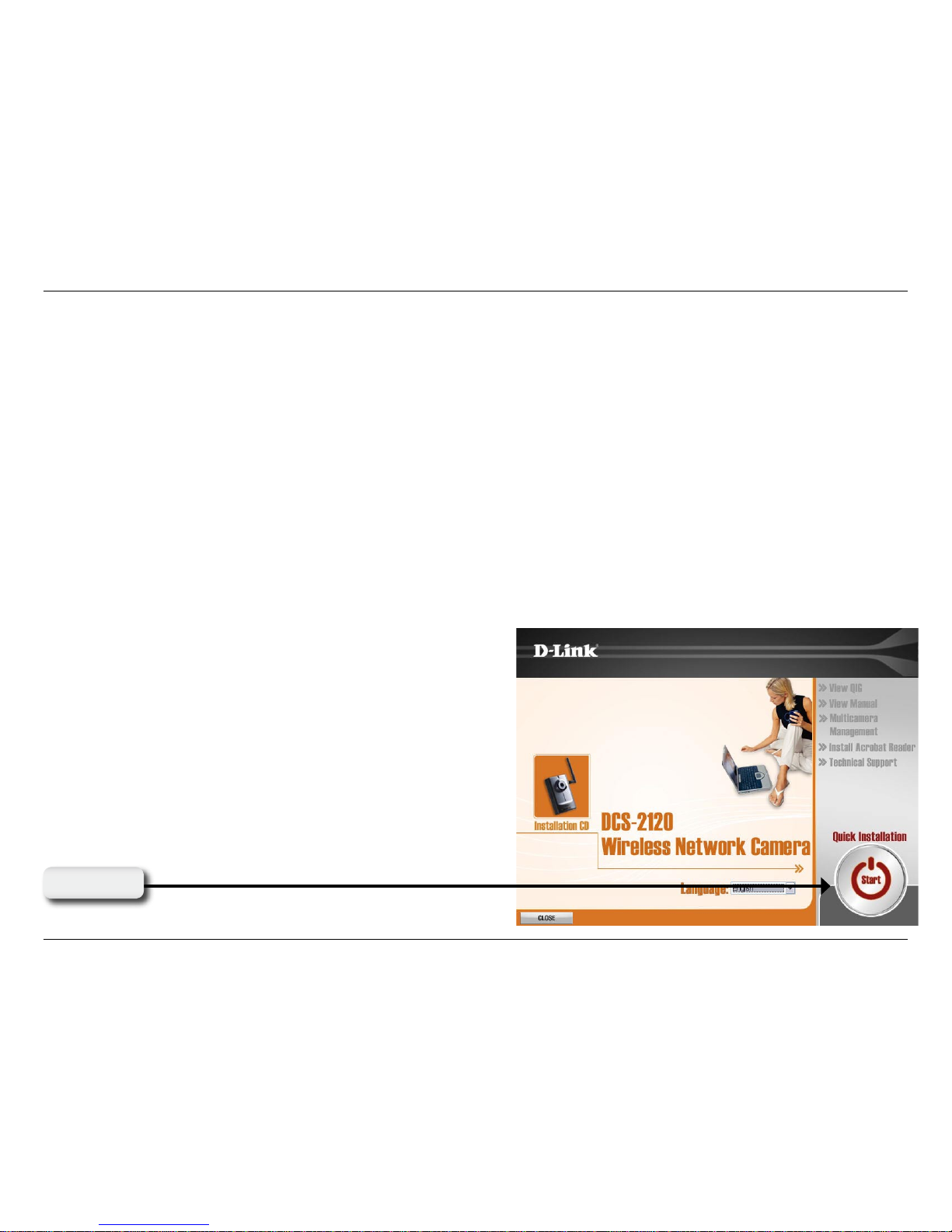

D-Link Click’n Conenct (DCC) ............................... 11

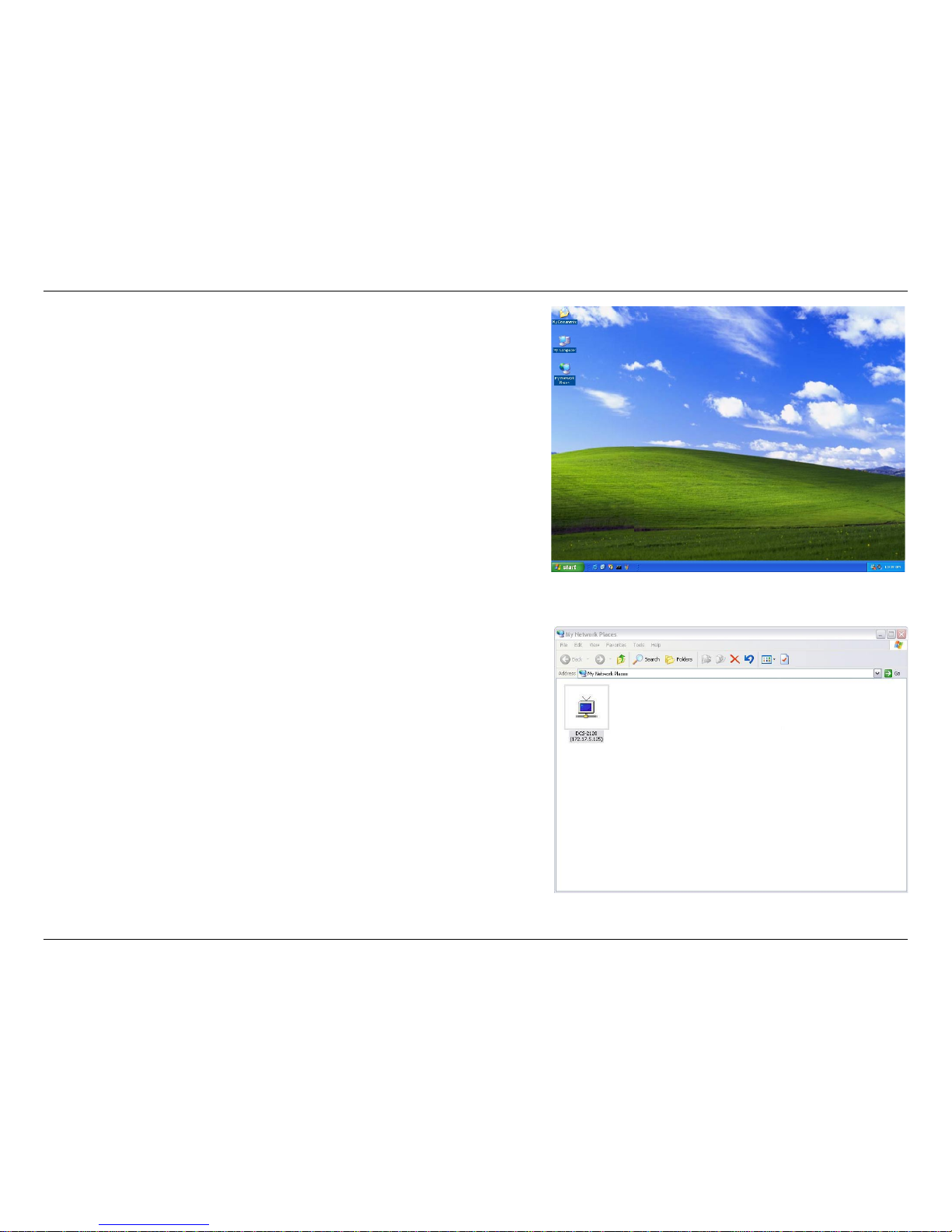

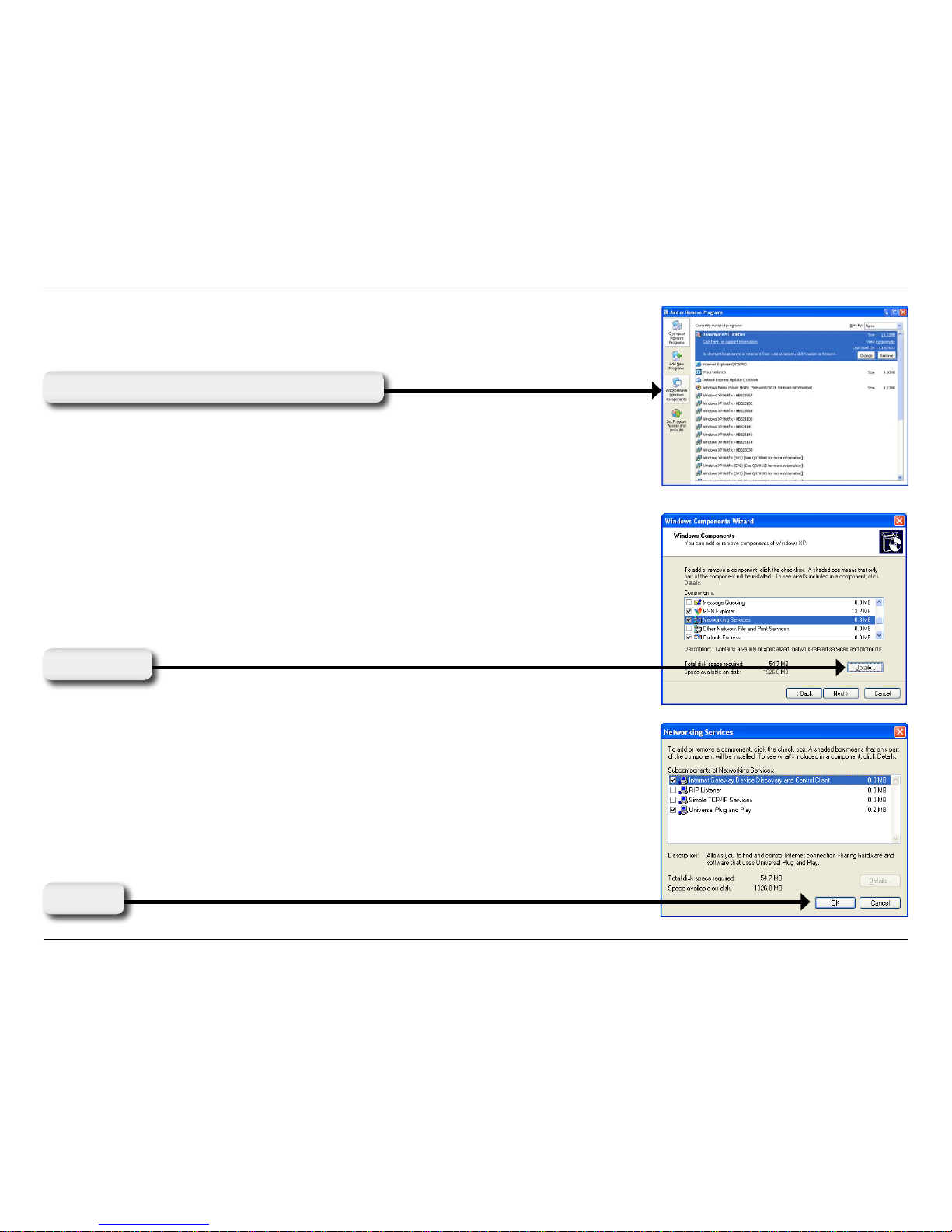

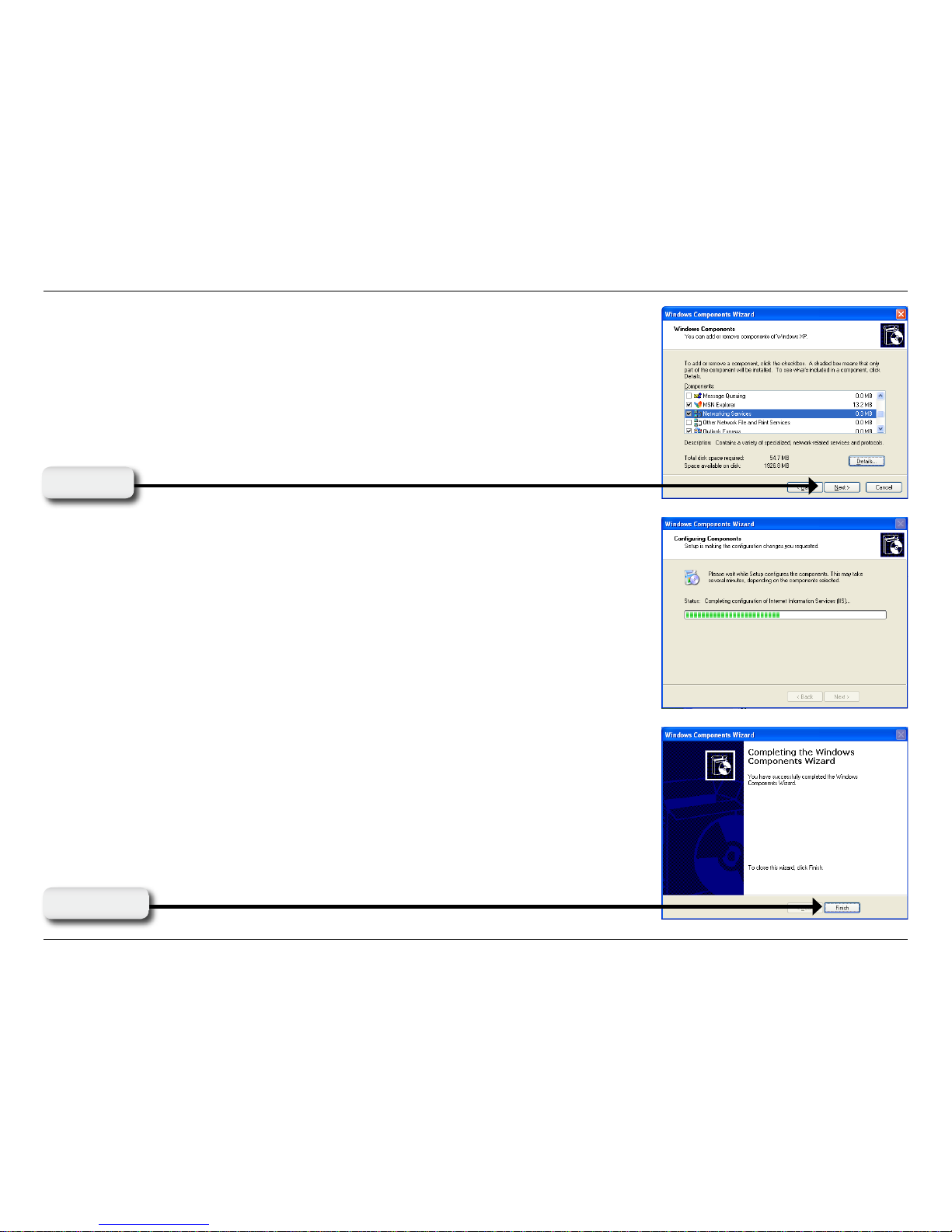

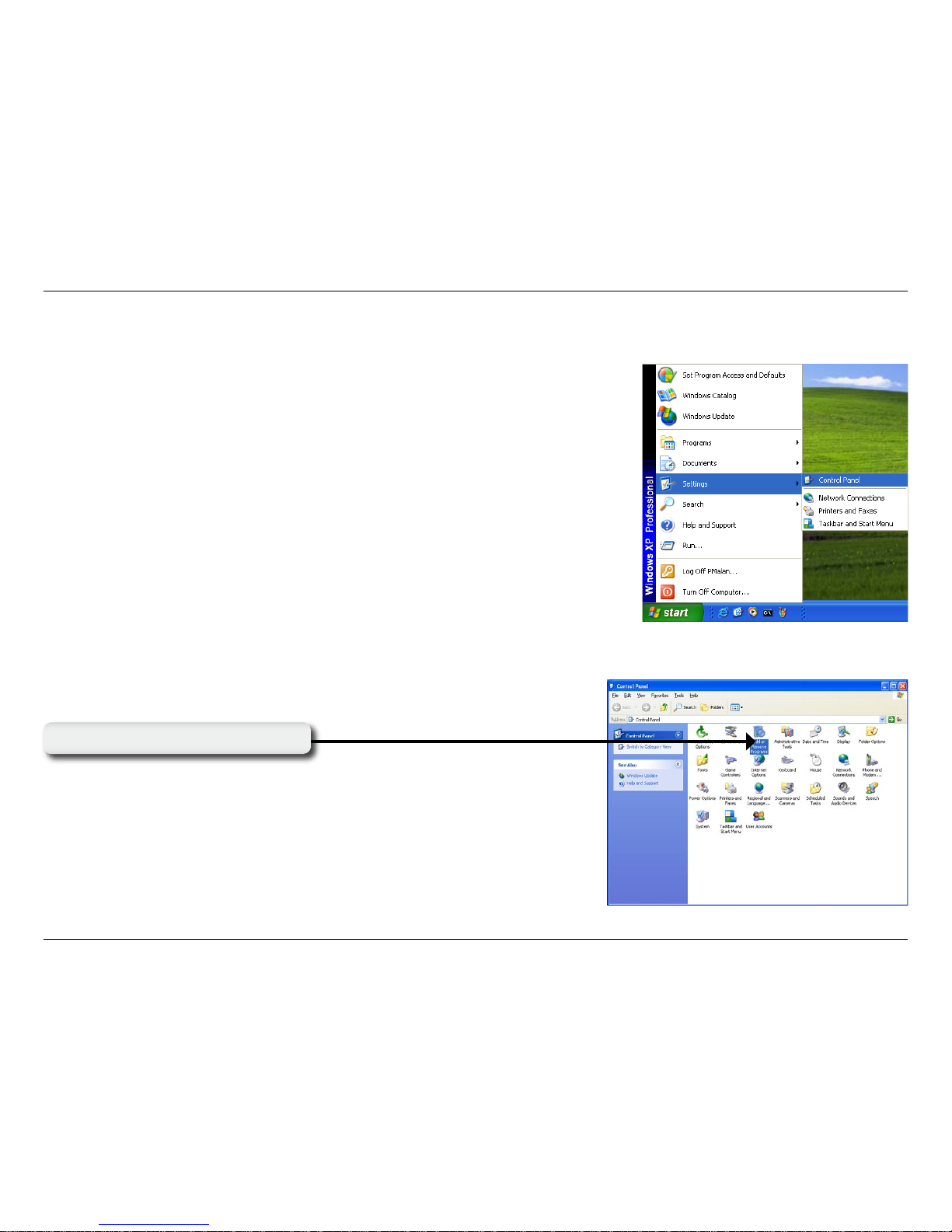

Enabling UPnP for Windows®XP .......................... 12
Testing the DCS-2120 ...........................................17
Viewing Your DCS-2120........................................ 18

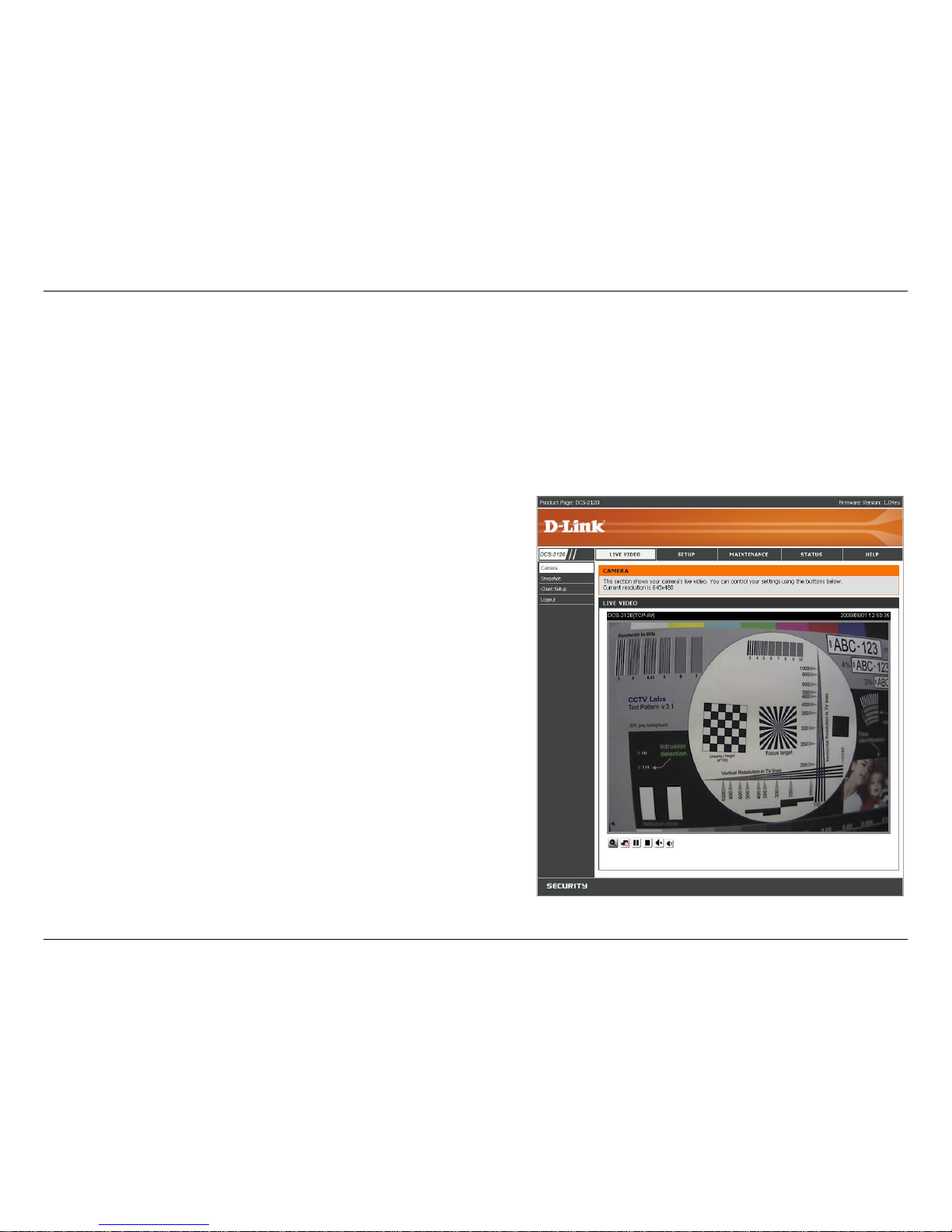

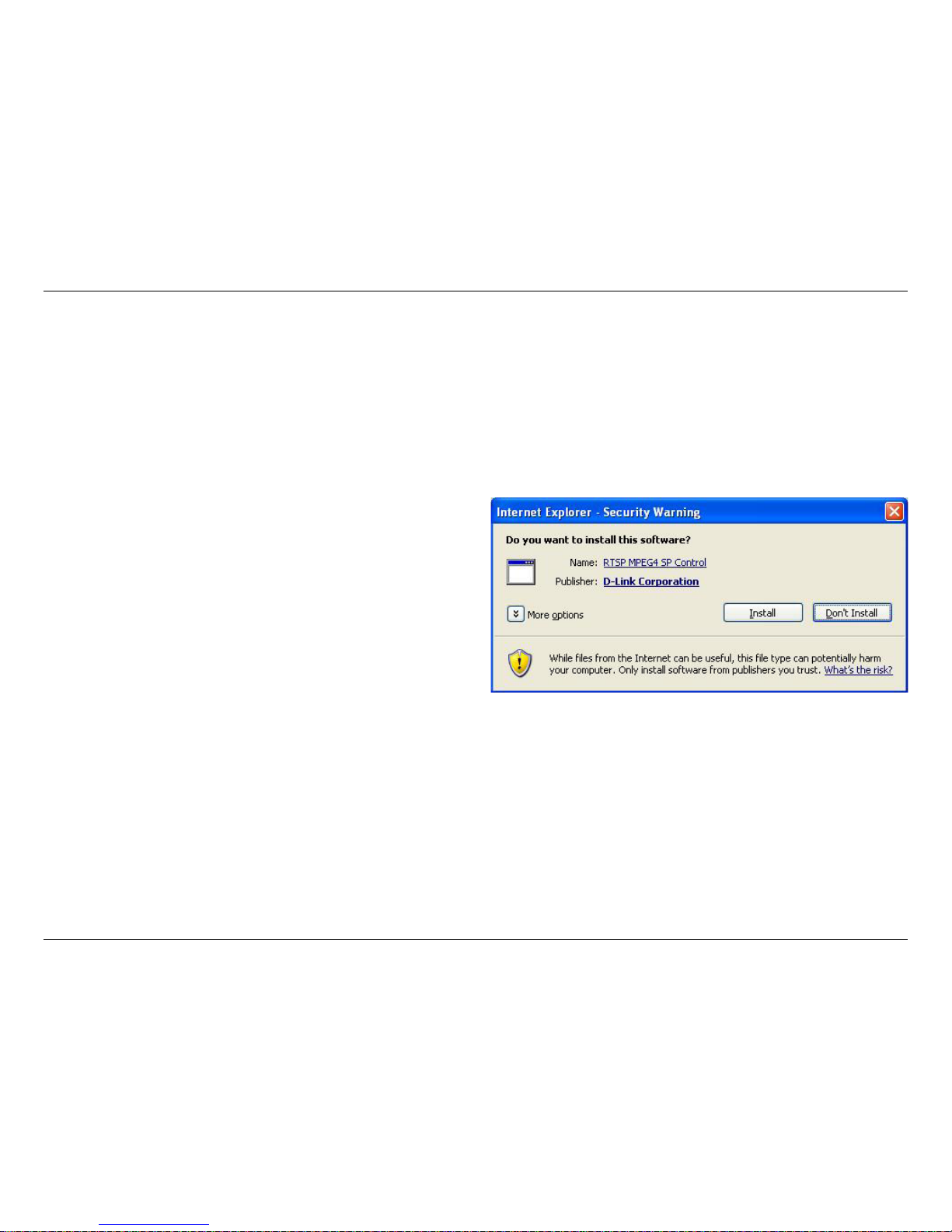

Using the DCS-2120 with an Internet Browser...... 19

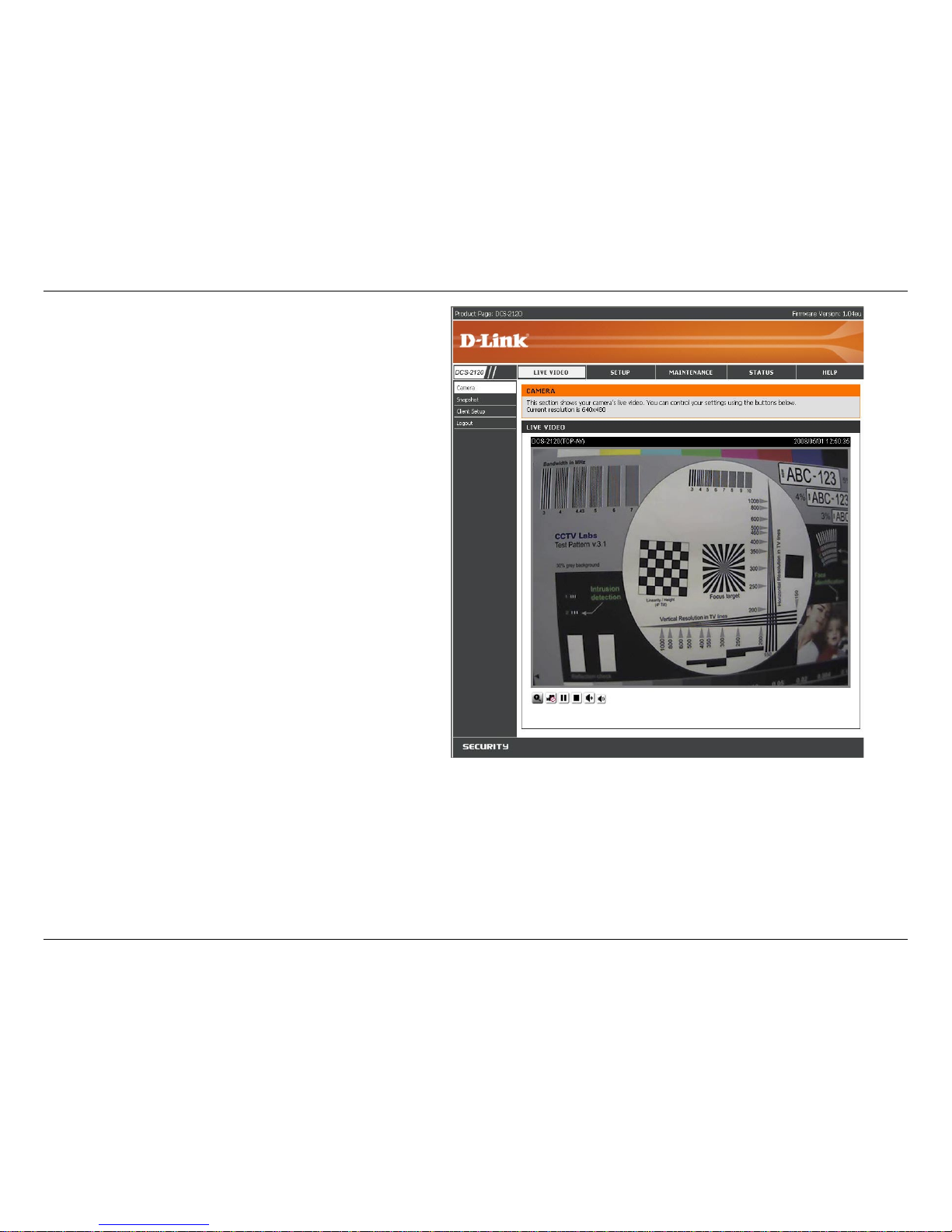

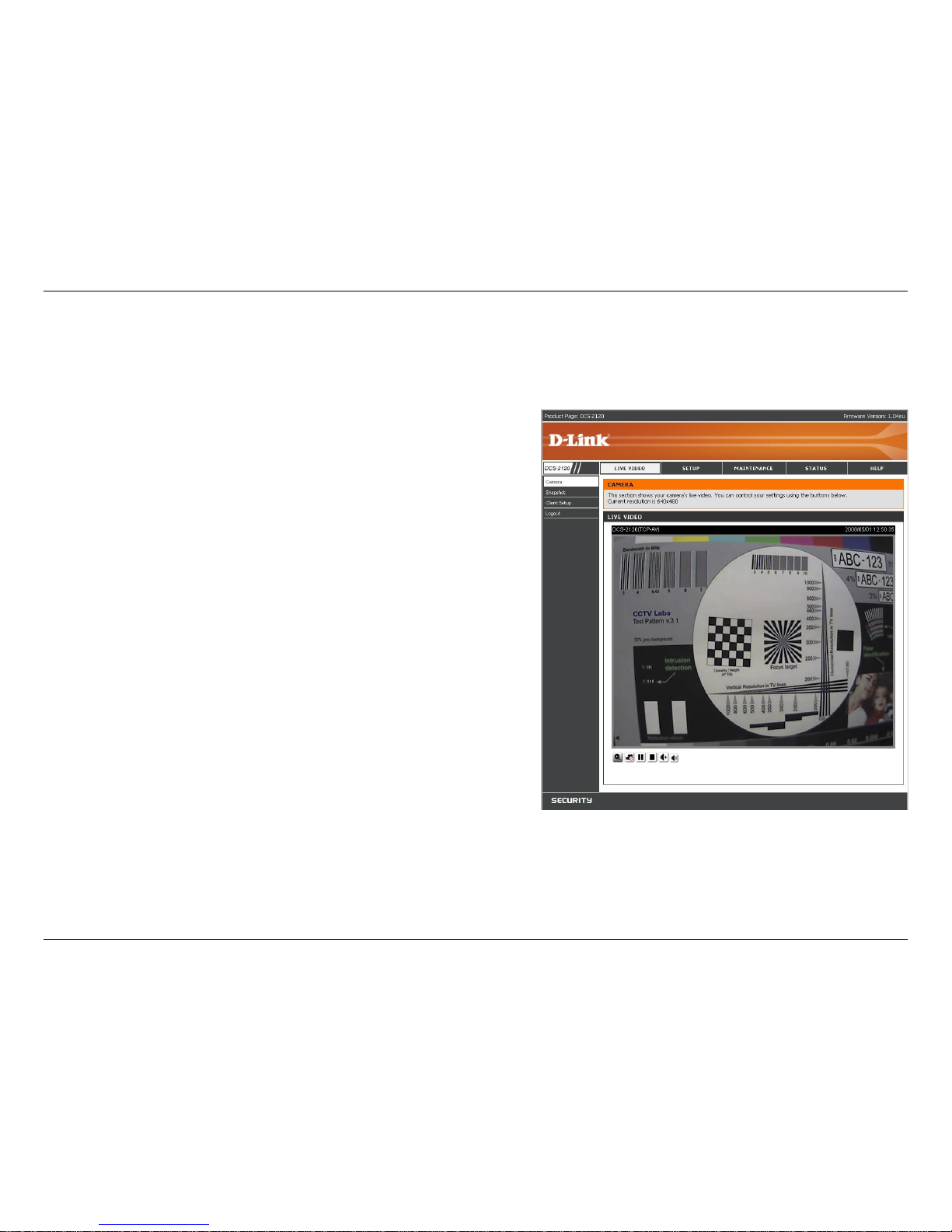

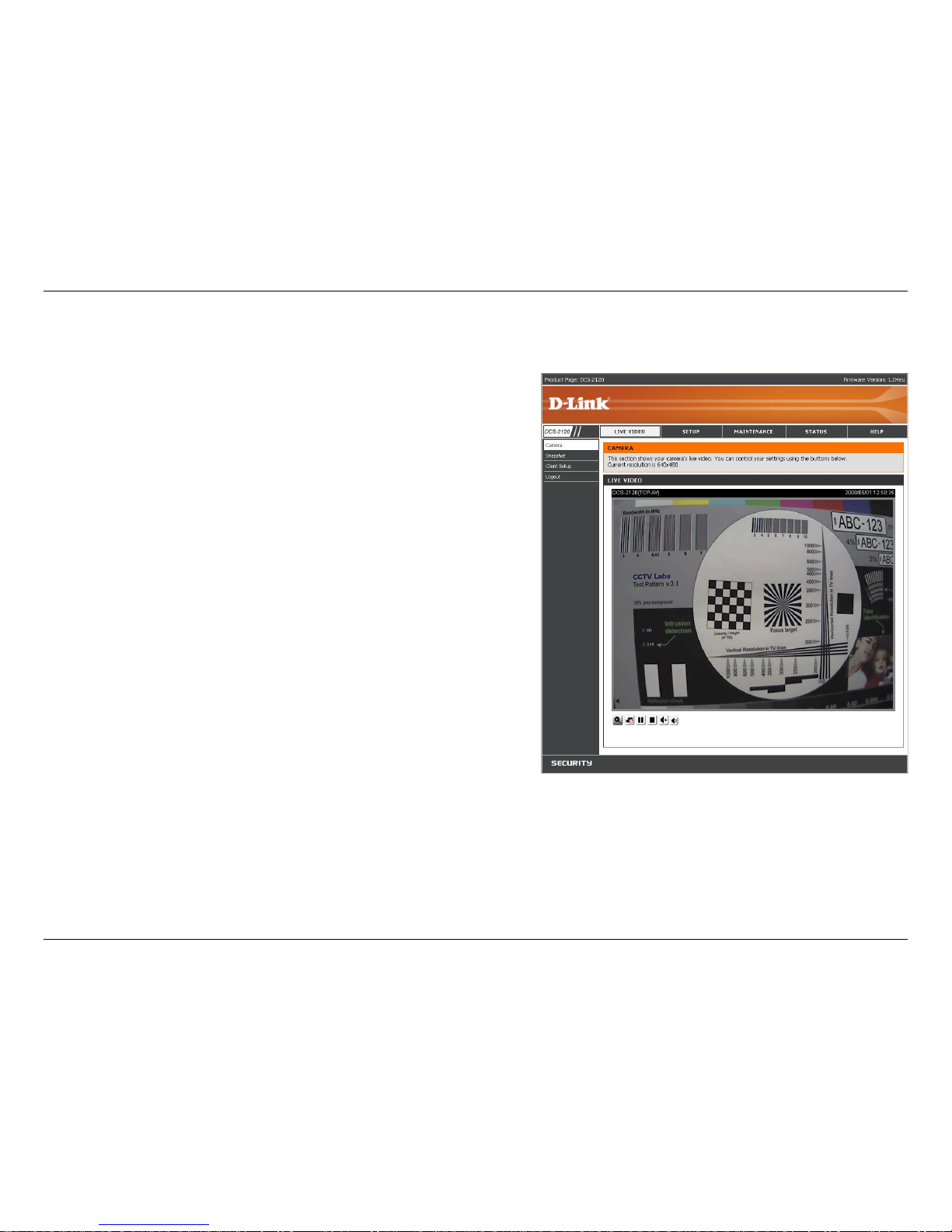

Home Page Screen .........................................20
Client Setup ..................................................... 21
Setup ...............................................................22
Wizard..............................................................23
Network Setup ................................................. 24
Wireless Setup................................................. 26
Dynamic DNS .................................................. 28
Image Setup .................................................... 29
Audio and Video ..............................................30
Mail and FTP ...................................................32
Motion Detection.............................................. 34
Time and Date .................................................36
Schedule......................................................................37
Snapshot..........................................................38
Access List....................................................... 41
Maintenance................................................................ 42
Device Management.............................................. 42
Backup and Restore ..............................................44
Firmware Update ................................................... 45
Status ..........................................................................46
Device Info.............................................................46
Log......................................................................... 47
Help ....................................................................... 48
Record Snapshots to your FTP server with Motion
Detection .....................................................................49
Installing the Multicamera Managenent Software ....... 54
Using the Multicamera Management Software............ 59
Launcher................................................................59
Monitor Program.................................................... 63
Playback Program ....................................................... 95
Schedule Video Recording with Motion Detection .... 106

3D-Link DCS-2120 User Manual
Table of Contents
Wireless Security..................................................... 109
What is WEP? .....................................................109
What is WPA? .....................................................110
Setting Security ................................................... 111
Using & Conguring the DCS-2120 with a NAT Router112
Router Set-Up and Installation.......................116
Using & Conguring 3G Compatible Cell Phones ..... 119
Play from RealPlayer ..................................... 120
Play from PVPlayer........................................125
Troubleshooting ...................................................... 128
Wireless Basics .......................................................131
Wireless Modes ....................................................... 135
Networking Basics .................................................. 136
Check your IP Address........................................ 136
Statically Assign an IP Address........................... 137
Technical Specications......................................... 138

4D-Link DCS-2120 User Manual
Section 1 - Product Overview
• D-Link DCS-2120 Wireless Network camera with 3G Mobile Video Support
• CAT5 Ethernet Cable
• Power Adapter
• Antenna
• Manual and Software on CD
• Quick Install Guide
• Camera Stand
Note: Using a power supply with a different voltage than the one included with
your product will cause damage and void the warranty for this product.
If any of the above items are missing, please contact your reseller.
System Requirements
• Windows®2000 or XP
• At least 256MB of memory (512MB recommended)
• A wireless (802.11b or 802.11g) or Ethernet network
• Internet Explorer 6.x or higher Internet Web Browser
• VGA card resolution: 800x600 or above
• CPU: Pentium 4 1.3GHz or above processor (Pentium 4 2.4GHz processor or higher with 512MB
memory and a 32MB video card is required for multiple camera viewing and recording in IP surveillance
Product Overview
Package Contents

5D-Link DCS-2120 User Manual
Section 1 - Product Overview
Introduction
The D-Link SECURICAM Network DCS-2120 Wireless Network camera is a powerful surveillance system that connects
wirelessly to your 802.11b/g network. The DCS-2120 features enhanced 802.11b/g and connects wirelessly at a rate
of up to 54Mbps1(Megabits per second). The DCS-2120 differs from a conventional PC Camera because it is a
standalone system with a built-in CPU and Web server, providing a low-cost solution capable of solving demanding
security and home/ofce monitoring needs. Snapshot enables you to save images directly from a Web browser to a
local hard drive without installing any additional software. With 0.5 lux light sensitivity, the DCS-2120 is capable of
capturing video in rooms with minimal lighting. You can also zoom in with the DCS-2120’s 4x digital zoom2feature.
The DCS-2120 gives you the ability to monitor video and audio in your home/ofce using an Internet browser from any
where in the world! Simple installation procedures, along with the built-in Web-based interface offers easy integration
to your network environments.
Customers also have the ability to view live video streams from a compatible 3G cell phone. The live camera feed of
the D-Link Wireless Network camera can be pulled from the 3G cellular network by using a compatible cell phone with
a 3G video player3. From anywhere within the 3G service area, both consumers and small businesses are offered a
exible and convenient way to remotely monitor a home or ofce in real time.
Note: Use of audio or video equipment for recording the image or voice of a person without their knowledge and consent
is prohibited in certain states or jurisdictions. Nothing herein represents a warranty or representation that the D-Link
product provided herein is suitable for the end-user’s intended use under the applicable laws of his or her state. D-Link
disclaims any liability whatsoever for any end-user use of the D-Link product, which fails to comply with applicable
state, local, or federal laws.
1 Maximum wireless signal rate derived from IEEE Standard 802.11g specications. Actual data throughput will vary. Network conditions and environmental factors
lower actual data throughput rate.
2 4x digital zoom enlarges an image by magnifying the pixels in a selected portion of the image by 4 times.
3 3G phone must be equipped with 3G video playback such as RealPlayer®or PacketVideo for Symbian or PocketPC.

6D-Link DCS-2120 User Manual
Section 1 - Product Overview
• 3G Compatibility: Offers customers the ability to view live video streams from a compatible 3G cell phone. The
live camera feed can be pulled from a 3G cellular network by using a compatible cell phone with a 3G video
player.
• Supports a Variety of Platforms: Supporting TCP/IP networking, SMTP e-mail, HTTP and other Internet related
protocols, the DCS-2120 Network camera can be integrated into other Internet/Intranet applications because
of its standards-based features.
• Remote Snapshot Images: You can save snapshots directly from the Web browser to a local hard drive
without installing any additional software, making it convenient to instantly capture any moment from a remote
location.
• Low Light Recording and 4x Digital Zoom: The DCS-2120’s 0.5 lux light sensitivity allows you to capture video
in rooms with minimal lighting, making it ideal for use at night time. The camera also features 4x digital zoom
for closer viewing.
• Web Conguration: Using the Internet Explorer Web browser, administrators can congure and manage the
Network camera directly from its own Web page via the Intranet or the Internet. Up to 20 user names and
passwords are permitted, with privilege settings controlled by the administrator.
• Powerful Surveillance and Remote Monitoring Utility: The powerful IP surveillance software allows an administrator
to modify the Network camera settings from a remote site via the Intranet or the Internet. Administrators are
capable of monitoring live video feeds as well as recording video and taking snapshots.
• Broad Range of Applications: With today’s high-speed Internet, the Network camera provides the ideal solution
for live video images over the Intranet and Internet for remote monitoring. The DCS-2120 allows remote access
from an Internet Explorer Web browser for live image viewing with audio and allows the administrator to manage
and control the Network camera anywhere and any time. Apply the Network camera to monitor various objects
and places such as homes, ofces, banks, hospitals, child-care centers, amusement parks and other varieties of
industrial and public monitoring. The Network camera can also be used for intruder detection with its motion-detection
mode, capture still images and video images for archiving and many more applications. The wireless capability
enables you to place the camera where it is inconvenient to install network cables.
Features

7D-Link DCS-2120 User Manual
Section 1 - Product Overview

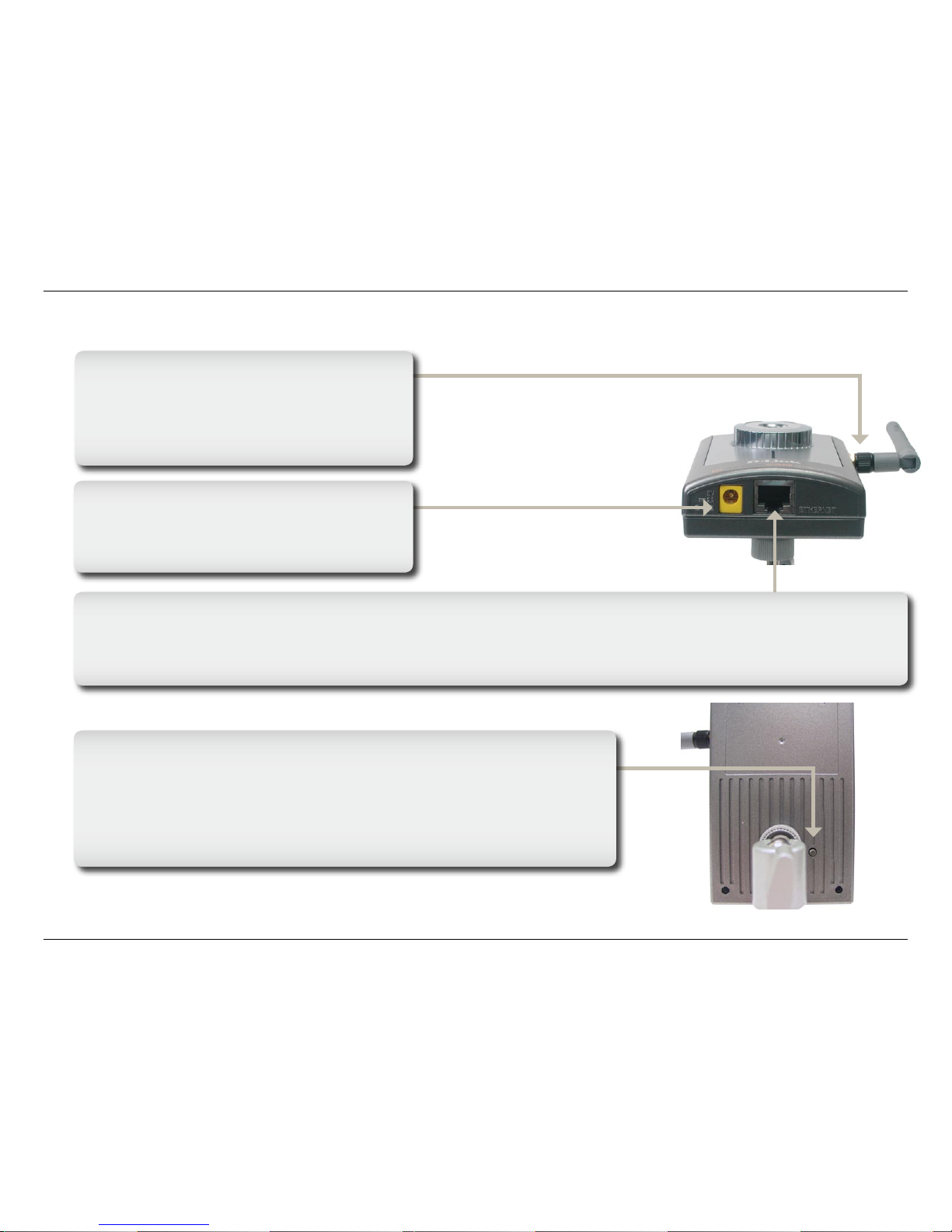

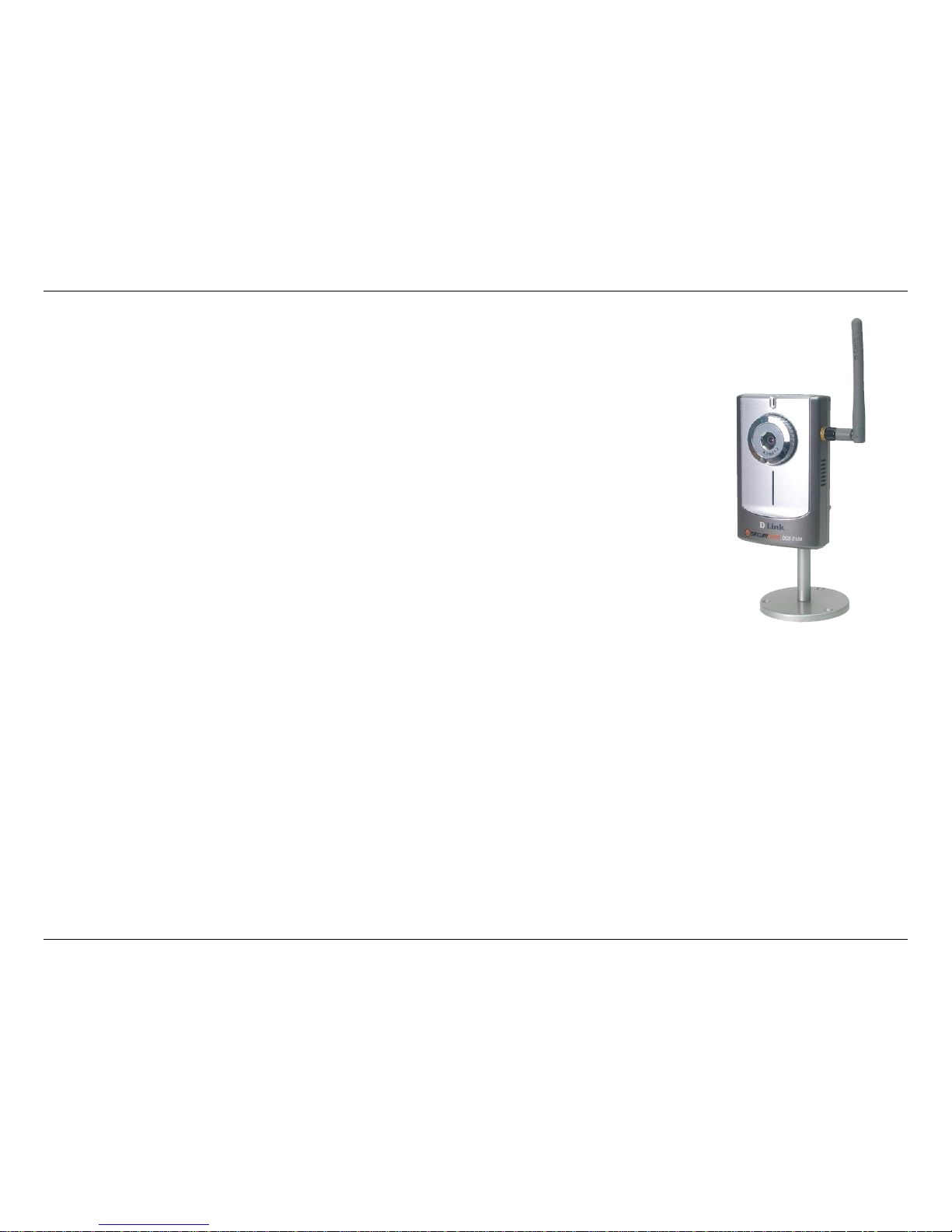

Hardware Overview
Antenna Connector
One antenna is included with the DCS-2120.
It is fastened onto the antenna connector on
the side panel to provide a connection with
a wireless network.
DC Power Connector
The DC Power input connector is labeled DC
5V with a single jack socket to supply power
to the DCS-2120.
Ethernet Cable Connector
The DCS-2120 features an RJ-45 connector for connections to 10Base-T Ethernet cabling or 100Base-TX
Fast Ethernet cabling. The port supports the NWay protocol, allowing the DCS-2120 to automatically detect or
negotiate the transmission speed of the network.
Reset Button
Reset will be initiated when the reset button is pressed once and Power
LED begins to ash. Factory Reset will be initiated when the reset button
is pressed continuously for 30 seconds. Release the reset button and the
Power LED will begin to ash indicating that the DCS-2120’s settings are
restored back to the factory settings.

8D-Link DCS-2120 User Manual
Section 1 - Product Overview

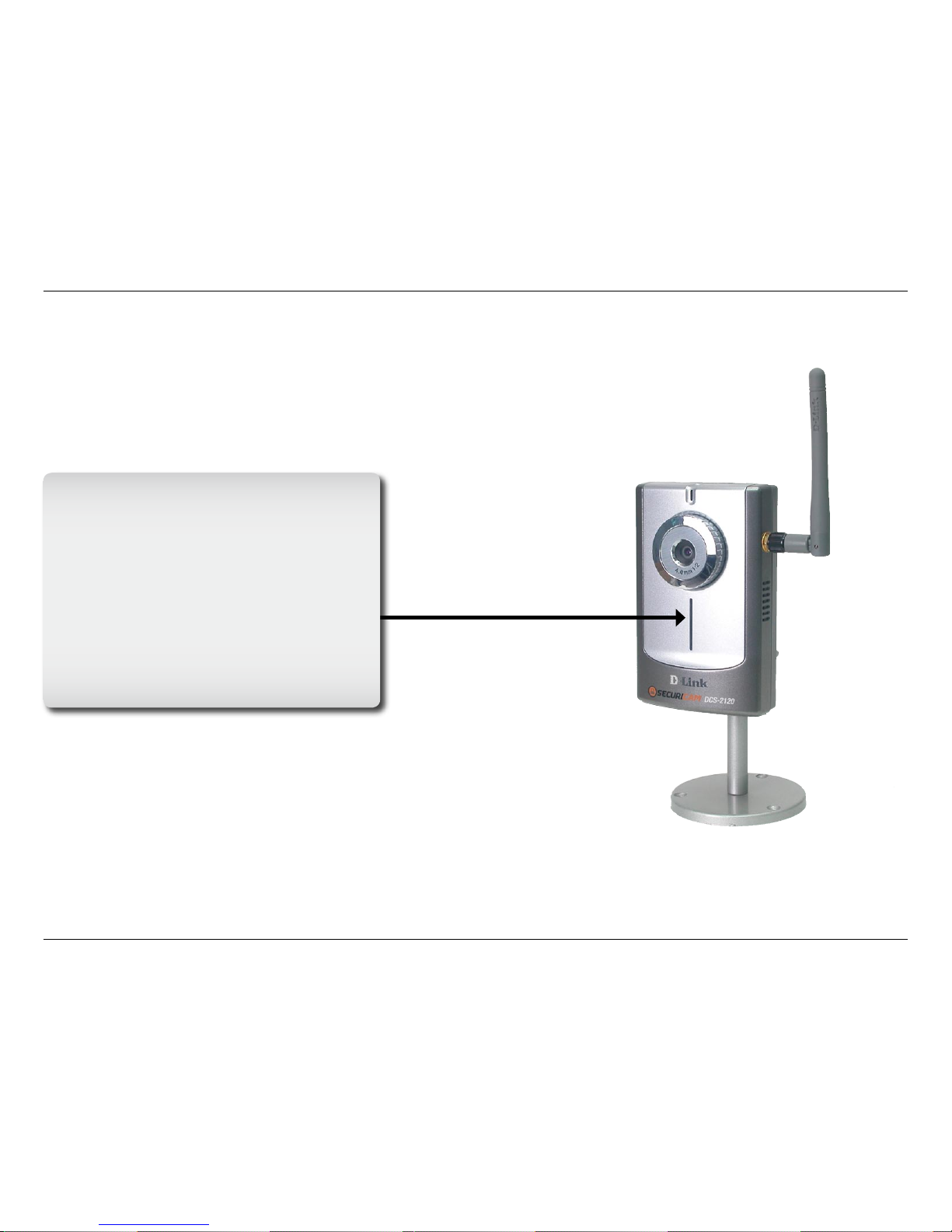

Power LED
The power LED is positioned in the center of
the camera below the Network camera Lens.
As soon as the power adapter is connected
to the camera, the power LED will ash red
and blue several times, indicating that the
DCS-2120 is conducting a self-test. Upon
passing the self-test, the LED will turn blue,
indicating a good connection to an Ethernet
or wireless connection. A red LED indicates
that no connection has been made.
LEDs

9D-Link DCS-2120 User Manual
Section 1 - Product Overview

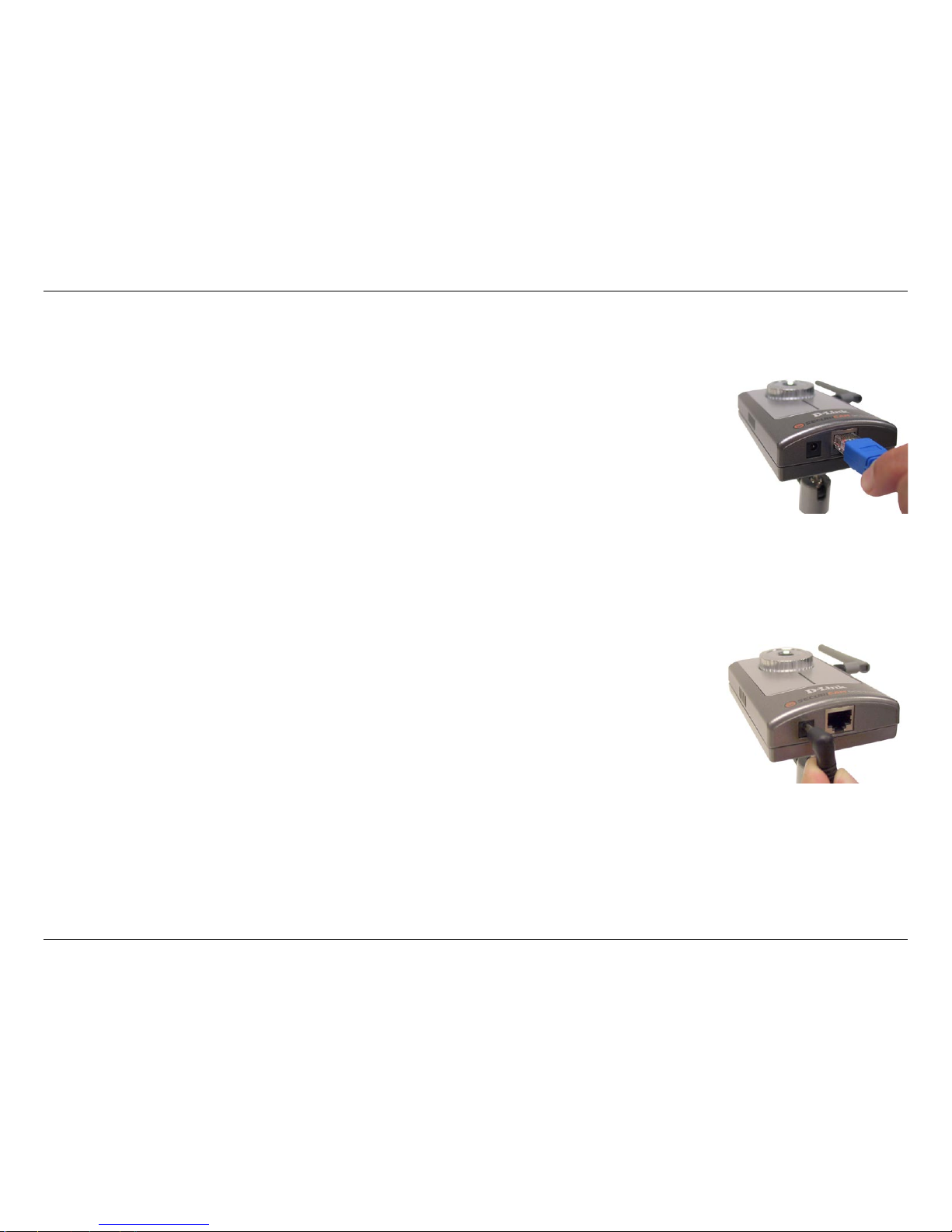

Hardware Installation
Connect an Ethernet cable to the Ethernet connector located on the Network
camera’s bottom panel and attach it to the network.
Note: It is required that an Ethernet cable is used during initial setup. Once your
wireless configuration is set, you may disconnect the Ethernet cable.
Attach the external power supply to the DC power input connector located on the
Network camera’s bottom panel (labeled 5VDC) and connect it to your wall outlet.
When you have a proper connection, the LED will light up.
The LED will ash red and blue when you rst power on the unit. The LED will not
turn blue until the camera has received a network IP address.

10D-Link DCS-2120 User Manual
Section 2 - Installation
Wireless Installation Considerations
The D-Link wireless network camera lets you access your network using a wireless connection from virtually anywhere
within the operating range of your wireless network. Keep in mind, however, that the number, thickness and location of
walls, ceilings, or other objects that the wireless signals must pass through, may limit the range. Typical ranges vary
depending on the types of materials and background RF (radio frequency) noise in your home or business. The key
to maximizing wireless range is to follow these basic guidelines:
1. Keep the number of walls and ceilings between the D-Link adapter and other network devices to a
minimum - each wall or ceiling can reduce your adapter’s range from 3-90 feet (1-30 meters.) Position
your devices so that the number of walls or ceilings is minimized.
2. Be aware of the direct line between network devices. A wall that is 1.5 feet thick (.5 meters), at a
45-degree angle appears to be almost 3 feet (1 meter) thick. At a 2-degree angle it looks over 42 feet
(14 meters) thick! Position devices so that the signal will travel straight through a wall or ceiling (instead
of at an angle) for better reception.
3. Building Materials make a difference. A solid metal door or aluminum studs may have a negative effect on
range. Try to position access points, wireless routers, and computers so that the signal passes through
drywall or open doorways. Materials and objects such as glass, steel, metal, walls with insulation, water
(sh tanks), mirrors, le cabinets, brick, and concrete will degrade your wireless signal.
4. Keep your product away (at least 3-6 feet or 1-2 meters) from electrical devices or appliances that
generate RF noise.
5. If you are using 2.4GHz cordless phones or X-10 (wireless products such as ceiling fans, lights, and
home security systems), your wireless connection may degrade dramatically or drop completely. Make
sure your 2.4GHz phone base is as far away from your wireless devices as possible. The base transmits
a signal even if the phone in not in use.

11D-Link DCS-2120 User Manual
Section 3 - Configuration
D-Link Click’n Conenct (DCC)
DCC will show the MAC address and IP address of your DCS-2120. If you have a DHCP* server on your network,
there will be a valid IP Address displayed at the end of DCC process. You can begin to use the IP camera
now.
*A DHCP server is a device that supplies IP Addresses to its
clients that are on the same network.
Configuration
Turn on the computer and Insert the D-Link DCS-2120 Driver CD in the CD-ROM drive. The step-by-step instructions
will help you to search and setup your IP camera smoothly and quickly.
If the CD Autorun function does not automatically start on your computer, click Windows®Start > Run. In the Run
command box type “D:\DCS5220.exe”, where D: represents the drive letter of your CD-ROM. If it does start, proceed
to the next screen.
Click Start

12D-Link DCS-2120 User Manual
Section 3 - Configuration
UPnP (Universal Plug and Play) is a networking architecture that provides
compatibility among networking equipment, software, and peripherals. The
DCS-2120 is an UPnP enabled Network camera. If your operating system is
UPnP enabled, the device will be easier to congure. If you do not want to use
the UPnP functionality, it can be disabled by unchecking the Enabled UPnP
checkbox in the Advanced > Network page (see page 32). Use the following
steps to enable UPnP settings only if you are running Windows®XP. If you are
running Windows®98/2000, UPnP is not available.
Go to Start > Settings. Click Control Panel.
Enabling UPnP for Windows®XP
Click Add or Remove Programs

13D-Link DCS-2120 User Manual
Section 3 - Configuration
The following screen will appear.
Select Networking Services.
Select Universal Plug and Play.
Click Details
Click Add/Remove Windows Components
Click OK

14D-Link DCS-2120 User Manual
Section 3 - Configuration
Please wait while Setup congures the components.
Click Next
Click Finish

15D-Link DCS-2120 User Manual
Section 3 - Configuration
To view your DCS-2120 Network camera in an Internet browser, go
to your Desktop and click My Network Places.
Click DCS-2120 (192.168.0.120).

16D-Link DCS-2120 User Manual
Section 3 - Configuration
After you click on the DCS-2120 icon, your Internet
browser will automatically be opened to the IP Address of
the DCS-2120, in this example it is: http://192.168.0.120.
Your DCS-2120 may have a different IP Address.

17D-Link DCS-2120 User Manual
Section 3 - Configuration
The window in the center of your browser is the camera image window. You should now see a video image and hear the
audio over your computer speakers from the DCS-2120. If you are having problems, please consult the Troubleshooting
section of this manual (page 128).
Open your Internet browser and type in the IP address of the DCS-2120. In this example, the address is: http://192.168.0.120
(your DCS-2120 may have a different IP address based on what you used in the DCC program).
Testing the DCS-2120

18D-Link DCS-2120 User Manual
Section 3 - Configuration
After all the router settings have been entered correctly, a PC user inside or outside your network will have access to
the camera through the Internet Explorer Web browser. To access the camera from the Internet, type the IP Address
of the router given to you by your ISP, followed by a colon, and the port number that you gave your camera (e.g.,
http://70.42.15.9:83). It is not necessary to enter the colon and port number if you are using the default Web server
port 80. To access from a computer on your local (home) network, simply enter the local IP Address of the Camera
followed by a colon and the port number (e.g., 192.168.0.120:83).
Viewing Your DCS-2120
If you are following this manual in the order it is presented,
you should now have an operating DCS-2120 Network camera
congured with the Installer program. This section of the manual
will cover how to use the Network camera in two methods:
• Using the DCS-2120 with an Internet browser and accessing
the screens to control and monitor the camera.
• Using IP surveillance software with the DCS-2120.

19D-Link DCS-2120 User Manual
Section 3 - Configuration
Open your Internet Explorer Web browser and enter the IP address for your Network camera (http://192.168.0.120).
In the example, this address is 192.168.0.120. Your address may differ.
If a window appears asking to install a Verisign certicate for authentication click Yes. This allows the proprietary
MPEG4 video stream to be recognized by Internet Explorer.
Using the DCS-2120 with an Internet Browser

20D-Link DCS-2120 User Manual
Section 3 - Configuration
Click on the Snapshot button to capture a snapshot
image. The image will pop up in a new window. This
image can be saved to your local hard drive.
Click on the Client Setup button to change settings
related to the camera connection.
Click on the Logout button to logout from the camera
server and close the browser.
The image from the DCS-2120 should be visible from the device’s Home page on your web browser.
Home Page Screen
Snapshot:
Client Setup:
Logout:
