D-Link DES-1005P User manual

2D-Link DES-1005P Quick Install Guide
Package Contents
If any of the above items are missing, please contact your reseller.
• DES-1005P 5-Port Desktop Switch with 1 PoE Port
• Power Adapter
• Four (4) Rubber Feet
The setup of the Switch can be performed using the following steps:
• Visually inspect the power jack and make sure that it is fully secured to the
power adapter.
• Do not cover the ventilation holes on the sides of the Switch, and make
sure there is adequate ventilation around it.
• Do not place heavy objects on the switch.
• Place the Switch in a cool and dry environment.
Before You Begin
Connecting the Switch
Step 1
Plug the supplied power adapter into the Switch and the other end into
a power outlet, power strip, or surge protector (recommended). Verify the
Power indicator is lit on the Switch.
Step 2
Connect one end of an Ethernet cable into the device you want to connect
to the Switch and the other end into one of the Ethernet ports on the Switch.
Check the Link lights (LEDs) on both the Switch and the device to verify that
the cable is good and that there is a valid connection. Port 1 can be used to
connect to Power over Ethernet (PoE) devices.
Introduction
The D-Link DES-1005P is an unmanaged PoE switch capable of providing
power to a Power over Ethernet (PoE) device such as a network camera or
wireless access point. The DES-1005P has ve 10/100Mbps ports with 1 port
capable of PoE (Port 1), which is useful for home and small oce businesses
who have limited budgets or compact space requirements

3 D-Link DES-1005P Quick Install Guide

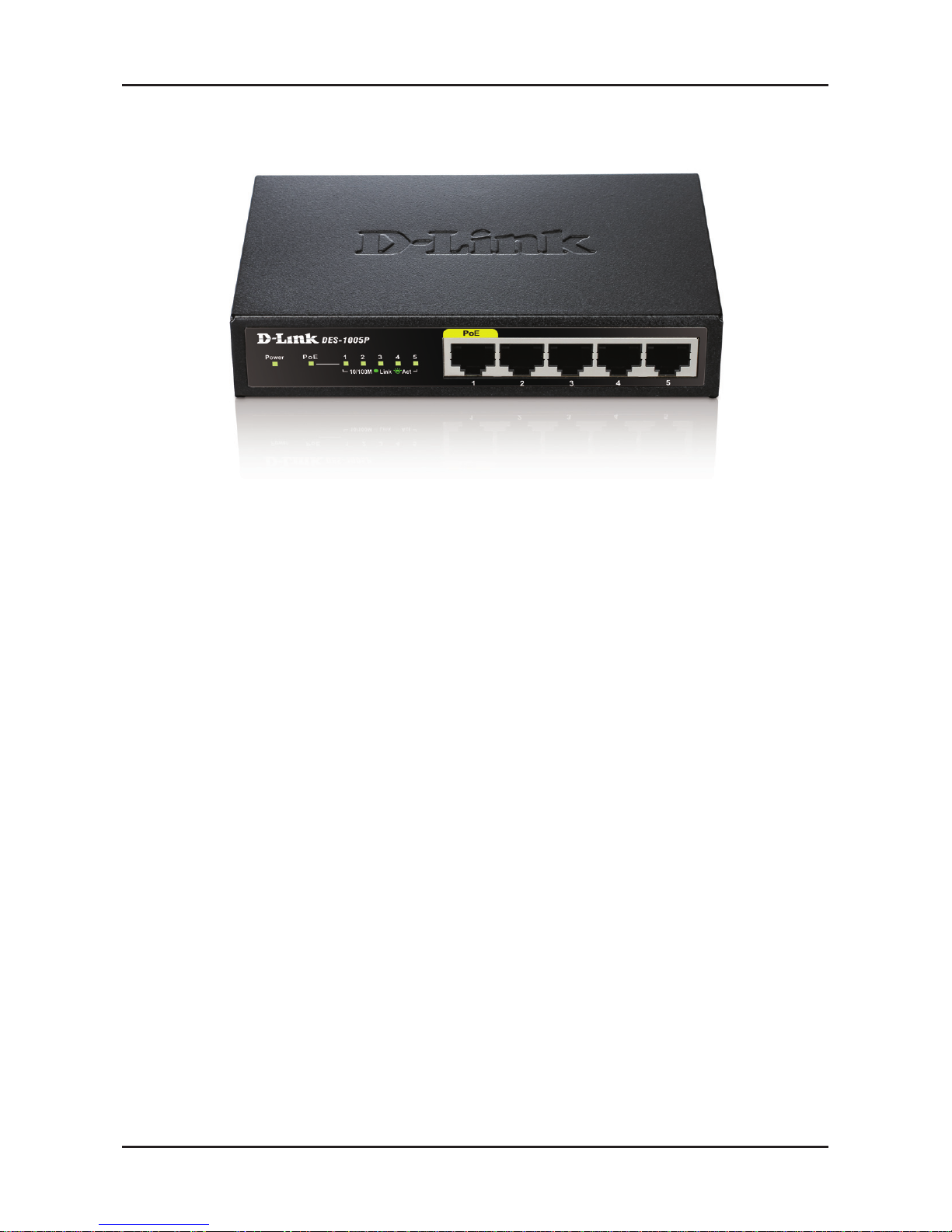

Power Indicator - This green indicator light is on when the Switch is receiving
power; otherwise, it is o.
Link/Act/Speed (1-5) - This LED indicator light is green when the port is
successfully connected to a 10/100Mbps device and will blink as data is
transmitted or received.
PoE Port (1) - This LED indicator light is solid green when the port is
successfully connected to a powered device and is powering the device
properly.
If the LED is o, there is no connection to a powered device (that requires power).
LEDs

4D-Link DES-1005P Quick Install Guide
Version 1.0
September 23, 2011
Copyright ©2011 All rights reserved. D-Link and the D-Link logo are registered trademarks of
D-Link Corporation or its subsidiaries. Other trademarks are the property of their respective
owners. Product specications, size and shape are subject to change without notice, and actual
product appearance may dier from that depicted on the packaging. Visit dlink.com (US) or
dlink.ca (Canada) for more details.
Technical Support
Having trouble installing your new product? D-Link’s website contains the
latest user documentation and software updates for D-Link products. U.S. and
Canadian customers can contact D-Link Technical Support through our website
or by phone.
United States
Telephone: [phone]
Internet: http://support.dlink.com
Canada
Telephone: [phone]
Internet: http://support.dlink.ca
D-Link Green Technology implements special power-saving features that detect
link status and adjust power usage accordingly. If there is no link on a port (when
there is no connection or the device connected is turned o) the port(s) will
enter a “sleep mode” which will drastically reduce the amount of power used.
This product is IEEE 802.3az Energy Eciency Ethernet compliant. The IEEE
802.3az EEE standard denes mechanisms and protocols intended to reduce
the energy consumption of network links during periods of low utilization, by
transitioning interfaces into a low-power state without interrupting the network
connection. Both connected devices must support 802.3az EEE for power saving
support. If the connected device does not support 802.3az EEE, the switch will
default to D-Link’s Green Technology of power saving.
D-Link Green Technology
