DES-1008D/ DSS-8+
8-Port 10/100Mbps Switch
Manual
RECYCLABLE
(Sep., 2006)
Rev.1.04
6DES1008D.07G

ii
TABLE OF CONTENTS
ABOUT THIS GUIDE................................................................ 1
PURPOSE.............................................................................................1
CONVENTIONS......................................................................................1
INTRODUCTION....................................................................... 2
FAST ETHERNET TECHNOLOGY.............................................................2
SWITCHING TECHNOLOGY.....................................................................2
FEATURES ...........................................................................................4
UNPACKING AND SETUP....................................................... 6
UNPACKING..........................................................................................6
SETUP .................................................................................................6
IDENTIFYING EXTERNAL COMPONENTS ............................ 7
FRONT PANEL......................................................................................7
LED INDICATORS .................................................................................7
REAR PANEL........................................................................................8
CONNECTING THE DES-1008D/ DSS-8+............................... 9
COMPUTER TO DES-1008D/ DSS-8+...................................................9
HUB TO DES-1008D/ DSS-8+.............................................................9
DES-1008D/ DSS-8+ TO OTHER DEVICES............................................9
PORT SPEED &DUPLEX MODE ...........................................................10

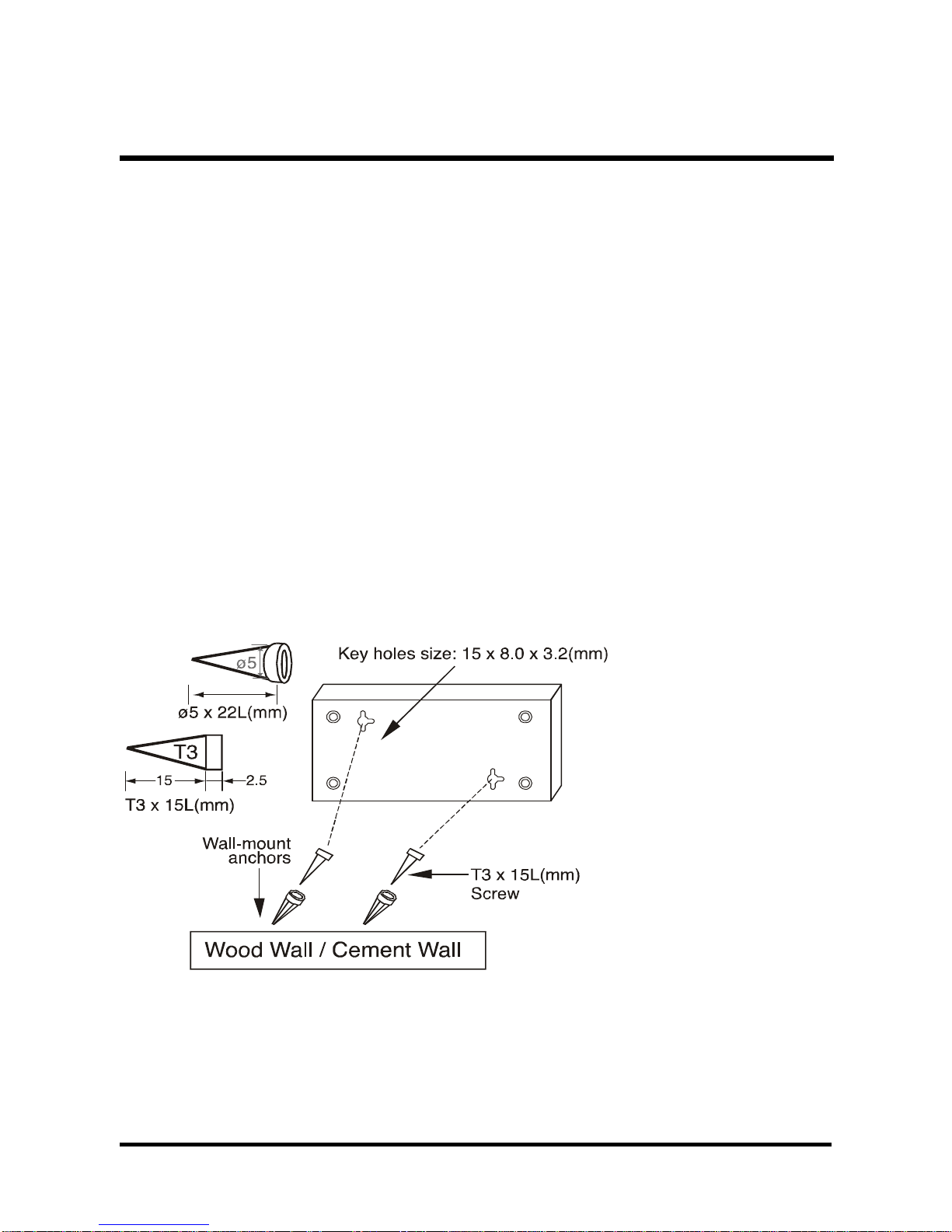

MOUNTING THE SWITCH ON A WALL................................ 11
TECHNICAL SPECIFICATIONS ............................................ 12

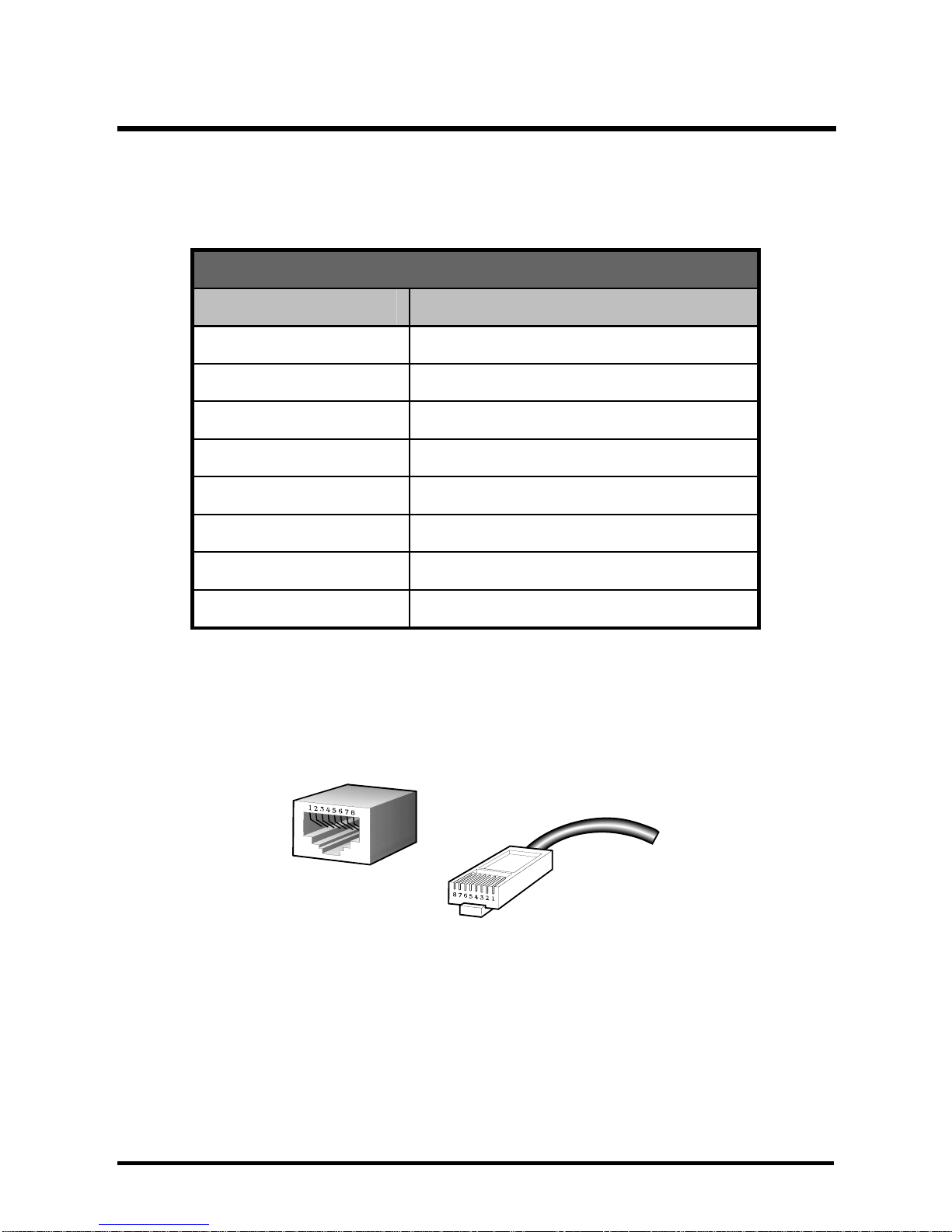

RJ-45 PIN SPECIFICATION................................................... 14

1
ABOUT THIS GUIDE
Congratulations on your purchase of the DES-1008D/ DSS-8+
Switch. This device integrates 100Mbps Fast Ethernet and 10Mbps
Ethernet network capabilities into one high-performance, easy-to-
use solution.
Purpose
This manual will familiarize you with the DES-1008D/ DSS-8+
Switch and guide you through the installation process.
Conventions
For simplicity, this documentation uses the term “Switch” (first letter
upper case) to refer to the DES-1008D/ DSS-8+ Ethernet Switch,
and “switch” (first letter lower case) to refer to other Ethernet
switches.

2
INTRODUCTION
Fast Ethernet Technology
The growing importance of LANs and the increasing complexity of
desktop computing applications are fueling the need for high
performance networks. 100BASE-T (Fast Ethernet) provides a cost-
effective and high-performance solution for small workgroups,
SMBs (Small to Medium Businesses), and any network supporting
bandwidth-intensive applications. Fast Ethernet technology
operates at 10 times the speed of traditional Ethernet, offering
maximum performance and enhanced capability for existing
Ethernet-based networks.
100Mbps Fast Ethernet is a standard specified by the IEEE 802.3
LAN committee. It is an extension of the 10Mbps Ethernet standard
with the ability to transmit and receive data at 100Mbps, while
maintaining the CSMA/CD Ethernet protocol. Since the 100Mbps
Fast Ethernet is compatible with all other 10Mbps Ethernet
environments, it provides a straightforward upgrade path and takes
advantage of the existing investment in hardware, software, and
personnel training.
Switching Technology
Switching is a cost-effective way of increasing the total network
capacity available to users on a LAN. If an Ethernet network begins
to display symptoms of congestion, low throughput, slow response
times, and high rates of collision, installing a switch to a network
can preserve much or all of the existing network's cabling and
workstation interface card infrastructure, while still greatly
enhancing the throughput for users. A switch is a viable solution
even if demanding applications, such as multimedia production and
video conferencing, are on the horizon. The most promising
techniques, as well as the best return on investment, could well
consist of installing the right mixture of Ethernet switches.

3
A switch increases capacity and decreases network loading by
dividing a local area network into different LAN segments. Dividing
a LAN into multiple segments is one of the most common ways of
increasing available bandwidth. If segmented correctly, most
network traffic will remain within a single segment, enjoying the full-
line speed bandwidth of that segment.
Switches provide full-line speed and dedicated bandwidth for all
connections. This is in contrast to hubs, which use the traditional
shared networking topology, where the connected nodes contend
for the same network bandwidth. When two switching nodes are
communicating, they are connected with a dedicated channel
between them, so there is no contention for network bandwidth with
other nodes. As a result, the switch reduces considerably, the
likelihood of traffic congestion.
For Ethernet networks, a switch is an effective way of eliminating
the problem of chaining hubs beyond the “two-repeater limit.” A
switch can be used to split parts of the network into different
collision domains, making it possible to expand your Ethernet
network beyond the 205-meter network diameter limit for 100BASE-
TX networks. Switches supporting both 10Mbps Ethernet and
100Mbps Fast Ethernet are also ideal for bridging between existing
10Mbps networks and newer 100Mbps networks.
Switching LAN technology is a marked improvement over the
previous generation of network hubs and bridges, which were
characterized by higher latencies. Routers have also been used to
segment local area networks, but the cost of a router, the setup and
maintenance required, make routers relatively impractical. Today
switches are an ideal solution for most kinds of local area network
congestion problems.

4
Features
The DES-1008D/ DSS-8+ is a high performance switch designed
specifically for environments where traffic on the network and the
number of users increase continuously.
The DES-1008D/ DSS-8+, with its small, compact size, was
specifically designed for small to mid-sized workgroups. The DES-
1008D/ DSS-8+ can be installed where space is limited; moreover,
it provides immediate access to a rapidly growing network through
a wide range of user-reliable functions.
The DES-1008D/ DSS-8+ is ideal for deployment with multiple high-
speed servers for 10Mbps or 100Mbps shared-bandwidth
workgroups. With the highest bandwidth at 200Mbps (100Mbps full-
duplex mode), any port can provide workstations with a congestion-
free data pipe for simultaneous access to the server.
The DES-1008D/ DSS-8+ is scalable, allowing two or more DES-
1008D/ DSS-8+s to be cascaded together. Since all ports support
200Mbps, any one of its eight ports may be used to cascade to an
additional switch to open a Full-Duplex Fast Ethernet pipe.
The DES-1008D/ DSS-8+ is the perfect choice for a department or
office planning to upgrade to Fast Ethernet. The DES-1008D/ DSS-
8+ can accommodate 10Mbps or 100Mbps devices, providing a
flexible solution for existing (10Mbps) Ethernet workgroups.
The DES-1008D/ DSS-8+ combines dynamic memory allocation
with store-and-forward switching to ensure that the buffer is
effectively allocated for each port; and it controls the data flow
between the transmit and receive nodes to guarantee against
possible packet loss.
The DES-1008D/ DSS-8+ is an unmanaged 10/100Mbps Fast
Ethernet switch that offers solutions for the accelerating bandwidth
needs of small Ethernet workgroups.
Other key features include:
Store-and-forward switching scheme capability. As the result of

5
complete frame checking and error frame filtering, this scheme
prevents error packages from transmitting among segments.
Auto-MDI/MDI-X. Detects the type of cable you are using,
Crossover or Straight-Through, and automatically adjusts per
port, allowing you to also use any port as an uplink port—the
choice is yours. No more worries about whether you are using
the right cable type or not. Auto MDI/MDI-X cable-type
detection gives you true ‘plug and play’ capability.
Nway Auto-negotiation for any port. This allows for auto-
sensing of speed (10/100Mbps) and duplex mode
(10/20/100/200Mbps), providing an automatic and flexible
solution for the network.
Flow control for any port. This minimizes dropped packets by
sending out collision signals when the port’s receiving buffer is
full. Note that flow control is only available in half duplex mode.
Data filtering rate eliminates all error packets, runts, etc., per
port at wire-speed for 100Mbps operation and 10Mbps
operation.

6
UNPACKING AND SETUP
Unpacking
Open the box and carefully unpack it. The box should contain the
following items:
1. One DES-1008D/ DSS-8+: 8-Port 10/100Mbps Ethernet
Switch
2. One External Power Adapter
3. Four Rubber Feet
4. Nylon screw anchors and T3 x 15L screws
5. This Manual
6. Quick Installation Guide
If any item is missing or damaged, please contact your local reseller
for a replacement.
Setup
The setup of the DES-1008D/ DSS-8+ can be performed using the
following steps:
The power outlet should be within 1.82 meters (6 feet) of the
Switch.
Visually inspect the DC power jack and make sure that it is fully
secured to the power adapter.
Do not cover the ventilation holes on the sides of the Switch,
and make sure there is adequate ventilation around it.
Do not place heavy objects on the switch.

7
IDENTIFYING EXTERNAL COMPONENTS
Front Panel

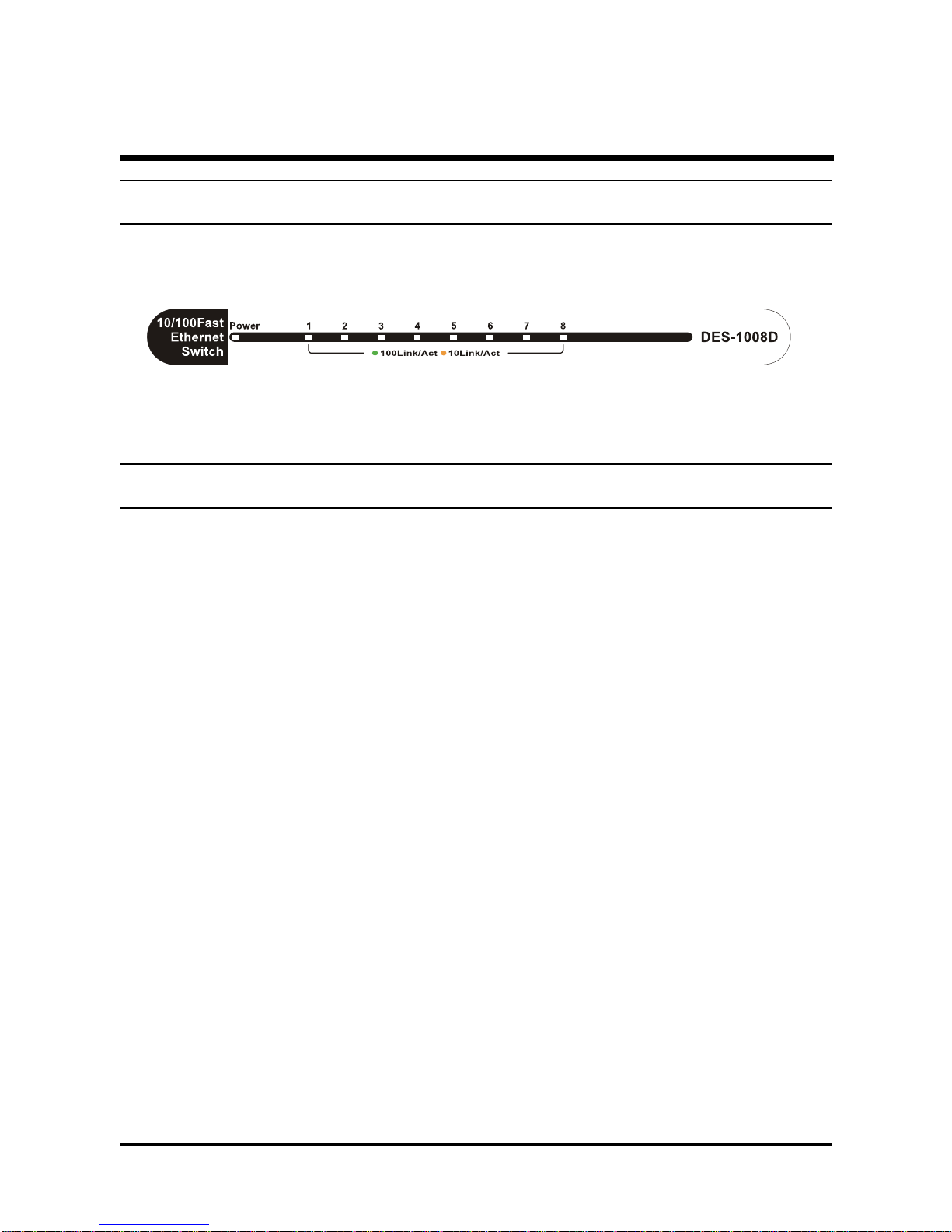

The figure below shows the front panel of the DES-1008D/ DSS-8+.
Front Panel LED Indicators
LED Indicators
Power Indicator
This green indicator light is on when the DES-1008D/ DSS-8+
is receiving power; otherwise, it is off.
100Mbps Link/Activity, 10Mbps Link/Activity Indicator
(100 Link/Act (green), 10 Link/Act (amber))
This LED indicator light is green when the port is connected to
a 100Mbps Fast Ethernet station. The green indicator blinks
as Fast Ethernet data is transmitted or received. The indicator
light is amber when the port is connected to a 10Mbps Ethernet
station, or other network device. The amber indicator blinks as
Ethernet data is transmitted or received.

8

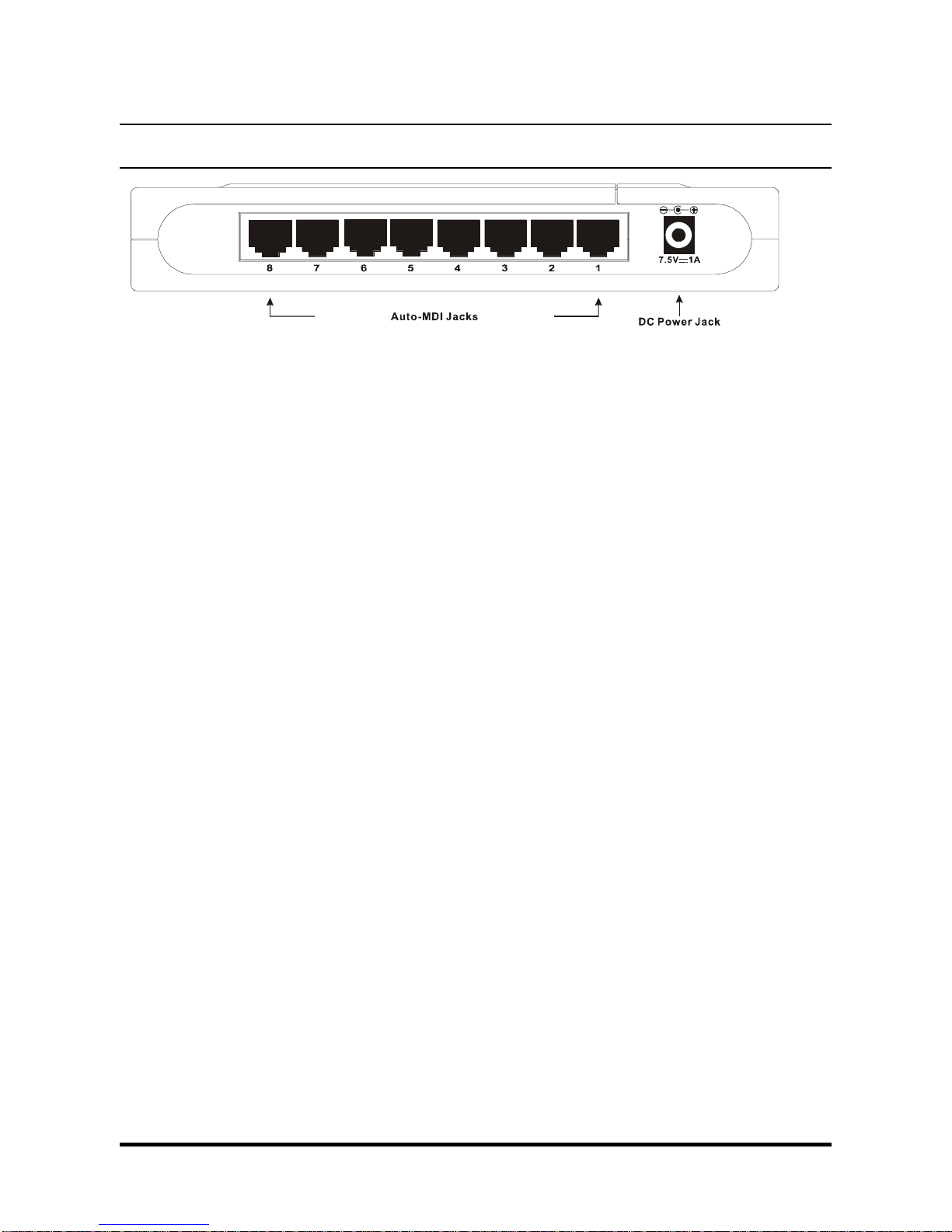

Rear Panel
Auto MDI/MDI-X Ports:
All ports support automatic MDI/MDI-X cable-type detection, which
eliminates the issue of choosing the right cable (Crossover or
Straight-Through). The Auto MDI/MDI-X function makes it simple to
connect to the Switch using either a Crossover or Straight-Through
CAT5 cable into any port—the choice is yours.
DC Power Jack:
Power is supplied through an external DC power adapter. Check
the technical specification section for information about the DC
power input voltage.
Since the DES-1008D/ DSS-8+ does not include a power button,
plugging its power adapter into a power outlet will immediately
power it on.
DES-1008D/ DSS-8+ 10/100Mbps Fast Ethernet
Switch

9
CONNECTING THE DES-1008D/ DSS-8+
Computer to DES-1008D/ DSS-8+
A computer can be connected to the DES-1008D/ DSS-8+ via a
two-pair Category 3, 4, 5 UTP/STP Straight-Through or Crossover
cable. A computer equipped with a RJ-45 10/100Mbps port can be
connected to any of the eight DES-1008D/ DSS-8+ ports.
The LED indicators for the computer connection depend on the
capability of the computer’s Ethernet card. If the LED indicators are
not lit after making a proper connection, check the computer’s
Ethernet card, the cable, or the DES-1008D/ DSS-8+’s conditions
and connections.
Hub to DES-1008D/ DSS-8+
A hub (10BASE-T or 100BASE-TX) can be connected to the DES-
1008D/ DSS-8+ via a two-pair Category 3, 4, or 5 UTP/STP
Straight-Through or Crossover cable. For 100Mbps operation a
Category 5 cable must be used. The connection is accomplished
from any port of the hub to any port of the DES-1008D/ DSS-8+.
DES-1008D/ DSS-8+ to other devices
The DES-1008D/ DSS-8+ can be connected to another switch or
other devices (routers, bridges, etc.) via a two-pair Category 3, 4, 5
UTP/STP Straight-Through or Crossover cable. A Category 5
cable must be used for 100Mbps operation. The connection can be
accomplished from any (MDI-X) port on the DES-1008D/ DSS-8+ to
any of the 10Mbps or 100Mbps (MDI-X) ports on another switch or
other devices.

10
Port Speed & Duplex Mode
After plugging the selected cable to a specific port, the system uses
auto-negotiation to determine the transmission mode, auto-
detecting the network speed (10Mbps or 100Mbps) for any new
twisted-pair connection.
If the attached device does not support auto-negotiation or has
auto-negotiation disabled, an auto-sensing process is initiated to
select the speed and half-duplex mode is selected.

11
MOUNTING THE SWITCH ON A WALL
The DES-1008D/ DSS-8+ can also be mounted on a wall. Two
mounting slots are provided on the bottom of the switch for this
purpose. Please make sure that the front panel is exposed in order
to view the LEDs. Please refer to the illustration below:
A.) Mounting on a cement wall
1. Mount the Nylon screw anchors into a cement wall.
2. Drive the T3 x 15L screws into the Nylon screw anchors.
3. Hook the mounting holes of the switch back on the screws;
you have completed the wall-mount.
B.) Mounting on a wood wall
1. Drive the T3 x 15 L screws into the wood wall.
2. Hook the mounting holes of the switch back on the screws;
you have completed the wall-mount.
(1) 3/4 inch minimum
for wood wall
(2) 3 inch minimum
for cement wall.

12
TECHNICAL SPECIFICATIONS
General
Standards IEEE 802.3 10BASE-T Ethernet
IEEE 802.3u 100BASE-TX Fast Ethernet
IEEE 802.3x Flow Control
Protocol CSMA/CD
Data Transfer Rate Ethernet: 10Mbps (half duplex), 20Mbps (full-duplex)
Fast Ethernet: 100Mbps (half duplex), 200Mbps (full- duplex)
Topology Star
Network Cables 10BASET: 2-pair UTP Cat. 3,4,5 (100 m), EIA/TIA- 568
100-ohm STP (100 m)
100BASE-TX: 2-pair UTP Cat. 5 (100 m), EIA/TIA-568
100-ohm STP (100 m)
Number of Ports 8 x 10/100Mbps auto-negotiation, auto MDI-X ports
Physical and Environmental
DC inputs DC 7.5V / 1A
DC 5V/1.2A
AC 9V /1A
[Different power lists would be packed for different
shipping regions ]
Power Consumption 3.37 Watts (Max)
Temperature Operating: 0°~ 50°C (32º to 122º F), Storage: -10°~
70°C (14ºto 158º F)
Humidity Operating: 10% ~ 90%, Storage: 5% ~ 90%
Dimensions 192.5 x 118.5 x 32 mm (W x H x D) (approx. 7.5 x 4.5
x 1.25 inches)
EMI: FCC Class B, ICES-003 Class B, CE Mark B, VCCI
Class B
Safety: CSA International

13
Performance
Transmission Method: Store-and-forward
RAM Buffer 64KBytes per device
Filtering Address
Table 1K entries per device
Packet Filtering /
Forwarding Rate: 10Mbps Ethernet: 14,880/pps
100Mbps Fast Ethernet: 148,800/pps
MAC Address
Learning: Automatic update

14
RJ-45 PIN SPECIFICATION
The following diagram and tables show the standard RJ-45
receptacle/connector and their pin assignments.
RJ-45 Connector pin assignment
Contact Media Direct Interface Signal
1 Tx + (transmit)
2 Tx - (transmit)
3 Rx + (receive)
4 Not used
5 Not used
6 Rx - (receive)
7 Not used
8 Not used
RJ-45 pin assignment
Standard RJ-45 receptacle/connector

15
