DES-1005P
• One IEEE 802.3af PoE port
• Auto MDI/MDI-X Crossover for all ports
• 200Mbps dedicated bandwidth per port (full duplex)
• Rugged metal housing
• Conserves energy with D-Link Green Technology
Product Highlights Extra Connectivity with Power
The D-Link DES-1005P 5-port 10/100 Switch with One PoE Port allows you to easily
connect a Power over Ethernet (PoE) device such as a wireless access point (AP),
IP camera, or IP phone. The switch also gives you the opportunity to add additional
Ethernet devices such as computers, printers, and Network Attached Storage (NAS)
onto your network. This compact PoE switch operates quietly, making it ideal for use in
virtually any room or oce.
Power Over Ethernet (PoE)
The rst port of the DES-1005P supports the IEEE 802.3af PoE standard. The port supplies
a total PoE budget of 15.4 watts, allowing users to attach an IEEE 802.3af-compliant
device to the DES-1005P that requires no additional power. Use PoE for applications
that are far from power outlets or when you want to minimize the clutter of extra cables.
Connect up to ve Ethernet devices such as
computers, printers, and Network Attached Storage
(NAS)
Power aWireless Access Point or other
PoE-enabled devices
Auto MDI/MDIX crossover simplies cable
connections
5-Port 10/100 Switch with one PoE Port

DES-1005P Connect Poe Devices ToYour Network
Auto MDI/MDIX Crossover
All ports support automatic MDI/MDIX crossover, eliminating the need
for crossover cables or uplink ports. Each port can be plugged directly
to a server, hub, router, or switch using regular straight-through twisted-
pair Ethernet cables.
Conserves energy
The DES-1005P 5-Port 10/100 Switch makes use of D-Link Green™
eco-friendly technology, providing energy savings, reduced power
consumption, and a longer product life without sacricing operational
performance or functionality. This switch helps to conserve energy
through methods such as Link Status and Cable Length Detection. The
Link Status feature automatically powers down ports that have no link,
allowing the switch to save substantial amounts of energy by cutting
power for unused ports or ports connected to computers that have
been shut down. It can also detect connected cable lengths, and adjust
power usage accordingly, helping you save energy without aecting
networking performance. In addition, the fan-less design extends the
switch’s life and also reduces noise.
Package Contents
• 5-Port Switch with 1 PoE Port (DES-1005P)
• Power Adapter
• Quick Install Guide
• 4 Rubber Feet
Minimum System Requirements
• Devices Supporting 802.3 Ethernet, 802.3u Fast Ethernet,
or 802.3af PoE
• Cat5 Ethernet Cable
• Network Interface Card for each computer

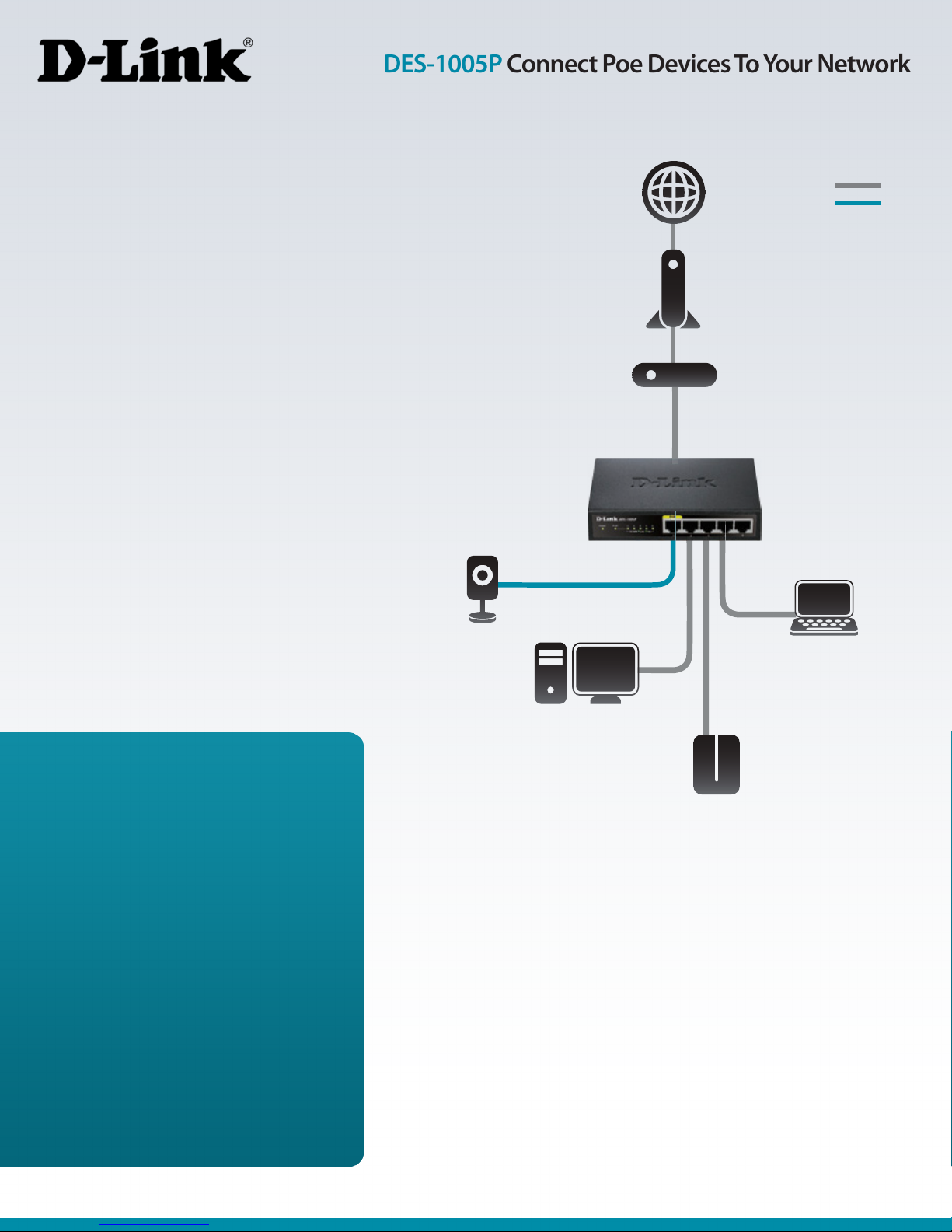

Ethernet
PoE
Internet
Router
IP Camera
Cable/DSL Modem
Desktop Computer
Storage Device (NAS)
Notebook Computer

DES-1005P Connect Poe Devices To Your Network
©2011 D-Link Corporation/D-Link Systems, Inc. All rights reserved. D-Link, D-Link logo, and the D-ViewCam™ logo are registered trademarks of D-Link Corporation or its subsidiaries in the United States and/or other countries. Other trademarks
or registered trademarks are the property of their respective owners. Visit www.dlink.com for more details. 11-Year Limited Warranty available only in the USA and Canada. All references to speed are for comparison purposes only.
Product specication, size and shape are subject to change without notice, and actual product appearance may dier from that depicted herein.
Updated 03/27/12
D-Link Systems, Inc. | 17595 Mt. Herrmann Street | Fountain Valley, CA 92708 | 800.326.1688 | dlink.com
For more information

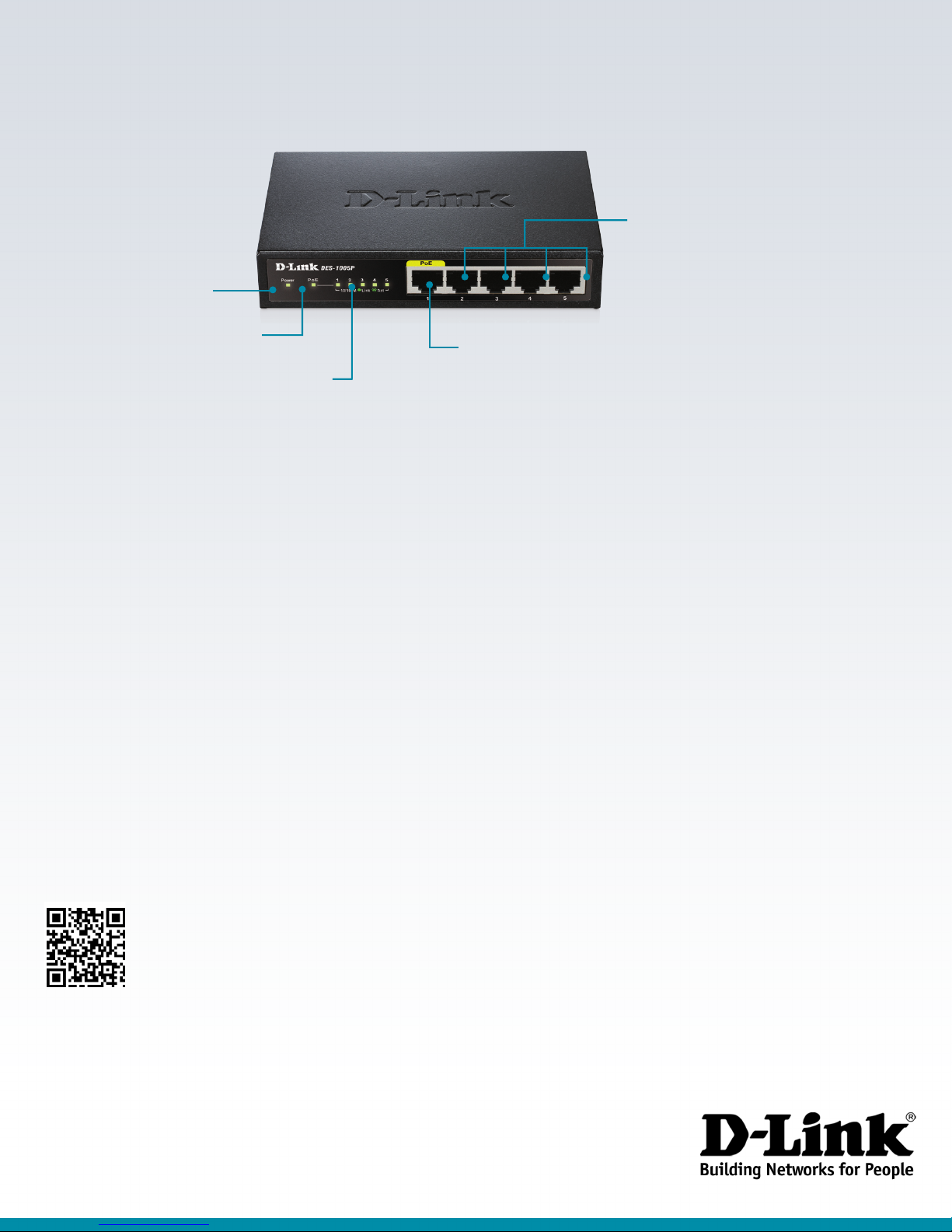

Diagnostic LED
Displays the Link/Ack/Speed
Power
PoE Status PoE Port
Connects to Aps, IP Cameras, VoIP
4 RJ-4510 10/100 MBPS Ports
Connects to computers, print servers, or network storage
Front
Technical Specications
Key Features
• Five 10/100 Mbps Fast Ethernet ports
with one PoE enabled port
• Auto MDI/MDIX Crossover for all ports
• Store-and-forward Switching Scheme
• Full/half-duplex for Ethernet/Fast
Ethernet Speeds
• IEEE 802.3x Flow Control
• Plug-and-play Installation
• Built-in D-Link Green Technology
• RoHS Compliant
• IEEE 802.1p QoS (4 Queues, Strict Mode)
Switching Capacity
• 1 Gbps
Standards
• IEEE 802.3 10BASE-T Ethernet
• IEEE 802.3u 100BASE-TX Fast Ethernet
• ANSI/IEEE 802.3 NWay Auto-negotiation
• IEEE 802.3x Flow Control
• IEEE 802.1p QoS
PoE Features
• Supports IEEE 802.3af
• Supplies up to 15.4 watts of power to PD
Data Transfer Rates
• Ethernet:
• 10 Mbps (half duplex)
• 20 Mbps (full duplex)
• Fast Ethernet
• 100 Mbps (half duplex)
• 200 Mbps (full duplex)
Topology
• Star
Media Interface Exchange
• Auto MDI/MDIX adjustment for all ports
Network Cables
• 10BASE-T
• UTP CAT 3/4/5/5e (100 m max.)
• EIA/TIA-586 100-ohm STP (100 m max.)
• 100BASE-TX
• UTP CAT 5/5e (100 m max.)
• EIA/TIA-568 100-ohm STP (100 m max.)
LED Indicators
• Per port: Link/Activity/Speed/PoE Status-T
• Per device: Power/PoE Max
Transmission Method
• Store-and-forward
MAC AddressTable
• 2K Entries per device
MAC Address Learning
• Automatic update
Packet Filtering/Forwarding Rates
• Ethernet: 14,880 pps per port
• Fast Ethernet: 148,800 pps per port
RAM Buer
• 64 KBytes per device
Power Consumption
• Power On (Standby):
DC input: 0.9 watt
AC input: 1.8 watts
• Maximum (PoE O)
DC input: 2.05 watts
AC input: 2.7 watts
• Maximum (PoE On)
DC input: 17.29 watts
AC input: 20.2 watts
Power Adapter
• Switching 48 V/0.5 A Level V power adapter
MTBF
• 324,616 hours
Operatin g Temperature
• 0 to 40 ˚C (32 to 104 ˚F)
STORAGETEMPERATURE
• 104 to 158 ˚F (-40 to 70 ˚C)
OPERATING HUMIDITY
• 0% to 95% RH non-condensing
Storage Humidity
• 0% to 95% RH non-condensing
Device Dimensions (W x D x H)
• 5.5 x 3.3 x 1.1 inches (140 x 85 x 28 mm)
Certications
• FCC Class B
• ICES-003 Class B
• cUL
