D-Link Dis-200G Series User manual

DIS-200G Series Industrial Gigabit Ethernet Smart Managed Switch

DIS-200G Series Industrial Gigabit Ethernet Smart Managed Switch
Information in this document is subject to change without notice. Reproduction of this document in any manner, without
the written permission of the D-Link Corporation, is strictly forbidden.
Trademarks used in this text: D-Link and the D-Link logo are trademarks of the D-Link Corporation; Microsoft and Windows
are registered trademarks of the Microsoft Corporation.
Other trademarks and trade names may be used in this document to refer to either as the entities claiming the marks and
the names or their products. D-Link Corporation disclaims any proprietary interest in trademarks and trade names other
than its own.
© 2017 D-Link Corporation. All rights reserved.
August 2017

DIS-200G Series Industrial Gigabit Ethernet Smart Managed Switch
I
Table of Contents
1. INTRODUCTION................................................................................................................................................................. 1
AUDIENCE ............................................................................................................................................................................................. 1
OTHER DOCUMENTATION ......................................................................................................................................................................... 1
CONVENTIONS ....................................................................................................................................................................................... 1
NOTES,NOTICES,AND CAUTIONS .............................................................................................................................................................. 2
2. WEB-BASED SWITCH CONFIGURATION............................................................................................................................... 3
MANAGEMENT OPTIONS ......................................................................................................................................................................... 3
CONNECTING USING THE WEB USER INTERFACE............................................................................................................................................ 3

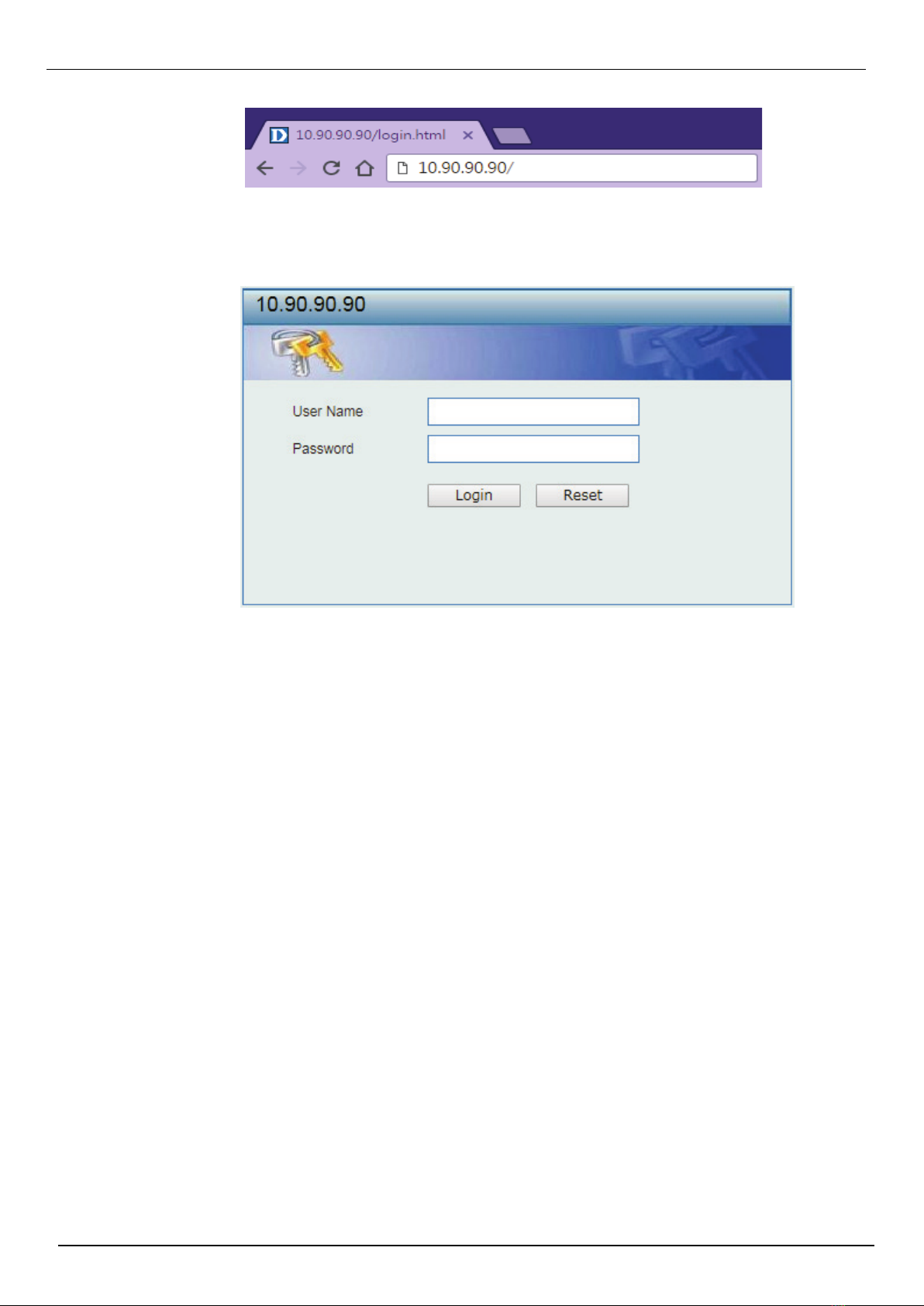

LOGGING ONTO THE WEB MANAGER.......................................................................................................................................................... 3

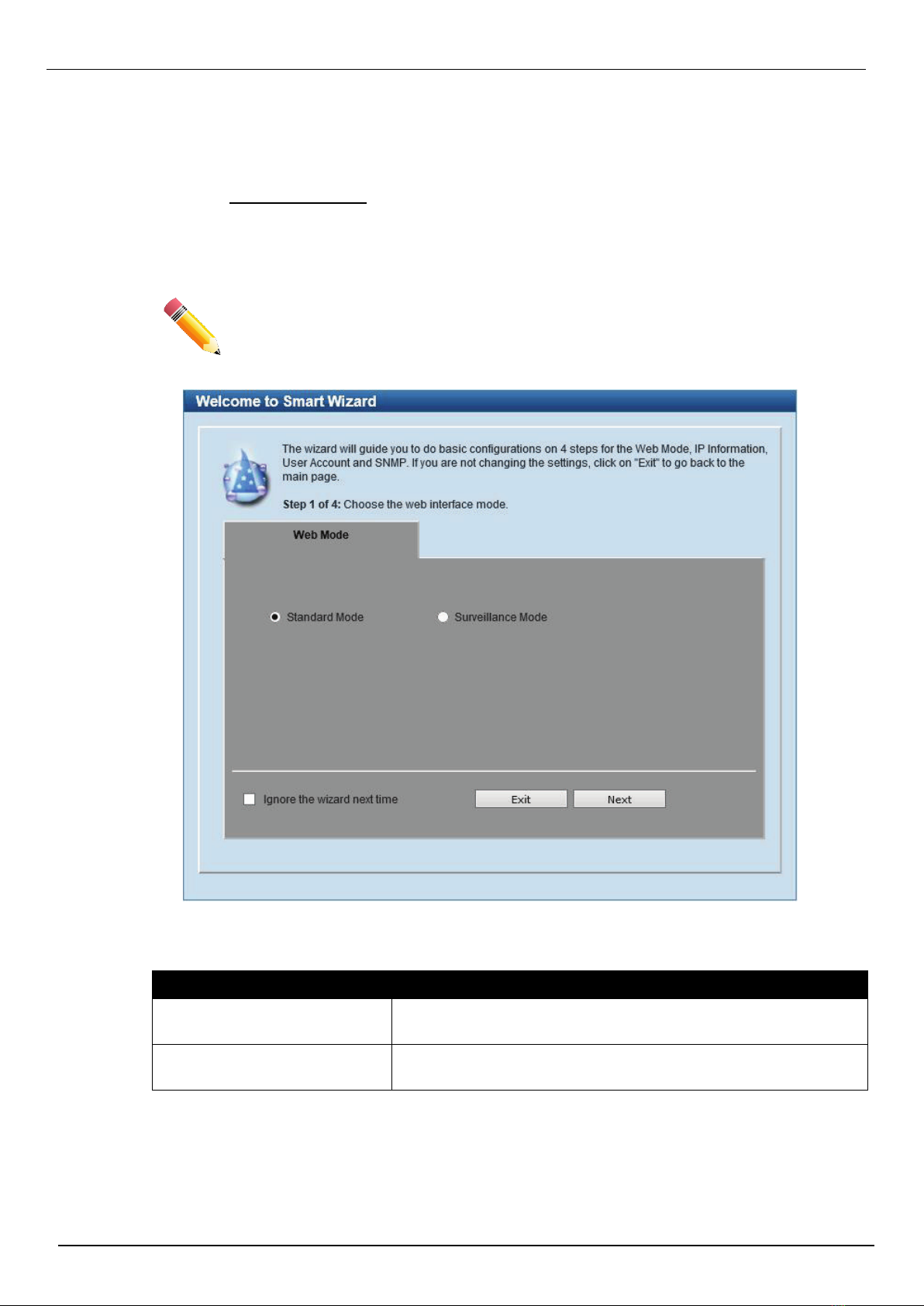

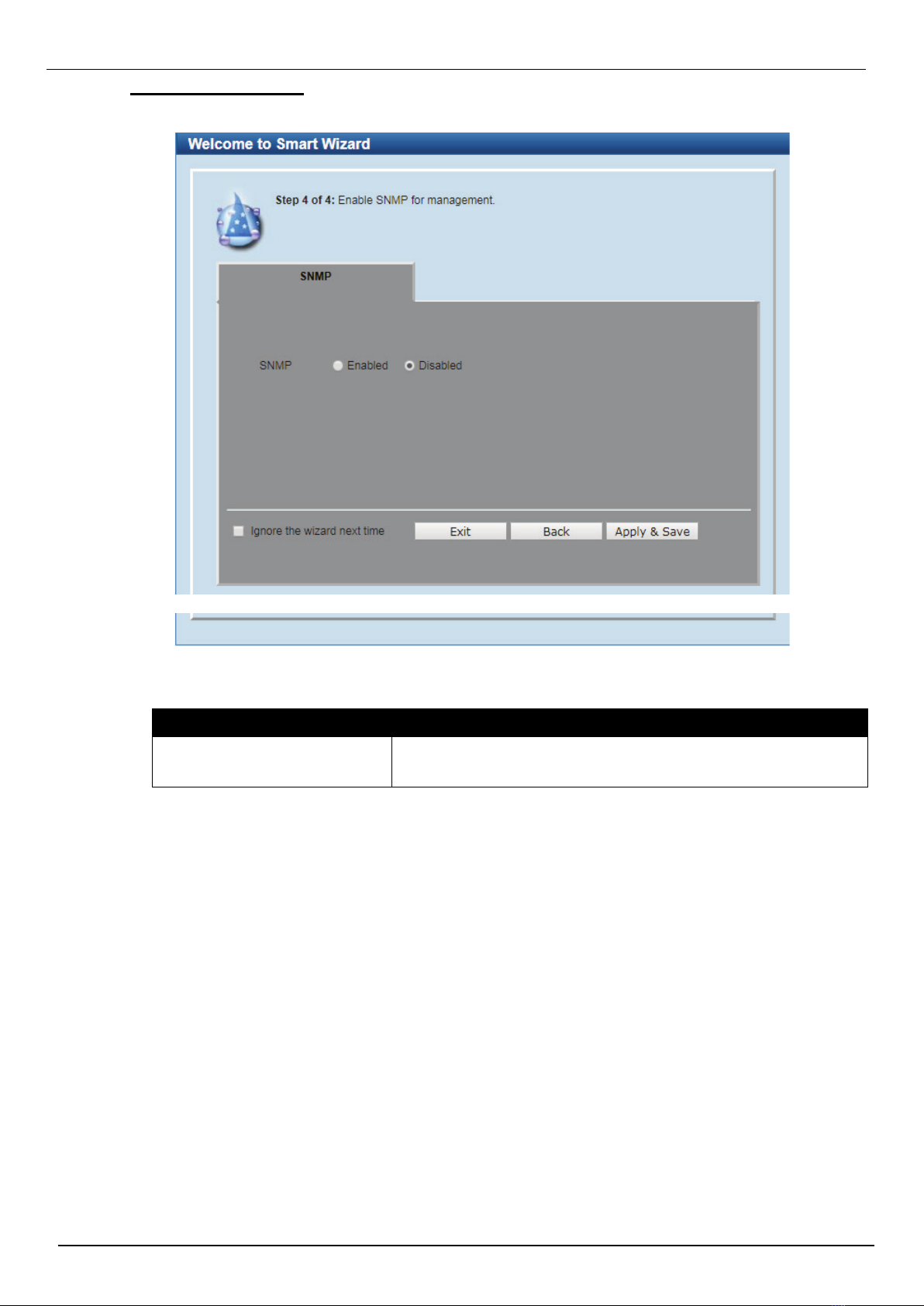

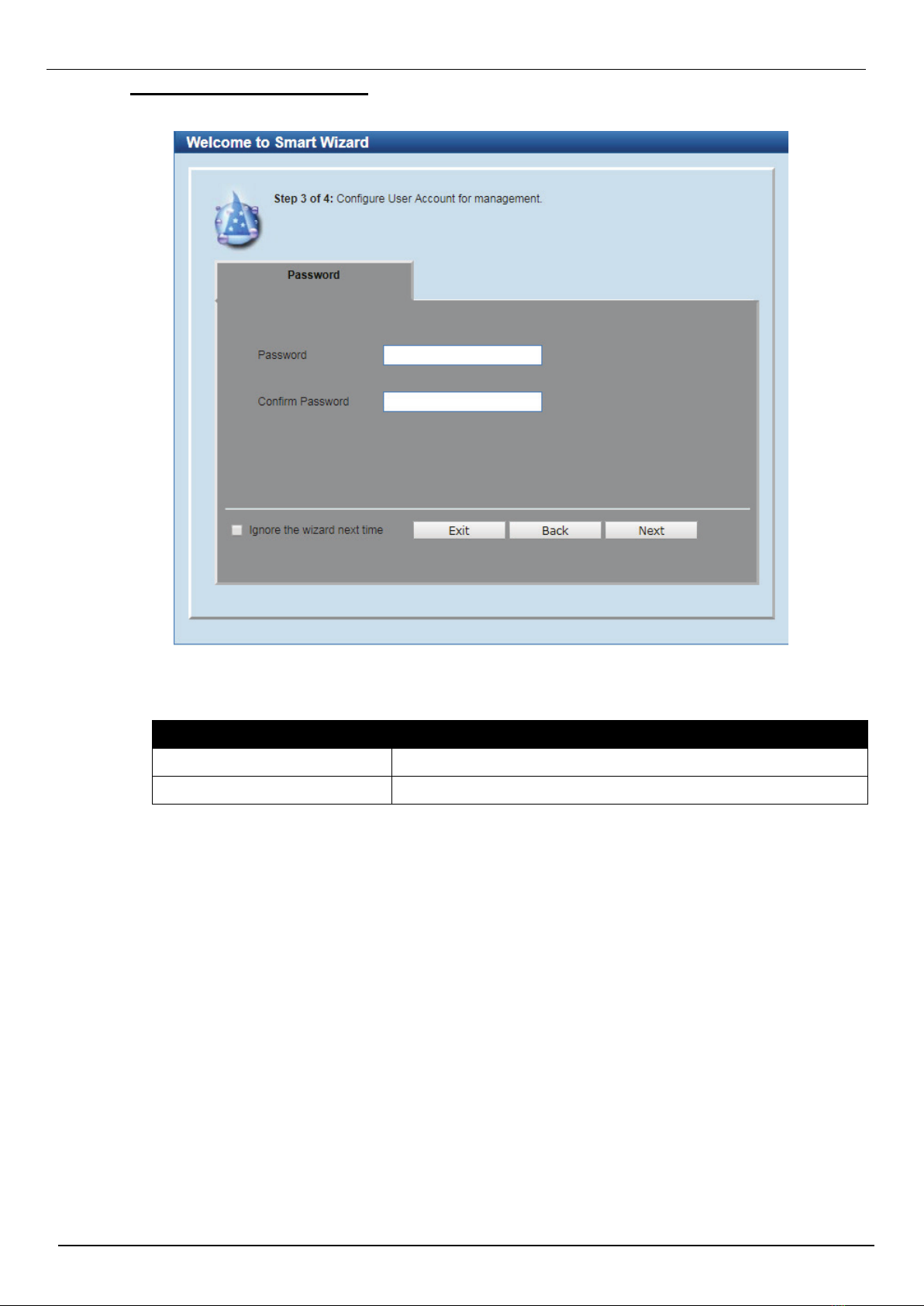

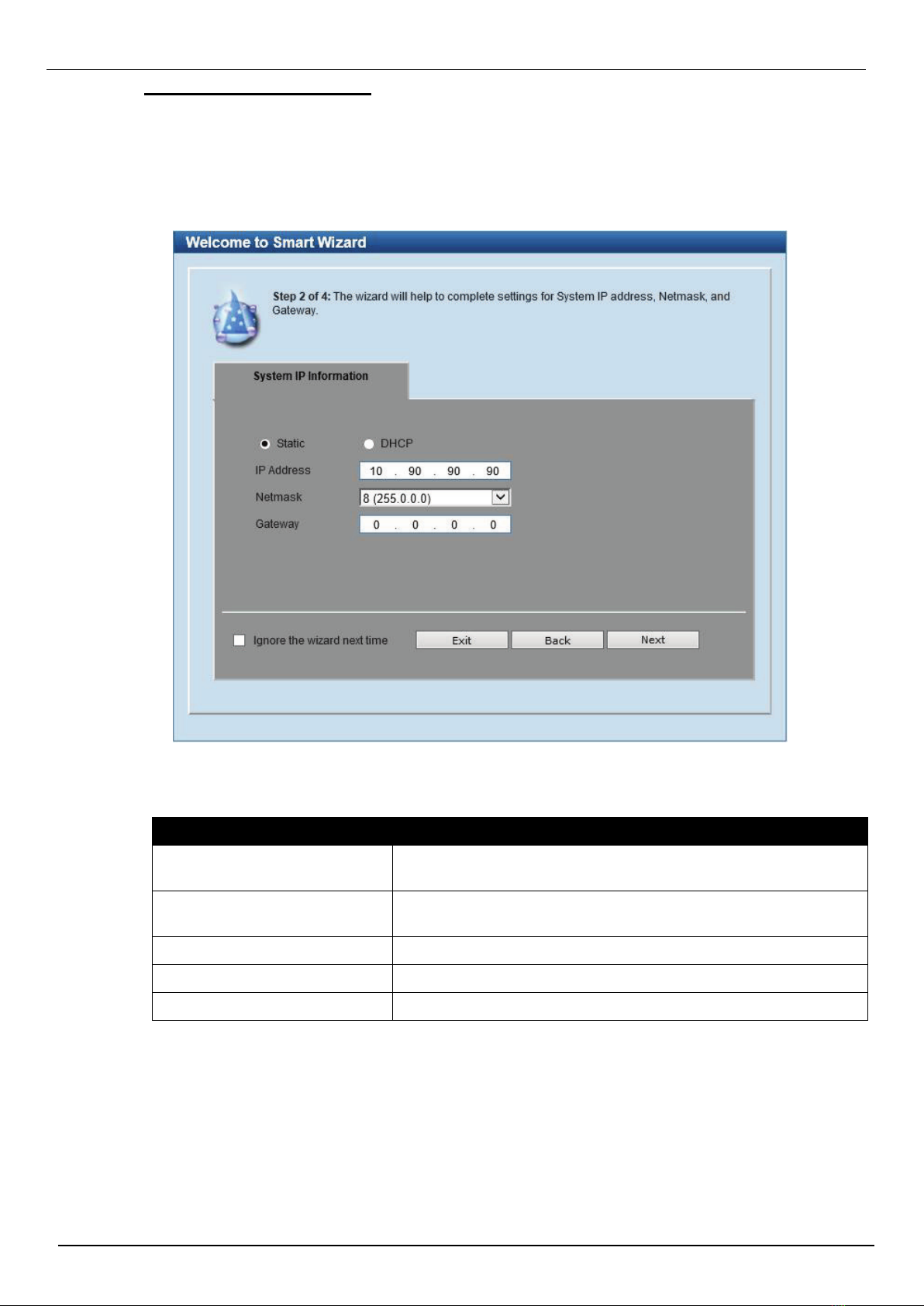

SMART WIZARD ..................................................................................................................................................................................... 5
WEB USER INTERFACE (WEB UI) ............................................................................................................................................................... 9
Areas of the User Interface............................................................................................................................................................ 9
Surveillance Mode ....................................................................................................................................................................... 10
3. SAVE AND TOOLS..............................................................................................................................................................11
SAVE CONFIGURATION ........................................................................................................................................................................... 11
FIRMWARE INFORMATION ...................................................................................................................................................................... 11
FIRMWARE UPGRADE &BACKUP ............................................................................................................................................................. 12

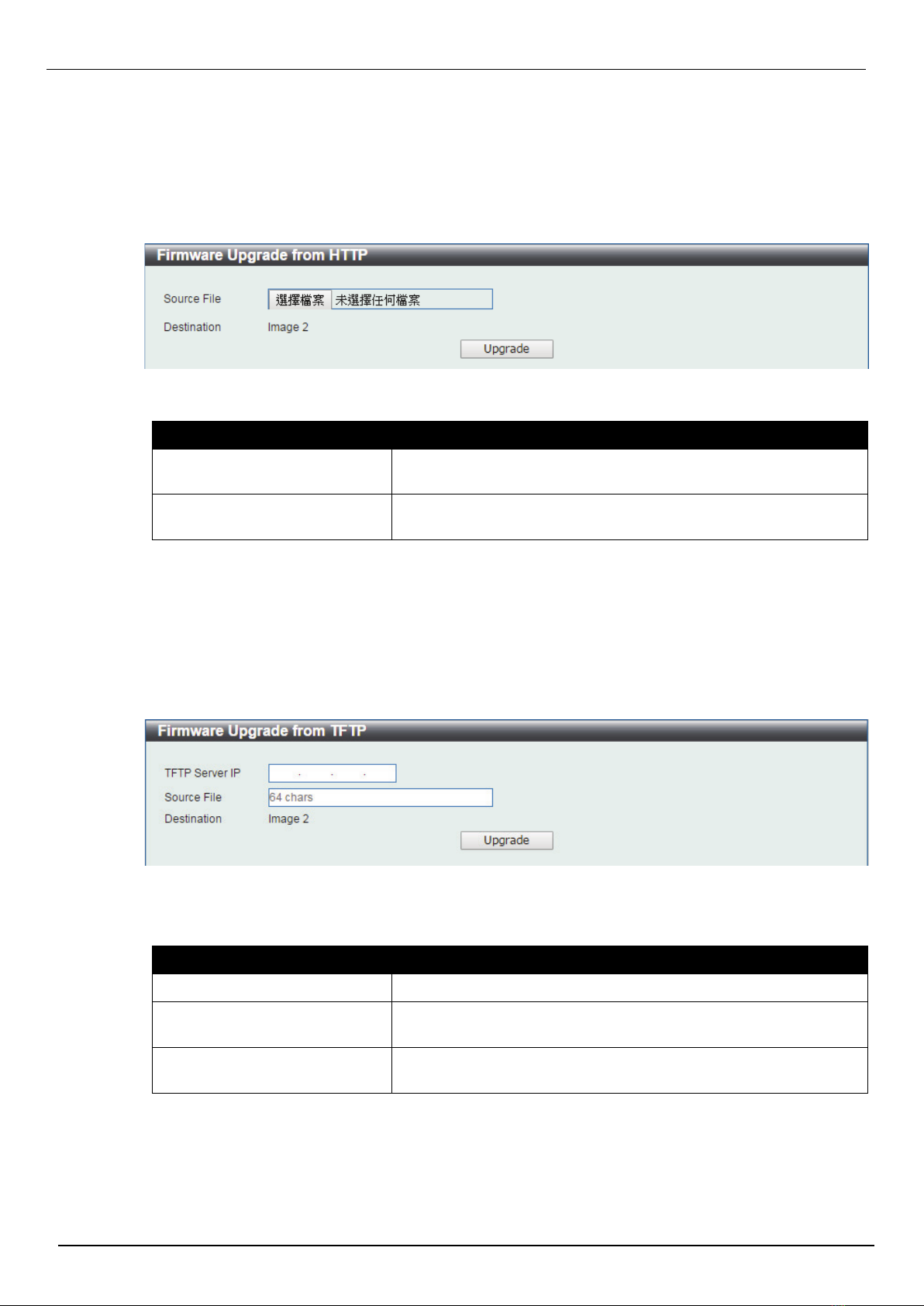

Firmware Upgrade from HTTP..................................................................................................................................................... 12
Firmware Upgrade from TFTP ..................................................................................................................................................... 12
Firmware Backup to HTTP ........................................................................................................................................................... 13
Firmware Backup to TFTP ............................................................................................................................................................ 13
CONFIGURATION RESTORE &BACKUP ....................................................................................................................................................... 14
Configuration Restore from HTTP................................................................................................................................................ 14
Configuration Restore from TFTP ................................................................................................................................................ 14
Configuration Backup to HTTP..................................................................................................................................................... 15
Configuration Backup to TFTP ..................................................................................................................................................... 15
LOG BACKUP........................................................................................................................................................................................ 16
Log Backup to HTTP..................................................................................................................................................................... 16
Log Backup to TFTP...................................................................................................................................................................... 16
PING .................................................................................................................................................................................................. 17
RESET................................................................................................................................................................................................. 18
REBOOT SYSTEM................................................................................................................................................................................... 18
4. SYSTEM ............................................................................................................................................................................19
DEVICE INFORMATION ........................................................................................................................................................................... 19
SYSTEM INFORMATION SETTINGS ............................................................................................................................................................. 19
System Information ..................................................................................................................................................................... 19
IPv4 Interface............................................................................................................................................................................... 20

DIS-200G Series Industrial Gigabit Ethernet Smart Managed Switch
II
IPv6 Interface............................................................................................................................................................................... 21
PORT CONFIGURATION .......................................................................................................................................................................... 21
Port Settings ................................................................................................................................................................................ 21
Jumbo Frame ............................................................................................................................................................................... 23
POE(DIS-200G-12PS AND DIS-200G-12PSW ONLY) ............................................................................................................................. 24
PoE System................................................................................................................................................................................... 24
PoE Status.................................................................................................................................................................................... 25
PoE Configuration........................................................................................................................................................................ 25
PD Alive........................................................................................................................................................................................ 26
SYSTEM LOG ........................................................................................................................................................................................ 27
System Log Settings ..................................................................................................................................................................... 27
System Log Server Settings .......................................................................................................................................................... 27
System Log................................................................................................................................................................................... 28
TIME AND SNTP .................................................................................................................................................................................. 28
Clock Settings............................................................................................................................................................................... 28
Time Zone Settings ...................................................................................................................................................................... 29
SNTP SETTINGS ................................................................................................................................................................................... 30
TIME PROFILE ...................................................................................................................................................................................... 31
5. MANAGEMENT.................................................................................................................................................................32
USER ACCOUNT SETTINGS ...................................................................................................................................................................... 32
PASSWORD ENCRYPTION ........................................................................................................................................................................ 33
SNMP ............................................................................................................................................................................................... 34
SNMP Global Settings.................................................................................................................................................................. 35
SNMP View Table Settings ........................................................................................................................................................... 36
SNMP Community Table Settings ................................................................................................................................................ 37
SNMP Group Table Settings......................................................................................................................................................... 38
SNMP Engine ID Local Settings.................................................................................................................................................... 39
SNMP User Table Settings............................................................................................................................................................ 39
SNMP Host Table Settings............................................................................................................................................................ 40
RMON .............................................................................................................................................................................................. 42
RMON Global Settings ................................................................................................................................................................. 42
RMON Statistics Settings ............................................................................................................................................................. 42
RMON History Settings ................................................................................................................................................................ 43
RMON Alarm Settings.................................................................................................................................................................. 44
RMON Event Settings................................................................................................................................................................... 45
HTTP/HTTPS..................................................................................................................................................................................... 46
D-LINK DISCOVERY PROTOCOL ................................................................................................................................................................ 46
6. LAYER 2 FEATURES ............................................................................................................................................................47
FDB .................................................................................................................................................................................................. 47
Static FDB .................................................................................................................................................................................... 47

DIS-200G Series Industrial Gigabit Ethernet Smart Managed Switch
III
MAC Address Table Settings ........................................................................................................................................................ 48
MAC Address Table ...................................................................................................................................................................... 49
VLAN ................................................................................................................................................................................................ 50
VLAN Configuration Wizard......................................................................................................................................................... 50
802.1Q VLAN ............................................................................................................................................................................... 52
Management VLAN ..................................................................................................................................................................... 52
GVRP............................................................................................................................................................................................ 53
Asymmetric VLAN ........................................................................................................................................................................ 56
VLAN Interface............................................................................................................................................................................. 56
Auto Surveillance VLAN .............................................................................................................................................................. 60
Voice VLAN................................................................................................................................................................................... 64
SPANNING TREE ................................................................................................................................................................................... 67
STP Global Settings...................................................................................................................................................................... 69
STP Port Settings.......................................................................................................................................................................... 70
MST Configuration Identification ............................................................................................................................................... 71
STP Instance ................................................................................................................................................................................ 72
MSTP Port Information ............................................................................................................................................................... 72
ERPS (G.8032).................................................................................................................................................................................. 73
ERPS............................................................................................................................................................................................. 73
ERPS Profile.................................................................................................................................................................................. 75
LOOPBACK DETECTION........................................................................................................................................................................... 77
LINK AGGREGATION .............................................................................................................................................................................. 78
L2 MULTICAST CONTROL ....................................................................................................................................................................... 81
IGMP Snooping ............................................................................................................................................................................ 81
MLD Snooping ............................................................................................................................................................................. 83
Multicast Filtering........................................................................................................................................................................ 85
LLDP ................................................................................................................................................................................................. 86
LLDP Global Settings.................................................................................................................................................................... 86
LLDP Neighbor Port Information.................................................................................................................................................. 86
7. QUALITY OF SERVICE (QOS) ..............................................................................................................................................87
802.1P PRIORITY ................................................................................................................................................................................. 87
PORT RATE LIMITING............................................................................................................................................................................. 88
PORT TRUST STATE ............................................................................................................................................................................... 89
DSCP COSMAPPING ........................................................................................................................................................................... 89
8. SECURITY..........................................................................................................................................................................90
PORT SECURITY .................................................................................................................................................................................... 90
Port Security Global Settings ....................................................................................................................................................... 90
Port Security Port Settings ........................................................................................................................................................... 91
Port Security Address Entries....................................................................................................................................................... 92
RADIUS............................................................................................................................................................................................. 93

DIS-200G Series Industrial Gigabit Ethernet Smart Managed Switch
IV
RADIUS Global Settings ............................................................................................................................................................... 93
RADIUS Server Settings................................................................................................................................................................ 93
RADIUS Statistic........................................................................................................................................................................... 94
SAFEGUARD ENGINE.............................................................................................................................................................................. 92
Safeguard Engine Settings........................................................................................................................................................... 92
TRAFFIC SEGMENTATION SETTINGS........................................................................................................................................................... 93
STORM CONTROL ................................................................................................................................................................................. 93
DOSATTACK PREVENTION SETTINGS ........................................................................................................................................................ 95
ZONE DEFENSE..................................................................................................................................................................................... 96
SSH................................................................................................................................................................................................... 97
SSH Global Settings...................................................................................................................................................................... 97
SSL.................................................................................................................................................................................................... 98
SSL Global Settings ...................................................................................................................................................................... 99
WEB-BASED ACCESS CONTROL .............................................................................................................................................................. 100
Web Authentication................................................................................................................................................................... 101
WAC Port Settings...................................................................................................................................................................... 102
WAC Customize Page ................................................................................................................................................................. 103
9. OAM .............................................................................................................................................................................. 104
CABLE DIAGNOSTICS ........................................................................................................................................................................... 104
DDM............................................................................................................................................................................................... 105
DDM Settings............................................................................................................................................................................. 105
DDM Temperature Threshold Settings....................................................................................................................................... 106
DDM Voltage Threshold Settings............................................................................................................................................... 106
DDM Bias Current Threshold Settings........................................................................................................................................ 107
DDM TX Power Threshold Settings ............................................................................................................................................ 108
DDM RX Power Threshold Settings ............................................................................................................................................ 108
DDM Status Table ...................................................................................................................................................................... 109
10. MONITORING ............................................................................................................................................................. 109
STATISTICS ......................................................................................................................................................................................... 109
Port Counters............................................................................................................................................................................. 109
MIRROR SETTINGS .............................................................................................................................................................................. 110
11. GREEN........................................................................................................................................................................ 111
POWER SAVING .................................................................................................................................................................................. 111
EEE ................................................................................................................................................................................................. 113
12. SURVEILLANCE MODE................................................................................................................................................. 114
SURVEILLANCE OVERVIEW ................................................................................................................................................................... 114
Surveillance Topology ............................................................................................................................................................... 114
Device Information ................................................................................................................................................................... 117
PORT INFORMATION............................................................................................................................................................................ 118

DIS-200G Series Industrial Gigabit Ethernet Smart Managed Switch
V
Group Details............................................................................................................................................................................. 119
IP-CAMERA INFORMATION ................................................................................................................................................................... 120
NVR INFORMATION ............................................................................................................................................................................ 121
POEINFORMATION ............................................................................................................................................................................. 122
POESCHEDULING ............................................................................................................................................................................... 123
TIME ................................................................................................................................................................................................ 125
Clock Settings............................................................................................................................................................................. 125
SNTP Settings............................................................................................................................................................................. 125
SURVEILLANCE SETTINGS ...................................................................................................................................................................... 126
SURVEILLANCE LOG ............................................................................................................................................................................. 128
HEALTH DIAGNOSTIC ........................................................................................................................................................................... 129
TOOLBAR .......................................................................................................................................................................................... 130
Wizard ....................................................................................................................................................................................... 130
Tools........................................................................................................................................................................................... 130
Save ........................................................................................................................................................................................... 133
Help ........................................................................................................................................................................................... 134
Online Help ................................................................................................................................................................................ 135
Standard Mode.......................................................................................................................................................................... 135
Logout........................................................................................................................................................................................ 135
APPENDIX A - SYSTEM LOG ENTRIES ....................................................................................................................................... 136
APPENDIX B - TRAP ENTRIES................................................................................................................................................... 145
APPENDIX C - IETF RADIUS ATTRIBUTES SUPPORT...................................................................................................................150

DIS-200G Series Industrial Gigabit Ethernet Smart Managed Switch
1
1. Introduction
This manual’s descriptions are based on the software release 1.20. All software functions of the DIS-
200G Series switches can be managed, configured and monitored via the embedded web-based (HTML)
interface. Manage the Switch from remote stations anywhere on the network through a standard browser.
The browser acts as a universal access tool and can communicate directly with the Switch using the
HTTP protocol.
Audience
This reference manual is intended for network administrators and other IT networking professionals
responsible for managing the switch by using the Web User Interface (Web UI). The Web UI is the
secondary management interface to the DIS-200G Series switch, which will be generally be referred to
simply as “the Switch” within this manual. This manual is written in a way that assumes that you already
have the experience and knowledge of Ethernet and modern networking principles for Local Area
Networks.
Other Documentation
The documents below are a further source of information in regards to configuring and troubleshooting
the switch. All the documents are available either from the CD, bundled with this switch, or from the D-
Link website. Other documents related to this switch are:
• DIS-200G Series Industrial Gigabit Ethernet Smart Managed Switch Hardware Installation
Guide
• DIS-200G Series Industrial Gigabit Ethernet Smart Managed Switch CLI Reference Guide
Conventions
Parameter
Description
Boldface Font Indicates a button, a toolbar icon, menu, or menu item. For
example: Open the File menu and choose Cancel. Used for
emphasis. May also indicate system messages or prompts
appearing on screen. For example: You have mail. Bold font is
also used to represent filenames, program names and commands.
For example: use the copy command.
Initial capital letter Indicates a window name. Names of keys on the keyboard have
initial capitals. For example: Click Enter.
Menu Name > Menu Option Indicates the menu structure. Device > System > Port Properties
means the Port Properties menu option under the Port menu
option that is located under the Device menu.

DIS-200G Series Industrial Gigabit Ethernet Smart Managed Switch
2
Notes, Notices, and Cautions
Below are examples of the three types of indicators used in this manual. When administering your switch
using the information in this document, you should pay special attention to these indicators. Each
example below provides an explanatory remark regarding each type of indicator.
NOTE: A note indicates important information that helps you make better use of your
device.
NOTICE: A notice indicates either potential damage to hardware or loss of data and tells
you how to avoid the problem.
CAUTION: A caution indicates a potential for property damage, personal injury, or death.

DIS-200G Series Industrial Gigabit Ethernet Smart Managed Switch
3
2. Web-based Switch Configuration
Management Options
Connecting using the Web User Interface Logging onto the Web Manager
Smart Wizard
Web User Interface (Web UI)
Management Options
The Switch provides multiple access platforms that can be used to configure, manage and monitor
networking features available on the Switch. Currently there are three management platforms available
and they are described below.
The Command Line Interface (CLI) through the RJ45 Console port or remote Telnet
The Switch can be managed, out-of-band, by using the console port on the front panel of the Switch.
Alternatively, the Switch can also be managed, in-band, by using a Telnet connection to any of the LAN
ports on the Switch. The command line interface provides complete access to all switch management
features.
SNMP-based Management
The Switch can be managed with an SNMP-compatible console program. The Switch supports SNMP
version 1.0, version 2.0 and version 3.0. The SNMP agent decodes the incoming SNMP messages and
responds to requests with MIB objects stored in the database. The SNMP agent updates the MIB objects
to generate statistics and counters.
Web-based Management Interface
After successfully installing the Switch, the user can configure the Switch and monitor the LED panel
using a Web browser, such as Microsoft® Internet Explorer, Mozilla Firefox, Safari, or Google Chrome.
Connecting using the Web User Interface
Most software functions of the DIS-200G Series switches can be managed, configured and monitored via
the embedded web-based (HTML) interface. Manage the Switch from remote stations anywhere on the
network through a standard web browser. The web browser acts as a universal access tool and can
communicate directly with the Switch using the HTTP or HTTPS protocol.
NOTE: The Command Line Interface (CLI) provides the functionality of managing,
configuring, and monitoring all of the software features that are available on the Switch.
Logging onto the Web Manager
To access the Web User Interface, simply open a standard web browser on the management PC and
enter the Switch’s default IP address into the address bar of the browser and press the Enter key.
NOTE: The default IP address of this switch is 10.90.90.90, with a subnet mask of
255.0.0.0.
NOTE: The default username and password is admin.

DIS-200G Series Industrial Gigabit Ethernet Smart Managed Switch
4
This will open the user authentication window, as seen below.
Enter the User Name and Password in the corresponding fields and click Login. The default username
is admin and the default password is admin. This will open the Web-based user interface. The Switch’s
management features available in the web-based manager are explained below.
Figure 2-1 Displays entering the IP address in Internet Explorer
Figure 2-2 User Authentication window

DIS-200G Series Industrial Gigabit Ethernet Smart Managed Switch
5
Smart Wizard
After a successfully connecting to the Web User Interface for the first time, the Smart Wizard embedded
Web utility will be launched. This wizard will guide the user through basic configuration steps that is
essential for first time connection to the Switch.
Step 1 - Web Mode
The Switch supports two Web Modes, Standard Mode and Surveillance Mode. The Standard Mode is
used to configure, manage, and monitor most of the software features on the Switch. The Surveillance
Mode is an additional web mode specifically designed to assist the user with surveillance features
supported by the Switch.
NOTE: The Web Mode can only be changed when one user session is connected to the
Web UI of the Switch.
The
fields that can be configured are described below:
Parameter Description
Standard Mode Select this option to access the Standard Mode after the Smart
Wizard was completed.
Surveillance Mode Select this option to access the Surveillance Mode after the Smart
Wizard was completed.
Tick the Ignore the wizard next time option to skip the Smart Wizard on the next login.
Click the Exit button to discard the changes made, exit the Smart Wizard, and continue to the Web UI.
Click the Next button to accept the changes made and continue to the next step.
Figure 2-3 Web Mode

DIS-200G Series Industrial Gigabit Ethernet Smart Managed Switch
6
Step 2 – System IP Information
In this window, the user can configure the IP address assignment method, the static IP address, Netmask
and Gateway address.
NOTE: The Switch will probe for surveillance devices every 30 seconds. If a surveillance device is not in
the same subnet as the switch, it will not be discovered automatically. Place the Switch management IP in
the same subnet as the surveillance devices for ONVIF cameras to be added to the Surveillance Mode
Web UI automatically.
The fields that can be configured are described below:
Parameter Description
Static Select this option to manually configure and use IP address
settings on this switch.
DHCP Select this option to obtain IP address settings from a DHCP
server.
IP Address Enter the IP address of the Switch here.
Netmask Select the Netmask option here.
Gateway Enter the default gateway IP address here.
Tick the Ignore the wizard next time option to skip the Smart Wizard on the next login.
Click the Exit button to discard the changes made, exit the Smart Wizard, and continue to the Web UI.
Click the Next button to accept the changes made and continue to the next step.
Figure 2-4 System IP Information window

DIS-200G Series Industrial Gigabit Ethernet Smart Managed Switch
7
Step 3 – User Accounts Settings
In this window, the user can configure the user password of ‘admin’ account.
The fields that can be configured are described below:
Parameter Description
Password Enter the new password for the user account here.
Confirm Password Enter the new password again for confirmation here.
Tick the Ignore the wizard next time option to skip the Smart Wizard on the next login.
Click the Exit button to discard the changes made, exit the Smart Wizard, and continue to the Web UI.
Click the Back button to discard the changes made and return to the previous step.
Click the Next button to accept the changes made and continue to the next step.
Figure 2-5 Password window

DIS-200G Series Industrial Gigabit Ethernet Smart Managed Switch
8
Step 4 – SNMP Settings
In this window, the user can enable or disable the SNMP function.
The fields that can be configured are described below:
Parameter Description
SNMP Select the Enabled option to enable the SNMP function.
Select the Disabled option to disable the SNMP function.
Tick the Ignore the wizard next time option to skip the Smart Wizard on the next login.
Click the Exit button to discard the changes made, exit the Smart Wizard, and continue to the Web UI.
Click the Back button to discard the changes made and return to the previous step.
Click the Apply & Save button to accept the changes made and continue to the Web UI.
Figure 2-7 SNMP window
Figure 2-6 SNMP window

DIS-200G Series Industrial Gigabit Ethernet Smart Managed Switch
9
Web User Interface (Web UI)
By clicking the Exit button in the Smart Wizard, you will enter the Web-based Management interface.
Areas of the User Interface
The figure below shows the Web UI in the Standard Mode. Three distinct areas that divide the user
interface, as described in the table.
The following Areas can be observed in the above window:
Parameter Description
AREA 1 Select the folder or window to display. Open folders and click the
hyperlinked window buttons and subfolders contained within them
to display windows.
AREA 2 Presents Switch status based on user selection and the entry of
configuration data. In addition, hyperlink of Settings is offered to
enable quick Gateway configuration.
AREA 3 Presents a toolbar used to access function like Save, Tools, the
Wizard and Online Help, accessing the Web UI in the Surveillance
Mode, and a Logout option.
Click the Surveillance Mode option to change the switch mode
from
Standard Mode to Surveillance Mode.
The user account and IP address currently logged into the Web UI
will also be displayed in this toolbar.
Figure 2-7 Web UI (Standard Mode)

DIS-200G Series Industrial Gigabit Ethernet Smart Managed Switch
10
Surveillance Mode
After accessing the Web UI in the Surveillance Mode,the following will be displayed:.
The following Areas can be observed in the above window:
Parameter Description
AREA 1 Select the folder or window to display. Open folders and click the
hyperlinked window buttons and subfolders contained within them
to display windows.
AREA 2 In this area, configuration and monitoring window frames are
available based on the selections made in area 1.
AREA 3 Presents a toolbar used to access function like Save, Tools, the
Wizard and Online Help, accessing the Web
UI in the Surveillance Mode, and a Logout option.
Click the Standard Mode option to change the switch mode from
Surveillance Mode to Standard Mode.
The user account and IP address currently logged into the Web UI
will also be displayed in this toolbar.
Figure 2-8 Web UI (Surveillance Mode)

DIS-200G Series Industrial Gigabit Ethernet Smart Managed Switch
11
3. Save and Tools
Save Configuration
Firmware Information
Firmware Upgrade & Backup
Configuration Restore & Backup Log Backup
Ping
Reset
Reboot System
Save Configuration
This window is used to save the running configuration to the start-up configuration or the file system of
the Switch. This is to prevent the loss of configuration in the event of a power failure.
To view the following window, click Save > Save Configuration, as shown below:
Click the Apply button to save the configuration.
Firmware Information
This window is used to configure the firmware image boot up.
To view the following window, click Tools > Firmware Information, as shown below:
Click the Boot UP button of image 1 or image 2 for boot up.
Figure 3-1 Save Configuration window
Figure 3-2 Firmware Information window

DIS-200G Series Industrial Gigabit Ethernet Smart Managed Switch
12
Firmware Upgrade & Backup
Firmware Upgrade from HTTP
This window is used to initiate a firmware upgrade from a local PC using HTTP.
To view the following window, click Tools > Firmware Upgrade & Backup > Firmware Upgrade from
HTTP, as shown below:
The fields that can be configured are described below:
Parameter Description
Source File Click the Browse button to navigate to the location of the firmware
file located on the local PC.
Destination The destination Image ID is automatically assigned to new
upgrade firmware by system.
Click the Upgrade button to initiate the firmware upgrade.
Firmware Upgrade from TFTP
This window is used to initiate a firmware upgrade from a TFTP server.
To view the following window, click Tools > Firmware Upgrade & Backup > firmware Upgrade from
TFTP, as shown below:
The fields that can be configured are described below:
Parameter Description
TFTP Server IP Enter the TFTP server’s IPv4 address here.
Source File Enter the source filename and path of the firmware file located on
the TFTP server here. This field can be up to 64 characters long.
Destination File The destination Image ID is automatically assigned to new
upgrade firmware by system.
Click the Upgrade button to initiate the firmware upgrade.
Figure 3-3 Firmware Upgrade from HTTP window
Figure 3-4 Firmware Upgrade from TFTP window

DIS-200G Series Industrial Gigabit Ethernet Smart Managed Switch
13
Firmware Backup to HTTP
This window is used to initiate a firmware backup to a local PC using HTTP.
To view the following window, click Tools > Firmware Upgrade & Backup > Firmware Backup to
HTTP, as shown below:
The fields that can be configured are described below:
Parameter Description
Source Specify the firmware image ID to be backup.
Click the Backup button to initiate the firmware backup.
Firmware Backup to TFTP
This window is used to initiate a firmware backup to a TFTP server.
To view the following window, click Tools > Firmware Upgrade & Backup > Firmware Backup to TFTP,
as shown below:
The fields that can be configured are described below:
Parameter Description
TFTP Server IP Enter the TFTP server’s IPv4 address here.
Source File Enter the source filename and path of the firmware file located on
the Switch here. This field can be up to 64 characters long.
Destination File Enter the destination filename and path where the firmware should
be stored on the TFTP server. This field can be up to 64
characters long.
Click the Backup button to initiate the firmware backup.
Figure 3-5 Firmware Backup to HTTP window
Figure 3-6 Firmware Backup to TFTP window
