D-Link DEM-311GT - SFP Transceiver Module User manual

Transceiver
DEM-310GT
DEM-311GT
DEM-314GT
DEM-315GT
D-Link Gigabit Interface Converters are transceivers that connect Gigabit switches and 10/100Mbps switches with GBIC slots
to Gigabit Ethernet networks, providing high-speed connections over the fiber-optic or twisted-pair cable. The fiber-optic
transceivers have standard duplex LC connectors for connection compatibility.

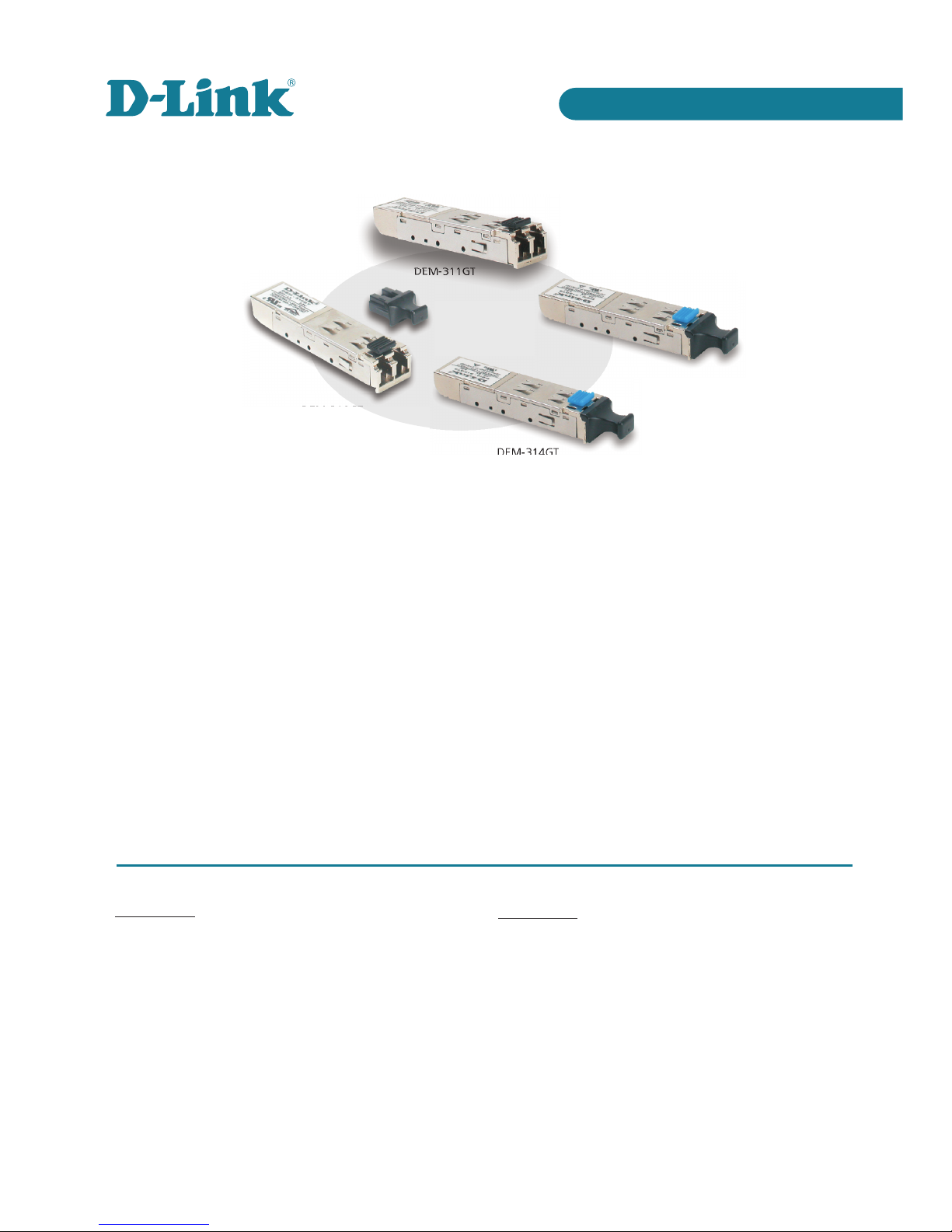

SFP Transceivers
Small Form Pluggable (SFP) Package
Hot Swappable
These transceivers use the industry-standard Small Form
Pluggable (SFP) package. They slide into the mini GBIC
slot of the Gigabit device. They provide the necessary signal
amplification for data to be transmitted to the network cable
from the port, and vice versa, for the port to receive data
from the network cable.
All D-Link Mini GBIC transceivers are hot-swappable. You
can remove or replace the GBIC transceiver with the system
powered on. This permits modules and mini-GBICs to be
added or swapped without interrupting the network.
Applications
Applications of the fiber transceivers include distributed
multi-processing, Gigabit switch cascading, high-speed I/O
file transfer, bus extension application, and channel
extender/data storage.
Single-mode Fiber Transceiver (10 km)
DEM-310GT
- 1000BASE-LX port (IEEE 802.3z standard)
- Duplex LC connector
- Full duplex operation
- 802.3x flow control support
- Fiber type: 9um single-mode fiber up to 10 km
- Wave length: 1310nm
- Power support: 3.3V
- Power budget: 10.5dB
- Hot pluggable
- Class 1 laser product complies with EN 60825-1
- TTL signal detect indicator
- Metal enclosure for lower EMI
Multi-mode Fiber Transceiver (550 m)
DEM-311GT
- 1000BASE-SX port (IEEE 802.3z standard)
- Duplex LC connector
- Full duplex operation
- 802.3x flow control support
- Fiber type: 50um or 62.5um multi-mode fiber up to 550 m
- Wave length: 850nm
- Power support: 3.3V
- Hot pluggable
- Class 1 laser product complies with EN 60825-1
- TTL signal detect indicator
- Metal enclosure for lower EMI

Product Description
SFP Transceiver
Transceiver
Single-mode Fiber Transceiver (50 km)
Single-mode Fiber Transceiver (80 km)
DEM-314GT
- 1000BASE-LX port (IEEE 802.3z standard)
- Duplex LC connector
- Very low jitter
- Full duplex operation
- 802.3x flow control support
- Fiber type: 9/125um single-mode fiber up to 50 km
- Wave length: 1310nm
- Power supply: 3.3V
- Power budget: 22dB
- Hot pluggable
- Class 1 laser product complies with EN 60825-1
- TTL signal detect indicator
- Metal enclosure for lower EMI
DEM-315GT
- 1000BASE-LX port (IEEE 802.3z standard)
- Duplex LC connector
- Very low jitter
- Full duplex operation
- 802.3x flow control support
- Fiber type: 9/125um single-mode fiber up to 80 km
- Wave length: 1550nm
- Power supply: 3.3V
- Power budget: 22dB
- Low power dissipation <700mW
- Hot pluggable
- Class 1 laser product complies with EN 60825-1
- TTL signal detect indicator
- Metal enclosure for lower EMI
Physical & Environmental
Operating Temperature
o o
0 to 50 C
Storage Temperature
o o
-25 to 55 C
Humidity
5% to 95% non-condensing
Ordering Information
SFP Transceiver
DEM-310GT For 1000BASE-LX, single-mode
fiber, 10 km max., 3.3V
DEM-311GT For 1000BASE-SX, multi-mode fiber,
550 m max., 3.3V
DEM-314GT For 1000BASE-LX, single-mode
fiber, 50 km max., 3.3V
DEM-315GT For 1000BASE-LX, single-mode
fiber, 80 km max., 3.3V
Specifications subject to change without
prior notice.
D-Link is a registered trademark of D-Link
Corporation/D-Link System Inc. All other
trademarks belong to their proprietors.
Rev. 04 (Apr. 2005)
