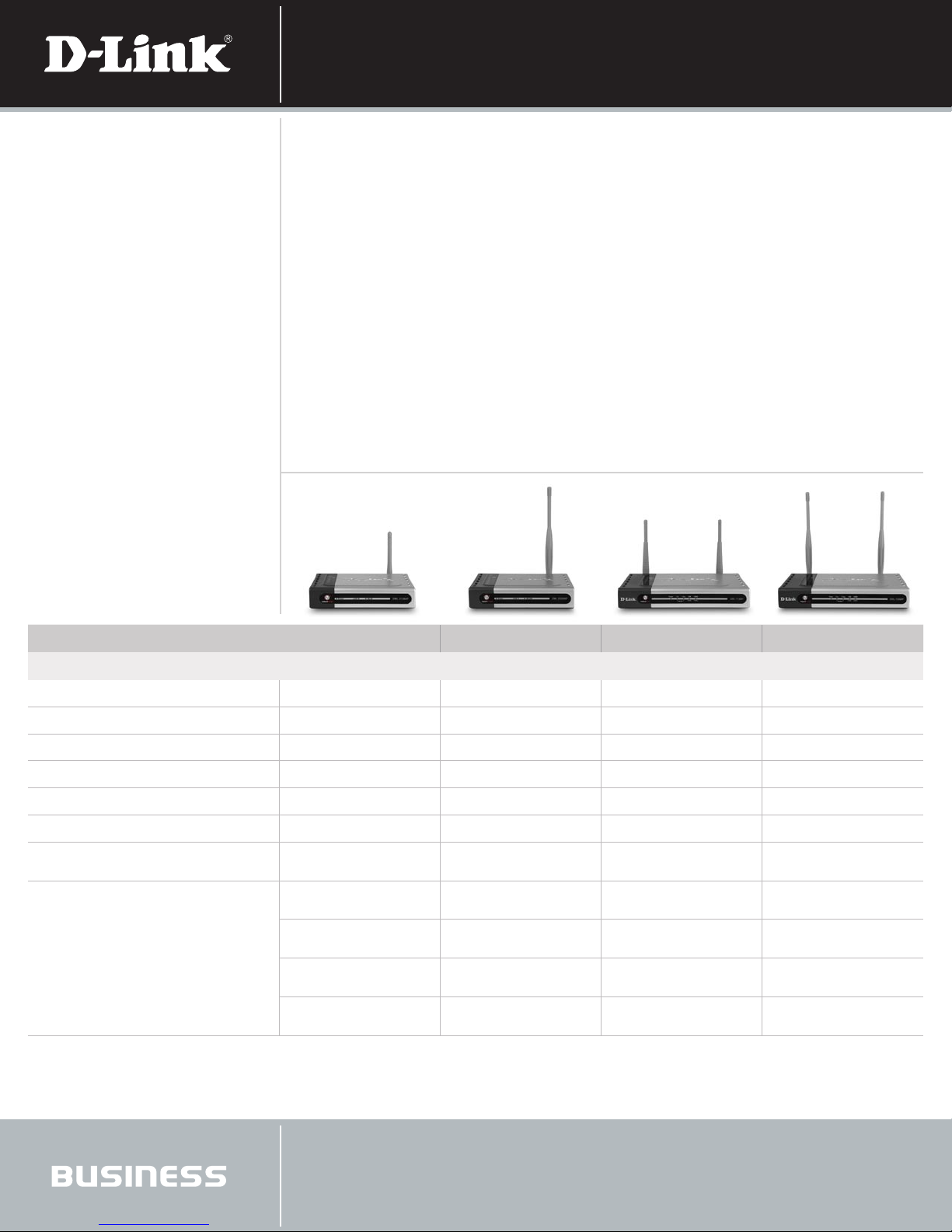

Wireless Access Points for DWS-3200 Series Switches
Designed for the xStack 3200 Series of wireless switches,
the DWL-2130AP, DWL-2230AP, DWL-7130AP, and DWL-7230AP
access points (APs) offer a flexible solution for integration
in various network applications. With options for supporting
802.11a/b/g, 802.11b/g only, and Power over Ethernet
(PoE), these APs are designed to fit virtually any network
topology. When used in conjunction with the xStack 3200
Series wireless switch, these APs unlock the power of
wireless switching and facilitate advanced features such
as centralized AP management, seamless Layer 3 roaming,
tunneling between multiple IP subnets, and rogue AP
detection and jamming.
Overview
The DWL-7130AP is a dual band access point capable of
supporting users on both 802.11a and 802.11g wireless
standards. The DWL-7230AP provides the same dual band
802.11a/g functionality as the DWL-7130AP, but is also 802.3af
PoE compliant. When used with the xStack DXS/DWS-3227P
PoE enabled switch, power can be provided to the AP over
standard CAT5 Ethernet cabling, eliminating the need for
additional wiring.
The DWL-2130AP and DWL-2230AP (PoE capable model) are
a lower cost solution for networks not needing to support
the 802.11a standard. With support for 802.11b and 802.11g,
these wireless APs are compatible with the industry’s most
commonly used wireless network protocol.
xStack™ Wireless Access Points
AP Features:
+ Support for 802.11a/b/g
- DWL-7130AP and DWL-7230AP
+ External 2dBi or 5dBi Antenna Included
+ 10/100Mbps Ethernet Interface
+ PoE Powered
- DWL-2230AP and DWL-7230AP
+ Removable Antenna
(excluding DWL-7130AP)
DWL-2130AP DWL-2230AP DWL-7130AP DWL-7230AP
IEEE 802.11b
Standard IEEE 802.11b IEEE 802.11b IEEE 802.11b IEEE 802.11b
Radio and Modulation Type DQPSK, DBPSK, AND CCK DQPSK, DBPSK, AND CCK DQPSK, DBPSK, AND CCK DQPSK, DBPSK, AND CCK
Operating Frequency 2400 ~ 2497MHz ISM Band 2400 ~ 2497MHz ISM Band 2400 ~ 2497MHz ISM Band 2400 ~ 2497MHz ISM Band
Channel Numbers 11 Channels 11 Channels 11 Channels 11 Channels
Data Rate111, 5.5, 2, and 1Mbps 11, 5.5, 2, and 1Mbps 11, 5.5, 2, and 1Mbps 11, 5.5, 2, and 1Mbps
Media Access Protocol CSMA/CA with ACK CSMA/CA with ACK CSMA/CA with ACK CSMA/CA with ACK
Transmitter Output Power Typical 18dBm at 11, 5.5, 2
and 1Mbps
Typical 18dBm at 11, 5.5, 2
and 1Mbps
Typical 18dBm at 11, 5.5, 2
and 1Mbps
Typical 18dBm at 11, 5.5, 2
and 1Mbps
Receiver Sensitivity -84dBm for 11Mbps
@ 8% PER
-84dBm for 11Mbps
@ 8% PER
-85dBm for 11Mbps
@ 8% PER
-85dBm for 11Mbps @ 8%
PER (Packet Error Rate)
-89dBm @ 5.5Mbps -89dBm @ 5.5Mbps -88dBm for 5.5Mbps
@ 8% PER
-88dBm for 5.5Mbps @ 8%
PER (Packet Error Rate)
-90dBm for 2Mbps
@ 8% PER
-90dBm for 2Mbps
@ 8% PER
-90dBm for 2Mbps
@ 8% PER
-90dBm for 2Mbps @ 8%
PER (Packet Error Rate)
-91dBm @ 1Mbps -93dBm @ 1Mbps -92dBm for 1Mbps
@ 8% PER
-92dBm for 1Mbps @ 8%
PER (Packet Error Rate)

DWL-2130AP DWL-2230AP DWL-7130AP DWL-7230AP
IEEE 802.11g
Standard IEEE 802.11g IEEE 802.11g IEEE 802.11g IEEE 802.11g
Radio and Modulation Type BPSK, QPSK, 16QAM,
64QAM, OFDM
BPSK, QPSK, 16QAM,
64QAM, OFDM
BPSK, QPSK, 16QAM,
64QAM, OFDM
BPSK, QPSK, 16QAM,
64QAM, OFDM
Operating Frequency 2400 ~ 2483.5MHz ISM
band
2400 ~ 2483.5MHz ISM
band
2400 ~ 2483.5MHz ISM
band
2400 ~ 2483.5MHz ISM
band
Channel Numbers 11 Channels 11 Channels 11 Channels 11 Channels
Data Rate154, 48, 36, 24, 18, 12, 9 and
6Mbps
54, 48, 36, 24, 18, 12, 9 and
6Mbps
54, 48, 36, 24, 18, 12, 9 and
6Mbps
54, 48, 36, 24, 18, 12, 9 and
6Mbps
Media Access Protocol CSMA/CA with ACK CSMA/CA with ACK CSMA/CA with ACK CSMA/CA with ACK
Transmitter Output Power +15dBm at 54Mbps +15dBm at 54Mbps +15dBm at 54Mbps +15dBm at 54Mbps
+16dBm at 48Mbps +16dBm at 48Mbps +14 ~ 16dBm at 48Mbps +14 ~ 16dBm at 48Mbps
+17dBm at 36Mbps +17dBm at 36Mbps +17dBm at 36Mbps +17dBm at 36Mbps
+18dBm at 24, 18, 12, 9,
and 6Mbps
+18dBm at 24, 18, 12, 9,
and 6Mbps
+18dBm at 24, 18, 12, 9,
and 6Mbps
+18dBm at 24, 18, 12, 9,
and 6Mbps
Receiver Sensitivity Typical Sensitivity @
which frame (1000-byte
PDUs) Error Rate=10%
Typical Sensitivity @
which frame (1000-byte
PDUs) Error Rate=10%
Typical Sensitivity @
which frame (1000-byte
PDUs) Error Rate=10%
Typical Sensitivity @
which frame (1000-byte
PDUs) Error Rate=10%
–85dBm at 6Mbps –85dBm at 6Mbps –85dBm at 6Mbps –85dBm at 6Mbps
–84dBm at 9Mbps –84dBm at 9Mbps –84dBm at 9Mbps –84dBm at 9Mbps
–82dBm at 12Mbps –82dBm at 12Mbps –82dBm at 12Mbps –82dBm at 12Mbps
–80dBm at 18Mbps –80dBm at 18Mbps –80dBm at 18Mbps –80dBm at 18Mbps
–77dBm at 24Mbps –77dBm at 24Mbps –77dBm at 24Mbps –77dBm at 24Mbps
–73dBm at 36Mbps –73dBm at 36Mbps –73dBm at 36Mbps –73dBm at 36Mbps
–69dBm at 48Mbps –69dBm at 48Mbps –69dBm at 48Mbps –69dBm at 48Mbps
–68dBm at 54Mbps –68dBm at 54Mbps –68dBm at 54Mbps –68dBm at 54Mbps
IEEE 802.11a
Standard x x IEEE 802.11a IEEE 802.11a
Radio and Modulation Type x x BPSK, QPSK, 16QAM,
64QAM, OFDM
BPSK, QPSK, 16QAM,
64QAM, OFDM
Operating Frequency x x 5.15 ~ 5.24GHz 5.15 ~ 5.24GHz
x x 5.745 ~ 5.805GHz 5.745 ~ 5.805GHz
Channel Numbers x x 8 non-overlapping
channels
8 non-overlapping
channels
Data Rate1x x 54, 48, 36, 24, 18, 12, 9 and
6Mbps
54, 48, 36, 24, 18, 12, 9 and
6Mbps
Media Access Protocol x x CSMA/CA with ACK CSMA/CA with ACK
xStack™ Wireless Access Points

DWL-2130AP DWL-2230AP DWL-7130AP DWL-7230AP
Transmitter Output Power x x +12 ~ 15dBm at 54Mbps +12 ~ 15dBm at 54Mbps
x x +14 ~ 16dBm at 48Mbps +14 ~ 16dBm at 48Mbps
x x +17 ~ 18dBm at 36Mbps +17 ~ 18dBm at 36Mbps
x x +18 ~ 19dBm at 24, 18, 12,
9, and 6Mbps
+18 ~ 19dBm at 24, 18, 12,
9, and 6Mbps
Receiver Sensitivity x x Typical Sensitivity at
Which Frame (1000-byte
PDUs) Error Rate = 10%
Typical Sensitivity at
Which Frame (1000-byte
PDUs) Error Rate = 10%
x x –84dBm at 6Mbps –84dBm at 6Mbps
x x –83dBm at 9Mbps –83dBm at 9Mbps
x x –81dBm at 12Mbps –81dBm at 12Mbps
x x –79dBm at 18Mbps –79dBm at 18Mbps
x x –76dBm at 24Mbps –76dBm at 24Mbps
x x –72dBm at 36Mbps –72dBm at 36Mbps
x x –68dBm at 48Mbps –68dBm at 48Mbps
x x –67dBm at 54Mbps –67dBm at 54Mbps
General Product Specifications
Interface Power Jack Power Jack Power Jack Power Jack
Factory Reset Button Factory Reset Button Factory Reset Button Factory Reset Button
10/100Base-TX (UTP) 10/100Base-TX (UTP) 10/100Base-TX (UTP) 10/100Base-TX (UTP)
Wireless Dipole Antenna Wireless Dipole Antenna Wireless Dipole Antenna Wireless Dipole Antenna
External Antenna Type Dipole antenna with 2dBi
gain for 2.4GHz
Dipole antenna with 5dBi
gain for 2.4GHz
Dipole antenna with 2dBi
gain for 2.4GHz/5GHz
Dipole antenna with 5dBi
gain for 2.4GHz/5GHz
Internal Antenna Type Printed antenna for
2.4GHZ
Printed antenna for
2.4GHz
PIFA antenna with 5dBi
gain for 2.4GHz/5GHz
Printed antenna for
2.4GHz/5GHz
Ethernet Standard IEEE 802.3, IEEE 802.3u,
IEEE 802.3x
IEEE 802.3, IEEE 802.3u,
IEEE 802.3x
IEEE 802.3, IEEE 802.3u,
IEEE 802.3x
IEEE 802.3, IEEE 802.3u,
IEEE 802.3x
LEDs Power, Speed, Wireless Power, Speed, Wireless Power, Speed, Wireless
802.11a & 802.11b/g
Power, Speed, Wireless
802.11a & 802.11b/g
Physical Specifications
Dimensions (W x D x H) 4.25” x 5.59” x 1.25”
(142mm x 108mm x 31mm)
4.25” x 5.59” x 1.25”
(142mm x 108mm x 31mm)
5.51” x 7.6” x 1.22”
(140mm x 193mm x 31mm)
7.6” x 5” x 1.3”
(193mm x 127mm x 32mm)
Electrical & Emissions
Operating Voltage 5VDC +/- 10% 48VDC +/- 10% 5VDC +/- 10% 48VDC +/- 10%
Current Consumption Maximum 5W Maximum 6W
(8W with PoE)
Maximum 6W Maximum 6W
(8W with PoE)
Safety Agency Certifications & Environmental
Operating Temperating 32°F to 104°F
(0°C to 40°C)
32°F to 104°F
(0°C to 40°C)
32°F to 104°F
(0°C to 40°C)
32°F to 104°F
(0°C to 40°C)
Non-Operating Temperature -4°F to 149°F
(-20°C to 65°C)
-4°F to 149°F
(-20°C to 65°C)
-4°F to 149°F
(-20°C to 65°C)
-4°F to 149°F
(-20°C to 65°C)
xStack™ Wireless Access Points

DWL-2130AP DWL-2230AP DWL-7130AP DWL-7230AP
Operating Humidity 10% ~ 90% RH
Non-condensing
10% ~ 90% RH
Non-condensing
10% ~ 90% RH
Non-condensing
10% ~ 90% RH
Non-condensing
Non-Operating Humidity 5% ~ 95% 5% ~ 95% 5% ~ 95% 5% ~ 95%
USA
EMI (802.11a) x x FCC Part 15.407 (b) Power
limits: FCC Part 15.407 (a)
FCC Part 15.407 (b) Power
limits: FCC Part 15.407 (a)
EMI (802.11g/b) FCC part 15.247, 15.205,
15.209
FCC part 15.247, 15.205,
15.209
FCC part 15.247, 15.205,
15.209
FCC part 15.247, 15.205,
15.209
Safety UL 1950-3 CSA mark UL 1950-3 CSA mark UL 1950-3 CSA mark UL 1950-3 CSA mark
Canada
EMI (802.11a) x x Power limits:
RSS-210 6.2.2 (91)
Power limits:
RSS-210 6.2.2 (91)
EMI (802.11g/b) Power limits:
RSS-210 6.2.2 (91)
Power limits:
RSS-210 6.2.2 (91)
Power limits:
RSS-210 6.2.2 (91)
Power limits:
RSS-210 6.2.2 (91)
Safety CSA-International CSA-International CSA-International CSA-International
Ordering Information
Part Number Description
DWL-2130AP xStack Access Point, 802.11g
DWL-2230AP xStack PoE Access Point, 802.3af, 802.11g
DWL-7130AP xStack Access Point, 802.11a/g
DWL-7230AP xStack PoE Access Point, 802.3af, 802.11a/g
DXS-3227 xStack Managed 24-Port Gigabit Stackable L2+ PoE Switch, 4 Combo SFP, 3 XG Slots (AP License Required)
DXS-3227P ‘Wireless-ready’ 24-port Gigabit PoE L2+ switch with onboard 10G XFP slot and 2 additional optional 10G CX4/XFP
DXS-3250 xStack Managed 48-Port Gigabit Stackable L2+ Switch, 4 Combo SFP ports, 2-10 Gig Uplink (AP License Required)
DS-710 10 Access Point License, xStack Wireless Switching
DS-725 25 Access Point License, xStack Wireless Switching
DS-750 50 Access Point License, xStack Wireless Switching
xStack™ Wireless Access Points
D-Link Systems, Inc. 17595 Mt. Herrmann Street Fountain Valley CA 92708 www.dlink.com
©2005-2008 D-Link Corporation/D-Link Systems, Inc. All rights reserved. D-Link,
the D-Link logo, and xStack are registered trademarks of D-Link Corporation or its
subsidiaries in the United States and other countries. Other trademarks or registered
trademarks are the property of their respective owners. Visit www.dlink.com for
more details.
1 Maximum wireless signal rate derived from IEEE Standard 802.11a, 802.11b, and 802.11g specifications. Actual data throughput will vary. Network conditions and environmental
factors, including volume of network traffic, building materials and construction, and network overhead, lower actual data throughput rate. Environmental factors will adversely
affect wireless signal range.
