D-Link DIR-836L User manual

iD-Link DIR-836L User Manual
D-Link reserves the right to revise this publication and to make changes in the content hereof without obligation to notify any
person or organization of such revisions or changes.
Manual Revisions
Trademarks
D-Link and the D-Link logo are trademarks or registered trademarks of D-Link Corporation or its subsidiaries in the United
States or other countries. All other company or product names mentioned herein are trademarks or registered trademarks of
their respective companies.
Copyright © 2012 by D-Link Systems, Inc.
All rights reserved. This publication may not be reproduced, in whole or in part, without prior expressed written permission
from D-Link Systems, Inc.
Revision Date Description
1.0 August 22, 2012 • Initial release for Revision A1
Preface

iiD-Link DIR-836L User Manual
Table of Contents
Preface................................................................................. i
Manual Revisions........................................................................... i
Trademarks ...................................................................................... i
Product Overview.............................................................. 1
Package Contents......................................................................... 1
System Requirements................................................................. 2
Introduction ................................................................................... 3
Features............................................................................................ 4
Hardware Overview..................................................................... 5

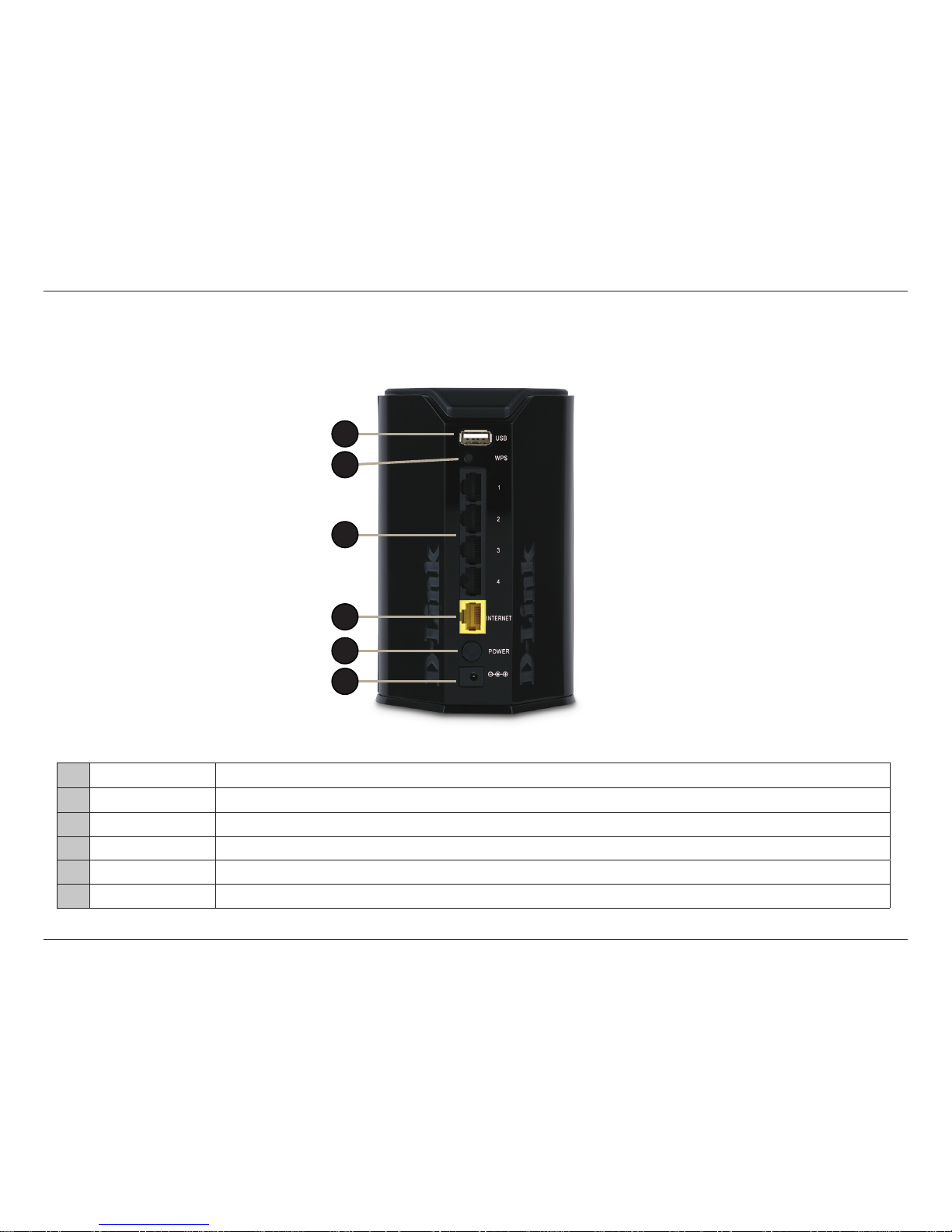

Connections ........................................................................... 5

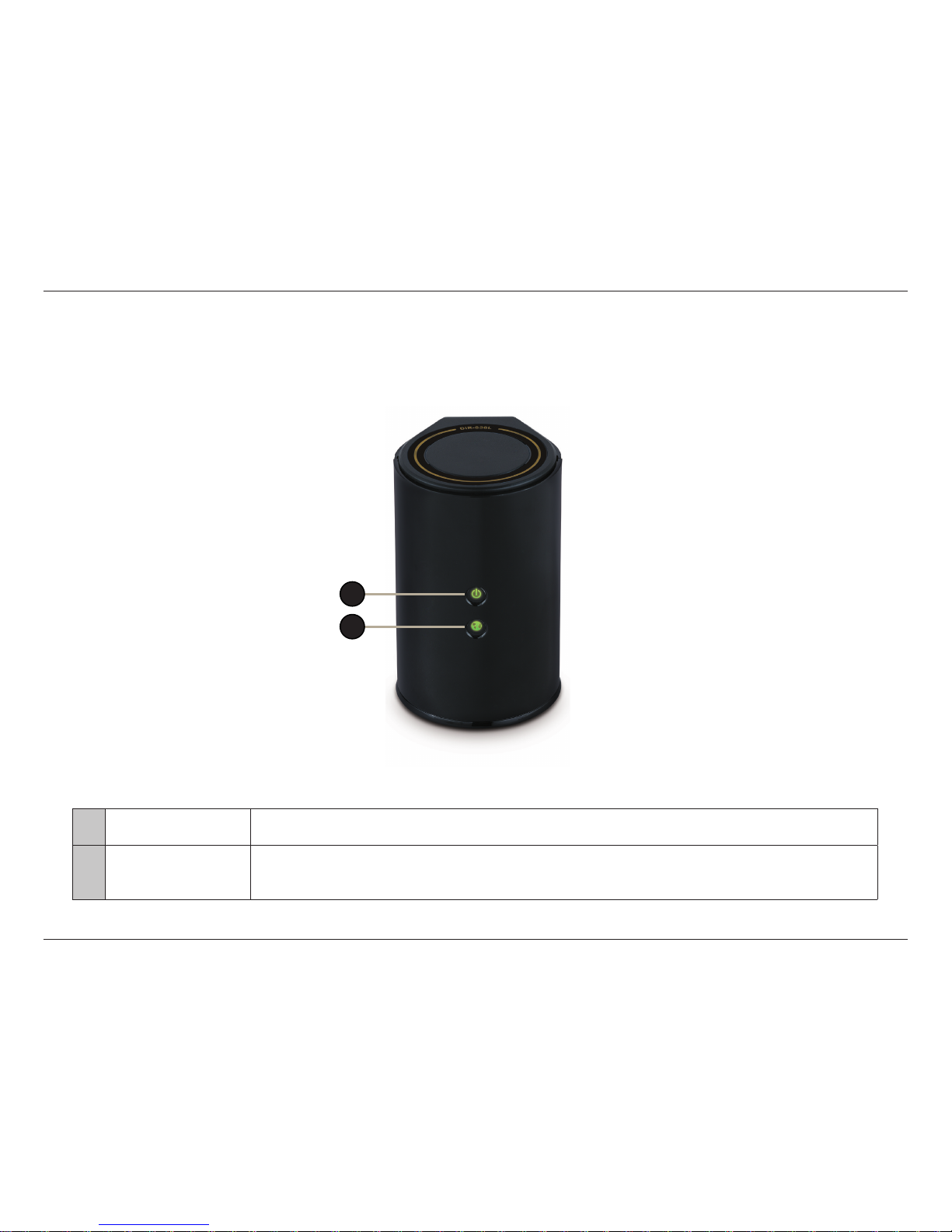

LEDs........................................................................................... 6
Installation ......................................................................... 7
Before you Begin........................................................................... 7
Wireless Installation Considerations...................................... 8

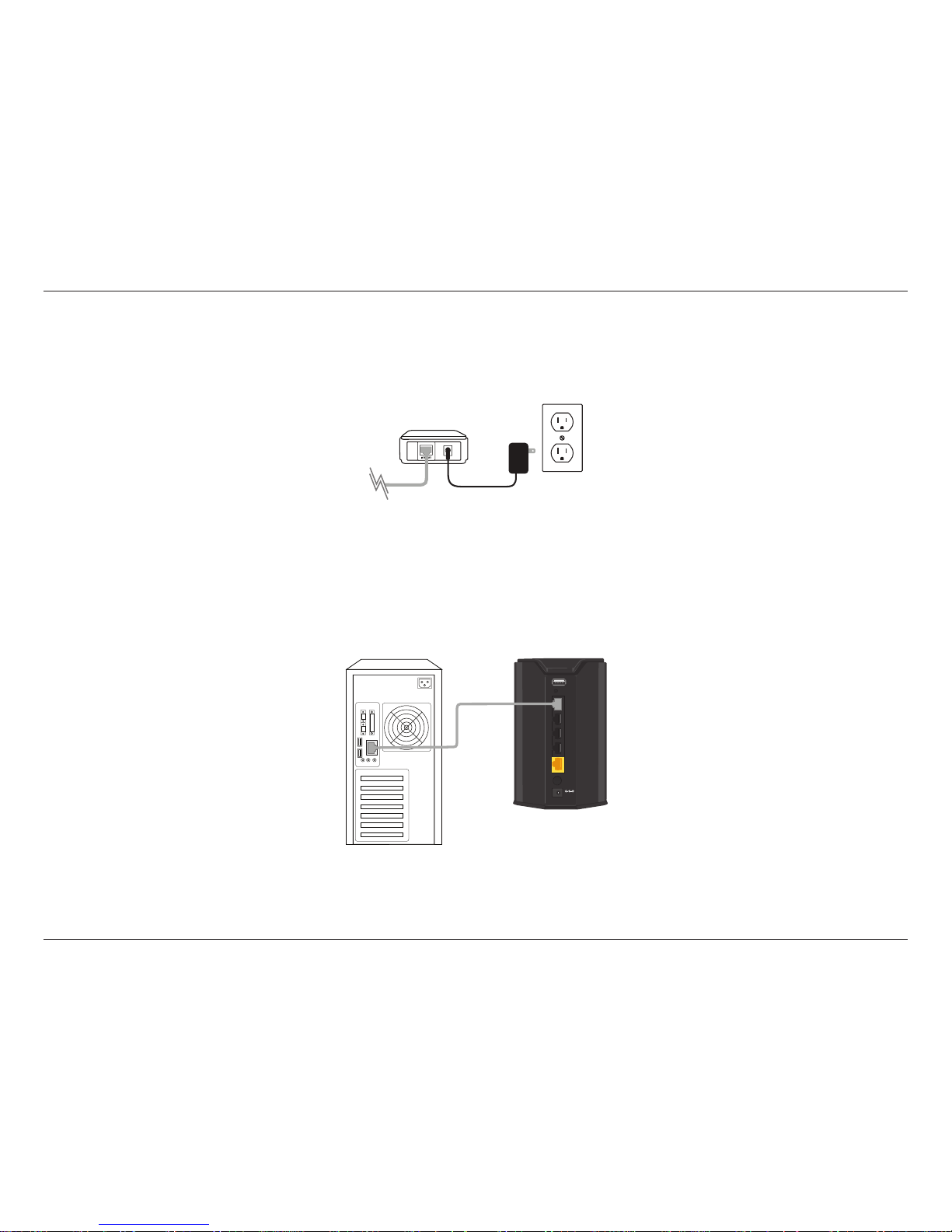

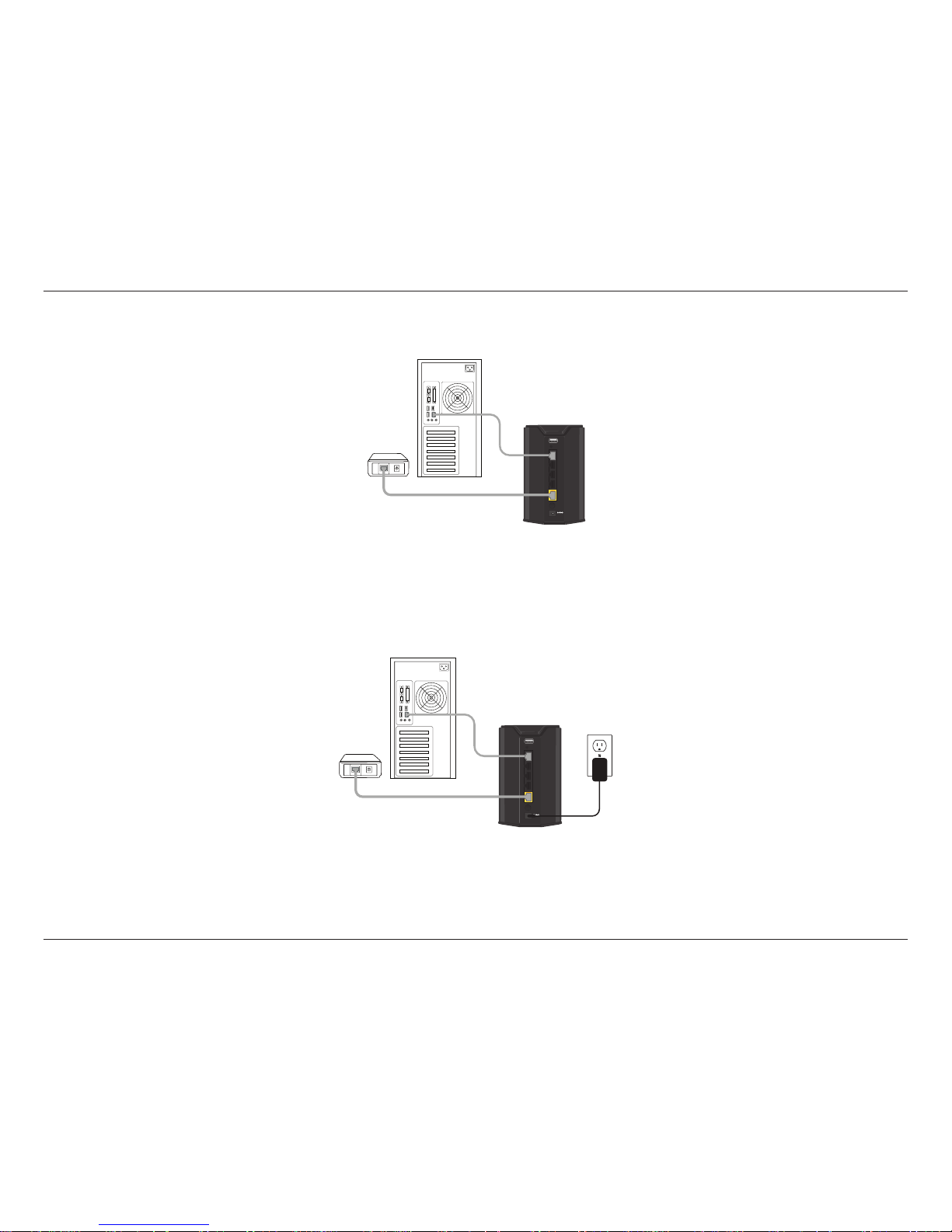

Manual Setup................................................................................. 9
Connect to an Existing Router...............................................11
Conguration...................................................................13

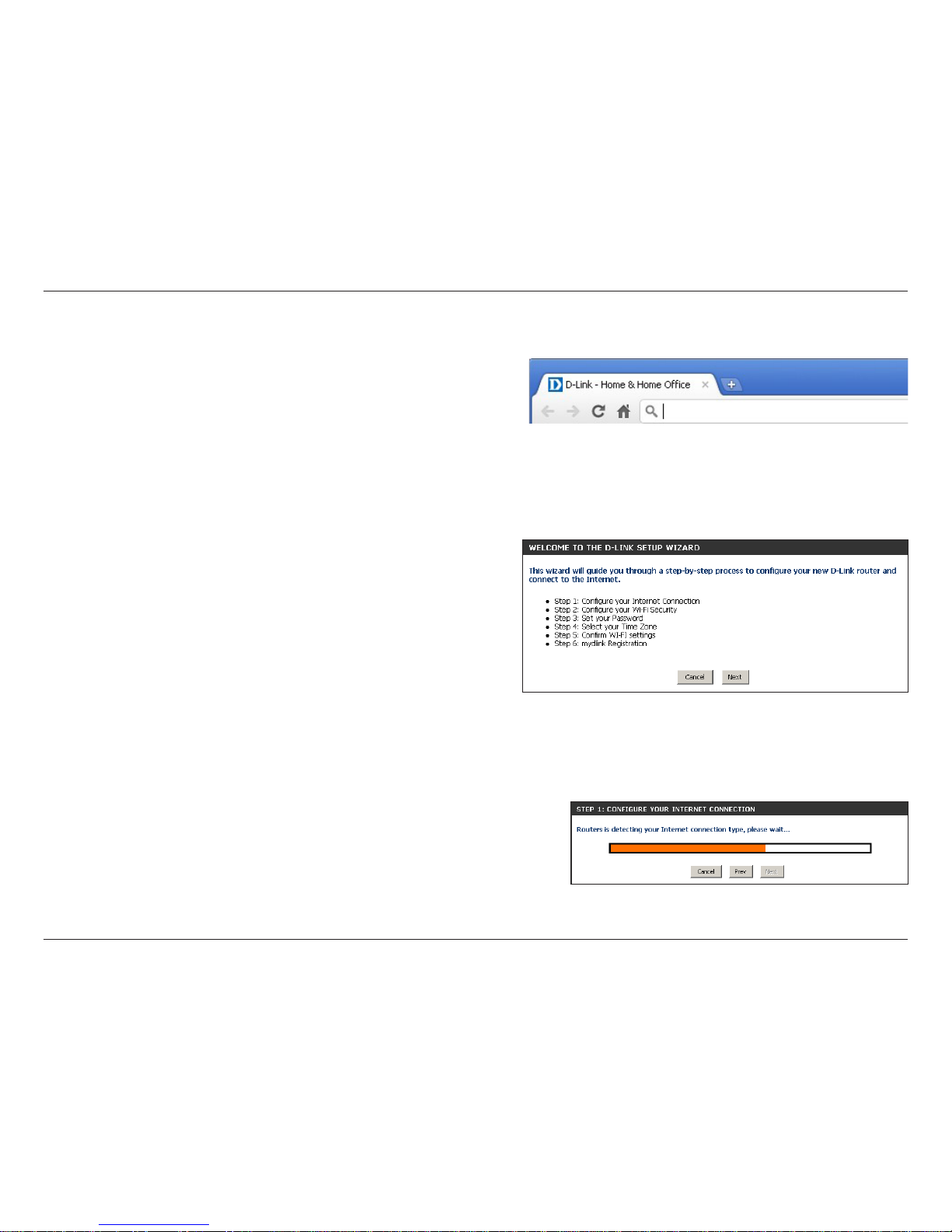

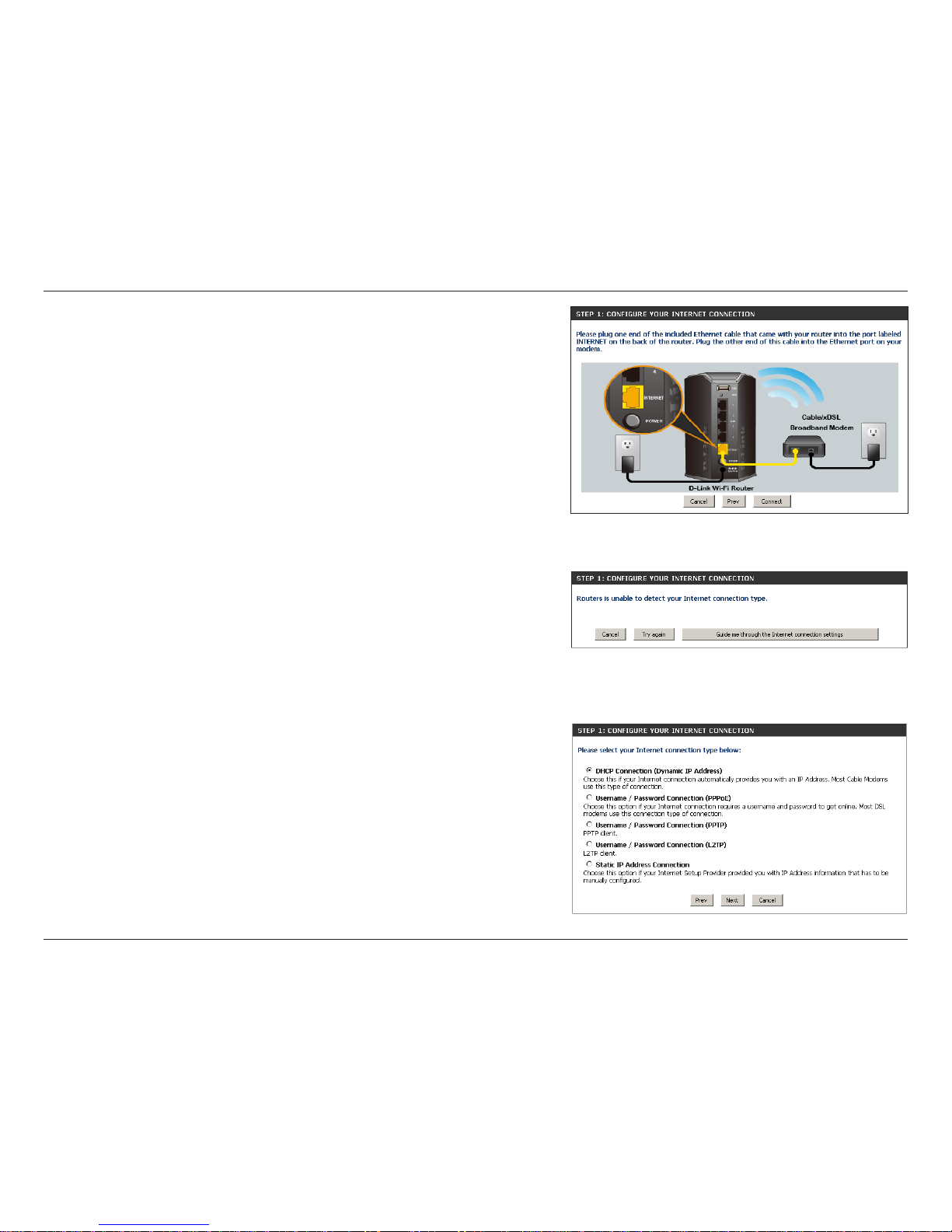

Quick Setup Wizard....................................................................14
QRS Mobile App..........................................................................21
Set up the router using your iPad or iPhone.............21
SharePort Mobile App ..............................................................22
App Installation...................................................................22
Web-based Conguration Utility..........................................26
Internet Connection Setup .............................................27
Static (assigned by ISP)................................................28
Dynamic (Cable).............................................................30
PPPoE (DSL)......................................................................31
PPTP....................................................................................33
L2TP ....................................................................................35
Wireless Settings.................................................................37
Manual Wireless Settings .................................................38
802.11n/g (2.4GHz) .......................................................38
802.11n/a (5GHz) ...........................................................39
Wireless Security .................................................................40
What is WPA? ...................................................................40
Wireless Security Setup Wizard.................................41
Add Wireless Device with WPS Wizard...................43
WPA/WPA2-Personal (PSK) .........................................45
Congure WPA/WPA2-Enterprise (RADIUS)..........46
Network Settings ................................................................48
Router Settings...............................................................48
DHCP Server Settings...................................................49
DHCP Reservation .........................................................51
Storage ...................................................................................52
Setup Wizard....................................................................53
Manual Setup ..................................................................55
Access Files from the Internet ...................................56
IPv6 ..........................................................................................57
IPv6 Internet Connection Setup Wizard ................58
Table of Contents

iiiD-Link DIR-836L User Manual
Table of Contents
IPv6 Manual Setup.........................................................63
mydlink Settings .................................................................72
Advanced...............................................................................73
Virtual Server...................................................................73
Port Forwarding .............................................................74
Application Rules...........................................................75
QoS Engine.......................................................................76
Network Filters................................................................77
Access Control.................................................................78
Website Filters.................................................................81
Inbound Filters................................................................82
Firewall Settings.............................................................83
Routing..............................................................................85
Advanced Wireless ........................................................86
Wi-Fi Protected Setup (WPS) .....................................87
Advanced Network Settings......................................89
Guest Zone.......................................................................90
IPv6 Firewall.....................................................................91
IPv6 Routing ....................................................................92
Tools ........................................................................................93
Admin.................................................................................93
Time....................................................................................94
SysLog................................................................................95
Email Settings..................................................................96
System ...............................................................................97
Firmware ...........................................................................98
Language Pack................................................................98
Dynamic DNS ..................................................................99
System Check ............................................................... 100
Schedules ...................................................................... 101
Status ................................................................................... 102
Device Info .................................................................... 102
Logs.................................................................................. 103
Statistics ......................................................................... 104
Internet Sessions......................................................... 105
Routing........................................................................... 106
Wireless........................................................................... 107
IPv6 .................................................................................. 108
IPV6 Routing................................................................. 109
Support ............................................................................... 110
Connect a Wireless Client to your Router ....................111
WPS Button................................................................................ 111
Windows® 7................................................................................ 112
WPA/WPA2 ......................................................................... 112
WPS....................................................................................... 115
Windows Vista®......................................................................... 119
WPA/WPA2 ......................................................................... 120
WPS/WCN 2.0 .................................................................... 122
Windows® XP............................................................................. 123
WPA/WPA2 ......................................................................... 124
Troubleshooting ............................................................126
Wireless Basics ...............................................................130
What is Wireless?...................................................................... 131
Tips................................................................................................ 133
Wireless Modes......................................................................... 134

ivD-Link DIR-836L User Manual
Table of Contents
Networking Basics.........................................................135
Check your IP address............................................................ 135
Statically Assign an IP address............................................ 136
Technical Specications ................................................137
Contacting Technical Support ......................................138
GPL Code Statement......................................................139
Warranty.........................................................................151
Registration ...................................................................158

1D-Link DIR-836L User Manual
Section 1 - Product Overview
Product Overview
Package Contents
Note: Using a power supply with a dierent voltage rating than the one included with the DIR-836L will cause damage and void the warranty
for this product.
If any of the above items are missing, please contact your reseller.
DIR-836L Wireless N750 Dual Band Gigabit Router
Ethernet Cable
Power Adapter

2D-Link DIR-836L User Manual
Section 1 - Product Overview
Network Requirements
• An Ethernet-based Cable or DSL modem
• IEEE 802.11n or 802.11g wireless clients (2.4GHz)
• IEEE 802.11n or 802.11a wireless clients (5GHz)
• 10/100/1000 Ethernet
Web-based Conguration
Utility Requirements
Computer with the following:
• Windows®, Macintosh, or Linux-based operating system
• An installed Ethernet adapter
Browser Requirements:
• Internet Explorer 7 or higher
• Firefox
• Chrome
• Safari 4 or higher
Windows®Users: Make sure you have the latest version of Java
installed. Visit www.java.com to download the latest version.
mydlink Requirements
(PC/Mac/Mobile Devices)
• iPhone/iPad/iPod Touch (iOS 3.0 or higher)
• Android device (1.6 or higher)
• Computer with the following browser requirements:
• Internet Explorer 7 or higher
• Firefox
• Chrome
• Safari 5 or higher
SharePort Mobile App
Requirements
• iPhone/iPad/iPod Touch (iOS 4.3 or higher)
• Android device (2.0 or higher)
System Requirements
iPhone, iPad, and iPod touch are registered trademarks of Apple Inc. Android is a trademark of Google, Inc.

3D-Link DIR-836L User Manual
Section 1 - Product Overview
Introduction
The D-Link Wireless N750 Dual Band Gigabit Router (DIR-836L) comes equipped with 4 Gigabit ports to provide speeds up
to 10x faster than standard 10/100 ports. It also uses 802.11n technology with multiple intelligent antennas to maximize the
speed and range of your wireless signal to signicantly outperform 802.11g devices.
With the addition of Intelligent Quality of Service (QoS), data streams are separated which helps organize and prioritize your
network trac so your video streaming, gaming, and VoIP calls run smoother over both your wired and wireless network.
The D-Link Cloud Service will allow you to always have access to your home network no matter where you go. Now you can
monitor and manage your home network right from your laptop, iPhone®, iPad®7, or Android™ device. The cloud-enabled
router can be congured to send an email to keep you informed anywhere, anytime when new devices are connecting to
your network or unwanted access is detected. Monitor in real-time websites that are being visited with recent browser history
displayed on the mydlink™ Lite app – which is great for parents.
The D-Link Cloud Service can detect and block unwelcomed guests who try to get into your wireless network and suspicious
activities will be displayed right on your mydlink™ Lite app or browser.

4D-Link DIR-836L User Manual
Section 1 - Product Overview
•FasterWirelessNetworking - The DIR-836L provides up to 750Mbps* wireless connection with other 802.11n
wireless clients. This capability allows users to participate in real-time activities online, such as video streaming,
online gaming, and real-time audio. The performance of this 802.11n wireless router gives you the freedom of
wireless networking at speeds faster than 802.11g.
•Compatiblewith802.11a/gDevices - The DIR-836L is still fully compatible with the IEEE 802.11g and 802.11a
standards, so it can connect with existing 802.11g and 802.11a PCI, USB, and Cardbus adapters.
•Advanced FirewallFeatures - The Web-based user interface displays a number of advanced network
management features including:
• ContentFiltering - Easily applied content ltering based on MAC Address, URL, and/or Domain
Name.
• FilterScheduling - These lters can be scheduled to be active on certain days or for a duration of
hours or minutes.
• Secure Multiple/Concurrent Sessions - The DIR-836L can pass through VPN sessions. It supports
multiple and concurrent IPSec and PPTP sessions, so users behind the DIR-836L can securely access
corporate networks.
•User-friendlySetupWizard - Through its easy-to-use Web-based user interface, the DIR-836L lets you control
what information is accessible to those on the wireless network, whether from the Internet or from your company’s
server. Congure your router to your specic settings within minutes.
* Maximum wireless signal rate derived from IEEE Standard 802.11a, 802.11g and 802.11n specications. Actual data throughput will vary. Network conditions and environmental
factors, including volume of network trac, building materials and construction, and network overhead, lower actual data throughput rate. Environmental conditions will
adversely aect wireless signal range.
Features

5D-Link DIR-836L User Manual
Section 1 - Product Overview
Hardware Overview
Connections
1USB Port Connect a USB ash drive to share content throughout your network.
2WPS Button Press to start the WPS process. The Power LED will start to blink.
3LAN Ports (1-4) Connect 10/100/1000 Ethernet devices such as computers, switches, storage (NAS) devices and game consoles.
4Internet Port Using an Ethernet cable, connect your broadband modem to this port.
5Power Button Press the power button to power on and o.
6Power Receptor Receptor for the supplied power adapter.
1
3
4
5
6
2

6D-Link DIR-836L User Manual
Section 1 - Product Overview
Hardware Overview
LEDs
1Power LED A solid green light indicates a proper connection to the power supply. The light will blink green during
the WPS process and will be solid orange during boot-up.
2Internet LED
A solid light indicates connection on the Internet port. If the LED is orange, the connection is good
but the router cannot connect to the Internet. If this LED is blinking orange, this indicates that the “on
demand” connection type is set and the Internet connection is idle.
1
2

7D-Link DIR-836L User Manual
Section 2 - Installation
Before you Begin
Installation
This section will walk you through the installation process. Placement of the router is very important. Do not place the router
in an enclosed area such as a closet, cabinet, or in the attic or garage.
• Please congure the router with the computer that was last connected directly to your modem.
• You can only use the Ethernet port on your modem. If you were using the USB connection before using the router,
then you must turn o your modem, disconnect the USB cable and connect an Ethernet cable to the Internet port
on the router, and then turn the modem back on. In some cases, you may need to call your ISP to change connection
types (USB to Ethernet).
• If you have DSL and are connecting via PPPoE, make sure you disable or uninstall any PPPoE software such as WinPoet,
Broadjump, or Enternet 300 from your computer or you will not be able to connect to the Internet.
• Several Internet providers (ISPs) such as Verizon and AT&T will supply you with a modem/router combo. Please verify
your modem is not also a router before installing. Connecting 2 routers together may not work correctly. If you do
have a modem/router combo, you must put your modem/router in Bridge mode to bypass the router functions
which will allow your DIR-836L router to work properly. Please contact your ISP or refer to your modem’s user guide
for more information.

8D-Link DIR-836L User Manual
Section 2 - Installation
Wireless Installation Considerations
The D-Link wireless router lets you access your network using a wireless connection from virtually anywhere within the
operating range of your wireless network. Keep in mind, however, that the number, thickness and location of walls, ceilings,
or other objects that the wireless signals must pass through, may limit the range. Typical ranges vary depending on the types
of materials and background RF (radio frequency) noise in your home or business. The key to maximizing wireless range is to
follow these basic guidelines:
1. Keep the number of walls and ceilings between the D-Link router and other network devices to a minimum -
each wall or ceiling can reduce your adapter’s range from 3-90 feet (1-30 meters.) Position your devices so that
the number of walls or ceilings is minimized.
2. Be aware of the direct line between network devices. A wall that is 1.5 feet thick (.5 meters), at a 45-degree angle
appears to be almost 3 feet (1 meter) thick. At a 2-degree angle it looks over 42 feet (14 meters) thick! Position
devices so that the signal will travel straight through a wall or ceiling (instead of at an angle) for better reception.
3. Building Materials make a dierence. A solid metal door or aluminum studs may have a negative eect on range.
Try to position access points, wireless routers, and computers so that the signal passes through drywall or open
doorways. Materials and objects such as glass, steel, metal, walls with insulation, water (sh tanks), mirrors, le
cabinets, brick, and concrete will degrade your wireless signal.
4. Keep your product away (at least 3-6 feet or 1-2 meters) from electrical devices or appliances that generate RF
noise.
5. If you are using 2.4GHz cordless phones or X-10 (wireless products such as ceiling fans, lights, and home security
systems), your wireless connection may degrade dramatically or drop completely. Make sure your 2.4GHz phone
base is as far away from your wireless devices as possible. The base transmits a signal even if the phone in not
in use.

9D-Link DIR-836L User Manual
Section 2 - Installation
1. Turn o and unplug your cable or DSL broadband modem. This is required.
Manual Setup
USB
WPS
1
2
3
4
INTERNET
POWER
2. Position your router close to your modem and a computer. Place the router in an open area of your intended
work area for better wireless coverage.
3. Unplug the Ethernet cable from your modem (or existing router if upgrading) that is connected to your computer.
Plug it into the LAN port labeled 1on the back of your router. The router is now connected to your computer.
Modem
DIR-836L
Computer

10D-Link DIR-836L User Manual
Section 2 - Installation
4. Plug one end of the included blue Ethernet cable that came with your router into the yellow port labeled
INTERNET on the back of the router. Plug the other end of this cable into the Ethernet port on your modem.
USB
WPS
1
2
3
4
INTERNET
POWER
INTERNET
5. Reconnect the power adapter to your cable or DSL broadband modem and wait for two minutes.
6. Connect the supplied power adapter into the power port on the back of the router and then plug it into a power
outlet or surge protector. Press the power button and verify that the power LED is lit. Allow 1 minute for the
router to boot up.
USB
WPS
1
2
3
4
INTERNET
POWER
INTERNET
7. Open a web browser. For rst time setup, you will automatically be directed to the D-Link Setup Wizard. Skip to
page 14. If the wizard does not appear, you can manually log in and congure your router. Refer to page 26.
DIR-836L
DIR-836L
Modem
Computer
Modem
Computer

11D-Link DIR-836L User Manual
Section 2 - Installation
Note: It is strongly recommended to replace your existing router with the DIR-836L instead of using both. If your modem is a combo
router, you may want to contact your ISP or manufacturer’s user guide to put the router into Bridge mode, which will ‘turn o’ the
router (NAT) functions.
If you are connecting the DIR-836L to an existing router to use as a wireless access point and/or switch, you will have to do the
following to the DIR-836L before connecting it to your network:
• Disable UPnP™
• Disable DHCP
• Change the LAN IP address to an available address on your network. The LAN ports on the router cannot accept
a DHCP address from your other router.
To connect to another router, please follow the steps below:
1. Plug the power into the router. Connect one of your computers to the router (LAN port) using an Ethernet cable. Make sure
your IP address on the computer is 192.168.0.xxx (where xxx is between 2 and 254). Please see the Networking Basics
section for more information. If you need to change the settings, write down your existing settings before making any
changes. In most cases, your computer should be set to receive an IP address automatically in which case you will not have
to do anything to your computer.
2. Open a web browser, enter http://dlinkrouter.local and press Enter. When the login window appears, set the user name
to Admin and leave the password box empty. Click Log In to continue. Note that a rst time setup will automatically launch
the D-Link Setup Wizard. If the wizard appears, click Cancel.
3. Click on Advanced and then click Advanced Network. Uncheck the Enable UPnP checkbox. Click Save Settings to continue.
4. Click Setup and then click Network Settings. Uncheck the Enable DHCP Server checkbox. Click Save Settings to continue.
Connect to an Existing Router

12D-Link DIR-836L User Manual
Section 2 - Installation
5. Under Router Settings, enter an available IP address and the subnet mask of your network. Click Save Settings to save your
settings. Use this new IP address to access the conguration utility of the router in the future. Close the browser and change
your computer’s IP settings back to the original values as in Step 1.
6. Disconnect the Ethernet cable from the router and reconnect your computer to your network.
7. Connect an Ethernet cable in one of the LAN ports of the router and connect it to your other router. Do not plug anything
into the Internet (WAN) port of the D-Link router.
8. You may now use the other 3 LAN ports to connect other Ethernet devices and computers. To congure your wireless
network, open a web browser and enter the IP address you assigned to the router. Refer to the Conguration section for
more information on setting up your wireless network.

13D-Link DIR-836L User Manual
Section 2 - Installation
There are several dierent ways you can congure your router to connect to the Internet and connect to your clients:
• D-LinkSetupWizard - This wizard will launch when you log into the router for the rst time. Refer to page 14.
• QRS Mobile App - Use your iPhone, iPad, or iPod Touch to congure your router. Refer to page 21.
• Manual Setup - Log into the router and manually congure your router (advanced users only). Refer to page 26.
Conguration

14D-Link DIR-836L User Manual
Section 3 - Conguration
This wizard is designed to guide you through a step-by-step
process to congure your new D-Link router and connect to the
Internet.
Click Next to continue.
Quick Setup Wizard
If this is your rst time installing the router, open your web
browser. You will automatically be directed to the Wizard Setup
Screen.
If you have already congured your settings and you would like
to access the conguration utility, please refer to page 26.
Please wait while your router detects your internet connection type.
If the router detects your Internet connection, you may need to enter
your ISP information such as username and password.

15D-Link DIR-836L User Manual
Section 3 - Conguration
If the router does not detect a valid Ethernet connection from the
Internet port, this screen will appear. Connect your broadband modem
to the Internet port and then click Connect.
If the router detects an Ethernet connection but does not detect the type
of Internet connection you have, this screen will appear. Click Guide me
through the Internet Connection Settings to display a list of connection
types to choose from.
Select your Internet connection type and click Next to continue.
