D-Teg TX1000D User manual

TX1000D
3GENABLEDVEHICLERECORDER
ThankyouforpurchasingtheTX1000DVehicleRecorder.
Pleaseensurethatyou readandunderstand thisUSERGUIDE
anduseitbeforeconnectingandinstallingthisRecorder.
PleasestoretheUSERGUIDEinaneasilyaccessible location.
USERGUIDE
VER 1.0.0 1st Edition

2
SAFETYADVICE
GPSRECEPTION
CONTENTS
INTRODUCTION
FINCTIONS
LEDS&BUZZERSPECIFICATION
Installation
CONFIGURATIONTOOLUSERGUIDE
INITIALIZESDCARD
DEVICESETTINGS
RECORDSETTINGS

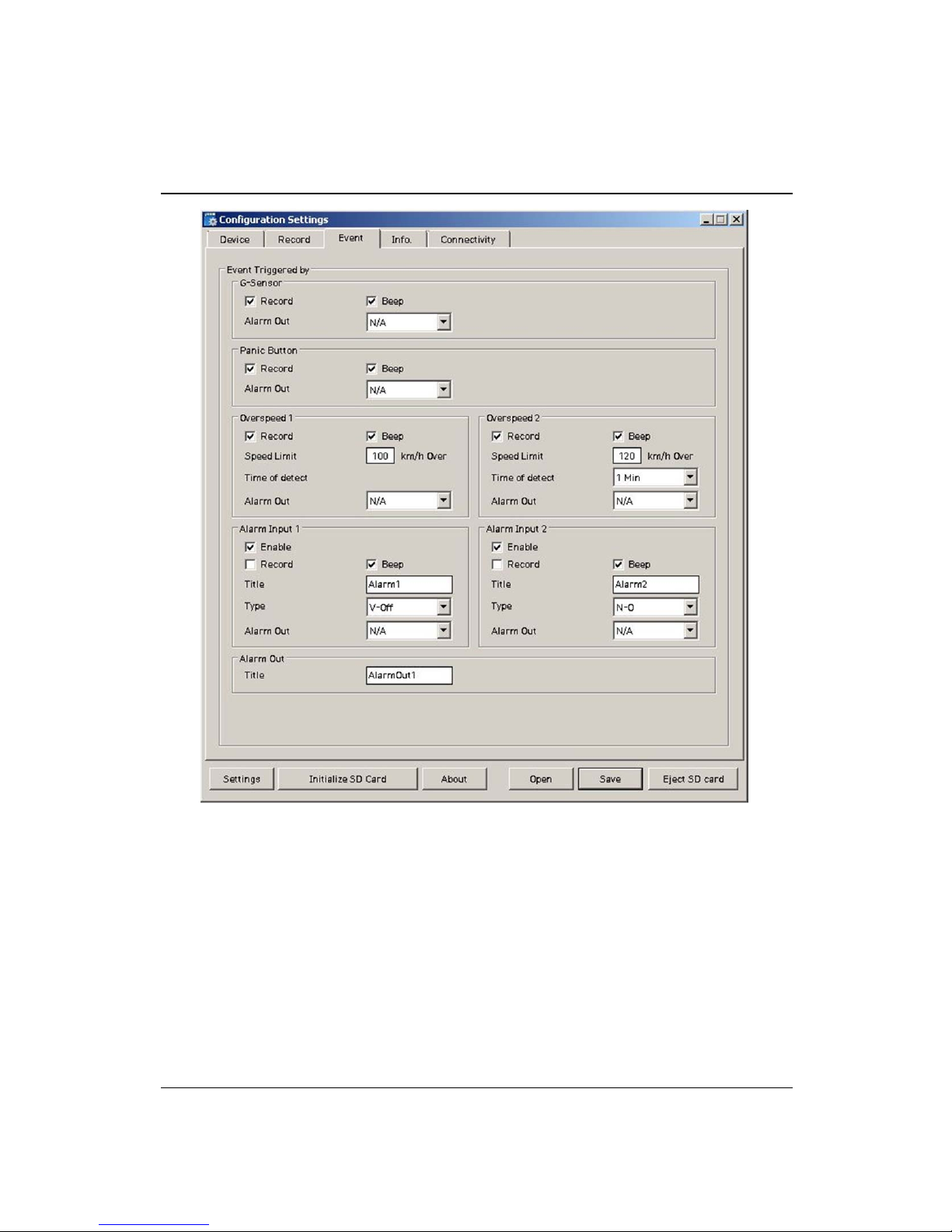

EVENTSETTINGS

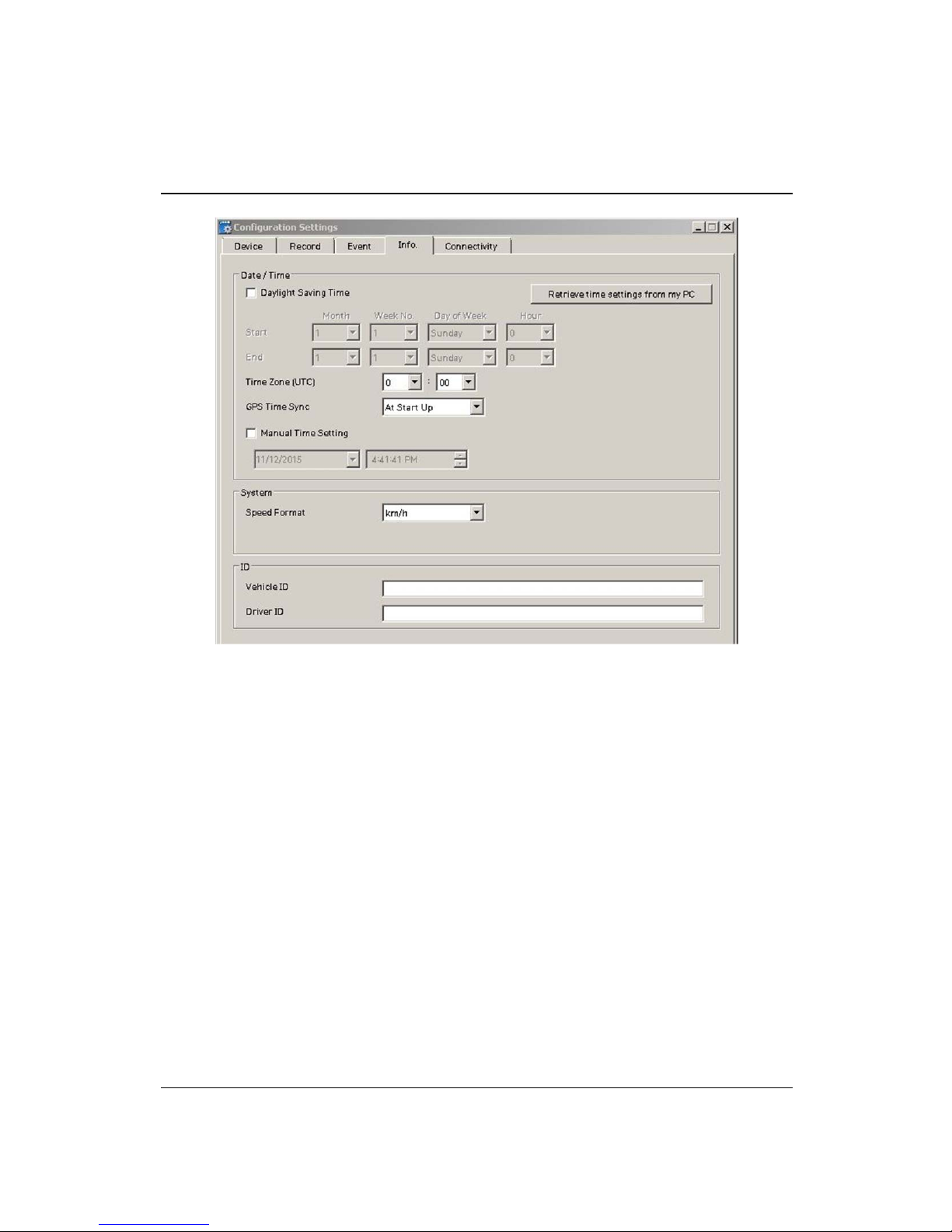

INFO.SETTINGS
CONNECTIVITYSETTINGS

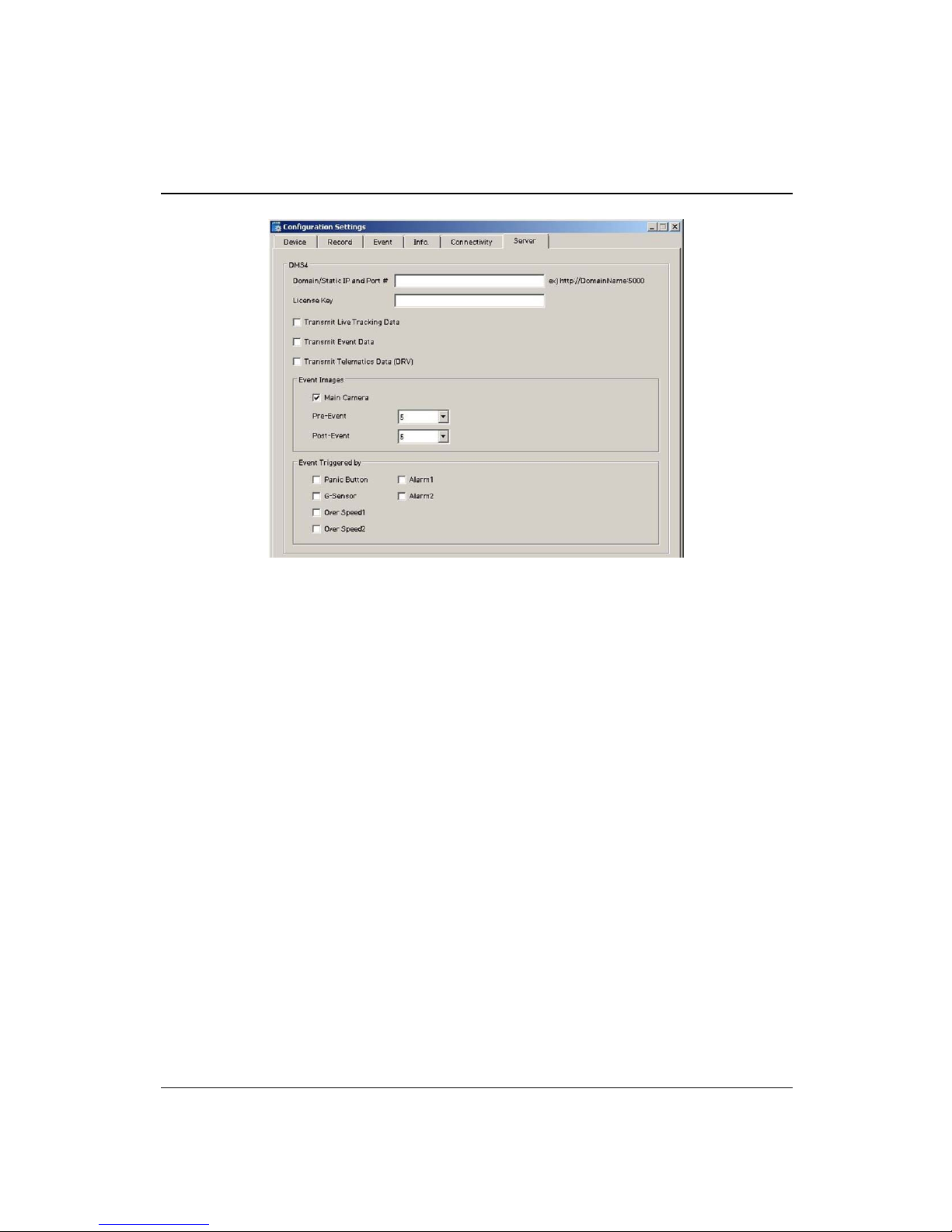

SERVERSETTINGS
SOFTWAREUSERGUIDE
PCVIEWERSOFTWARESETTINGS
OPENTHESDCARD
OPENFILES
PLAYBACK
DRIVEDATA
TRACKINGMAP
EVENTSEARCH
PRIVACYSETTINGS
SAVEJPEGANDAVIFILE
PRINTIMAGE
BACKINGUPFILES
BACKUPDATALISTANDEXPORT
SPECIFICATION
APPENDIXRECORDINGTIMETABLE
APPENDIXUPGRADE
TECHNICALSUPPORTANDWARRANTY
INDEX
3
4
5
6
8
10
11
12
14
15
16
17
18
19
20
21
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38

3
Caution
Damagesduetoproductionmalfunction,lossofdata,orotherdamagesoccurring
whileusingthisproductshallnotbetheresponsibilityofthemanufacturer.
Althoughtheproductisadeviceusedforrecordingvideos,theproductmaynotsave
allvideosinthecaseofamalfunction.Inthecaseofanaccident,thesensormaynot
recognizetheshockwhentheimpactislightandasaresultitmaynotbegin
recordingautomatically.
SAFETYADVICE
CAUTION
RISKOFELECTRICSHOCK
DONOTOPEN
CAUTION: TOREDUCETHERISKOFELECTRICSHOCK,
DONOTREMOVECOVER.
NOUSER‐SERVICEABLEPARTSINSIDE.
REFERSERVICINGTOQUALIFIEDSERVICEPERSONNEL.
WARNING:
TOPREVENTFIREORELECTRICSHOCKHAZARD,DONOTEXPOSE
THISAPPLIANCETORAINORMOISTURE.
Caution
Installtheproductwhereitdoesnotblockdriver’svisibilityandwherethereis
noairbaginstalled.Thiscouldcauseanaccidentormightinjurepassengersin
caseofaccident
Pleasemakesureyoufollowthesafetyadvice/instructionsgivenintheuserguide.
Caution
RISKOFEXPLOSIONIFBATTERYISREPLACEDBYANINCORRECTTYPE.
DISPOSEOFUSEDBATTERIESACCORDINGTOTHEINSTRUCTIONS.
BatteryforRTC(RealTimeClock)inside

4
GPSRECEPTION
1. Activatetheproductinanareawithoutlargebuildingsto
improveGPSreception.
2. Thetemperaturerangeforoptimumoperationofthe
GPSreceiverinyourcaris‐10~50°C.
3.Whenusingtheproductforthefirsttimeorafteralong
period(morethanthreedays),itmaytakealittlelongerto
recognizeyourcurrentlocation.
ItmaytakebetweenfiveandthirtyminutestogetGPSreception.
GPSreceptionmaybeimpairedunderthefollowingcircumstances
1)IfthereisanobjectattheendoftheGPSantenna
2)Ifyourvehiclehasmetallicelementsonthewindshields
3)IfequipmentgeneratingelectromagneticwavesthatinterferewiththeGPS
signalisinstalledinthevehiclee.g.:OtherGPSdevicessuchasacertain
typeofwirelessactivatedalarms,MP3andCDplayersandcameraalarms
usingGPS.
4)Ifyouareusingareceiverconnectedbycable,electricinterferencecanbe
avoidedbysimplychangingthelocationofthereceiver(antenna).
5)Onheavilyovercastorcloudydays,ifthevehicleisinacoveredlocation
suchasunderabridgeorraisedroadway,inatunnel,anunderground
roadwayorparkingarea,insideabuildingorsurroundedbyhigh‐rise
buildings.
6)IfGPSsignalreceptionispoor,itmaytakelongertolocateyourcurrent
positionwhenthevehicleismovingthanwhenitisstationary.
ThecommercialpurposeGPShastheaveragerangeerrorofmore
than15metersandtherangeerrorcouldbemorethan100meters
duetoenvironmentalconditionslikebuildings,roadsidetreesetc.

5
CONTENTS
TX1000D
VehicleRecorder
WireSpliceclips(x5)
StickerforWindscreenmounting
(doublesidedtapex2)
PowerCable
StickerforAngleLock
(Voidstickerx2)
Torx screw(x1) SDCover(x1)
UserGuide

6
INTRODUCTION
CameraLens
Bracket
(GPS/GLONASSinside)
FRONT
SIDE
SDMemoryCardSlot
LockusingTorx
screw
Cable(95cm)
SIMSlot
(MiniSIM)
IMEINumber

7
INTRODUCTION
BACK
RecordLED
BLUELED CommunicationLED
GreenLED
PANIC
Button
POWERCABLE
G‐Sensor
Calibration
button
Black(Ground)
Red(PowerBattery+)
White(PowerACC+)
Green(AlarmIn,NC/NO),(Externalpanicbutton+)
Orange(AlarmIn,Voltageon/off(3~70V))
Yellow(Alarmout),Low(0V)toHigh(5V)
Black(Ground),(Externalpanicbutton‐)
ExternalPanicButton
(optionalItem)
Cablelength:2m90cm
ButtonCaseSize:18x39x10mm

8
FUNCTIONS
AutomaticBooting
OncetheTX1000DhasbeenwiredtoyourcarpowersourcetheTX1000Dwillbe
bootup,thiswilltakearound1minutefortheunittobereadytorecord.
Thedefaultsettingforrecordisthecontinuousrecordingat30fps,720P
resolution.OnthissettingtheSDcardstoragemaybeusedupquickerand
dependingonthesettings,overwriteorstoprecordingwhenfull.Toavoidlosing
valuabledata,backupdatatoaseparatestorageorPCdeviceafteranyincidents.
ContinuousRecord(WhenRecordmodesetas“Continuous”)
Thisisthedefaultmodeforrecording.Inthissettingtheunitwillbeginrecording
afterbootupandrecordtheentiretimetheunitispowered.
Theresolutionandframeratescanbesetasperyourrequirements.Youcanchange
theconfigurationoftherecordingusingtheTX1000DSoftware.Todothis,please
seethe‘Settings’sectiononpage16.
NOTE:Theunitwillnotstartrecordingimmediatelyafterpoweron.Ittakes
around1minuteforthebuilt‐inpowerbackupsystemtocharge.Thereafter,the
internalflashmemorywillbereadytorecord.
DualRecord(Continuous&EventRecord)
Thecontinuousrecordfpsis1fpsandthefilewillbestoredonthe“Normal”folder.
EventrecordwillworkaccordingtotheFpssettingforexample30framespersecond
recordingandthefilewillbestoredonthe“Event”folder
EventRecord(WhenRecordmodesetas“Event”)
Theunitwillrecordwhentriggeredbyeitheranimpactorapushofthe‘PANIC’
button.Eacheventfilecontainsupto20secondsprior&upto20secondspostevent.
Andtheeventfilecanbeextendedby2nd triggerduringeventrecord.
Wheneventsaretriggeredcontinuously,foreveryevent,20secondspost‐recording
fromthetimeoftheeventwillbeaddedtotheeventdatafilewithamaximum
recordingtimeof3minutes.Whenthis3minutesisreached,thefilewillbesplitanda
newfilewillbecreatedbutthedatawillbecontinuous.
DriveData(DRVfile)
TheDRV(DriveData)filewillberecordedduringdrivingeveniftherearenoevents
orvideo.TheDRVfileconsistsofGPSandG‐sensordataandithelpstofindspecific
dataordrivingbehaviors.TheDRVfileoverwritestheoldestdata.TheDVRfileswill
bemadeevery10minutes.

9
FUNCTIONS
G‐SensorCalibration
1. Installtheunitandparkthevehicleonaflatsurface.
2. Turnontheunitandpressthesmallredbuttonthreeseconds.
3. Thencalibrationwillbedonewith“beep”sound.
Built‐inpowerbackup(SuperCapacitor)
Whenpowertotheunitisinterrupted,TX1000Dcreatesthelast
fileusingtheinternalSuperCapacitor.
TimeandDate
TherearenotimeanddatesettingsastheTX1000Dget’sthisinformationfrom
theGPSsatellite's.
SDMemoryCardFormat
Pleaseformat[initialize]theSDcardusingthe“ConfigurationToolTX1000D”
software.
G‐SensorCalibrationisneededafterinstallingtheTX1000D.
PoweroffvehicleandtakeoutSDmemorycard
TurnoffthepowerandthenchecktheBLUELEDlight.OncetheLEDlight
isnoton,youcannowsafelyremovetheSDmemorycard.
SafelyRemovalSDCard

10

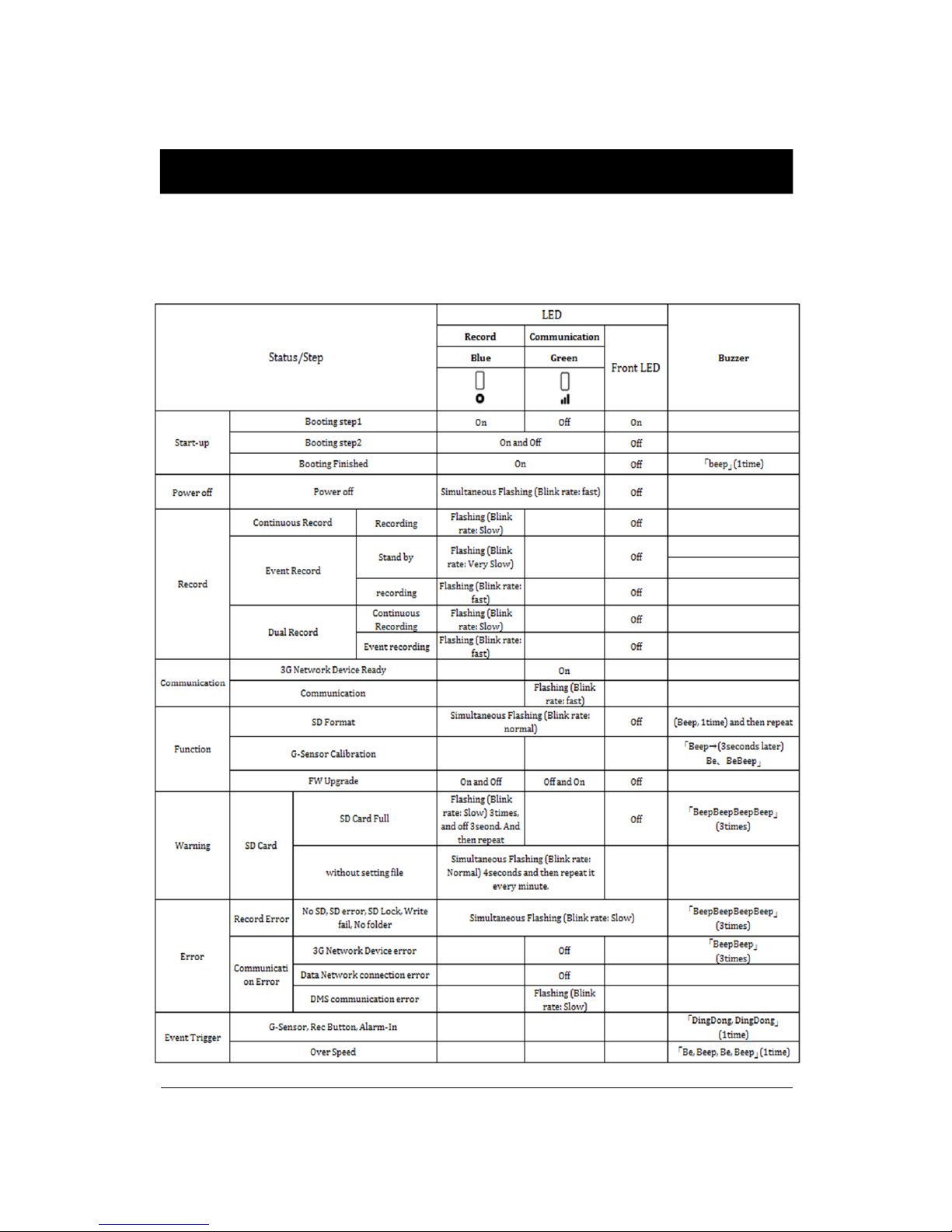

LEDS&BUZZERSPECIFICATION
BLUELED(RECORD)
GREENLED(COMMUNICATION)
FRONTLED
Buzzer

11
INSTALLATION
Parkyourvehicleonaflatlevelsurface.
TurnofftheenginebeforeinstallingtheTX1000D.
AttachtheTX1000Dusingtheprovideddoublesided3Mtape.
Thesurfacemustbecleananddrybeforeyouinstall.Werecommendedtoinstall
theproductbehindtherearviewmirroronthefrontwindshield.
NOTE:The3Madhesivetapewillnotstickwellwithdustoroil,etc.
Pleasemakesurethesurfaceiscleanbeforeapplying.
Adjustcameraview.Makesurethelenshasanunobstructedview.Checkfrom
outsidethevehicletocheckthecameraangle,youcanadjusttheangleviathe
bracketteeth.
Arrangethepowercordneatlyalongsideofthewindshieldanddoorpillartrim.
TheTX1000Drequiresacontinuous12/24voltpowersourcefromthevehicle.
ThecablesuppliedwillallowyoutohardwiretheTX1000Dunittothefusebox
ofyourvehicle.
Connectthe“redcable(+)”toafuse(seepicturebelow).Itshouldbeconnected
toafusethathaspowerwhenyoustarttheengine.
Thegroundcableshouldbecontactedatthecarbodyorbatterynegative.
Startonthecarafterinstallation.

12
CONFIGURATIONTOOLUSERGUIDE
ConfigurationToolTX1000DSoftware
PCSYSTEMREQUIREMENT
IfthePCdoesnotmeettheminimumsystemrequirement,the
ConfigurationToolSoftwaremaynotfunctionproperly.
OS WindowsVista.Windows7,Windows8/8.1
CPU Core2Duo2.5GHzorHigher
RAM 2GBorHigher
Interface SDMemoryCardReader
HDD
Freespace
Install:55MBorHigher
Backup:4GBorHigher
Display 1024x768pixel/TrueColororhigher
RecommendedPCspecificationsforConfigurationToolSoftware

13

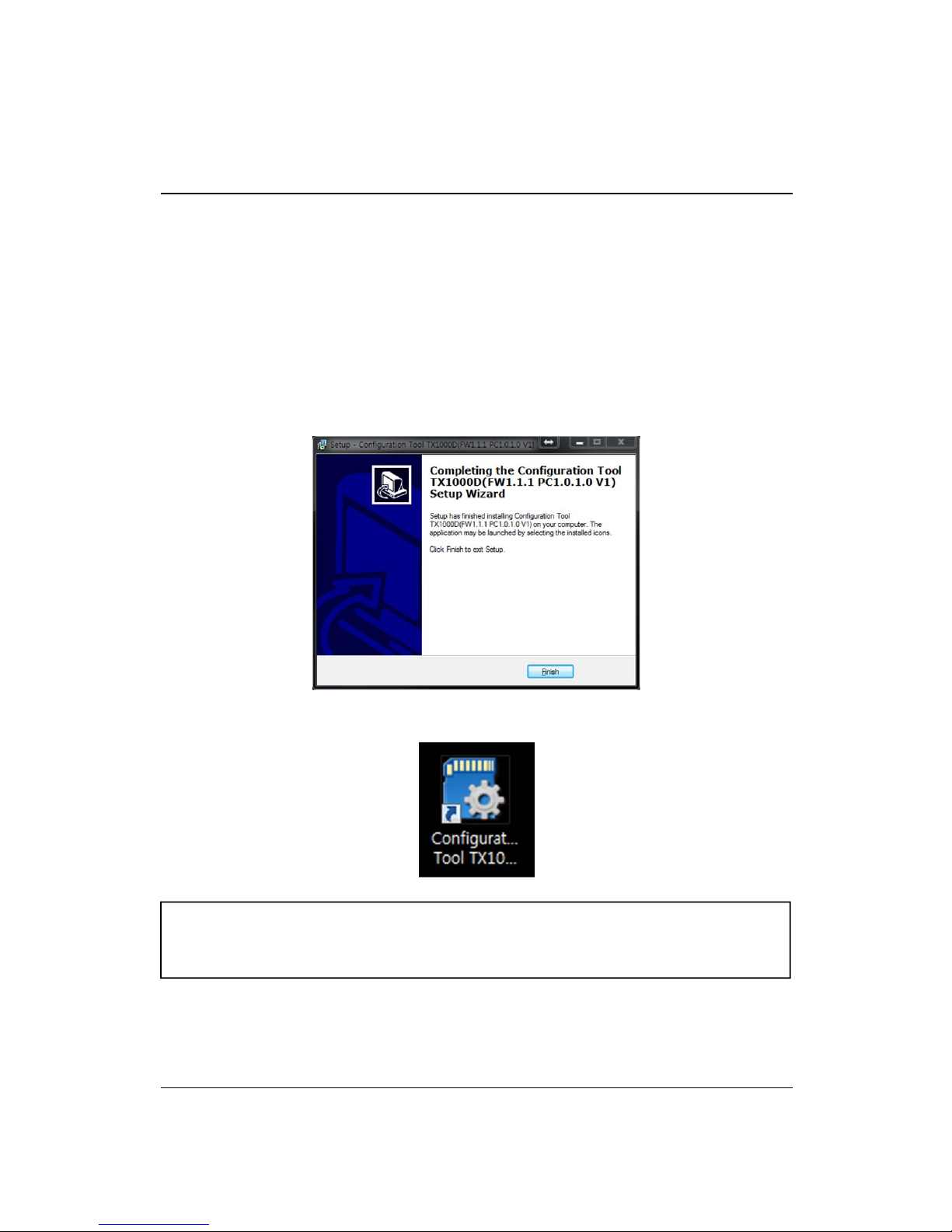

SOFTWAREINSTALLATION
1.ConnecttheSDcardintoyourPC(ifyourcomputerdoesnothaveand
SDcardslotusetheUSBSDcardreader)andopenthe“MyComputer”
2.Right‐clickthe“FHDRM”driveandselect[Open]
3.Doubleclick[configtool(FW1.0.0_PC1.0.0.0_V1).EXE]inthe[pcsw]folder.
4.Selectthelanguageandthenfollowthedialogboxprompts.
5.The“ConfigurationToolTX1000D”iconwillbedisplayedonyourdesktop.
NOTE:ToUn‐installtheConfigurationToolTX1000DSoftware
Makesuretheprogramisnotrunningandopenthe‘ControlPanel’
Select‘RemoveProgram’andremovetheConfigurationToolTX1000DSoftware.
TheConfigurationToolTX1000DSoftwareisontheprovidedSDcard.(Also
availableonourwebsite.)

14

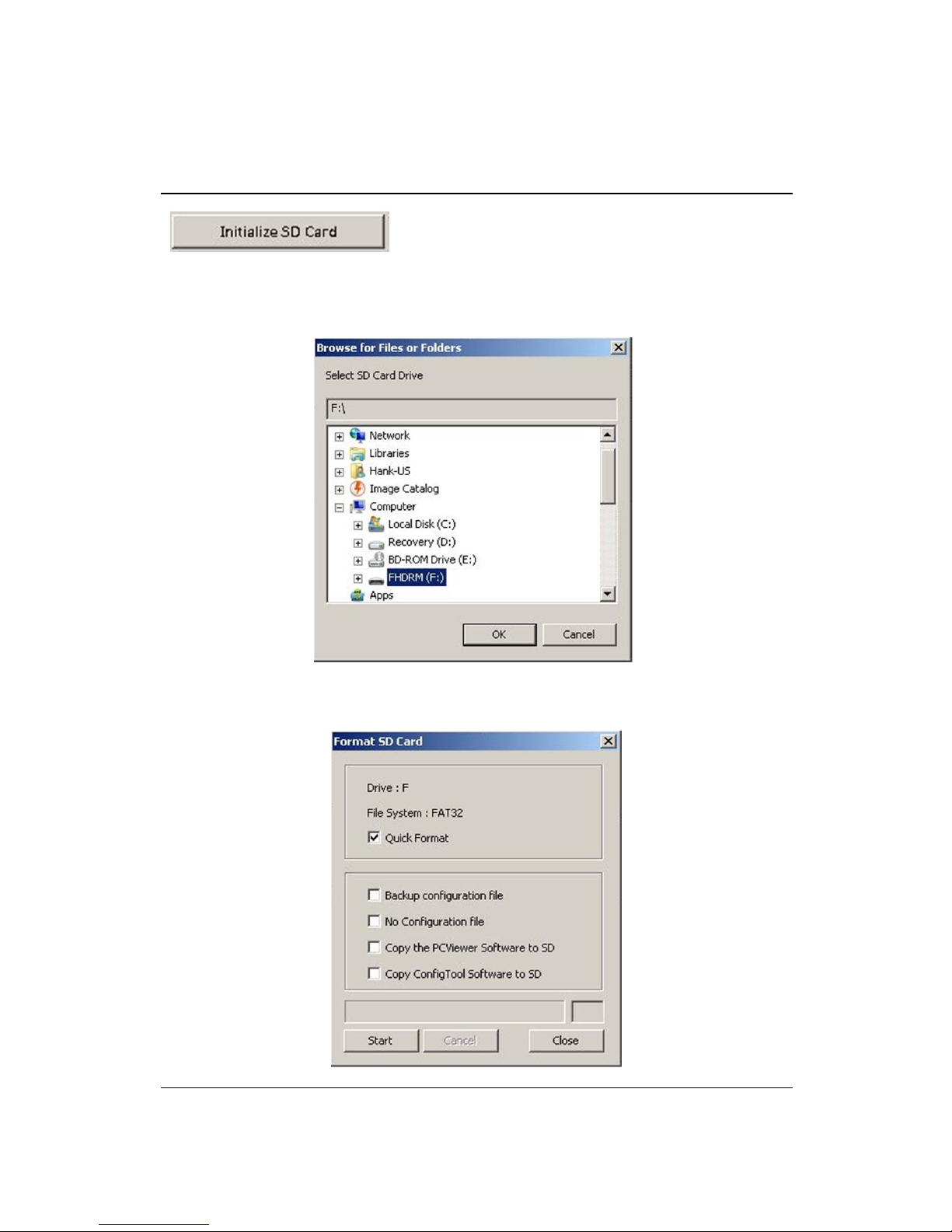

INITIALIZESDCARD
Click!
ToinitializetheSDcardquickly,clickontheaboveiconandyouwillbepresented
withthefollowingscreentochoosetheSDcardtoinitialize.Click‘OK’when
selected.
Onthefollowingscreen,checkthe‘QuickFormat’buttonanduncheckthe
‘BackupConfigurationFile’andClick‘Start’tobegininitialization.

15
DEVICESETTINGS
CamTitle
Usethealphabetandnumberstorename(max10digits)thecameras.Thenew
nameswillbedisplayedonthelivescreenandallrecordings.
AudibleCameraChime:TurntheChimeonoroff
ConnectionType:Setthepowersupplytype
DelayedPowerShutdown: Setdelayedpowershutdowntime.
G‐SensorSensitivity:Theshocksensorsensitivitycanbesetto‘Simplesetting
Mode’or‘Custom’.Settoeasyallowsyoutosetthesensitivityto9(High),5
(Medium)or1(Low).
Incustomset,youcanset3differentshocksensorvaluesindividually.
AutoadjustG‐SensortoVehiclespeed
Onceitchecked,TX1000DwillautomaticallydecreasetheG‐Sensorsensitivityat
highervehiclespeedstocompensateforthenaturallyaddedG‐forcesthatare
experiencedduetovelocity.

16
RECORDSETTINGS
Resolution
VGA(640x480),720P(1280x720),1080pHD(1920x1080).
FrameRate
Adjusttheframeratefrom30fps,15fps,10fps,5~1fps
Quality
AdjustthepicturequalityfromStandard,High,Super
RecordMode
Event(AutomaticallystartsrecordingbyG‐sensororPanicbutton.)
Continuous(AlwaysrecordingwhenpoweredbyDC12/24V.)
Dual(Thecontinuousrecordfpsis1fpsandEventrecordwillwork
accordingtotheFpssetting.)
OverwriteRecordings
ThisfunctionallowstheunittooverwriteoldfilesontheSDCard
automatically.Youcanoverwritethecontinuous,panicorG‐Sensor
recordedfiles.
Pre‐Event/Post‐Event
AdjustthePre/PostEventtimefrom5secondsto20seconds
DriveData
GPSdata&G‐Sensordatawillberecordedwithvideosandatthesame
time,GPSdata&G‐Sensordatawillberecordedseparately,wecallit
as‘Drivedata(drv file)’.
AdjustDriveDatadurationfrom“about1day”to“about30days”.

17
EVENTSETTINGS
Eventsettings
YoucansettheunittorecordwhentriggeredbytheG‐Sensor,Panic
ButtonandGPSSpeedLimitandAlarmInputs.
AndyoucansettheAlarmoutdurationpereachevent.

18
INFO.SETTINGS
ThisoptionallowsyoutoadjusttheTimeZone,GPSTimesynchronization,
setyourVehicleIDandalsotheDriverID.

19
CONNECTIVITYSETTINGS
SettheServiceTypeasSevertouse3Gconnection.
AdjustthesettingslikeDialNo.,APN,password,UserID,Authenticationetc.
PleaserefertotheSimCardsupplierwebsiteforthesesettings.

20
SERVERSETTINGS
SetDomain/StaticIPandPortnumber
DefaultLicenseKeyis“DASKEY_001”
Andchecktheoptions
•TransmitLiveTrackingData
•TransmitEventData.
•TransmitTelematicsData(DRV)
Andthenselectevents.
