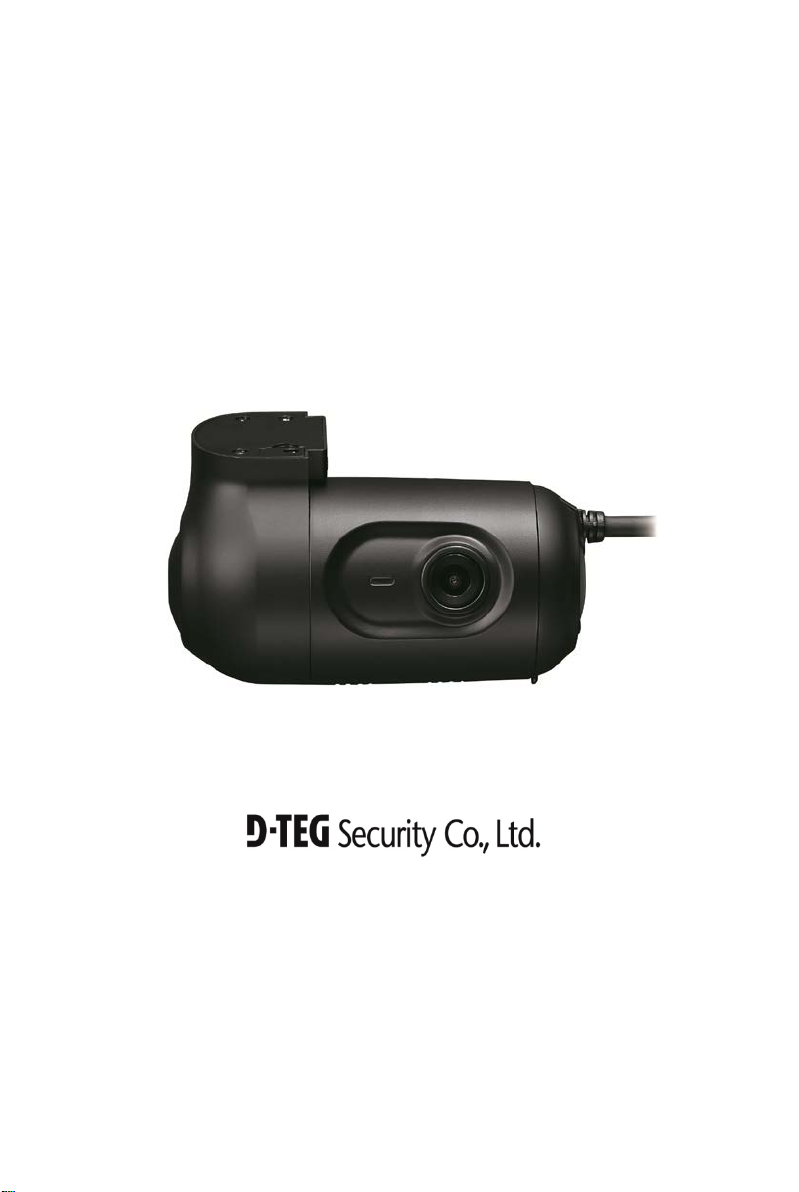

D-Teg CP2-NA User manual

CP2-NA
3G ENABLED VEHICLE RECORDER
Thank you for purchasing the CP2-NA Vehicle Recorder.
Please ensure that you read and understand this USER GUIDE
and use it before connecting and installing this Recorder.
Please store the USER GUIDE in an easily accessible location.
USER GUIDE
VER 1.0.0 1st Edition

2
SAFETY ADVICE
GPS RECEPTION
CONTENTS
INTRODUCTION
FINCTIONS
LEDS &BUZZER SPECIFICATION
Installation
CONFIGURATION TOOL USER GUIDE
INITIALIZE SD CARD

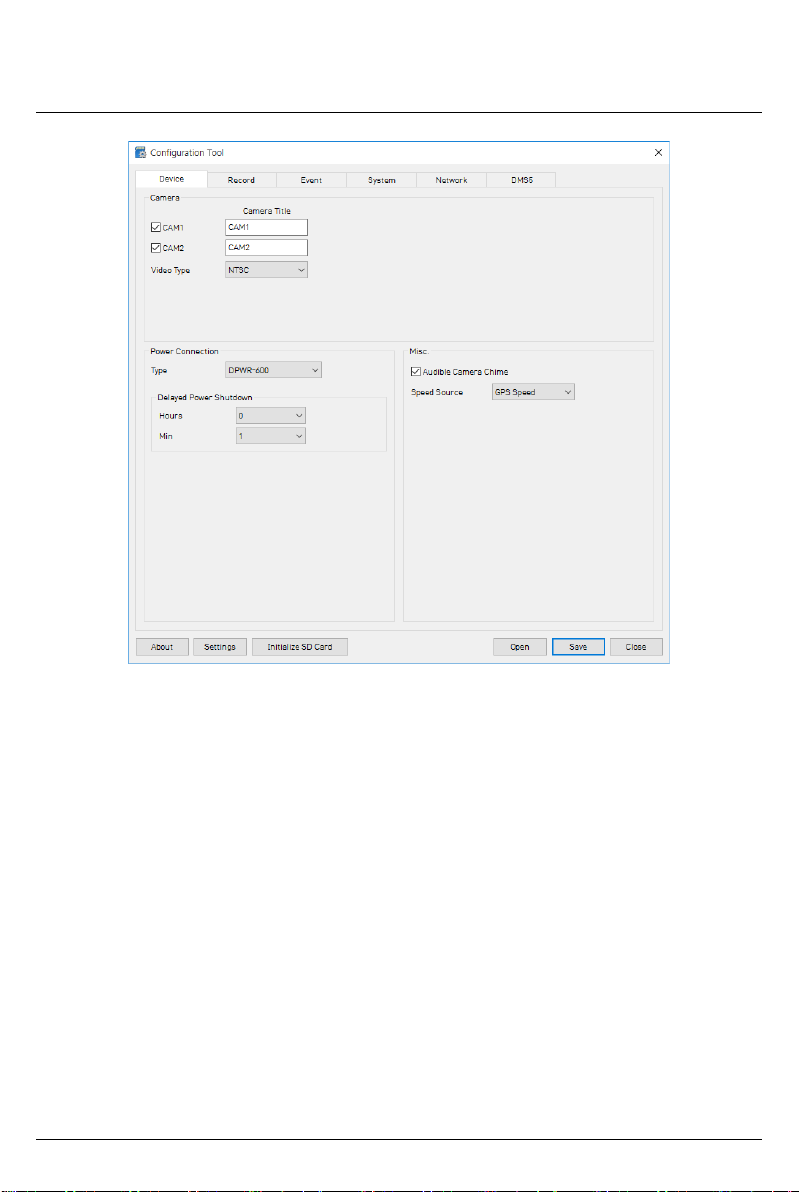

DEVICE SETTINGS

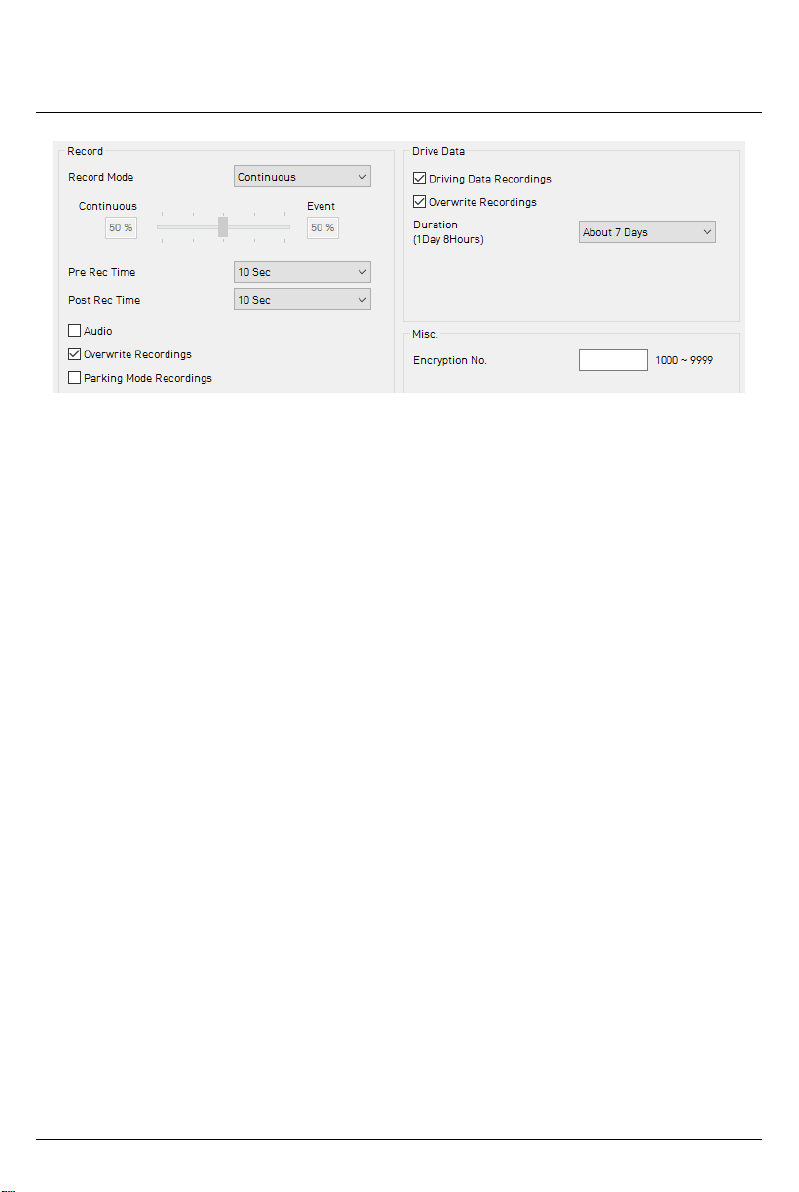

RECORD SETTINGS
EVENT SETTINGS
SYSTEM SETTINGS
NETWORK SETTINGS
DMS5 SETTINGS
SOFTWARE USER GUIDE
PC VIEWER SOFTWARE SETTINGS
OPEN THE SD CARD
OPEN FILES
PLAYBACK
DRIVE DATA
TRACKING MAP
EVENT SEARCH
PRIVACY SETTINGS
SAVE JPEG AND AVI FILE
PRINT IMAGE
BACKING UP FILES
BACKUP DATA LIST AND EXPORT
SPECIFICATION
APPENDIX RECORDING TIME TABLE
APPENDIX UPGRADE
TECHNICAL SUPPORT AND WARRANTY
Optional Item
INDEX
3
4
5
6
9
11
12
13
15
16
17
19
21
22
23
24
26
27
28
29
31
32
33
34
35
36
37
38
39
40
41
42
43

3
Caution
Damages due to production malfunction, loss of data, or other damages occurring
while using this product shall not be the responsibility of the manufacturer.
Although the product is a device used for recording videos, the product may not save
all videos in the case of a malfunction. In the case of an accident, the sensor may not
recognize the shock when the impact is light and as a result it may not begin
recording automatically.
SAFETY ADVICE
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK,
DO NOT REMOVE COVER.
NO USER-SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
WARNING:
TO PREVENT FIRE OR ELECTRIC SHOCK HAZARD, DO NOT EXPOSE
THIS APPLIANCE TO RAIN OR MOISTURE.
Caution
Install the product where it does not block driver’s visibility and where there is
no airbag installed. This could cause an accident or might injure passengers in
case of accident
Please make sure you follow the safety advice/instructions given in the user guide.
Caution
RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE.
DISPOSE OF USED BATTERIES ACCORDING TO THE INSTRUCTIONS.
Battery for RTC(Real Time Clock) inside

4
REMARK
Unique Identifier : CP2-NA
Responsible Party
Corporation: SmartWitness USA, LLC
Address: 1108 Lunt Avenue Schaumburg, IL 60193
Telephone number: [phone]
Operating frequency :
WLAN
2412MHz ~ 2462MHz, 2422MHz ~ 2452MHz(40MHz)
WCDMA
Band2 : 1850MHz ~ 1910MHz for TX,1930MHz ~1990MHz for RX
Band4 : 1710MHz ~ 1755MHz for TX, 2110MHz ~ 2155MHz for RX
Band5 : 824MHz ~849MHz for TX,869MHz ~894MHz for RX
GPS, GLONASS
1599 MHz ~ 1610 MHz
WCDMA and WLAN are not simultaneous transmitter.

5
GPS RECEPTION
1. Activate the product in an area without large buildings to
improve GPS reception.
2. The temperature range for optimum operation of the
GPS receiver in your car is -10 ~ 50°C.
3. When using the product for the first time or after a long
period (more than three days), it may take a little longer to
recognize your current location.
It may take between five and thirty minutes to get GPS reception.
GPS reception may be impaired under the following circumstances
1) If there is an object at the end of the GPS antenna
2) If your vehicle has metallic elements on the windshields
3) If equipment generating electromagnetic waves that interfere with the GPS
signal is installed in the vehicle e.g.: Other GPS devices such as a certain
type of wireless activated alarms, MP3 and CD players and camera alarms
using GPS.
4) If you are using a receiver connected by cable, electric interference can be
avoided by simply changing the location of the receiver (antenna).
5) On heavily overcast or cloudy days, if the vehicle is in a covered location
such as under a bridge or raised roadway, in a tunnel, an underground
roadway or parking area, inside a building or surrounded by high-rise
buildings.
6) If GPS signal reception is poor, it may take longer to locate your current
position when the vehicle is moving than when it is stationary.
The commercial purpose GPS has the average range error of more
than 15 meters and the range error could be more than 100 meters
due to environmental conditions like buildings, roadside trees etc.

6
CONTENTS
CP2-NA
Vehicle Recorder
Cord clips (x2)
Sticker for Windscreen mounting
(double sided tape x2)
Power Cable
Additional Angle Stopper (x1)
And screw(x1)
Torx screw (x1) SD Cover (x1)

7
INTRODUCTION
Camera Lens
Bracket
(GPS/GLONASS inside)
FRONT
SIDE
SD Memory Card Slot
Lock using Torx
screw
Cable (95cm)
SIM Slot
(Mini SIM)

8
INTRODUCTION
POWER CABLE
Angle
Stopper
Record LED
Blue LED
Communication LED
Green LED
PANIC
Button
POWER CABLE
G-Sensor
Calibration
button
Warning LED
Red LED
BACK
2nd camera port
Mini Stereo connector
5V camera, Analog (D1
resolution) camera only.
RS-232C port for an
external device
like OBD2, Driver RFID.

9
INTRODUCTION
POWER ADAPTOR
POWER CABLE
Black (Ground)
Red (Power Battery +)
White (Power ACC + )
Green (Alarm In, NC/NO), (External panic button+ )
Orange (Alarm In, Voltage on/off (3~70V))
Yellow (Alarm out), Low(0V) to High (5V)
Black (Ground), (External panic button- )
External Panic Button
(optional Item)
Cable length: 2m90cm
Button Case Size: 18 x39x10 mm

10
FUNCTIONS
Automatic Booting
Once the CP2-NA has been wired to your car power source the CP2-NA will be
boot up, this will take around 1 minute for the unit to be ready to record.
The default setting for record is the continuous recording at 10fps, 720P
resolution. On this setting the SD card storage may be used up quicker and
depending on the settings, overwrite or stop recording when full. To avoid losing
valuable data, back up data to a separate storage or PC device after any incidents.
Continuous Record (When Record mode set as “Continuous”)
This is the default mode for recording. In this setting the unit will begin recording
after boot up and record the entire time the unit is powered.
The resolution and frame rates can be set as per your requirements. You can change
the configuration of the recording using the CP2-NA Software. To do this, please see
the ‘Settings’ section on page 16.
NOTE: The unit will not start recording immediately after power on. It takes
around 1 minute for the built-in power backup system to charge. Thereafter, the
internal flash memory will be ready to record.
Dual Record (Continuous & Event Record)
The continuous record fps is 1fps and the file will be stored on the “Normal” folder.
Event record will work according to the Fps setting for example 30frames per second
recording and the file will be stored on the “Event” folder
Event Record (When Record mode set as “Event”)
The unit will record when triggered by either an impact or a push of the ‘PANIC’
button. Each event file contains up to 20 seconds prior & up to 20 seconds post event.
And the event file can be extended by 2nd trigger during event record.
When events are triggered continuously, for every event, 20 seconds post-recording
from the time of the event will be added to the event data file with a maximum
recording time of 3 minutes. When this 3 minutes is reached, the file will be split and a
new file will be created but the data will be continuous.
Drive Data (DRV file)
The DRV (Drive Data) file will be recorded during driving even if there are no events
or video. The DRV file consists of GPS and G-sensor data and it helps to find specific
data or driving behaviors. The DRV file overwrites the oldest data. The DVR files will
be made every 10 minutes.

11
FUNCTIONS
G-Sensor Calibration
1. Install the unit and park the vehicle on a flat surface .
2. Turn on the unit and press the small red button three seconds.
3. Then calibration will be done with “beep” sound.
Built-in power backup (Super Capacitor)
When power to the unit is interrupted, CP2-NA creates the last
file using the internal Super Capacitor.
Time and Date
There are no time and date settings as the CP2-NA get’s this information from the
GPS satellite's.
SD Memory Card Format
Please format [initialize] the SD card using the “Configuration Tool CP2-NA”
software.
G-Sensor Calibration is needed after installing the CP2-NA.
Power off vehicle and take out SD memory card
Turn off the power and then check the BLUE LED light. Once the LED light
is not on, you can now safely remove the SD memory card.
Safely Removal SD Card

12

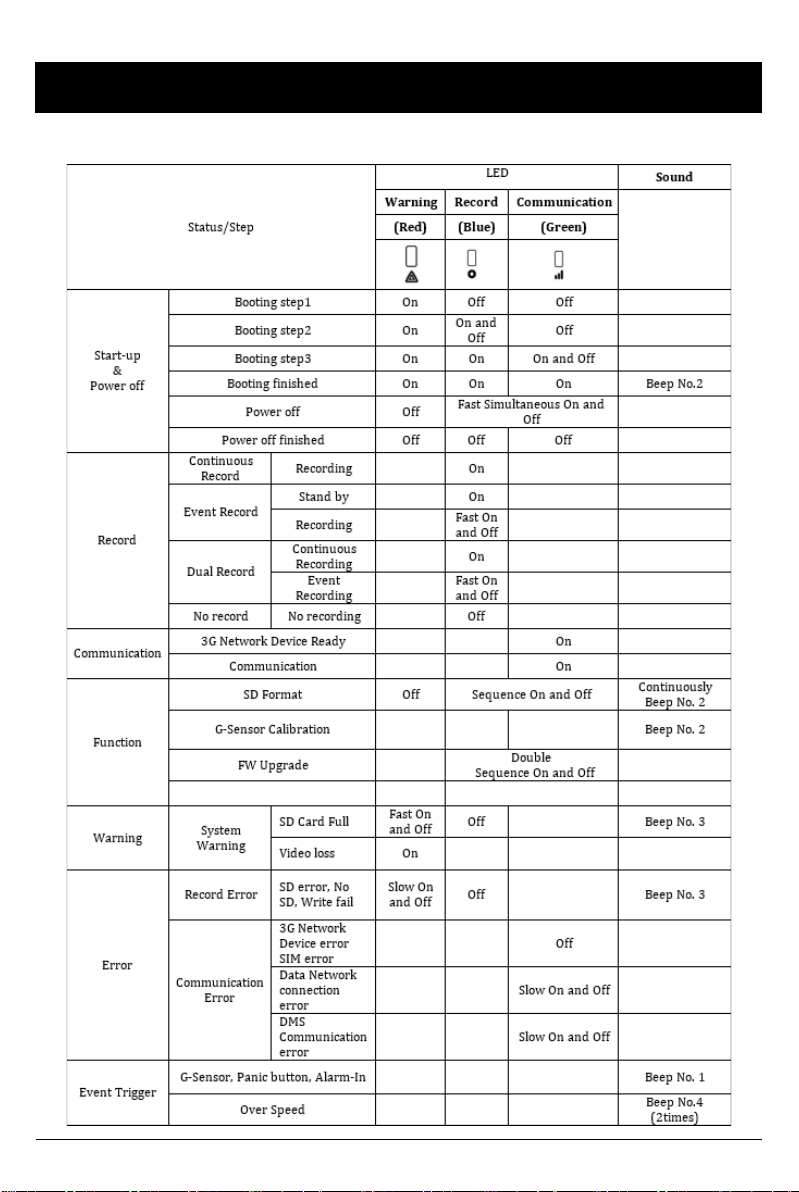

LEDS & BUZZER SPECIFICATION
RED LED (Warning), BLUE LED (Record), GREEN LED (Communication)

13
INSTALLATION
Park your vehicle on a flat level surface.
Turn off the engine before installing the CP2-NA.
Attach the CP2-NA using the provided double sided 3M tape.
The surface must be clean and dry before you install. We recommended to install
the product behind the rear view mirror on the front windshield.
NOTE: The 3M adhesive tape will not stick well with dust or oil, etc.
Please make sure the surface is clean before applying.
Adjust camera view. Make sure the lens has an unobstructed view. Check from
outside the vehicle to check the camera angle, you can adjust the angle via the
bracket teeth.
Arrange the power cord neatly alongside of the windshield and door pillar trim.
The CP2-NA requires a continuous 12/24volt power source from the vehicle.
The cable supplied will allow you to hard wire the CP2-NA unit to the fuse box of
your vehicle.
Connect the “red cable (+)” to a fuse (see picture below). It should be connected
to a fuse that has power when you start the engine.
The ground cable should be contacted at the car body or battery negative.
Start on the car after installation.

14
CONFIGURATION TOOL USER GUIDE
Configuration Tool CP2-NA Software
PC SYSTEM REQUIREMENT
If the PC does not meet the minimum system requirement, the
Configuration Tool Software may not function properly.
OS Windows Vista. Windows 7, Windows 8/8.1
CPU Core 2 Duo 2.5GHz or Higher
RAM 2GB or Higher
Interface SD Memory Card Reader
HDD
Free space
Install : 55MB or Higher
Backup : 4GB or Higher
Display 1024 x 768 pixel/True Color or higher
Recommended PC specifications for Configuration Tool Software

15
SOFTWARE INSTALLATION
1. Connect the SD card into your PC (if your computer does not have and
SD card slot use the USB SD card reader) and open the “My Computer”
2. Right-click the “FHDRM” drive and select [Open]
3. Double click [configtool(FW1.0.0_PC1.0.0.0_V1).EXE] in the [pcsw] folder.
4. Select the language and then follow the dialog box prompts.
5. The “Configuration Tool TX2000” icon will be displayed on your desktop.
NOTE: To Un-install the Configuration Tool TX2000 Software
Make sure the program is not running and open the ‘Control Panel’
Select ‘Remove Program’ and remove the Configuration Tool TX2000 Software.
The Configuration Tool TX2000 Software is on the provided SD card. (Also
available on our website.)

16

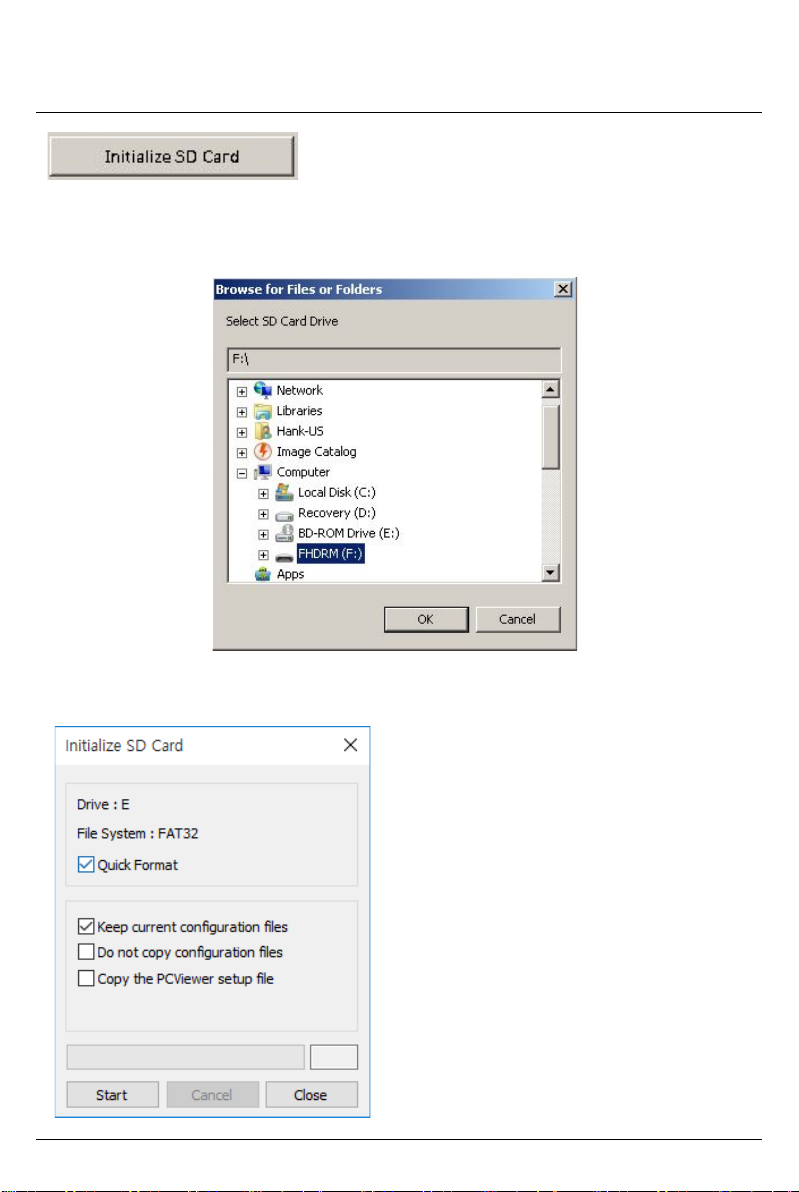

INITIALIZE SD CARD
This icon is located at the bottom of the
configuration tool software.
To initialize the SD card quickly, click on the above icon and you will be presented
with the following screen to choose the SD card to initialize. Click ‘OK’ when
selected.
On the following screen, check the ‘Quick Format’ button and check options and
Click ‘Start’ to begin initialization.
Options
•Keep current configuration files
(Use setting.ini file from SD after
Initialize SD card)
•Do not copy configuration files
(There is no setting.ini file at config
folder after Initialize SD card)
•Copy the PCViewer setup file
(copy setup.exe file into software
folder)

17
DEVICE SETTINGS
Camera check box
Check all the cameras you wish to use.
Video Type: Set the video type for 2nd camera and external monitor ”NTSC or PAL”
Cam Title
Use the alphabet and numbers to rename (max 10 digits) the cameras. The new
names will be displayed on the live screen and all recordings.
Connection Type : Set the power supply type. Default power supply is DPWR-600.
Delayed Power Shutdown: Set delayed power shutdown time.
Audible Camera Chime: Turn the Chime on or off
Speed Source: Set a speed when you use Junction box as a power supply.

18
RECORD SETTINGS
Resolution
CH1: VGA (640x480), HD (1280x720), FHD (1920x1080)
CH2: NTSC D1 (720x480), PAL D1 (720x576)
Frame Rate
CH1 only: Adjust the frame rate from 30fps, 15fps, 10fps, 5~1fps
When you use 2 Channel (NTSC)
CH1: FHD 15fps, 10fps, 5~1fps
HD 30fps, 15fps, 10fps, 5~1fps
VGA 30fps, 15fps, 10fps, 5~1fps
CH2: 30fps, 15fps, 10fps, 5~1fps
When you use 2 Channel (PAL)
CH1: FHD 15fps, 10fps, 5~1fps
HD 30fps, 15fps, 10fps, 5~1fps
VGA 30fps, 15fps, 10fps, 5~1fps
CH2: 25fps, 12fps, 10fps, 5~1fps
Quality
Adjust the picture quality from Standard, High, Super
Resolution FPS Bitrates (bit/sec)
Super High Standard
Full HD 30 6Mbps 5Mbps 4Mbps
HD 30 3Mbps 2.5Mbps 2Mbps
D1 30 2Mbps 1.5Mbps 1Mbps
Maximum bitrates (Video Quality)

19
RECORD SETTINGS
Record Mode
•Continuous (Always recording when powered by DC 12/24V.)
•Event (Automatically starts recording by G-sensor or Panic button or Alarm In.)
•Dual (The continuous record fps is 1fps and Event record will work according
to the Fps setting.)
•Do not record
Pre Rec Time / Post Rec Time
Adjust the Pre/Post Event time from 5 seconds to 20seconds
Audio: Check it for record audio
Overwrite Recordings
This function allows the unit to overwrite old files on the SD Card automatically.
You can overwrite the continuous, panic or G-Sensor recorded files.
Parking Mode Recordings
If your vehicle is parked for more than 5 minutes, recording FPS will be at 1fps.
When the vehicle starts moving again, the recording FPS will return to its original
setting.
Drive Data
GPS data & G-Sensor data will be recorded with videos and at the same time, GPS
data & G-Sensor data will be recorded separately, we call it as ‘Drive data (drv
file)’. Check Driving Data Recordings for this feature.
Adjust Drive Data duration from “about 1 day” to “about 30 days”.
Encryption No. (Stream password)
An Additional password can be set for the recorded data using a 4 digit password
from 1000~9999. If a password is set, keep a record in a safe place, Without the
password, you will not be able to view the recorded video.

20

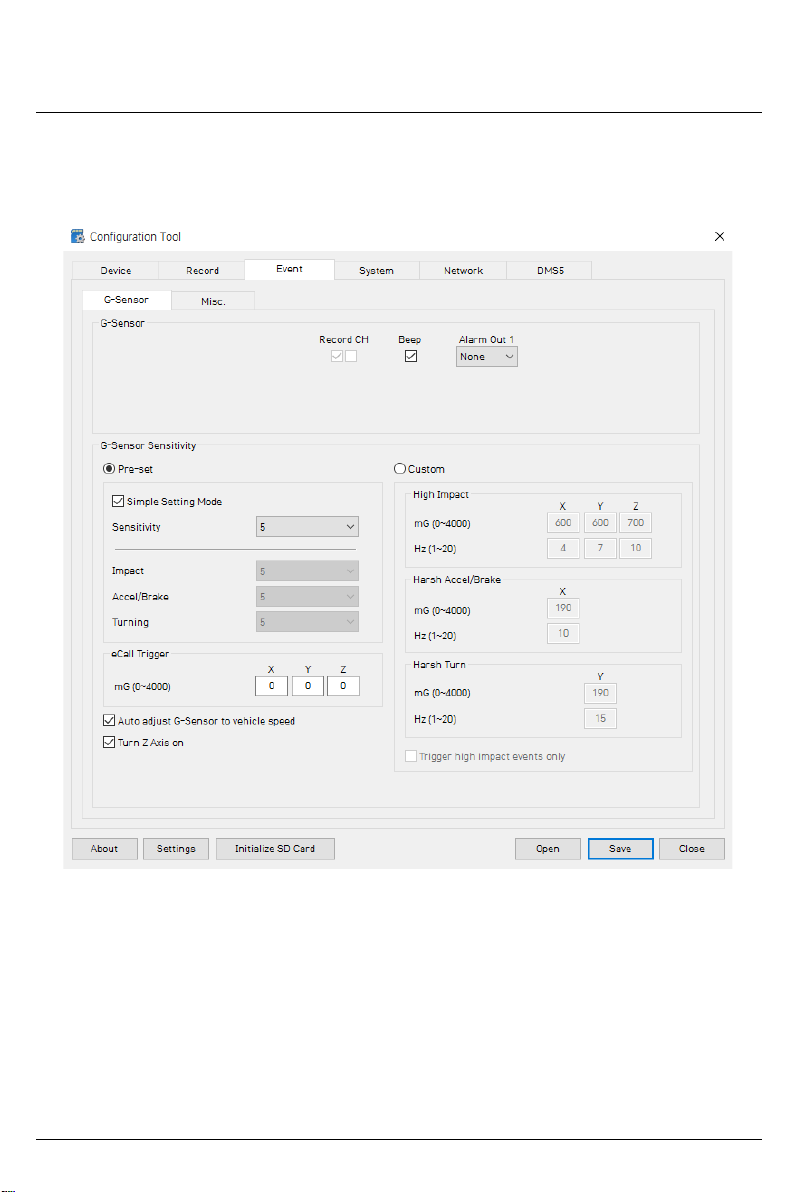

EVENT SETTINGS
Event settings
You can set the unit to record when triggered by the G-Sensor, Panic Button and
GPS Speed Limit and Alarm Inputs.
And you can set the Alarm out duration per each event.
G-Sensor Sensitivity: The shock sensor sensitivity can be set to ‘Simple setting
Mode’ or ‘Custom’. Set to easy allows you to set the sensitivity to 9 (High), 5
(Medium) or 1 (Low).
In custom set, you can set 3 different shock sensor values individually.
Auto adjust G-Sensor to vehicle speed
Once it checked, CP2-NA will automatically decrease the G-Sensor sensitivity at
higher vehicle speeds to compensate for the naturally added G-forces that are
experienced due to velocity.
