EZ-Bell Doorbell Camera User Guide
1. Introduction
Next generation video doorbell camera - EZ-Bell is your multifunctional doorkeeper, enabling
you to receive doorbell alarm and home security event alarm, to make calls with visitors, to view
real time streaming or motion trigger video and playback video.
2. Included materials
Doorbell Camera*1
Wall mounting bracket*1
Angle correction plate*1
Wall screw*2
Doorbell fixing screw*3
Expansive rubber sleeve*2
3. Product Appearance
MIC
Camera
Light Sensor
PIR Motion Sensor
Ring button
35.5mm
133mm

Confidential for D3 Internal Use Only
2
4. Product Features
Live view streaming via Mobile APP or Security Panel.
Two-way Audio through Mobile APP or Security Panel.
Security RF included. Connecting the complete ecosystem: Panel, Sensor, Doorbell.
Expansive FOV 202(H)*119(V).
Full HD 1920 x 1080 Video resolution.
2T2R Dual band 2.4GHZ/5GHZ WIFI for improved WIFI range.
On-device AI. Instant analysis of each event and accurate reduction of false triggers.
Real time communication to anyone who approaches your door via 2-way Audio.
Pre-record supported. Capture all actions in video clips to be stored at Amazon server.
As a sensor to Panel, doorbell camera can send outdoor motion events to Panel.
Compatible with the existing doorbell transformers (10-30VAC,10VA)
Compatible with Mechanical and Digital Chimes.
5. Product Specification
Model Name:
EZ-Bell V1 (XDC01)
Video compression format
H.264+ AAC/PCM
For Video Clip and Video streaming
Memory:
2GBit Embedded DDR3
Network protocol
P2P Video streaming/ Camera configuration
HTTPS and OTA support
Image sensor:
1/2.7" FHD (1080P) sensor
Night Vision
B&W Night Vision/850nm @16ft
Streaming resolution:
HD(720P)/FHD(1080P)
LED
RGB color status LED
Video framerate
Variable framerate 10-15fps
Chime
Security Panel (XP02) as Doorbell Chime
AC Mechanical Chime
AC Digital Chime (Works with DDA board)
OS:
Dual OS (RTOS + Linux 4.9)
Storage:
Local Storage: N/A (Reserved MicroSD Socket)
Cloud Storage: Amazon KVS Video storage
Field of View:
202(H)*119(V)
Power
10-30VAC, 10 VA, OR 12 VDC 0.5A
Battery: Built-in 450mAh battery
WIFI/ SubG RF radio
WIFI: IEEE 802.11 a/b/g/n/ac
2T2R 2.4/5GHz dual band
SubG RF: 433MHz
Operation Temperature
Product working temperature: -10°C ~ 45°C
Motion Detect
Motion sensor/130° @ 8FT
AI Human detection algorithm to reduce false trigger
Support pre-recording before Motion trigger
Waterproof
IPX4
Weight
94g
110g (with mounting plate)
Video /Audio Streaming
Full-duplex two way call
Certification
FCC/IC

Confidential for D3 Internal Use Only
3
6. Requirement
Power
10-30VAC, 10VA or 12VDC, 0.5 to 1.0A wired to an in home mechanical or digital doorbell
chime. Note: A Digital Doorbell Adapter must be installed if a digital doorbell chime is present.
WARNING: An in-line resistor (10 Ohm, 10 Watt) is required when installing the doorbell camera
without a wired, in-home doorbell chime. This is typically done when testing the doorbell or
performing a demonstration. Failure to install a resistor when a chime is not present may result
in damage to the doorbell camera.
Chime
Security Panel (XP02) as Chime - XP02 Panel can be a chime of the EZ-Bell doorbell.
Mechanical Chime - If the chime has metal bars and a striker pin, it is mechanical and
will work without additional hardware.
Digital Chime - If the chime has a speaker that plays a tone when pressed, it is digital
and will require the installation of the Digital Doorbell Adapter and the enabling of the
digital doorbell setting in the app to function properly.
Tube Chime - If the chime has a series of tubular bells, it is a tube chime and is
incompatible with the doorbell camera.
Intercom System - If the doorbell button fixture includes a speaker, it is an intercom
system and is incompatible with the doorbell camera.
No Chime - If there is no chime in the system, the customer will only receive alerts on
their phone and a resistor (10 Ohm 10 Watt) must be used in-line with the doorbell
camera.
WiFi
A Wi-Fi Internet upload speed of at least 1.5 Mbps is required at the location where the doorbell
camera is installed.
Note: In Canada when using 5 GHz on band 1, the device is intended for indoor use only.

Confidential for D3 Internal Use Only
4
7. Hardware Installation
8. APP Instruction

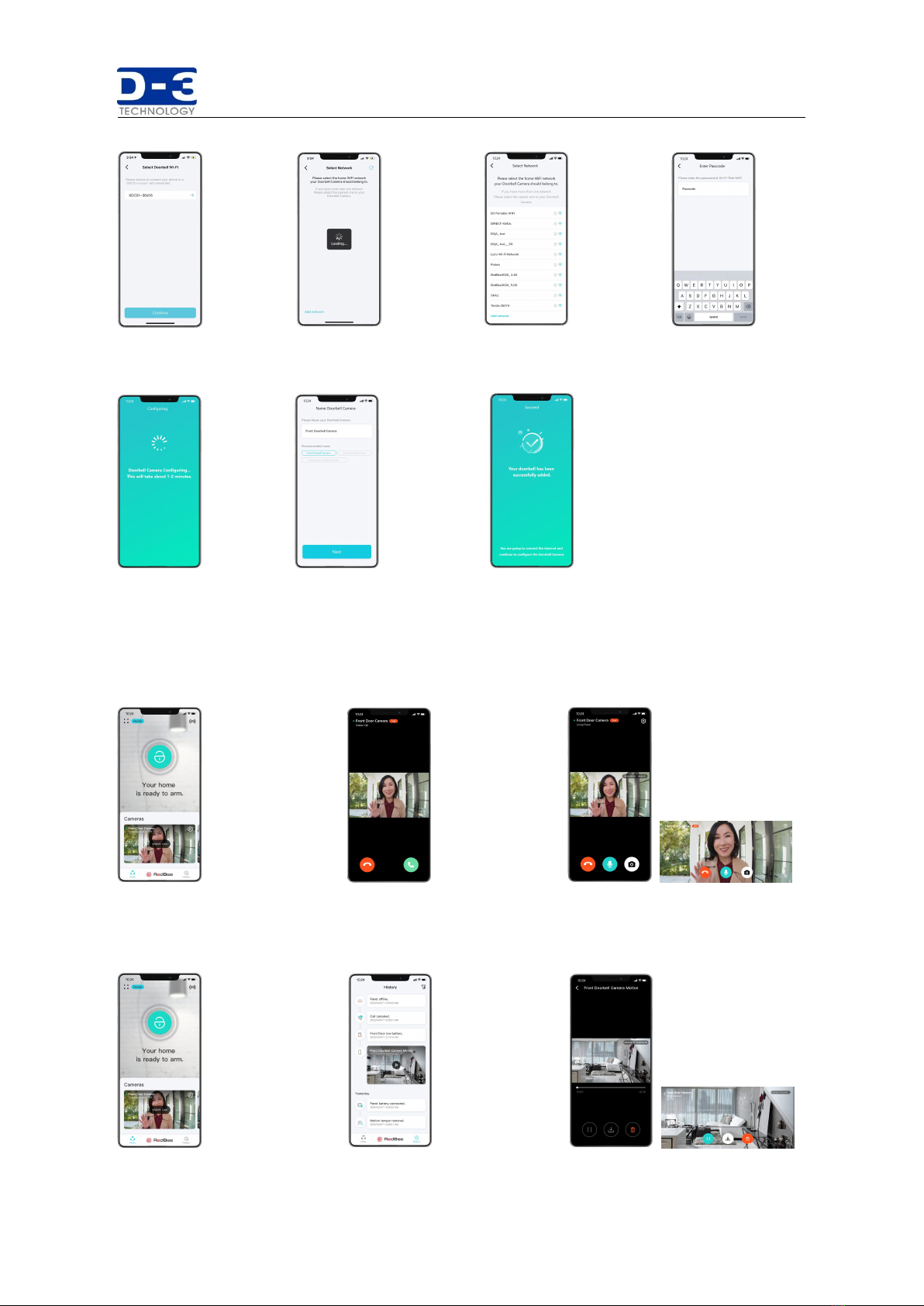

8.1 – Camera Pairing and Provision
(1) Login Redbee App (2) Click "Add camera" (3) Wait LED Orange 4) Allow positioning
(5) Click blue arrow (6) Click WLAN in phone Settings (7) Scan for XDC01-xxxxx (8) Choose doorbell

Confidential for D3 Internal Use Only
5
(9) Continue in App (10) Scan for WiFi (11) Choose WiFi for Doorbell (12) Enter WiFi password
(13) Connecting to WiFi (14) Set Doorbell name (15) Doorbell is ready to use
8.2 – Live view streaming and 2-way talk
(1) Click "watch live” (2) Call-out or pick-up call: (3) Hangup: Click red hangup icon
Click dial green button. Push talk: Press blue mic icon;
Snapshot: Click grey camera icon.
8.3 – Video Clip Online Playback
(1) Click "History” at right foot (2) Select event to view (3) View online playback in full screen

Confidential for D3 Internal Use Only
6

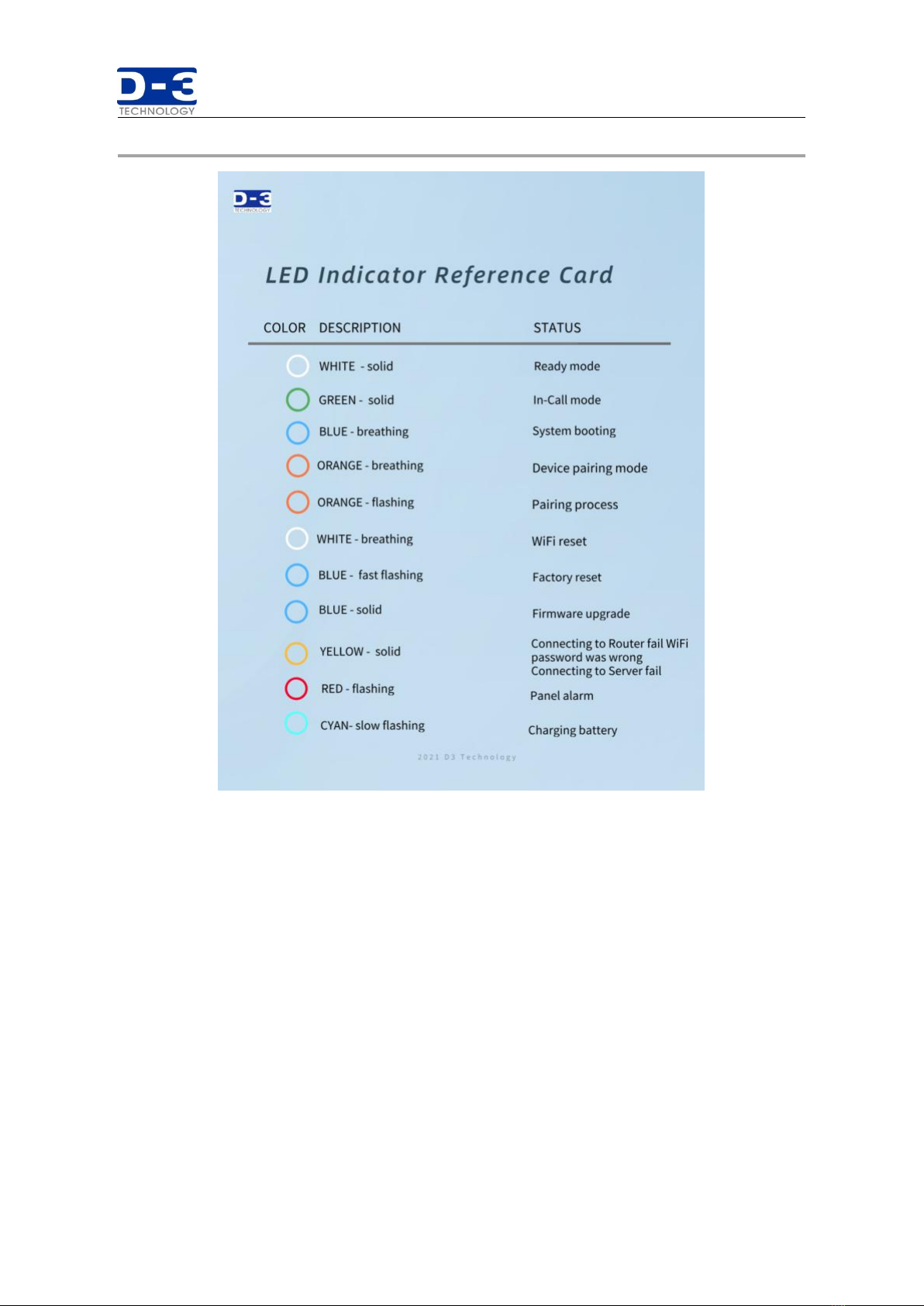

9. Doorbell LED Pattern
