Da-Lite Da-Lift Series User manual

INSTRUCTION BOOK FOR
Da-Lift Projector Lift 220V
10M, 15M, 15, 19, 19L

2
Important Safety Instructions
Pre-Installation
When using your video equipment, basic safety precautions
should always be followed, including the following:
1. Read and understand all instructions before using.
2. Position the cord so that it will not be tripped over, pulled, or
contact hot surfaces.
3. If an extension cord is necessary, a cord with a current rating at
least equal to that of the appliance should be used. Cords rated
for less amperage than the appliance may overheat.
4. To reduce the risk of electric shock, do not disassemble this
appliance. Contact an authorized service dealer when repair
work is required. Incorrect reassembly can cause electric shock
when the appliance is used subsequently.
5. The use of an accessory attachment not recommended by the
manufacturer may cause a risk of ire, electric shock, or injury to
persons.
1. Carefully unpack Da-Lift projector lift.
2. Make sure to recheck measurements of projector lift location
before installation.

3
1. Mounting Da-Lift Projector Lift between joists.
Install the joists at the proper height and width to it the Da-Lift
you are installing. See Figure 1.
NOTE: The Da-Lift must be installed on top of the joists.
Be sure to leave access from above for installation.
When the joists are properly installed, and secured in place, slide
the Da-Lift in position. Bolt the two brackets (38mm x 483mm)
to the frame. Lower the unit onto the joists and secure in place.
Additional bracing may be required, based on construction.
NOTE: Da-Lift projector lift must be installed level!
Suggested Method of Installation

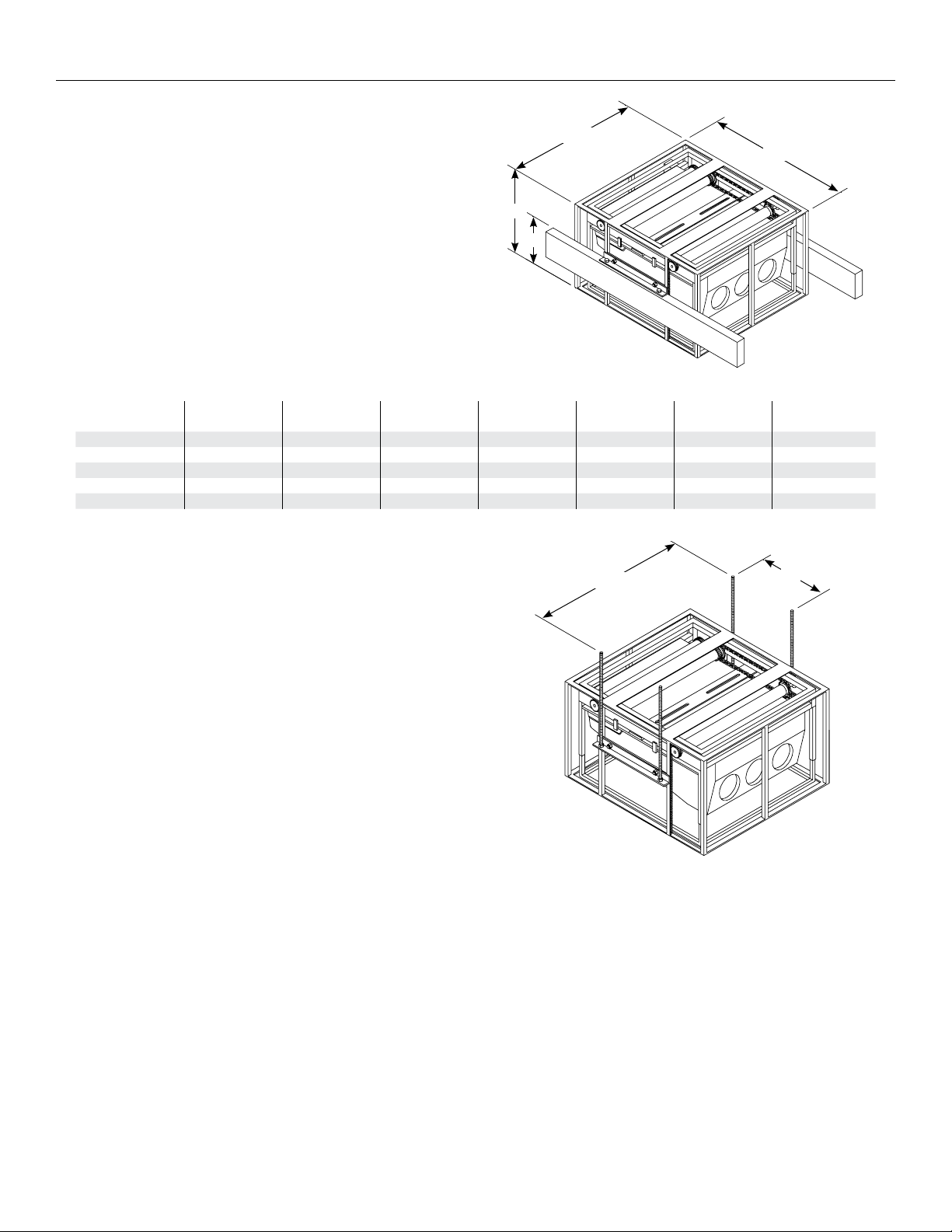

Figure 1
Figure 2
Model Lifting
Capacity
Width
A
Height
B
Depth
C
Height
D
Dim.
E
Dim.
F
Da-Lift 10M 9.0N 575mm 381mm 559mm 114mm 613mm 356mm
Da-Lift 15M 9.0N 575mm 508mm 559mm 241mm 613mm 356mm
Da-Lift 15 67.4N 781mm 508mm 864mm 241mm 819mm 413mm
Da-Lift 19 67.4N 832mm 610mm 965mm 343mm 870mm 413mm
Da-Lift 19L 67.4N 1086mm 610mm 1219mm 343mm 1124mm 413mm
2. Mounting Da-Lift Projector Lift using threaded rods.
Secure four threaded rods to the ceiling at the dimensions
shown. See Figure 2, “E” and “F”. Install the mounting bracket
(38mm x 483mm) to each side of Da-Lift with 1/2” diameter bolts,
lat washers and nuts. Attach one nut on each rod and run the
nut up to the desired height.
Slide Da-Lift projector lift up with all (4) four threaded rods into
the mounting brackets. Install nuts under the mounting brackets.
Adjust the frame to the proper height and level with bottom nuts
on the rod. Lock the mounting brackets in place with the nuts on
the top of each rod. Frame must be level and solid. Additional
bracing may be required, based on construction.
C
B
D
E
A
F

240 Volt Wiring Diagram
Da-Lite ofers two styles of 240-volt wall switches for standard operation. Please see wiring diagram included in wall switch box.
Electrical Wiring
1. Install electrical hook up that applies to your unit. Make sure to
review your Electrical Installation Checklist and wiring diagram
for 220/240-volt switch or DRC low voltage control.
NOTE: Da-Lift projector lift has been internally wired at
Da-Lite. External wiring is completed by installer conforming to
local and national codes. Be sure the wires are long enough for
the Da-Lift to go up and down.
2. Test installation by carefully running Da-Lift “up” and “down”
several times. Be prepared to stop the Da-Lift. Duty cycle is three
(3) minutes ON and three (3) minutes OFF.
3. Make sure Da-Lift stops in the up direction lush with the ceiling.

5
Models 15, 19, 19L
Da-Lift projector lift travel is stopped automatically in the full up
and full down positions by limit switches, which have been
properly adjusted at the factory. The up limit switch should not
be ield adjusted. If it is necessary to readjust the down limit
switch, proceed in the following manner. See Figure 3. Raise
projector lift before adjustment for less drop. Take a small
screwdriver or 5/32” hex wrench and insert in yellow switch and
turn towards the (-) or clockwise direction. Raise and then lower
the Da-Lift and check for proper stopping height. If additional
change is necessary, repeat steps until the proper height is set.
Check for satisfactory condition by operating unit a few times.
The bottom frame of the Da-Lift is removable and adjustable to
ceiling level. Finish the bottom frame to match the ceiling.
Da-Lift Projector Lift Adjustment
Optional
Finish the Ceiling Tile Plate by attaching a ceiling tile to it,
painting it or other inishing ideas. See Figure 5. Use the
adjustable Bottom Frame to position the Ceiling Tile Plate
level with the ceiling.
Models 10M, 15M
Use a small screwdriver or 5/32” hex wrench and insert in
number 2 switch. Turn clockwise for less drop. Check for proper
stopping height. Repeat steps until the proper height is set.
See Figure 4.
Figure 3
Limit Switch Adjustment
Up
White
Down
Yellow
Drive Motor
Figure 4
Limit Switch Adjustment
1 – Up
2 – Down
Drive Motor
Figure 5
Screws
Holding
Frame
Frame Can
Adjust
Vertically
Screw
Holding
Ceiling Tile
Plate
Ceiling Tile
Plate Can
Adjust

6

7

8
