USER MANUAL
MODEL: DG80332
Email: [e-mail]
CONTACT US
Before returning your product, please contact us first! Voltz
Toys Customer Service can assist you with any replacement
parts, damages, or defective issues reported. You can con-
tact us directly at www.voltztoys.ca.
Phone number: 1-888-338-6589
Head Oice: Unit 7-3600A Laird Rd, Mississauga, ON, L5L
6A6
24V MERCEDES-BENZ UNIMOG ENGLISH
COMPLIANCE STANDARDS:
SOR/2011-17
SOR/2018-138
SOR/2016-195
SOR/2016-302
SOR/2018-83
SOR/2016-188
SOR/2014-254
EN71
ASTM F963-17
CPSIA

ATTENTION: Please read the following instructions before assembling and
using. Please keep the user manual for reference.
OFFICIAL LICENSING
“Mercedes-Benz”, , , and the design of the enclosed product are
subject to intellectual property protection owned by Daimler AG. They are
used by PINGHU CITY JULING CHILDREN’S COMMODITY FACTORY un-
der license.
INSTRUCTIONS
Please read the manual before using the product. The manual and carton
contain important information. Please keep the manual for later references.
Failure to follow the instructions in the manual may result in damages, acci-
dents, or defective issues with the product.
To improve the product and quality, we may alter the structure, appearance,
packing method, assembly method, and product function without any no-
tice.
When there are any dierences between the manual and the product,
please refer to the actual product itself. We apologize for any inconvenience
caused.

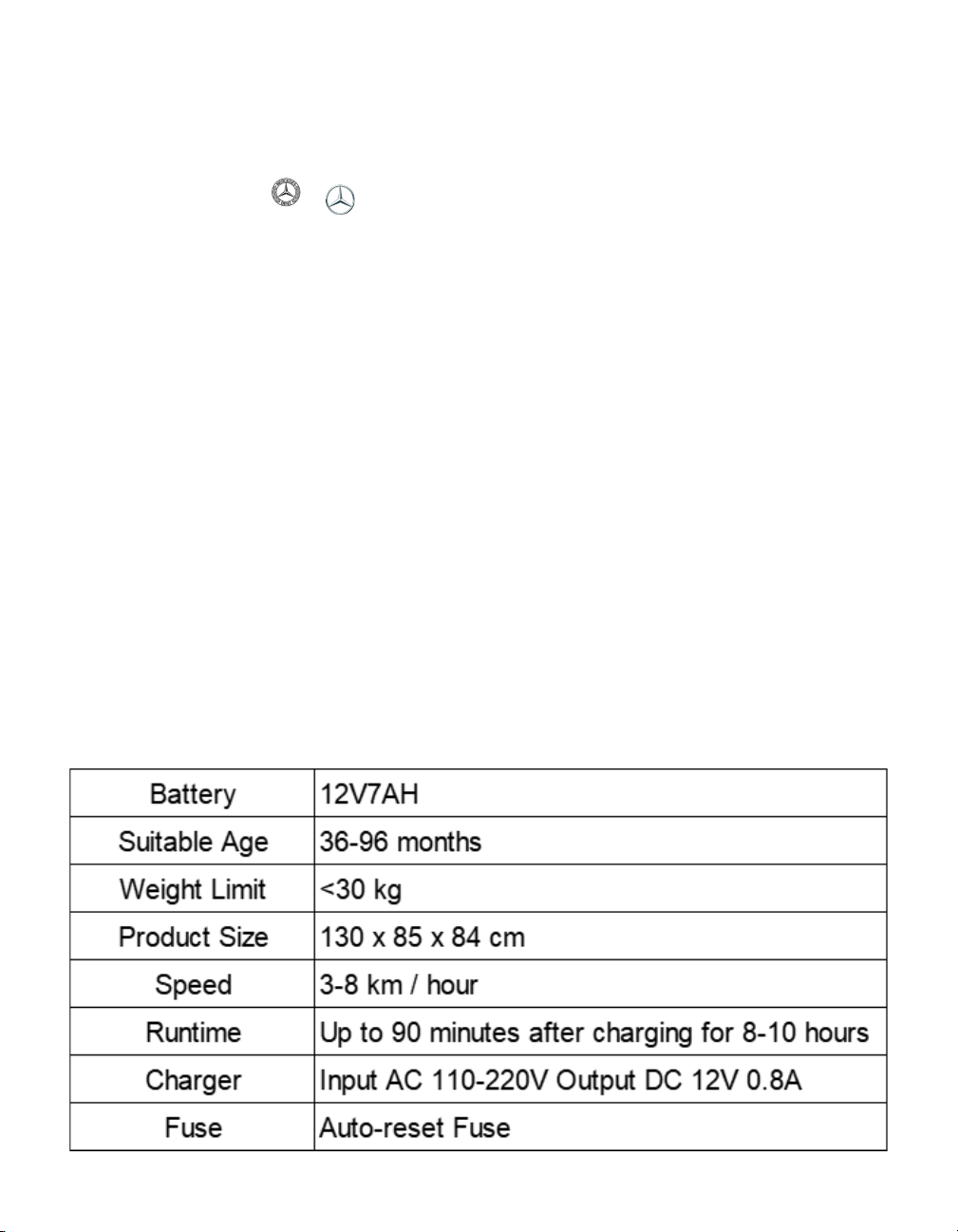

PRODUCT SPECIFICATIONS

MAINTENANCE
• Adults are responsible for reviewing the product and it’s essential parts
before use. Check the main electrical parts including battery, charger,
and remote. Check whether screws are loose or other potential hazards.
• The vehicle should be cleaned with a damp cloth. Do not directly pour or
wash the vehicle with water. It can also be polished by a non-wax solvent
to brighten the surface. Do not use a chemical dissolvent as it will de-
grade the plastic. The vehicle can not be internally cleaned by soap and
water as this will damage the motor and battery, this will cause a short
pass of the electro-circuit system.
• For long-term use, it is encouraged to use lubricating oil on metal parts
to prevent rust. The car should be kept away from extreme temperatures
and humidity. When charging, please keep the vehicle away from inflam-
mable materials.
• When inactive for an extended period (at least one month), please dis-
able the power. All the switches must be in “STOP” or “OFF”. The prod-
uct’s structure and wire system are not to be modified or altered. Mainte-
nance and replacement of crucial parts must be done by a professional.
• Unstable power supplies are not to be used. Installing a power regulator
is highly recommended to protect the battery while charging.

1
PART LIST

2
ASSEMBLY INSTRUCTIONS
The assembly of this vehicle must be done by an adult. The assembly pro-
cess can take 30 minutes to 60 minutes. The included small packaging
presents a choking hazard, please ensure children are strictly prohibited
while assembling.
Installation tools required: screwdriver, screw, inner hexagonal wrench (in-
cluded).
Before assembly, please review the parts list and packaging to ensure all
contents are included. When installing, pay attention to the motors as each
motor is dierent. Please refer to the attached label to indicate the right ( R )
and left ( L ) motor.
Attention: Please install the car as per the following order procedure. Oth-
erwise, some parts can not be installed correctly.
Disclaimer:
The pictures in the instructions are for assembly reference only. Please refer
to the actual product.

3
TABLE OF CONTENT
• Shock Absorber
• Front Axle
• Rear Axle
• Motor
• Wheel
• Windshield
• Fence
• Seat
• Rollbar
• Wheel
• Battery Connection
Page 4
Page 5-6
Page 7
Page 8
Page 9-10
Page 10
Page 11
Page 11-12
Page 13-14
Page 14-15
Page 16

4

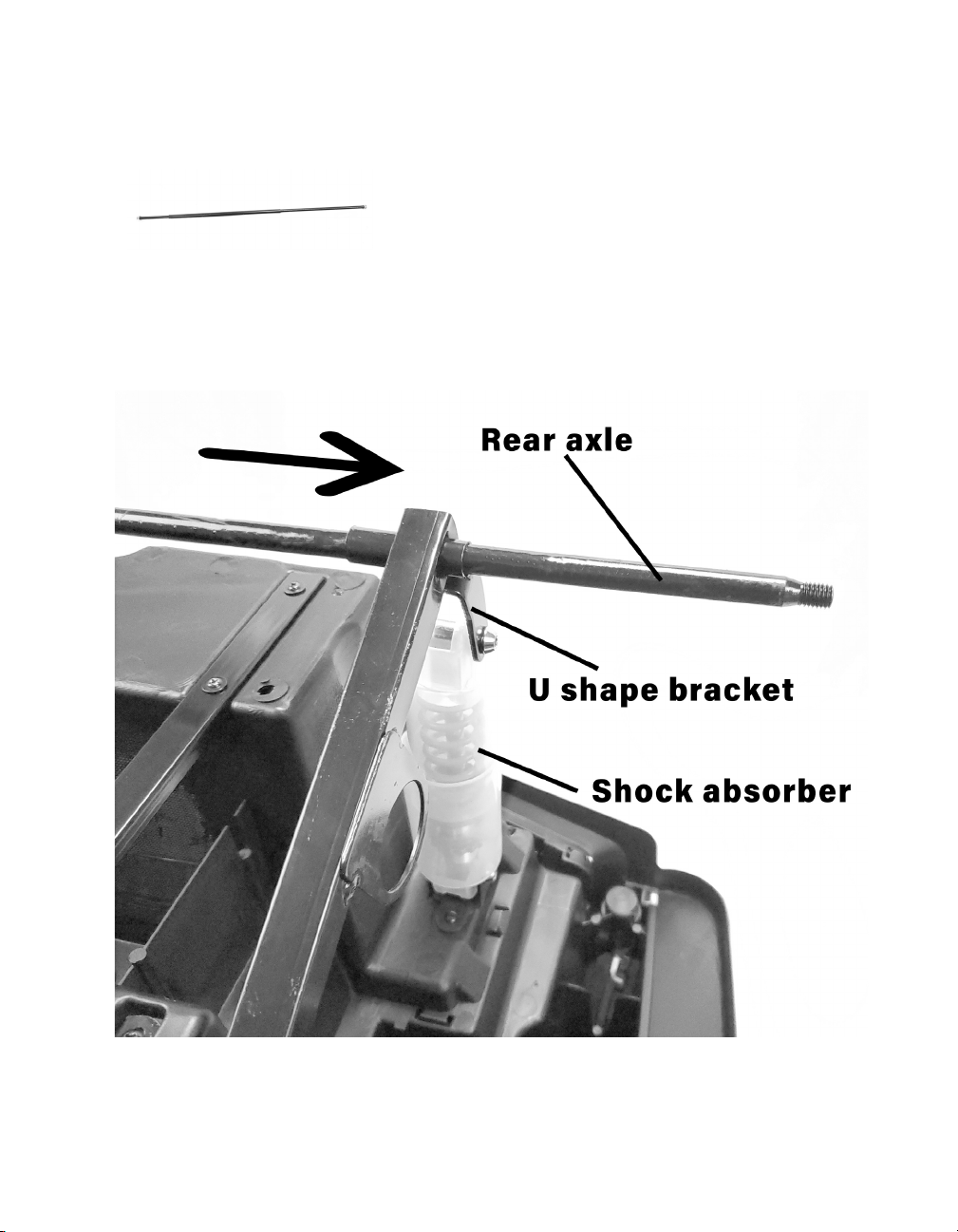

1. SHOCK ABSORBER ASSEMBLY
Begin assembly with the car in an upside-down position. The vehicle has
built-in shock absorbers, they are located at the front and rear end of the
car. The shock absorbers are to be installed with the front and rear axle.
To install, start with the rear axle. Remove the shock bolt from the shock
absorber using the hexagonal wrench, and align the shock absorber holes
with the “U”-shaped bracket. Fix with the shock bolt using the hexagonal
wrench. Repeat the same steps with the front axle. Please note, the front
axle has the “U”-shaped bracket attached, ensuring the shock absorber is
fixed first when installing the front axle.

5

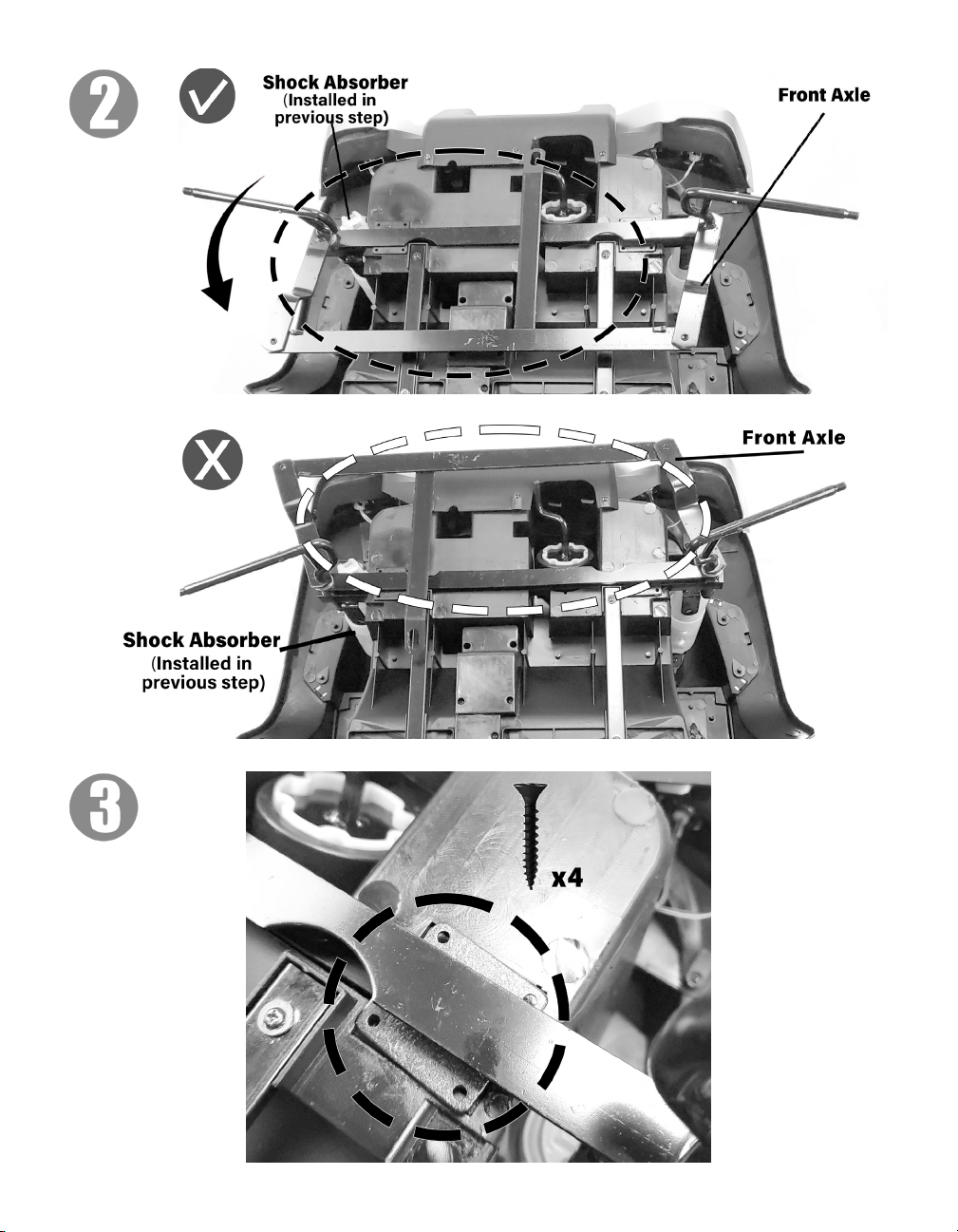

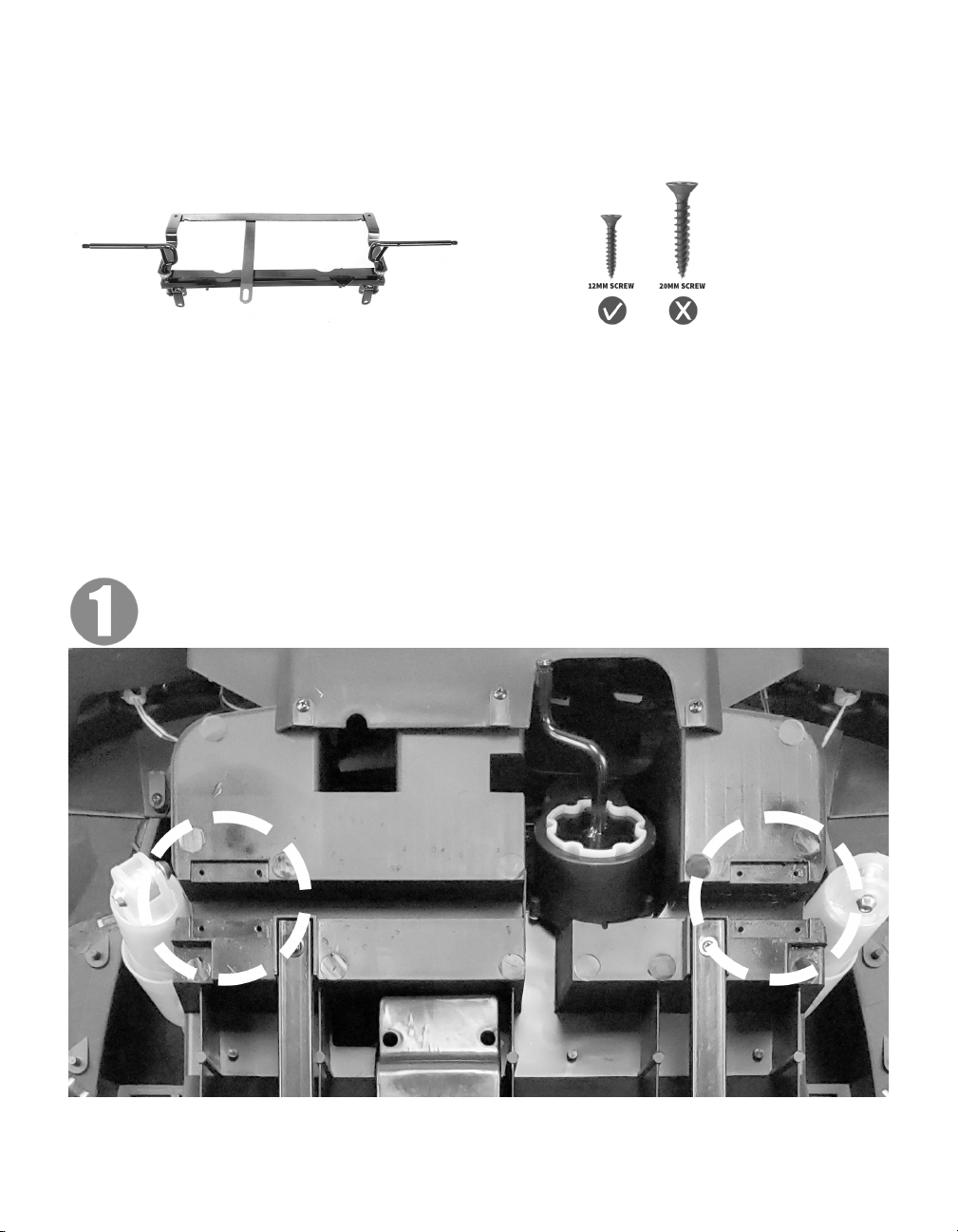

2. FRONT AXLE ASSEMBLY
Parts Required: Front Axle, 8*12MM Screws
Begin assembly with the car in an upside-down position. Ensure the front
axle slot is aligned to the steering column rod. Insert the steering column
rod into the front axle slot, then secure it with the cotter pin. Install the front
axle onto the car body, then fix with 4*12 flathead screws on each side.

6

7
3. REAR AXLE ASSEMBLY
Parts Required: Rear Axle
The rear bracket has a small hole for the rear axle rod to pass through. In-
sert the rear axle into the corresponding rear bracket hole. Ensure the rod is
equally distanced on both ends.

8

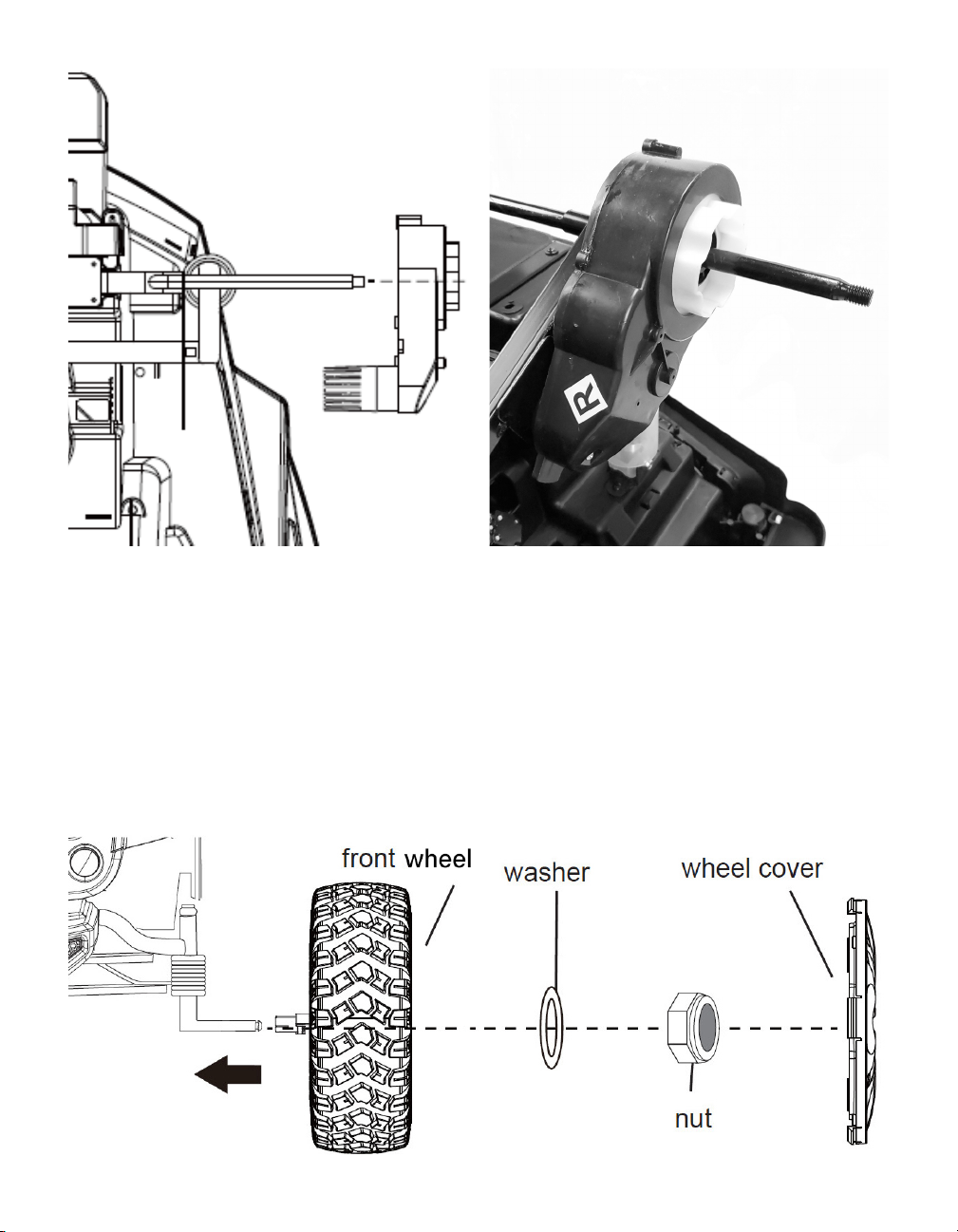

4. MOTOR ASSEMBLY
Parts Required: 2*Motors (1 x rear left, 1 x rear right)
Slide the motor on one end of the axle, ensure it is fully inserted through
the fixed hole and into the car body. Connect the rear motor wires with their
matching pair from the car body. Please note each motor is dierent, refer
to the attached label to indicate the right ( R ) and left ( L ) motor. Repeat on
the other end of the rear axle assembly.

9
5. WHEEL ASSEMBLY
The front wheel is to be assembled in the following order. Insert the front
wheel onto the front axle rod, washer, and nut. Tighten the nut to secure,
and install the wheel cover.
a. Front wheel assembly

10
b. Rear wheel assembly
1. First, adjust the rear axle until the rod is equally distanced on both sides.
The length must be equal on both ends.
2. The wheel is to be assembled in the following order. Insert the rear
wheel, tire sleeve (included with wheel), washer, and nut. Tighten the nut
to secure, and install the wheel cover.
3. Make sure one assembled wheel is in contact with the ground before as-
sembling the other wheel. (If the other wheel can not be assembled, pull
out the rear axle until it is fully extended, then re-attempt assembly)
6. WINDSHIELD ASSEMBLY
Insert the windshield into the corresponding opening on the car body. Push
firmly until it “clicks” to secure.
Parts Required: Windshield

11
7. FENCE ASSEMBLY
Parts Required: Fence
Position the fence onto the corresponding slot at the rear end of the car.
Push firmly until it “clicks” to secure. Fix the fence with self-tapping screws
to secure it.

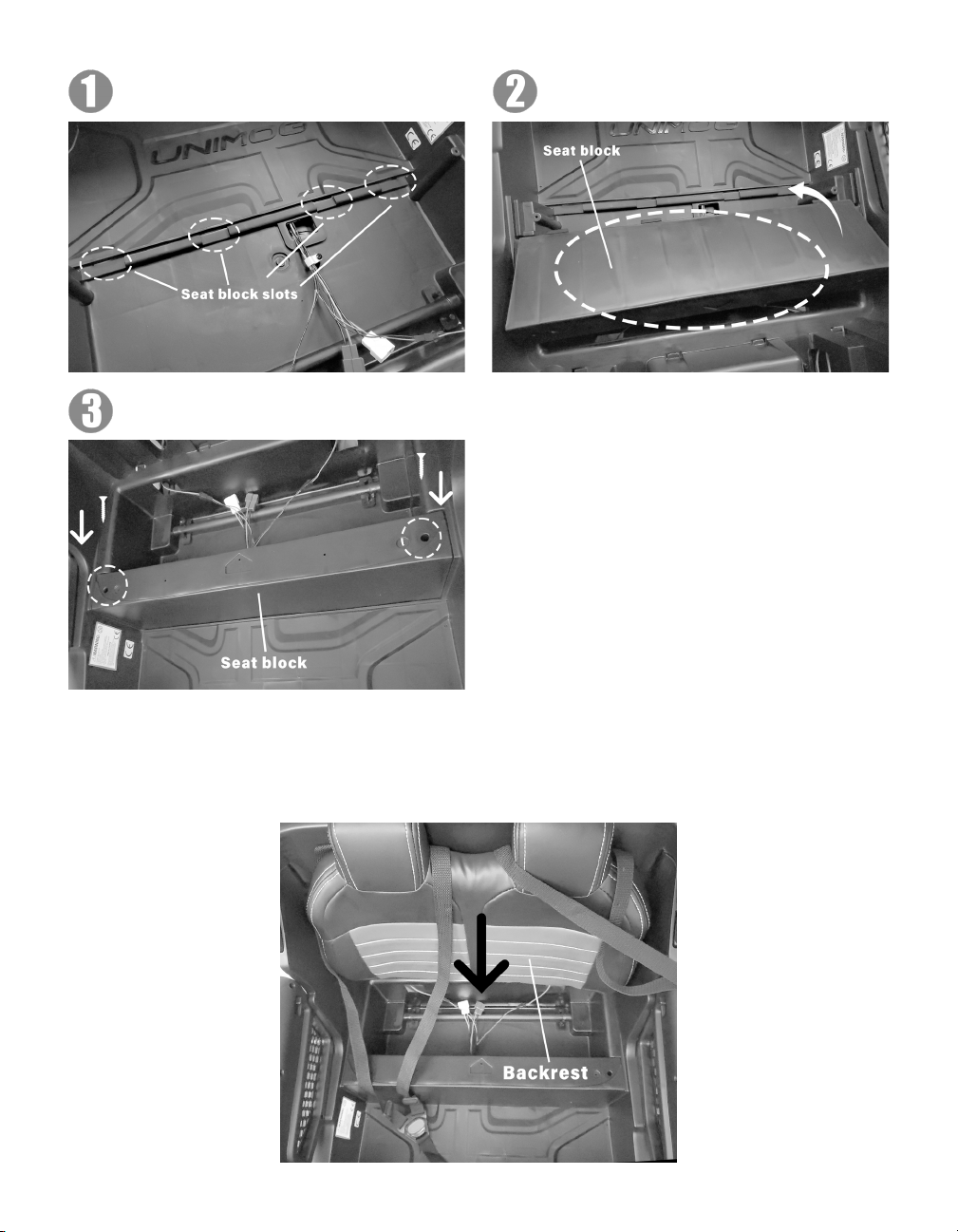

8. SEAT ASSEMBLY
Parts Required: Seat block, Seat, Backrest
The seat assembly is composed of three parts. (Attention: Before installing
the seat, connect both left and right motors with their matching connector)
1. Start with the seat block. Push the seat block into the corresponding
slots on the car body. Push firmly until it “clicks” to secure. On the middle
of the seat block is a triangle-shaped cut-out with a screw hole. The seat
buckle is separate from the seatbelt. Gently fix the seat belt buckle onto
the seat block.

12
2. The backrest must be inserted on the corresponding slots from the car
body. Locate the slots on the car body for the backrest. Install the back-
rest by pressing firmly downwards.

13

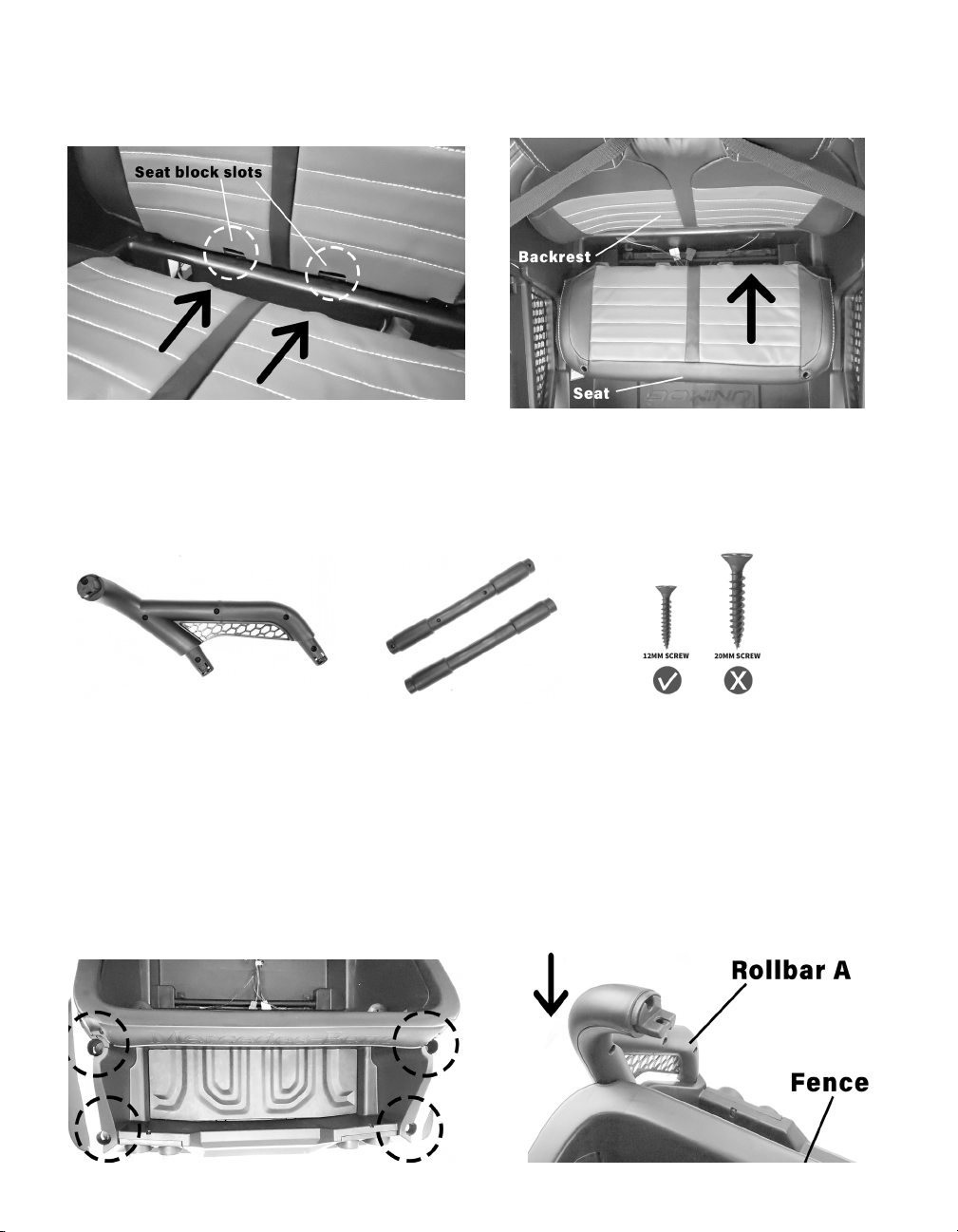

3. The seat must be inserted into the back rest. Push the seat into the backrest,
then fix the seat onto the seat block with self-tapping screws.
9. ROLLBAR ASSEMBLY
Parts Required:
Left and Right support bar (A), Center bar (B), 12 MM Screw*2
The rollbar assembly requires the installation of 3 parts. The left and right
support bar, and the center bar installed in between the support bars.
1. Install the left and right support bars onto the car body. Push firmly until
it “clicks” to secure. The support bars need to be connected with the
center roll bar. The center bar comes in a lower and upper portion that
needs to be put together.
(Rollbar A) (Rollbar B)

14
2. To complete the roll bar assembly, put together the upper and lower roll
bar in between the support bars. Ensure it is placed in the center of the
left and right support bars, and aligned onto the screw holes. Gently, fix
the center roll bar with screws. Do not overscrew as this will damage the
rollbar.
10. STEERING WHEEL ASSEMBLY
1. The steering wheel is pre-assembled with the screw and nut. Remove
the screw and nut from the steering wheel.

15
2. Connect the steering wheel wire with it’s matching pair from the steering
column.
3. Insert the steering wheel into the steering column. Align the steering
wheel with the steering column screw hole. Fix the steering wheel with
the screw and nut to complete assembly. (Attention: please refer to the
openings of the screw hole. The nut needs to be fixed from the hexago-
nal opening.)

16

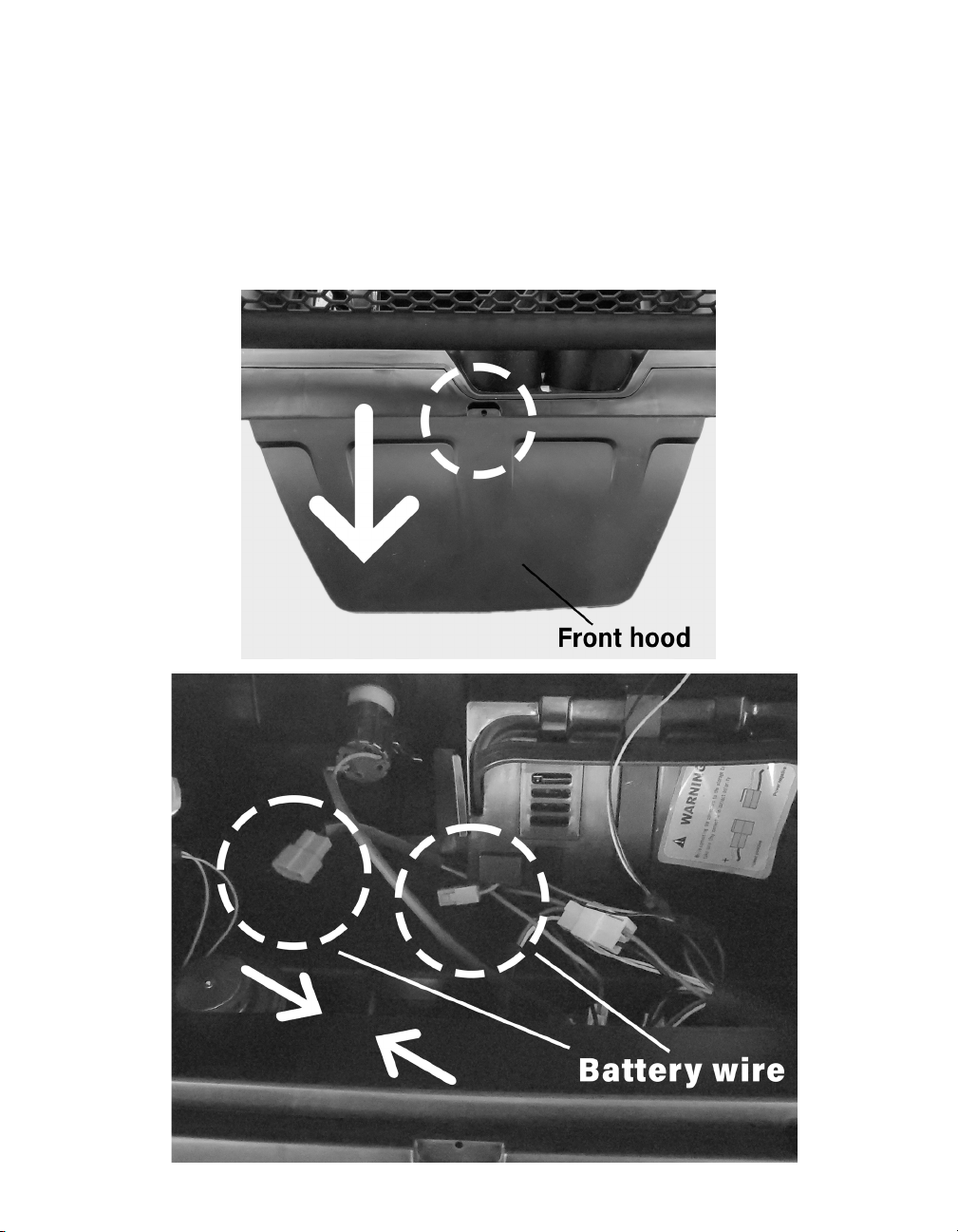

11. BATTERY CONNECTION
Open the cover on the front hood of the vehicle. Locate the (red) battery
wire inside. Plug the battery wire together to enable power. Please note, the
car will not operate or function if the battery wire is disconnected. Once the
battery wire is connected, close the battery cover. Fix the battery cover with
screw.

17
REMOTE CONTROL INSTRUCTION
1. To pair the remote with the vehicle, install two AAA 1.5V batteries. Un-
screw and push the battery cover open on the back of the remote.
Please pay attention to the positive and negative polarity in the battery
holder. After installing batteries, close the battery cover.
2. Hold the “Forward” and “Backward” key together (up and down key) for
3 seconds. The light on the center will start to flash - this indicates the
pairing has initiated.
3. Turn on the power from the vehicle while the remote is flashing. After
turning on the vehicle, the lights on the remote will stop and stay lit. This
indicates the pairing has been successful and connected to your vehicle.
Remote Instructions:
“S” Key: Speed button; adjust the speed from low, medium, or high. The
light on the center of the remote will indicate the speed level.
“P” Key: Park button; disable the vehicle’s movement and stay parked. The
car will not run with the pedal or remote. To enable power, press the “P”
button again.
2.4GHz Remote Control Pairing Procedures
