DAAN Groups Voltz Toys FERRARI 488 PISTA SPIDER DG-82900 User manual

A subdivision of The DAAN Groups
Email: [e-mail]
CONTACT US
Before returning your product, please contact us first! Voltz
Toys Customer Service can assist you with any replacement
parts, damages, or defective issues reported. You can contact
us directly at www.voltztoys.ca.
Phone number: 1-888-338-6589
Head Oice: Unit 7-3600A Laird Rd, Mississauga, ON, L5L
6A6
USER MANUAL
MODEL: DG-82900 COMPLIANCE STANDARDS:
SOR/2011-17
SOR/2018-138
SOR/2016-195
SOR/2016-302
SOR/2018-83
SOR/2016-188
SOR/2014-254
EN71
ASTM F963-17
CPSIA
ENGLISHFERRARI 488 PISTA SPIDER

1
Please read the manual before using the product. The manual and carton
contain important information. Please keep the manual for later references.
Failure to follow the instructions in the manual may result in damages, acci-
dents, or defective issues with the product.
To improve the product and quality, we may alter the structure, appearance,
packing method, assembly method, and product function without any no-
tice.
When there are any dierences between the manual and the product,
please refer to the actual product itself. We apologize for any inconvenience
caused.
An adult should assemble the product. All pictures shown are for illustration
and reference purposes only. The actual product may vary due to product
enhancement.
WARNING
This product is not used for transportation and only should be used un-
der adult guidance and supervision. Parents should ensure that children
have followed the safety measures before use. Children should use the
toy with caution and under adult supervision. To prevent injury to users
and others, basic coordination skills and awareness are required to avoid
accidents, falls, or collisions.
Disclaimer:
The pictures in the instructions are for assembly reference only. Please refer
to the actual product.

2
PARTS LIST

3
WARNING
If the quantity and shape of some spare parts in this manual are dierent
from that of products you buy, it might be because some parts of the car
you buy already have been installed or because we reduce setup steps
and quantities of spare parts for making the installing easier. Please
check and review.

4
PRODUCT SPECIFICATIONS
Car Model
12V7Ah lead-acidBattery
DC12V 25Wx2
Suitable age 37-96 months
Weight Limit 30 kg
Product Size 120.3 x 67.2 x 52.4 cm
Speed 3-4 km / hour
Charging time 8-12 hours
Charger AC 100-240V 50/60 Hz 0.3A (input)
DC 12.0V 1.0A 12.0W(output)
Electric motor
DG-82900
• Adults must assemble the car.
• The product contains small items that may present choking hazards.
Keep children away from assembling. Children under 36 months are
prohibited from using.
• Review and count all parts carefully before assembling. Properly dis-
pose of all plastic bags and other packaging materials.
Attention: Please install the car as per the following order procedure. Oth-
erwise, some parts can not be installed correctly.
ASSEMBLY PREPARATION

5
OPENABLE SIDE DOORS
HAND LEVER
• There is a switch on the inner
side of the door. Push this
switch forward and pull it out
to open the door.
• Gently push the door inward
to close the door. When
there’s sound “click”, the
switch couldn’t be pushed,
and the door couldn’t be
opened, it means the door is
closed well
• As shown in the
figure, lift the hand
lever to facilitate
consignment.

6
1. POWER CONNECTION
Press the front Ferrari logo and lift the front hood, Remove the screws and
lift the batter cover. Loose the battery lock by remove the corresponding
screw. Connect the power supply cable with adapter, then plug insert to the
designated slot on top of the battery. After testing the connection, put down
the battery handle if lifted, secure the battery with lock piece, put the batter
cover back and fix with screws removed earlier. Close the car hood, press
firmly to ensure it is locked.
Parts required: #4, #6, #7, #8

7
BATTERY REPLACEMENT
• Unscrew the 2 pieces of screws #4 on battery board #8 one by one, and
take out the battery board, as shown in Figure.
• Unscrew 1 piece of screw #4 on battery lock #7, and take out the battery
lock, as shown in Figure.
• Unscrew 6 pieces of screws #4 on the cover plate one by one, and take
out the cover plate, as shown in Figure.
• Pull out the power plug of the battery #6 configured, then pull out the
battery plugs in the corresponding position on the main board one by
one, remove or replace the battery. Please make sure that it should be
the adult for replacing the battery.
2. SEAT ASSEMBLY
Parts required: #3
Place the seat to designated position, slide the front buckle to the opening,
and press it firmly until it locks.

8

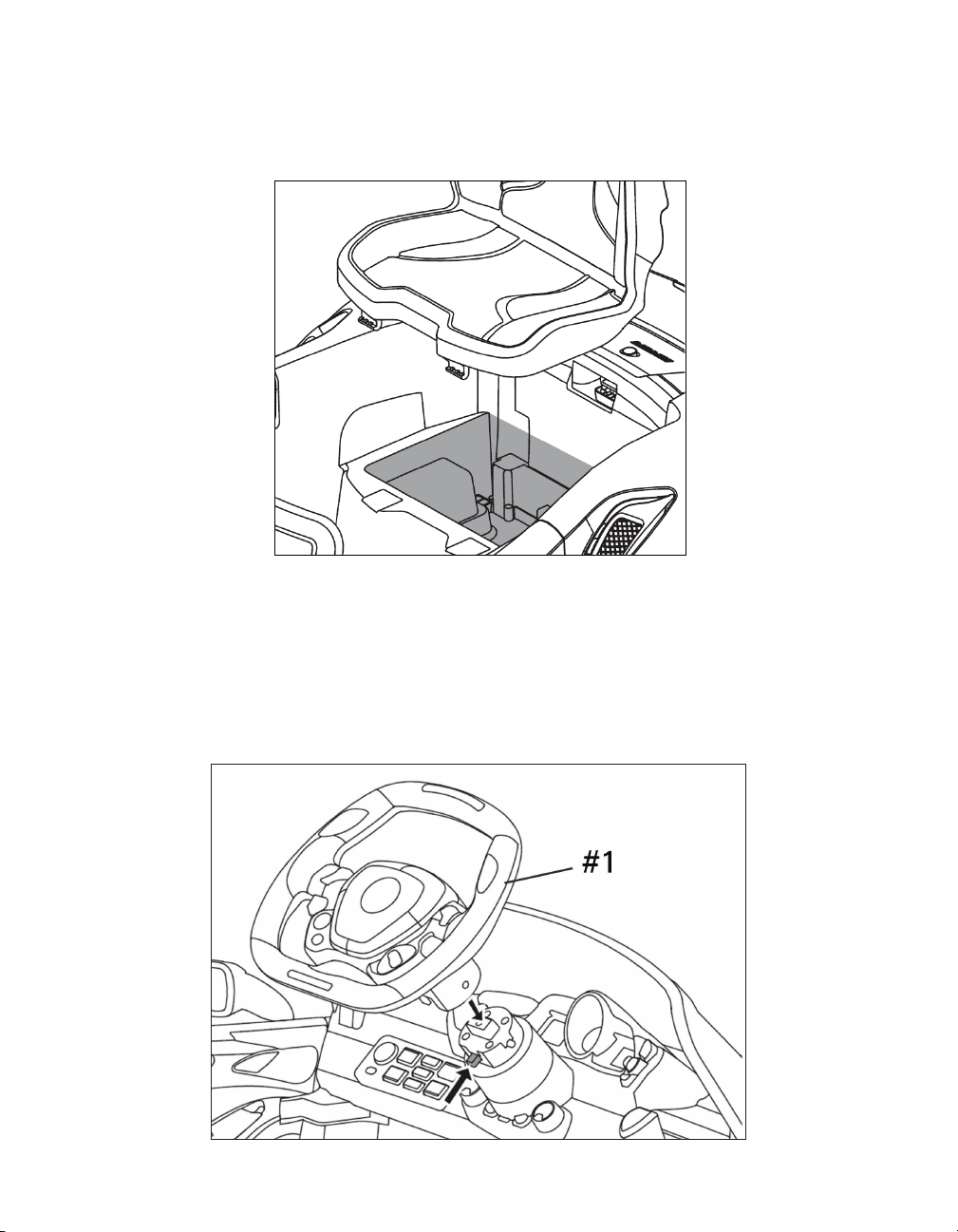

• The seat is equipped with seat belt. Please wear the seat belt when
use.
• There is a storage function under the seat, as shown in image.
3. STEERING WHEEL ASSEMBLY
Parts required: #1
Place the windshield to designated location, align the connector with open-
ing on the car body. Press firmly until they all click.

9
4. WINDSHIELD ASSEMBLY
Parts required: #2
Place the windshield to designated location, align the connector with open-
ing on the car body. Press firmly until they all click.

10
5. WHEELS ASSEMBLY
Parts required: #14
Press the button at the centre of the wheel, insert the axle into the wheel,
release the button and confirm it locks. Repeat for all wheels.
Wheels removal: Press the wheel cap to disassemble the wheel.

11
REMOTE CONTROL INSTRUCTION
NOTE: This product does not included the AA (1.5v)
Operation manual : For the first time to use (or replace the battery) need to
frequency bind.
1. To pair the remote with the vehicle, install two AA 1.5V batteries. Un-screw
and push the battery cover open on the back of the remote. Please pay
attention to the positive and negative polarity in the battery holder. After
installing batteries, close the battery cover.
2. Install the batteries into the controller. The LED indicator on the remote
control will blink and ready for pairing. Switch on the model car, the LED on
the remote control will go out. This means the pairing process is completed.
Then the model car can be fully controlled by the remote control.
Steering wheel
• Horn sound can be activated
when press.

12
DASHBOARD
1. Radio control / Battery
operated mode switch
2. Keyless start button
3. Headlight switch
4. Indicator
5. Play / Pause
6. Volume down
7. Volume up
8. Brake
9. Wireless connection button
10. D/R gear display
11. Odometer
12. Pedal switch
13. Gear shift
Turn on/o: One-button start, press once to start, long press for about 3
seconds to turn o.
D/R gear display: When shifting to dierent gears, the corresponding D/R
lights will be on.
Move forward: Push the shift lever upward to D gear, and step on the foot
switch, the car will move forward.
Stop: put the Gear Switch in STOP gear, the ride-on will stop moving.
Reverse: put the Gear Switch in R gear and step on pedal switch, the ride-
on will move backward.

13
OVERCURRENT PROTECTOR
• The over-current protector is installed under the hood, which can be
seen when the hood and the cover plate are open.
• The main board is equipped with an automatic recovery fuse. When the
motor is blocked due to overload or improper use, the fuse will automat-
ically disconnect the power unit and turn o the start switch. After 30
seconds then, the fuse will automatically recover.
• The power terminal is equipped with a fusing fuse. When it’s short-cir-
cuited, the fuse will fuse. Please replace the spare fuse after the circuit
fault is removed.
WARNING
RISK OF FIRE. Do not pypasss. Replace only with 32V 40A.

14
MAIN BOARD REPLACEMENT
Press the nameplate button to open the hood. When the main board acces-
sories have to be replaced, please just unscrew the screws indicated in the
figure, open the cover plate to see and replace the main board accessories.

15
FUSE
This car is equipped with an auto-reset fuse. If the car stops suddenly while
driving, it is caused by the instantaneous current exceeding, enabling the
fuse to trip. This will result in the car disabling for about 8 seconds, and this
fuse can be reset.
To avoid tripping the fuse:
• Do not exceed the maximum load capacity; the maximum load is 30kg.
• Do not drag any objects behind the product.
• Do not expose water or other liquids to the battery and other electrical
components.
• Do not change and/or modify the circuit system and the structure of the
product.
1. The assembly and charging routine of the vehicle must be under adult
supervision at all times.
2. This product is recommended for children ages 37-96 months. Do not
exceed the maximum weight limit of 30kg.
3. This product is ideal for driving on hard flat surfaces (e.g, concrete, grav-
el, asphalt, etc).
4. It is strictly prohibited to drive on the street, roads, potholes, and slopes.
5. Avoid driving in sand, grass, uneven ground, or other terrains that may
damage the vehicle.
6. Children should be given full instructions and how to operate the car.
Improper use can cause damages or accidents.
7. Parents are responsible to supervise at all times to avoid accidents while
children are driving.
8. Avoid driving in the rain or flooded pathways. Exposure to water can
damage the motor, circuit, and other electrical equipment.
9. Parents should inspect the battery charger to ensure it is in good work-
ing condition. Any damages or abnormalities regarding wires, plugs, or
other components are prohibited to continue using. Do not use it until
parts are completely repaired.
SECURITY WARNING

16
10. To maintain product life and safety, avoid damaging the charger, battery,
or electrical circuit. The car must use the default configuration of the
dedicated charger and power supply.
11. Rechargeable batteries should be removed from the toy before charging.
12. When inactive, disconnect the car’s power by unplugging the (red) bat-
tery wire, ensuring all switches are in the “STOP” or “OFF” position.
13. The charger is not a toy. Please keep away from children.
14. Using non-manufacturer or third-party parts is strictly prohibited.
15. This product is mainly composed of PP material. The expected prod-
uct-usage life is two years.
USAGE DIRECTION
Before using the car, review the following procedures to ensure functionality:
1. All steps are followed per the instructions to complete the car’s assem-
bly. Specifically, the battery wire is connected correctly, and the power
supply has been switched on to confirm functionality.
2. Make sure all parts requiring hardware are fixed tightly and correctly.
3. Adults must ensure children have taken safety measures before use.
4. To reduce accidents while using, the child must be seated at all times.
5. Follow the product’s recommended seating capacity. Please do not ex-
ceed the maximum number of users to ride.
6. Adults must always supervise their children while the car is in use.
7. Adults are responsible for the care and guidance of their child while the
car is in use, ensuring the child is not left unattended.
8. Pay attention to the driving environment and surfaces. Ensure the car is
not driven in an unsafe environment.
9. Pay attention to the road, trenches, riverside, slopes, or uneven ground.
10. Not to be used on public roads or near ongoing traic.
11. The car should only be used in daytime and under light for visibility. Do
not use the car at night or under low visibility.
12. To avoid unexpected obstacles or events, adults must supervise at all
times.

17
CHARGING PROCEDURES
STORAGE BATTERY MAINTENANCE
• For safety purposes, charging must be done by adults.
• The charging port is located under the filler cap. Follow the instructions
to charge the battery.
• If the car is starting to slow down, this indicates the battery is low. Re-
charge for 8-12 hours, maximum 20 hours. Do not overcharge or under-
charge.
1. First, insert the charger into the charging port.
2. Carefully insert the charger outlet into the power outlet. Please note the
car will not turn on when the car is connected.
Please check if the power
cable is connected before
charging, the indicator
light turns green when the
adapter is inserted to the
AC power socket, and
the light turns red when
charging.
The indicator light will turn
green again when the bat-
tery is fully charged.
Electric
socket
• Please charge the battery before using it for the frst time.
• Please use the suitable adapter to charge storage battery, otherwise the
ride-on will be damaged.
• Please charge the car once the speed is slower than normal, otherwise it
will derease storage battery life.
• Please fully charge the battery before you put your ride-on away and
remember to recharge the battery every 30 days. This will ensure the
normal use of the battery, otherwise, the battery can not be charged.

18
WARNING
1. The assembly of the car must be done by an adult. When unassembled,
it contains potentially hazardous parts that are sharp or small. Please
keep out of children’s reach.
2. Choking hazards of small parts.
3. Not for children under 36 months. Recommended for37-96months.
4. Always wear shoes or footwear when using the toy.
5. RISK OF FIRE. Do not bypass. Replace only with circuit protection devic-
es.
6. Protective equipment should be worn.
• Dedicated charger and battery can only be used under manufacturer’s
regulations.
• Do not mix old, new or dierent types of batteries.
• The battery terminal should not be short circuit.
• Do not open the battery or charger.
• Do not reverse the battery.
ATTENTION
To avoid losing power , follow these guidelines:
• Do not overload the vehicle.
• Do not tow anything behind the vehicle.
• Do not drive up steep slopes.
• Do not drive into fixed objects, which may cause the wheels to spin,
causing the motor to overheat.
• Do not drive in very hot weather, components may overheat.
• Do not allow water or other liquid to come in contact with the battery or
other electric components.
• Do not tamper with the electric system. Doing so many create a short ,
causing the fuse to trip.
BATTERY REPLACEMENT

19
• Before charging, please inspect the charger, battery, and plug to ensure
no damages or abnormalities are found. If any damages are found, dis-
continue usage of the car until the parts are replaced or resolved.
• The battery may feel warm while being charged - this is normal. If the
temperature from the charger does not elevate, it may be caused by a
short circuit from the charger or circuit board.
• Must use the pressing plate to fix the battery.
• When the battery is no longer functional, adults are responsible for re-
moving and safely disposing of the battery in a battery-safe disposition
facility.
• When the product is inactive (at least one month), it must be fully
charged. Unplug the (red) battery wire, and charge it at least once a
month to ensure battery functionality and life.
• The charger and battery are not toys. Keep away from children.
MAINTENANCE AND SERVICE
1. Before using, adults are responsible for reviewing the product and es-
sential parts are in a functional condition. Check whether screws are
loose or other potential hazards. Any damaged or defective parts must
be repaired or resolved before using.
2. Use a small amount of oil-based lubricant to moving parts to prevent
rust or wear or tear (e.g. motors, gears, hardware, etc.).
3. Keep the car away from fire and direct sunlight. Store the car in a stable
position and must be kept safely away from extreme temperatures or
climate.
4. The car must be kept away from hot objects, such as stoves and heaters.
Direct exposure to hot objects will melt the plastic. The car must be kept
away from flammable materials to prevent ignition or fire when charging.
5. After using the car, charge the car adequately and must be done by an
adult. If the product is inactive, it must be fully charged. Charge at least
once a month to ensure battery functionality and life.
