Daan Tech VOLTZ TOYS GTS1166 User manual

A subdivision of The DAAN Groups
USER MANUAL
MODEL: GTS1166 COMPLIANCE STANDARDS:
BUMPER CAR (RACE) ENGLISH
Email: [e-mail]
CONTACT US
Before returning your product, please contact us first! Voltz
Toys Customer Service can assist you with any replacement
parts, damages, or defective issues reported. You can con-
tact us directly at www.voltztoys.ca.
Phone number: 1-888-338-6589
Head Oice: Unit 7-3600A Laird Rd, Mississauga, ON, L5L
6A6

• Please read the manual before using the product. The manual and car-
ton contain important information. Please keep the manual for later
references. Failure to follow the instructions in the manual may result in
damages, accidents, or defective issues with the product.
• To improve the product and quality, we may alter the structure, appear-
ance, packing method, assembly method, and product function without
any notice.
• When there are any dierences between the manual and the product,
please refer to the actual product itself. We apologize for any inconve-
nience caused.
• An adult should assemble the product. All pictures shown are for illus-
tration and reference purposes only. The actual product may vary due to
product enhancement.
ABOUT YOUR NEW VEHICLE
This ride-on car will provide your child with an enjoyable riding experience.
To ensure safety while using this product, please carefully read this manual-
ly and keep it for future reference.
Follow all instructions in this manual as they are designed to improve the
safety and operation of this ride-on car and user.

PRODUCT SPECIFICATION
Car Model
6V4.5AH x2Battery
Suitable age 18-72 months
Weight Limit <30 kg
Product Size 80 x 54 x 40 cm
Speed 2-3 km / hour
Charging Time 8-12 hours (to charge), 60-80 minutes (while using)
Charger Input: (depending on local voltage)
Output: DC12V1000mA
GTS1166
BATTERY DISPOSAL
• The built-in lead-acid battery must be recycled or disposed appropriate-
ly.
• Do not dispose of the lead-acid battery on fire. The battery may explode
or leak.
• Do not dispose of the lead-acid battery in household trash. Mixing

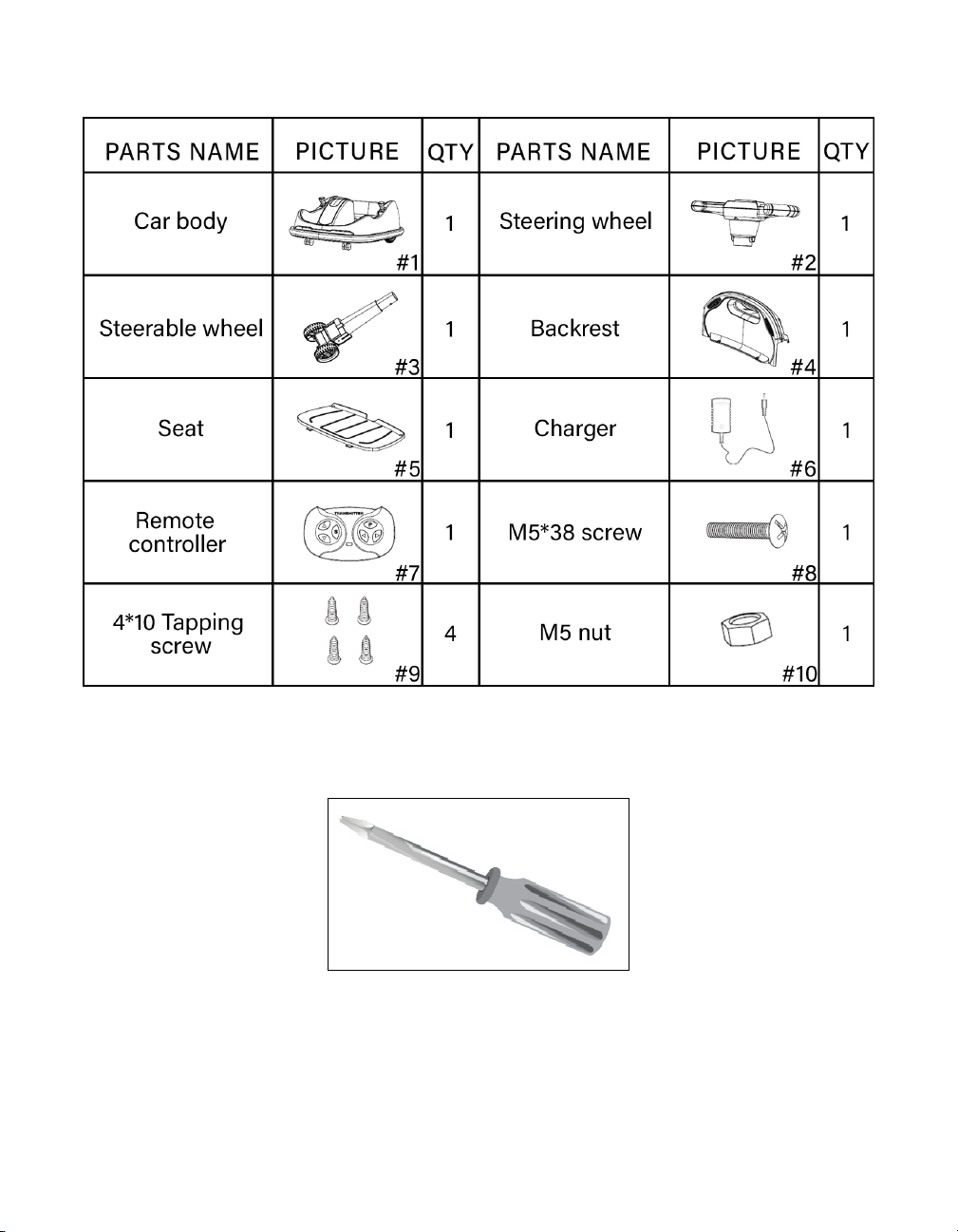

PARTS LIST
ASSEMBLY TOOLS REQUIRED:
*Screwdriver (not included)

SAFETY
WARNING
TO PREVENT INJURIES AND ACCIDENTS:
• Do not lead the child unattended. Adult supervision is required.
• Always ensure supervision while the vehicle is in-use.
• This toy should be used with caution since skill is required to avoid
falls or collisions, causing injury to the user or third-parties.
• Protective equipment should be worn.
• Never use the vehicle on roadways, near cars, on/near steep in-
clines or steps, swimming pools or other bodies of water.
• Footwear must be worn, and the user must remain seated while
using.
• This vehicle is not to be used in traic.
• This toy is unsuitable for children under 18 months due to its maxi-
mum speed; maximum user weight is 30kgs.
• This toy has no brake.
WARNING:
• Choking hazard: not suitable for children under 18 months.
• Adult assembly is required.
RULES FOR SAFE RIDING:
• Keep children within a safe environment while using.
• WARNING: To reduce the risk of injury, adult supervision is required.
• Never use it on roadways, near vehicles, on/near steep inclines or steps,
swimming pools or other bodies of water. Footwear is required, and do
not exceed the maximum number of users (1 rider only).

• Use the toy only on flat surfaces (e.g. indoors, flat concretes, etc.)
• Never use it in the dark. A child could encounter unexpected obstacles
and have an accident. Operate the vehicle only in the daytime or a well-
lit area.
• It is prohibited to change the circuit or add other electric parts.
• Inspect wires and connections of the vehicle periodically.
• Do not let any child near or touch the wheels while the vehicle is moving.
• This vehicle has adjustable seatbelts. Please instruct children how to tie
the seatbelt before using, ensure the seatbelt is secure.
ASSEMBLY INSTRUCTION

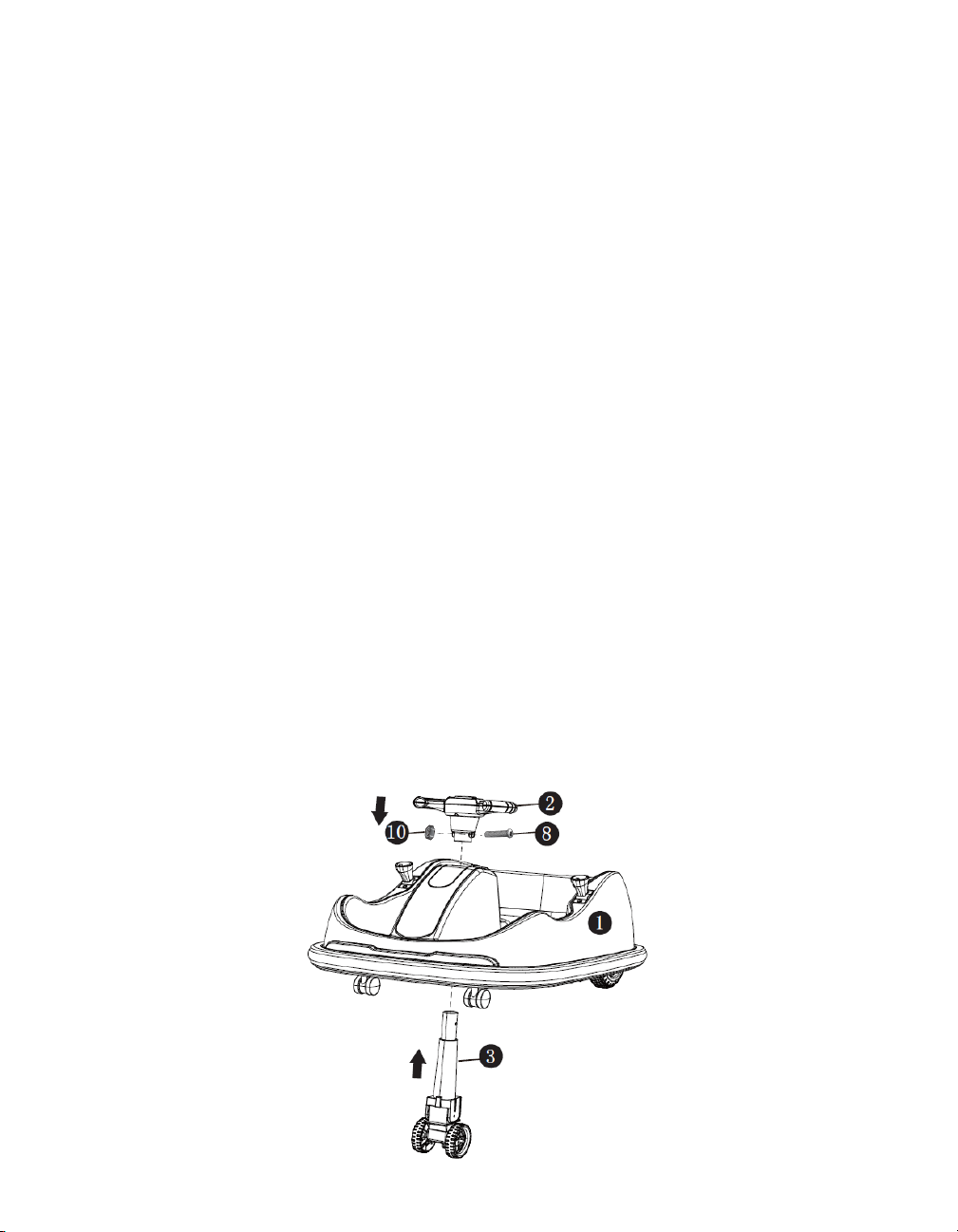

STEERING & STEERABLE WHEEL ASSEMBLY
1. Lift the car body (1), pass the steerable wheel (3) through the hole in the
car (refer to diagram).
2. Install the steering wheel (2) to the steerable wheel column. Please align
the four holes in the steering wheel and steerable wheel.
3. Use the M5*38 screw (8) and M5 nut (10) to fix the steering wheel on top
of the steerable wheel column.

POWER SUPPLY ASSEMBLY
1. The supply terminals are not to be short-circuited.
2. Plug the (red) battery connector into the battery terminal.
BACKREST ASSEMBLY
1. Install the backrest (4) into its corresponding position on the car body (1).
Use two 4*10 tapping screws (9) to fix it.

SEAT ASSEMBLY
1. Install the seat (5) into its corresponding position on the car body (1).
Use two 4*10 tapping screws (9) to fix it.
HOW TO USE YOUR VEHICLE
Please stop the vehicle when changing the speed and direction as this
will damage the gears and motors.
IMPORTANT!
DASHBOARD FUNCTION
1. Power switch: Turn on/o the power.
2. Light switch: Turn on/o the light.
3. Music button: Turn on/o the music.
4. High-Low speed switch: Change the speed.
a. To move the vehicle forward at high speed.
b. To move the vehicle forward at low speed.
5. Input socket: Plug the charging port into the input socket, plug the char-
ger into a wall outlet.

6. Mode switch (switch to “outdoor” or “indoor”): Can switch between dif-
ferent play modes.
Please stop the vehicle when changing the speed and direction as this
will damage the gears and motors.
IMPORTANT!

OUTDOOR INSTRUCTIONS
Please lay down the steering wheel, you will use the following switches
in “outdoor” mode.
1. (6) Mode switch (switch to “outdoor”): Can switch between dierent play
modes.
2. (7) Steering wheel: Control the direction in “outdoor” mode.
3. (8) Foot pedal: Applies power (speed) to the vehicle.
a. To move the car, press the pedal down.
b. To brake or slow down, release pressure from the pedal.
4. (9) Forward/Back switch: Press the button to change gears to move for-
ward, back or stop.

INDOOR INSTRUCTIONS
1. (6) Mode switch (switch to “indoor”): Can switch between dierent play
modes.
2. (10) Forward/Reverse switch: Control the vehicle forward, reverse and
turning.
a. To move forward, please push forward.
b. To reverse, please pull back.
c. To turn right or left, please push one of them or push one forward
and pull another back.
*When you use the remote controller, foot pedal, forward and back
switch, steering wheel, forward/reverse switch will be useless.

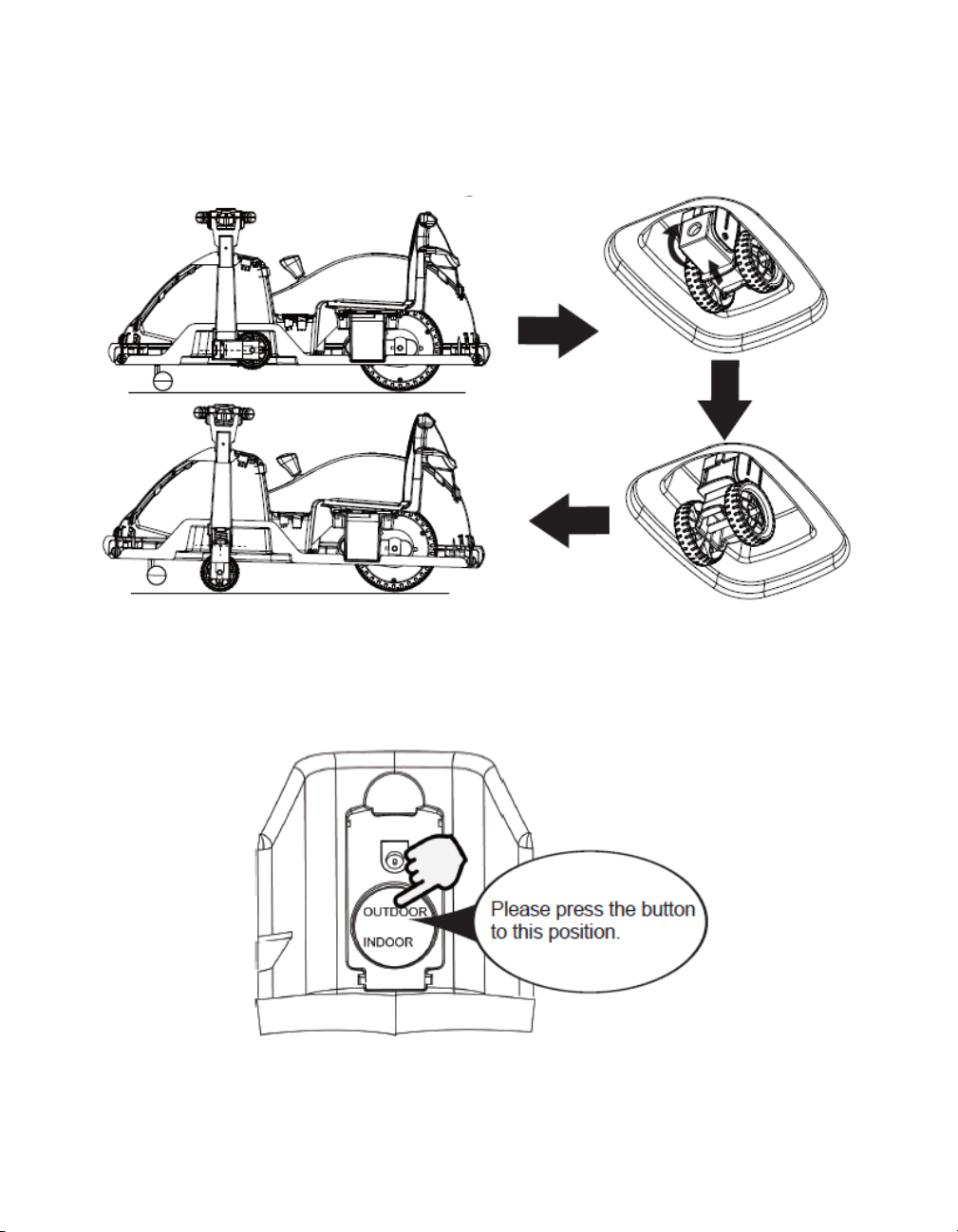

MODE SWITCHING (OUTDOOR & INDOOR)
INDOOR PLAY
1. Lift the body, press the plastic buckle, fold up and hide the steerable
wheel, the universal wheels will touch the ground.

2. Switch the Mode switch to “indoor”.
3. Move: Forward/Reverse switch to control the vehicle forward, reverse
and turning. (Foot pedal, forward and back switch, steering wheel, will
be useless)

OUTDOOR PLAY
1. Lift the body, press the plastic buckle, lay down the steerable wheel, the
universal wheels will be o the ground.
2. Switch the Mode to “Outdoor”.

3. Move: Press the “Forward and Back” switch (1) to forward or back. Press
the Foot Pedal (2), the vehicle will proceed to move. If you want to turn,
please control the Steering Wheel (3) to turn left or right. Press the For-
ward and Back switch to Stop or release pressure from the foot pedal to
stop the vehicle. (Forward/Reverse (4) switch will be useless.)

REMOTE CONTROL INSTRUCTION
1. To pair the remote with the vehicle, install two AAA 1.5V batteries. Un-
screw and push the battery cover open on the back of the remote.
Please pay attention to the positive and negative polarity in the battery
holder. After installing batteries, close the battery cover.
2. Hold the “Forward” and “Backward” key together (up and down key) for
3 seconds. The light on the center will start to flash - this indicates the
pairing has initiated.
3. Turn on the power from the vehicle while the remote is flashing. After
turning on the vehicle, the lights on the remote will stop and stay lit. This
indicates the pairing has been successful and connected to your vehicle.
Remote Instructions:
“S” Key: Speed button; adjust the speed from low, medium, or high. The
light on the center of the remote will indicate the speed level.
“P” Key: Park button; disable the vehicle’s movement and stay parked. The
car will not run with the pedal or remote. To enable power, press the “P”
button again.
2.4GHz Remote Control Pairing Procedures

WARNING
1. When operating the car with the remote, the distance between the car to
remote should not exceed 10m range.
2. The remote is provided for adult’s to operate. Keep away from children.
3. Before using the remote, carefully read the instruction manual, ensuring
all functions are reviewed properly before operating.
4. Please switch to the “P” gear before entering the car.
5. The car should not be driven on dangerous terrain or environments. This
includes the road, bodies of water, or obstacles.
6. Do not expose the remote to water or rain. Water exposure may result in
circuit damage.
7. Do not mix old and new batteries, including dierent brands of batteries.
8. When the remote is inactive for an extended period, it is recommended
to remove the batteries to avoid battery leakage and corrosion to the
circuit board.
9. Do not drop or throw the remote control.
10. Install batteries with correct polarity to avoid short circuits.
11. Charging is to be done by adults. Non-rechargeable batteries can not be
charged.
12. Low batteries should be removed and kept away from children. Batteries
are not a toy.
13. Remove the battery if the car is inactive (at least one month) for an ex-
tended period. Properly remove and handle batteries, and keep away
from children.
14. If the remote can only operate the car in less than 3 meters, this indi-
cates the battery is low in the remote. Change the two AA batteries
accordingly.
Changing the remote batteries: Unscrew the battery cover using a screw-
driver. Following the arrow, press in the following direction to open the
cover. Replace the batteries according to their corresponding polarity.

WARNING
• Do not charge non-rechargeable batteries for the remote.
• Batteries for the remote must be inserted with the correct polarity.
• When the remote is low in battery, please remove and swap the batteries
• Rechargeable batteries for the remote must be charged under adult su-
pervision.
• Rechargeable batteries must be removed from the remote before being
charged.
CHARGING PROCEDURES
• For safety purposes, charging must be done by adults.
• When initially assembled, connect the (red) battery wires under the
hood. Charge for 8-12 hours before using.
• The charging port is located on the dashboard. Follow the instructions to
charge the battery.
• If the car is starting to slow down, this indicates the battery is low. Re-
charge for 8-12 hours, maximum 20 hours. Do not overcharge or under-
charge.
How to insert batteries: Use a screwdriver to unscrew the back cover of
the remote. Install two AAA 1.5V alkaline type batteries according to the
diagram (batteries not included). Fix the battery cover with a screw.
How to remove batteries: Use a screwdriver to unscrew the back cover
of the remote. Open the cover and remove the two AAA 1.5V alkaline type
batteries. Close the battery cover, fix with a screw.
• First, insert the charger into the charging port.
• Carefully insert the charger outlet into the power outlet. Please note the
car will not turn on when the car is connected.

WARNING
1. The assembly of the car must be done by an adult. When unassembled,
it contains potentially hazardous parts that are sharp or small. Please
keep out of children’s reach.
2. Choking hazards of small parts.
3. Not for children under 36 months. Recommended for 36-96 months.
4. Always wear shoes or footwear when using the toy.
5. RISK OF FIRE. Do not bypass. Replace only with circuit protection devic-
es.
6. Protective equipment should be worn.
• Dedicated charger and battery can only be used under manufacturer’s
regulations.
• Do not mix old, new or dierent types of batteries.
• The battery terminal should not be short circuit.
• Do not open the battery or charger.
• Do not reverse the battery.
ATTENTION
• Before charging, please inspect the charger, battery, and plug to ensure
no damages or abnormalities are found. If any damages are found, dis-
continue usage of the car until the parts are replaced or resolved.
• The battery may feel warm while being charged - this is normal. If the
temperature from the charger does not elevate, it may be caused by a
short circuit from the charger or circuit board.
• Must use the pressing plate to fix the battery.
• When the battery is no longer functional, adults are responsible for re-
moving and safely disposing of the battery in a battery-safe disposition
facility.
• When the product is inactive (at least one month), it must be fully
charged. Unplug the (red) battery wire, and charge it at least once a
month to ensure battery functionality and life.
• The charger and battery are not toys. Keep away from children.

MAINTENANCE AND SERVICE
1. Before using, adults are responsible for reviewing the product and es-
sential parts are in a functional condition. Check whether screws are
loose or other potential hazards. Any damaged or defective parts must
be repaired or resolved before using.
2. Use a small amount of lubricant oil to moving parts to prevent rust or
wear or tear (e.g. motors, gears, hardware, etc.).
3. Keep the car away from fire and direct sunlight. Store the car in a stable
position and must be kept safely away from extreme temperatures or
climate.
4. The car must be kept away from hot objects, such as stoves and heaters.
Direct exposure to hot objects will melt the plastic. The car must be kept
away from flammable materials to prevent ignition or fire when charging.
5. After using the car, charge the car adequately and must be done by an
adult. If the product is inactive, it must be fully charged. Charge at least
once a month to ensure battery functionality and life.
6. Use a soft cloth to clean the car. Do not use chemical solvents, soap, or
water to clean the vehicle. Do not drive under precipitation (e.g. snow,
rain, etc.) as this will damage the motor, battery and circuit system.
7. When inactive or discontinued, shut o all power by disconnecting the
(red) battery wire, and all switches are in the “STOP” or “OFF” position.
8. Do not use third-party or dierent fuses.
9. Do not modify the product structure or circuit system. Maintenance and
repair work must be done under the guidance of a professional or tech-
nician.
10. Do not use the product for other purposes.
11. Battery negative short circuit is prohibited.
12. Rechargeable batteries must be charged under adults’ supervision.
Non-rechargeable batteries can not be charged. Ensure the batteries are
installed in the correct polarity.
13. Do not mix old and new batteries, including dierent types of batteries.

14. Low batteries should be removed from the car and kept away from chil-
dren.
15. Disconnect the batteries when completely inactive or discontinued. Do
not let children use the car in this state.

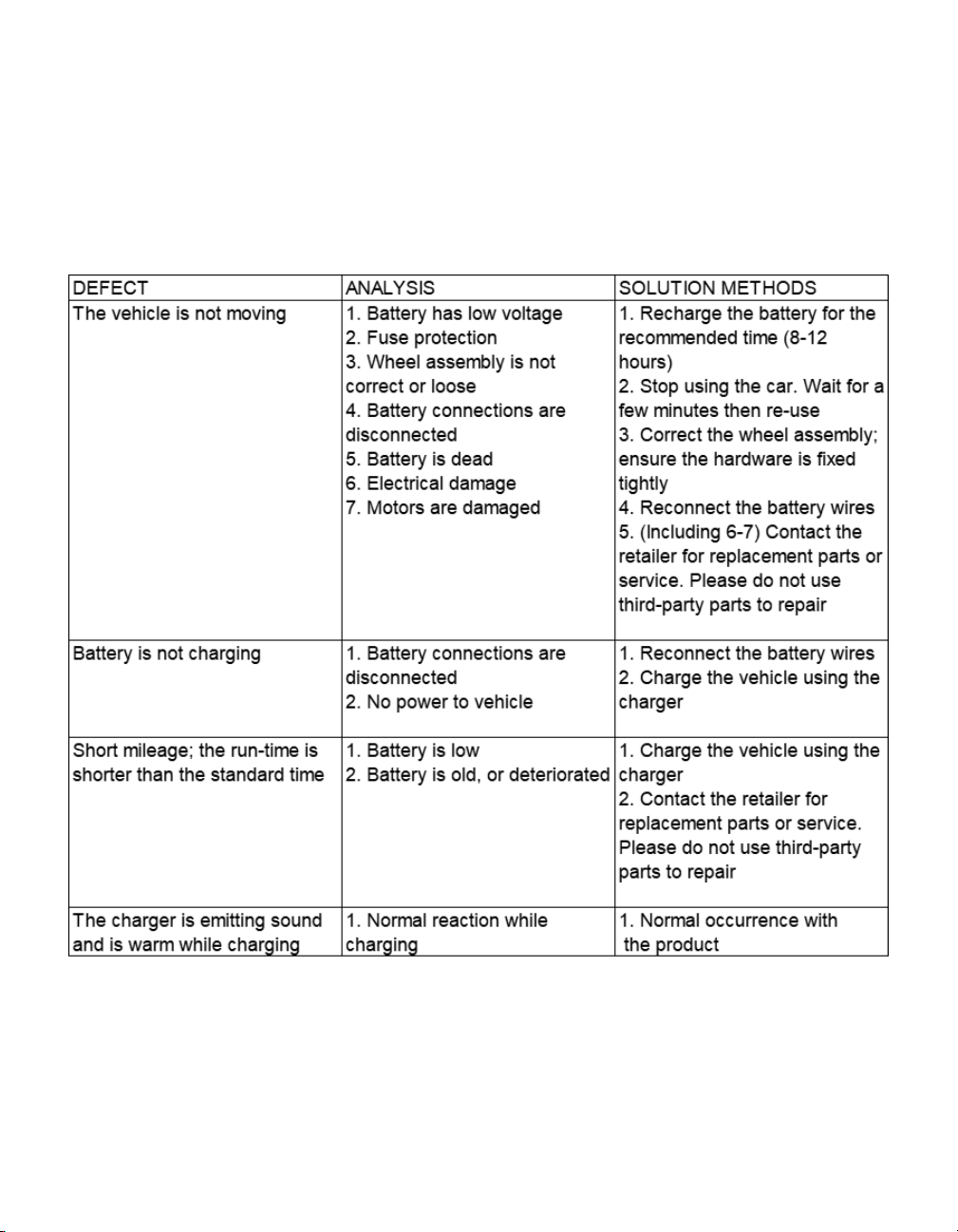

TROUBLESHOOTING
