MODEL: SX1718
12V TWO-SEATER JEEP ENGLISH
USER MANUAL
COMPLIANCE STANDARDS:
SOR/2011-17
SOR/2018-138
SOR/2016-195
SOR/2016-302
SOR/2018-83
Before returning your product, please contact us first! Voltz
Toys Customer Service can assist you with any replacement
parts, damages, or defective issues reported. You can con-
tact us directly at www.voltztoys.ca.
Phone number: 1-888-338-6589
Head Oice: Unit 7-3600A Laird Rd, Mississauga, ON, L5L
6A6
SOR/2016-188
SOR/2014-254
EN71
ASTM F963-17
CPSIA

Please read the manual before using the product. The manual and
carton contain important information. Please keep the manual for
later references. Failure to follow the instructions in the manual may
result in damages, accidents, or defective issues with the product.
To improve the product and quality, we may alter the structure, ap-
pearance, packing method, assembly method, and product function
without any notice.
When there are any dierences between the manual and the prod-
uct, please refer to the actual product itself. We apologize for any
inconvenience caused.
An adult should assemble the product. All pictures shown are for il-
lustration and reference purposes only. The actual product may vary
due to product enhancement.
WARNING
This product is not used for transportation and only should be
used under adult guidance and supervision. Parents should ensure
that children have followed the safety measures before use. Chil-
dren should use the toy with caution and under adult supervision.
To prevent injury to users and others, basic coordination skills and
awareness are required to avoid accidents, falls, or collisions.
Disclaimer:
The pictures in the instructions are for assembly reference only.
Please refer to the actual product.

OPENABLE HOOD
The hood contains the battery and other electrical components to function
the toy. Unclip the hood latches to open up the hood. Use the provided sup-
port rod to hold it open. Locate the (red) battery wire pairing, and connect
securely. Removable batteries are optional. Removable batteries (model ver-
sions may vary) can be inserted and released using the quick release fea-
ture. The removable battery is equipped with the quick release lock feature
and independent charging port for easy handling and mobility. Batteries
can be exchanged for charging.
ADJUSTABLE SEAT
The two-seater design provides additional occupancy, allowing up to two
users to ride the car at the same time. Please refer to the product sizing
lt-in with an adjustable handle, the seat position can be adjusted located
underneath the seat.

The handle located at the rear end of the car can be withdrawn to
pull for mobility. The handle is retractable.
TROLLEY FUNCTION
The front bumper includes a built-in spring. To ensure safety, this
bumper feature minimizes injury when impact occurs.
FRONT BUMBER WITH SHOCK
ABSORBER FUNCTION

1

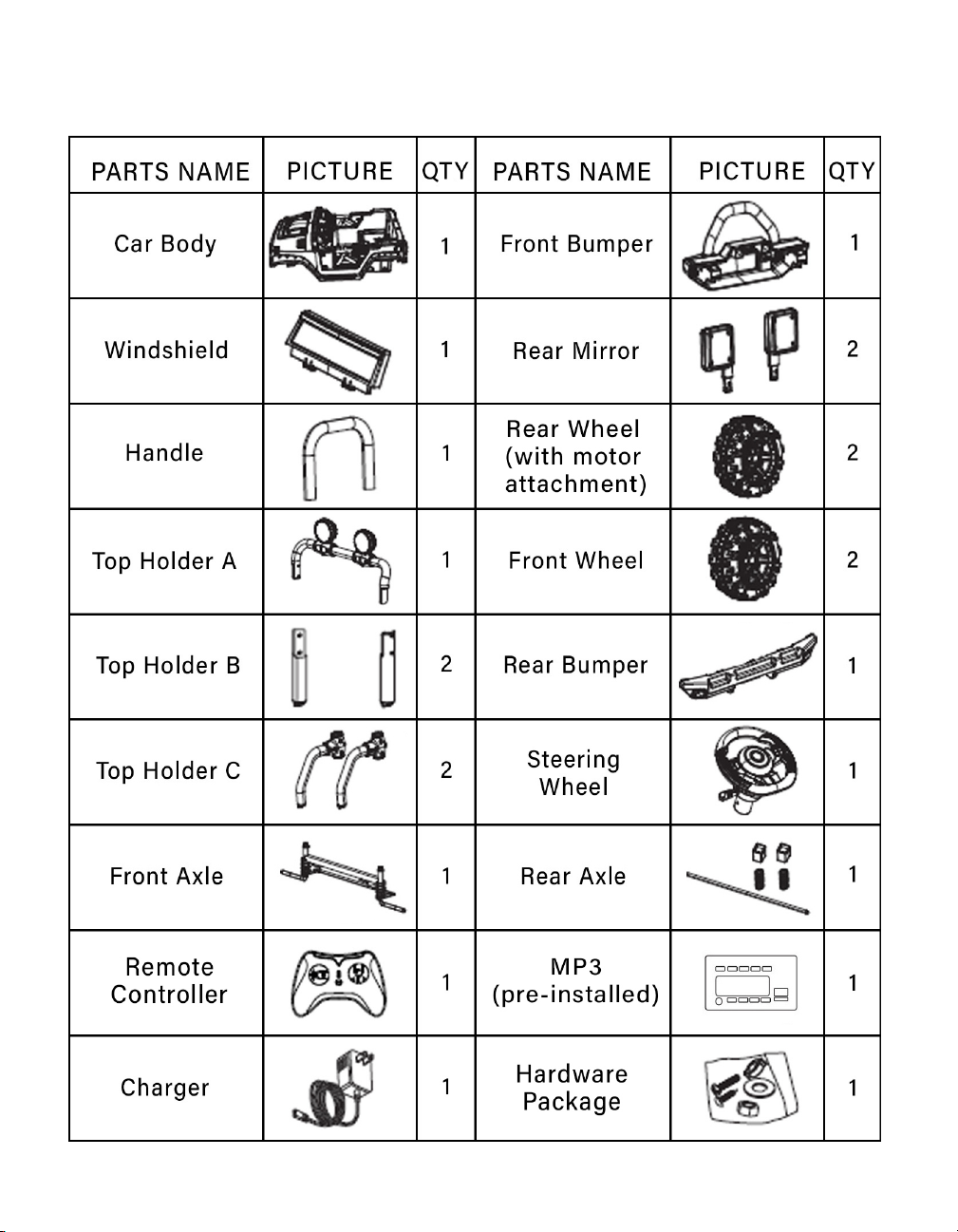

PARTS LIST

2
PRODUCT SPECIFICATIONS

3
TABLE OF CONTENT
• Axles Page 4-6
• Front Bumper Page 7
• Rear Bumper Page 8
• Top Holder Page 9
• Wheel Page 10
• Seat Page 11
• Steering Wheel Page 12
• Windshield and Mirror Page 12
• Battery Connection Page 13
• Adults must assemble the car.
• The product contains small items that may present choking hazards.
Keep children away from assembling. Children under 36 months are
prohibited from using.
• Review and count all parts carefully before assembling. Properly dis-
pose of all plastic bags and other packaging materials.
Attention: Please install the car as per the following order procedure. Oth-
erwise, some parts can not be installed correctly.
ASSEMBLY PREPARATION

4
1. AXLES ASSEMBLY
a. Front axle assembly
Begin with the car in an upside down position. Insert the steering rod
through the hole on the front axle. Secure the steering rod with a wash-
er and cotter pin. Fix the front axle into the car body with screws on both
sides.
The car has LED wheels. Locate the 2 LED wires on the front axle, and con-
nect with their corresponding pair. Use the provided wire clamp to hold the
wires under the car.
Parts Required: Front Axle, 12MM Screws*8

5

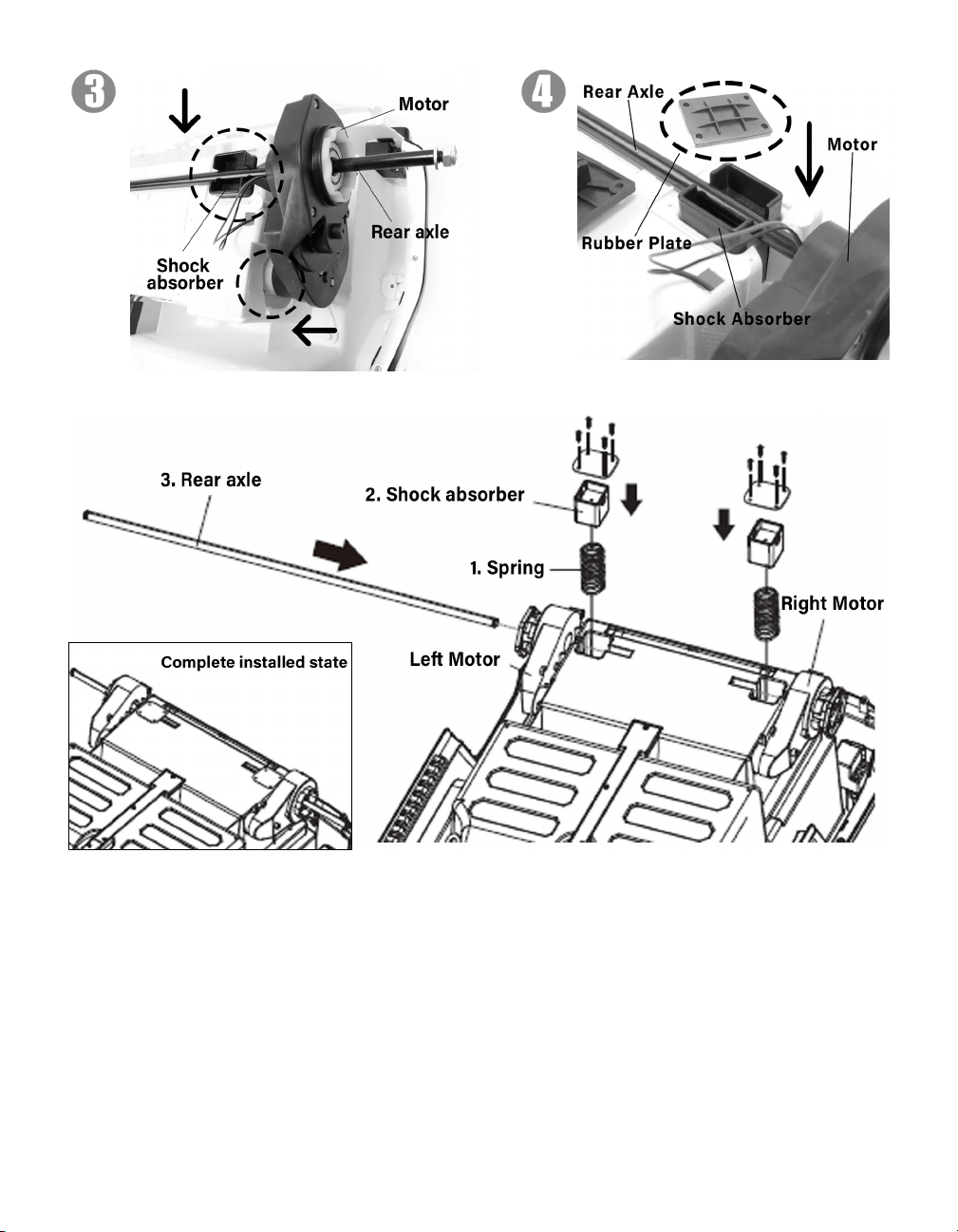

b. Rear axle assembly
Parts Required:
Springs, Rear Axle, Shock absorber, Rubber Plate, 12MM Screw*8
Springs Rear Axle & Tube Shock Absorber Rubber Plate
In their designated slots underneath the car, install the spring and shock
absorbers. Ensuring the rear motors are inserted, align and slide the rear
axle rod through the motors, and across the holes on the shock absorbers.
Fix the shock absorbers with the rubber plate.
The car has LED wheels. Locate the 2 LED wires on both ends of the rear
axle, and connect with their corresponding pair.

6

7
2. FRONT BUMPER ASSEMBLY
In an upside down position, align the front bumper by inserting it into its
corresponding slots.
Apply firm pressure to secure. Fix with four screws on each side. Locate the
included LED wire, and plug with the corresponding pair located nearby the
front bumper. The corresponding paircan be found from the car body.
Parts Required: Front Bumper, 12MM Screws*6

8
3. REAR BUMPER ASSEMBLY
Parts Required: Rear Bumper, Handle, 12MM Screws*4
Align the rear bumper with the car body. Locate the (5) slots to clip and lock
the bumper with the car body. Fix with 4 screws. Install the handle by press-
ing the 2 round pins, and inserting into its corresponding slot.

9

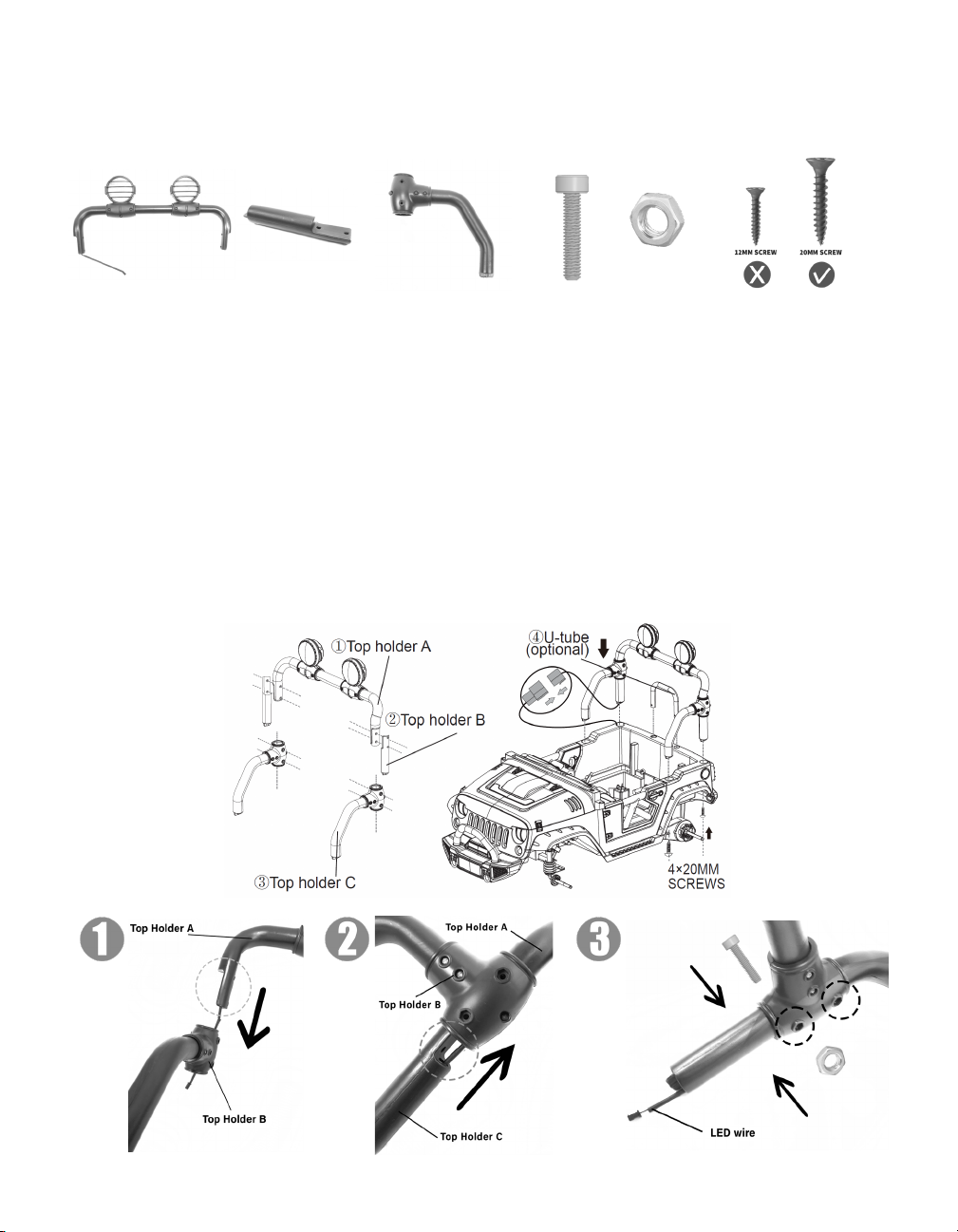

4. TOP HOLDER ASSEMBLY
Parts Required:
Position Top Holder A and Top Holder B together to align their screw holes.
Together with Top Holder A and B, insert both parts into Top Holder C.
When all parts are aligned, fix with a bolt and nut. The bolt and nut should
pass through Top Holder A, B, and C.
The overhead light assembly includes an LED wire, which can be inserted
through Top Holder B and C. One side will have designated cut-outs for the
wire to pass through. Connect the LED wire by locating it’s pair connector
from the car body. With the entire assembled Top Holder Assembly, insert
into the car body, and fix with screws underneath the car.
Top Holder A & B & C, Hex Bolt, Nut Bolt, 20MM Screws*4
Holder A Holder B Holder C

10
5. WHEEL ASSEMBLY
The wheel is to be assembled in the following order. Insert the front wheel,
tire sleeve (included with wheel), washer, and nut. Tighten the nut to secure,
and install the wheel cover.
a. Front wheel assembly
b. Rear wheel assembly
1. First, adjust the rear axle until both ends are equally distanced on both
sides. The length must be equal on both ends.
2. The wheel is to be assembled in the following order. Insert the rear
wheel, tire sleeve (included with wheel), washer, and nut. Tighten the
nut to secure, and install the wheel cover.
3. Make sure one assembled wheel is in contact with the ground before
assembling the other wheel. (If the other wheel can not be assembled,
pull out the rear axle until it is fully extended, then re-attempt assembly)

11

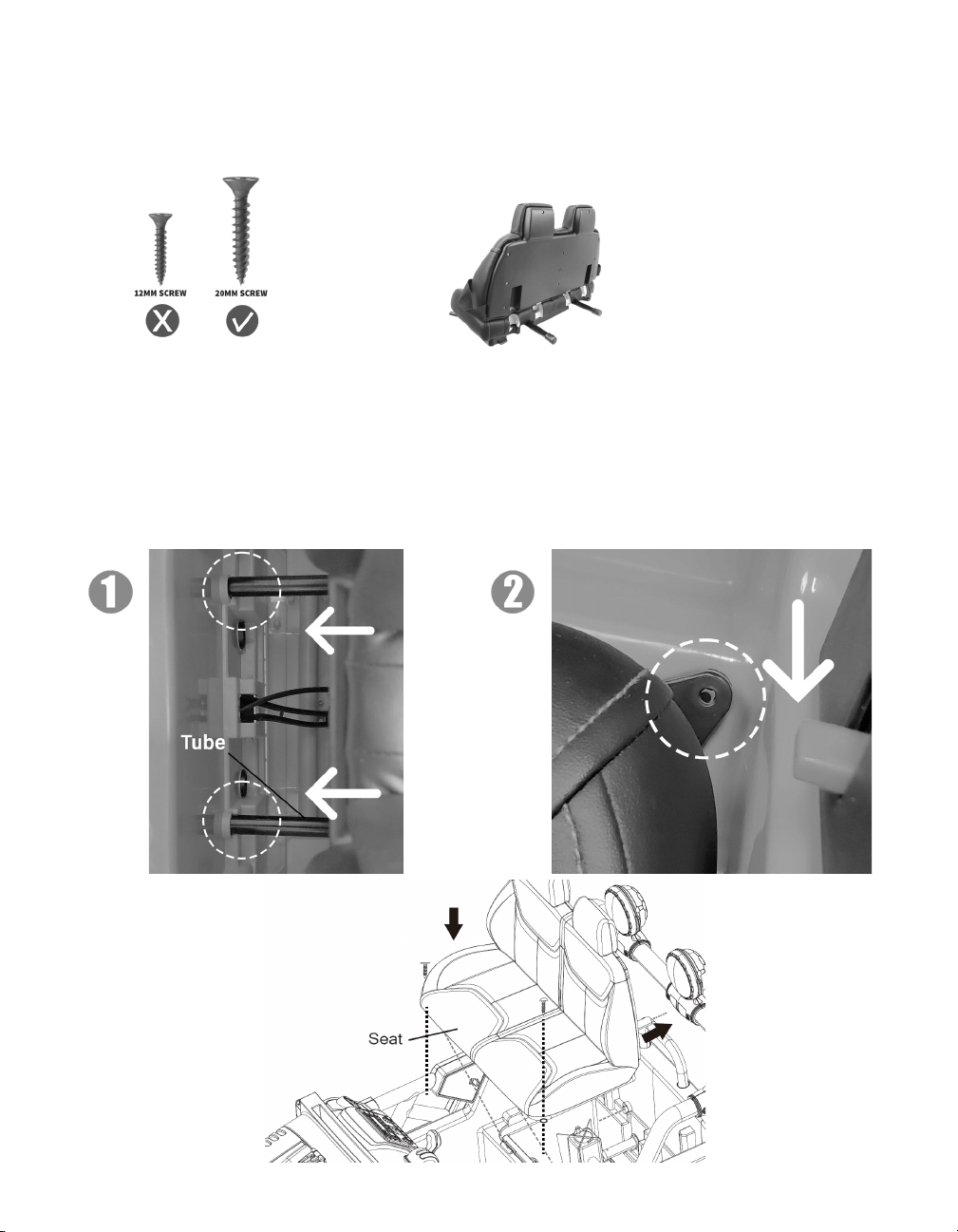

6. SEAT ASSEMBLY
Parts Required:
The seat has two tubes located in the back. Insert the tubes with the holes
on the car body slide through until the seat is fully pushed back. The seat
needs to be aligned with the screw holes on the car body. Fix with two
screws on both sides. The seat position can be aligned with the adjustable
handle located underneath the front-end of the seat.
Seat, 20MM Screws*2

12
7. STEERING WHEEL ASSEMBLY
Connect the steering wheel with its corresponding wire pair from the car
body. Align the steering wheel with the steering column. Push the steering
wheel through by holding the two pins from the steering column. Ensure the
steering wheel wire is tucked into the dashboard to avoid tearing the wire.
(Attention: Please ensure the steering wheel is installed in the correct posi-
tion. Incorrect positioning will cause the wire to tear while steering.)
8. WINDSHIELD AND MIRROR ASSEMBLY
Insert the windshield and side mirror into their corresponding position on
the car body. The windshield has a LED wire included. The pair connector
for the windshield is located in the opening slot. Connect the windshield
LED wire with it’s pair connector from the car body.

13
9. BATTERY CONNECTION

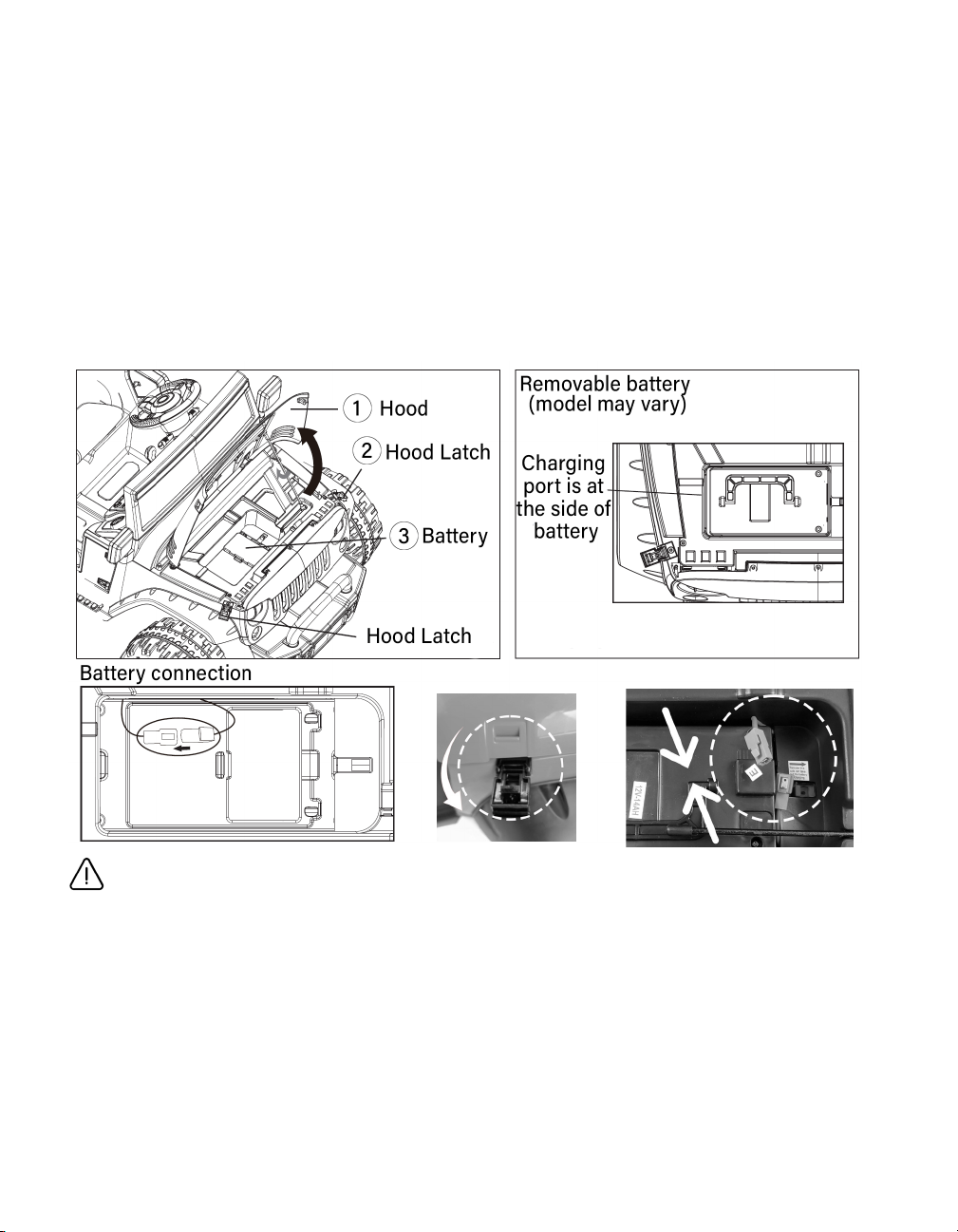

Open the hood by releasing the two hood latches, use the support rod to
hold the hood upright. Connect the two (red) battery wires to enable power.
Removable batteries are optional. Removable batteries (model versions of
the product may vary) can be inserted and released using the quick release
feature. The removable battery is equipped with the quick release lock fea-
ture and independent charging port for easy handling and mobility. Batter-
ies can be exchanged for charging.
• Please ensure all children are supervised and provided guidance before
using. When changing gears, the car must come to a complete stop,
ensuring the accelerator is released. The circuit and other parts may be
damaged if the gears are changed while moving.
• This product is for recreational use only and should not be used for
transportation. Please ensure adult supervision for guidance.
• Adults must ensure that children have followed the safety measures
before use.
WARNING

14
FUSE
This car is equipped with an auto-reset fuse. If the car stops suddenly while
driving, it is caused by the instantaneous current exceeding, enabling the
fuse to trip. This will result in the car disabling for about 8 seconds, and this
fuse can be reset.
To avoid tripping the fuse:
• Do not exceed the maximum load capacity; the maximum load is 60kg.
• Do not drag any objects behind the product.
• Do not expose water or other liquids to the battery and other electrical
components.
• Do not change and/or modify the circuit system and the structure of the
product.
1. The assembly and charging routine of the vehicle must be under adult
supervision at all times.
2. This product is recommended for children ages 37-95 months. Do not
exceed the maximum weight limit of 60kg.
3. This product is ideal for driving on hard flat surfaces (e.g, concrete, grav-
el, asphalt, etc).
4. It is strictly prohibited to drive on the street, roads, potholes, and slopes.
5. Avoid driving in sand, grass, uneven ground, or other terrains that may
damage the vehicle.
6. Children should be given full instructions and how to operate the car.
Improper use can cause damages or accidents.
7. Parents are responsible to supervise at all times to avoid accidents while
children are driving.
8. Avoid driving in the rain or flooded pathways. Exposure to water can
damage the motor, circuit, and other electrical equipment.
9. Parents should inspect the battery charger to ensure it is in good work-
ing condition. Any damages or abnormalities regarding wires, plugs, or
other components are prohibited to continue using. Do not use it until
parts are completely repaired.
SECURITY WARNING

15
10. To maintain product life and safety, avoid damaging the charger, battery,
or electrical circuit. The car must use the default configuration of the
dedicated charger and power supply.
11. Rechargeable batteries should be removed from the toy before charging.
12. When inactive, disconnect the car’s power by unplugging the (red) bat-
tery wire, ensuring all switches are in the “STOP” or “OFF” position.
13. The charger is not a toy. Please keep away from children.
14. Using non-manufacturer or third-party parts is strictly prohibited.
15. This product is mainly composed of PP material. The expected prod-
uct-usage life is two years.
USAGE DIRECTION
Before using the car, review the following procedures to ensure functionality:
1. All steps are followed per the instructions to complete the car’s assem-
bly. Specifically, the battery wire is connected correctly, and the power
supply has been switched on to confirm functionality.
2. Make sure all parts requiring hardware are fixed tightly and correctly.
3. Adults must ensure children have taken safety measures before use.
4. To reduce accidents while using, the child must be seated at all times.
5. Follow the product’s recommended seating capacity. Please do not ex-
ceed the maximum number of users to ride.
6. Adults must always supervise their children while the car is in use.
7. Adults are responsible for the care and guidance of their child while the
car is in use, ensuring the child is not left unattended.
8. Pay attention to the driving environment and surfaces. Ensure the car is
not driven in an unsafe environment.
9. Pay attention to the road, trenches, riverside, slopes, or uneven ground.
10. Not to be used on public roads or near ongoing traic.
11. The car should only be used in daytime and under light for visibility. Do
not use the car at night or under low visibility.
12. To avoid unexpected obstacles or events, adults must supervise at all
times.

16
MP3 Player
Dashboard (function reference diagram)
