Dacor Pro-Range HDPR30 Series User manual

User Manual
Pro-Range
HDPR30*, HDPR36*, HDPR48*
Part No.115332 Rev B

2English
Table of Contents
Before You Begin 4
Important Notes To the Owner 4
Energy-Saving Tips 4
About the Oven Vent 4
Regulatory Notice 5
Important Safety Instructions 6
Safety Symbols and Cautionary Information 6
Use and Care Safety Instructions 7
Product Overview 11
Included Accessories for 30" model 11
Included Accessories for 36" and 48" models 12
External Features 13
Internal Features 14

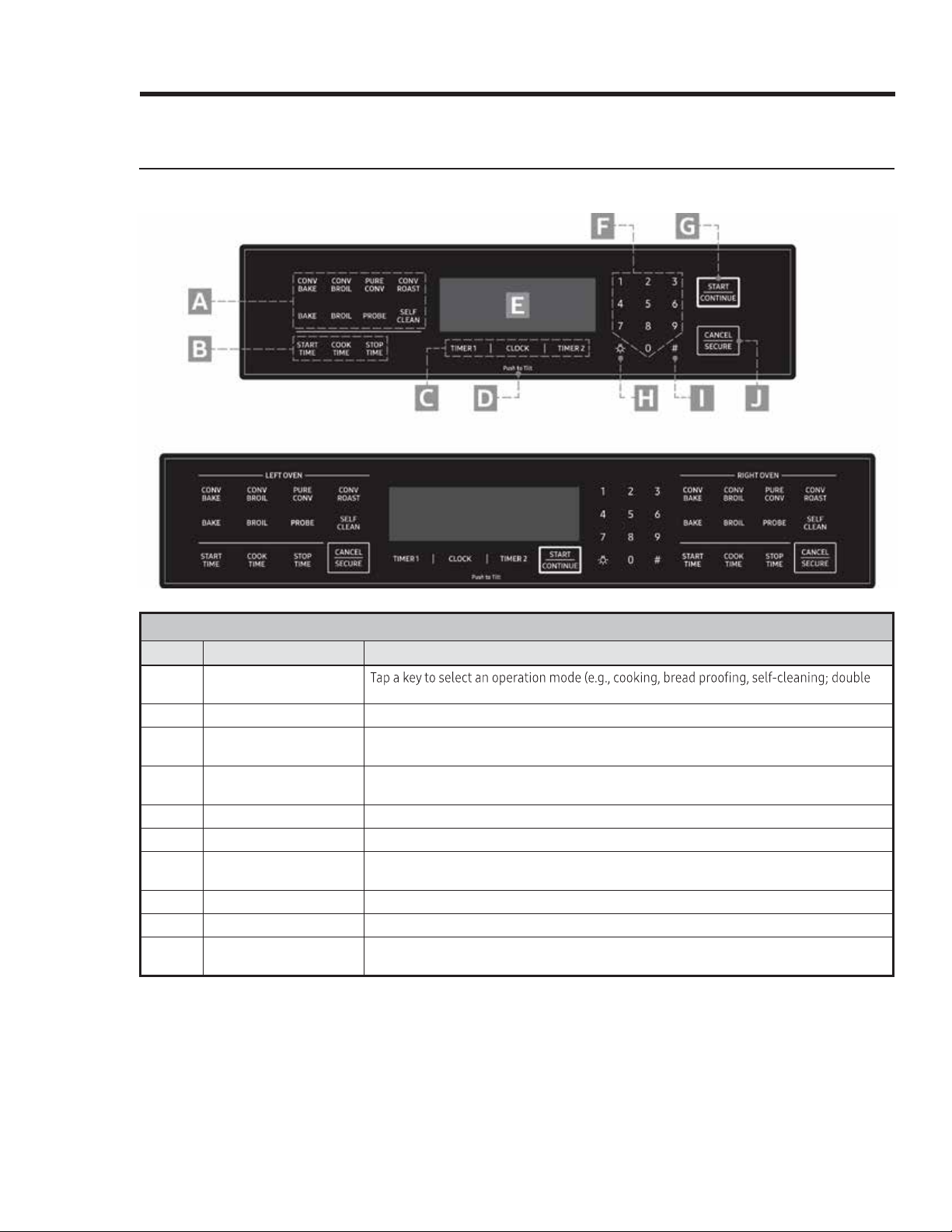

Control Panel 15
Control Panel Display 16
Operating the Cooktop 17
Assembling the Burners 17
Using the Griddle 18
Before Using the Cooktop 19
Selecting the Cookware 19
Lighting a Burner 19
Operating the Oven 20
Control Panel Settings 20
About the Control Panel "Beep" 21
Before Cooking 21
Positioning the Oven Racks 21
Running a Cook Cycle 22
About the Cook Modes 23
Cooking Tips 24
About Oven Temperatures 26
Using Control Lockout 26

3English
Table of Contents
Operating the Oven, cont.
Using the Timers 27
Using Time-Delay Cooking 28
Using the Meat-Temperature Probe 29
Dehydrating/Defrosting Foods 31
Using Proof Mode 31
Using Sabbath Mode 31
Adjusting the Oven-Temperature Offset 32
Maintaining the Range 33
General External Maintenance 33
Maintaining the Cooktop 33
Using Self-Clean Mode 35
Steam-Cleaning the Oven 37
Cleaning the Oven Accessories 37
Replacing the Oven Lights 39
Troubleshooting 40
Gas Safety 40
Surface Burners 40
Control Display 40
Oven 41
Warranty 42

Model/Serial Number
Rating Label
Back of
range
4English
Before You Begin
About the Oven Vent
• The oven vent is above the oven chamber and can be
seen when you open the door. When the door is closed,
air is drawn in through a vent at the bottom of the door,
up through the door, out a corresponding vent in the top
of the door through the vent you see at left, and into the
cooktop to cool internal components.
• Proper air circulation promotes burner combustion prob-
lems and ensures good performance. Do not cover/block
any part of the oven's vent system.
• When the oven is in use, be cautious near its door. Steam
and hot air emitted through the vent system can burn
skin and melt certain items.
Important Notes to the Owner
Energy-Saving Tips
• During cooking, the oven door should be closed except when you turn food. Leaving the door closed also
maintains oven temperature, which saves energy.
• If cooking longer than 30 minutes, you can switch the oven off 5-10 minutes before the cooking is done. The
• Plan oven use to avoid turning the oven off between cooking tasks.
• When possible, cook multiple items simultaneously.
• Electrical and gas equipment with moving parts can be
dangerous. Read and follow closely the Important Safety
Instructions section (Pgs. 6 – 10) to minimize risk of prop-
erty damage, personal injury, and death.
• For best results, maintain the range as instructed in this
manual.
• Keep this manual handy for personal and professional
reference.
•
use. Then, ventilate the kitchen well, remove the accesso-
ries from the oven chamber, and set the oven to bake at
400°F (204°C) for1 hour. There will be a distinct odor; this
is normal.
Model number
Serial number
Purchase date
The model/serial numbers, are behind the front air intake
slots and the right rear cover of the unit. For convenience,
write the numbers and purchase date here:
Model/Serial Number

5English
Regulatory Notice
authority to operate the equipment. This device complies with Part 15 of FCC Rules. Operation is subject
to two conditions: 1) This device may not cause harmful interference; and 2) this device must accept any
interference received, including that which causes undesired operation. For products available in the US/
Canadian markets, only Channels 1 – 11 are available.
FCC STATEMENT
This equipment was tested and found compliant within the limits for a Class B digital device, pursuant to
Part 15 of FCC Rules. These limits are meant to reasonably protect against harmful interference in a res-
idential installation. This equipment generates, uses, and can radiate radio-frequency energy, and, if not
installed and used as instructed, may disrupt radio communications. However, interference may still occur
in a given installation, which can be determined by turning the unit off and on. In case of disruption, the
user should try to correct the interference by one or more of these measures:
• Reorienting or relocating the receiving antenna
• Increasing the separation between the equipment and receiver
• Connecting the equipment to an outlet on a different circuit than the radio/TV
• Consulting the dealer or an experienced radio/TV technician for help.
FCC RADIATION-EXPOSURE STATEMENT
This equipment complies with FCC radiation-exposure limits set forth for an uncontrolled environment and
should be installed/operated with at least 8" (20 cm) between the radiator and your body. This device and
its antenna(s) must not be co-located or operated in conjunction with any other antenna or transmitter.
2. IC (Industry Canada) Notice
Operation is subject to two conditions: 1) This device may not cause interference; and 2) this device must
accept any interference received, including that which causes undesired operation. This Class B digital
apparatus complies with Canadian ICES-003. For products available in the US/Canadian markets, only
Channels 1 – 11 are available.
IC RADIATION-EXPOSURE STATEMENT
The range complies with IC RSS-102 radiation-exposure limits set for an uncontrolled environment and
should be installed/operated so there is at least 8" (20 cm) between the radiator and your body. This device
and its antenna(s) must not be co-located or operated in conjunction with any other antenna or transmitter.
General Safety Instructions
Testing found the range compliant with limits for a Class B digital device, pursuant to Part 18 of FCC rules.
These limits are meant to reasonably protect against harmful interference in a home installation. The
range generates, uses, and can radiate radio-frequency energy and, if not installed and used as directed,
may harmfully impede radio communications; however, interference may still occur in a given installation.
In case of disruption, which can be determined by turning the unit off and on, the user should try to correct
the condition via one or more of these measures:
• Reorienting or relocating the receiving antenna
• Increasing the separation between the unit and receiver
• Connecting the equipment to an outlet on a different circuit than the radio/TV.
1. FCC (Federal Communications Commission) Notice

6English
Important Safety Instructions
Safety Symbols and Cautionary Information
Electrical and gas equipment can be dangerous if not handled properly. The Important Safety Instructions in
this manual are intended to minimize the risk of property damage, personal injury, and death. Carefully follow
the instructions in this manual.
About the Symbols In This Manual
These icons alert you to potentially unsafe conditions or helpful information.
Hazards or unsafe practices that may result in severe personal injury or death.
Hazards or unsafe practices that may result in electric shock, personal injury, or property damage.
Useful tips and instructions.
State of California Proposition 65 Warning
• The range contains chemicals known to the State of California to cause cancer and birth defects or other
reproductive harm.
• Gas appliances can cause low-level exposure to Proposition 65-listed substances (carbon monixide, formal-
dehyde, soot, etc) caused by the incomplete combustion of LP (liquid propane) or natural gas.
Commonwealth of Massachusetts
•
• If using ball-type gas shut-off valves, you must use the T-handle type.
• Flexible gas lines must not be connected in series.

7English
Important Safety Instructions
Use and Care Safety Instructions
to ensure proper installation.
General Safety
• Do not touch any part of the range during or immediately after cooking.
• Learn where the gas-supply valve is and how to open/close it.
• When returning the range to its operating position, make sure it engages the anti-tip bracket.
• Do not leave children alone – Children should not be left alone or unattended in area where appliance is in
use. They should never be allowed to sit or stand on any part of the appliance.
• Do not keep objects of interest to children on/above/around the range.
• Do not operate the range if it is damaged, if it malfunctions, or is missing parts.
• Do Not Heat Unopened Food Containers – Buildup of pressure may cause container to burst and result in
injury.
• Do not use oven cleaners or liners in/around the oven.
• Use only dry pot holders – Moist or damp potholders on hot surfaces may result in burns from steam. Do
not let potholder touch hot heating elements. Do not use a towel or other bulky cloth.
• Do not use the range to heat sealed containers.
• Do not repair/replace any part of the range except as instructed in this manual; all other service must be
• Do not strike the oven-door glass.
• In disposing of the range, remove the power cord and door to avoid a safety hazard.
• Cook meat to an internal temp of 160°F (71°C) and poultry to an internal temp of180°F (82°C).
• Do not manually ignite the cooktop burners during a power outage.
• Keep combustible material (e.g., gasoline, alcohol, benzene) away from the range.
• An air curtain or range hood that blows air onto the range, shall not be used unless the hood and range
comply with the Standard for Domestic Gas Ranges, ANSI Z21.1 • CSA1.1, and are listed by an independent
testing lab for combination use.
Fire Safety
• Do not store/place/use combustible items (e.g., paper, plastic, fabrics, gasoline) near the range.
•
•
• Regularly clean the oven vents.
• Do not use a towel or other bulky cloth as a pot holder.
•
dry-chemical, or foam extinguisher.
•
use a multipurpose, dry-chemical, or foam extinguisher.
• Do not heat sealed containers.

8English
Important Safety Instructions
Use and Care Safety Instructions
to ensure proper installation.
Gas Safety
If you smell gas:
• close the range's gas-supply valve and evacuate the building
•
• do not turn on any gas or electric appliances
• do not plug in a power cord or touch an electrical switch
• do not use any phone in your building
• immediately call your gas supplier from a neighbor's home, and follow the supplier’s directions (if unable to
Checking For Gas Leaks
-
tion. If there is a gas leak, small bubbles will appear in the solution. If unsure, call for professional help.
Electrical and Grounding Safety
• Do not use an adapter or extension cord.
• Do not use a damaged plug, cord, or loose power outlet, and do not alter the plug, cord, or outlet.
• Do not put a fuse in a neutral or ground circuit.
• Use a dedicated 240 Vac, 60 Hz, 50 Amp breaker for the 48” range, a 40 Amp breaker for the 36” range, and
a 40 Amp breaker forthe 30" range. A time-delay fuse or circuit breaker should be used. Plug only the range
into this circuit.
•
• The range's grounded, 3-prong plug must be inserted in a grounded, 3-prong outlet that meets all local
connect the ground wire to plastic plumbing/gas lines, or hot-water pipes.
• Electrical service to the range must follow local codes, or in their absence, the US National Electrical code/
NFPA No. 70 – Latest Revision or, in Canada, the Canadian Electrical Code CSA C22.1 or Latest Revisions.
• The owner shall ensure the range receives the proper electrical service.

9English
Important Safety Instructions
Use and Care Safety Instructions
to ensure proper installation.
Cooktop Safety
• Burners should only be on when in use and should never be unattended.
• Do not line the grates or any part of the cooktop with foil.
• Before turning on a burner, ensure its components are properly seated.
• If a burner ignites but does not stay lit, turn it off, wait 5 minutes for the gas to dissipate, and retry.
• When setting a burner to simmer, turn the knob slowly; ensure the burner stays lit.
• Place only cookware on the cooktop.
• Do not drag cookware across the grates; lift to reposition cookware.
• Do not drop cookware on the grates.
• Do not use rough-bottomed cookware.
•
•
•
• Burners should be off and all surfaces cool before disassembling cooktop components.
• Glazed Cooking Utensils – Only certain types of glass, glass/ceramic, ceramic, earthenware, or other glazed
utensils are suitable for rangetop service without breaking due to the sudden change in temperature.
• Do not pourwater or other liquids on the cooktop.
• After cleaning cooktop components, dry them thoroughly before reassembly.
• Use Proper Pan Size – This appliance is equipped with one or more surface units of different size. Select
utensils will expose a portion of the heating element to direct contact and may result in ignition of clothing.
• Utensil handles Should Be Turned Inward and Not Extend Over Adjacent Surface Units – To reduce the
the handle of a utensil should be positioned so that it is turned inward, and does not extend over adjacent
surface units.
• Fry with minimal oil, heat the oil slowly, and watch as it heats; stand at a safe distance, and monitor the oil
constantly; if combining oils, mix them before heating.
• Know the oil's smoke point, and use a deep-fry thermometer to monitor the oil's temperature.
• Do not fry frozen, icy, or overly cold food.
• Let the oil cool to room temperature before moving the cookware.
• Do not turn a burner-control knob past the ignition point until the burner is lit.
•
• Do not touch any part of a burner while the igniter is sparking.
•
window, wait at least 5 minutes for the gas to dissipate, then try igniting the burner.
• In case of a burn injury:
– Immerse the scalded area in cool water for at least 10 minutes, then coverwith a clean, dry cloth.
– Do not apply creams, oils, or lotions.
– Seek medical attention for severe burns.

10 English
Important Safety Instructions
Use and Care Safety Instructions
to ensure proper installation.
Oven Safety
• Do not use the oven for non-cooking purposes (e.g., drying clothes, storage).
• Do not spray water on the oven glass while the oven is on or still hot.
• Do not clean the door gasket.
• Do not cover/line any part of the oven with foil or other material.
• When the oven is on, stand to one side when opening the door.
• Do not let grease build up in the oven.
• Placement of Oven Racks – Always place oven racks in desired location while oven is cool. If rack must be
moved while oven is hot, do not let potholder contact hot heating element in oven.
• Do not leave plastic in the oven.
• Keep the oven door closed while the oven is on.
• Do not put meat too close to the broil element; trim excess fat before cooking.
• Use cooking bags as directed by the bag manufacturer.
• Do not use abrasive cleaners or metal scrapers to clean the door glass.
• Do not try to use the oven during a power failure; if power fails, turn the oven off.
• Before self-cleaning, wipe excess residue from the oven, and remove all racks, cookware, and utensils.
• During self-cleaning, clean only the components listed in the manual.
• During self-cleaning, the oven operates at about 800°F (427°C); do not touch any part of the range during
self-cleaning, and keep children away.
•
service technician.
• Fumes released during self-cleaning can harm/kill pet birds. Move birds to a distant, well-ventilated room.
• After using the oven, stand aside when opening the oven door to let steam/hot air escape safely.
• Do not use commercial oven cleaner or protective coating in/on the oven.
