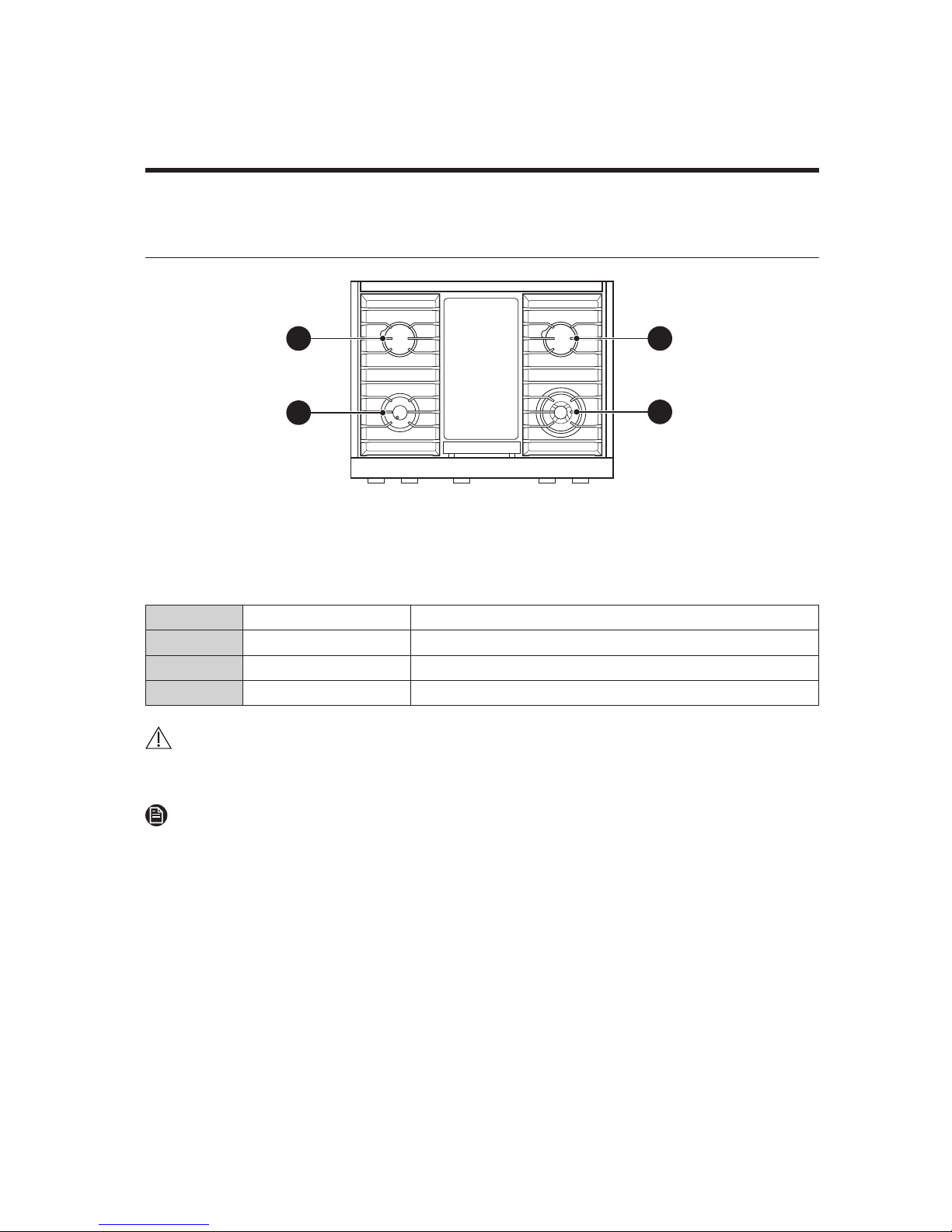

COOKTOP BURNERS  DTT48M976L*
A
C
CC
D
B
The rangetop has four different burner types. Each generates a spark when the knob is
turned to the flame-symbol spark position. (Do not use the cooktop if the spark is not
activated.) When the burner ignites, the spark stops automatically. Gaskets under the
burners prevent spills from leaking into the range’s internal parts. The range comes with
brass and porcelain (black) burner caps to suit your taste.
A
22,000 BTU Power heating / Low simmering
B
18,000 BTU Quick heating / Low simmering
C
16,000 BTU General heating / Low simmering
D
9,000 BTU General heating / Low simmering
CAUTION
•Do not wash any burner parts in a dishwasher.
•Do not use steel wool or scouring powders to clean the burners.
NOTE
•Wash burner caps and heads in hot, soapy water and rinse with clean water. You may
scour with a plastic scouring pad to remove burned-on food residue. Use a sewing
needle or twist tie to unclog the small holes in the burner head, if needed.
•The brass burner parts will discolor with use. This is normal and will not affect
performance. To remove burnt-on grease, soak the burner cap in a solution of 1 cup of
water and either 1 tablespoon of white vinegar or 1 tablespoon of lemon juice. Do not
clean it with a metal brush, which can damage the brass parts.
Quick guide
Dacor Part No. 112144 Rev A

2 English
Quick guide
COOKTOP BURNERS – DTT36M974L*
A
DC
B
The rangetop has four different burner types. Each generates a spark when the knob is
tur ned to the flame-symbol spark position. (Do not use the cooktop if the spark is not
activated.) When the burner ignites, the spark stops automatically. Gaskets under the
burners prevent spills from leaking into the range’s internal parts. The range comes with
brass and porcelain (black) burner caps to suit your taste.
A
22,000 BTU Power heating / Low simmering
B
18,000 BTU Quick heating / Low simmering
C
16,000 BTU General heating / Low simmering
D
9,000 BTU General heating / Low simmering
CAUTION
•Do not wash any burner parts in a dishwasher.
•Do not use steel wool or scouring powders to clean the burners.
NOTE
• Wa sh burner caps and heads in hot, soapy water and rinse with clean water. You may
scour with a plastic scouring pad to remove burned-on food residue. Use a sewing needle
or twist tie to unclog the small holes in the burner head, if needed.
• The brass burner parts will discolor with use. This is normal and will not affect
pe rformance. To remove burnt-on grease, soak the burner cap in a solution of 1 cup of
water and either 1 tablespoon of white vinegar or 1 tablespoon of lemon juice. Do not
clean it with a metal brush, which can damage the brass parts.

3 English
Quick guide
USING THE IQ CONNECT FEATURE
iQ Connect
indicator
iQ Connect
button
NOTE
The rangetop’s iQ Connect button is under
the chassis over the knob.
Connecting the rangetop
Before you can remotely control your rangetop, you must pair it with the Dacor iQ Kitchen
app.
1. Download and open the Dacor iQ Kitchen App on your smart device.
2. Follow the app’s on-screen instructions, then press-hold the iQ Connect button for 3
seconds.
NOTE
•The iQ Connect LED indicator stops blinking but remains on, indicating the connection
was successful.
•If the iQ Connect LED does not appear, follow the app’s instructions to reconnect with
the cooktop.

4 English
Quick guide
To monitor the cooktop remotely
1. Make sure the iQ Connect LED indicator appears. If not, press the iQ Connect button,
after which the cooktop can be monitored remotely with a connected device.
2. Select the cooktop icon on the iQ Connect App to open the cooktop monitor app.
iQ Connect on/off
If you set the iQ Connect to Off, mobile devices cannot connect to the cooktop.
To turn iQ Connect on and off, press iQ Connect button under the chassis.
NOTE
•The iQ Connect LED indicator appears. The indicator stays while iQ Connect is active.
•The rangetop keeps operating if the Wi-Fi connection is lost.
•iQ Connect will not work properly if the Wi-Fi Connection is unstable.
•See the iQ Connect app’s user manual for details. You can also visit www.dacor.com
where you can view the iQ Connect web manual.

5 English
Quick guide
USING THE IQ CONNECT FEATURE
Bluetooth
button

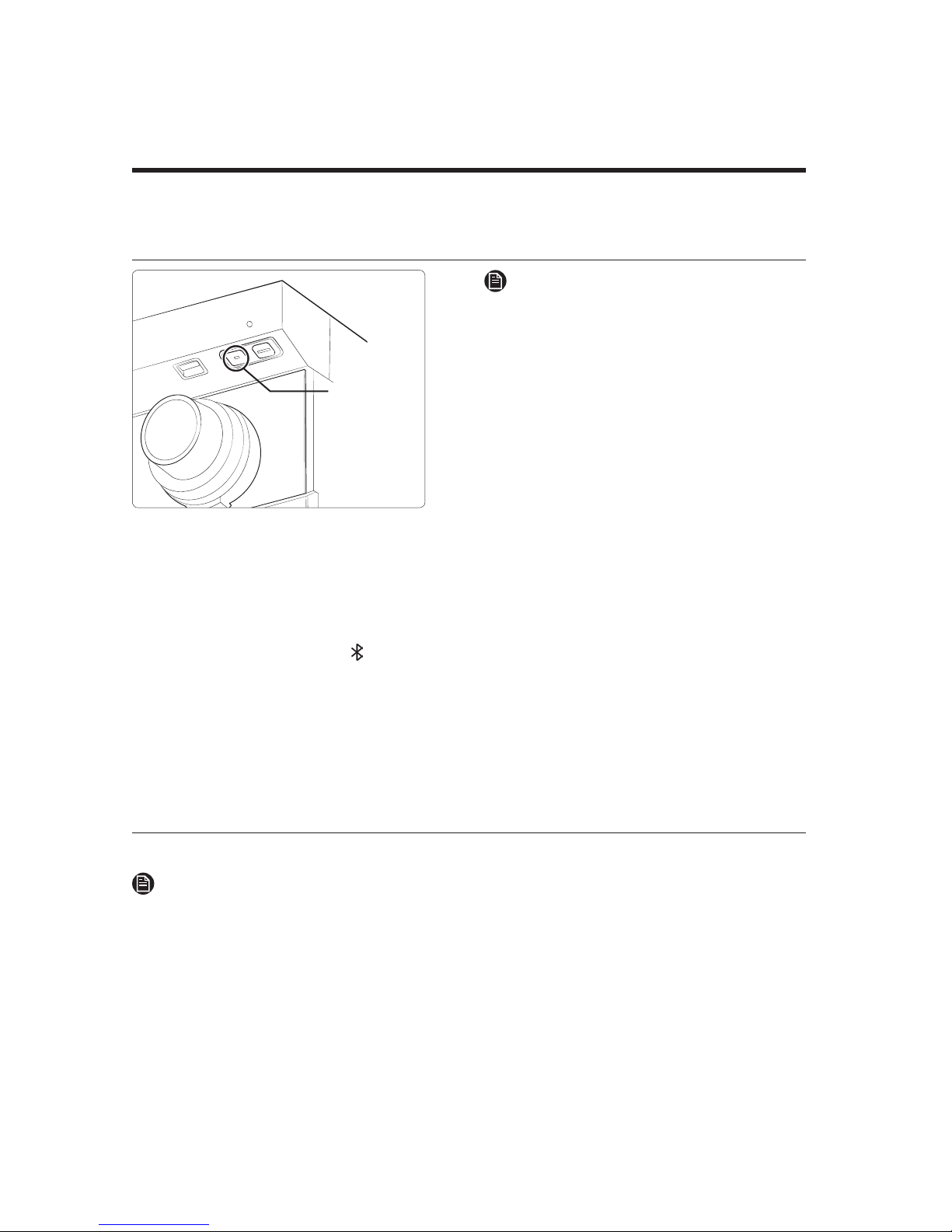

NOTE
The Bluetooth button is on the right-hand
end of the rangetop under the front lip
above the knob.
To connect a hood-control rangetop with a hood:
1. Download and run the Dacor iQ Connect app on your smartphone, then complete the
iQ Connect procedure to connect to the rangetop.
2. Follow the Bluetooth directions of the hood-control model, and activate the Bluetooth
connection.
3. Press the Bluetooth icon ( ) on the hood-control panel. The icon LED blinks.
4. Press the Bluetooth button on the rangetop. Pairing begins. When finished, the
Bluetooth LED indicator glows steadily.
5. Follow the directions in the rangetop user manual and the app guide to control the
hood.
Bluetooth on/off
Press the Bluetooth button under the chassis.
NOTE
•The hood’s Bluetooth LED stays on while Bluetooth is enabled.
•If no connection is made, you cannot monitor/control the hood with the Dacor iQ
Kitchen app.
•If not connected to the rangetop, you can use a Bluetooth connection to pair and
sync the rangetop with the hood. To do this, follow the Bluetooth connection
steps above.
•Bluetooth will not work properly if the Bluetooth connection is unstable.
•See the Dacor iQ kitchen app manual for details.

6 English
Quick guide
PRECAUTION
Before using burner knobs...
To prevent unintentionally changing the height of the flame, each burner knob operates
on a "push-turn" system. Also, each knob has stop points at each setting. To proceed
past a stop point, push-turn the knob again. This system ensures the flame size will
only change by way of the user.
Before using Griddle...
At the front of the griddle is a removable
grease trap. To empty the trap, grasp it by
its h andle, and lift the trap up and away
from the griddle.

MEMO

Dacor ∙ 14425 Clark Avenue, City of Industry, CA 91745 ∙ Phone: [phone] ∙ Fax: [phone] ∙ www.dacor.com
DG68-00945A-00

1 Español
QUEMADORES DE LA PLACA DE COCCIÓN  DTT48M976L*
A
C
CC
D
B
Su parrilla cuenta con cuatro tipos de quemadores. Cada quemador genera una chispa cuando se
gira la perilla hasta la posición de encendido "símbolo de llama". (No utilice la placa de cocción si
el encendido no está activado.) Cuando el quemador se enciende, la emisión de chispas se detiene
automáticamente. La juntas debajo de los quemadores evitan que los líquidos derramados se
ltren en las partes internas de la estufa. La estufa se suministra con dos conjuntos de tapas de
quemadores, de latón y de porcelana (negra), para que se adecuen a su gusto personal.
A
22000 BTU Calentamiento potente/Cocción a fuego lento baja
B
18000 BTU Calentamiento rápido/Cocción a fuego lento baja
C
16000 BTU Calentamiento general/Fuego lento bajo
D
9000 BTU Calentamiento general/Fuego lento bajo
PRECAUCIÓN
•No limpie ninguna de las piezas de los quemadores en una lavavajillas.
•No use lana de acero o polvos abrasivos para limpiar los quemadores.
NOTA
•Lave las tapas y los cabezales de los quemadores en agua jabonosa caliente y enjuague con
agua corriente limpia. Puede fregar con una esponja plástica para eliminar las partículas
de alimentos quemados. Utilice una aguja de coser o una tira de alambre para destapar los
oricios pequeños del cabezal del quemador, si es necesario.
•Las partes de latón del quemador cambian de color. Sin embargo, esto es un fenómeno
natural y no afecta el rendimiento. Para eliminar la grasa requemada, remoje la tapa de los
quemadores en 1 taza con agua y 1 cucharada de vinagre blanco o 1 cucharada de jugo de
limón. No utilice un cepillo metálico para limpiarlas. Podría dañar las partes de latón.
Guía rápida

2 Español
Guía rápida
QUEMADORES DE LA PLACA DE COCCIÓN – DTT36M974L*
A
DC
B
Su parrilla cuenta con cuatro tipos de quemadores. Cada quemador genera una chispa cuando se
gira la perilla hasta la posición de encendido "símbolo de llama". (No utilice la placa de cocción si
el encendido no está activado.) Cuando el quemador se enciende, la emisión de chispas se detiene
automáticamente. La juntas debajo de los quemadores evitan que los líquidos derramados se
ltren en las partes internas de la estufa. La estufa se suministra con dos conjuntos de tapas de
quemadores, de latón y de porcelana (negra), para que se adecuen a su gusto personal.
A
22000 BTU Calentamiento potente/Cocción a fuego lento baja
B
18000 BTU Calentamiento rápido/Cocción a fuego lento baja
C
16000 BTU Calentamiento general/Fuego lento bajo
D
9000 BTU Calentamiento general/Fuego lento bajo
PRECAUCIÓN
•No limpie ninguna de las piezas de los quemadores en una lavavajillas.
•No use lana de acero o polvos abrasivos para limpiar los quemadores.
NOTA
•Lave las tapas y los cabezales de los quemadores en agua jabonosa caliente y enjuague con
agua corriente limpia. Puede fregar con una esponja plástica para eliminar las partículas
de alimentos quemados. Utilice una aguja de coser o una tira de alambre para destapar los
oricios pequeños del cabezal del quemador, si es necesario.
•Las partes de latón del quemador cambian de color. Sin embargo, esto es un fenómeno
natural y no afecta el rendimiento. Para eliminar la grasa requemada, remoje la tapa de los
quemadores en 1 taza con agua y 1 cucharada de vinagre blanco o 1 cucharada de jugo de
limón. No utilice un cepillo metálico para limpiarlas. Podría dañar las partes de latón.
