Family-Owned.American-Made.

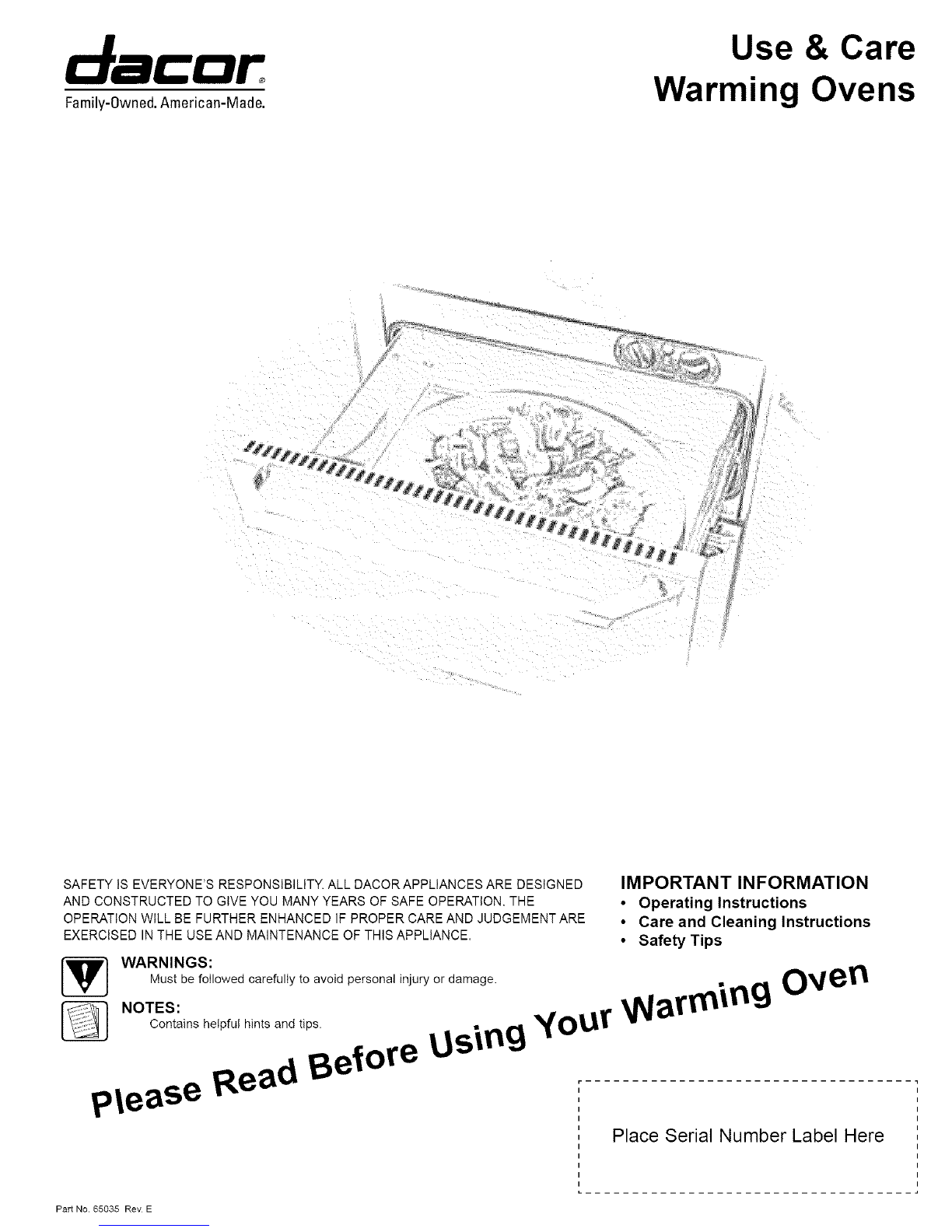

Use & Care
Warming Ovens
. _ ' t/"
!i >
SAFETY IS EVERYONE'S RESPONSIBILITY. ALL DACORAPPLIANCES ARE DESIGNED IMPORTANT INFORMATION
AND CONSTRUCTED TO GIVE YOU MANY YEARS OF SAFE OPERATION. THE •Operating Instructions
OPERATION WILL BE FURTHER ENHANCED IF PROPER CARE AND JUDGEMENT ARE • Care and Cleaning Instructions
EXERCISED IN THE USE AND MAINTENANCE OF THIS APPLIANCE. • Safety Tips
_ WARNINGS:Must be followed carefully to avoid personal injury or damage. 0' _ e
[-_ NOTES: Warming
Contains helpful hints and tips.
please p,ead ,e_ore using Vour
Place Serial Number Label Here
PaA No. 65035 Rev E

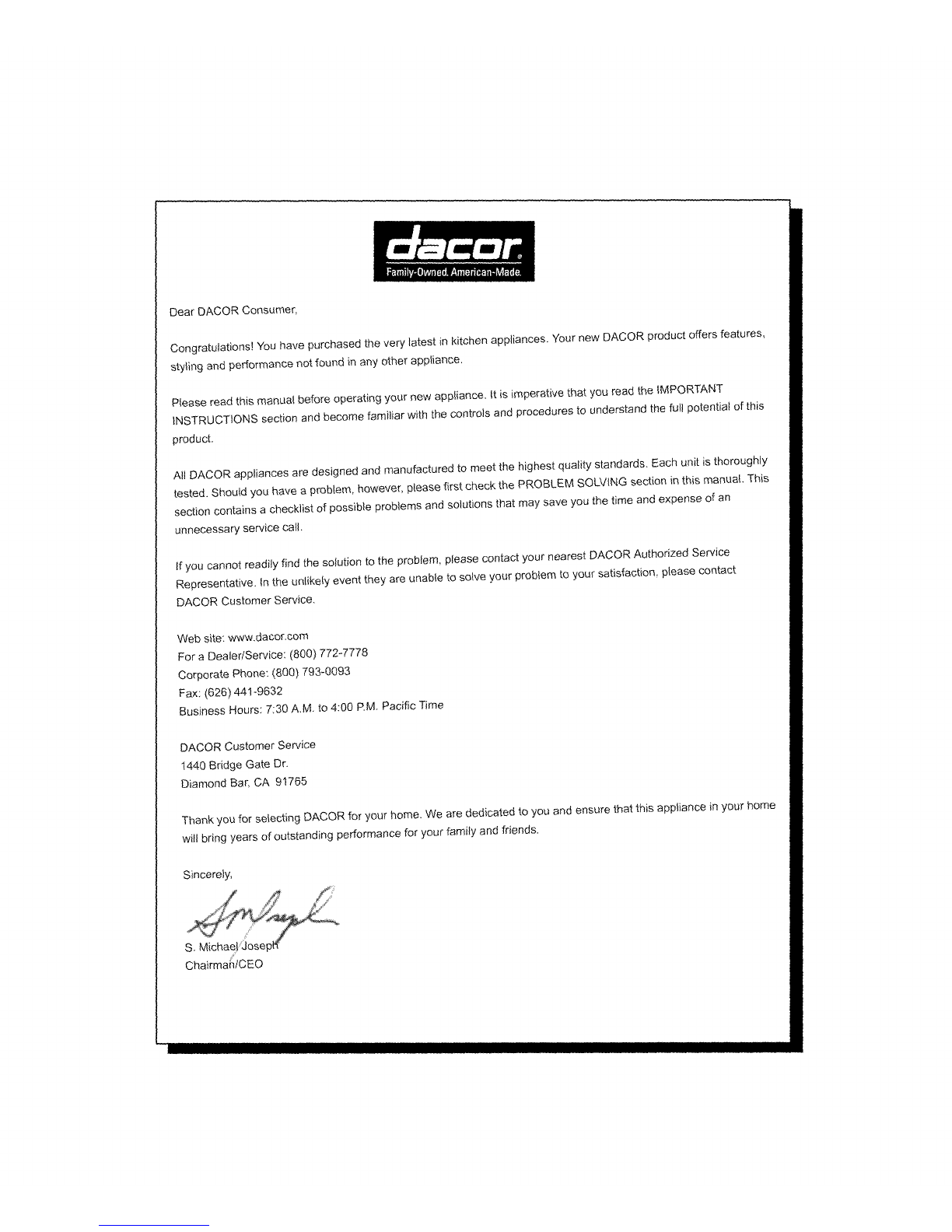

Dear DACOR Consumer,
Congratulations! You have purchased the very latest in kitchen appliances. Your new DACOR product offers features,
styling and performance not found in any other appliance.
Please read this manual before operating your new appliance. It is imperative that you read the IMPORTANT
iNSTRUCTIONS section and become familiar with the controls and procedures 1ounderstand the ful) potentia_ of this
product.
All DACOR appliances are designed and manufactured to meet the highest quality standards. Each unit is thoroughly
tested. Should you have a problem, however, p(ease first check the PROBLEM SOLVING section in this manual. This
section contains a checklist of possible problems and solutions that may save you the time and expense of an
unnecessary service call.
If you cannot readily find the solution to the problem, please contact your nearest DACOR Authorized Service
Representative. In the unlikely event they are unable to so{ve your proMem to your satisfaction, please contact
DACOR Customer Service.
Web site: www.dacor.com
For a DealerlService: [phone]
Corporate Phone: [phone]
Fax: [phone]
Business Hours: 7:30 AM. to 4:00 RM Pacific Time
DACOR Customer Service
1440 Bridge Gate Dr.
Diamond Bar, CA 91765
Thank you for selecting DACOR for your home. We are dedicated to you and ensure that this appliance in your home
will bring years of outstanding performance for your family and friends.
Sincerely,
Chairmah/CEO

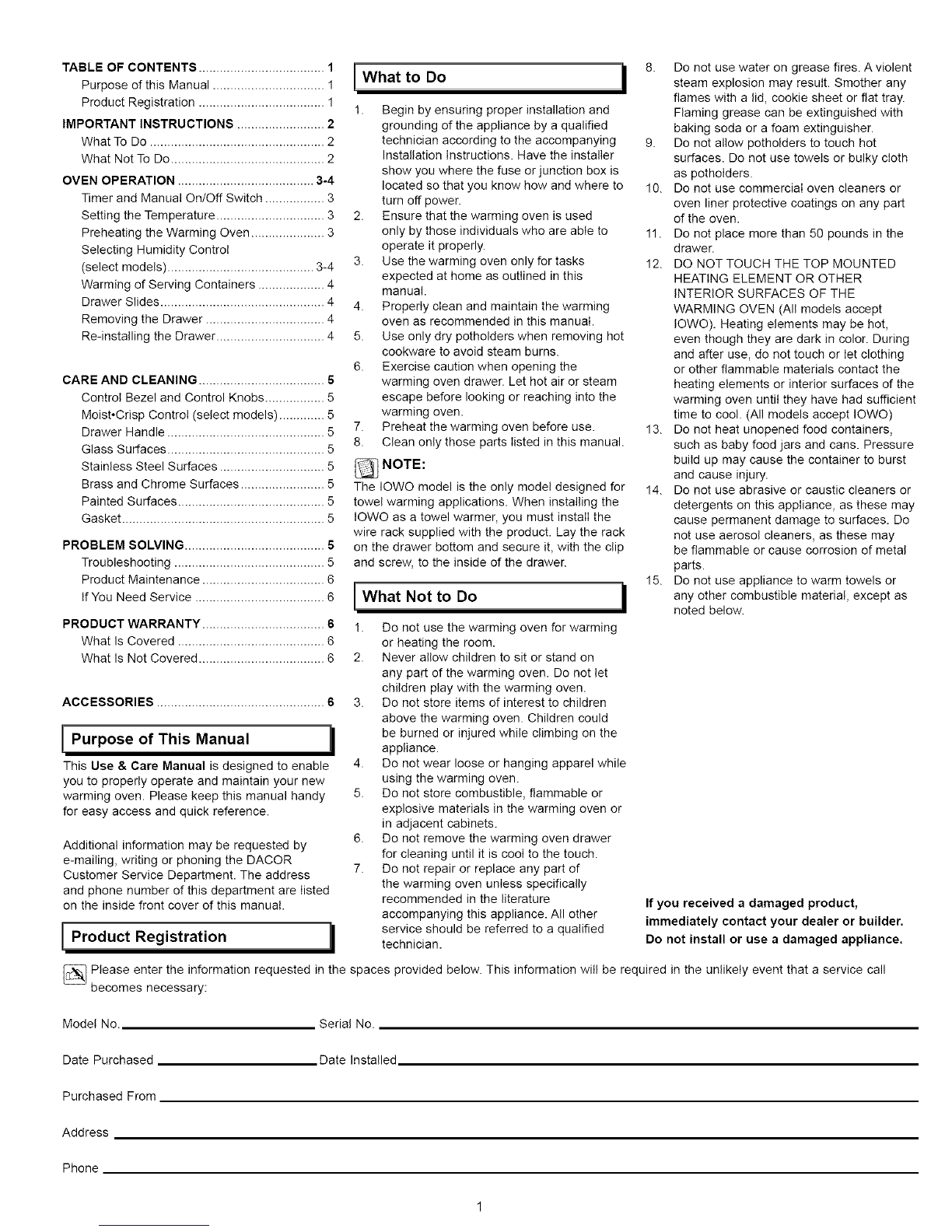

TABLE OF CONTENTS .................................... 1
Purpose of this Manual ................................ 1
Product Registration .................................... 1
IMPORTANT INSTRUCTIONS ......................... 2
What To Do .................................................. 2
What Not To Do ............................................ 2
OVEN OPERATION ....................................... 3-4
Timer and Manual On/Off Switch ................. 3
Setting the Temperature ............................... 3
Preheating the Warming Oven ..................... 3
Selecting Humidity Control
(select models) .......................................... 3-4
Warming of Serving Containers ................... 4
Drawer Slides ............................................... 4
Removing the Drawer .................................. 4
Re-installing the Drawer ............................... 4
CARE AND CLEANING .................................... 5
Control Bezel and Control Knobs ................. 5
Moist,Crisp Control (select models) ............. 5
Drawer Handle ............................................. 5
Glass Surfaces ............................................. 5
Stainless Steel Surfaces .............................. 5
Brass and Chrome Surfaces ........................ 5
Painted Surfaces .......................................... 5
Gasket .......................................................... 5
PROBLEM SOLVING ........................................ 5
Troubleshooting ........................................... 5
Product Maintenance ................................... 6
If You Need Service ..................................... 6
PRODUCT WARRANTY ................................... 6
What Is Covered .......................................... 6
What Is Not Covered .................................... 6
ACCESSORIES ................................................ 6
ILPo.posoo.T.,s.o°oa, ]1
This Use & Care Manual is designed to enable
you to properly operate and maintain your new
warming oven. Please keep this manual handy
for easy access and quick reference.
Additional information may be requested by
e-mailing, writing or phoning the DACOR
Customer Service Department. The address
and phone number of this department are listed
on the inside front cover of this manual.
ILP.odootRog, .o.o° ]1
What to Do
1. Begin by ensuring proper installation and
grounding of the appliance by a qualified
technician according to the accompanying
Installation Instructions. Have the installer
show you where the fuse or junction box is
located so that you know how and where to
turn off power.
2. Ensure that the warming oven is used
only by those individuals who are able to
operate it properly.
3. Use the warming oven only for tasks
expected at home as outlined in this
manual.
4. Properly clean and maintain the warming
oven as recommended in this manual.
5. Use only dry potholders when removing hot
cookware to avoid steam burns.
6. Exercise caution when opening the
warming oven drawer. Let hot air or steam
escape before looking or reaching into the
warming oven.
7. Preheat the warming oven before use.
8. Clean only those parts listed in this manual.
_ NOTE:
The IOWO model is the only model designed for
towel warming applications. When installing the
IOWO as a towel warmer, you must install the
wire rack supplied with the product. Lay the rack
on the drawer bottom and secure it, with the clip
and screw, to the inside of the drawer.
[ What Not to Do i
1. Do not use the warming oven for warming
or heating the room.
2. Never allow children to sit or stand on
any part of the warming oven. Do not let
children play with the warming oven.
3. Do not store items of interest to children
above the warming oven. Children could
be burned or injured while climbing on the
appliance.
4. Do not wear loose or hanging apparel while
using the warming oven.
5. Do not store combustible, flammable or
explosive materials in the warming oven or
in adjacent cabinets.
6. Do not remove the warming oven drawer
for cleaning until it is cool to the touch.
7. Do not repair or replace any part of
the warming oven unless specifically
recommended in the literature
accompanying this appliance. All other
service should be referred to a qualified
technician.
i8. Do not use water on grease fires. A violent
steam explosion may result. Smother any
flames with a lid, cookie sheet or flat tray.
Flaming grease can be extinguished with
baking soda or a foam extinguisher.
9. Do not allow potholders to touch hot
surfaces. Do not use towels or bulky cloth
as potholders.
10. Do not use commercial oven cleaners or
oven liner protective coatings on any part
of the oven.
11. Do not place more than 50 pounds in the
drawer.
12. DO NOT TOUCH THE TOP MOUNTED
HEATING ELEMENT OR OTHER
INTERIOR SURFACES OF THE
WARMING OVEN (All models accept
IOWO). Heating elements may be hot,
even though they are dark in color. During
and after use, do not touch or let clothing
or other flammable materials contact the
heating elements or interior surfaces of the
warming oven until they have had sufficient
time to cool. (All models accept IOWO)
13. Do not heat unopened food containers,
such as baby food jars and cans. Pressure
build up may cause the container to burst
and cause injury.
14. Do not use abrasive or caustic cleaners or
detergents on this appliance, as these may
cause permanent damage to surfaces. Do
not use aerosol cleaners, as these may
be flammable or cause corrosion of metal
parts.
15. Do not use appliance to warm towels or
any other combustible material, except as
noted below.
If you received adamaged product,
immediately contact your dealer or builder.
Do not install or use a damaged appliance,
_} Please enter the information requested in the spaces provided below. This information will be required in the unlikely event that a service call
becomes necessary:
Model No. Serial No.
Date Purchased Date Installed
Purchased From
Address
Phone

Timer and Manual On/Off Switch I
The warming oven is equipped with an
automatic shut-off timer and a manual On/Off
pushbutton switch.
Automatic Shut-off Timer
The automatic shut-off timer is located on the
left side of the control bezel. It can be set for
durations from 15 minutes to four hours. This
safety feature eliminates the possibility of
accidentally leaving the warmer on for extended
periods of time. After selecting the temperature,
turn the timer knob clockwise to the desired
duration. This causes the warming oven to heat.
After the temperature and time are selected, the
red Indicator Light, located between the knobs
on the control bezel, goes on. If the set time
expires or the temperature knob is turned to the
"OFF" position, the light goes out and the oven
stops heating.
_ NOTE:
The "ON" light will cycle on and off during
warming. When the "ON" light is on the heating
element is also on.
Manual On/Off Switch
The manual on/off pushbutton switch is located
between the knobs of the control bezel and
houses the red "ON Indicator Light". The
automatic shut-off timer can be bypassed
with the use of the manual switch, placing the
Warming Oven in a constant "ON" mode.
_ WARNING:
In the manual "ON" position, the Warming Oven
will remain on until the manual switch is turned
off. Exercise caution when operating the unit in
this mode.
_NOTE:
The automatic shut-off timer should be kept in
the "OFF" postion when using the manual on/off
switch. If the oven is in manual "ON" mode, and
the timer is activated and the manual switch
turned off, the unit will continue to heat the
food until the timer turns the oven off. This can
overheat your food.
ISetting the Temperature
The temperature control knob is located on
the right side of the control bezel, immediately
behind the warming oven drawer front. The
temperature is controlled by a thermostat
that cycles power to the heating element.
The temperature settings range from a low of
approximately !00°F ("LO" setting) to a high of
approximately 200F ("HI" setting).
i
Manual On/Off Switch
Timer
Knob\ ,and On indicator Light
OFF • " O O_
Temperature Control Knob /
Control Bezel
IPreheating he Warming Oven
For best results, always preheat your warming
oven. Placing hot food into a cool, confined area
results in condensing of any steam that may be
present. Preheating your warming oven reduces
the likelihood of condensation. Preheat times
vary for "LO", to "H!". Position the Moist, Crisp
slide at the "MOIST" setting for more efficient
preheating.
ISelecting Humiduty Control
(Not available on the IWO or IOWO
models)
The warming oven has two distinct modes
of operation. One, the "Moist" setting, seals
the food's moisture in the warming chamber,
maintaining the water content of the food. The
"Crisp" setting allows the moisture to vent out
of the warming oven, retaining the crispness of
other food types. The Moist,Crisp Slide opens
and closes vents located on the inside of the
drawer front. In the crisp setting, the vents allow
steam to escape out the sides of the drawer
front, thereby reducing the moisture content of
the warming chamber. In the moist setting, the
closed vents retain the moisture in the warming
oven.
_ WARNING:
Do not obstruct the vents on the inside of the
drawer and along the left and right sides of the
drawer. Excessive heat buildup can occur.
NOTE:
Integrated models (IWO and IOWO) do not
include Moist,Crisp Controls.
The slide control is located inside the drawer. To
select the moist option, slide the control toward
the[_icon. For the crisp setting, slide the
control toward the[_icon. The slide can also
be positioned anywhere between the moist and
crisp settings.
Moist'Crisp Slide
(Shown in Moist Position
PWO,MWO & EWO Only)
Drawer handle
Moist,Crisp slide
\\
Timer Manual On/Off Switch
jand Indicator Light
JTemperature Control
Control Bezel
Front Panel Drawer Slide
Watt,ling Oven Features
®
(Epicure EWO shown)

FOOD TEMPERATU RE
ITEMS SETTING
Bacon HI
Beef- Rare 4
Bread - Hard Rolls 4
Bread - Proofing LO-2
Casseroles 4
Coffee Cake 4
Cooked Cereals 4
Dinner 6
Eggs 4
Enchiladas 4-6
Fish/Seafood 4
Fried Food HI
Gravy, Cream Sauces 4
Ham 4
Hors D' Oeuvres 4-6
Lamb 4
Pancakes 4-6
Pies - Single Crust 4
Pizza 4-6
Potatoes - Baked HI
Poultry HI
Vegetables 4
Waffles - Crisp HI
IlWarming of Serving Containers 1
To warm plates, and other serving containers,
place them carefully into the warming oven and
set the temperature anywhere between "LO" and
4, depending upon your personal preference.
Do not drag plates across the drawer, as they
may scratch the drawer surface. Before using
any delicate dinnerware in the warming oven,
determine its recommended maximum usage
temperature from the plate manufacturer. It is
not necessary to preheat the unit when warming
serving dishes. Plastic wrapping on plates may
be used. This is effective in keeping foods hot
and moist.
[_ WARNING:
Food safety is an important consideration when
using a warming oven. Below a setting of 4,
some bacterial growth may occur. Settings of
2 or less should not be used if holding certain
foods for more than two to three hours.
IIDrawer Slides i
The warming oven features slides positioned on
each side of the drawer. They allow the drawer
to slide in and out smoothly, while enabling easy
removal of the drawer from the warming oven
chassis for thorough cleaning. No maintenance
to the slides is required. The drawer and slides
have a maximum load capacity of 50 pounds.
IkRemov,ngtheDrawer 1
Allow the drawer to cool before attempting to
remove it. Pull the drawer out to the fully open
position. While lifting locking tab, push the slide
immediately below the locking tab back about
one inch, toward the back of th oven enclosure
(2). Repeat on the opposite side. The drawer
may now be removed by gripping the drawer on
each side and lifting.
MOIST.CRISP COVERED/
SELECTION UNCOVERED
Crisp Uncovered
Moist Covered
Crisp Uncovered
Moist Damp Towel
Moist Uncovered
Moist Uncovered
Moist Uncovered
Moist Uncovered
Moist Covered
Moist Uncovered
Moist Covered
Crisp Uncovered
Moist Covered
Moist Covered
Crisp Uncovered
Moist Uncovered
Moist Covered
Moist Uncovered
Moist Covered
Crisp Uncovered
Moist Uncovered
Moist Covered
Moist Uncovered
Table 1: Temperature and Humidity Control Guidelines
[ Warming of Serving Containers i
Pull the slide rails out of the warming oven
chassis. Gently lower the drawer between the
extended slides until the drawer is suspended
by the slide rails. Pull one slide forward until
the locking tabs click into place. Repeat for the
slide on the opposite side. The drawer is now re-
installed. Gently open, then close the drawer, to
ensure that it has been properly situated.
I Control Bezel and Control Knobs
Clean these parts with a solution of mild
detergent and hot water. Rinse and dry with a
soft cloth. It is recommended that the knobs
and control panel be left in place for cleaning.
Exercise caution to avoid introduction of liquids
into the area behind the control panel. Do not
use abrasive cleaners or scrubbers as they may
permanently damage the finish or remove the
silk-screened graphics.
[Moist, Crisp Control I
Clean the Moist,Crisp grip with a solution of mild
detergent and hot water. Rinse and dry with a
soft cloth.
I Drawer Handle I
Clean the drawer handle with a solution of mild
detergent and hot water. Rinse and dry with a
soft cloth.
{_ WARNING:
DO NOT USE ABRASIVE CLEANERS OR
SCRUBBERS. THEY WILL PERMANENTLY
DAMAGE THE FINISH.
Glass Surfaces
Clean all glass surfaces with a solution of mild
detergent and hot water. Use a mild glass
cleaner to remove fingerprints or smears. Dry
completely with a soft, lint-free cloth.
i
IIDrawer.and,e I
If commercially available stainless
steel cleaners are used, it is important
to read the labels for the presence of
chlorine compounds. Chlorine is a corrosive
substance. If these compounds are present,
rinse thoroughly and dry with a soft, lint-free
cloth.
Always wipe stainless steel surfaces in the
direction of the grain.
I[Brass and Chrome Surfaces I
Clean these surfaces with a solution of mild
detergent and warm water. Rinse, dry and polish
with a soft, lint-free cloth. If a commercially
available polish is used, it is important to
read the label for the presence of chlorine
compounds. Chlorine is a corrosive substance
and is not recommended for use with brass
or chrome finishes. If these compounds are
present, rinse surface thoroughly and dry with a
soft, lint-free cloth.
Follow the manufacturer's instructions for
application of polish.
I[Painted Surfaces I
For the front faces of warming ovens with a
painted finish, clean with a solution of mild
detergent and hot water. Rinse and dry with
a soft cloth. Do not use abrasive cleaners or
scrubbers. They may permanently damage the
finish.
IrGasket I
Gently clean the gasket, located on the front
frame, with a solution of mild detergent and hot
water. Rinse and dry with a soft cloth. Be careful
not to crush or damage the soft gasket material.
Maintaining an effective heat seal is necessary
to ensure maximum warming oven performance.

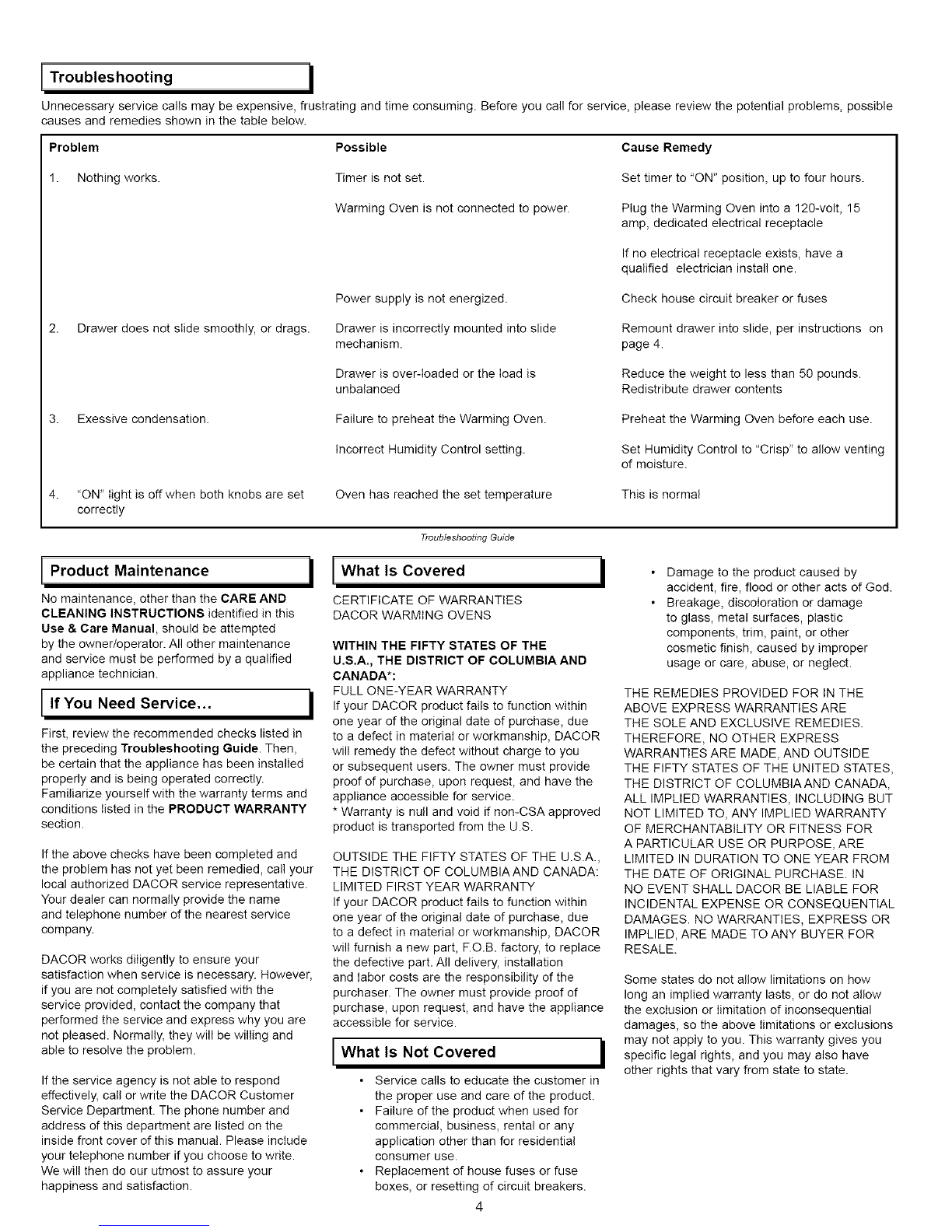

Troubleshooting I
Unnecessary service calls may be expensive, frustrating and time consuming. Before you call for service, please review the potential problems, possible
causes and remedies shown in the table below.
Problem Possible Cause Remedy
1. Nothing works. Timer is not set. Set timer to "ON" position, up to four hours.
Warming Oven is not connected to power. Plug the Warming Oven into a 120-volt, 15
amp, dedicated electrical receptacle
If no electrical receptacle exists, have a
qualified electrician install one.
Power supply is not energized. Check house circuit breaker or fuses
2. Drawer does not slide smoothly, or drags. Drawer is incorrectly mounted into slide
mechanism. Remount drawer into slide, per instructions on
page 4.
Drawer is over-loaded or the load is
unbalanced Reduce the weight to less than 50 pounds. Redistribute drawer contents
3. Exessive condensation. Failure to preheat the Warming Oven. Preheat the Warming Oven before each use.
Incorrect Humidity Control setting. Set Humidity Control to "Crisp" to allow venting
of moisture.
4. "ON" light is off when both knobs are set Oven has reached the set temperature This is normal
correctly
Product Maintenance I
No maintenance, other than the CARE AND
CLEANING INSTRUCTIONS identified in this
Use & Care Manual, should be attempted
by the owner/operator. All other maintenance
and service must be performed by a qualified
appliance technician.
I lf You Need Service... I
First, review the recommended checks listed in
the preceding Troubleshooting Guide. Then,
be certain that the appliance has been installed
properly and is being operated correctly.
Familiarize yourself with the warranty terms and
conditions listed in the PRODUCT WARRANTY
section.
If the above checks have been completed and
the problem has not yet been remedied, call your
local authorized DACOR service representative.
Your dealer can normally provide the name
and telephone number of the nearest service
company.
DACOR works diligently to ensure your
satisfaction when service is necessary. However,
if you are not completely satisfied with the
service provided, contact the company that
performed the service and express why you are
not pleased. Normally, they will be willing and
able to resolve the problem.
If the service agency is not able to respond
effectively, call or write the DACOR Customer
Service Department. The phone number and
address of this department are listed on the
inside front cover of this manual. Please include
your telephone number if you choose to write.
We will then do our utmost to assure your
happiness and satisfaction.
Troubleshooting Guide
l What Is Covered
CERTIFICATE OF WARRANTIES
DACOR WARMING OVENS
WITHIN THE FIFTY STATES OF THE
U,S,A,, THE DISTRICT OF COLUMBIAAND
CANADA*:
FULL ONE-YEAR WARRANTY
If your DACOR product fails to function within
one year of the original date of purchase, due
to a defect in material or workmanship, DACOR
will remedy the defect without charge to you
or subsequent users. The owner must provide
proof of purchase, upon request, and have the
appliance accessible for service.
* Warranty is null and void if non-CSA approved
product is transported from the U.S.
i
OUTSIDE THE FIFTY STATES OF THE U.S.A.,
THE DISTRICT OF COLUMBIAAND CANADA:
LIMITED FIRST YEAR WARRANTY
If your DACOR product fails to function within
one year of the original date of purchase, due
to a defect in material or workmanship, DACOR
will furnish a new part, F.O.B. factory, to replace
the defective part. All delivery, installation
and labor costs are the responsibility of the
purchaser. The owner must provide proof of
purchase, upon request, and have the appliance
accessible for service.
IWhat Is N°t C°vered I
• Service calls to educate the customer in
the proper use and care of the product.
• Failure of the product when used for
commercial, business, rental or any
application other than for residential
consumer use.
• Replacement dhouse fuses or fuse
boxes, or resetting of circuit breakers.
4
• Damage to the product caused by
accident, fire, flood or other acts of God.
• Breakage, discoloration or damage
to glass, metal surfaces, plastic
components, trim, paint, or other
cosmetic finish, caused by improper
usage or care, abuse, or neglect.
THE REMEDIES PROVIDED FOR IN THE
ABOVE EXPRESS WARRANTIES ARE
THE SOLE AND EXCLUSIVE REMEDIES.
THEREFORE, NO OTHER EXPRESS
WARRANTIES ARE MADE, AND OUTSIDE
THE FIFTY STATES OF THE UNITED STATES,
THE DISTRICT OF COLUMBIAAND CANADA,
ALL IMPLIED WARRANTIES, INCLUDING BUT
NOT LIMITED TO, ANY IMPLIED WARRANTY
OF MERCHANTABILITY OR FITNESS FOR
A PARTICULAR USE OR PURPOSE, ARE
LIMITED IN DURATION TO ONE YEAR FROM
THE DATE OF ORIGINAL PURCHASE. IN
NO EVENT SHALL DACOR BE LIABLE FOR
INCIDENTAL EXPENSE OR CONSEQUENTIAL
DAMAGES. NO WARRANTIES, EXPRESS OR
IMPLIED, ARE MADE TO ANY BUYER FOR
RESALE.
Some states do not allow limitations on how
long an implied warranty lasts, or do not allow
the exclusion or limitation of inconsequential
damages, so the above limitations or exclusions
may not apply to you. This warranty gives you
specific legal rights, and you may also have
other rights that vary from state to state.

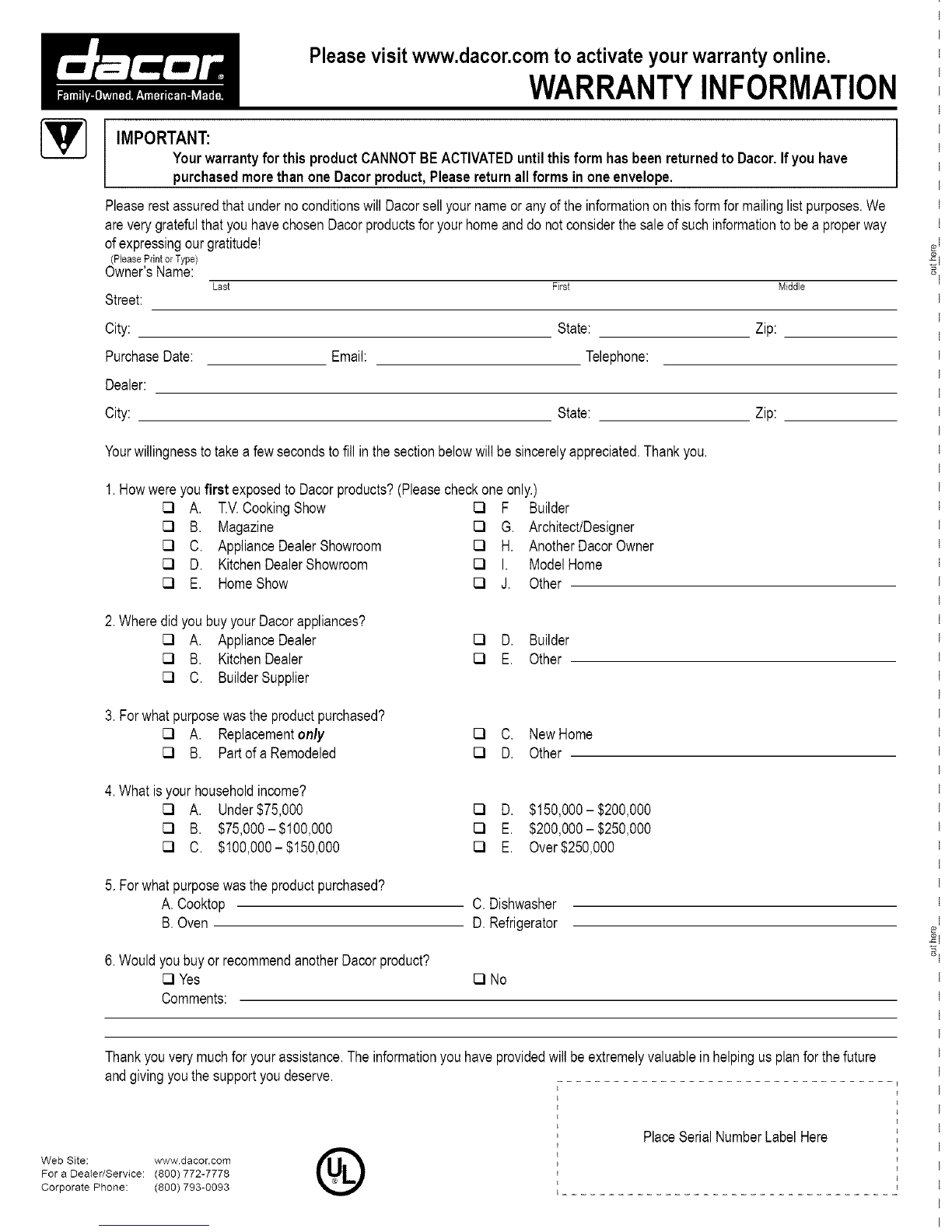

fold here IIl1
NO POSTAGE
NECESSARY
IF MAILED
IN THE
UNITED STATES
IFB_US_/NESSM,REoPLYDMoA!RLcAI
POSTAGEWILL BE PAIDBYADDRESSEE
ATTN: WARRANTY PROCESSING DEPT
DACOR
1440 BRIDGEGATE DR STE 200
PO BOX 6532
DIAMOND BAR CA 91765-9861
I1,1,,,,,111,,,I,I1,,,I,1,1,1,,I,,I,,11,,,,,111,,I,I

Pleasevisitwww.dacor.comto activateyourwarrantyonline.
WARRANTYINFORMATION
IMPORTANT:
Yourwarrantyfor this productCANNOTBEACTIVATEDuntilthisformhasbeenreturnedto Dacor,Ifyou have
purchasedmorethanoneDacorproduct,Pleasereturnallforms inoneenvelope,
PleaserestassuredthatundernoconditionswillDacorsellyournameoranydthe informationonthisformformailinglist purposes.We
are verygratefulthatyouhavechosenDacorproductsforyourhomeanddo notconsiderthesaleofsuchinformationtobea properway
ofexpressingour gratitude!
(Phase Print or Type)
Owner'sName: Last First Middb
Street:
City: State: Zip:
PurchaseDate: Email: Telephone:
Dealer:
City: State: Zip:
Yourwillingnesstotakea fewsecondstofillin thesectionbelowwillbesincerelyappreciated.Thankyou.
1.Howwereyoufirst exposedtoDacorproducts?(Pleasecheckoneonly.)
[] A. T.V.CookingShow [] F Builder
[] B. Magazine [] G. Architect/Designer
[] C. ApplianceDealerShowroom [] H. AnotherDacorOwner
[] D. KitchenDealerShowroom [] I. ModelHome
[] E. HomeShow [] J. Other
2.WheredidyoubuyyourDacorappliances?
[] A. ApplianceDealer [] D. Builder
[] B. KitchenDealer [] E. Other
[] C. BuilderSupplier
3. For what purpose was the product purchased?
[] A. Replacementon/y [] C. New Home
[] B. Part of a Remodeled [] D. Other
4.Whatis yourhouseholdincome?
[] A. Under$75,000 [] D. $150,000-$200,000
[] B. $75,000-$100,000 [] E. $200,000-$250,000
[] C. $100,000-$150,000 [] E. Over$250,O00
5. Forwhatpurposewastheproductpurchased?
A. Cooktop
B.Oven C. Dishwasher
D.Refrigerator
6.Wouldyoubuyor recommendanotherDacorproduct?
[] Yes
Comments: [] No
Thankyouverymuchforyourassistance.Theinformationyouhaveprovidedwillbeextremelyvaluablein helpingusplanforthefuture
andgivingyouthesupportyoudeserve.
Web Site: www.dacor.com
For a DeaIer/Service: [phone]
Corporate Phone: [phone] ®PlaceSerialNumberLabelHere
I
I
I
I
I
I
I
I
I
I
I
I
°I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
*d
°I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
