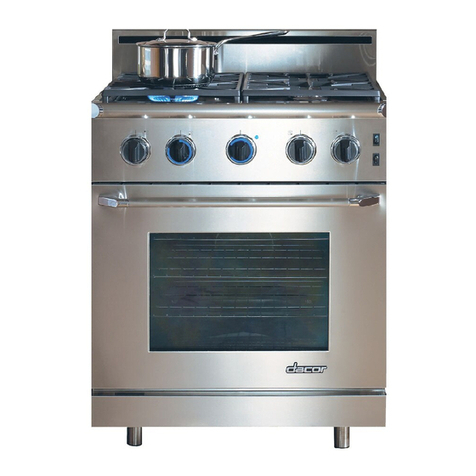

Dacor Epicure ER30G Technical manual

PLANNING
GUIDE
www.Dacor.com Phone: [phone]
Specications subject to change without notice.
Install all appliances according to accompanying installation instructions. 5.1
ER30G, ER30GI
WARNING
Observe all governing codes and ordinances during planning•
and installation. Contact your local building department for
further information.
This appliance must be installed in accordance with the•
accompanying installation instructions.
All tolerances ±1/16” (±1.6mm) unless otherwise noted.
1 1/8” (29mm)
1 9/16”
(40mm)
2” (51mm)
3” (76mm)
Front of open door
Front of handle
Front edge of bullnose
Front panel
Rear of front panel
Backguard thickness
26 1/8” (664mm)
27 1/16” (687mm)
28 9/16” (725mm)
24” (610mm)
3” (76mm)
Backguard***
ER30G:
Full stainless
steel side panels
ER30GI:
Partial stainless
steel side panel
Grates extend
1” above trim
6” (152mm)
Backguard*
1 3/4” (44mm) Backguard**
***
**
*
Optional on both models, NOT
compatible with self-rimming installations
Standard on model ER30G
Optional on model ER30GI, NOT
compatible with self-rimming installations
Standard on model ER30GI
Optional on model ER30G
Product width:
29 7/8” (759mm)
ER30G is designed for freestanding install-
ations. ER30GI is designed for installation
in a recessed cabinet or island. ER30G is
NOT equipped for self-rimming installation.
NOTE: Neither model is
compatible with a raised vent.
35”
(889mm)
to
37 1/8”
(943mm)
9” (229mm)
Backguard***
45 9/16” (1157mm)
ER30G/ER30GI
OVERALL DEPTH DIMENSIONS - SIDE VIEW
Electrical Circuit
Required
Total Connected
Load
120 Vac, 60 Hz, 15 Amps.,
dedicated, grounded
4.0 Amps. @ 120 Vac,
60 Hz
ELECTRICAL REQUIREMENTS
Document # PG05-001 Revised 05/25/10 Page 1/3
30” Wide, Epicure®
All Gas Range

PLANNING
GUIDE
www.Dacor.com Phone: [phone]
Specications subject to change without notice.
Install all appliances according to accompanying installation instructions. 5.2
ER30G, ER30GI
All tolerances +1/16” -0 (+1.6mm, 0) unless otherwise noted.
A* B C
30 1/16” (764mm) 30” (762mm) Minimum
36” (914mm) Recommended
37 1/8” (943mm)
Maximum
Note 2
2Cabinet/countertop depth is at discretion of customer
but cabinet face SHALL NOT protrude further than rear
of front panel. See product dimesions.
3Consult local code for exact location requirements.
4Not applicable for cabinets more than a horizontal
distance of 10” (254mm) from the edge of the range.
1Vertical to combustible surface from range grate level
B
A
Non-combustible
surface along
back wall
recommended
10” (254mm Min.
to combustible side
walls above the range
(both sides)
Top of
finished
counter
Suggested
location of
utilities3
30” (762mm)
Min.1
13” (330mm)
Max.4
18” (457mm)
Min.1, 4
C
SLIDE-IN CUTOUT DIMENSIONS
SELF-RIMMING CUTOUT DIMENSIONS -
CABINET DEPTH GREATER THAN 24 INCHES
(ER30GI ONLY)
SELF-RIMMING CUTOUT DIMENSIONS -
CABINET DEPTH EXACTLY 24 INCHES
(ER30GI ONLY)
non comubustible
rear wall recommended
Countertop Height: Min: 34 3/4” (883mm)
Max: 36 7/8” (937mm)
Countertop Thickness: Max: 1 5/8” (41mm)
countertop opening
29 1/4” (743mm)
30” (762mm)
cabinet opening
below countertop
below countertop
Cabinet face
Notch countertop
overhang to width of
cabinets
10” Min. (254mm)
to any combustibles
above counter both sides
Countertop overhang
2 1/8” (54mm) Max.
24”
(610mm)
rear wall or
countertop edge
Countertop Height: Min: 34 3/4” (883mm)
Max: 36 7/8” (937mm)
Countertop Thickness: Max: 1 5/8” (41mm)
countertop opening
29 1/4” (743mm)
30” (762mm)
cabinet opening
below countertop
below countertop
Cabinet face
Notch countertop
overhang to width of
cabinets
3/4” Min. (19mm)
Countertop overhang
10” Min. (254mm)
to any combustibles
above counter both sides
Countertop overhang
2 1/8” (54mm) Max.
24 1/8”
(613mm)
* See the cutout dimensions below for self-rimming installations
Document # PG05-001 Revised 05/25/10 Page 2/3
NOTE: Self-rimming kit is included with model ER30GI.
The self-rimming kit allows the trim to overlap the
counter top on the sides and back.
30” Wide, Epicure®
All Gas Range

PLANNING
GUIDE
www.Dacor.com Phone: [phone]
Specications subject to change without notice.
Install all appliances according to accompanying installation instructions. 5.3
ER30G, ER30GI
12 1/2”
(318 mm)
to
14 5/8”
(371 mm)
2 5/8”
(67 mm)
C
L
C
L
10” (254mm) 10” (254mm)
12” (305mm)
2 1/2”
(64mm)
3 1/2”
(89mm)
1” (25mm)
BACK OF RANGE UTILITY CLEARANCE BEHIND RANGE
GAS SUPPLY PRESSURE REQUIREMENTS
Gas
Type
Manifold
Pressure* (WC)
Min. Gas Supply
Pressure (WC)
Max. Input
Pressure
Natural 5” 6” 1/2 p.s.i.
LP 10” 11” 1/2 p.s.i.
IMPORTANT: The information above is for reference only. If the above
data does not agree with the product data label, use the data on the
product data label on top of the kick plate below the door (remove the
door according to the installation instructions to view it).
The gas connection is located on the back of the unit as shown. Use a
1/2" male NPT to connect to the regulator.
Document # PG05-001 Revised 05/25/10 Page 3/3
30” Wide, Epicure®
All Gas Range
